SRC/rr_graph.c File Reference

#include <stdio.h>
#include <math.h>
#include <assert.h>
#include <string.h>
#include "util.h"
#include "vpr_types.h"
#include "globals.h"
#include "rr_graph_util.h"
#include "rr_graph.h"
#include "rr_graph2.h"
#include "rr_graph_sbox.h"
#include "check_rr_graph.h"
#include "rr_graph_timing_params.h"
#include "rr_graph_indexed_data.h"
#include "vpr_utils.h"

Include dependency graph for rr_graph.c:

Go to the source code of this file.

Data Structures
struct	s_mux
struct	s_mux_size_distribution
Defines
#define	REVERSE_OPIN_ORDER
#define	MUX_SIZE_DIST_DISPLAY
Typedefs
typedef struct s_mux	t_mux
typedef struct s_mux_size_distribution	t_mux_size_distribution
Functions
static int ****	alloc_and_load_pin_to_track_map (IN enum e_pin_type pin_type, IN int nodes_per_chan, IN int Fc, IN t_type_ptr Type, IN boolean perturb_switch_pattern, IN enum e_directionality directionality)
static struct s_ivec ***	alloc_and_load_track_to_pin_lookup (IN int ****pin_to_track_map, IN int Fc, IN int height, IN int num_pins, IN int nodes_per_chan)
static void	build_bidir_rr_opins (IN int i, IN int j, INOUT t_rr_node *rr_node, IN t_ivec ***rr_node_indices, IN int *****opin_to_track_map, IN int *Fc_out, IN boolean *rr_edge_done, IN t_seg_details *seg_details, IN struct s_grid_tile **grid)
static void	build_unidir_rr_opins (IN int i, IN int j, IN struct s_grid_tile **grid, IN int *Fc_out, IN int nodes_per_chan, IN t_seg_details *seg_details, INOUT int **Fc_xofs, INOUT int **Fc_yofs, INOUT t_rr_node *rr_node, INOUT boolean *rr_edge_done, OUT boolean *Fc_clipped, IN t_ivec ***rr_node_indices)
static void	alloc_and_load_rr_graph (IN int num_nodes, IN t_rr_node *rr_node, IN int num_seg_types, IN t_seg_details *seg_details, IN boolean *rr_edge_done, IN struct s_ivec ****track_to_ipin_lookup, IN int *****opin_to_track_map, IN struct s_ivec ***switch_block_conn, IN struct s_grid_tile **grid, IN int nx, IN int ny, IN int Fs, IN short *****sblock_pattern, IN int *Fc_out, IN int **Fc_xofs, IN int **Fc_yofs, IN t_ivec ***rr_node_indices, IN int nodes_per_chan, IN enum e_switch_block_type sb_type, IN int delayless_switch, IN enum e_directionality directionality, IN int wire_to_ipin_switch, OUT boolean *Fc_clipped)
static void	load_uniform_switch_pattern (IN t_type_ptr type, INOUT int ****tracks_connected_to_pin, IN int num_phys_pins, IN int *pin_num_ordering, IN int *side_ordering, IN int *offset_ordering, IN int nodes_per_chan, IN int Fc, IN enum e_directionality directionality)
static void	load_perturbed_switch_pattern (IN t_type_ptr type, INOUT int ****tracks_connected_to_pin, IN int num_phys_pins, IN int *pin_num_ordering, IN int *side_ordering, IN int *offset_ordering, IN int nodes_per_chan, IN int Fc, IN enum e_directionality directionality)
static void	check_all_tracks_reach_pins (t_type_ptr type, int ****tracks_connected_to_pin, int nodes_per_chan, int Fc, enum e_pin_type ipin_or_opin)
static int	track_side (int clb_side)
static boolean *	alloc_and_load_perturb_ipins (IN int nodes_per_chan, IN int num_types, IN int *Fc_in, IN int *Fc_out, IN enum e_directionality directionality)
static void	print_rr_node (FILE *fp, t_rr_node *rr_node, int inode)
static void	build_rr_sinks_sources (IN int i, IN int j, IN t_rr_node *rr_node, IN t_ivec ***rr_node_indices, IN int delayless_switch, IN struct s_grid_tile **grid)
static void	build_rr_xchan (IN int i, IN int j, IN struct s_ivec ****track_to_ipin_lookup, IN struct s_ivec ***switch_block_conn, IN int cost_index_offset, IN int nodes_per_chan, IN int *opin_mux_size, IN short *****sblock_pattern, IN int Fs_per_side, IN t_seg_details *seg_details, IN t_ivec ***rr_node_indices, IN boolean *rr_edge_done, INOUT t_rr_node *rr_node, IN int wire_to_ipin_switch, IN enum e_directionality directionality)
static void	build_rr_ychan (IN int i, IN int j, IN struct s_ivec ****track_to_ipin_lookup, IN struct s_ivec ***switch_block_conn, IN int cost_index_offset, IN int nodes_per_chan, IN int *opin_mux_size, IN short *****sblock_pattern, IN int Fs_per_side, IN t_seg_details *seg_details, IN t_ivec ***rr_node_indices, IN boolean *rr_edge_done, INOUT t_rr_node *rr_node, IN int wire_to_ipin_switch, IN enum e_directionality directionality)
static void	rr_graph_externals (t_timing_inf timing_inf, t_segment_inf *segment_inf, int num_seg_types, int nodes_per_chan, int wire_to_ipin_switch, enum e_base_cost_type base_cost_type)
void	alloc_and_load_edges_and_switches (IN t_rr_node *rr_node, IN int inode, IN int num_edges, IN boolean *rr_edge_done, IN t_linked_edge *edge_list_head)
static void	alloc_net_rr_terminals (void)
static void	alloc_and_load_rr_clb_source (t_ivec ***rr_node_indices)
static void	load_uniform_opin_switch_pattern_paired (IN int *Fc_out, IN int num_pins, IN int *pins_in_chan_seg, IN int num_wire_inc_muxes, IN int num_wire_dec_muxes, IN int *wire_inc_muxes, IN int *wire_dec_muxes, INOUT t_rr_node *rr_node, INOUT boolean *rr_edge_done, IN t_seg_details *seg_details, OUT boolean *Fc_clipped)
static int *	get_adj_opins (IN int i, IN int j, OUT int *num_pins, IN t_ivec ***rr_node_indices, IN enum e_rr_type chan_type)
void	watch_edges (int inode, t_linked_edge *edge_list_head)
static void	view_mux_size_distribution (t_ivec ***rr_node_indices, int nodes_per_chan, t_seg_details *seg_details_x, t_seg_details *seg_details_y)
static void	print_distribution (FILE *fptr, t_mux_size_distribution *distr_struct)
static void	free_type_pin_to_track_map (int *****ipin_to_track_map, t_type_ptr types, int *fc_in)
static void	free_type_track_to_ipin_map (struct s_ivec ****track_to_pin_map, t_type_ptr types, int nodes_per_chan)
static t_seg_details *	alloc_and_load_global_route_seg_details (IN int nodes_per_chan, IN int global_route_switch)
static int *	alloc_and_load_actual_fc (IN int num_types, IN t_type_ptr types, IN int nodes_per_chan, IN boolean is_Fc_out, IN enum e_directionality directionality, OUT boolean *Fc_clipped)
void	build_rr_graph (IN t_graph_type graph_type, IN int num_types, IN t_type_ptr types, IN int nx, IN int ny, IN struct s_grid_tile **grid, IN int chan_width, IN struct s_chan_width_dist *chan_capacity_inf, IN enum e_switch_block_type sb_type, IN int Fs, IN int num_seg_types, IN int num_switches, IN t_segment_inf *segment_inf, IN int global_route_switch, IN int delayless_switch, IN t_timing_inf timing_inf, IN int wire_to_ipin_switch, IN enum e_base_cost_type base_cost_type, OUT int *Warnings)
void	free_rr_graph (void)
void	load_net_rr_terminals (t_ivec ***rr_node_indices)
static void	build_rr_xchan (IN int i, IN int j, IN struct s_ivec ****track_to_ipin_lookup, IN struct s_ivec ***switch_block_conn, IN int cost_index_offset, IN int nodes_per_chan, IN int *opin_mux_size, IN short *****sblock_pattern, IN int Fs_per_side, IN t_seg_details *seg_details, IN t_ivec ***rr_node_indices, INOUT boolean *rr_edge_done, INOUT t_rr_node *rr_node, IN int wire_to_ipin_switch, IN enum e_directionality directionality)
void	alloc_and_load_edges_and_switches (IN t_rr_node *rr_node, IN int inode, IN int num_edges, INOUT boolean *rr_edge_done, IN t_linked_edge *edge_list_head)
static void	load_uniform_switch_pattern (IN t_type_ptr type, INOUT int ****tracks_connected_to_pin, IN int num_phys_pins, IN int *pin_num_ordering, IN int *side_ordering, IN int *offset_ordering, IN int nodes_per_chan, IN int Fc, enum e_directionality directionality)
static void	load_perturbed_switch_pattern (IN t_type_ptr type, INOUT int ****tracks_connected_to_pin, IN int num_phys_pins, IN int *pin_num_ordering, IN int *side_ordering, IN int *offset_ordering, IN int nodes_per_chan, IN int Fc, enum e_directionality directionality)

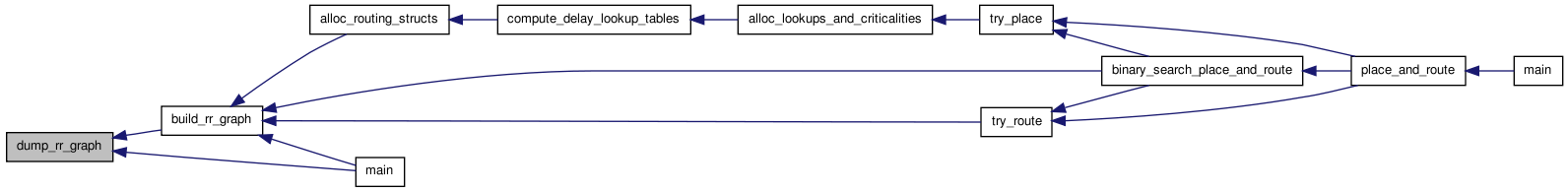

void	dump_rr_graph (IN const char *file_name)

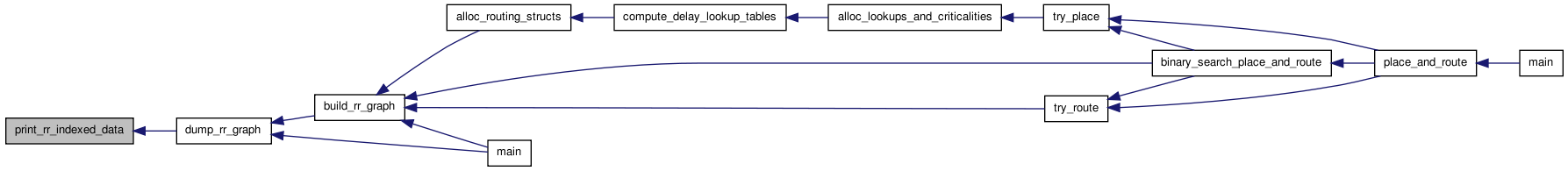

void	print_rr_indexed_data (FILE *fp, int index)
Variables
static struct s_linked_vptr *	rr_mem_chunk_list_head = NULL
static int	chunk_bytes_avail = 0
static char *	chunk_next_avail_mem = NULL

---

Define Documentation

#define MUX_SIZE_DIST_DISPLAY

Definition at line 26 of file rr_graph.c.

#define REVERSE_OPIN_ORDER

Definition at line 23 of file rr_graph.c.

---

Typedef Documentation

typedef struct s_mux t_mux

typedef struct s_mux_size_distribution t_mux_size_distribution

---

Function Documentation

static int * alloc_and_load_actual_fc	(	IN int	num_types,
		IN t_type_ptr	types,
		IN int	nodes_per_chan,
		IN boolean	is_Fc_out,
		IN enum e_directionality	directionality,
		OUT boolean *	Fc_clipped
	)			[static]

Definition at line 765 of file rr_graph.c.

{

    int i;
    int *Result = NULL;
    int fac, num_sets;
    float Fc;

    *Fc_clipped = FALSE;

    /* Unidir tracks formed in pairs, otherwise no effect. */
    fac = 1;
    if(UNI_DIRECTIONAL == directionality)
        {
            fac = 2;
        }

    assert((nodes_per_chan % fac) == 0);
    num_sets = nodes_per_chan / fac;

    Result = (int *)my_malloc(sizeof(int) * num_types);

    for(i = 0; i < num_types; ++i)
        {
            Fc = (is_Fc_out ? type_descriptors[i].
                  Fc_out : type_descriptors[i].Fc_in);

            if(type_descriptors[i].is_Fc_frac)
                {
                    Result[i] = fac * nint(num_sets * Fc);
                }
            else
                {
                    Result[i] = Fc;
                }

            if(is_Fc_out && type_descriptors[i].is_Fc_out_full_flex)
                {
                    Result[i] = nodes_per_chan;
                }

            Result[i] = max(Result[i], fac);
            if(Result[i] > nodes_per_chan)
                {
                    *Fc_clipped = TRUE;
                    Result[i] = nodes_per_chan;
                }

            assert(Result[i] % fac == 0);
        }

    return Result;
}

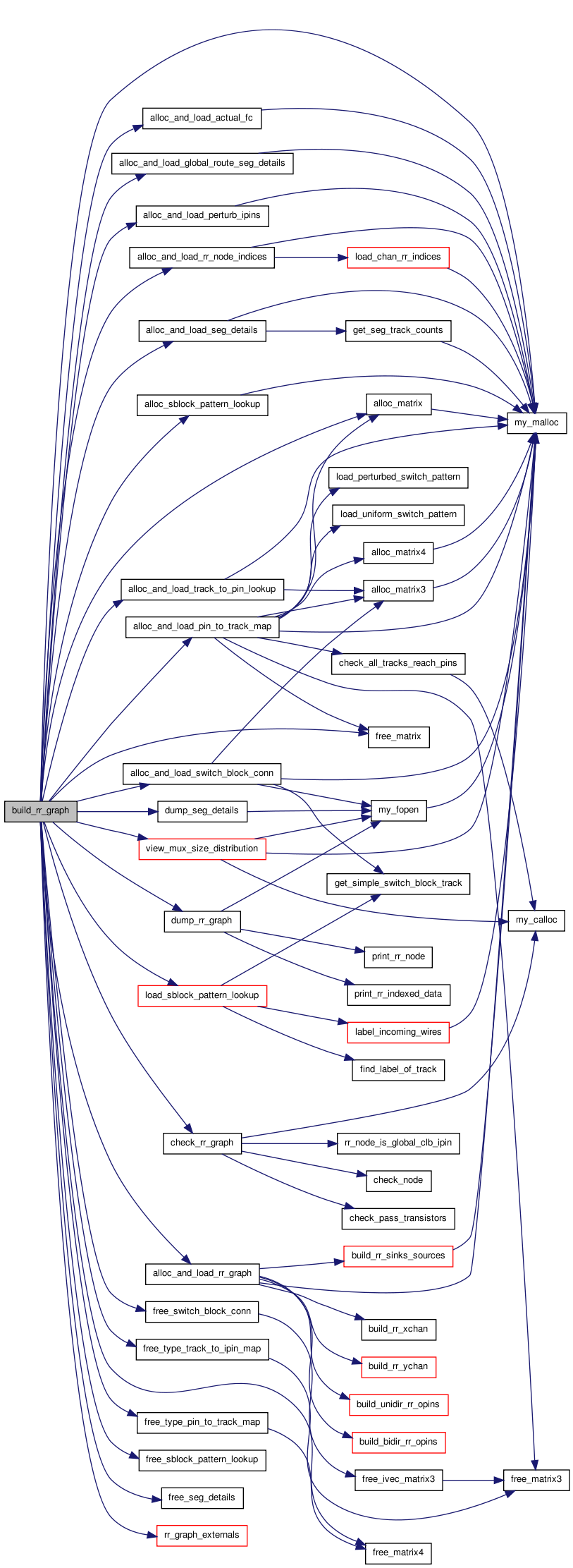

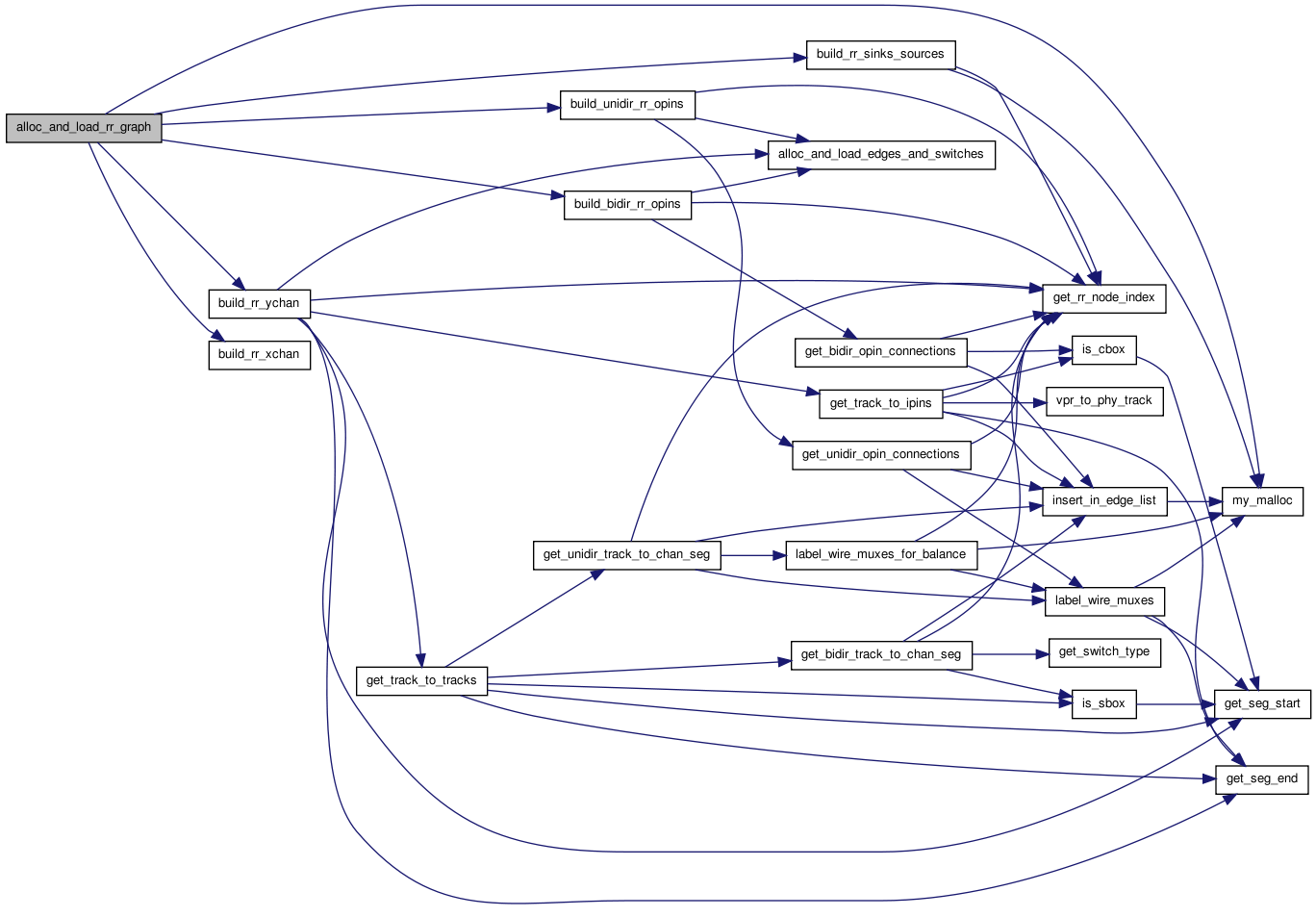

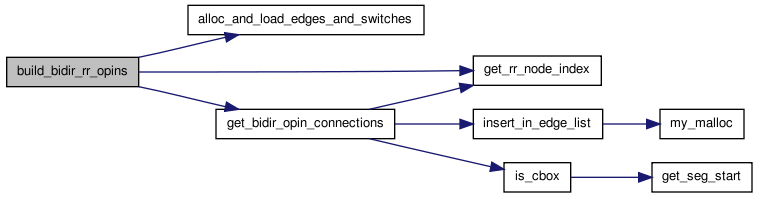

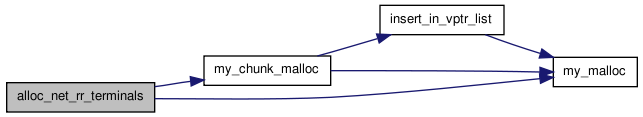

Here is the call graph for this function:

Here is the caller graph for this function:

void alloc_and_load_edges_and_switches	(	IN t_rr_node *	rr_node,
		IN int	inode,
		IN int	num_edges,
		INOUT boolean *	rr_edge_done,
		IN t_linked_edge *	edge_list_head
	)

Definition at line 1667 of file rr_graph.c.

{

    /* Sets up all the edge related information for rr_node inode (num_edges,  *
     * the edges array and the switches array).  The edge_list_head points to  *
     * a list of the num_edges edges and switches to put in the arrays.  This  *
     * linked list is freed by this routine. This routine also resets the      *
     * rr_edge_done array for the next rr_node (i.e. set it so that no edges   *
     * are marked as having been seen before).                                 */

    t_linked_edge *list_ptr, *prev_ptr;
    int i;

    /* Check we aren't overwriting edges */
    assert(rr_node[inode].num_edges < 1);
    assert(NULL == rr_node[inode].edges);
    assert(NULL == rr_node[inode].switches);

    rr_node[inode].num_edges = num_edges;
    rr_node[inode].edges = (int *)my_malloc(num_edges * sizeof(int));
    rr_node[inode].switches = (short *)my_malloc(num_edges * sizeof(short));

    i = 0;
    list_ptr = edge_list_head;
    while(list_ptr && (i < num_edges))
        {
            rr_node[inode].edges[i] = list_ptr->edge;
            rr_node[inode].switches[i] = list_ptr->iswitch;

            ++rr_node[list_ptr->edge].fan_in;

            /* Unmark the edge since we are done considering fanout from node. */
            rr_edge_done[list_ptr->edge] = FALSE;

            prev_ptr = list_ptr;
            list_ptr = list_ptr->next;
            ++i;
        }
    assert(list_ptr == NULL);
    assert(i == num_edges);
}

Here is the call graph for this function:

void alloc_and_load_edges_and_switches	(	IN t_rr_node *	rr_node,
		IN int	inode,
		IN int	num_edges,
		IN boolean *	rr_edge_done,
		IN t_linked_edge *	edge_list_head
	)

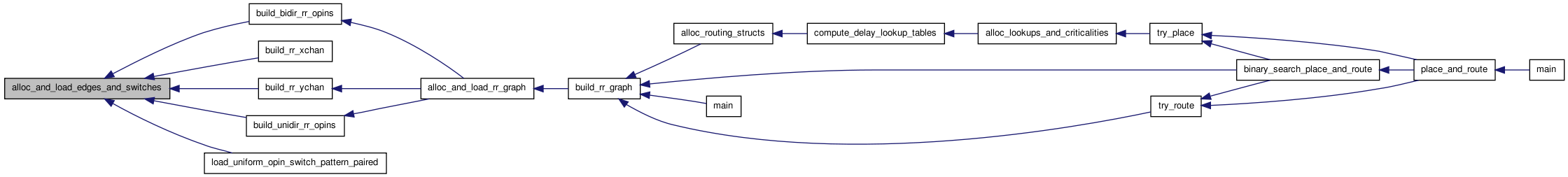

Here is the caller graph for this function:

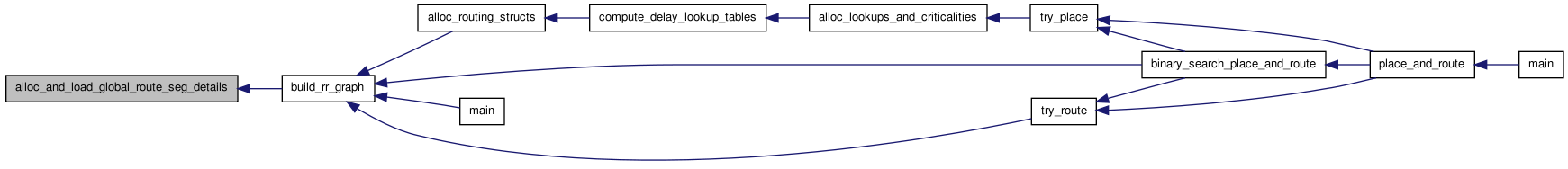

static t_seg_details * alloc_and_load_global_route_seg_details	(	IN int	nodes_per_chan,
		IN int	global_route_switch
	)			[static]

Definition at line 731 of file rr_graph.c.

{
    t_seg_details *result = NULL;

    assert(nodes_per_chan == 1);
    result = (t_seg_details *) my_malloc(sizeof(t_seg_details));

    result->index = 0;
    result->length = 1;
    result->wire_switch = global_route_switch;
    result->opin_switch = global_route_switch;
    result->longline = FALSE;
    result->direction = BI_DIRECTION;
    result->Cmetal = 0.0;
    result->Rmetal = 0.0;
    result->start = 1;
    result->drivers = MULTI_BUFFERED;
    result->cb = (boolean *) my_malloc(sizeof(boolean) * 1);
    result->cb[0] = TRUE;
    result->sb = (boolean *) my_malloc(sizeof(boolean) * 2);
    result->sb[0] = TRUE;
    result->sb[1] = TRUE;
        result->group_size = 1;
        result->group_start = 0;

    return result;
}

Here is the call graph for this function:

Here is the caller graph for this function:

static boolean * alloc_and_load_perturb_ipins	(	IN int	nodes_per_chan,
		IN int	num_types,
		IN int *	Fc_in,
		IN int *	Fc_out,
		IN enum e_directionality	directionality
	)			[static]

Definition at line 680 of file rr_graph.c.

{
    int i;
    float Fc_ratio;
    boolean *result = NULL;

    result = (boolean *) my_malloc(num_types * sizeof(boolean));

    if(BI_DIRECTIONAL == directionality)
        {
            for(i = 0; i < num_types; ++i)
                {
                    result[i] = FALSE;

                    if(Fc_in[i] > Fc_out[i])
                        {
                            Fc_ratio = (float)Fc_in[i] / (float)Fc_out[i];
                        }
                    else
                        {
                            Fc_ratio = (float)Fc_out[i] / (float)Fc_in[i];
                        }

                    if((Fc_in[i] <= nodes_per_chan - 2) &&
                       (fabs(Fc_ratio - nint(Fc_ratio)) <
                        (0.5 / (float)nodes_per_chan)))
                        {
                            result[i] = TRUE;
                        }
                }
        }
    else
        {
            /* Unidirectional routing uses mux balancing patterns and
             * thus shouldn't need perturbation. */
            assert(UNI_DIRECTIONAL == directionality);
            for(i = 0; i < num_types; ++i)
                {
                    result[i] = FALSE;
                }
        }

    return result;
}

Here is the call graph for this function:

Here is the caller graph for this function:

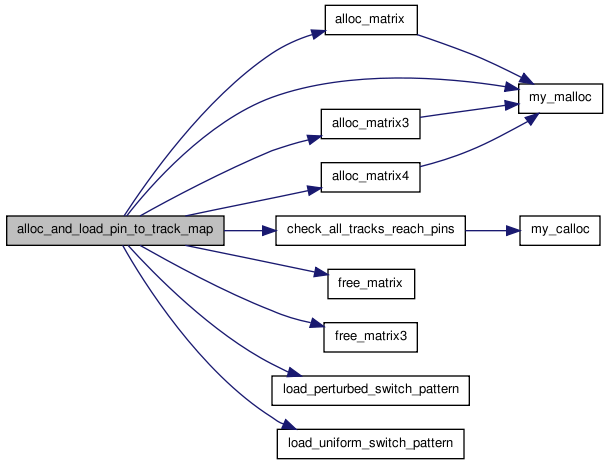

static int **** alloc_and_load_pin_to_track_map	(	IN enum e_pin_type	pin_type,
		IN int	nodes_per_chan,
		IN int	Fc,
		IN t_type_ptr	Type,
		IN boolean	perturb_switch_pattern,
		IN enum e_directionality	directionality
	)			[static]

Definition at line 1720 of file rr_graph.c.

{

    int **num_dir;              /* [0..height][0..3] Number of *physical* pins on each side.          */
    int ***dir_list;            /* [0..height][0..3][0..num_pins-1] list of pins of correct type  *
                                 * * on each side. Max possible space alloced for simplicity */

    int i, j, k, iside, ipin, iclass, num_phys_pins, pindex, ioff;
    int *pin_num_ordering, *side_ordering, *offset_ordering;
    int **num_done_per_dir;     /* [0..height][0..3] */
    int ****tracks_connected_to_pin;    /* [0..num_pins-1][0..height][0..3][0..Fc-1] */

    /* NB:  This wastes some space.  Could set tracks_..._pin[ipin][ioff][iside] =
     * NULL if there is no pin on that side, or that pin is of the wrong type.
     * Probably not enough memory to worry about, esp. as it's temporary.
     * If pin ipin on side iside does not exist or is of the wrong type,
     * tracks_connected_to_pin[ipin][iside][0] = OPEN.                               */

    if(Type->num_pins < 1)
        {
            return NULL;
        }

    tracks_connected_to_pin = (int ****)
        alloc_matrix4(0, Type->num_pins - 1,
                      0, Type->height - 1, 0, 3, 0, Fc - 1, sizeof(int));

    for(ipin = 0; ipin < Type->num_pins; ipin++)
        {
            for(ioff = 0; ioff < Type->height; ioff++)
                {
                    for(iside = 0; iside < 4; iside++)
                        {
                            for(i = 0; i < Fc; ++i)
                                {
                                    tracks_connected_to_pin[ipin][ioff][iside][i] = OPEN;       /* Unconnected. */
                                }
                        }
                }
        }

    num_dir = (int **)alloc_matrix(0, Type->height - 1, 0, 3, sizeof(int));
    dir_list =
        (int ***)alloc_matrix3(0, Type->height - 1, 0, 3, 0,
                               Type->num_pins - 1, sizeof(int));

    /* Defensive coding.  Try to crash hard if I use an unset entry.  */
    for(i = 0; i < Type->height; i++)
        for(j = 0; j < 4; j++)
            for(k = 0; k < Type->num_pins; k++)
                dir_list[i][j][k] = (-1);

    for(i = 0; i < Type->height; i++)
        for(j = 0; j < 4; j++)
            num_dir[i][j] = 0;

    for(ipin = 0; ipin < Type->num_pins; ipin++)
        {
            iclass = Type->pin_class[ipin];
            if(Type->class_inf[iclass].type != pin_type)        /* Doing either ipins OR opins */
                continue;

            /* Pins connecting only to global resources get no switches -> keeps the    *
             * area model accurate.                                                     */

            if(Type->is_global_pin[ipin])
                continue;
            for(ioff = 0; ioff < Type->height; ioff++)
                {
                    for(iside = 0; iside < 4; iside++)
                        {
                            if(Type->pinloc[ioff][iside][ipin] == 1)
                                {
                                    dir_list[ioff][iside][num_dir[ioff]
                                                          [iside]] = ipin;
                                    num_dir[ioff][iside]++;
                                }
                        }
                }
        }

    num_phys_pins = 0;
    for(ioff = 0; ioff < Type->height; ioff++)
        {
            for(iside = 0; iside < 4; iside++)
                num_phys_pins += num_dir[ioff][iside];  /* Num. physical pins per type */
        }
    num_done_per_dir =
        (int **)alloc_matrix(0, Type->height - 1, 0, 3, sizeof(int));
    for(ioff = 0; ioff < Type->height; ioff++)
        {
            for(iside = 0; iside < 4; iside++)
                {
                    num_done_per_dir[ioff][iside] = 0;
                }
        }
    pin_num_ordering = (int *)my_malloc(num_phys_pins * sizeof(int));
    side_ordering = (int *)my_malloc(num_phys_pins * sizeof(int));
    offset_ordering = (int *)my_malloc(num_phys_pins * sizeof(int));

    /* Connection block I use distributes pins evenly across the tracks      *
     * of ALL sides of the clb at once.  Ensures that each pin connects      *
     * to spaced out tracks in its connection block, and that the other      *
     * pins (potentially in other C blocks) connect to the remaining tracks  *
     * first.  Doesn't matter for large Fc, but should make a fairly         *
     * good low Fc block that leverages the fact that usually lots of pins   *
     * are logically equivalent.                                             */

    iside = LEFT;
    ioff = Type->height - 1;
    ipin = 0;
    pindex = -1;

    while(ipin < num_phys_pins)
        {
            if(iside == TOP)
                {
                    iside = RIGHT;
                }
            else if(iside == RIGHT)
                {
                    if(ioff <= 0)
                        {
                            iside = BOTTOM;
                        }
                    else
                        {
                            ioff--;
                        }
                }
            else if(iside == BOTTOM)
                {
                    iside = LEFT;
                }
            else
                {
                    assert(iside == LEFT);
                    if(ioff >= Type->height - 1)
                        {
                            pindex++;
                            iside = TOP;
                        }
                    else
                        {
                            ioff++;
                        }
                }

            assert(pindex < num_phys_pins);     /* Number of physical pins bounds number of logical pins */

            if(num_done_per_dir[ioff][iside] >= num_dir[ioff][iside])
                continue;
            pin_num_ordering[ipin] = dir_list[ioff][iside][pindex];
            side_ordering[ipin] = iside;
            offset_ordering[ipin] = ioff;
            assert(Type->pinloc[ioff][iside][dir_list[ioff][iside][pindex]]);
            num_done_per_dir[ioff][iside]++;
            ipin++;
        }

    if(perturb_switch_pattern)
        {
            load_perturbed_switch_pattern(Type,
                                          tracks_connected_to_pin,
                                          num_phys_pins,
                                          pin_num_ordering,
                                          side_ordering,
                                          offset_ordering,
                                          nodes_per_chan, Fc, directionality);
        }
    else
        {
            load_uniform_switch_pattern(Type,
                                        tracks_connected_to_pin,
                                        num_phys_pins,
                                        pin_num_ordering,
                                        side_ordering,
                                        offset_ordering,
                                        nodes_per_chan, Fc, directionality);
        }
    check_all_tracks_reach_pins(Type, tracks_connected_to_pin,
                                nodes_per_chan, Fc, pin_type);

    /* Free all temporary storage. */
    free_matrix(num_dir, 0, Type->height - 1, 0, sizeof(int));
    free_matrix3(dir_list, 0, Type->height - 1, 0, 3, 0, sizeof(int));
    free_matrix(num_done_per_dir, 0, Type->height - 1, 0, sizeof(int));
    free(pin_num_ordering);
    free(side_ordering);
    free(offset_ordering);

    return tracks_connected_to_pin;
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void alloc_and_load_rr_clb_source

(

t_ivec ***

rr_node_indices

)

[static]

Definition at line 1149 of file rr_graph.c.

{

    /* Saves the rr_node corresponding to each SOURCE and SINK in each FB      *
     * in the FPGA.  Currently only the SOURCE rr_node values are used, and     *
     * they are used only to reserve pins for locally used OPINs in the router. *
     * [0..num_blocks-1][0..num_class-1].  The values for blocks that are pads  *
     * are NOT valid.                                                           */

    int iblk, i, j, iclass, inode;
    int class_low, class_high;
    t_rr_type rr_type;
    t_type_ptr type;

    rr_blk_source = (int **)my_malloc(num_blocks * sizeof(int *));

    for(iblk = 0; iblk < num_blocks; iblk++)
        {
            type = block[iblk].type;
            get_class_range_for_block(iblk, &class_low, &class_high);
            rr_blk_source[iblk] =
                (int *)my_malloc(type->num_class * sizeof(int));
            for(iclass = 0; iclass < type->num_class; iclass++)
                {
                    if(iclass >= class_low && iclass <= class_high)
                        {
                            i = block[iblk].x;
                            j = block[iblk].y;

                            if(type->class_inf[iclass].type == DRIVER)
                                rr_type = SOURCE;
                            else
                                rr_type = SINK;

                            inode =
                                get_rr_node_index(i, j, rr_type, iclass,
                                                  rr_node_indices);
                            rr_blk_source[iblk][iclass] = inode;
                        }
                    else
                        {
                            rr_blk_source[iblk][iclass] = OPEN;
                        }
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void alloc_and_load_rr_graph	(	IN int	num_nodes,
		IN t_rr_node *	rr_node,
		IN int	num_seg_types,
		IN t_seg_details *	seg_details,
		IN boolean *	rr_edge_done,
		IN struct s_ivec ****	track_to_ipin_lookup,
		IN int *****	opin_to_track_map,
		IN struct s_ivec ***	switch_block_conn,
		IN struct s_grid_tile **	grid,
		IN int	nx,
		IN int	ny,
		IN int	Fs,
		IN short *****	sblock_pattern,
		IN int *	Fc_out,
		IN int **	Fc_xofs,
		IN int **	Fc_yofs,
		IN t_ivec ***	rr_node_indices,
		IN int	nodes_per_chan,
		IN enum e_switch_block_type	sb_type,
		IN int	delayless_switch,
		IN enum e_directionality	directionality,
		IN int	wire_to_ipin_switch,
		OUT boolean *	Fc_clipped
	)			[static]

Definition at line 866 of file rr_graph.c.

{

    int i, j;
    boolean clipped;
    int *opin_mux_size = NULL;


    /* If Fc gets clipped, this will be flagged to true */
    *Fc_clipped = FALSE;

    /* Connection SINKS and SOURCES to their pins. */
    for(i = 0; i <= (nx + 1); i++)
        {
            for(j = 0; j <= (ny + 1); j++)
                {
                    build_rr_sinks_sources(i, j, rr_node, rr_node_indices,
                                           delayless_switch, grid);
                }
        }

    /* Build opins */
    for(i = 0; i <= (nx + 1); ++i)
        {
            for(j = 0; j <= (ny + 1); ++j)
                {
                    if(BI_DIRECTIONAL == directionality)
                        {
                            build_bidir_rr_opins(i, j, rr_node,
                                                 rr_node_indices,
                                                 opin_to_track_map, Fc_out,
                                                 rr_edge_done, seg_details,
                                                 grid);
                        }
                    else
                        {
                            assert(UNI_DIRECTIONAL == directionality);
                            build_unidir_rr_opins(i, j, grid, Fc_out,
                                                  nodes_per_chan, seg_details,
                                                  Fc_xofs, Fc_yofs, rr_node,
                                                  rr_edge_done, &clipped,
                                                  rr_node_indices);
                            if(clipped)
                                {
                                    *Fc_clipped = TRUE;
                                }
                        }
                }
        }

    /* We make a copy of the current fanin values for the nodes to
     * know the number of OPINs driving each mux presently */
    opin_mux_size = (int *)my_malloc(sizeof(int) * num_nodes);
    for(i = 0; i < num_nodes; ++i)
        {
            opin_mux_size[i] = rr_node[i].fan_in;
        }

    /* Build channels */
    assert(Fs % 3 == 0);
    for(i = 0; i <= nx; i++)
        {
            for(j = 0; j <= ny; j++)
                {
                    if(i > 0)
                        {
                            build_rr_xchan(i, j, track_to_ipin_lookup,
                                           switch_block_conn,
                                           CHANX_COST_INDEX_START,
                                           nodes_per_chan, opin_mux_size,
                                           sblock_pattern, Fs / 3,
                                           seg_details, rr_node_indices,
                                           rr_edge_done, rr_node,
                                           wire_to_ipin_switch,
                                           directionality);
                        }
                    if(j > 0)
                        {
                            build_rr_ychan(i, j, track_to_ipin_lookup,
                                           switch_block_conn,
                                           CHANX_COST_INDEX_START +
                                           num_seg_types, nodes_per_chan,
                                           opin_mux_size, sblock_pattern,
                                           Fs / 3, seg_details,
                                           rr_node_indices, rr_edge_done,
                                           rr_node, wire_to_ipin_switch,
                                           directionality);
                        }
                }
        }
        free(opin_mux_size);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static struct s_ivec *** alloc_and_load_track_to_pin_lookup	(	IN int ****	pin_to_track_map,
		IN int	Fc,
		IN int	height,
		IN int	num_pins,
		IN int	nodes_per_chan
	)			[static, read]

Definition at line 2134 of file rr_graph.c.

{
    int ipin, iside, itrack, iconn, ioff, pin_counter;
    struct s_ivec ***track_to_pin_lookup;

    /* [0..nodes_per_chan-1][0..height][0..3].  For each track number it stores a vector
     * for each of the four sides.  x-directed channels will use the TOP and
     * BOTTOM vectors to figure out what clb input pins they connect to above
     * and below them, respectively, while y-directed channels use the LEFT
     * and RIGHT vectors.  Each vector contains an nelem field saying how many
     * ipins it connects to.  The list[0..nelem-1] array then gives the pin
     * numbers.                                                                */

    /* Note that a clb pin that connects to a channel on its RIGHT means that  *
     * that channel connects to a clb pin on its LEFT.  The convention used    *
     * here is always in the perspective of the CLB                            */

    if(num_pins < 1)
        {
            return NULL;
        }

    /* Alloc and zero the the lookup table */
    track_to_pin_lookup =
        (struct s_ivec ***)alloc_matrix3(0, nodes_per_chan - 1, 0,
                                         height - 1, 0, 3,
                                         sizeof(struct s_ivec));
    for(itrack = 0; itrack < nodes_per_chan; itrack++)
        {
            for(ioff = 0; ioff < height; ioff++)
                {
                    for(iside = 0; iside < 4; iside++)
                        {
                            track_to_pin_lookup[itrack][ioff][iside].nelem =
                                0;
                            track_to_pin_lookup[itrack][ioff][iside].list =
                                NULL;
                        }
                }
        }

    /* Counting pass.  */
    for(ipin = 0; ipin < num_pins; ipin++)
        {
            for(ioff = 0; ioff < height; ioff++)
                {
                    for(iside = 0; iside < 4; iside++)
                        {
                            if(pin_to_track_map[ipin][ioff][iside][0] == OPEN)
                                continue;

                            for(iconn = 0; iconn < Fc; iconn++)
                                {
                                    itrack =
                                        pin_to_track_map[ipin][ioff][iside]
                                        [iconn];
                                    track_to_pin_lookup[itrack][ioff][iside].
                                        nelem++;
                                }
                        }
                }
        }

    /* Allocate space.  */
    for(itrack = 0; itrack < nodes_per_chan; itrack++)
        {
            for(ioff = 0; ioff < height; ioff++)
                {
                    for(iside = 0; iside < 4; iside++)
                        {
                            track_to_pin_lookup[itrack][ioff][iside].list = NULL;       /* Defensive code */
                            if(track_to_pin_lookup[itrack][ioff][iside].
                               nelem != 0)
                                {
                                    track_to_pin_lookup[itrack][ioff][iside].
                                        list =
                                        (int *)
                                        my_malloc(track_to_pin_lookup[itrack]
                                                  [ioff][iside].nelem *
                                                  sizeof(int));
                                    track_to_pin_lookup[itrack][ioff][iside].
                                        nelem = 0;
                                }
                        }
                }
        }

    /* Loading pass. */
    for(ipin = 0; ipin < num_pins; ipin++)
        {
            for(ioff = 0; ioff < height; ioff++)
                {
                    for(iside = 0; iside < 4; iside++)
                        {
                            if(pin_to_track_map[ipin][ioff][iside][0] == OPEN)
                                continue;

                            for(iconn = 0; iconn < Fc; iconn++)
                                {
                                    itrack =
                                        pin_to_track_map[ipin][ioff][iside]
                                        [iconn];
                                    pin_counter =
                                        track_to_pin_lookup[itrack][ioff]
                                        [iside].nelem;
                                    track_to_pin_lookup[itrack][ioff][iside].
                                        list[pin_counter] = ipin;
                                    track_to_pin_lookup[itrack][ioff][iside].
                                        nelem++;
                                }
                        }
                }
        }

    return track_to_pin_lookup;
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void alloc_net_rr_terminals

(

void

)

[static]

Definition at line 1095 of file rr_graph.c.

{
    int inet;

    net_rr_terminals = (int **)my_malloc(num_nets * sizeof(int *));

    for(inet = 0; inet < num_nets; inet++)
        {
            net_rr_terminals[inet] =
                (int *)my_chunk_malloc((net[inet].num_sinks + 1) *
                                       sizeof(int), &rr_mem_chunk_list_head,
                                       &chunk_bytes_avail,
                                       &chunk_next_avail_mem);
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void build_bidir_rr_opins	(	IN int	i,
		IN int	j,
		INOUT t_rr_node *	rr_node,
		IN t_ivec ***	rr_node_indices,
		IN int *****	opin_to_track_map,
		IN int *	Fc_out,
		IN boolean *	rr_edge_done,
		IN t_seg_details *	seg_details,
		IN struct s_grid_tile **	grid
	)			[static]

Definition at line 984 of file rr_graph.c.

{

    int ipin, inode, num_edges, Fc, ofs;
    t_type_ptr type;
    struct s_linked_edge *edge_list, *next;

    /* OPIN edges need to be done at once so let the offset 0
     * block do the work. */
    if(grid[i][j].offset > 0)
        {
            return;
        }

    type = grid[i][j].type;
    Fc = Fc_out[type->index];

    for(ipin = 0; ipin < type->num_pins; ++ipin)
        {
            /* We only are working with opins so skip non-drivers */
            if(type->class_inf[type->pin_class[ipin]].type != DRIVER)
                {
                    continue;
                }

            num_edges = 0;
            edge_list = NULL;

            for(ofs = 0; ofs < type->height; ++ofs)
                {
                    num_edges +=
                        get_bidir_opin_connections(i, j + ofs, ipin,
                                                   &edge_list,
                                                   opin_to_track_map, Fc,
                                                   rr_edge_done,
                                                   rr_node_indices,
                                                   seg_details);
                }

            inode = get_rr_node_index(i, j, OPIN, ipin, rr_node_indices);
            alloc_and_load_edges_and_switches(rr_node, inode, num_edges,
                                              rr_edge_done, edge_list);
                while(edge_list != NULL) {
                        next = edge_list->next;
                        free(edge_list);
                        edge_list = next;
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void build_rr_graph	(	IN t_graph_type	graph_type,
		IN int	num_types,
		IN t_type_ptr	types,
		IN int	nx,
		IN int	ny,
		IN struct s_grid_tile **	grid,
		IN int	chan_width,
		IN struct s_chan_width_dist *	chan_capacity_inf,
		IN enum e_switch_block_type	sb_type,
		IN int	Fs,
		IN int	num_seg_types,
		IN int	num_switches,
		IN t_segment_inf *	segment_inf,
		IN int	global_route_switch,
		IN int	delayless_switch,
		IN t_timing_inf	timing_inf,
		IN int	wire_to_ipin_switch,
		IN enum e_base_cost_type	base_cost_type,
		OUT int *	Warnings
	)

Definition at line 280 of file rr_graph.c.

{
    /* Temp structures used to build graph */
    int nodes_per_chan, i, j;
    t_seg_details *seg_details = NULL;
    int *Fc_in = NULL;
    int *Fc_out = NULL;

    int *****opin_to_track_map = NULL;  /* [0..num_types-1][0..num_pins-1][0..height][0..3][0..Fc-1] */
    int *****ipin_to_track_map = NULL;  /* [0..num_types-1][0..num_pins-1][0..height][0..3][0..Fc-1] */
    t_ivec ****track_to_ipin_lookup = NULL;     /* [0..num_types-1][0..nodes_per_chan-1][0..height][0..3] */
    t_ivec ***switch_block_conn = NULL;
    short *****unidir_sb_pattern = NULL;
    boolean *rr_edge_done = NULL;
    boolean is_global_graph;
    boolean Fc_clipped;
    boolean use_full_seg_groups;
    boolean *perturb_ipins = NULL;
    enum e_directionality directionality;
    int **Fc_xofs = NULL;       /* [0..ny-1][0..nx-1] */
    int **Fc_yofs = NULL;       /* [0..nx-1][0..ny-1] */

        rr_node_indices = NULL;
        rr_node = NULL;
        num_rr_nodes = 0;

    /* Reset warning flag */
    *Warnings = RR_GRAPH_NO_WARN;

    /* Decode the graph_type */
    is_global_graph = FALSE;
    if(GRAPH_GLOBAL == graph_type)
        {
            is_global_graph = TRUE;
        }
    use_full_seg_groups = FALSE;
    if(GRAPH_UNIDIR_TILEABLE == graph_type)
        {
            use_full_seg_groups = TRUE;
        }
    directionality = UNI_DIRECTIONAL;
    if(GRAPH_BIDIR == graph_type)
        {
            directionality = BI_DIRECTIONAL;
        }
    if(is_global_graph)
        {
            directionality = BI_DIRECTIONAL;
        }


    /* Global routing uses a single longwire track */
    nodes_per_chan = (is_global_graph ? 1 : chan_width);
    assert(nodes_per_chan > 0);



    /* START SEG_DETAILS */
    if(is_global_graph)
        {
            /* Sets up a single unit length segment type for global routing. */
            seg_details =
                alloc_and_load_global_route_seg_details(nodes_per_chan,
                                                        global_route_switch);
        }
    else
        {
            /* Setup segments including distrubuting tracks and staggering.
             * If use_full_seg_groups is specified, nodes_per_chan may be
             * changed. Warning should be singled to caller if this happens. */
            seg_details = alloc_and_load_seg_details(&nodes_per_chan,
                                                     max(nx, ny),
                                                     num_seg_types,
                                                     segment_inf,
                                                     use_full_seg_groups,
                                                     is_global_graph,
                                                     directionality);
            if((is_global_graph ? 1 : chan_width) != nodes_per_chan)
                {
                    *Warnings |= RR_GRAPH_WARN_CHAN_WIDTH_CHANGED;
                }
#ifdef CREATE_ECHO_FILES
            dump_seg_details(seg_details, nodes_per_chan, "seg_details.txt");
#endif /* CREATE_ECHO_FILES */
        }
    /* END SEG_DETAILS */



    /* START FC */
    /* Determine the actual value of Fc */
    if(is_global_graph)
        {
            Fc_in = (int *)my_malloc(sizeof(int) * num_types);
            Fc_out = (int *)my_malloc(sizeof(int) * num_types);
            for(i = 0; i < num_types; ++i)
                {
                    Fc_in[i] = 1;
                    Fc_out[i] = 1;
                }
        }
    else
        {
            Fc_clipped = FALSE;
            Fc_in =
                alloc_and_load_actual_fc(num_types, types, nodes_per_chan,
                                         FALSE, directionality, &Fc_clipped);
            if(Fc_clipped)
                {
                    *Warnings |= RR_GRAPH_WARN_FC_CLIPPED;
                }
            Fc_clipped = FALSE;
            Fc_out =
                alloc_and_load_actual_fc(num_types, types, nodes_per_chan,
                                         TRUE, directionality, &Fc_clipped);
            if(Fc_clipped)
                {
                    *Warnings |= RR_GRAPH_WARN_FC_CLIPPED;
                }


#ifdef VERBOSE
            for(i = 1; i < num_types; ++i)
                {               /* Skip "<EMPTY>" */
                    if(type_descriptors[i].is_Fc_out_full_flex)
                        {
                            printf
                                ("Fc Actual Values: Type = %s, Fc_out = full, Fc_in = %d.\n",
                                 type_descriptors[i].name, Fc_input[i]);
                        }
                    else
                        {
                            printf
                                ("Fc Actual Values: Type = %s, Fc_out = %d, Fc_in = %d.\n",
                                 type_descriptors[i].name, Fc_output[i],
                                 Fc_input[i]);
                        }
                }
#endif /* VERBOSE */
        }

        perturb_ipins =
                alloc_and_load_perturb_ipins(nodes_per_chan, num_types, Fc_in,
                                             Fc_out, directionality);
    /* END FC */


    /* Alloc node lookups, count nodes, alloc rr nodes */
    num_rr_nodes = 0;
    rr_node_indices =
        alloc_and_load_rr_node_indices(nodes_per_chan, nx, ny, &num_rr_nodes,
                                       seg_details);
    rr_node = (t_rr_node *) my_malloc(sizeof(t_rr_node) * num_rr_nodes);
    memset(rr_node, 0, sizeof(t_rr_node) * num_rr_nodes);
    rr_edge_done = (boolean *) my_malloc(sizeof(boolean) * num_rr_nodes);
    memset(rr_edge_done, 0, sizeof(boolean) * num_rr_nodes);

    /* These are data structures used by the the unidir opin mapping. */
    if(UNI_DIRECTIONAL == directionality)
        {
            Fc_xofs = (int **)alloc_matrix(0, ny, 0, nx, sizeof(int));
            Fc_yofs = (int **)alloc_matrix(0, nx, 0, ny, sizeof(int));
            for(i = 0; i <= nx; ++i)
                {
                    for(j = 0; j <= ny; ++j)
                        {
                            Fc_xofs[j][i] = 0;
                            Fc_yofs[i][j] = 0;
                        }
                }
        }



    /* START SB LOOKUP */
    /* Alloc and load the switch block lookup */
    if(is_global_graph)
        {
            assert(nodes_per_chan == 1);
            switch_block_conn =
                alloc_and_load_switch_block_conn(1, SUBSET, 3);
        }
    else if(BI_DIRECTIONAL == directionality)
        {
            switch_block_conn =
                alloc_and_load_switch_block_conn(nodes_per_chan, sb_type, Fs);
        }
    else
        {
            assert(UNI_DIRECTIONAL == directionality);

            unidir_sb_pattern =
                alloc_sblock_pattern_lookup(nx, ny, nodes_per_chan);
            for(i = 0; i <= nx; i++)
                {
                    for(j = 0; j <= ny; j++)
                        {
                            load_sblock_pattern_lookup(i, j, nodes_per_chan,
                                                       seg_details, Fs,
                                                       sb_type,
                                                       unidir_sb_pattern);
                        }
                }
        }
    /* END SB LOOKUP */



    /* START IPIN MAP */
    /* Create ipin map lookups */
    ipin_to_track_map = (int *****)my_malloc(sizeof(int ****) * num_types);
    track_to_ipin_lookup =
        (struct s_ivec ****)my_malloc(sizeof(struct s_ivec ***) * num_types);
    for(i = 0; i < num_types; ++i)
        {
            ipin_to_track_map[i] = alloc_and_load_pin_to_track_map(RECEIVER,
                                                                   nodes_per_chan,
                                                                   Fc_in[i],
                                                                   &types[i],
                                                                   perturb_ipins
                                                                   [i],
                                                                   directionality);
            track_to_ipin_lookup[i] =
                alloc_and_load_track_to_pin_lookup(ipin_to_track_map[i],
                                                   Fc_in[i], types[i].height,
                                                   types[i].num_pins,
                                                   nodes_per_chan);
        }
    /* END IPIN MAP */



    /* START OPIN MAP */
    /* Create opin map lookups */
    if(BI_DIRECTIONAL == directionality)
        {
            opin_to_track_map =
                (int *****)my_malloc(sizeof(int ****) * num_types);
            for(i = 0; i < num_types; ++i)
                {
                    opin_to_track_map[i] =
                        alloc_and_load_pin_to_track_map(DRIVER,
                                                        nodes_per_chan,
                                                        Fc_out[i], &types[i],
                                                        FALSE,
                                                        directionality);
                }
        }
    /* END OPIN MAP */

    /* UDSD Modifications by WMF begin */
    /* I'm adding 2 new fields to t_rr_node, and I want them initialized to 0. */
    for(i = 0; i < num_rr_nodes; i++)
        {
            rr_node[i].num_wire_drivers = 0;
            rr_node[i].num_opin_drivers = 0;
        }


    alloc_and_load_rr_graph(num_rr_nodes, rr_node, num_seg_types,
                            seg_details, rr_edge_done,
                            track_to_ipin_lookup, opin_to_track_map,
                            switch_block_conn, grid, nx,
                            ny, Fs, unidir_sb_pattern, Fc_out, Fc_xofs,
                            Fc_yofs, rr_node_indices, nodes_per_chan,
                            sb_type, delayless_switch, directionality,
                            wire_to_ipin_switch, &Fc_clipped);


#if 0
#ifdef MUX_SIZE_DIST_DISPLAY
    if(UNI_DIRECTIONAL == directionality)
        {
            view_mux_size_distribution(rr_node_indices, nodes_per_chan,
                                       seg_details, seg_details);
        }
#endif
#endif

        /* Update rr_nodes capacities if global routing */
        if(graph_type == GLOBAL) {
                for(i = 0; i < num_rr_nodes; i++) {
                        if(rr_node[i].type == CHANX || rr_node[i].type == CHANY) {
                                rr_node[i].capacity = chan_width;
                        }
                }
        }

    rr_graph_externals(timing_inf, segment_inf, num_seg_types,
                       nodes_per_chan, wire_to_ipin_switch, base_cost_type);

#ifdef CREATE_ECHO_FILES
    dump_rr_graph("rr_graph.echo");
#endif /* CREATE_ECHO_FILES */

    check_rr_graph(graph_type, num_types, types, nx, ny,
                   grid, nodes_per_chan, Fs, num_seg_types, num_switches, segment_inf,
                   global_route_switch, delayless_switch,
                   wire_to_ipin_switch, seg_details, Fc_in, Fc_out,
                   rr_node_indices, opin_to_track_map, ipin_to_track_map,
                   track_to_ipin_lookup, switch_block_conn, perturb_ipins);

    /* Free all temp structs */
    if(seg_details)
        {
            free_seg_details(seg_details, nodes_per_chan);
            seg_details = NULL;
        }
    if(Fc_in)
        {
            free(Fc_in);
            Fc_in = NULL;
        }
    if(Fc_out)
        {
            free(Fc_out);
            Fc_out = NULL;
        }
    if(perturb_ipins)
        {
            free(perturb_ipins);
            perturb_ipins = NULL;
        }
    if(switch_block_conn)
        {
            free_switch_block_conn(switch_block_conn, nodes_per_chan);
            switch_block_conn = NULL;
        }
    if(rr_edge_done)
        {
            free(rr_edge_done);
            rr_edge_done = NULL;
        }
    if(Fc_xofs)
        {
            free_matrix(Fc_xofs, 0, ny, 0, sizeof(int));
                Fc_xofs = NULL;
        }
    if(Fc_yofs)
        {
            free_matrix(Fc_yofs, 0, nx, 0, sizeof(int));
                Fc_yofs = NULL;
        }
        if(unidir_sb_pattern)
        {
                free_sblock_pattern_lookup(unidir_sb_pattern);
                unidir_sb_pattern = NULL;
        }
        if(opin_to_track_map) {
            for(i = 0; i < num_types; ++i)
                {
                    free_matrix4(opin_to_track_map[i], 0, types[i].num_pins - 1,
                      0, types[i].height - 1, 0, 3, 0, sizeof(int));
                }
                free(opin_to_track_map);
        }

    free_type_pin_to_track_map(ipin_to_track_map, types, Fc_in);
    free_type_track_to_ipin_map(track_to_ipin_lookup, types, nodes_per_chan);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void build_rr_sinks_sources	(	IN int	i,
		IN int	j,
		IN t_rr_node *	rr_node,
		IN t_ivec ***	rr_node_indices,
		IN int	delayless_switch,
		IN struct s_grid_tile **	grid
	)			[static]

Definition at line 1197 of file rr_graph.c.

{

    /* Loads IPIN, SINK, SOURCE, and OPIN.
     * Loads IPIN to SINK edges, and SOURCE to OPIN edges */

    int ipin, iclass, inode, pin_num, to_node, num_edges;
    int num_class, num_pins;
    t_type_ptr type;
    struct s_class *class_inf;
    int *pin_class;

    /* Since we share nodes within a large block, only
     * start tile can initialize sinks, sources, and pins */
    if(grid[i][j].offset > 0)
        return;

    type = grid[i][j].type;
    num_class = type->num_class;
    class_inf = type->class_inf;
    num_pins = type->num_pins;
    pin_class = type->pin_class;

    /* SINKS and SOURCE to OPIN edges */
    for(iclass = 0; iclass < num_class; iclass++)
        {
            if(class_inf[iclass].type == DRIVER)
                {               /* SOURCE */
                    inode =
                        get_rr_node_index(i, j, SOURCE, iclass,
                                          rr_node_indices);

                    num_edges = class_inf[iclass].num_pins;
                    rr_node[inode].num_edges = num_edges;
                    rr_node[inode].edges =
                        (int *)my_malloc(num_edges * sizeof(int));
                    rr_node[inode].switches =
                        (short *)my_malloc(num_edges * sizeof(short));

                    for(ipin = 0; ipin < class_inf[iclass].num_pins; ipin++)
                        {
                            pin_num = class_inf[iclass].pinlist[ipin];
                            to_node =
                                get_rr_node_index(i, j, OPIN, pin_num,
                                                  rr_node_indices);
                            rr_node[inode].edges[ipin] = to_node;
                            rr_node[inode].switches[ipin] = delayless_switch;

                            ++rr_node[to_node].fan_in;
                        }

                    rr_node[inode].cost_index = SOURCE_COST_INDEX;
                    rr_node[inode].type = SOURCE;
                }
            else
                {               /* SINK */
                    assert(class_inf[iclass].type == RECEIVER);
                    inode =
                        get_rr_node_index(i, j, SINK, iclass,
                                          rr_node_indices);

                    /* NOTE:  To allow route throughs through clbs, change the lines below to  *
                     * make an edge from the input SINK to the output SOURCE.  Do for just the *
                     * special case of INPUTS = class 0 and OUTPUTS = class 1 and see what it  *
                     * leads to.  If route throughs are allowed, you may want to increase the  *
                     * base cost of OPINs and/or SOURCES so they aren't used excessively.      */

                    /* Initialize to unconnected to fix values */
                    rr_node[inode].num_edges = 0;
                    rr_node[inode].edges = NULL;
                    rr_node[inode].switches = NULL;

                    rr_node[inode].cost_index = SINK_COST_INDEX;
                    rr_node[inode].type = SINK;
                }

            /* Things common to both SOURCEs and SINKs.   */
            rr_node[inode].capacity = class_inf[iclass].num_pins;
            rr_node[inode].occ = 0;
            rr_node[inode].xlow = i;
            rr_node[inode].xhigh = i;
            rr_node[inode].ylow = j;
            rr_node[inode].yhigh = j + type->height - 1;
            rr_node[inode].R = 0;
            rr_node[inode].C = 0;
            rr_node[inode].ptc_num = iclass;
            rr_node[inode].direction = OPEN;
            rr_node[inode].drivers = OPEN;
        }

    /* Connect IPINS to SINKS and dummy for OPINS */
    for(ipin = 0; ipin < num_pins; ipin++)
        {
            iclass = pin_class[ipin];

            if(class_inf[iclass].type == RECEIVER)
                {
                    inode =
                        get_rr_node_index(i, j, IPIN, ipin, rr_node_indices);
                    to_node =
                        get_rr_node_index(i, j, SINK, iclass,
                                          rr_node_indices);

                    rr_node[inode].num_edges = 1;
                    rr_node[inode].edges = (int *)my_malloc(sizeof(int));
                    rr_node[inode].switches =
                        (short *)my_malloc(sizeof(short));

                    rr_node[inode].edges[0] = to_node;
                    rr_node[inode].switches[0] = delayless_switch;

                    ++rr_node[to_node].fan_in;

                    rr_node[inode].cost_index = IPIN_COST_INDEX;
                    rr_node[inode].type = IPIN;
                }
            else
                {
                    assert(class_inf[iclass].type == DRIVER);

                    inode =
                        get_rr_node_index(i, j, OPIN, ipin, rr_node_indices);

                    rr_node[inode].num_edges = 0;
                    rr_node[inode].edges = NULL;

                    rr_node[inode].switches = NULL;

                    rr_node[inode].cost_index = OPIN_COST_INDEX;
                    rr_node[inode].type = OPIN;
                }

            /* Common to both DRIVERs and RECEIVERs */
            rr_node[inode].capacity = 1;
            rr_node[inode].occ = 0;
            rr_node[inode].xlow = i;
            rr_node[inode].xhigh = i;
            rr_node[inode].ylow = j;
            rr_node[inode].yhigh = j + type->height - 1;
            rr_node[inode].C = 0;
            rr_node[inode].R = 0;
            rr_node[inode].ptc_num = ipin;
            rr_node[inode].direction = OPEN;
            rr_node[inode].drivers = OPEN;
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void build_rr_xchan	(	IN int	i,
		IN int	j,
		IN struct s_ivec ****	track_to_ipin_lookup,
		IN struct s_ivec ***	switch_block_conn,
		IN int	cost_index_offset,
		IN int	nodes_per_chan,
		IN int *	opin_mux_size,
		IN short *****	sblock_pattern,
		IN int	Fs_per_side,
		IN t_seg_details *	seg_details,
		IN t_ivec ***	rr_node_indices,
		INOUT boolean *	rr_edge_done,
		INOUT t_rr_node *	rr_node,
		IN int	wire_to_ipin_switch,
		IN enum e_directionality	directionality
	)			[static]

Definition at line 1352 of file rr_graph.c.

{

    /* Loads up all the routing resource nodes in the x-directed channel      *
     * segments starting at (i,j).                                            */

    int itrack, istart, iend, num_edges, inode, length;
    struct s_linked_edge *edge_list, *next;


    for(itrack = 0; itrack < nodes_per_chan; itrack++)
        {
            istart = get_seg_start(seg_details, itrack, j, i);
            iend = get_seg_end(seg_details, itrack, istart, j, nx);

            if(i > istart)
                continue;       /* Not the start of this segment. */

            edge_list = NULL;

            /* First count number of edges and put the edges in a linked list. */
            num_edges = 0;

            num_edges += get_track_to_ipins(istart, j, itrack,
                                            &edge_list,
                                            rr_node_indices,
                                            track_to_ipin_lookup,
                                            seg_details,
                                            CHANX, nx,
                                            wire_to_ipin_switch,
                                            directionality);

            if(j > 0)
                {
                    num_edges += get_track_to_tracks(j, istart, itrack, CHANX,
                                                     j, CHANY, nx,
                                                     nodes_per_chan,
                                                     opin_mux_size,
                                                     Fs_per_side,
                                                     sblock_pattern,
                                                     &edge_list,
                                                     seg_details,
                                                     directionality,
                                                     rr_node_indices,
                                                     rr_edge_done,
                                                     switch_block_conn);
                }

            if(j < ny)
                {
                    num_edges += get_track_to_tracks(j, istart, itrack, CHANX,
                                                     j + 1, CHANY, nx,
                                                     nodes_per_chan,
                                                     opin_mux_size,
                                                     Fs_per_side,
                                                     sblock_pattern,
                                                     &edge_list,
                                                     seg_details,
                                                     directionality,
                                                     rr_node_indices,
                                                     rr_edge_done,
                                                     switch_block_conn);
                }

            if(istart > 1)
                {
                    num_edges += get_track_to_tracks(j, istart, itrack, CHANX,
                                                     istart - 1, CHANX, nx,
                                                     nodes_per_chan,
                                                     opin_mux_size,
                                                     Fs_per_side,
                                                     sblock_pattern,
                                                     &edge_list,
                                                     seg_details,
                                                     directionality,
                                                     rr_node_indices,
                                                     rr_edge_done,
                                                     switch_block_conn);
                }

            if(iend < nx)
                {
                    num_edges += get_track_to_tracks(j, istart, itrack, CHANX,
                                                     iend + 1, CHANX, nx,
                                                     nodes_per_chan,
                                                     opin_mux_size,
                                                     Fs_per_side,
                                                     sblock_pattern,
                                                     &edge_list,
                                                     seg_details,
                                                     directionality,
                                                     rr_node_indices,
                                                     rr_edge_done,
                                                     switch_block_conn);
                }


            inode = get_rr_node_index(i, j, CHANX, itrack, rr_node_indices);
            alloc_and_load_edges_and_switches(rr_node, inode, num_edges,
                                              rr_edge_done, edge_list);

                while(edge_list != NULL) {
                        next = edge_list->next;
                        free(edge_list);
                        edge_list = next;
                }

            /* Edge arrays have now been built up.  Do everything else.  */
            rr_node[inode].cost_index =
                cost_index_offset + seg_details[itrack].index;
            rr_node[inode].occ = 0;

            rr_node[inode].capacity = 1;        /* GLOBAL routing handled elsewhere */

            rr_node[inode].xlow = istart;
            rr_node[inode].xhigh = iend;
            rr_node[inode].ylow = j;
            rr_node[inode].yhigh = j;

            length = iend - istart + 1;
            rr_node[inode].R = length * seg_details[itrack].Rmetal;
            rr_node[inode].C = length * seg_details[itrack].Cmetal;

            rr_node[inode].ptc_num = itrack;
            rr_node[inode].type = CHANX;
            rr_node[inode].direction = seg_details[itrack].direction;
            rr_node[inode].drivers = seg_details[itrack].drivers;
        }
}

Here is the call graph for this function:

static void build_rr_xchan	(	IN int	i,
		IN int	j,
		IN struct s_ivec ****	track_to_ipin_lookup,
		IN struct s_ivec ***	switch_block_conn,
		IN int	cost_index_offset,
		IN int	nodes_per_chan,
		IN int *	opin_mux_size,
		IN short *****	sblock_pattern,
		IN int	Fs_per_side,
		IN t_seg_details *	seg_details,
		IN t_ivec ***	rr_node_indices,
		IN boolean *	rr_edge_done,
		INOUT t_rr_node *	rr_node,
		IN int	wire_to_ipin_switch,
		IN enum e_directionality	directionality
	)			[static]

Here is the caller graph for this function:

static void build_rr_ychan	(	IN int	i,
		IN int	j,
		IN struct s_ivec ****	track_to_ipin_lookup,
		IN struct s_ivec ***	switch_block_conn,
		IN int	cost_index_offset,
		IN int	nodes_per_chan,
		IN int *	opin_mux_size,
		IN short *****	sblock_pattern,
		IN int	Fs_per_side,
		IN t_seg_details *	seg_details,
		IN t_ivec ***	rr_node_indices,
		IN boolean *	rr_edge_done,
		INOUT t_rr_node *	rr_node,
		IN int	wire_to_ipin_switch,
		IN enum e_directionality	directionality
	)			[static]

Definition at line 1500 of file rr_graph.c.

{

    /* Loads up all the routing resource nodes in the y-directed channel      *
     * segments starting at (i,j).                                            */

    int itrack, istart, iend, num_edges, inode, length;
    struct s_linked_edge *edge_list, *next;


    for(itrack = 0; itrack < nodes_per_chan; itrack++)
        {
            istart = get_seg_start(seg_details, itrack, i, j);
            iend = get_seg_end(seg_details, itrack, istart, i, ny);

            if(j > istart)
                continue;       /* Not the start of this segment. */

            edge_list = NULL;

            /* First count number of edges and put the edges in a linked list. */
            num_edges = 0;

            num_edges += get_track_to_ipins(istart, i, itrack,
                                            &edge_list,
                                            rr_node_indices,
                                            track_to_ipin_lookup,
                                            seg_details,
                                            CHANY, ny,
                                            wire_to_ipin_switch,
                                            directionality);

            if(i > 0)
                {
                    num_edges += get_track_to_tracks(i, istart, itrack, CHANY,
                                                     i, CHANX, ny,
                                                     nodes_per_chan,
                                                     opin_mux_size,
                                                     Fs_per_side,
                                                     sblock_pattern,
                                                     &edge_list,
                                                     seg_details,
                                                     directionality,
                                                     rr_node_indices,
                                                     rr_edge_done,
                                                     switch_block_conn);
                }

            if(i < nx)
                {
                    num_edges += get_track_to_tracks(i, istart, itrack, CHANY,
                                                     i + 1, CHANX, ny,
                                                     nodes_per_chan,
                                                     opin_mux_size,
                                                     Fs_per_side,
                                                     sblock_pattern,
                                                     &edge_list,
                                                     seg_details,
                                                     directionality,
                                                     rr_node_indices,
                                                     rr_edge_done,
                                                     switch_block_conn);
                }

            if(istart > 1)
                {
                    num_edges += get_track_to_tracks(i, istart, itrack, CHANY,
                                                     istart - 1, CHANY, ny,
                                                     nodes_per_chan,
                                                     opin_mux_size,
                                                     Fs_per_side,
                                                     sblock_pattern,
                                                     &edge_list,
                                                     seg_details,
                                                     directionality,
                                                     rr_node_indices,
                                                     rr_edge_done,
                                                     switch_block_conn);
                }

            if(iend < ny)
                {
                    num_edges += get_track_to_tracks(i, istart, itrack, CHANY,
                                                     iend + 1, CHANY, ny,
                                                     nodes_per_chan,
                                                     opin_mux_size,
                                                     Fs_per_side,
                                                     sblock_pattern,
                                                     &edge_list,
                                                     seg_details,
                                                     directionality,
                                                     rr_node_indices,
                                                     rr_edge_done,
                                                     switch_block_conn);
                }


            inode = get_rr_node_index(i, j, CHANY, itrack, rr_node_indices);
            alloc_and_load_edges_and_switches(rr_node, inode, num_edges,
                                              rr_edge_done, edge_list);

                while(edge_list != NULL) {
                        next = edge_list->next;
                        free(edge_list);
                        edge_list = next;
                }

            /* Edge arrays have now been built up.  Do everything else.  */
            rr_node[inode].cost_index =
                cost_index_offset + seg_details[itrack].index;
            rr_node[inode].occ = 0;

            rr_node[inode].capacity = 1;        /* GLOBAL routing handled elsewhere */

            rr_node[inode].xlow = i;
            rr_node[inode].xhigh = i;
            rr_node[inode].ylow = istart;
            rr_node[inode].yhigh = iend;

            length = iend - istart + 1;
            rr_node[inode].R = length * seg_details[itrack].Rmetal;
            rr_node[inode].C = length * seg_details[itrack].Cmetal;

            rr_node[inode].ptc_num = itrack;
            rr_node[inode].type = CHANY;
            rr_node[inode].direction = seg_details[itrack].direction;
            rr_node[inode].drivers = seg_details[itrack].drivers;
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void build_unidir_rr_opins	(	IN int	i,
		IN int	j,
		IN struct s_grid_tile **	grid,
		IN int *	Fc_out,
		IN int	nodes_per_chan,
		IN t_seg_details *	seg_details,
		INOUT int **	Fc_xofs,
		INOUT int **	Fc_yofs,
		INOUT t_rr_node *	rr_node,
		INOUT boolean *	rr_edge_done,
		OUT boolean *	Fc_clipped,
		IN t_ivec ***	rr_node_indices
	)			[static]

Definition at line 2377 of file rr_graph.c.

{
    /* This routine returns a list of the opins rr_nodes on each
     * side/offset of the block. You must free the result with
     * free_matrix. */

    t_type_ptr type;
    int ipin, iclass, ofs, chan, seg, max_len, inode;
    enum e_side side;
    t_rr_type chan_type;
    t_linked_edge *edge_list = NULL, *next;
    boolean clipped, vert, pos_dir;
    int num_edges;
    int **Fc_ofs;

    *Fc_clipped = FALSE;

    /* Only the base block of a set should use this function */
    if(grid[i][j].offset > 0)
        {
            return;
        }

    type = grid[i][j].type;

    /* Go through each pin and find its fanout. */
    for(ipin = 0; ipin < type->num_pins; ++ipin)
        {
            /* Skip global pins and ipins */
            iclass = type->pin_class[ipin];
            if(type->class_inf[iclass].type != DRIVER)
                {
                    continue;
                }
            if(type->is_global_pin[ipin])
                {
                    continue;
                }

            num_edges = 0;
            edge_list = NULL;
            for(ofs = 0; ofs < type->height; ++ofs)
                {
                    for(side = 0; side < 4; ++side)
                        {
                            /* Can't do anything if pin isn't at this location */
                            if(0 == type->pinloc[ofs][side][ipin])
                                {
                                    continue;
                                }

                            /* Figure out the chan seg at that side.
                             * side is the side of the logic or io block. */
                            vert = ((side == TOP) || (side == BOTTOM));
                            pos_dir = ((side == TOP) || (side == RIGHT));
                            chan_type = (vert ? CHANX : CHANY);
                            chan = (vert ? (j + ofs) : i);
                            seg = (vert ? i : (j + ofs));
                            max_len = (vert ? ny : nx);
                            Fc_ofs = (vert ? Fc_xofs : Fc_yofs);
                            if(FALSE == pos_dir)
                                {
                                    --chan;
                                }

                            /* Skip the location if there is no channel. */
                            if(chan < 0)
                                {
                                    continue;
                                }
                            if(seg < 1)
                                {
                                    continue;
                                }
                            if(seg > (vert ? ny : nx))
                                {
                                    continue;
                                }
                            if(chan > (vert ? nx : ny))
                                {
                                    continue;
                                }

                            /* Get the list of opin to mux connections for that chan seg. */
                            num_edges +=
                                get_unidir_opin_connections(chan, seg,
                                                            Fc_out[type->
                                                                   index],
                                                            chan_type,
                                                            seg_details,
                                                            &edge_list,
                                                            Fc_ofs,
                                                            rr_edge_done,
                                                            max_len,
                                                            nodes_per_chan,
                                                            rr_node_indices,
                                                            &clipped);
                            if(clipped)
                                {
                                    *Fc_clipped = TRUE;
                                }
                        }
                }

            /* Add the edges */
            inode = get_rr_node_index(i, j, OPIN, ipin, rr_node_indices);
            alloc_and_load_edges_and_switches(rr_node, inode, num_edges,
                                              rr_edge_done, edge_list);
                while(edge_list != NULL) {
                        next = edge_list->next;
                        free(edge_list);
                        edge_list = next;
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void check_all_tracks_reach_pins	(	t_type_ptr	type,
		int ****	tracks_connected_to_pin,
		int	nodes_per_chan,
		int	Fc,
		enum e_pin_type	ipin_or_opin
	)			[static]

Definition at line 2075 of file rr_graph.c.

{

    /* Checks that all tracks can be reached by some pin.   */

    int iconn, iside, itrack, ipin, ioff;
    int *num_conns_to_track;    /* [0..nodes_per_chan-1] */

        assert(nodes_per_chan > 0);

    num_conns_to_track = (int *)my_calloc(nodes_per_chan, sizeof(int));

    for(ipin = 0; ipin < type->num_pins; ipin++)
        {
            for(ioff = 0; ioff < type->height; ioff++)
                {
                    for(iside = 0; iside < 4; iside++)
                        {
                            if(tracks_connected_to_pin[ipin][ioff][iside][0]
                               != OPEN)
                                {       /* Pin exists */
                                    for(iconn = 0; iconn < Fc; iconn++)
                                        {
                                            itrack =
                                                tracks_connected_to_pin[ipin]
                                                [ioff][iside][iconn];
                                            num_conns_to_track[itrack]++;
                                        }
                                }
                        }
                }
        }

        for(itrack = 0; itrack < nodes_per_chan; itrack++)
        {
            if(num_conns_to_track[itrack] <= 0)
                {
                    printf
                        ("Warning (check_all_tracks_reach_pins):  track %d does not \n"
                         "\tconnect to any FB ", itrack);

                    if(ipin_or_opin == DRIVER)
                        printf("OPINs.\n");
                    else
                        printf("IPINs.\n");
                }
        }

    free(num_conns_to_track);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void dump_rr_graph

(

IN const char *

file_name

)

Definition at line 2259 of file rr_graph.c.

{

    int inode;
    FILE *fp;

    fp = my_fopen(file_name, "w");

    for(inode = 0; inode < num_rr_nodes; inode++)
        {
            print_rr_node(fp, rr_node, inode);
            fprintf(fp, "\n");
        }

#if 0
    fprintf(fp, "\n\n%d rr_indexed_data entries.\n\n", num_rr_indexed_data);

    for(index = 0; index < num_rr_indexed_data; index++)
        {
            print_rr_indexed_data(fp, index);
            fprintf(fp, "\n");
        }
#endif

    fclose(fp);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void free_rr_graph

(

void

)

Definition at line 1045 of file rr_graph.c.

{
    int i;

    /* Frees all the routing graph data structures, if they have been       *
     * allocated.  I use rr_mem_chunk_list_head as a flag to indicate       *
     * whether or not the graph has been allocated -- if it is not NULL,    *
     * a routing graph exists and can be freed.  Hence, you can call this   *
     * routine even if you're not sure of whether a rr_graph exists or not. */

    if(rr_mem_chunk_list_head == NULL)  /* Nothing to free. */
        return;

    free_chunk_memory(rr_mem_chunk_list_head);  /* Frees ALL "chunked" data */
    rr_mem_chunk_list_head = NULL;      /* No chunks allocated now. */
    chunk_bytes_avail = 0;      /* 0 bytes left in current "chunk". */
    chunk_next_avail_mem = NULL;        /* No current chunk.                */

    /* Before adding any more free calls here, be sure the data is NOT chunk *
     * allocated, as ALL the chunk allocated data is already free!           */

    free(net_rr_terminals);

        for(i = 0; i < num_rr_nodes; i++) {
                if(rr_node[i].edges != NULL) {
                        free(rr_node[i].edges);
                }
                if(rr_node[i].switches != NULL) {
                        free(rr_node[i].switches);
                }
        }

        assert(rr_node_indices);
    free_rr_node_indices(rr_node_indices);
    free(rr_node);
    free(rr_indexed_data);
    for(i = 0; i < num_blocks; i++)
        {
            free(rr_blk_source[i]);
        }
    free(rr_blk_source);
    rr_blk_source = NULL;
    net_rr_terminals = NULL;
    rr_node = NULL;
        rr_node_indices = NULL;
    rr_indexed_data = NULL;
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void free_type_pin_to_track_map	(	int *****	ipin_to_track_map,
		t_type_ptr	types,
		int *	fc_in
	)			[static]

Definition at line 853 of file rr_graph.c.

{
        int i;
        for(i = 0; i < num_types; i++) {
                free_matrix4(ipin_to_track_map[i], 0, types[i].num_pins - 1,
                                  0, types[i].height - 1, 0, 3, 0, sizeof(int));
        }
        free(ipin_to_track_map);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void free_type_track_to_ipin_map	(	struct s_ivec ****	track_to_pin_map,
		t_type_ptr	types,
		int	nodes_per_chan
	)			[static]

Definition at line 826 of file rr_graph.c.

{
        int i, itrack, ioff, iside;
        for(i = 0; i < num_types; i++) {
                if(track_to_pin_map[i] != NULL) {
                        for(itrack = 0; itrack < nodes_per_chan; itrack++)
                        {
                                for(ioff = 0; ioff < types[i].height; ioff++)
                                {
                                        for(iside = 0; iside < 4; iside++)
                                        {
                                                if(track_to_pin_map[i][itrack][ioff][iside].list != NULL) {
                                                        free(track_to_pin_map[i][itrack][ioff][iside].list);
                                                }
                                        }
                                }
                        }
                        free_matrix3(track_to_pin_map[i], 0, nodes_per_chan - 1, 0,
                                                         types[i].height - 1, 0,
                                                         sizeof(struct s_ivec));
                }
        }
        free(track_to_pin_map);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static int* get_adj_opins	(	IN int	i,
		IN int	j,
		OUT int *	num_pins,
		IN t_ivec ***	rr_node_indices,
		IN enum e_rr_type	chan_type
	)			[static]

void load_net_rr_terminals

(

t_ivec ***

rr_node_indices

)

Definition at line 1113 of file rr_graph.c.

{

    /* Allocates and loads the net_rr_terminals data structure.  For each net   *
     * it stores the rr_node index of the SOURCE of the net and all the SINKs   *
     * of the net.  [0..num_nets-1][0..num_pins-1].  Entry [inet][pnum] stores  *
     * the rr index corresponding to the SOURCE (opin) or SINK (ipin) of pnum.  */

    int inet, ipin, inode, iblk, i, j, k, node_block_pin, iclass;
    t_type_ptr type;

    for(inet = 0; inet < num_nets; inet++)
        {
            for(ipin = 0; ipin <= net[inet].num_sinks; ipin++)
                {
                    iblk = net[inet].node_block[ipin];
                    i = block[iblk].x;
                    j = block[iblk].y;
                    k = block[iblk].z;
                    type = block[iblk].type;

                    /* In the routing graph, each (x, y) location has unique pins on it
                     * so when there is capacity, blocks are packed and their pin numbers
                     * are offset to get their actual rr_node */
                    node_block_pin = net[inet].node_block_pin[ipin];

                    iclass = type->pin_class[node_block_pin];

                    inode = get_rr_node_index(i, j, (ipin == 0 ? SOURCE : SINK),        /* First pin is driver */
                                              iclass, rr_node_indices);
                    net_rr_terminals[inet][ipin] = inode;
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void load_perturbed_switch_pattern	(	IN t_type_ptr	type,
		INOUT int ****	tracks_connected_to_pin,
		IN int	num_phys_pins,
		IN int *	pin_num_ordering,
		IN int *	side_ordering,
		IN int *	offset_ordering,
		IN int	nodes_per_chan,
		IN int	Fc,
		enum e_directionality	directionality
	)			[static]

Definition at line 2001 of file rr_graph.c.

{

    /* Loads the tracks_connected_to_pin array with an unevenly distributed     *
     * set of switches across the channel.  This is done for inputs when        *
     * Fc_input = Fc_output to avoid creating "pin domains" -- certain output   *
     * pins being able to talk only to certain input pins because their switch  *
     * patterns exactly line up.  Distribute Fc/2 + 1 switches over half the    *
     * channel and Fc/2 - 1 switches over the other half to make the switch     *
     * pattern different from the uniform one of the outputs.  Also, have half  *
     * the pins put the "dense" part of their connections in the first half of  *
     * the channel and the other half put the "dense" part in the second half,  *
     * to make sure each track can connect to about the same number of ipins.   */

    int i, j, ipin, iside, itrack, ihalf, iconn, ioff;
    int Fc_dense, Fc_sparse, Fc_half[2];
    float f_track, spacing_dense, spacing_sparse, spacing[2];
    float step_size;

    assert(directionality == BI_DIRECTIONAL);

    step_size = (float)nodes_per_chan / (float)(Fc * num_phys_pins);

    Fc_dense = (Fc / 2) + 1;
    Fc_sparse = Fc - Fc_dense;  /* Works for even or odd Fc */

    spacing_dense = (float)nodes_per_chan / (float)(2 * Fc_dense);
    spacing_sparse = (float)nodes_per_chan / (float)(2 * Fc_sparse);

    for(i = 0; i < num_phys_pins; i++)
        {
            ipin = pin_num_ordering[i];
            iside = side_ordering[i];
            ioff = offset_ordering[i];

            /* Flip every pin to balance switch density */
            spacing[i % 2] = spacing_dense;
            Fc_half[i % 2] = Fc_dense;
            spacing[(i + 1) % 2] = spacing_sparse;
            Fc_half[(i + 1) % 2] = Fc_sparse;

            f_track = i * step_size;    /* Start point.  Staggered from pin to pin */
            iconn = 0;

            for(ihalf = 0; ihalf < 2; ihalf++)
                {               /* For both dense and sparse halves. */
                    for(j = 0; j < Fc_half[ihalf]; ++j)
                        {
                            itrack = (int)f_track;

                            /* Can occasionally get wraparound due to floating point rounding.
                                   This is okay because the starting position > 0 when this occurs
                                   so connection is valid and fine */
                            itrack = itrack % nodes_per_chan;
                            tracks_connected_to_pin[ipin][ioff][iside][iconn]
                                = itrack;

                            f_track += spacing[ihalf];
                            iconn++;
                        }
                }
        }                       /* End for all physical pins. */
}

static void load_perturbed_switch_pattern	(	IN t_type_ptr	type,
		INOUT int ****	tracks_connected_to_pin,
		IN int	num_phys_pins,
		IN int *	pin_num_ordering,
		IN int *	side_ordering,
		IN int *	offset_ordering,
		IN int	nodes_per_chan,
		IN int	Fc,
		IN enum e_directionality	directionality
	)			[static]

Here is the caller graph for this function:

static void load_uniform_opin_switch_pattern_paired	(	IN int *	Fc_out,
		IN int	num_pins,
		IN int *	pins_in_chan_seg,
		IN int	num_wire_inc_muxes,
		IN int	num_wire_dec_muxes,
		IN int *	wire_inc_muxes,
		IN int *	wire_dec_muxes,
		INOUT t_rr_node *	rr_node,
		INOUT boolean *	rr_edge_done,
		IN t_seg_details *	seg_details,
		OUT boolean *	Fc_clipped
	)			[static]

Definition at line 2505 of file rr_graph.c.

{

    /* Directionality is assumed to be uni-directional */

    /* Make turn-based assignment to avoid overlap when Fc_ouput is low. This is a bipartite
     * matching problem. Out of "num_wire_muxes" muxes "Fc_output" of them is assigned
     * to each outpin (total "num_pins" of them); assignment is uniform (spacing - spreadout)
     * and staggered to avoid overlap when Fc_output is low. */

    /* The natural order wires muxes are stored in wire_muxes is alternating in directionality
     * already (by my implementation), so no need to do anything extra to avoid directional bias */

    /* TODO: Due to spacing, it's possible to have directional bias: all Fc_out wires connected
     * to one opin goes in either INC or DEC -> whereas I want a mix of both.
     * SOLUTION: Use quantization of 2 to ensure that if an opin connects to one wire, it
     * must also connect to its companion wire, which runs in the opposite direction. This
     * means instead of having num_wire_muxes as the matching set, pick out the INC wires
     * in num_wires_muxes as the matching set (the DEC wires are their companions)  April 17, 2007
     * NEWS: That solution does not work, as treating wires in groups will lead to serious
     * abnormal patterns (conns crossing multiple blocks) for W nonquantized to multiples of 2L.
     * So, I'm chaning that approach to a new one that avoids directional bias: I will separate
     * the INC muxes and DEC muxes into two sets. Each set is uniformly assigned to opins with
     * Fc_output/2; this should be identical as before for normal cases and contains all conns
     * in the same chan segment for the nonquantized cases. */

    /* Finally, separated the two approaches: 1. Take all wire muxes and assign them to opins
     * one at a time (load_uniform_opin_switch_pattern) 2. Take pairs (by companion)
     * of wire muxes and assign them to opins a pair at a time (load_uniform_opin_switch_pattern_paired).
     * The first is used for fringe channel segments (ends of channels, where
     * there are lots of muxes due to partial wire segments) and the second is used in core */

    /* float spacing, step_size, f_mux; */
    int ipin, iconn, num_edges, init_mux;
    int from_node, to_node, to_track;
    int xlow, ylow;
    t_linked_edge *edge_list;
    int *wire_muxes;
    int k, num_wire_muxes, Fc_output_per_side, CurFc;
    int count_inc, count_dec;
    t_type_ptr type;

    *Fc_clipped = FALSE;

    count_inc = count_dec = 0;

    for(ipin = 0; ipin < num_pins; ipin++)
        {
            from_node = pins_in_chan_seg[ipin];
            xlow = rr_node[from_node].xlow;
            ylow = rr_node[from_node].ylow;
            type = grid[xlow][ylow].type;
            edge_list = NULL;
            num_edges = 0;

            /* Assigning the INC muxes first, then DEC muxes */
            for(k = 0; k < 2; ++k)
                {
                    if(k == 0)
                        {
                            num_wire_muxes = num_wire_inc_muxes;
                            wire_muxes = wire_inc_muxes;
                        }
                    else
                        {
                            num_wire_muxes = num_wire_dec_muxes;
                            wire_muxes = wire_dec_muxes;
                        }

                    /* Half the Fc will be assigned for each direction. */
                    assert(Fc_out[type->index] % 2 == 0);
                    Fc_output_per_side = Fc_out[type->index] / 2;

                    /* Clip the demand. Make sure to use a new variable so
                     * on the second pass it is not clipped. */
                    CurFc = Fc_output_per_side;
                    if(Fc_output_per_side > num_wire_muxes)
                        {
                            *Fc_clipped = TRUE;
                            CurFc = num_wire_muxes;
                        }

                    if(k == 0)
                        {
                            init_mux = (count_inc) % num_wire_muxes;
                            count_inc += CurFc;
                        }
                    else
                        {
                            init_mux = (count_dec) % num_wire_muxes;
                            count_dec += CurFc;
                        }

                    for(iconn = 0; iconn < CurFc; iconn++)
                        {
                            /* FINALLY, make the outpin to mux connection */
                            /* Latest update: I'm not using Uniform Pattern, but a similarly staggered pattern */
                            to_node =
                                wire_muxes[(init_mux +
                                            iconn) % num_wire_muxes];

                            rr_node[to_node].num_opin_drivers++;        /* keep track of mux size */
                            to_track = rr_node[to_node].ptc_num;

                            if(FALSE == rr_edge_done[to_node])
                                {
                                    /* Use of alloc_and_load_edges_and_switches
                                     * must be accompanied by rr_edge_done check. */
                                    rr_edge_done[to_node] = TRUE;
                                    edge_list =
                                        insert_in_edge_list(edge_list,
                                                            to_node,
                                                            seg_details
                                                            [to_track].
                                                            wire_switch);
                                    num_edges++;
                                }
                        }
                }

            if(num_edges < 1)
                {
                    printf
                        ("Error:  opin %d at (%d,%d) does not connect to any "
                         "tracks.\n", rr_node[from_node].ptc_num,
                         rr_node[from_node].xlow, rr_node[from_node].ylow);
                    exit(1);
                }

            alloc_and_load_edges_and_switches(rr_node, from_node, num_edges,
                                              rr_edge_done, edge_list);
        }
}

Here is the call graph for this function:

static void load_uniform_switch_pattern	(	IN t_type_ptr	type,
		INOUT int ****	tracks_connected_to_pin,
		IN int	num_phys_pins,
		IN int *	pin_num_ordering,
		IN int *	side_ordering,
		IN int *	offset_ordering,
		IN int	nodes_per_chan,
		IN int	Fc,
		enum e_directionality	directionality
	)			[static]

Definition at line 1923 of file rr_graph.c.

{

    /* Loads the tracks_connected_to_pin array with an even distribution of     *
     * switches across the tracks for each pin.  For example, each pin connects *
     * to every 4.3rd track in a channel, with exactly which tracks a pin       *
     * connects to staggered from pin to pin.                                   */

    int i, j, ipin, iside, ioff, itrack, k;
    float f_track, fc_step;
    int group_size;
    float step_size;

    /* Uni-directional drive is implemented to ensure no directional bias and this means
     * two important comments noted below                                                */
    /* 1. Spacing should be (W/2)/(Fc/2), and step_size should be spacing/(num_phys_pins),
     *    and lay down 2 switches on an adjacent pair of tracks at a time to ensure
     *    no directional bias. Basically, treat W (even) as W/2 pairs of tracks, and
     *    assign switches to a pair at a time. Can do this because W is guaranteed to
     *    be even-numbered; however same approach cannot be applied to Fc_out pattern
     *    when L > 1 and W <> 2L multiple.
     *
     * 2. This generic pattern should be considered the tileable physical layout,
     *    meaning all track # here are physical #'s,
     *    so later must use vpr_to_phy conversion to find actual logical #'s to connect.
     *    This also means I will not use get_output_block_companion_track to ensure
     *    no bias, since that describes a logical # -> that would confuse people.  */

    step_size = (float)nodes_per_chan / (float)(Fc * num_phys_pins);

    if(directionality == BI_DIRECTIONAL)
        {
            group_size = 1;
        }
    else
        {
            assert(directionality == UNI_DIRECTIONAL);
            group_size = 2;
        }

    assert((nodes_per_chan % group_size == 0) && (Fc % group_size == 0));

    fc_step = (float)nodes_per_chan / (float)Fc;

    for(i = 0; i < num_phys_pins; i++)
        {
            ipin = pin_num_ordering[i];
            iside = side_ordering[i];
            ioff = offset_ordering[i];

            /* Bi-directional treats each track separately, uni-directional works with pairs of tracks */
            for(j = 0; j < (Fc / group_size); j++)
                {
                    f_track = (i * step_size) + (j * fc_step);
                    itrack = ((int)f_track) * group_size;

                    /* Catch possible floating point round error */
                    itrack = min(itrack, nodes_per_chan - group_size);

                    /* Assign the group of tracks for the Fc pattern */
                    for(k = 0; k < group_size; ++k)
                        {
                            tracks_connected_to_pin[ipin][ioff][iside]
                                [group_size * j + k] = itrack + k;
                        }
                }
        }
}

static void load_uniform_switch_pattern	(	IN t_type_ptr	type,
		INOUT int ****	tracks_connected_to_pin,
		IN int	num_phys_pins,
		IN int *	pin_num_ordering,
		IN int *	side_ordering,
		IN int *	offset_ordering,
		IN int	nodes_per_chan,
		IN int	Fc,
		IN enum e_directionality	directionality
	)			[static]

Here is the caller graph for this function:

static void print_distribution	(	FILE *	fptr,
		t_mux_size_distribution *	distr_struct
	)			[static]

Definition at line 3043 of file rr_graph.c.

{
    int *distr;
    int k;
    float sum;
    boolean zeros;

    distr = distr_struct->distr;
    fprintf(fptr,
            "For Sblocks containing %d MUXes, the MUX size distribution is:\n",
            distr_struct->mux_count);
    fprintf(fptr, "\t\t\tSize\t\t\tFrequency (percent)\n");

    sum = 0.0;
    for(k = 0; k <= distr_struct->max_index; k++)
        sum += distr[k];

    zeros = TRUE;
    for(k = 0; k <= distr_struct->max_index; k++)
        {
            if(zeros && (distr[k] == 0))
                {
                    /* do nothing for leading string of zeros */
                }
            else
                {
                    zeros = FALSE;      /* leading string of zeros ended */
                    fprintf(fptr, "\t\t\t%d\t\t\t%d (%.2f%%)\n", k, distr[k],
                            (float)distr[k] / sum * 100.0);
                }
        }
    fprintf(fptr, "\nEnd of this Sblock MUX size distribution.\n");

}

Here is the caller graph for this function:

void print_rr_indexed_data	(	FILE *	fp,
		int	index
	)

Definition at line 2354 of file rr_graph.c.

{

    fprintf(fp, "Index: %d\n", index);

    fprintf(fp, "ortho_cost_index: %d  ",
            rr_indexed_data[index].ortho_cost_index);
    fprintf(fp, "base_cost: %g  ", rr_indexed_data[index].saved_base_cost);
    fprintf(fp, "saved_base_cost: %g\n",
            rr_indexed_data[index].saved_base_cost);

    fprintf(fp, "Seg_index: %d  ", rr_indexed_data[index].seg_index);
    fprintf(fp, "inv_length: %g\n", rr_indexed_data[index].inv_length);

    fprintf(fp, "T_linear: %g  ", rr_indexed_data[index].T_linear);
    fprintf(fp, "T_quadratic: %g  ", rr_indexed_data[index].T_quadratic);
    fprintf(fp, "C_load: %g\n", rr_indexed_data[index].C_load);
}

Here is the caller graph for this function:

static void print_rr_node	(	FILE *	fp,
		t_rr_node *	rr_node,
		int	inode
	)			[static]

Definition at line 2289 of file rr_graph.c.

{

    static const char *name_type[] = {
        "SOURCE", "SINK", "IPIN", "OPIN", "CHANX", "CHANY"
    };
    static const char *direction_name[] = {
        "OPEN", "INC_DIRECTION", "DEC_DIRECTION", "BI_DIRECTION"
    };
    static const char *drivers_name[] = {
        "OPEN", "MULTI_BUFFER", "MULTI_MUXED", "MULTI_MERGED", "SINGLE"
    };

    t_rr_type rr_type;
    int iconn;

    rr_type = rr_node[inode].type;

    /* Make sure we don't overrun const arrays */
    assert(rr_type < (sizeof(name_type) / sizeof(char *)));
    assert((rr_node[inode].direction + 1) <
           (sizeof(direction_name) / sizeof(char *)));
    assert((rr_node[inode].drivers + 1) <
           (sizeof(drivers_name) / sizeof(char *)));

    fprintf(fp, "Node: %d %s ", inode, name_type[rr_type]);
    if((rr_node[inode].xlow == rr_node[inode].xhigh) &&
       (rr_node[inode].ylow == rr_node[inode].yhigh))
        {
            fprintf(fp, "(%d, %d) ", rr_node[inode].xlow,
                    rr_node[inode].ylow);
        }
    else
        {
            fprintf(fp, "(%d, %d) to (%d, %d) ", rr_node[inode].xlow,
                    rr_node[inode].ylow, rr_node[inode].xhigh,
                    rr_node[inode].yhigh);
        }
    fprintf(fp, "Ptc_num: %d ", rr_node[inode].ptc_num);
    fprintf(fp, "Direction: %s ",
            direction_name[rr_node[inode].direction + 1]);
    fprintf(fp, "Drivers: %s ", drivers_name[rr_node[inode].drivers + 1]);
    fprintf(fp, "\n");

    fprintf(fp, "%d edge(s):", rr_node[inode].num_edges);
    for(iconn = 0; iconn < rr_node[inode].num_edges; iconn++)
        fprintf(fp, " %d", rr_node[inode].edges[iconn]);
    fprintf(fp, "\n");

    fprintf(fp, "Switch types:");
    for(iconn = 0; iconn < rr_node[inode].num_edges; iconn++)
        fprintf(fp, " %d", rr_node[inode].switches[iconn]);
    fprintf(fp, "\n");

    fprintf(fp, "Occ: %d  Capacity: %d\n", rr_node[inode].occ,
            rr_node[inode].capacity);
    fprintf(fp, "R: %g  C: %g\n", rr_node[inode].R, rr_node[inode].C);
    fprintf(fp, "Cost_index: %d\n", rr_node[inode].cost_index);
}

Here is the caller graph for this function:

static void rr_graph_externals	(	t_timing_inf	timing_inf,
		t_segment_inf *	segment_inf,
		int	num_seg_types,
		int	nodes_per_chan,
		int	wire_to_ipin_switch,
		enum e_base_cost_type	base_cost_type
	)			[static]

Definition at line 661 of file rr_graph.c.

{
    add_rr_graph_C_from_switches(timing_inf.C_ipin_cblock);
    alloc_and_load_rr_indexed_data(segment_inf, num_seg_types,
                                   rr_node_indices, nodes_per_chan,
                                   wire_to_ipin_switch, base_cost_type);

    alloc_net_rr_terminals();
    load_net_rr_terminals(rr_node_indices);
    alloc_and_load_rr_clb_source(rr_node_indices);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static int track_side

(

int

clb_side

)

[static]

static void view_mux_size_distribution	(	t_ivec ***	rr_node_indices,
		int	nodes_per_chan,
		t_seg_details *	seg_details_x,
		t_seg_details *	seg_details_y
	)			[static]

Definition at line 2660 of file rr_graph.c.

{

    int i, j, itrack, seg_num, chan_num, max_len;
    int start, end, inode, max_value, min_value;
    int array_count, k, num_muxes;
    short direction, side;
    float *percent_range_array;
    float percent_range, percent_range_sum, avg_percent_range;
    float std_dev_percent_range, deviation_f;
    int range, *range_array, global_max_range;
    float avg_range, range_sum, std_dev_range;
    t_seg_details *seg_details;
    t_mux *new_mux, *sblock_mux_list_head, *current, *next;

#ifdef ENABLE_DUMP
    FILE *dump_file_per_sblock, *dump_file;
#endif /* ENABLE_DUMP */
    t_mux_size_distribution *distr_list, *distr_current, *new_distribution,
        *distr_next;

#ifdef ENABLE_DUMP
    dump_file = my_fopen("mux_size_dump.txt", "w");
    dump_file_per_sblock = my_fopen("mux_size_per_sblock_dump.txt", "w");
#endif /* ENABLE_DUMP */

    sblock_mux_list_head = NULL;
    percent_range_array =
        (float *)my_malloc((nx - 1) * (ny - 1) * sizeof(float));
    range_array = (int *)my_malloc((nx - 1) * (ny - 1) * sizeof(int));
    array_count = 0;
    percent_range_sum = 0.0;
    range_sum = 0.0;
    global_max_range = 0;
    min_value = 0;
    max_value = 0;
    seg_num = 0;
    chan_num = 0;
    direction = 0;
    seg_details = 0;
    max_len = 0;
    distr_list = NULL;

    /* With the specified range, I'm only looking at core sblocks */
    for(j = (ny - 1); j > 0; j--)
        {
            for(i = 1; i < nx; i++)
                {
                    num_muxes = 0;
                    for(side = 0; side < 4; side++)
                        {
                            switch (side)
                                {
                                case LEFT:
                                    seg_num = i;
                                    chan_num = j;
                                    direction = DEC_DIRECTION;  /* only DEC have muxes in that sblock */
                                    seg_details = seg_details_x;
                                    max_len = nx;
                                    break;

                                case RIGHT:
                                    seg_num = i + 1;
                                    chan_num = j;
                                    direction = INC_DIRECTION;
                                    seg_details = seg_details_x;
                                    max_len = nx;
                                    break;

                                case TOP:
                                    seg_num = j + 1;
                                    chan_num = i;
                                    direction = INC_DIRECTION;
                                    seg_details = seg_details_y;
                                    max_len = ny;
                                    break;

                                case BOTTOM:
                                    seg_num = j;
                                    chan_num = i;
                                    direction = DEC_DIRECTION;
                                    seg_details = seg_details_y;
                                    max_len = ny;
                                    break;

                                default:
                                    assert(FALSE);
                                }

                            assert(nodes_per_chan > 0);
                            for(itrack = 0; itrack < nodes_per_chan; itrack++)
                                {
                                    start =
                                        get_seg_start(seg_details, itrack,
                                                      seg_num, chan_num);
                                    end =
                                        get_seg_end(seg_details, itrack,
                                                    start, chan_num, max_len);

                                    if((seg_details[itrack].direction ==
                                        direction) && (((start == seg_num)
                                                        && (direction ==
                                                            INC_DIRECTION))
                                                       || ((end == seg_num)
                                                           && (direction ==
                                                               DEC_DIRECTION))))
                                        {       /* mux found */
                                            num_muxes++;
                                            if(side == LEFT || side == RIGHT)
                                                {       /* CHANX */
                                                    inode =
                                                        get_rr_node_index
                                                        (seg_num, chan_num,
                                                         CHANX, itrack,
                                                         rr_node_indices);
                                                }
                                            else
                                                {
                                                    assert((side == TOP) || (side == BOTTOM));  /* CHANY */
                                                    inode =
                                                        get_rr_node_index
                                                        (chan_num, seg_num,
                                                         CHANY, itrack,
                                                         rr_node_indices);
                                                }

                                            new_mux = (t_mux *)
                                                my_malloc(sizeof(t_mux));
                                            new_mux->size =
                                                rr_node[inode].
                                                num_wire_drivers +
                                                rr_node[inode].
                                                num_opin_drivers;
                                            new_mux->next = NULL;

                                            /* insert in linked list, descending */
                                            if(sblock_mux_list_head == NULL)
                                                {
                                                    /* first entry */
                                                    sblock_mux_list_head =
                                                        new_mux;
                                                }
                                            else if(sblock_mux_list_head->
                                                    size < new_mux->size)
                                                {
                                                    /* insert before head */
                                                    new_mux->next =
                                                        sblock_mux_list_head;
                                                    sblock_mux_list_head =
                                                        new_mux;
                                                }
                                            else
                                                {
                                                    /* insert after head */
                                                    current =
                                                        sblock_mux_list_head;
                                                    next = current->next;

                                                    while((next != NULL)
                                                          && (next->size >
                                                              new_mux->size))
                                                        {
                                                            current = next;
                                                            next =
                                                                current->next;
                                                        }

                                                    if(next == NULL)
                                                        {
                                                            current->next =
                                                                new_mux;
                                                        }
                                                    else
                                                        {
                                                            new_mux->next =
                                                                current->next;
                                                            current->next =
                                                                new_mux;
                                                        }
                                                }
                                            /* end of insert in linked list */
                                        }
                                }
                        }       /* end of mux searching over all four sides of sblock */
                    /* now sblock_mux_list_head holds a linked list of all muxes in this sblock */

                    current = sblock_mux_list_head;

#ifdef ENABLE_DUMP
                    fprintf(dump_file_per_sblock,
                            "sblock at (%d, %d) has mux sizes: {", i, j);
#endif /* ENABLE_DUMP */

                    if(current != NULL)
                        {
                            max_value = min_value = current->size;
                        }
                    while(current != NULL)
                        {
                            if(max_value < current->size)
                                max_value = current->size;
                            if(min_value > current->size)
                                min_value = current->size;

#ifdef ENABLE_DUMP
                            fprintf(dump_file_per_sblock, "%d ",
                                    current->size);
                            fprintf(dump_file, "%d\n", current->size);
#endif /* ENABLE_DUMP */

                            current = current->next;
                        }

#ifdef ENABLE_DUMP
                    fprintf(dump_file_per_sblock, "}\n\tmax: %d\tmin:%d",
                            max_value, min_value);
#endif /* ENABLE_DUMP */

                    range = max_value - min_value;
                    percent_range = ((float)range) / ((float)min_value);

                    if(global_max_range < range)
                        global_max_range = range;

#ifdef ENABLE_DUMP
                    fprintf(dump_file_per_sblock,
                            "\t\trange: %d\t\tpercent range:%.2f\n",
                            range, percent_range);
#endif /* ENABLE_DUMP */

                    percent_range_array[array_count] = percent_range;
                    range_array[array_count] = range;

                    percent_range_sum += percent_range;
                    range_sum += range;

                    array_count++;

                    /* I will use a distribution for each (core) sblock type.
                     * There are more than 1 type of sblocks,
                     * when quantization of W to 2L multiples is not observed. */



                    distr_current = distr_list;
                    while(distr_current != NULL
                          && distr_current->mux_count != num_muxes)
                        {
                            distr_current = distr_current->next;
                        }

                    if(distr_current == NULL)
                        {
                            /* Create a distribution for the new sblock type,
                             * and put it as head of linked list by convention */

                            new_distribution = (t_mux_size_distribution *)
                                my_malloc(sizeof(t_mux_size_distribution));
                            new_distribution->mux_count = num_muxes;
                            new_distribution->max_index = max_value;
                            new_distribution->distr =
                                (int *)my_calloc(max_value + 1, sizeof(int));

                            /* filling in the distribution */
                            current = sblock_mux_list_head;
                            while(current != NULL)
                                {
                                    assert(current->size <=
                                           new_distribution->max_index);
                                    new_distribution->distr[current->size]++;
                                    current = current->next;
                                }

                            /* add it to head */
                            new_distribution->next = distr_list;
                            distr_list = new_distribution;
                        }
                    else
                        {
                            /* distr_current->mux_count == num_muxes so add this sblock's mux sizes in this distribution */
                            current = sblock_mux_list_head;

                            while(current != NULL)
                                {
                                    if(current->size >
                                       distr_current->max_index)
                                        {
                                            /* needs to realloc to expand the distribution array to hold the new large-valued data */
                                            distr_current->distr =
                                                my_realloc(distr_current->
                                                           distr,
                                                           (current->size +
                                                            1) * sizeof(int));

                                            /* initializing the newly allocated elements */
                                            for(k =
                                                (distr_current->max_index +
                                                 1); k <= current->size; k++)
                                                distr_current->distr[k] = 0;

                                            distr_current->max_index =
                                                current->size;
                                            distr_current->distr[current->
                                                                 size]++;
                                        }
                                    else
                                        {
                                            distr_current->distr[current->
                                                                 size]++;
                                        }
                                    current = current->next;
                                }
                        }

                    /* done - now free memory */
                    current = sblock_mux_list_head;
                    while(current != NULL)
                        {
                            next = current->next;
                            free(current);
                            current = next;
                        }
                    sblock_mux_list_head = NULL;
                }
        }

    avg_percent_range = (float)percent_range_sum / array_count;
    avg_range = (float)range_sum / array_count;

    percent_range_sum = 0.0;
    range_sum = 0.0;
    for(k = 0; k < array_count; k++)
        {
            deviation_f = (percent_range_array[k] - avg_percent_range);
            percent_range_sum += deviation_f * deviation_f;

            deviation_f = ((float)range_array[k] - avg_range);
            range_sum += deviation_f * deviation_f;
        }
    std_dev_percent_range =
        sqrt(percent_range_sum / ((float)array_count - 1.0));
    std_dev_range = sqrt(range_sum / ((float)array_count - 1.0));
    printf("==== MUX size statistics ====\n");
    printf("max range of mux size within a sblock is; %d\n",
           global_max_range);
    printf("average range of mux size within a sblock is; %.2f\n", avg_range);
    printf("std dev of range of mux size within a sblock is; %.2f\n",
           std_dev_range);
    printf
        ("average percent range of mux size within a sblock is; %.2f%%\n",
         avg_percent_range * 100.0);
    printf
        ("std dev of percent range of mux size within a sblock is; %.2f%%\n",
         std_dev_percent_range * 100.0);

    printf(" -- Detailed MUX size distribution by sblock type -- \n");
    distr_current = distr_list;
    while(distr_current != NULL)
        {
            print_distribution(stdout, distr_current);

            /* free */
            distr_next = distr_current->next;

            free(distr_current->distr);
            free(distr_current);

            distr_current = distr_next;
        }

    free(percent_range_array);
    free(range_array);
#ifdef ENABLE_DUMP
    fclose(dump_file_per_sblock);
    fclose(dump_file);
#endif /* ENABLE_DUMP */
}

Here is the call graph for this function:

Here is the caller graph for this function:

void watch_edges	(	int	inode,
		t_linked_edge *	edge_list_head
	)

Definition at line 1645 of file rr_graph.c.

{
    t_linked_edge *list_ptr;
    int i, to_node;

    list_ptr = edge_list_head;
    i = 0;

    printf("!!! Watching Node %d !!!!\n", inode);
    print_rr_node(stdout, rr_node, inode);
    printf("Currently connects to: \n");
    while(list_ptr != NULL)
        {
            to_node = list_ptr->edge;
            print_rr_node(stdout, rr_node, to_node);
            list_ptr = list_ptr->next;
            i++;
        }
}

Here is the call graph for this function:

---

Variable Documentation

int chunk_bytes_avail = 0 [static]

Definition at line 55 of file rr_graph.c.

char* chunk_next_avail_mem = NULL [static]

Definition at line 56 of file rr_graph.c.

struct s_linked_vptr* rr_mem_chunk_list_head = NULL [static]

Definition at line 51 of file rr_graph.c.
