SRC/rr_graph2.c File Reference

#include <stdio.h>
#include <assert.h>
#include "util.h"
#include "vpr_types.h"
#include "globals.h"
#include "rr_graph_util.h"
#include "rr_graph2.h"
#include "rr_graph_sbox.h"

Include dependency graph for rr_graph2.c:

Go to the source code of this file.

Defines
#define	ALLOW_SWITCH_OFF
#define	ENABLE_REVERSE   0
#define	SAME_TRACK   -5
#define	UN_SET   -1
Functions
static void	get_switch_type (boolean is_from_sbox, boolean is_to_sbox, short from_node_switch, short to_node_switch, short switch_types[2])
static void	load_chan_rr_indices (IN int nodes_per_chan, IN int chan_len, IN int num_chans, IN t_rr_type type, IN t_seg_details *seg_details, INOUT int *index, INOUT t_ivec ***indices)
static int	get_bidir_track_to_chan_seg (IN struct s_ivec conn_tracks, IN t_ivec ***rr_node_indices, IN int to_chan, IN int to_seg, IN int to_sb, IN t_rr_type to_type, IN t_seg_details *seg_details, IN boolean from_is_sbox, IN int from_switch, INOUT boolean *rr_edge_done, IN enum e_directionality directionality, INOUT struct s_linked_edge **edge_list)
static int	get_unidir_track_to_chan_seg (IN boolean is_end_sb, IN int from_track, IN int to_chan, IN int to_seg, IN int to_sb, IN t_rr_type to_type, IN int nodes_per_chan, IN int nx, IN int ny, IN enum e_side from_side, IN enum e_side to_side, IN int Fs_per_side, IN int *opin_mux_size, IN short *****sblock_pattern, IN t_ivec ***rr_node_indices, IN t_seg_details *seg_details, INOUT boolean *rr_edge_done, OUT boolean *Fs_clipped, INOUT struct s_linked_edge **edge_list)
static int	vpr_to_phy_track (IN int itrack, IN int chan_num, IN int seg_num, IN t_seg_details *seg_details, IN enum e_directionality directionality)
static int *	get_seg_track_counts (IN int num_sets, IN int num_seg_types, IN t_segment_inf *segment_inf, IN boolean use_full_seg_groups)
static int *	label_wire_muxes (IN int chan_num, IN int seg_num, IN t_seg_details *seg_details, IN int max_len, IN enum e_direction dir, IN int nodes_per_chan, OUT int *num_wire_muxes)
static int *	label_wire_muxes_for_balance (IN int chan_num, IN int seg_num, IN t_seg_details *seg_details, IN int max_len, IN enum e_direction direction, IN int nodes_per_chan, IN int *num_wire_muxes, IN t_rr_type chan_type, IN int *opin_mux_size, IN t_ivec ***rr_node_indices)
static int *	label_incoming_wires (IN int chan_num, IN int seg_num, IN int sb_seg, IN t_seg_details *seg_details, IN int max_len, IN enum e_direction dir, IN int nodes_per_chan, OUT int *num_incoming_wires, OUT int *num_ending_wires)
static int	find_label_of_track (int *wire_mux_on_track, int num_wire_muxes, int from_track)
t_seg_details *	alloc_and_load_seg_details (INOUT int *nodes_per_chan, IN int max_len, IN int num_seg_types, IN t_segment_inf *segment_inf, IN boolean use_full_seg_groups, IN boolean is_global_graph, IN enum e_directionality directionality)
void	free_seg_details (t_seg_details *seg_details, int nodes_per_chan)
void	dump_seg_details (t_seg_details *seg_details, int nodes_per_chan, char *fname)
int	get_seg_start (IN t_seg_details *seg_details, IN int itrack, IN int chan_num, IN int seg_num)
int	get_seg_end (IN t_seg_details *seg_details, IN int itrack, IN int istart, IN int chan_num, IN int seg_max)
int	get_bidir_opin_connections (IN int i, IN int j, IN int ipin, IN struct s_linked_edge **edge_list, IN int *****opin_to_track_map, IN int Fc, IN boolean *rr_edge_done, IN t_ivec ***rr_node_indices, IN t_seg_details *seg_details)
int	get_unidir_opin_connections (IN int chan, IN int seg, IN int Fc, IN t_rr_type chan_type, IN t_seg_details *seg_details, INOUT t_linked_edge **edge_list_ptr, INOUT int **Fc_ofs, INOUT boolean *rr_edge_done, IN int max_len, IN int nodes_per_chan, IN t_ivec ***rr_node_indices, OUT boolean *Fc_clipped)
boolean	is_cbox (IN int chan, IN int seg, IN int track, IN t_seg_details *seg_details, IN enum e_directionality directionality)
struct s_ivec ***	alloc_and_load_rr_node_indices (IN int nodes_per_chan, IN int nx, IN int ny, INOUT int *index, IN t_seg_details *seg_details)
void	free_rr_node_indices (IN t_ivec ***rr_node_indices)
int	get_rr_node_index (int x, int y, t_rr_type rr_type, int ptc, t_ivec ***rr_node_indices)
int	get_track_to_ipins (int seg, int chan, int track, t_linked_edge **edge_list_ptr, t_ivec ***rr_node_indices, struct s_ivec ****track_to_ipin_lookup, t_seg_details *seg_details, enum e_rr_type chan_type, int chan_length, int wire_to_ipin_switch, enum e_directionality directionality)
int	get_track_to_tracks (IN int from_chan, IN int from_seg, IN int from_track, IN t_rr_type from_type, IN int to_seg, IN t_rr_type to_type, IN int chan_len, IN int nodes_per_chan, IN int *opin_mux_size, IN int Fs_per_side, IN short *****sblock_pattern, INOUT struct s_linked_edge **edge_list, IN t_seg_details *seg_details, IN enum e_directionality directionality, IN t_ivec ***rr_node_indices, INOUT boolean *rr_edge_done, IN struct s_ivec ***switch_block_conn)
boolean	is_sbox (IN int chan, IN int wire_seg, IN int sb_seg, IN int track, IN t_seg_details *seg_details, IN enum e_directionality directionality)
short *****	alloc_sblock_pattern_lookup (IN int nx, IN int ny, IN int nodes_per_chan)
void	free_sblock_pattern_lookup (INOUT short *****sblock_pattern)
void	load_sblock_pattern_lookup (IN int i, IN int j, IN int nodes_per_chan, IN t_seg_details *seg_details, IN int Fs, IN enum e_switch_block_type switch_block_type, INOUT short *****sblock_pattern)
Variables
boolean *	rr_edge_done
t_linked_edge *	free_edge_list_head = NULL

---

Define Documentation

#define ALLOW_SWITCH_OFF

Definition at line 10 of file rr_graph2.c.

#define ENABLE_REVERSE   0

Definition at line 15 of file rr_graph2.c.

#define SAME_TRACK   -5

Definition at line 18 of file rr_graph2.c.

#define UN_SET   -1

Definition at line 19 of file rr_graph2.c.

---

Function Documentation

struct s_ivec*** alloc_and_load_rr_node_indices	(	IN int	nodes_per_chan,
		IN int	nx,
		IN int	ny,
		INOUT int *	index,
		IN t_seg_details *	seg_details
	)			[read]

Definition at line 928 of file rr_graph2.c.

{

    /* Allocates and loads all the structures needed for fast lookups of the   *
     * index of an rr_node.  rr_node_indices is a matrix containing the index  *
     * of the *first* rr_node at a given (i,j) location.                       */

    int i, j, k, ofs;
    t_ivec ***indices;
    t_ivec tmp;
    t_type_ptr type;

    /* Alloc the lookup table */
    indices = (t_ivec ***) my_malloc(sizeof(t_ivec **) * NUM_RR_TYPES);
    indices[IPIN] = (t_ivec **) my_malloc(sizeof(t_ivec *) * (nx + 2));
    indices[SINK] = (t_ivec **) my_malloc(sizeof(t_ivec *) * (nx + 2));
    for(i = 0; i <= (nx + 1); ++i)
        {
            indices[IPIN][i] =
                (t_ivec *) my_malloc(sizeof(t_ivec) * (ny + 2));
            indices[SINK][i] =
                (t_ivec *) my_malloc(sizeof(t_ivec) * (ny + 2));
            for(j = 0; j <= (ny + 1); ++j)
                {
                    indices[IPIN][i][j].nelem = 0;
                    indices[IPIN][i][j].list = NULL;

                    indices[SINK][i][j].nelem = 0;
                    indices[SINK][i][j].list = NULL;
                }
        }


    /* Count indices for block nodes */
    for(i = 0; i <= (nx + 1); i++)
        {
            for(j = 0; j <= (ny + 1); j++)
                {
                    ofs = grid[i][j].offset;
                    if(0 == ofs)
                        {
                            type = grid[i][j].type;

                            /* Load the pin class lookups. The ptc nums for SINK and SOURCE
                             * are disjoint so they can share the list. */
                            tmp.nelem = type->num_class;
                            tmp.list = NULL;
                            if(tmp.nelem > 0)
                                {
                                    tmp.list =
                                        (int *)my_malloc(sizeof(int) *
                                                         tmp.nelem);
                                    for(k = 0; k < tmp.nelem; ++k)
                                        {
                                            tmp.list[k] = *index;
                                            ++(*index);
                                        }
                                }
                            indices[SINK][i][j] = tmp;

                            /* Load the pin lookups. The ptc nums for IPIN and OPIN
                             * are disjoint so they can share the list. */
                            tmp.nelem = type->num_pins;
                            tmp.list = NULL;
                            if(tmp.nelem > 0)
                                {
                                    tmp.list =
                                        (int *)my_malloc(sizeof(int) *
                                                         tmp.nelem);
                                    for(k = 0; k < tmp.nelem; ++k)
                                        {
                                            tmp.list[k] = *index;
                                            ++(*index);
                                        }
                                }
                            indices[IPIN][i][j] = tmp;
                        }
                }
        }

    /* Point offset blocks of a large block to base block */
    for(i = 0; i <= (nx + 1); i++)
        {
            for(j = 0; j <= (ny + 1); j++)
                {
                    ofs = grid[i][j].offset;
                    if(ofs > 0)
                        {
                            /* NOTE: this only supports vertical large blocks */
                            indices[SINK][i][j] = indices[SINK][i][j - ofs];
                            indices[IPIN][i][j] = indices[IPIN][i][j - ofs];
                        }
                }
        }

    /* SOURCE and SINK have unique ptc values so their data can be shared.
     * IPIN and OPIN have unique ptc values so their data can be shared. */
    indices[SOURCE] = indices[SINK];
    indices[OPIN] = indices[IPIN];

    /* Load the data for x and y channels */
    load_chan_rr_indices(nodes_per_chan, nx + 1, ny + 1, CHANX,
                         seg_details, index, indices);
    load_chan_rr_indices(nodes_per_chan, ny + 1, nx + 1, CHANY,
                         seg_details, index, indices);

    return indices;
}

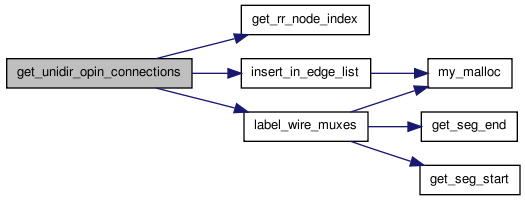

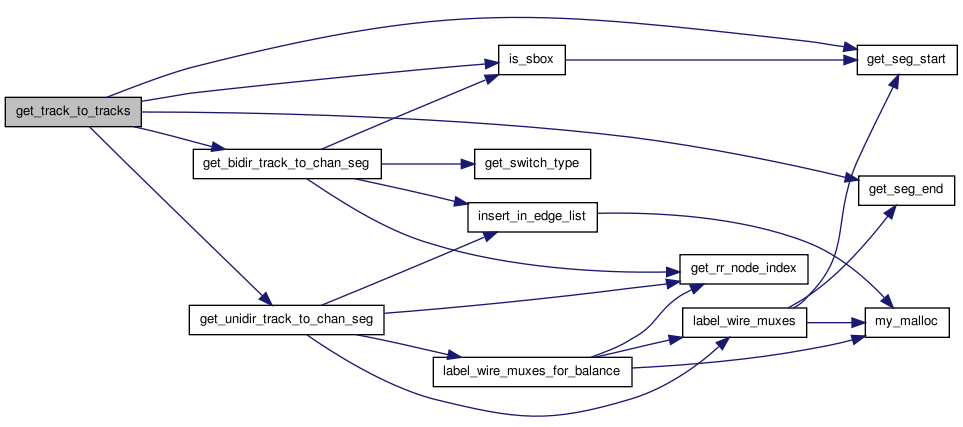

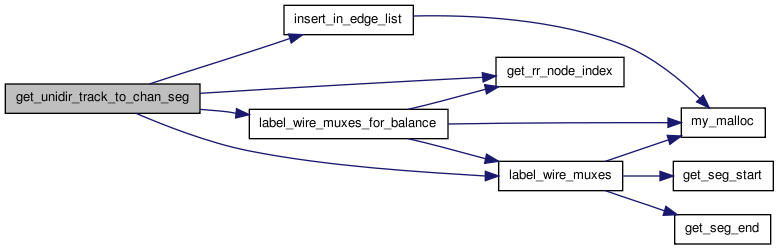

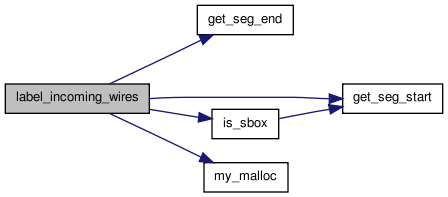

Here is the call graph for this function:

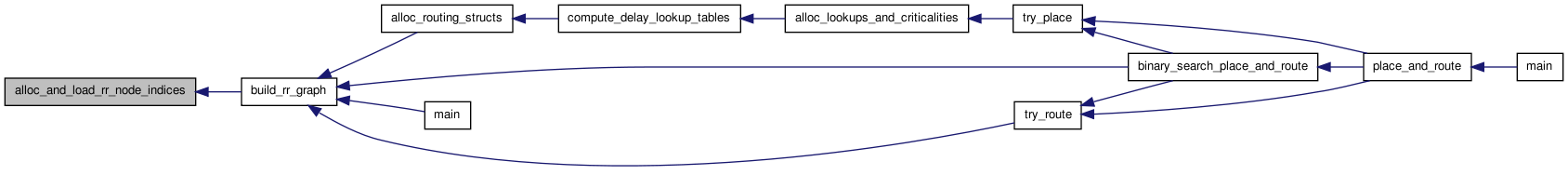

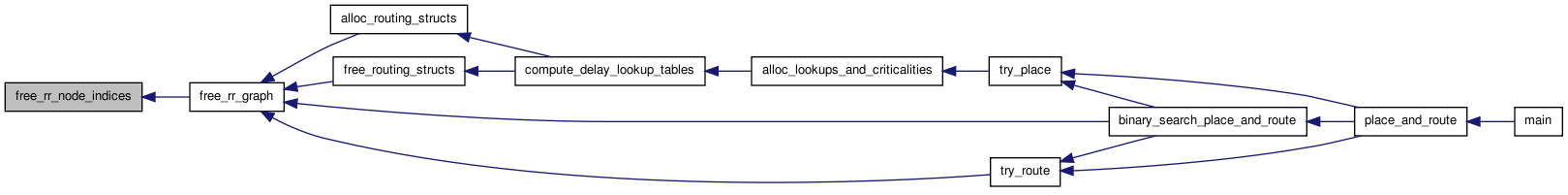

Here is the caller graph for this function:

t_seg_details* alloc_and_load_seg_details	(	INOUT int *	nodes_per_chan,
		IN int	max_len,
		IN int	num_seg_types,
		IN t_segment_inf *	segment_inf,
		IN boolean	use_full_seg_groups,
		IN boolean	is_global_graph,
		IN enum e_directionality	directionality
	)

Definition at line 241 of file rr_graph2.c.

{

    /* Allocates and loads the seg_details data structure.  Max_len gives the   *
     * maximum length of a segment (dimension of array).  The code below tries  *
     * to:                                                                      *
     * (1) stagger the start points of segments of the same type evenly;        *
     * (2) spread out the limited number of connection boxes or switch boxes    *
     *     evenly along the length of a segment, starting at the segment ends;  *
     * (3) stagger the connection and switch boxes on different long lines,     *
     *     as they will not be staggered by different segment start points.     */

    int i, cur_track, ntracks, itrack, length, j, index;
    int wire_switch, opin_switch, fac, num_sets, tmp;
    int group_start, first_track;
    int *sets_per_seg_type = NULL;
    t_seg_details *seg_details = NULL;
    boolean longline;

    /* Unidir tracks are assigned in pairs, and bidir tracks individually */
    if(directionality == BI_DIRECTIONAL)
        {
            fac = 1;
        }
    else
        {
            assert(directionality == UNI_DIRECTIONAL);
            fac = 2;
        }
    assert(*nodes_per_chan % fac == 0);

    /* Map segment type fractions and groupings to counts of tracks */
    sets_per_seg_type = get_seg_track_counts((*nodes_per_chan / fac),
                                             num_seg_types,
                                             segment_inf,
                                             use_full_seg_groups);

    /* Count the number tracks actually assigned. */
    tmp = 0;
    for(i = 0; i < num_seg_types; ++i)
        {
            tmp += sets_per_seg_type[i] * fac;
        }
    assert(use_full_seg_groups || (tmp == *nodes_per_chan));
    *nodes_per_chan = tmp;

    seg_details = (t_seg_details *)
        my_malloc(*nodes_per_chan * sizeof(t_seg_details));

    /* Setup the seg_details data */
    cur_track = 0;
    for(i = 0; i < num_seg_types; ++i)
        {
            first_track = cur_track;

            num_sets = sets_per_seg_type[i];
            ntracks = fac * num_sets;
            if(ntracks < 1)
                {
                    continue;
                }
            /* Avoid divide by 0 if ntracks */
            longline = segment_inf[i].longline;
            length = segment_inf[i].length;
            if(longline)
                {
                    length = max_len;
                }

            wire_switch = segment_inf[i].wire_switch;
            opin_switch = segment_inf[i].opin_switch;
            assert((wire_switch == opin_switch)
                   || (directionality != UNI_DIRECTIONAL));

            /* Set up the tracks of same type */
            group_start = 0;
            for(itrack = 0; itrack < ntracks; itrack++)
                {

                    /* Remember the start track of the current wire group */
                    if((itrack / fac) % length == 0 && (itrack % fac) == 0)
                        {
                            group_start = cur_track;
                        }

                    seg_details[cur_track].length = length;
                    seg_details[cur_track].longline = longline;

                    /* Stagger the start points in for each track set. The
                     * pin mappings should be aware of this when chosing an
                     * intelligent way of connecting pins and tracks.
                     * cur_track is used as an offset so that extra tracks
                     * from different segment types are hopefully better
                     * balanced. */
                    seg_details[cur_track].start =
                        (cur_track / fac) % length + 1;

                    /* These properties are used for vpr_to_phy_track to determine
                     * * twisting of wires. */
                    seg_details[cur_track].group_start = group_start;
                    seg_details[cur_track].group_size =
                        min(ntracks + first_track - group_start,
                            length * fac);
                    assert(0 == seg_details[cur_track].group_size % fac);
                    if(0 == seg_details[cur_track].group_size)
                        {
                            seg_details[cur_track].group_size = length * fac;
                        }

                    /* Setup the cb and sb patterns. Global route graphs can't depopulate cb and sb
                     * since this is a property of a detailed route. */
                    seg_details[cur_track].cb =
                        (boolean *) my_malloc(length * sizeof(boolean));
                    seg_details[cur_track].sb =
                        (boolean *) my_malloc((length + 1) * sizeof(boolean));
                    for(j = 0; j < length; ++j)
                        {
                            if(is_global_graph)
                                {
                                    seg_details[cur_track].cb[j] = TRUE;
                                }
                            else
                                {
                                    index = j;

                                    /* Rotate longline's so they vary across the FPGA */
                                    if(longline)
                                        {
                                            index = (index + itrack) % length;
                                        }

                                    /* Reverse the order for tracks going in DEC_DIRECTION */
                                    if(itrack % fac == 1)
                                        {
                                            index = (length - 1) - j;
                                        }

                                    /* Use the segment's pattern. */
                                    index = j % segment_inf[i].cb_len;
                                    seg_details[cur_track].cb[j] =
                                        segment_inf[i].cb[index];
                                }
                        }
                    for(j = 0; j < (length + 1); ++j)
                        {
                            if(is_global_graph)
                                {
                                    seg_details[cur_track].sb[j] = TRUE;
                                }
                            else
                                {
                                    index = j;

                                    /* Rotate longline's so they vary across the FPGA */
                                    if(longline)
                                        {
                                            index =
                                                (index + itrack) % (length +
                                                                    1);
                                        }

                                    /* Reverse the order for tracks going in DEC_DIRECTION */
                                    if(itrack % fac == 1)
                                        {
                                            index = ((length + 1) - 1) - j;
                                        }

                                    /* Use the segment's pattern. */
                                    index = j % segment_inf[i].sb_len;
                                    seg_details[cur_track].sb[j] =
                                        segment_inf[i].sb[index];
                                }
                        }

                    seg_details[cur_track].Rmetal = segment_inf[i].Rmetal;
                    seg_details[cur_track].Cmetal = segment_inf[i].Cmetal;

                    seg_details[cur_track].wire_switch = wire_switch;
                    seg_details[cur_track].opin_switch = opin_switch;

                    if(BI_DIRECTIONAL == directionality)
                        {
                            seg_details[cur_track].direction = BI_DIRECTION;
                        }
                    else
                        {
                            assert(UNI_DIRECTIONAL == directionality);
                            seg_details[cur_track].direction =
                                (itrack % 2) ? DEC_DIRECTION : INC_DIRECTION;
                        }

                    switch (segment_inf[i].directionality)
                        {
                        case UNI_DIRECTIONAL:
                            seg_details[cur_track].drivers = SINGLE;
                            break;
                        case BI_DIRECTIONAL:
                            seg_details[cur_track].drivers = MULTI_BUFFERED;
                            break;
                        }

                    seg_details[cur_track].index = i;

                    ++cur_track;
                }
        }                       /* End for each segment type. */

        /* free variables */
        free(sets_per_seg_type);

    return seg_details;
}

Here is the call graph for this function:

Here is the caller graph for this function:

short***** alloc_sblock_pattern_lookup	(	IN int	nx,
		IN int	ny,
		IN int	nodes_per_chan
	)

Definition at line 1893 of file rr_graph2.c.

{
    int i, j, from_side, to_side, itrack, items;
    short *****result;
    short *****i_list;
    short ****j_list;
    short ***from_list;
    short **to_list;
    short *track_list;

    /* loading up the sblock connection pattern matrix. It's a huge matrix because
     * for nonquantized W, it's impossible to make simple permutations to figure out
     * where muxes are and how to connect to them such that their sizes are balanced */

    /* Do chunked allocations to make freeing easier, speed up malloc and free, and
     * reduce some of the memory overhead. Could use fewer malloc's but this way
     * avoids all considerations of pointer sizes and allignment. */

    /* Alloc each list of pointers in one go. items is a running product that increases
     * with each new dimension of the matrix. */
    items = 1;
    items *= (nx + 1);
    i_list = (short *****)my_malloc(sizeof(short ****) * items);
    items *= (ny + 1);
    j_list = (short ****)my_malloc(sizeof(short ***) * items);
    items *= (4);
    from_list = (short ***)my_malloc(sizeof(short **) * items);
    items *= (4);
    to_list = (short **)my_malloc(sizeof(short *) * items);
    items *= (nodes_per_chan);
    track_list = (short *)my_malloc(sizeof(short) * items);

    /* Build the pointer lists to form the multidimensional array */
    result = i_list;
    i_list += (nx + 1);         /* Skip forward nx+1 items */
    for(i = 0; i < (nx + 1); ++i)
        {

            result[i] = j_list;
            j_list += (ny + 1); /* Skip forward ny+1 items */
            for(j = 0; j < (ny + 1); ++j)
                {

                    result[i][j] = from_list;
                    from_list += (4);   /* Skip forward 4 items */
                    for(from_side = 0; from_side < 4; ++from_side)
                        {

                            result[i][j][from_side] = to_list;
                            to_list += (4);     /* Skip forward 4 items */
                            for(to_side = 0; to_side < 4; ++to_side)
                                {

                                    result[i][j][from_side][to_side] =
                                        track_list;
                                    track_list += (nodes_per_chan);     /* Skip forward nodes_per_chan items */
                                    for(itrack = 0; itrack < nodes_per_chan;
                                        itrack++)
                                        {

                                            /* Set initial value to be unset */
                                            result[i][j][from_side][to_side]
                                                [itrack] = UN_SET;
                                        }
                                }
                        }
                }
        }

    /* This is the outer pointer to the full matrix */
    return result;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void dump_seg_details	(	t_seg_details *	seg_details,
		int	nodes_per_chan,
		char *	fname
	)

Definition at line 481 of file rr_graph2.c.

{

    FILE *fp;
    int i, j;
    const char *drivers_names[] = { "multi_buffered",
        "multi_muxed",
        "multi_merged",
        "single"
    };
    const char *direction_names[] = { "inc_direction",
        "dec_direction",
        "bi_direction"
    };

    fp = my_fopen(fname, "w");

    for(i = 0; i < nodes_per_chan; i++)
        {
            fprintf(fp, "Track: %d.\n", i);
            fprintf(fp, "Length: %d,  Start: %d,  Long line: %d  "
                    "wire_switch: %d  opin_switch: %d.\n",
                    seg_details[i].length,
                    seg_details[i].start,
                    seg_details[i].longline,
                    seg_details[i].wire_switch, seg_details[i].opin_switch);

            fprintf(fp, "Rmetal: %g  Cmetal: %g\n",
                    seg_details[i].Rmetal, seg_details[i].Cmetal);

            fprintf(fp, "Direction: %s  Drivers: %s\n",
                    direction_names[seg_details[i].direction],
                    drivers_names[seg_details[i].drivers]);

            fprintf(fp, "Start Track: %d  End Track: %d\n",
                    seg_details[i].start_track, seg_details[i].end_track);

            fprintf(fp, "cb list:  ");
            for(j = 0; j < seg_details[i].length; j++)
                fprintf(fp, "%d ", seg_details[i].cb[j]);
            fprintf(fp, "\n");

            fprintf(fp, "sb list: ");
            for(j = 0; j <= seg_details[i].length; j++)
                fprintf(fp, "%d ", seg_details[i].sb[j]);
            fprintf(fp, "\n");

            fprintf(fp, "\n");
        }

    fclose(fp);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static int find_label_of_track	(	int *	wire_mux_on_track,
		int	num_wire_muxes,
		int	from_track
	)			[static]

Definition at line 2619 of file rr_graph2.c.

{
    int i, max_label, nearest_label, max_entry, nearest_entry;

    /* Returns the index/label in array wire_mux_on_track whose entry equals from_track. If none are
     * found, then returns the index of the entry whose value is the largest */

    max_label = nearest_label = max_entry = nearest_entry = -1;

    for(i = 0; i < num_wire_muxes; i++)
        {
            if(wire_mux_on_track[i] == from_track)
                {
                    return i;   /* matched, return now */
                }
        }

    printf("Error: Expected mux not found.\n");
    exit(1);
}

Here is the caller graph for this function:

void free_rr_node_indices

(

IN t_ivec ***

rr_node_indices

)

Definition at line 1043 of file rr_graph2.c.

{
        int i, j, ofs;
    /* This function must unallocate the structure allocated in
     * alloc_and_load_rr_node_indices. */
        for(i = 0; i <= (nx + 1); ++i)
        {
                for(j = 0; j <= (ny + 1); ++j)
                {
                        ofs = grid[i][j].offset;
                    if(ofs > 0)
                        {
                            /* Vertical large blocks reference is same as offset 0 */
                            rr_node_indices[SINK][i][j].list = NULL;
                                rr_node_indices[IPIN][i][j].list = NULL;
                                continue;
                        }
                        if(rr_node_indices[SINK][i][j].list != NULL) {
                                free(rr_node_indices[SINK][i][j].list);
                        }
                        if(rr_node_indices[IPIN][i][j].list != NULL) {
                                free(rr_node_indices[IPIN][i][j].list);
                        }
                }
                free(rr_node_indices[SINK][i]);
                free(rr_node_indices[IPIN][i]);
        }
        free(rr_node_indices[SINK]);
        free(rr_node_indices[IPIN]);

        for(i = 0; i < (nx + 1); ++i)
        {
                for(j = 0; j < (ny + 1); ++j)
                {
                        if(rr_node_indices[CHANY][i][j].list != NULL) {
                                free(rr_node_indices[CHANY][i][j].list);
                        }
                }
                free(rr_node_indices[CHANY][i]);
        }
        free(rr_node_indices[CHANY]);

        for(i = 0; i < (ny + 1); ++i)
        {
                for(j = 0; j < (nx + 1); ++j)
                {
                        if(rr_node_indices[CHANX][i][j].list != NULL) {
                                free(rr_node_indices[CHANX][i][j].list);
                        }
                }
                free(rr_node_indices[CHANX][i]);
        }
        free(rr_node_indices[CHANX]);

        free(rr_node_indices);
}

Here is the caller graph for this function:

void free_sblock_pattern_lookup

(

INOUT short *****

sblock_pattern

)

Definition at line 1970 of file rr_graph2.c.

{
    /* This free function corresponds to the chunked matrix
     * allocation above and there should only be one free
     * call for each dimension. */

    /* Free dimensions from the inner one, outwards so
     * we can still access them. The comments beside
     * each one indicate the corresponding name used when
     * allocating them. */
    free(****sblock_pattern);   /* track_list */
    free(***sblock_pattern);    /* to_list */
    free(**sblock_pattern);     /* from_list */
    free(*sblock_pattern);      /* j_list */
    free(sblock_pattern);       /* i_list */
}

Here is the caller graph for this function:

void free_seg_details	(	t_seg_details *	seg_details,
		int	nodes_per_chan
	)

Definition at line 461 of file rr_graph2.c.

{

    /* Frees all the memory allocated to an array of seg_details structures. */

    int i;

    for(i = 0; i < nodes_per_chan; i++)
        {
            free(seg_details[i].cb);
            free(seg_details[i].sb);
        }
    free(seg_details);
}

Here is the caller graph for this function:

int get_bidir_opin_connections	(	IN int	i,
		IN int	j,
		IN int	ipin,
		IN struct s_linked_edge **	edge_list,
		IN int *****	opin_to_track_map,
		IN int	Fc,
		IN boolean *	rr_edge_done,
		IN t_ivec ***	rr_node_indices,
		IN t_seg_details *	seg_details
	)

Definition at line 621 of file rr_graph2.c.

{

    int iside, num_conn, ofs, tr_i, tr_j, chan, seg;
    int to_track, to_switch, to_node, iconn;
        int is_connected_track;
    t_type_ptr type;
    t_rr_type to_type;

    type = grid[i][j].type;
    ofs = grid[i][j].offset;

    num_conn = 0;

    /* [0..num_types-1][0..num_pins-1][0..height][0..3][0..Fc-1] */
    for(iside = 0; iside < 4; iside++)
        {

            /* Figure out coords of channel segment based on side */
            tr_i = ((iside == LEFT) ? (i - 1) : i);
            tr_j = ((iside == BOTTOM) ? (j - 1) : j);

            to_type = ((iside == LEFT) || (iside == RIGHT)) ? CHANY : CHANX;

            chan = ((to_type == CHANX) ? tr_j : tr_i);
            seg = ((to_type == CHANX) ? tr_i : tr_j);

            /* Don't connect where no tracks on fringes */
            if((tr_i < 0) || (tr_i > nx))
                {
                    continue;
                }
            if((tr_j < 0) || (tr_j > ny))
                {
                    continue;
                }
            if((CHANX == to_type) && (tr_i < 1))
                {
                    continue;
                }
            if((CHANY == to_type) && (tr_j < 1))
                {
                    continue;
                }

                is_connected_track = FALSE;

            /* Itterate of the opin to track connections */
            for(iconn = 0; iconn < Fc; ++iconn)
                {
                    to_track =
                        opin_to_track_map[type->
                                          index][ipin][ofs][iside][iconn];

                    /* Skip unconnected connections */
                    if(OPEN == to_track || is_connected_track)
                        {
                                is_connected_track = TRUE;
                            assert(OPEN ==
                                   opin_to_track_map[type->
                                                     index][ipin][ofs][iside]
                                   [0]);
                            continue;
                        }

                    /* Only connect to wire if there is a CB */
                    if(is_cbox
                       (chan, seg, to_track, seg_details, BI_DIRECTIONAL))
                        {
                            to_switch = seg_details[to_track].wire_switch;
                            to_node =
                                get_rr_node_index(tr_i, tr_j, to_type,
                                                  to_track, rr_node_indices);

                            *edge_list =
                                insert_in_edge_list(*edge_list, to_node,
                                                    to_switch);
                            rr_edge_done[to_node] = TRUE;
                            ++num_conn;
                        }
                }
        }

    return num_conn;
}

Here is the call graph for this function:

Here is the caller graph for this function:

static int get_bidir_track_to_chan_seg	(	IN struct s_ivec	conn_tracks,
		IN t_ivec ***	rr_node_indices,
		IN int	to_chan,
		IN int	to_seg,
		IN int	to_sb,
		IN t_rr_type	to_type,
		IN t_seg_details *	seg_details,
		IN boolean	from_is_sbox,
		IN int	from_switch,
		INOUT boolean *	rr_edge_done,
		IN enum e_directionality	directionality,
		INOUT struct s_linked_edge **	edge_list
	)			[static]

Definition at line 1541 of file rr_graph2.c.

{
    int iconn, to_track, to_node, to_switch, num_conn, to_x, to_y, i;
    boolean to_is_sbox;
    short switch_types[2];

    /* x, y coords for get_rr_node lookups */
    if(CHANX == to_type)
        {
            to_x = to_seg;
            to_y = to_chan;
        }
    else
        {
            assert(CHANY == to_type);
            to_x = to_chan;
            to_y = to_seg;
        }

    /* Go through the list of tracks we can connect to */
    num_conn = 0;
    for(iconn = 0; iconn < conn_tracks.nelem; ++iconn)
        {
            to_track = conn_tracks.list[iconn];
            to_node = get_rr_node_index(to_x, to_y, to_type, to_track,
                                        rr_node_indices);

            /* Skip edge if already done */
            if(rr_edge_done[to_node])
                {
                    continue;
                }

            /* Get the switches for any edges between the two tracks */
            to_switch = seg_details[to_track].wire_switch;

            to_is_sbox = is_sbox(to_chan, to_seg, to_sb, to_track,
                                 seg_details, directionality);
            get_switch_type(from_is_sbox, to_is_sbox,
                            from_switch, to_switch, switch_types);

            /* There are up to two switch edges allowed from track to track */
            for(i = 0; i < 2; ++i)
                {
                    /* If the switch_type entry is empty, skip it */
                    if(OPEN == switch_types[i])
                        {
                            continue;
                        }

                    /* Add the edge to the list */
                    *edge_list = insert_in_edge_list(*edge_list,
                                                     to_node,
                                                     switch_types[i]);
                    /* Mark the edge as now done */
                    rr_edge_done[to_node] = TRUE;
                    ++num_conn;
                }
        }

    return num_conn;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int get_rr_node_index	(	int	x,
		int	y,
		t_rr_type	rr_type,
		int	ptc,
		t_ivec ***	rr_node_indices
	)

Definition at line 1102 of file rr_graph2.c.

{
    /* Returns the index of the specified routing resource node.  (x,y) are     *
     * the location within the FPGA, rr_type specifies the type of resource,    *
     * and ptc gives the number of this resource.  ptc is the class number,   *
     * pin number or track number, depending on what type of resource this      *
     * is.  All ptcs start at 0 and go up to pins_per_clb-1 or the equivalent. *
     * The order within a clb is:  SOURCEs + SINKs (type->num_class of them); IPINs,  *
     * and OPINs (pins_per_clb of them); CHANX; and CHANY (nodes_per_chan of    *
     * each).  For (x,y) locations that point at pads the order is:  type->capacity     *
     * occurances of SOURCE, SINK, OPIN, IPIN (one for each pad), then one      *
     * associated channel (if there is a channel at (x,y)).  All IO pads are    *
     * bidirectional, so while each will be used only as an INPAD or as an      *
     * OUTPAD, all the switches necessary to do both must be in each pad.       *
     *                                                                          *
     * Note that for segments (CHANX and CHANY) of length > 1, the segment is   *
     * given an rr_index based on the (x,y) location at which it starts (i.e.   *
     * lowest (x,y) location at which this segment exists).                     *
     * This routine also performs error checking to make sure the node in       *
     * question exists.                                                         */

    int iclass, tmp;
    t_type_ptr type;
    t_ivec lookup;

    assert(ptc >= 0);
    assert(x >= 0 && x <= (nx + 1));
    assert(y >= 0 && y <= (ny + 1));

    type = grid[x][y].type;

    /* Currently need to swap x and y for CHANX because of chan, seg convention */
    if(CHANX == rr_type)
        {
            tmp = x;
            x = y;
            y = tmp;
        }

    /* Start of that block.  */
    lookup = rr_node_indices[rr_type][x][y];

    /* Check valid ptc num */
    assert(ptc >= 0);
    assert(ptc < lookup.nelem);

#ifdef DEBUG
    switch (rr_type)
        {
        case SOURCE:
            assert(ptc < type->num_class);
            assert(type->class_inf[ptc].type == DRIVER);
            break;

        case SINK:
            assert(ptc < type->num_class);
            assert(type->class_inf[ptc].type == RECEIVER);
            break;

        case OPIN:
            assert(ptc < type->num_pins);
            iclass = type->pin_class[ptc];
            assert(type->class_inf[iclass].type == DRIVER);
            break;

        case IPIN:
            assert(ptc < type->num_pins);
            iclass = type->pin_class[ptc];
            assert(type->class_inf[iclass].type == RECEIVER);
            break;

        case CHANX:
        case CHANY:
            break;

        default:
            printf("Error:  Bad rr_node passed to get_rr_node_index.\n"
                   "Request for type=%d ptc=%d at (%d, %d).\n",
                   rr_type, ptc, x, y);
            exit(1);
        }
#endif

    return lookup.list[ptc];
}

Here is the caller graph for this function:

int get_seg_end	(	IN t_seg_details *	seg_details,
		IN int	itrack,
		IN int	istart,
		IN int	chan_num,
		IN int	seg_max
	)

Definition at line 578 of file rr_graph2.c.

{
    int len, ofs, end, first_full;

    len = seg_details[itrack].length;
    ofs = seg_details[itrack].start;

    /* Normal endpoint */
    end = istart + len - 1;

    /* If start is against edge it may have been clipped */
    if(1 == istart)
        {
            /* If the (staggered) startpoint of first full wire wasn't
             * also 1, we must be the clipped wire */
            first_full = (len - (chan_num % len) + ofs - 1) % len + 1;
            if(first_full > 1)
                {
                    /* then we stop just before the first full seg */
                    end = first_full - 1;
                }
        }

    /* Clip against far edge */
    if(end > seg_max)
        {
            end = seg_max;
        }

    return end;
}

Here is the caller graph for this function:

int get_seg_start	(	IN t_seg_details *	seg_details,
		IN int	itrack,
		IN int	chan_num,
		IN int	seg_num
	)

Definition at line 541 of file rr_graph2.c.

{

    int seg_start, length, start;

    seg_start = 1;
    if(FALSE == seg_details[itrack].longline)
        {

            length = seg_details[itrack].length;
            start = seg_details[itrack].start;

            /* Start is guaranteed to be between 1 and length.  Hence adding length to *
             * the quantity in brackets below guarantees it will be nonnegative.       */

            assert(start > 0);
            assert(start <= length);

            /* NOTE: Start points are staggered between different channels.
             * The start point must stagger backwards as chan_num increases.
             * Unidirectional routing expects this to allow the N-to-N
             * assumption to be made with respect to ending wires in the core. */
            seg_start =
                seg_num - (seg_num + length + chan_num - start) % length;
            if(seg_start < 1)
                {
                    seg_start = 1;
                }
        }

    return seg_start;
}

Here is the caller graph for this function:

static int * get_seg_track_counts	(	IN int	num_sets,
		IN int	num_seg_types,
		IN t_segment_inf *	segment_inf,
		IN boolean	use_full_seg_groups
	)			[static]

Definition at line 163 of file rr_graph2.c.

{
    int *result;
        double *demand;
    int i, imax, freq_sum, assigned, size;
        double scale, max, reduce;

    result = (int *)my_malloc(sizeof(int) * num_seg_types);
    demand = (double *)my_malloc(sizeof(double) * num_seg_types);

    /* Scale factor so we can divide by any length
     * and still use integers */
    scale = 1;
    freq_sum = 0;
    for(i = 0; i < num_seg_types; ++i)
        {
            scale *= segment_inf[i].length;
            freq_sum += segment_inf[i].frequency;
        }
    reduce = scale * freq_sum;

    /* Init assignments to 0 and set the demand values */
    for(i = 0; i < num_seg_types; ++i)
        {
            result[i] = 0;
            demand[i] = scale * num_sets * segment_inf[i].frequency;
            if(use_full_seg_groups)
                {
                    demand[i] /= segment_inf[i].length;
                }
        }

    /* Keep assigning tracks until we use them up */
    assigned = 0;
    size = 0;
    imax = 0;
    while(assigned < num_sets)
        {
            /* Find current maximum demand */
            max = 0;
            for(i = 0; i < num_seg_types; ++i)
                {
                    if(demand[i] > max)
                        {
                            imax = i;
                            max = demand[i];
                        }
                }

            /* Assign tracks to the type and reduce the types demand */
            size = (use_full_seg_groups ? segment_inf[imax].length : 1);
            demand[imax] -= reduce;
            result[imax] += size;
            assigned += size;
        }

    /* Undo last assignment if we were closer to goal without it */
    if((assigned - num_sets) > (size / 2))
        {
            result[imax] -= size;
        }

    /* Free temps */
    if(demand)
        {
            free(demand);
            demand = NULL;
        }

    /* This must be freed by caller */
    return result;
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void get_switch_type	(	boolean	is_from_sbox,
		boolean	is_to_sbox,
		short	from_node_switch,
		short	to_node_switch,
		short	switch_types[2]
	)			[static]

Definition at line 1792 of file rr_graph2.c.

{
    /* This routine looks at whether the from_node and to_node want a switch,  *
     * and what type of switch is used to connect *to* each type of node       *
     * (from_node_switch and to_node_switch).  It decides what type of switch, *
     * if any, should be used to go from from_node to to_node.  If no switch   *
     * should be inserted (i.e. no connection), it returns OPEN.  Its returned *
     * values are in the switch_types array.  It needs to return an array      *
     * because one topology (a buffer in the forward direction and a pass      *
     * transistor in the backward direction) results in *two* switches.        */

    boolean forward_pass_trans;
    boolean backward_pass_trans;
    int used, min, max;

    switch_types[0] = OPEN;     /* No switch */
    switch_types[1] = OPEN;
    used = 0;
    forward_pass_trans = FALSE;
    backward_pass_trans = FALSE;

    /* Connect forward if we are a sbox */
    if(is_from_sbox)
        {
            switch_types[used] = to_node_switch;
            if(FALSE == switch_inf[to_node_switch].buffered)
                {
                    forward_pass_trans = TRUE;
                }
            ++used;
        }

    /* Check for pass_trans coming backwards */
    if(is_to_sbox)
        {
            if(FALSE == switch_inf[from_node_switch].buffered)
                {
                    switch_types[used] = from_node_switch;
                    backward_pass_trans = TRUE;
                    ++used;
                }
        }

    /* Take the larger pass trans if there are two */
    if(forward_pass_trans && backward_pass_trans)
        {
            min = min(to_node_switch, from_node_switch);
            max = max(to_node_switch, from_node_switch);

            /* Take the smaller index unless the other
             * pass_trans is bigger (smaller R). */
            switch_types[used] = min;
            if(switch_inf[max].R < switch_inf[min].R)
                {
                    switch_types[used] = max;
                }
            ++used;
        }
}

Here is the caller graph for this function:

int get_track_to_ipins	(	int	seg,
		int	chan,
		int	track,
		t_linked_edge **	edge_list_ptr,
		t_ivec ***	rr_node_indices,
		struct s_ivec ****	track_to_ipin_lookup,
		t_seg_details *	seg_details,
		enum e_rr_type	chan_type,
		int	chan_length,
		int	wire_to_ipin_switch,
		enum e_directionality	directionality
	)

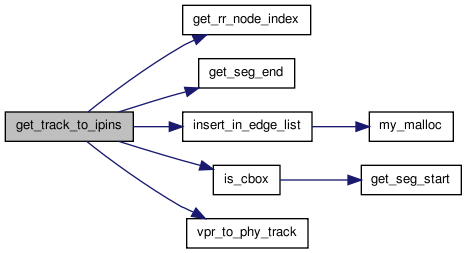

Definition at line 1194 of file rr_graph2.c.

{

    /* This counts the fan-out from wire segment (chan, seg, track) to blocks on either side */

    t_linked_edge *edge_list_head;
    int j, pass, iconn, phy_track, end, to_node, max_conn, ipin, side, x,
        y, num_conn;
    t_type_ptr type;
    int off;

    /* End of this wire */
    end = get_seg_end(seg_details, track, seg, chan, chan_length);

    edge_list_head = *edge_list_ptr;
    num_conn = 0;

    for(j = seg; j <= end; j++)
        {
            if(is_cbox(chan, j, track, seg_details, directionality))
                {
                    for(pass = 0; pass < 2; ++pass)
                        {
                            if(CHANX == chan_type)
                                {
                                    x = j;
                                    y = chan + pass;
                                    side = (0 == pass ? TOP : BOTTOM);
                                }
                            else
                                {
                                    assert(CHANY == chan_type);
                                    x = chan + pass;
                                    y = j;
                                    side = (0 == pass ? RIGHT : LEFT);
                                }

                            /* PAJ - if the pointed to is an EMPTY then shouldn't look for ipins */
                            if(grid[x][y].type == EMPTY_TYPE)
                                continue;

                            /* Move from logical (straight) to physical (twisted) track index
                             * - algorithm assigns ipin connections to same physical track index
                             * so that the logical track gets distributed uniformly */
                            phy_track =
                                vpr_to_phy_track(track, chan, j, seg_details,
                                                 directionality);

                            /* We need the type to find the ipin map for this type */
                            type = grid[x][y].type;
                            off = grid[x][y].offset;

                            max_conn =
                                track_to_ipin_lookup[type->
                                                     index][phy_track][off]
                                [side].nelem;
                            for(iconn = 0; iconn < max_conn; iconn++)
                                {
                                    ipin =
                                        track_to_ipin_lookup[type->
                                                             index][phy_track]
                                        [off][side].list[iconn];

                                    /* Check there is a connection and Fc map isn't wrong */
                                    assert(type->pinloc[off][side][ipin]);
                                    assert(type->is_global_pin[ipin] ==
                                           FALSE);

                                    to_node =
                                        get_rr_node_index(x, y, IPIN, ipin,
                                                          rr_node_indices);
                                    edge_list_head =
                                        insert_in_edge_list(edge_list_head,
                                                            to_node,
                                                            wire_to_ipin_switch);
                                }
                            num_conn += max_conn;
                        }
                }
        }

    *edge_list_ptr = edge_list_head;
    return (num_conn);
}

Here is the call graph for this function:

Here is the caller graph for this function:

int get_track_to_tracks	(	IN int	from_chan,
		IN int	from_seg,
		IN int	from_track,
		IN t_rr_type	from_type,
		IN int	to_seg,
		IN t_rr_type	to_type,
		IN int	chan_len,
		IN int	nodes_per_chan,
		IN int *	opin_mux_size,
		IN int	Fs_per_side,
		IN short *****	sblock_pattern,
		INOUT struct s_linked_edge **	edge_list,
		IN t_seg_details *	seg_details,
		IN enum e_directionality	directionality,
		IN t_ivec ***	rr_node_indices,
		INOUT boolean *	rr_edge_done,
		IN struct s_ivec ***	switch_block_conn
	)

Definition at line 1307 of file rr_graph2.c.

{
    int num_conn;
    int from_switch, from_end, from_sb, from_first;
    int to_chan, to_sb;
    int start, end;
    struct s_ivec conn_tracks;
    boolean from_is_sbox, is_behind, Fs_clipped;
    enum e_side from_side_a, from_side_b, to_side;

    assert(from_seg ==
           get_seg_start(seg_details, from_track, from_chan, from_seg));

    from_switch = seg_details[from_track].wire_switch;
    from_end =
        get_seg_end(seg_details, from_track, from_seg, from_chan, chan_len);
    from_first = from_seg - 1;

    /* Figure out the sides of SB the from_wire will use */
    if(CHANX == from_type)
        {
            from_side_a = RIGHT;
            from_side_b = LEFT;
        }
    else
        {
            assert(CHANY == from_type);
            from_side_a = TOP;
            from_side_b = BOTTOM;
        }

    /* Figure out if the to_wire is connecting to a SB
     * that is behind it. */
    is_behind = FALSE;
    if(to_type == from_type)
        {
            /* If inline, check that they only are trying
             * to connect at endpoints. */
            assert((to_seg == (from_end + 1)) || (to_seg == (from_seg - 1)));
            if(to_seg > from_end)
                {
                    is_behind = TRUE;
                }
        }
    else
        {
            /* If bending, check that they are adjacent to
             * our channel. */
            assert((to_seg == from_chan) || (to_seg == (from_chan + 1)));
            if(to_seg > from_chan)
                {
                    is_behind = TRUE;
                }
        }

    /* Figure out the side of SB the to_wires will use.
     * The to_seg and from_chan are in same direction. */
    if(CHANX == to_type)
        {
            to_side = (is_behind ? RIGHT : LEFT);
        }
    else
        {
            assert(CHANY == to_type);
            to_side = (is_behind ? TOP : BOTTOM);
        }

    /* Set the loop bounds */
    start = from_first;
    end = from_end;

    /* If we are connecting in same direction the connection is
     * on one of the two sides so clip the bounds to the SB of
     * interest and proceed normally. */
    if(to_type == from_type)
        {
            start = (is_behind ? end : start);
            end = start;
        }

    /* Iterate over the SBs */
    num_conn = 0;
    for(from_sb = start; from_sb <= end; ++from_sb)
        {
            /* Figure out if we are at a sbox */
            from_is_sbox = is_sbox(from_chan, from_seg, from_sb, from_track,
                                   seg_details, directionality);
            /* end of wire must be an sbox */
            if(from_sb == from_end || from_sb == from_first)
                {
                    from_is_sbox = TRUE;        /* Endpoints always default to true */
                }

            /* to_chan is the current segment if different directions,
             * otherwise to_chan is the from_chan */
            to_chan = from_sb;
            to_sb = from_chan;
            if(from_type == to_type)
                {
                    to_chan = from_chan;
                    to_sb = from_sb;
                }

            /* Do the edges going to the left or down */
            if(from_sb < from_end)
                {
                    if(BI_DIRECTIONAL == directionality)
                        {
                            conn_tracks =
                                switch_block_conn[from_side_a][to_side]
                                [from_track];
                            num_conn +=
                                get_bidir_track_to_chan_seg(conn_tracks,
                                                            rr_node_indices,
                                                            to_chan, to_seg,
                                                            to_sb, to_type,
                                                            seg_details,
                                                            from_is_sbox,
                                                            from_switch,
                                                            rr_edge_done,
                                                            directionality,
                                                            edge_list);
                        }
                    if(UNI_DIRECTIONAL == directionality)
                        {
                            /* No fanout if no SB. */
                            /* We are connecting from the top or right of SB so it
                             * makes the most sense to only there from DEC_DIRECTION wires. */
                            if((from_is_sbox) &&
                               (DEC_DIRECTION ==
                                seg_details[from_track].direction))
                                {
                                    num_conn +=
                                        get_unidir_track_to_chan_seg((from_sb
                                                                      ==
                                                                      from_first),
                                                                     from_track,
                                                                     to_chan,
                                                                     to_seg,
                                                                     to_sb,
                                                                     to_type,
                                                                     nodes_per_chan,
                                                                     nx, ny,
                                                                     from_side_a,
                                                                     to_side,
                                                                     Fs_per_side,
                                                                     opin_mux_size,
                                                                     sblock_pattern,
                                                                     rr_node_indices,
                                                                     seg_details,
                                                                     rr_edge_done,
                                                                     &Fs_clipped,
                                                                     edge_list);
                                }
                        }
                }

            /* Do the edges going to the right or up */
            if(from_sb > from_first)
                {
                    if(BI_DIRECTIONAL == directionality)
                        {
                            conn_tracks =
                                switch_block_conn[from_side_b][to_side]
                                [from_track];
                            num_conn +=
                                get_bidir_track_to_chan_seg(conn_tracks,
                                                            rr_node_indices,
                                                            to_chan, to_seg,
                                                            to_sb, to_type,
                                                            seg_details,
                                                            from_is_sbox,
                                                            from_switch,
                                                            rr_edge_done,
                                                            directionality,
                                                            edge_list);
                        }
                    if(UNI_DIRECTIONAL == directionality)
                        {
                            /* No fanout if no SB. */
                            /* We are connecting from the bottom or left of SB so it
                             * makes the most sense to only there from INC_DIRECTION wires. */
                            if((from_is_sbox) &&
                               (INC_DIRECTION ==
                                seg_details[from_track].direction))
                                {
                                    num_conn +=
                                        get_unidir_track_to_chan_seg((from_sb
                                                                      ==
                                                                      from_end),
                                                                     from_track,
                                                                     to_chan,
                                                                     to_seg,
                                                                     to_sb,
                                                                     to_type,
                                                                     nodes_per_chan,
                                                                     nx, ny,
                                                                     from_side_b,
                                                                     to_side,
                                                                     Fs_per_side,
                                                                     opin_mux_size,
                                                                     sblock_pattern,
                                                                     rr_node_indices,
                                                                     seg_details,
                                                                     rr_edge_done,
                                                                     &Fs_clipped,
                                                                     edge_list);
                                }
                        }
                }
        }

    return num_conn;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int get_unidir_opin_connections	(	IN int	chan,
		IN int	seg,
		IN int	Fc,
		IN t_rr_type	chan_type,
		IN t_seg_details *	seg_details,
		INOUT t_linked_edge **	edge_list_ptr,
		INOUT int **	Fc_ofs,
		INOUT boolean *	rr_edge_done,
		IN int	max_len,
		IN int	nodes_per_chan,
		IN t_ivec ***	rr_node_indices,
		OUT boolean *	Fc_clipped
	)

Definition at line 718 of file rr_graph2.c.

{
    /* Gets a linked list of Fc nodes to connect to in given
     * chan seg.  Fc_ofs is used for the for the opin staggering
     * pattern. */

    int *inc_muxes = NULL;
    int *dec_muxes = NULL;
    int num_inc_muxes, num_dec_muxes, iconn;
    int inc_inode, dec_inode;
    int inc_mux, dec_mux;
    int inc_track, dec_track;
    int x, y;
    int num_edges;

    *Fc_clipped = FALSE;

    /* Fc is assigned in pairs so check it is even. */
    assert(Fc % 2 == 0);

    /* get_rr_node_indices needs x and y coords. */
    x = ((CHANX == chan_type) ? seg : chan);
    y = ((CHANX == chan_type) ? chan : seg);

    /* Get the lists of possible muxes. */
    inc_muxes = label_wire_muxes(chan, seg, seg_details, max_len,
                                 INC_DIRECTION, nodes_per_chan,
                                 &num_inc_muxes);
    dec_muxes =
        label_wire_muxes(chan, seg, seg_details, max_len, DEC_DIRECTION,
                         nodes_per_chan, &num_dec_muxes);

    /* Clip Fc to the number of muxes. */
    if(((Fc / 2) > num_inc_muxes) || ((Fc / 2) > num_dec_muxes))
        {
            *Fc_clipped = TRUE;
            Fc = 2 * min(num_inc_muxes, num_dec_muxes);
        }

    /* Assign tracks to meet Fc demand */
    num_edges = 0;
    for(iconn = 0; iconn < (Fc / 2); ++iconn)
        {
            /* Figure of the next mux to use */
            inc_mux = Fc_ofs[chan][seg] % num_inc_muxes;
            dec_mux = Fc_ofs[chan][seg] % num_dec_muxes;
            ++Fc_ofs[chan][seg];

            /* Figure out the track it corresponds to. */
            inc_track = inc_muxes[inc_mux];
            dec_track = dec_muxes[dec_mux];

            /* Figure the inodes of those muxes */
            inc_inode =
                get_rr_node_index(x, y, chan_type, inc_track,
                                  rr_node_indices);
            dec_inode =
                get_rr_node_index(x, y, chan_type, dec_track,
                                  rr_node_indices);

            /* Add to the list. */
            if(FALSE == rr_edge_done[inc_inode])
                {
                    rr_edge_done[inc_inode] = TRUE;
                    *edge_list_ptr = insert_in_edge_list(*edge_list_ptr,
                                                         inc_inode,
                                                         seg_details
                                                         [inc_track].
                                                         opin_switch);
                    ++num_edges;
                }
            if(FALSE == rr_edge_done[dec_inode])
                {
                    rr_edge_done[dec_inode] = TRUE;
                    *edge_list_ptr = insert_in_edge_list(*edge_list_ptr,
                                                         dec_inode,
                                                         seg_details
                                                         [dec_track].
                                                         opin_switch);
                    ++num_edges;
                }
        }

    if(inc_muxes)
        {
            free(inc_muxes);
            inc_muxes = NULL;
        }
    if(dec_muxes)
        {
            free(dec_muxes);
            dec_muxes = NULL;
        }

    return num_edges;
}

Here is the call graph for this function:

Here is the caller graph for this function:

static int get_unidir_track_to_chan_seg	(	IN boolean	is_end_sb,
		IN int	from_track,
		IN int	to_chan,
		IN int	to_seg,
		IN int	to_sb,
		IN t_rr_type	to_type,
		IN int	nodes_per_chan,
		IN int	nx,
		IN int	ny,
		IN enum e_side	from_side,
		IN enum e_side	to_side,
		IN int	Fs_per_side,
		IN int *	opin_mux_size,
		IN short *****	sblock_pattern,
		IN t_ivec ***	rr_node_indices,
		IN t_seg_details *	seg_details,
		INOUT boolean *	rr_edge_done,
		OUT boolean *	Fs_clipped,
		INOUT struct s_linked_edge **	edge_list
	)			[static]

Definition at line 1616 of file rr_graph2.c.

{
    int to_track, to_mux, to_node, to_x, to_y, i, max_len, num_labels;
    int sb_x, sb_y, count;
    int *mux_labels = NULL;
    enum e_direction to_dir;
    boolean is_fringe, is_core, is_corner, is_straight;

    /* x, y coords for get_rr_node lookups */
    if(CHANX == to_type)
        {
            to_x = to_seg;
            to_y = to_chan;
            sb_x = to_sb;
            sb_y = to_chan;
            max_len = nx;
        }
    else
        {
            assert(CHANY == to_type);
            to_x = to_chan;
            to_y = to_seg;
            sb_x = to_chan;
            sb_y = to_sb;
            max_len = ny;
        }


    to_dir = DEC_DIRECTION;
    if(to_sb < to_seg)
        {
            to_dir = INC_DIRECTION;
        }

    *Fs_clipped = FALSE;

    /* SBs go from (0, 0) to (nx, ny) */
    is_corner = ((sb_x < 1) || (sb_x >= nx)) && ((sb_y < 1) || (sb_y >= ny));
    is_fringe = (FALSE == is_corner) && ((sb_x < 1) || (sb_y < 1)
                                         || (sb_x >= nx) || (sb_y >= ny));
    is_core = (FALSE == is_corner) && (FALSE == is_fringe);
    is_straight = (from_side == RIGHT && to_side == LEFT) ||
        (from_side == LEFT && to_side == RIGHT) ||
        (from_side == TOP && to_side == BOTTOM) ||
        (from_side == BOTTOM && to_side == TOP);

    /* Ending wires use N-to-N mapping if not fringe or if goes straight */
    if(is_end_sb && (is_core || is_corner || is_straight))
        {
            /* Get the list of possible muxes for the N-to-N mapping. */
            mux_labels = label_wire_muxes(to_chan, to_seg, seg_details,
                                          max_len, to_dir, nodes_per_chan,
                                          &num_labels);
        }
    else
        {
            assert(is_fringe || !is_end_sb);

            mux_labels = label_wire_muxes_for_balance(to_chan, to_seg,
                                                      seg_details, max_len,
                                                      to_dir, nodes_per_chan,
                                                      &num_labels, to_type,
                                                      opin_mux_size,
                                                      rr_node_indices);
        }

    /* Can't connect if no muxes. */
    if(num_labels < 1)
        {
            if(mux_labels)
                {
                    free(mux_labels);
                    mux_labels = NULL;
                }
            return 0;
        }

    /* Check if Fs demand was too high. */
    if(Fs_per_side > num_labels)
        {
            *Fs_clipped = TRUE;
        }

    /* Get the target label */
    to_mux = sblock_pattern[sb_x][sb_y][from_side][to_side][from_track];
    assert(to_mux != UN_SET);

    /* Handle Fs > 3 but assigning consecutive muxes. */
    count = 0;
    for(i = 0; i < Fs_per_side; ++i)
        {
            /* Use the balanced labeling for passing and fringe wires */
            to_track = mux_labels[(to_mux + i) % num_labels];
            to_node =
                get_rr_node_index(to_x, to_y, to_type, to_track,
                                  rr_node_indices);

            /* Add edge to list. */
            if(FALSE == rr_edge_done[to_node])
                {
                    rr_edge_done[to_node] = TRUE;
                    *edge_list =
                        insert_in_edge_list(*edge_list, to_node,
                                            seg_details[to_track].
                                            wire_switch);
                    ++count;
                }
        }

    if(mux_labels)
        {
            free(mux_labels);
            mux_labels = NULL;
        }

    return count;
}

Here is the call graph for this function:

Here is the caller graph for this function:

boolean is_cbox	(	IN int	chan,
		IN int	seg,
		IN int	track,
		IN t_seg_details *	seg_details,
		IN enum e_directionality	directionality
	)

Definition at line 827 of file rr_graph2.c.

{

    int start, length, ofs, fac, start_seg;

    fac = 1;
    if(UNI_DIRECTIONAL == directionality)
        {
            fac = 2;
        }

    start = seg_details[track].start;
    length = seg_details[track].length;

    /* Make sure they gave us correct start */
    start_seg = get_seg_start(seg_details, track, chan, seg);

    ofs = seg - start_seg;

    assert(ofs >= 0);
    assert(ofs < length);

    /* If unidir segment that is going backwards, we need to flip the ofs */
    if(DEC_DIRECTION == seg_details[track].direction)
        {
            ofs = (length - 1) - ofs;
        }

    return seg_details[track].cb[ofs];
}

Here is the call graph for this function:

Here is the caller graph for this function:

boolean is_sbox	(	IN int	chan,
		IN int	wire_seg,
		IN int	sb_seg,
		IN int	track,
		IN t_seg_details *	seg_details,
		IN enum e_directionality	directionality
	)

Definition at line 1753 of file rr_graph2.c.

{

    int start, length, ofs, fac;

    fac = 1;
    if(UNI_DIRECTIONAL == directionality)
        {
            fac = 2;
        }

    start = seg_details[track].start;
    length = seg_details[track].length;

    /* Make sure they gave us correct start */
    wire_seg = get_seg_start(seg_details, track, chan, wire_seg);

    ofs = sb_seg - wire_seg + 1;        /* Ofset 0 is behind us, so add 1 */

    assert(ofs >= 0);
    assert(ofs < (length + 1));

    /* If unidir segment that is going backwards, we need to flip the ofs */
    if((ofs % fac) > 0)
        {
            ofs = length - ofs;
        }

    return seg_details[track].sb[ofs];
}

Here is the call graph for this function:

Here is the caller graph for this function:

static int * label_incoming_wires	(	IN int	chan_num,
		IN int	seg_num,
		IN int	sb_seg,
		IN t_seg_details *	seg_details,
		IN int	max_len,
		IN enum e_direction	dir,
		IN int	nodes_per_chan,
		OUT int *	num_incoming_wires,
		OUT int *	num_ending_wires
	)			[static]

Definition at line 2532 of file rr_graph2.c.

{

    /* Labels the incoming wires on that side (seg_num, chan_num, direction).
     * The returned array maps a track # to a label: array[0] = <the new hash value/label for track 0>,
     * the labels 0,1,2,.. identify consecutive incoming wires that have sbox (passing wires with sbox and ending wires) */

    int itrack, start, end, i, num_passing, num_ending, pass;
    int *labels;
    boolean sbox_exists, is_endpoint;

    /* Alloc the list of labels for the tracks */
    labels = (int *)my_malloc(nodes_per_chan * sizeof(int));
    for(i = 0; i < nodes_per_chan; ++i)
        {
            labels[i] = UN_SET; /* crash hard if unset */
        }

    num_ending = 0;
    num_passing = 0;
    for(pass = 0; pass < 2; ++pass)
        {
            for(itrack = 0; itrack < nodes_per_chan; ++itrack)
                {
                    if(seg_details[itrack].direction == dir)
                        {
                            start =
                                get_seg_start(seg_details, itrack, chan_num,
                                              seg_num);
                            end =
                                get_seg_end(seg_details, itrack, start,
                                            chan_num, max_len);

                            /* Determine if we are a wire endpoint */
                            is_endpoint = (seg_num == end);
                            if(DEC_DIRECTION == seg_details[itrack].direction)
                                {
                                    is_endpoint = (seg_num == start);
                                }

                            /* Determine if we have a sbox on the wire */
                            sbox_exists = is_sbox(chan_num, seg_num, sb_seg,
                                                  itrack, seg_details,
                                                  UNI_DIRECTIONAL);

                            switch (pass)
                                {
                                    /* On first pass, only load ending wire labels. */
                                case 0:
                                    if(is_endpoint)
                                        {
                                            labels[itrack] = num_ending;
                                            ++num_ending;
                                        }
                                    break;

                                    /* On second pass, load the passing wire labels. They
                                     * will follow after the ending wire labels. */
                                case 1:
                                    if((FALSE == is_endpoint) && sbox_exists)
                                        {
                                            labels[itrack] =
                                                num_ending + num_passing;
                                            ++num_passing;
                                        }
                                    break;
                                }
                        }
                }
        }

    *num_incoming_wires = num_passing + num_ending;
    *num_ending_wires = num_ending;
    return labels;
}

Here is the call graph for this function:

Here is the caller graph for this function:

static int * label_wire_muxes	(	IN int	chan_num,
		IN int	seg_num,
		IN t_seg_details *	seg_details,
		IN int	max_len,
		IN enum e_direction	dir,
		IN int	nodes_per_chan,
		OUT int *	num_wire_muxes
	)			[static]

Definition at line 2463 of file rr_graph2.c.

{

    /* Labels the muxes on that side (seg_num, chan_num, direction). The returned array
     * maps a label to the actual track #: array[0] = <the track number of the first/lowest mux>
     * This routine orders wire muxes by their natural order, i.e. track # */

    int itrack, start, end, num_labels, pass;
    int *labels = NULL;
    boolean is_endpoint;

    /* COUNT pass then a LOAD pass */
    num_labels = 0;
    for(pass = 0; pass < 2; ++pass)
        {
            /* Alloc the list on LOAD pass */
            if(pass > 0)
                {
                    labels = (int *)my_malloc(sizeof(int) * num_labels);
                    num_labels = 0;
                }

            /* Find the tracks that are starting. */
            for(itrack = 0; itrack < nodes_per_chan; ++itrack)
                {
                    start =
                        get_seg_start(seg_details, itrack, chan_num, seg_num);
                    end =
                        get_seg_end(seg_details, itrack, start, chan_num,
                                    max_len);

                    /* Skip tracks going the wrong way */
                    if(seg_details[itrack].direction != dir)
                        {
                            continue;
                        }

                    /* Determine if we are a wire startpoint */
                    is_endpoint = (seg_num == start);
                    if(DEC_DIRECTION == seg_details[itrack].direction)
                        {
                            is_endpoint = (seg_num == end);
                        }

                    /* Count the labels and load if LOAD pass */
                    if(is_endpoint)
                        {
                            if(pass > 0)
                                {
                                    labels[num_labels] = itrack;
                                }
                            ++num_labels;
                        }
                }
        }

    *num_wire_muxes = num_labels;
    return labels;
}

Here is the call graph for this function:

Here is the caller graph for this function:

static int * label_wire_muxes_for_balance	(	IN int	chan_num,
		IN int	seg_num,
		IN t_seg_details *	seg_details,
		IN int	max_len,
		IN enum e_direction	direction,
		IN int	nodes_per_chan,
		IN int *	num_wire_muxes,
		IN t_rr_type	chan_type,
		IN int *	opin_mux_size,
		IN t_ivec ***	rr_node_indices
	)			[static]

Definition at line 2346 of file rr_graph2.c.

{

    /* Labels the muxes on that side (seg_num, chan_num, direction). The returned array
     * maps a label to the actual track #: array[0] = <the track number of the first mux> */

    /* Sblock (aka wire2mux) pattern generation occurs after opin2mux connections have been
     * made. Since opin2muxes are done with a pattern with which I guarantee imbalance of at most 1 due
     * to them, we will observe that, for each side of an sblock some muxes have one fewer size
     * than the others, considering only the contribution from opins. I refer to these muxes as "holes"
     * as they have one fewer opin connection going to them than the rest (like missing one electron)*/

    /* Before May 14, I was labelling wire muxes in the natural order of their track # (lowest first).
     * Now I want to label wire muxes like this: first label the holes in order of their track #,
     * then label the non-holes in order of their track #. This way the wire2mux generation will
     * not overlap its own "holes" with the opin "holes", thus creating imbalance greater than 1. */

    /* The best approach in sblock generation is do one assignment of all incoming wires from 3 other
     * sides to the muxes on the fourth side, connecting the "opin hole" muxes first (i.e. filling
     * the holes) then the rest -> this means after all opin2mux and wire2mux connections the
     * mux size imbalance on one side is at most 1. The mux size imbalance in one sblock is thus
     * also one, since the number of muxes per side is identical for all four sides, and they number
     * of incoming wires per side is identical for full pop, and almost the same for depop (due to
     * staggering) within +1 or -1. For different tiles (different sblocks) the imbalance is irrelevant,
     * since if the tiles are different in mux count then they have to be designed with a different
     * physical tile. */

    int num_labels, max_opin_mux_size, min_opin_mux_size;
    int inode, i, j, x, y;
    int *pre_labels, *final_labels;

        if (chan_type == CHANX){
                x = seg_num;
                y = chan_num;
        }
        else if (chan_type == CHANY){
                x = chan_num;
                y = seg_num;
        }
        else {
                printf("Error: Bad channel type (%d).\n", chan_type);
                exit(1);
        }

    /* Generate the normal labels list as the baseline. */
    pre_labels =
        label_wire_muxes(chan_num, seg_num, seg_details, max_len,
                         direction, nodes_per_chan, &num_labels);

    /* Find the min and max mux size. */
    min_opin_mux_size = MAX_SHORT;
    max_opin_mux_size = 0;
    for(i = 0; i < num_labels; ++i)
        {
            inode = get_rr_node_index(x, y, chan_type, pre_labels[i],
                                  rr_node_indices);
            if(opin_mux_size[inode] < min_opin_mux_size)
                {
                    min_opin_mux_size = opin_mux_size[inode];
                }
            if(opin_mux_size[inode] > max_opin_mux_size)
                {
                    max_opin_mux_size = opin_mux_size[inode];
                }
        }
    if(max_opin_mux_size > (min_opin_mux_size + 1))
        {
            printf(ERRTAG "opin muxes are not balanced!\n");
                printf("max_opin_mux_size %d min_opin_mux_size %d chan_type %d x %d y %d\n",
                max_opin_mux_size, min_opin_mux_size, chan_type, x, y);
            exit(1);
        }

    /* Create a new list that we will move the muxes with 'holes' to the start of list. */
    final_labels = (int *)my_malloc(sizeof(int) * num_labels);
    j = 0;
    for(i = 0; i < num_labels; ++i)
        {
            inode = pre_labels[i];
            if(opin_mux_size[inode] < max_opin_mux_size)
                {
                    final_labels[j] = inode;
                    ++j;
                }
        }
    for(i = 0; i < num_labels; ++i)
        {
            inode = pre_labels[i];
            if(opin_mux_size[inode] >= max_opin_mux_size)
                {
                    final_labels[j] = inode;
                    ++j;
                }
        }

    /* Free the baseline labelling. */
    if(pre_labels)
        {
            free(pre_labels);
            pre_labels = NULL;
        }

    *num_wire_muxes = num_labels;
    return final_labels;
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void load_chan_rr_indices	(	IN int	nodes_per_chan,
		IN int	chan_len,
		IN int	num_chans,
		IN t_rr_type	type,
		IN t_seg_details *	seg_details,
		INOUT int *	index,
		INOUT t_ivec ***	indices
	)			[static]

Definition at line 864 of file rr_graph2.c.

{
    int chan, seg, track, start, inode;

    indices[type] = (t_ivec **) my_malloc(sizeof(t_ivec *) * num_chans);
    for(chan = 0; chan < num_chans; ++chan)
        {
            indices[type][chan] =
                (t_ivec *) my_malloc(sizeof(t_ivec) * chan_len);

            indices[type][chan][0].nelem = 0;
            indices[type][chan][0].list = NULL;

            for(seg = 1; seg < chan_len; ++seg)
                {
                    /* Alloc the track inode lookup list */
                    indices[type][chan][seg].nelem = nodes_per_chan;
                    indices[type][chan][seg].list =
                        (int *)my_malloc(sizeof(int) * nodes_per_chan);
                    for(track = 0; track < nodes_per_chan; ++track)
                        {
                            indices[type][chan][seg].list[track] = OPEN;
                        }
                }
        }

    for(chan = 0; chan < num_chans; ++chan)
        {
            for(seg = 1; seg < chan_len; ++seg)
                {
                    /* Assign an inode to the starts of tracks */
                    for(track = 0; track < indices[type][chan][seg].nelem;
                        ++track)
                        {
                            start =
                                get_seg_start(seg_details, track, chan, seg);

                            /* If the start of the wire doesn't have a inode,
                             * assign one to it. */
                            inode = indices[type][chan][start].list[track];
                            if(OPEN == inode)
                                {
                                    inode = *index;
                                    ++(*index);

                                    indices[type][chan][start].list[track] =
                                        inode;
                                }

                            /* Assign inode of start of wire to current position */
                            indices[type][chan][seg].list[track] = inode;
                        }
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void load_sblock_pattern_lookup	(	IN int	i,
		IN int	j,
		IN int	nodes_per_chan,
		IN t_seg_details *	seg_details,
		IN int	Fs,
		IN enum e_switch_block_type	switch_block_type,
		INOUT short *****	sblock_pattern
	)

Definition at line 1989 of file rr_graph2.c.

{

    /* This routine loads a lookup table for sblock topology. The lookup table is huge
     * because the sblock varies from location to location. The i, j means the owning
     * location of the sblock under investigation. */

    int side_cw_incoming_wire_count, side_ccw_incoming_wire_count,
        opp_incoming_wire_count;
    int to_side, side, side_cw, side_ccw, side_opp, itrack;
    int Fs_per_side, chan, seg, chan_len, sb_seg;
    boolean is_core_sblock, is_corner_sblock, x_edge, y_edge;
    int *incoming_wire_label[4];
    int *wire_mux_on_track[4];
    int num_incoming_wires[4];
    int num_ending_wires[4];
    int num_wire_muxes[4];
    boolean skip, vert, pos_dir;
    enum e_direction dir;

    Fs_per_side = 1;
    if(Fs != -1)
        {
            Fs_per_side = Fs / 3;
        }

    /* SB's have coords from (0, 0) to (nx, ny) */
    assert(i >= 0);
    assert(i <= nx);
    assert(j >= 0);
    assert(j <= ny);

    /* May 12 - 15, 2007
     *
     * I identify three types of sblocks in the chip: 1) The core sblock, whose special
     * property is that the number of muxes (and ending wires) on each side is the same (very useful
     * property, since it leads to a N-to-N assignment problem with ending wires). 2) The corner sblock
     * which is same as a L=1 core sblock with 2 sides only (again N-to-N assignment problem). 3) The
     * fringe / chip edge sblock which is most troublesome, as balance in each side of muxes is
     * attainable but balance in the entire sblock is not. The following code first identifies the
     * incoming wires, which can be classified into incoming passing wires with sbox and incoming
     * ending wires (the word "incoming" is sometimes dropped for ease of discussion). It appropriately
     * labels all the wires on each side by the following order: By the call to label_incoming_wires,
     * which labels for one side, the order is such that the incoming ending wires (always with sbox)
     * are labelled first 0,1,2,... p-1, then the incoming passing wires with sbox are labelled
     * p,p+1,p+2,... k-1 (for total of k). By this convention, one can easily distinguish the ending
     * wires from the passing wires by checking a label against num_ending_wires variable.
     *
     * After labelling all the incoming wires, this routine labels the muxes on the side we're currently
     * connecting to (iterated for four sides of the sblock), called the to_side. The label scheme is
     * the natural order of the muxes by their track #. Also we find the number of muxes.
     *
     * For each to_side, the total incoming wires that connect to the muxes on to_side
     * come from three sides: side_1 (to_side's right), side_2 (to_side's left) and opp_side.
     * The problem of balancing mux size is then: considering all incoming passing wires
     * with sbox on side_1, side_2 and opp_side, how to assign them to the muxes on to_side
     * (with specified Fs) in a way that mux size is imbalanced by at most 1. I solve this
     * problem by this approach: the first incoming passing wire will connect to 0, 1, 2,
     * ..., Fs_per_side - 1, then the next incoming passing wire will connect to
     * Fs_per_side, Fs_per_side+1, ..., Fs_per_side*2-1, and so on. This consistent STAGGERING
     * ensures N-to-N assignment is perfectly balanced and M-to-N assignment is imbalanced by no
     * more than 1.
     *
     * For the sblock_pattern_init_mux_lookup lookup table, I will only need the lookup
     * table to remember the first/init mux to connect, since the convention is Fs_per_side consecutive
     * muxes to connect. Then how do I determine the order of the incoming wires? I use the labels
     * on side_1, then labels on side_2, then labels on opp_side. Effectively I listed all
     * incoming passing wires from the three sides, and order them to each make Fs_per_side
     * consecutive connections to muxes, and use % to rotate to keep imbalance at most 1.
     */

    /* SB's range from (0, 0) to (nx, ny) */
    /* First find all four sides' incoming wires */
    x_edge = ((i < 1) || (i >= nx));
    y_edge = ((j < 1) || (j >= ny));

    is_corner_sblock = (x_edge && y_edge);
    is_core_sblock = (!x_edge && !y_edge);

    /* "Label" the wires around the switch block by connectivity. */
    for(side = 0; side < 4; ++side)
        {
            /* Assume the channel segment doesn't exist. */
            wire_mux_on_track[side] = NULL;
            incoming_wire_label[side] = NULL;
            num_incoming_wires[side] = 0;
            num_ending_wires[side] = 0;
            num_wire_muxes[side] = 0;

            /* Skip the side and leave the zero'd value if the
             * channel segment doesn't exist. */
            skip = TRUE;
            switch (side)
                {
                case TOP:
                    if(j < ny)
                        {
                            skip = FALSE;
                        };
                    break;
                case RIGHT:
                    if(i < nx)
                        {
                            skip = FALSE;
                        }
                    break;
                case BOTTOM:
                    if(j > 0)
                        {
                            skip = FALSE;
                        }
                    break;
                case LEFT:
                    if(i > 0)
                        {
                            skip = FALSE;
                        }
                    break;
                }
            if(skip)
                {
                    continue;
                }

            /* Figure out the channel and segment for a certain direction */
            vert = ((side == TOP) || (side == BOTTOM));
            pos_dir = ((side == TOP) || (side == RIGHT));
            chan = (vert ? i : j);
            sb_seg = (vert ? j : i);
            seg = (pos_dir ? (sb_seg + 1) : sb_seg);
            chan_len = (vert ? ny : nx);

            /* Figure out all the tracks on a side that are ending and the
             * ones that are passing through and have a SB. */
            dir = (pos_dir ? DEC_DIRECTION : INC_DIRECTION);
            incoming_wire_label[side] =
                label_incoming_wires(chan, seg, sb_seg, seg_details, chan_len,
                                     dir, nodes_per_chan,
                                     &num_incoming_wires[side],
                                     &num_ending_wires[side]);

            /* Figure out all the tracks on a side that are starting. */
            dir = (pos_dir ? INC_DIRECTION : DEC_DIRECTION);
            wire_mux_on_track[side] = label_wire_muxes(chan, seg,
                                                       seg_details, chan_len,
                                                       dir, nodes_per_chan,
                                                       &num_wire_muxes[side]);
        }

    for(to_side = 0; to_side < 4; to_side++)
        {
            /* Can't do anything if no muxes on this side. */
            if(0 == num_wire_muxes[to_side])
                {
                    continue;
                }

            /* Figure out side rotations */
            assert((TOP == 0) && (RIGHT == 1) && (BOTTOM == 2)
                   && (LEFT == 3));
            side_cw = (to_side + 1) % 4;
            side_opp = (to_side + 2) % 4;
            side_ccw = (to_side + 3) % 4;

            /* For the core sblock:
             * The new order for passing wires should appear as
             * 0,1,2..,scw-1, for passing wires with sbox on side_cw
             * scw,scw+1,...,sccw-1, for passing wires with sbox on side_ccw
             * sccw,sccw+1,... for passing wires with sbox on side_opp.
             * This way, I can keep the imbalance to at most 1.
             *
             * For the fringe sblocks, I don't distinguish between
             * passing and ending wires so the above statement still holds
             * if you replace "passing" by "incoming" */

            side_cw_incoming_wire_count = 0;
            if(incoming_wire_label[side_cw])
                {
                    for(itrack = 0; itrack < nodes_per_chan; itrack++)
                        {
                            /* Ending wire, or passing wire with sbox. */
                            if(incoming_wire_label[side_cw][itrack] != UN_SET)
                                {

                                    if((is_corner_sblock || is_core_sblock) &&
                                       (incoming_wire_label[side_cw][itrack] <
                                        num_ending_wires[side_cw]))
                                        {
                                            /* The ending wires in core sblocks form N-to-N assignment
                                             * problem, so can use any pattern such as Wilton. This N-to-N
                                             * mapping depends on the fact that start points stagger across
                                             * channels. */
                                            assert(num_ending_wires[side_cw]
                                                   ==
                                                   num_wire_muxes[to_side]);
                                            sblock_pattern[i][j][side_cw]
                                                [to_side][itrack] =
                                                get_simple_switch_block_track
                                                (side_cw, to_side,
                                                 incoming_wire_label[side_cw]
                                                 [itrack], switch_block_type,
                                                 num_wire_muxes[to_side]);

                                        }
                                    else
                                        {

                                            /* These are passing wires with sbox only for core sblocks
                                             * or passing and ending wires (for fringe cases). */
                                            sblock_pattern[i][j][side_cw]
                                                [to_side][itrack] =
                                                (side_cw_incoming_wire_count *
                                                 Fs_per_side) %
                                                num_wire_muxes[to_side];
                                            side_cw_incoming_wire_count++;
                                        }
                                }
                        }
                }


            side_ccw_incoming_wire_count = 0;
            for(itrack = 0; itrack < nodes_per_chan; itrack++)
                {

                    /* if that side has no channel segment skip it */
                    if(incoming_wire_label[side_ccw] == NULL)
                        break;

                    /* not ending wire nor passing wire with sbox */
                    if(incoming_wire_label[side_ccw][itrack] != UN_SET)
                        {

                            if((is_corner_sblock || is_core_sblock) &&
                               (incoming_wire_label[side_ccw][itrack] <
                                num_ending_wires[side_ccw]))
                                {
                                    /* The ending wires in core sblocks form N-to-N assignment problem, so can
                                     * use any pattern such as Wilton */
                                    assert(incoming_wire_label[side_ccw]
                                           [itrack] <
                                           num_wire_muxes[to_side]);
                                    sblock_pattern[i][j][side_ccw][to_side]
                                        [itrack] =
                                        get_simple_switch_block_track
                                        (side_ccw, to_side,
                                         incoming_wire_label[side_ccw]
                                         [itrack], switch_block_type,
                                         num_wire_muxes[to_side]);
                                }
                            else
                                {

                                    /* These are passing wires with sbox only for core sblocks
                                     * or passing and ending wires (for fringe cases). */
                                    sblock_pattern[i][j][side_ccw][to_side]
                                        [itrack] =
                                        ((side_ccw_incoming_wire_count +
                                          side_cw_incoming_wire_count) *
                                         Fs_per_side) %
                                        num_wire_muxes[to_side];
                                    side_ccw_incoming_wire_count++;
                                }
                        }
                }


            opp_incoming_wire_count = 0;
            if(incoming_wire_label[side_opp])
                {
                    for(itrack = 0; itrack < nodes_per_chan; itrack++)
                        {
                            /* not ending wire nor passing wire with sbox */
                            if(incoming_wire_label[side_opp][itrack] !=
                               UN_SET)
                                {

                                    /* corner sblocks for sure have no opposite channel segments so don't care about them */
                                    if(is_core_sblock)
                                        {
                                            if(incoming_wire_label[side_opp]
                                               [itrack] <
                                               num_ending_wires[side_opp])
                                                {
                                                    /* The ending wires in core sblocks form N-to-N assignment problem, so can
                                                     * use any pattern such as Wilton */
                                                    /* In the direct connect case, I know for sure the init mux is at the same track #
                                                     * as this ending wire, but still need to find the init mux label for Fs > 3 */
                                                    sblock_pattern[i][j]
                                                        [side_opp][to_side]
                                                        [itrack] =
                                                        find_label_of_track
                                                        (wire_mux_on_track
                                                         [to_side],
                                                         num_wire_muxes
                                                         [to_side], itrack);
                                                }
                                            else
                                                {
                                                    /* These are passing wires with sbox for core sblocks */
                                                    sblock_pattern[i][j]
                                                        [side_opp][to_side]
                                                        [itrack] =
                                                        ((side_ccw_incoming_wire_count + side_cw_incoming_wire_count) * Fs_per_side + opp_incoming_wire_count * (Fs_per_side - 1)) % num_wire_muxes[to_side];
                                                    opp_incoming_wire_count++;
                                                }
                                        }
                                    else
                                        {
                                            if(incoming_wire_label[side_opp]
                                               [itrack] <
                                               num_ending_wires[side_opp])
                                                {
                                                    sblock_pattern[i][j]
                                                        [side_opp][to_side]
                                                        [itrack] =
                                                        find_label_of_track
                                                        (wire_mux_on_track
                                                         [to_side],
                                                         num_wire_muxes
                                                         [to_side], itrack);
                                                }
                                            else
                                                {
                                                    /* These are passing wires with sbox for fringe sblocks */
                                                    sblock_pattern[i][j]
                                                        [side_opp][to_side]
                                                        [itrack] =
                                                        ((side_ccw_incoming_wire_count + side_cw_incoming_wire_count) * Fs_per_side + opp_incoming_wire_count * (Fs_per_side - 1)) % num_wire_muxes[to_side];
                                                    opp_incoming_wire_count++;
                                                }
                                        }
                                }
                        }
                }
        }

    for(side = 0; side < 4; ++side)
        {
            if(incoming_wire_label[side])
                {
                    free(incoming_wire_label[side]);
                }
            if(wire_mux_on_track[side])
                {
                    free(wire_mux_on_track[side]);
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static int vpr_to_phy_track	(	IN int	itrack,
		IN int	chan_num,
		IN int	seg_num,
		IN t_seg_details *	seg_details,
		IN enum e_directionality	directionality
	)			[static]

Definition at line 1857 of file rr_graph2.c.

{
    int group_start, group_size;
    int vpr_offset_for_first_phy_track;
    int vpr_offset, phy_offset;
    int phy_track;
    int fac;

    /* Assign in pairs if unidir. */
    fac = 1;
    if(UNI_DIRECTIONAL == directionality)
        {
            fac = 2;
        }

    group_start = seg_details[itrack].group_start;
    group_size = seg_details[itrack].group_size;

    vpr_offset_for_first_phy_track =
        (chan_num + seg_num - 1) % (group_size / fac);
    vpr_offset = (itrack - group_start) / fac;
    phy_offset =
        (vpr_offset_for_first_phy_track + vpr_offset) % (group_size / fac);
    phy_track =
        group_start + (fac * phy_offset) + (itrack - group_start) % fac;

    return phy_track;
}

Here is the caller graph for this function:

---

Variable Documentation

t_linked_edge* free_edge_list_head = NULL

Definition at line 32 of file rr_graph2.c.

boolean* rr_edge_done

Definition at line 27 of file rr_graph2.c.
