SRC/main.c File Reference

#include <stdio.h>
#include <string.h>
#include <assert.h>
#include "util.h"
#include "vpr_types.h"
#include "globals.h"
#include "graphics.h"
#include "read_netlist.h"
#include "print_netlist.h"
#include "draw.h"
#include "place_and_route.h"
#include "stats.h"
#include "path_delay.h"
#include "OptionTokens.h"
#include "ReadOptions.h"
#include "xml_arch.h"
#include "SetupVPR.h"
#include "rr_graph.h"

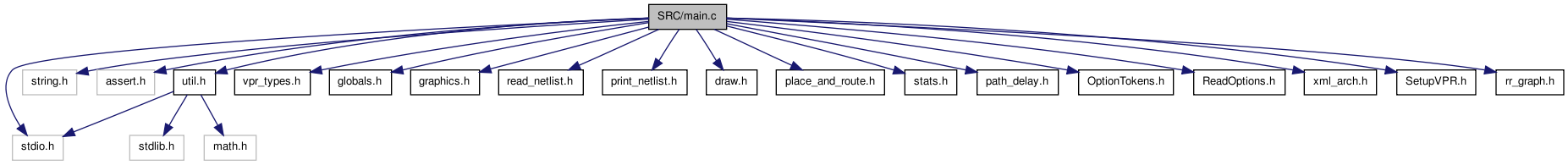

Include dependency graph for main.c:

Go to the source code of this file.

Functions
static void	PrintUsage ()
static void	PrintTitle ()
static void	freeArch (t_arch *Arch)
int	main (int argc, char **argv)
Variables
int	Fs_seed = -1
boolean	WMF_DEBUG = FALSE
int	W_seed = -1
int	binary_search = -1
char *	OutFilePrefix = NULL
float	grid_logic_tile_area = 0
float	ipin_mux_trans_size = 0
int	num_nets = 0
struct s_net *	net = NULL
int	num_blocks = 0
struct s_block *	block = NULL
int	num_types = 0
struct s_type_descriptor *	type_descriptors = NULL
t_type_ptr	IO_TYPE = NULL
t_type_ptr	EMPTY_TYPE = NULL
t_type_ptr	FILL_TYPE = NULL
int	nx = 0
int	ny = 0
int *	chan_width_x = NULL
int *	chan_width_y = NULL
struct s_grid_tile **	grid = NULL
struct s_trace **	trace_head = NULL
struct s_trace **	trace_tail = NULL
int	num_rr_nodes = 0
t_rr_node *	rr_node = NULL
t_ivec ***	rr_node_indices = NULL
int	num_rr_indexed_data = 0
t_rr_indexed_data *	rr_indexed_data = NULL
int **	net_rr_terminals = NULL
struct s_switch_inf *	switch_inf = NULL
int **	rr_blk_source = NULL

Function Documentation

static void freeArch ( t_arch * Arch ) [static]

Definition at line 258 of file main.c.

00259 {
00260         int i;
00261         for(i = 0; i < Arch->num_switches; i++) {
00262                 if(Arch->Switches->name != NULL) {
00263                         free(Arch->Switches[i].name);
00264                 }
00265         }
00266         free(Arch->Switches);
00267         for(i = 0; i < Arch->num_segments; i++) {
00268                 if(Arch->Segments->cb != NULL) {
00269                         free(Arch->Segments[i].cb);
00270                 }
00271                 if(Arch->Segments->sb != NULL) {
00272                         free(Arch->Segments[i].sb);
00273                 }
00274         }
00275         free(Arch->Segments);
00276 }

Here is the caller graph for this function:

int main	(	int	argc,
		char **	argv
	)

Definition at line 108 of file main.c.

00111 00112 00113 00114 00115 00116 00117 00118 00119 00120 00121 00122 00123 00124 00125 00126 00127 00128 00129 00130 00131 00132         { 00133 00134 00135         } 00136 00137 00138 00139 00140 00141 00142 00143 00144 00145 00146 00147 00148 00149 00150 00151 00152 00153 00154 00155 00156 00157 00158 00159 00160 00161 00162 00163 00164 00165         } 00166 00167 00168 00169 00170         { 00171 00172 00173         } 00174 00175 00176 00177 00178 00179 00180 00181 00182 00183 00184 00185 00186 00187 00188 00189 00190 00191 00192 00193 00194 00195 }

class="fragment">00110 { t_options Options; t_arch Arch = { 0 }; enum e_operation Operation; struct s_placer_opts PlacerOpts; struct s_annealing_sched AnnealSched; struct s_router_opts RouterOpts; struct s_det_routing_arch RoutingArch; t_segment_inf *Segments; t_timing_inf Timing; t_subblock_data Subblocks; boolean ShowGraphics; boolean TimingEnabled; int GraphPause; /* Print title message */ PrintTitle(); /* Print usage message if no args */ if(argc < 2) PrintUsage(); exit(1); /* Read in available inputs */ ReadOptions(argc, argv, &Options); /* Determine whether timing is on or off */ TimingEnabled = IsTimingEnabled(Options); /* Use inputs to configure VPR */ SetupVPR(Options, TimingEnabled, &Arch, &Operation, &PlacerOpts, &AnnealSched, &RouterOpts, &RoutingArch, &Segments, &Timing, &Subblocks, &ShowGraphics, &GraphPause); /* Check inputs are reasonable */ CheckOptions(Options, TimingEnabled); CheckArch(Arch, TimingEnabled); /* Verify settings don't conflict or otherwise not make sense */ CheckSetup(Operation, PlacerOpts, AnnealSched, RouterOpts, RoutingArch, Segments, Timing, Subblocks, Arch.Chans); /* Output the current settings to console. */ ShowSetup(Options, Arch, TimingEnabled, Operation, PlacerOpts, AnnealSched, RouterOpts, RoutingArch, Segments, Timing, Subblocks); if(Operation == TIMING_ANALYSIS_ONLY) { do_constant_net_delay_timing_analysis( Timing, Subblocks, Options.constant_net_delay); return 0; /* Startup X graphics */ set_graphics_state(ShowGraphics, GraphPause, RouterOpts.route_type); if(ShowGraphics) init_graphics("VPR: Versatile Place and Route for FPGAs"); alloc_draw_structs(); /* Do the actual operation */ place_and_route(Operation, PlacerOpts, Options.PlaceFile, Options.NetFile, Options.ArchFile, Options.RouteFile, AnnealSched, RouterOpts, RoutingArch, Segments, Timing, &Subblocks, Arch.Chans); /* Close down X Display */ if(ShowGraphics) close_graphics(); /* free data structures */ free(Options.PlaceFile); free(Options.NetFile); free(Options.ArchFile); free(Options.RouteFile); freeArch(&Arch); /* Return 0 to single success to scripts */ return 0;

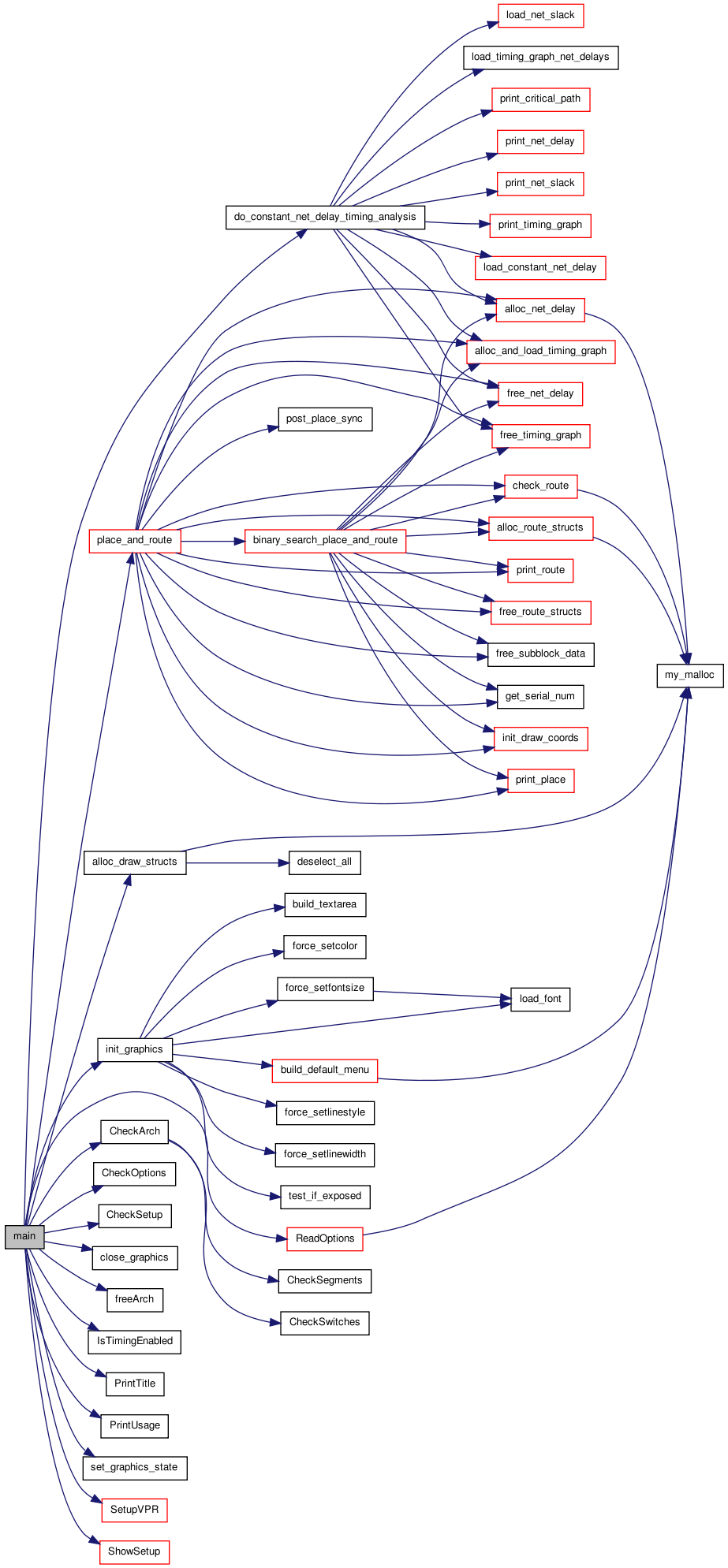

Here is the call graph for this function:

static void PrintTitle ( ) [static]

Definition at line 243 of file main.c.

00244 {
00245     puts("");
00246     puts("VPR FPGA Placement and Routing.");
00247     puts("Version: Version 5.0.2");
00248     puts("Compiled: " __DATE__ ".");
00249     puts("Original VPR by V. Betz.");
00250     puts("Timing-driven placement enhancements by A. Marquardt.");
00251         puts("Single-drivers enhancements by Andy Ye with additions by.");
00252         puts("Mark Fang, Jason Luu, Ted Campbell");
00253         puts("Heterogeneous stucture support by Jason Luu and Ted Campbell.");
00254     puts("This code is licensed only for non-commercial use.");
00255     puts("");
00256 }

Here is the caller graph for this function:

static void PrintUsage ( ) [static]

Definition at line 201 of file main.c.

00202 {
00203     puts("Usage:  vpr circuit.net fpga.arch placed.out routed.out [Options ...]");
00204     puts("");
00205     puts("General Options:  [-nodisp] [-auto <int>] [-route_only]");
00206     puts("\t[-place_only] [-timing_analyze_only_with_net_delay <float>]");
00207     puts("\t[-fast] [-full_stats] [-timing_analysis on | off] [-outfile_prefix <string>]");
00208     puts("");
00209     puts("Placer Options:");
00210     puts("\t[-place_algorithm bounding_box | net_timing_driven | path_timing_driven]");
00211     puts("\t[-init_t <float>] [-exit_t <float>]");
00212     puts("\t[-alpha_t <float>] [-inner_num <float>] [-seed <int>]");
00213     puts("\t[-place_cost_exp <float>] [-place_cost_type linear | nonlinear]");
00214     puts("\t[-place_chan_width <int>] [-num_regions <int>] ");
00215     puts("\t[-fix_pins random | <file.pads>]");
00216     puts("\t[-enable_timing_computations on | off]");
00217     puts("\t[-block_dist <int>]");
00218     puts("");
00219     puts("Placement Options Valid Only for Timing-Driven Placement:");
00220     puts("\t[-timing_tradeoff <float>]");
00221     puts("\t[-recompute_crit_iter <int>]");
00222     puts("\t[-inner_loop_recompute_divider <int>]");
00223     puts("\t[-td_place_exp_first <float>]");
00224     puts("\t[-td_place_exp_last <float>]");
00225     puts("");
00226     puts("Router Options:  [-max_router_iterations <int>] [-bb_factor <int>]");
00227     puts("\t[-initial_pres_fac <float>] [-pres_fac_mult <float>]");
00228     puts("\t[-acc_fac <float>] [-first_iter_pres_fac <float>]");
00229     puts("\t[-bend_cost <float>] [-route_type global | detailed]");
00230     puts("\t[-verify_binary_search] [-route_chan_width <int>]");
00231     puts("\t[-router_algorithm breadth_first | timing_driven]");
00232     puts("\t[-base_cost_type intrinsic_delay | delay_normalized | demand_only]");
00233     puts("");
00234     puts("Routing options valid only for timing-driven routing:");
00235     puts("\t[-astar_fac <float>] [-max_criticality <float>]");
00236     puts("\t[-criticality_exp <float>]");
00237     puts("");
00238 }
