SRC/graphics.c File Reference

#include <math.h>
#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include "util.h"
#include "graphics.h"
#include "vpr_types.h"
#include <X11/Xlib.h>
#include <X11/Xutil.h>
#include <X11/Xos.h>
#include <X11/Xatom.h>

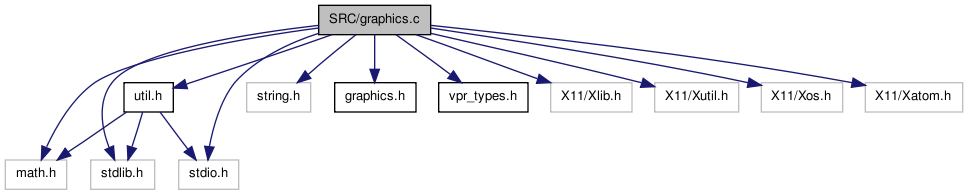

Include dependency graph for graphics.c:

Go to the source code of this file.

Data Structures
struct	t_button
Defines
#define	XPOST(worldx)   (((worldx)-xleft)*ps_xmult + ps_left)
#define	YPOST(worldy)   (((worldy)-ybot)*ps_ymult + ps_bot)
#define	XTOWORLD(x)   (((float) x)/xmult + xleft)
#define	YTOWORLD(y)   (((float) y)/ymult + ytop)
#define	max(a, b)   (((a) > (b))? (a) : (b))
#define	min(a, b)   ((a) > (b)? (b) : (a))
#define	MWIDTH   104
#define	T_AREA_HEIGHT   24
#define	MAX_FONT_SIZE   40
#define	PI   3.141592654
#define	BUTTON_TEXT_LEN   20
#define	MAXPIXEL   15000
#define	MINPIXEL   -15000
#define	OFF   1
#define	ON   0
Functions
static void	translate_up (void(*drawscreen)(void))
static void	translate_left (void(*drawscreen)(void))
static void	translate_right (void(*drawscreen)(void))
static void	translate_down (void(*drawscreen)(void))
static void	zoom_in (void(*drawscreen)(void))
static void	zoom_out (void(*drawscreen)(void))
static void	zoom_fit (void(*drawscreen)(void))
static void	adjustwin (void(*drawscreen)(void))
static void	postscript (void(*drawscreen)(void))
static void	proceed (void(*drawscreen)(void))
static void	quit (void(*drawscreen)(void))
static Bool	test_if_exposed (Display *disp, XEvent *event_ptr, XPointer dummy)
static void	map_button (int bnum)
static void	unmap_button (int bnum)
static int	xcoord (float worldx)
static int	ycoord (float worldy)
static void	load_font (int pointsize)
static void	force_setcolor (int cindex)
void	setcolor (int cindex)
static void	force_setlinestyle (int linestyle)
void	setlinestyle (int linestyle)
static void	force_setlinewidth (int linewidth)
void	setlinewidth (int linewidth)
static void	force_setfontsize (int pointsize)
void	setfontsize (int pointsize)
static void	build_textarea (void)
static void	setpoly (int bnum, int xc, int yc, int r, float theta)
static void	build_default_menu (void)
void	create_button (char *prev_button_text, char *button_text, void(*button_func)(void(*drawscreen)(void)))
void	destroy_button (char *button_text)
void	init_graphics (char *window_name)
static void	menutext (Window win, int xc, int yc, char *text)
static void	drawbut (int bnum)
static void	turn_on_off (int pressed)
static int	which_button (Window win)
static void	drawmenu (void)
static void	update_transform (void)
static void	update_ps_transform (void)
void	event_loop (void(*act_on_button)(float x, float y), void(*drawscreen)(void))
void	clearscreen (void)
static int	rect_off_screen (float x1, float y1, float x2, float y2)
void	drawline (float x1, float y1, float x2, float y2)
void	drawrect (float x1, float y1, float x2, float y2)
void	fillrect (float x1, float y1, float x2, float y2)
static float	angnorm (float ang)
void	drawarc (float xc, float yc, float rad, float startang, float angextent)
void	fillarc (float xc, float yc, float rad, float startang, float angextent)
void	fillpoly (t_point *points, int npoints)
void	drawtext (float xc, float yc, const char *text, float boundx)
void	flushinput (void)
void	init_world (float x1, float y1, float x2, float y2)
void	draw_message (void)
void	update_message (char *msg)
static void	update_win (int x[2], int y[2], void(*drawscreen)(void))
void	close_graphics (void)
int	init_postscript (char *fname)
void	close_postscript (void)
Variables
static const int	menu_font_size = 14
static t_button *	button
static int	num_buttons
static int	disp_type
static Display *	display
static int	screen_num
static GC	gc
static GC	gcxor
static GC	gc_menus
static XFontStruct *	font_info [MAX_FONT_SIZE+1]
static int	font_is_loaded [MAX_FONT_SIZE+1]
static unsigned int	display_width
static unsigned int	display_height
static unsigned int	top_width
static unsigned int	top_height
static Window	toplevel
static Window	menu
static Window	textarea
static float	xleft
static float	xright
static float	ytop
static float	ybot
static float	saved_xleft
static float	saved_xright
static float	saved_ytop
static float	saved_ybot
static float	ps_left
static float	ps_right
static float	ps_top
static float	ps_bot
static float	ps_xmult
static float	ps_ymult
static float	xmult
static float	ymult
static Colormap	private_cmap
static int	currentcolor = BLACK
static int	currentlinestyle = SOLID
static int	currentlinewidth = 0
static int	currentfontsize = 10
static char	message [BUFSIZE] = "\0"
static int	colors [NUM_COLOR]
static FILE *	ps

---

Define Documentation

#define BUTTON_TEXT_LEN   20

Definition at line 92 of file graphics.c.

#define max	(	a,
		b		)	(((a) > (b))? (a) : (b))

Definition at line 84 of file graphics.c.

#define MAX_FONT_SIZE   40

Definition at line 89 of file graphics.c.

#define MAXPIXEL   15000

Definition at line 157 of file graphics.c.

#define min	(	a,
		b		)	((a) > (b)? (b) : (a))

Definition at line 85 of file graphics.c.

#define MINPIXEL   -15000

Definition at line 158 of file graphics.c.

#define MWIDTH   104

Definition at line 87 of file graphics.c.

#define OFF   1

#define ON   0

#define PI   3.141592654

Definition at line 90 of file graphics.c.

#define T_AREA_HEIGHT   24

Definition at line 88 of file graphics.c.

#define XPOST

(

worldx

)

(((worldx)-xleft)*ps_xmult + ps_left)

Definition at line 75 of file graphics.c.

#define XTOWORLD

(

x

)

(((float) x)/xmult + xleft)

Definition at line 81 of file graphics.c.

#define YPOST

(

worldy

)

(((worldy)-ybot)*ps_ymult + ps_bot)

Definition at line 76 of file graphics.c.

#define YTOWORLD

(

y

)

(((float) y)/ymult + ytop)

Definition at line 82 of file graphics.c.

---

Function Documentation

static void adjustwin

(

void(*)(void)

drawscreen

)

[static]

Definition at line 1821 of file graphics.c.

{
/* The window button was pressed.  Let the user click on the two *
 * diagonally opposed corners, and zoom in on this area.         */

    XEvent report;
    int corner, xold, yold, x[2], y[2];

    corner = 0;
    xold = -1;
    yold = -1;                  /* Don't need to init yold, but stops compiler warning. */

    while(corner < 2)
        {
            XNextEvent(display, &report);
            switch (report.type)
                {
                case Expose:
#ifdef VERBOSE
                    printf("Got an expose event.\n");
                    printf("Count is: %d.\n", report.xexpose.count);
                    printf("Window ID is: %d.\n", report.xexpose.window);
#endif
                    if(report.xexpose.count != 0)
                        break;
                    if(report.xexpose.window == menu)
                        drawmenu();
                    else if(report.xexpose.window == toplevel)
                        {
                            drawscreen();
                            xold = -1;  /* No rubber band on screen */
                        }
                    else if(report.xexpose.window == textarea)
                        draw_message();
                    break;
                case ConfigureNotify:
                    top_width = report.xconfigure.width;
                    top_height = report.xconfigure.height;
                    update_transform();
#ifdef VERBOSE
                    printf("Got a ConfigureNotify.\n");
                    printf("New width: %d  New height: %d.\n", top_width,
                           top_height);
#endif
                    break;
                case ButtonPress:
#ifdef VERBOSE
                    printf("Got a buttonpress.\n");
                    printf("Window ID is: %d.\n", report.xbutton.window);
                    printf("Location (%d, %d).\n", report.xbutton.x,
                           report.xbutton.y);
#endif
                    if(report.xbutton.window != toplevel)
                        break;
                    x[corner] = report.xbutton.x;
                    y[corner] = report.xbutton.y;
                    if(corner == 0)
                        {
                            XSelectInput(display, toplevel, ExposureMask |
                                         StructureNotifyMask | ButtonPressMask
                                         | PointerMotionMask);
                        }
                    else
                        {
                            update_win(x, y, drawscreen);
                        }
                    corner++;
                    break;
                case MotionNotify:
#ifdef VERBOSE
                    printf("Got a MotionNotify Event.\n");
                    printf("x: %d    y: %d\n", report.xmotion.x,
                           report.xmotion.y);
#endif
                    if(xold >= 0)
                        {       /* xold set -ve before we draw first box */
                            XDrawRectangle(display, toplevel, gcxor,
                                           min(x[0], xold), min(y[0], yold),
                                           abs(x[0] - xold),
                                           abs(y[0] - yold));
                        }
                    /* Don't allow user to window under menu region */
                    xold = min(report.xmotion.x, top_width - 1 - MWIDTH);
                    yold = report.xmotion.y;
                    XDrawRectangle(display, toplevel, gcxor, min(x[0], xold),
                                   min(y[0], yold), abs(x[0] - xold),
                                   abs(y[0] - yold));
                    break;
                }
        }
    XSelectInput(display, toplevel, ExposureMask | StructureNotifyMask
                 | ButtonPressMask);
}

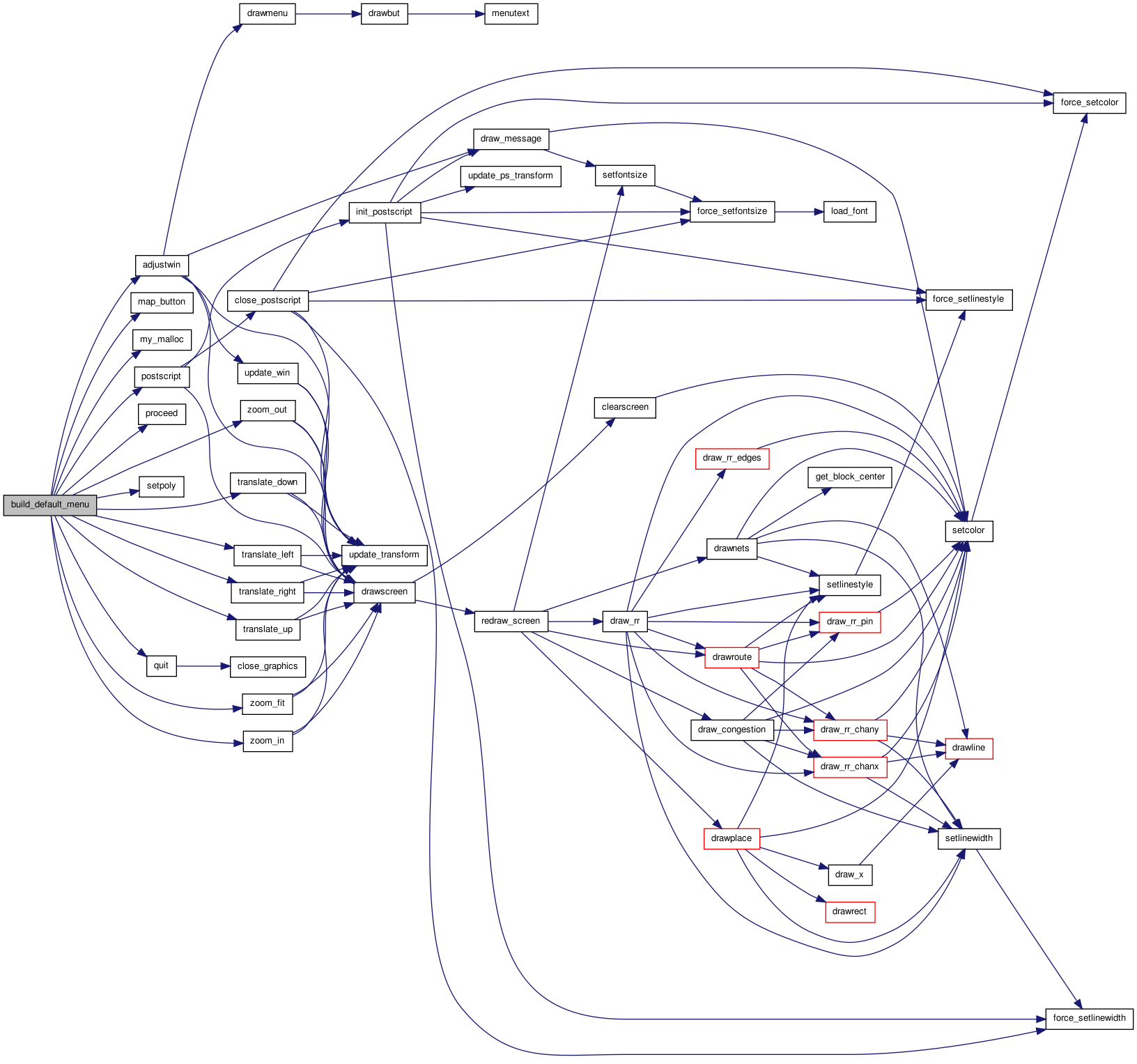

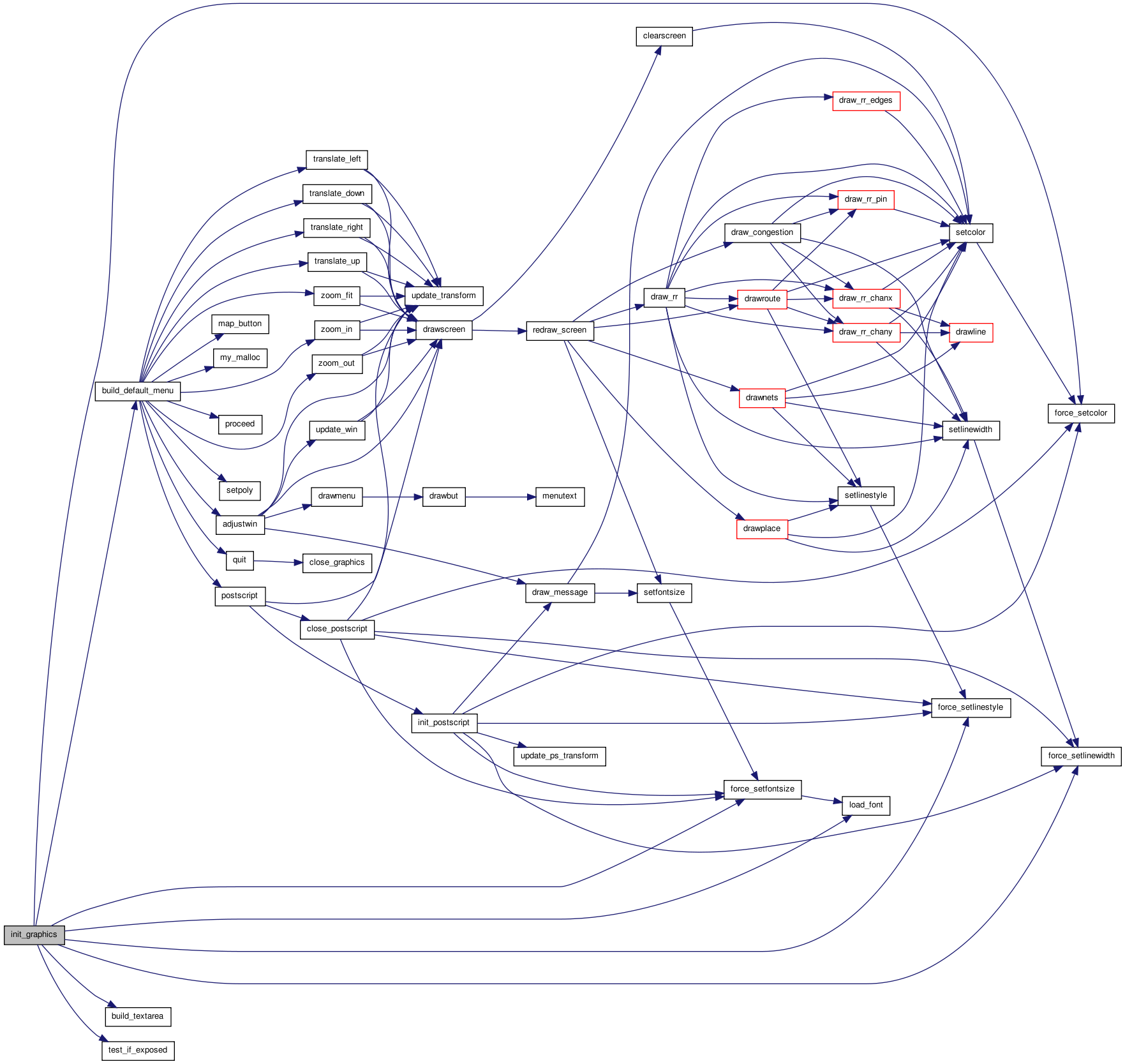

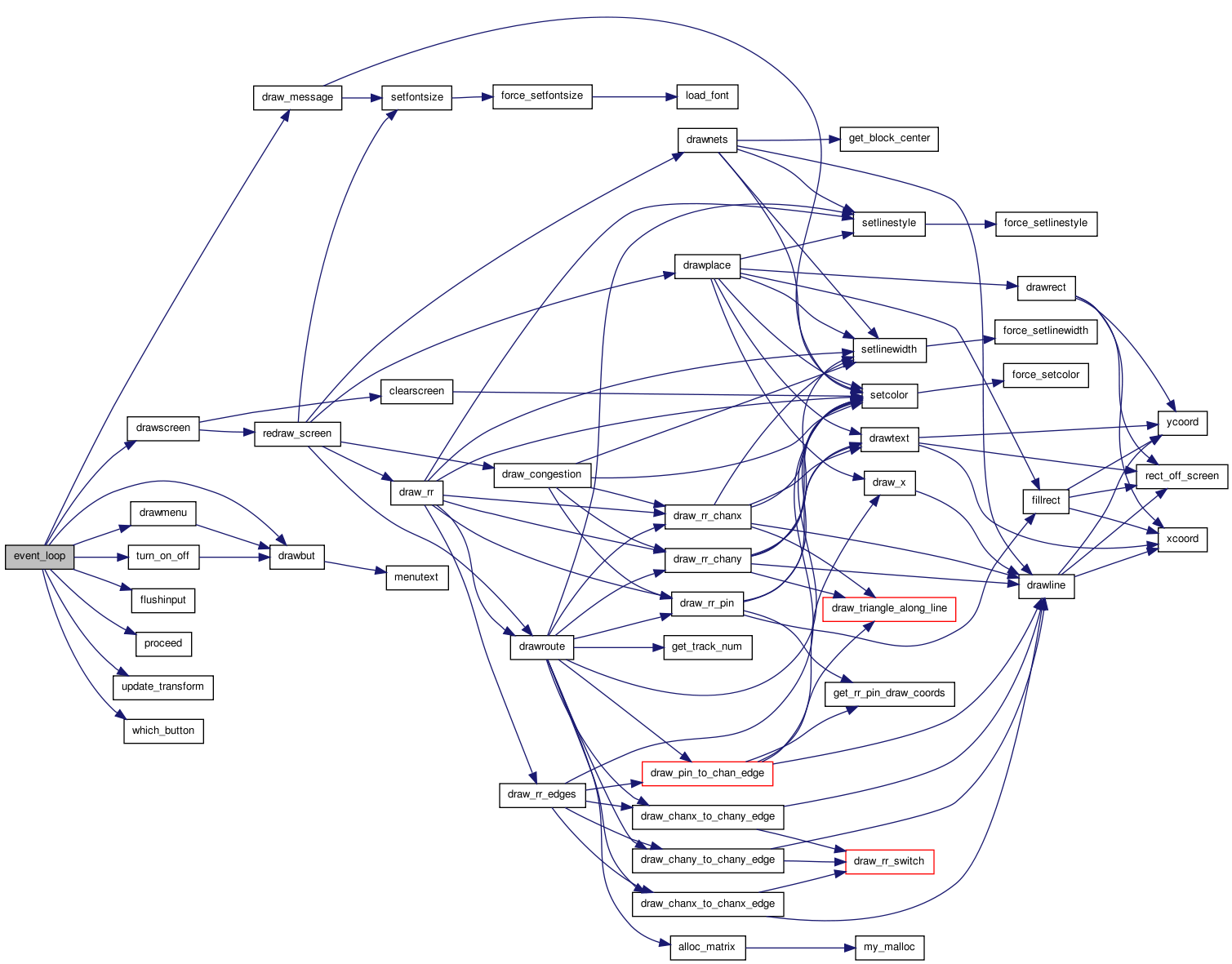

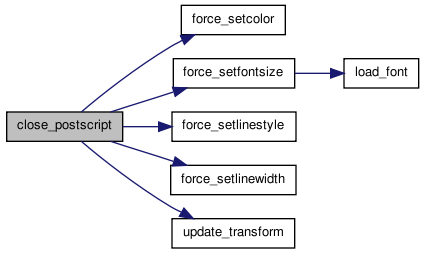

Here is the call graph for this function:

Here is the caller graph for this function:

static float angnorm

(

float

ang

)

[static]

Definition at line 1360 of file graphics.c.

{
/* Normalizes an angle to be between 0 and 360 degrees. */

    int scale;

    if(ang < 0)
        {
            scale = (int)(ang / 360. - 1);
        }
    else
        {
            scale = (int)(ang / 360.);
        }
    ang = ang - scale * 360.;
    return (ang);
}

Here is the caller graph for this function:

static void build_default_menu

(

void

)

[static]

Definition at line 454 of file graphics.c.

{

/* Sets up the default menu buttons on the right hand side of the window. */

    XSetWindowAttributes menu_attributes;
    unsigned long valuemask;
    int i, xcen, x1, y1, bwid, bheight, space;


    menu = XCreateSimpleWindow(display, toplevel,
                               top_width - MWIDTH, 0, MWIDTH - 4,
                               display_height, 2, colors[BLACK],
                               colors[LIGHTGREY]);
    menu_attributes.event_mask = ExposureMask;
    /* Ignore button presses on the menu background. */
    menu_attributes.do_not_propagate_mask = ButtonPressMask;
    /* Keep menu on top right */
    menu_attributes.win_gravity = NorthEastGravity;
    valuemask = CWWinGravity | CWEventMask | CWDontPropagate;
    XChangeWindowAttributes(display, menu, valuemask, &menu_attributes);
    XMapWindow(display, menu);

    num_buttons = 11;
    button = (t_button *) my_malloc(num_buttons * sizeof(t_button));

/* Now do the arrow buttons */
    bwid = 28;
    space = 3;
    y1 = 10;
    xcen = 51;
    x1 = xcen - bwid / 2;
    button[0].xleft = x1;
    button[0].ytop = y1;
    setpoly(0, bwid / 2, bwid / 2, bwid / 3, -PI / 2.); /* Up */
    button[0].fcn = translate_up;

    y1 += bwid + space;
    x1 = xcen - 3 * bwid / 2 - space;
    button[1].xleft = x1;
    button[1].ytop = y1;
    setpoly(1, bwid / 2, bwid / 2, bwid / 3, PI);       /* Left */
    button[1].fcn = translate_left;

    x1 = xcen + bwid / 2 + space;
    button[2].xleft = x1;
    button[2].ytop = y1;
    setpoly(2, bwid / 2, bwid / 2, bwid / 3, 0);        /* Right */
    button[2].fcn = translate_right;

    y1 += bwid + space;
    x1 = xcen - bwid / 2;
    button[3].xleft = x1;
    button[3].ytop = y1;
    setpoly(3, bwid / 2, bwid / 2, bwid / 3, +PI / 2.); /* Down */
    button[3].fcn = translate_down;

    for(i = 0; i < 4; i++)
        {
            button[i].width = bwid;
            button[i].height = bwid;
        }

/* Rectangular buttons */

    y1 += bwid + space + 6;
    space = 8;
    bwid = 90;
    bheight = 26;
    x1 = xcen - bwid / 2;
    for(i = 4; i < num_buttons; i++)
        {
            button[i].xleft = x1;
            button[i].ytop = y1;
            y1 += bheight + space;
            button[i].istext = 1;
            button[i].ispoly = 0;
            button[i].width = bwid;
            button[i].height = bheight;
        }

    strcpy(button[4].text, "Zoom In");
    strcpy(button[5].text, "Zoom Out");
    strcpy(button[6].text, "Zoom Fit");
    strcpy(button[7].text, "Window");
    strcpy(button[8].text, "PostScript");
    strcpy(button[9].text, "Proceed");
    strcpy(button[10].text, "Exit");

    button[4].fcn = zoom_in;
    button[5].fcn = zoom_out;
    button[6].fcn = zoom_fit;
    button[7].fcn = adjustwin;
    button[8].fcn = postscript;
    button[9].fcn = proceed;
    button[10].fcn = quit;

    for(i = 0; i < num_buttons; i++)
        map_button(i);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void build_textarea

(

void

)

[static]

Definition at line 407 of file graphics.c.

{

/* Creates a small window at the top of the graphics area for text messages */

    XSetWindowAttributes menu_attributes;
    unsigned long valuemask;

    textarea = XCreateSimpleWindow(display, toplevel,
                                   0, top_height - T_AREA_HEIGHT,
                                   display_width, T_AREA_HEIGHT - 4, 2,
                                   colors[BLACK], colors[LIGHTGREY]);
    menu_attributes.event_mask = ExposureMask;
    /* ButtonPresses in this area are ignored. */
    menu_attributes.do_not_propagate_mask = ButtonPressMask;
    /* Keep text area on bottom left */
    menu_attributes.win_gravity = SouthWestGravity;
    valuemask = CWWinGravity | CWEventMask | CWDontPropagate;
    XChangeWindowAttributes(display, textarea, valuemask, &menu_attributes);
    XMapWindow(display, textarea);
}

Here is the caller graph for this function:

void clearscreen

(

void

)

Definition at line 1205 of file graphics.c.

{
    int savecolor;

    if(disp_type == SCREEN)
        {
            XClearWindow(display, toplevel);
        }
    else
        {
/* erases current page.  Don't use erasepage, since this will erase *
 * everything, (even stuff outside the clipping path) causing       *
 * problems if this picture is incorporated into a larger document. */
            savecolor = currentcolor;
            setcolor(WHITE);
            fprintf(ps, "clippath fill\n\n");
            setcolor(savecolor);
        }
}

Here is the call graph for this function:

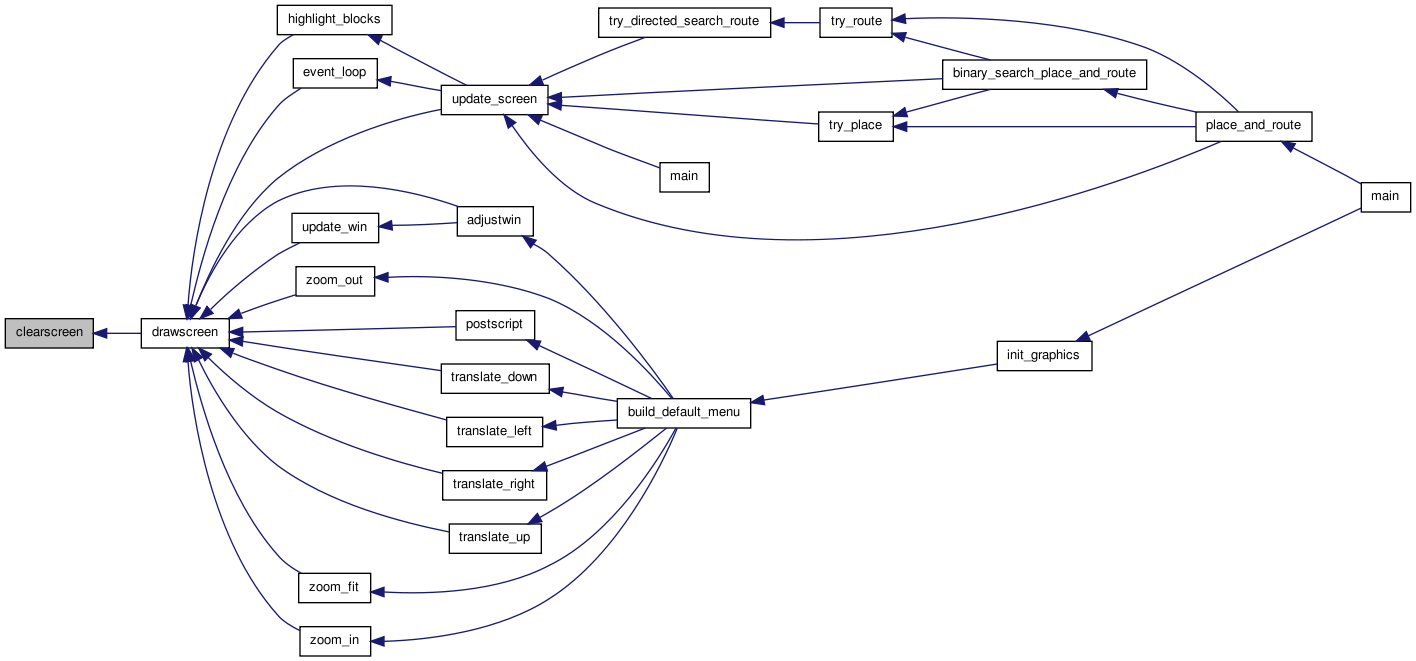

Here is the caller graph for this function:

void close_graphics

(

void

)

Definition at line 1958 of file graphics.c.

{

/* Release all my drawing structures (through the X server) and *
 * close down the connection.                                   */

    int i;

    for(i = 1; i <= MAX_FONT_SIZE; i++)
        if(font_is_loaded[i])
            XFreeFont(display, font_info[i]);

    XFreeGC(display, gc);
    XFreeGC(display, gcxor);
    XFreeGC(display, gc_menus);

    if(private_cmap != None)
        XFreeColormap(display, private_cmap);

    XCloseDisplay(display);
    free(button);
}

Here is the caller graph for this function:

void close_postscript

(

void

)

Definition at line 2118 of file graphics.c.

{

/* Properly ends postscript output and redirects output to screen. */

    fprintf(ps, "showpage\n");
    fprintf(ps, "\n%%%%Trailer\n");
    fclose(ps);
    disp_type = SCREEN;
    update_transform();         /* Ensure screen world reflects any changes      *
                                 * made while printing.                          */

/* Need to make sure that we really set up the graphics context --  *
 * don't want the change requested to match the current setting and *
 * do nothing -> force the changes.                                 */

    force_setcolor(currentcolor);
    force_setlinestyle(currentlinestyle);
    force_setlinewidth(currentlinewidth);
    force_setfontsize(currentfontsize);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void create_button	(	char *	prev_button_text,
		char *	button_text,
		void(*)(void(*drawscreen)(void))	button_func
	)

Definition at line 585 of file graphics.c.

{

/* Creates a new button below the button containing prev_button_text.       *
 * The text and button function are set according to button_text and        *
 * button_func, respectively.                                               */

    int i, bnum, space;

    space = 8;

/* Only allow new buttons that are text (not poly) types.                   */

    bnum = -1;
    for(i = 4; i < num_buttons; i++)
        {
            if(button[i].istext == 1 &&
               strcmp(button[i].text, prev_button_text) == 0)
                {
                    bnum = i + 1;
                    break;
                }
        }

    if(bnum == -1)
        {
            printf
                ("Error in create_button:  button with text %s not found.\n",
                 prev_button_text);
            exit(1);
        }

    num_buttons++;
    button = (t_button *) my_realloc(button, num_buttons * sizeof(t_button));

/* NB:  Requirement that you specify the button that this button goes under *
 * guarantees that button[num_buttons-2] exists and is a text button.       */

    button[num_buttons - 1].xleft = button[num_buttons - 2].xleft;
    button[num_buttons - 1].ytop = button[num_buttons - 2].ytop +
        button[num_buttons - 2].height + space;
    button[num_buttons - 1].height = button[num_buttons - 2].height;
    button[num_buttons - 1].width = button[num_buttons - 2].width;
    map_button(num_buttons - 1);


    for(i = num_buttons - 1; i > bnum; i--)
        {
            button[i].ispoly = button[i - 1].ispoly;
/* No poly copy for now, as I'm only providing the ability to create text *
 * buttons.                                                               */

            button[i].istext = button[i - 1].istext;
            strcpy(button[i].text, button[i - 1].text);
            button[i].fcn = button[i - 1].fcn;
            button[i].ispressed = button[i - 1].ispressed;
        }

    button[bnum].istext = 1;
    button[bnum].ispoly = 0;
    my_strncpy(button[bnum].text, button_text, BUTTON_TEXT_LEN);
    button[bnum].fcn = button_func;
    button[bnum].ispressed = 1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void destroy_button

(

char *

button_text

)

Definition at line 654 of file graphics.c.

{

/* Destroys the button with text button_text. */

    int i, bnum;

    bnum = -1;
    for(i = 4; i < num_buttons; i++)
        {
            if(button[i].istext == 1 &&
               strcmp(button[i].text, button_text) == 0)
                {
                    bnum = i;
                    break;
                }
        }

    if(bnum == -1)
        {
            printf
                ("Error in destroy_button:  button with text %s not found.\n",
                 button_text);
            exit(1);
        }

    for(i = bnum + 1; i < num_buttons; i++)
        {
            button[i - 1].ispoly = button[i].ispoly;
/* No poly copy for now, as I'm only providing the ability to create text *
 * buttons.                                                               */

            button[i - 1].istext = button[i].istext;
            strcpy(button[i - 1].text, button[i].text);
            button[i - 1].fcn = button[i].fcn;
            button[i - 1].ispressed = button[i].ispressed;
        }

    unmap_button(num_buttons - 1);
    num_buttons--;
    button = (t_button *) my_realloc(button, num_buttons * sizeof(t_button));
}

Here is the call graph for this function:

Here is the caller graph for this function:

void draw_message

(

void

)

Definition at line 1617 of file graphics.c.

{

/* Draw the current message in the text area at the screen bottom. */

    int len, width, savefontsize, savecolor;
    float ylow;

    if(disp_type == SCREEN)
        {
            XClearWindow(display, textarea);
            len = strlen(message);
            width = XTextWidth(font_info[menu_font_size], message, len);

            XSetForeground(display, gc_menus, colors[BLACK]);
            XDrawString(display, textarea, gc_menus,
                        (top_width - MWIDTH - width) / 2,
                        (T_AREA_HEIGHT - 4) / 2 +
                        (font_info[menu_font_size]->ascent -
                         font_info[menu_font_size]->descent) / 2, message,
                        len);
        }

    else
        {
/* Draw the message in the bottom margin.  Printer's generally can't  *
 * print on the bottom 1/4" (area with y < 18 in PostScript coords.)  */

            savecolor = currentcolor;
            setcolor(BLACK);
            savefontsize = currentfontsize;
            setfontsize(menu_font_size - 2);    /* Smaller OK on paper */
            ylow = ps_bot - 8.;
            fprintf(ps, "(%s) %.2f %.2f censhow\n", message,
                    (ps_left + ps_right) / 2., ylow);
            setcolor(savecolor);
            setfontsize(savefontsize);
        }
}

Here is the call graph for this function:

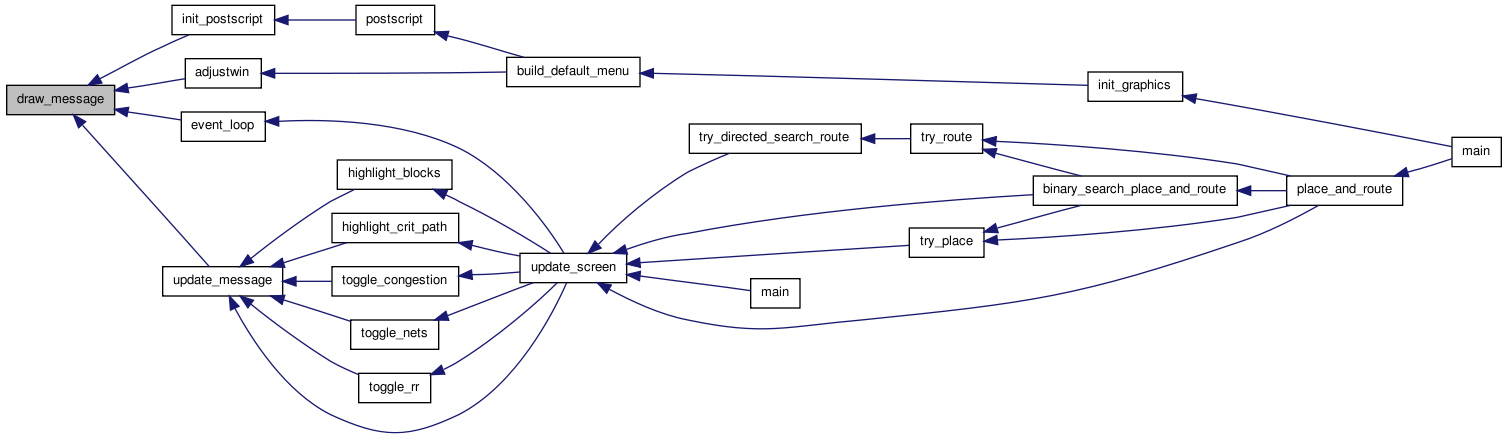

Here is the caller graph for this function:

void drawarc	(	float	xc,
		float	yc,
		float	rad,
		float	startang,
		float	angextent
	)

Definition at line 1380 of file graphics.c.

{

/* Draws a circular arc.  X11 can do elliptical arcs quite simply, and *
 * PostScript could do them by scaling the coordinate axes.  Too much  *
 * work for now, and probably too complex an object for users to draw  *
 * much, so I'm just doing circular arcs.  Startang is relative to the *
 * Window's positive x direction.  Angles in degrees.                  */

    int xl, yt;
    unsigned int width, height;

/* Conservative (but fast) clip test -- check containing rectangle of *
 * a circle.                                                          */

    if(rect_off_screen(xc - rad, yc - rad, xc + rad, yc + rad))
        return;

/* X Windows has trouble with very large angles. (Over 360).    *
 * Do following to prevent its inaccurate (overflow?) problems. */
    if(fabs(angextent) > 360.)
        angextent = 360.;

    startang = angnorm(startang);

    if(disp_type == SCREEN)
        {
            xl = (int)(xcoord(xc) - fabs(xmult * rad));
            yt = (int)(ycoord(yc) - fabs(ymult * rad));
            width = (unsigned int)(2 * fabs(xmult * rad));
            height = width;
            XDrawArc(display, toplevel, gc, xl, yt, width, height,
                     (int)(startang * 64), (int)(angextent * 64));
        }
    else
        {
            fprintf(ps, "%.2f %.2f %.2f %.2f %.2f %s stroke\n", XPOST(xc),
                    YPOST(yc), fabs(rad * ps_xmult), startang,
                    startang + angextent,
                    (angextent < 0) ? "drawarcn" : "drawarc");
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void drawbut

(

int

bnum

)

[static]

Definition at line 897 of file graphics.c.

{

/* Draws button bnum in either its pressed or unpressed state.    */

    int width, height, thick, i, ispressed;
    XPoint mypoly[6];

    ispressed = button[bnum].ispressed;
    thick = 2;
    width = button[bnum].width;
    height = button[bnum].height;
/* Draw top and left edges of 3D box. */
    if(ispressed)
        {
            XSetForeground(display, gc_menus, colors[BLACK]);
        }
    else
        {
            XSetForeground(display, gc_menus, colors[WHITE]);
        }

/* Note:  X Windows doesn't appear to draw the bottom pixel of *
 * a polygon with XFillPolygon, so I make this 1 pixel thicker *
 * to compensate.                                              */
    mypoly[0].x = 0;
    mypoly[0].y = height;
    mypoly[1].x = 0;
    mypoly[1].y = 0;
    mypoly[2].x = width;
    mypoly[2].y = 0;
    mypoly[3].x = width - thick;
    mypoly[3].y = thick;
    mypoly[4].x = thick;
    mypoly[4].y = thick;
    mypoly[5].x = thick;
    mypoly[5].y = height - thick;
    XFillPolygon(display, button[bnum].win, gc_menus, mypoly, 6, Convex,
                 CoordModeOrigin);

/* Draw bottom and right edges of 3D box. */
    if(ispressed)
        {
            XSetForeground(display, gc_menus, colors[WHITE]);
        }
    else
        {
            XSetForeground(display, gc_menus, colors[BLACK]);
        }
    mypoly[0].x = 0;
    mypoly[0].y = height;
    mypoly[1].x = width;
    mypoly[1].y = height;
    mypoly[2].x = width;
    mypoly[2].y = 0;
    mypoly[3].x = width - thick;
    mypoly[3].y = thick;
    mypoly[4].x = width - thick;
    mypoly[4].y = height - thick;
    mypoly[5].x = thick;
    mypoly[5].y = height - thick;
    XFillPolygon(display, button[bnum].win, gc_menus, mypoly, 6, Convex,
                 CoordModeOrigin);

/* Draw background */
    if(ispressed)
        {
            XSetForeground(display, gc_menus, colors[DARKGREY]);
        }
    else
        {
            XSetForeground(display, gc_menus, colors[LIGHTGREY]);
        }

/* Give x,y of top corner and width and height */
    XFillRectangle(display, button[bnum].win, gc_menus, thick, thick,
                   width - 2 * thick, height - 2 * thick);

/* Draw polygon, if there is one */
    if(button[bnum].ispoly)
        {
            for(i = 0; i < 3; i++)
                {
                    mypoly[i].x = button[bnum].poly[i][0];
                    mypoly[i].y = button[bnum].poly[i][1];
                }
            XSetForeground(display, gc_menus, colors[BLACK]);
            XFillPolygon(display, button[bnum].win, gc_menus, mypoly, 3,
                         Convex, CoordModeOrigin);
        }

/* Draw text, if there is any */
    if(button[bnum].istext)
        {
            XSetForeground(display, gc_menus, colors[BLACK]);
            menutext(button[bnum].win, button[bnum].width / 2,
                     button[bnum].height / 2, button[bnum].text);
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void drawline	(	float	x1,
		float	y1,
		float	x2,
		float	y2
	)

Definition at line 1262 of file graphics.c.

{

/* Draw a line from (x1,y1) to (x2,y2) in the user-drawable area. *
 * Coordinates are in world (user) space.                         */

    if(rect_off_screen(x1, y1, x2, y2))
        return;

    if(disp_type == SCREEN)
        {
            /* Xlib.h prototype has x2 and y1 mixed up. */
            XDrawLine(display, toplevel, gc, xcoord(x1), ycoord(y1),
                      xcoord(x2), ycoord(y2));
        }
    else
        {
            fprintf(ps, "%.2f %.2f %.2f %.2f drawline\n", XPOST(x1),
                    YPOST(y1), XPOST(x2), YPOST(y2));
        }
}

Here is the call graph for this function:

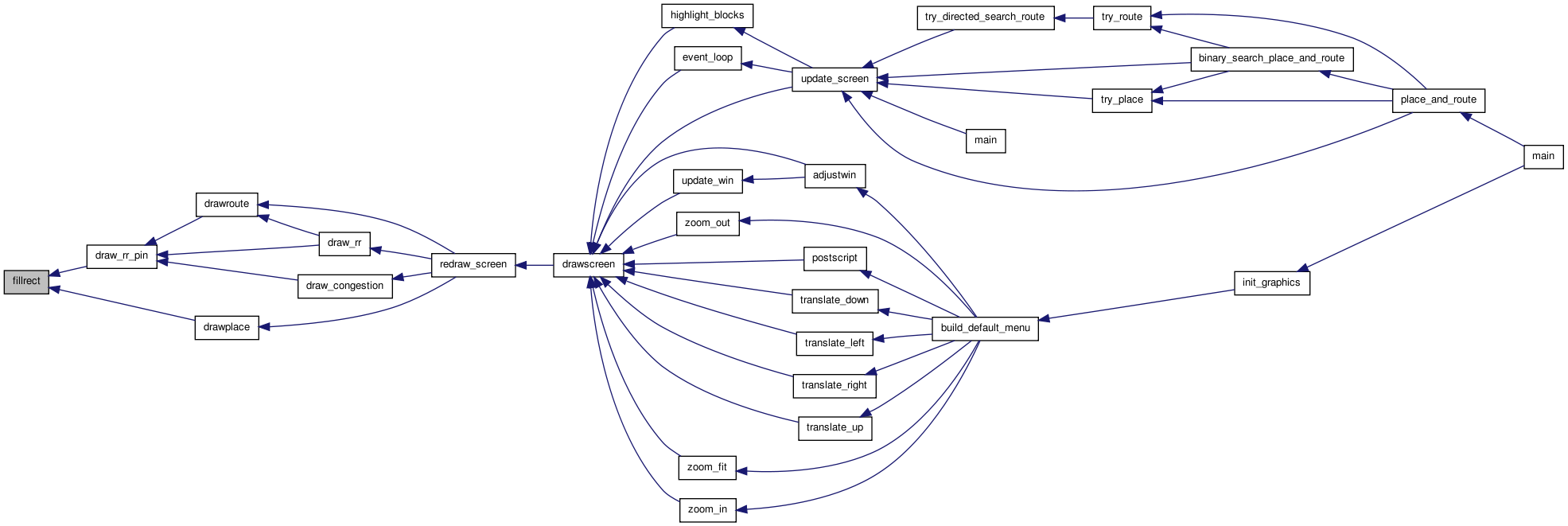

Here is the caller graph for this function:

static void drawmenu

(

void

)

[static]

Definition at line 1031 of file graphics.c.

{
    int i;

    for(i = 0; i < num_buttons; i++)
        {
            drawbut(i);
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void drawrect	(	float	x1,
		float	y1,
		float	x2,
		float	y2
	)

Definition at line 1288 of file graphics.c.

{

/* (x1,y1) and (x2,y2) are diagonally opposed corners, in world coords. */

    unsigned int width, height;
    int xw1, yw1, xw2, yw2, xl, yt;

    if(rect_off_screen(x1, y1, x2, y2))
        return;

    if(disp_type == SCREEN)
        {
/* translate to X Windows calling convention. */
            xw1 = xcoord(x1);
            xw2 = xcoord(x2);
            yw1 = ycoord(y1);
            yw2 = ycoord(y2);
            xl = min(xw1, xw2);
            yt = min(yw1, yw2);
            width = abs(xw1 - xw2);
            height = abs(yw1 - yw2);
            XDrawRectangle(display, toplevel, gc, xl, yt, width, height);
        }
    else
        {
            fprintf(ps, "%.2f %.2f %.2f %.2f drawrect\n", XPOST(x1),
                    YPOST(y1), XPOST(x2), YPOST(y2));
        }
}

Here is the call graph for this function:

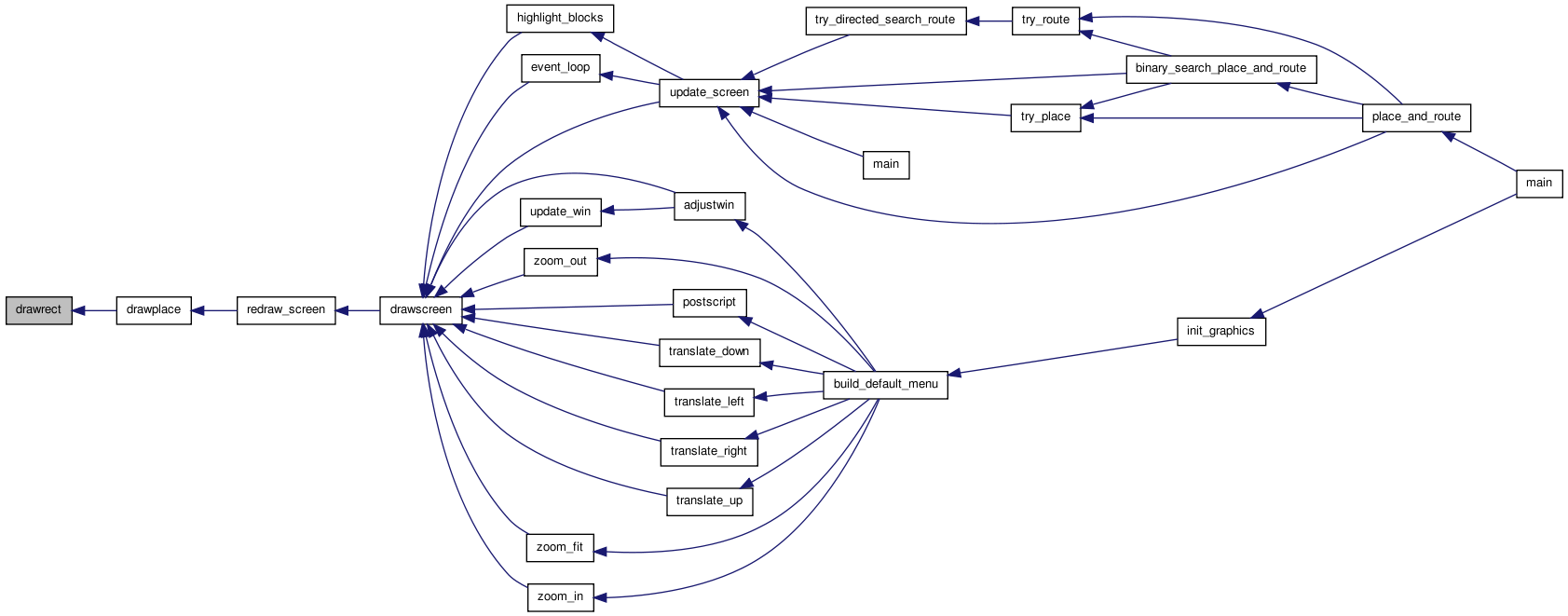

Here is the caller graph for this function:

void drawtext	(	float	xc,
		float	yc,
		const char *	text,
		float	boundx
	)

Definition at line 1533 of file graphics.c.

{

/* Draws text centered on xc,yc if it fits in boundx */

    int len, width, xw_off, yw_off;

    len = strlen(text);
    width = XTextWidth(font_info[currentfontsize], text, len);
    if(width > fabs(boundx * xmult))
        return;                 /* Don't draw if it won't fit */

    xw_off = width / (2. * xmult);      /* NB:  sign doesn't matter. */

/* NB:  2 * descent makes this slightly conservative but simplifies code. */
    yw_off = (font_info[currentfontsize]->ascent +
              2 * font_info[currentfontsize]->descent) / (2. * ymult);

/* Note:  text can be clipped when a little bit of it would be visible *
 * right now.  Perhaps X doesn't return extremely accurate width and   *
 * ascent values, etc?  Could remove this completely by multiplying    *
 * xw_off and yw_off by, 1.2 or 1.5.                                   */

    if(rect_off_screen(xc - xw_off, yc - yw_off, xc + xw_off, yc + yw_off))
        return;

    if(disp_type == SCREEN)
        {
            XDrawString(display, toplevel, gc, xcoord(xc) - width / 2,
                        ycoord(yc) + (font_info[currentfontsize]->ascent -
                                      font_info[currentfontsize]->descent) /
                        2, text, len);
        }
    else
        {
            fprintf(ps, "(%s) %.2f %.2f censhow\n", text, XPOST(xc),
                    YPOST(yc));
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void event_loop	(	void(*)(float x, float y)	act_on_button,
		void(*)(void)	drawscreen
	)

Definition at line 1118 of file graphics.c.

{

/* The program's main event loop.  Must be passed a user routine        *
 * drawscreen which redraws the screen.  It handles all window resizing *
 * zooming etc. itself.  If the user clicks a button in the graphics    *
 * (toplevel) area, the act_on_button routine passed in is called.      */

    XEvent report;
    int bnum;
    float x, y;

#define OFF 1
#define ON 0

    turn_on_off(ON);
    while(1)
        {
            XNextEvent(display, &report);
            switch (report.type)
                {
                case Expose:
#ifdef VERBOSE
                    printf("Got an expose event.\n");
                    printf("Count is: %d.\n", report.xexpose.count);
                    printf("Window ID is: %d.\n", report.xexpose.window);
#endif
                    if(report.xexpose.count != 0)
                        break;
                    if(report.xexpose.window == menu)
                        drawmenu();
                    else if(report.xexpose.window == toplevel)
                        drawscreen();
                    else if(report.xexpose.window == textarea)
                        draw_message();
                    break;
                case ConfigureNotify:
                    top_width = report.xconfigure.width;
                    top_height = report.xconfigure.height;
                    update_transform();
#ifdef VERBOSE
                    printf("Got a ConfigureNotify.\n");
                    printf("New width: %d  New height: %d.\n", top_width,
                           top_height);
#endif
                    break;
                case ButtonPress:
#ifdef VERBOSE
                    printf("Got a buttonpress.\n");
                    printf("Window ID is: %d.\n", report.xbutton.window);
#endif
                    if(report.xbutton.window == toplevel)
                        {
                            x = XTOWORLD(report.xbutton.x);
                            y = YTOWORLD(report.xbutton.y);
                            act_on_button(x, y);
                        }
                    else
                        {       /* A menu button was pressed. */
                            bnum = which_button(report.xbutton.window);
#ifdef VERBOSE
                            printf("Button number is %d\n", bnum);
#endif
                            button[bnum].ispressed = 1;
                            drawbut(bnum);
                            XFlush(display);    /* Flash the button */
                            button[bnum].fcn(drawscreen);
                            button[bnum].ispressed = 0;
                            drawbut(bnum);
                            if(button[bnum].fcn == proceed)
                                {
                                    turn_on_off(OFF);
                                    flushinput();
                                    return;     /* Rather clumsy way of returning *
                                                 * control to the simulator       */
                                }
                        }
                    break;
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void fillarc	(	float	xc,
		float	yc,
		float	rad,
		float	startang,
		float	angextent
	)

Definition at line 1429 of file graphics.c.

{

/* Fills a circular arc.  Startang is relative to the Window's positive x   *
 * direction.  Angles in degrees.                                           */

    int xl, yt;
    unsigned int width, height;

/* Conservative (but fast) clip test -- check containing rectangle of *
 * a circle.                                                          */

    if(rect_off_screen(xc - rad, yc - rad, xc + rad, yc + rad))
        return;

/* X Windows has trouble with very large angles. (Over 360).    *
 * Do following to prevent its inaccurate (overflow?) problems. */

    if(fabs(angextent) > 360.)
        angextent = 360.;

    startang = angnorm(startang);

    if(disp_type == SCREEN)
        {
            xl = (int)(xcoord(xc) - fabs(xmult * rad));
            yt = (int)(ycoord(yc) - fabs(ymult * rad));
            width = (unsigned int)(2 * fabs(xmult * rad));
            height = width;
            XFillArc(display, toplevel, gc, xl, yt, width, height,
                     (int)(startang * 64), (int)(angextent * 64));
        }
    else
        {
            fprintf(ps, "%.2f %.2f %.2f %.2f %.2f %s\n", fabs(rad * ps_xmult),
                    startang, startang + angextent, XPOST(xc), YPOST(yc),
                    (angextent < 0) ? "fillarcn" : "fillarc");
        }
}

Here is the call graph for this function:

void fillpoly	(	t_point *	points,
		int	npoints
	)

Definition at line 1475 of file graphics.c.

{

    XPoint transpoints[MAXPTS];
    int i;
    float xmin, ymin, xmax, ymax;

    if(npoints > MAXPTS)
        {
            printf
                ("Error in fillpoly:  Only %d points allowed per polygon.\n",
                 MAXPTS);
            printf("%d points were requested.  Polygon is not drawn.\n",
                   npoints);
            return;
        }

/* Conservative (but fast) clip test -- check containing rectangle of *
 * polygon.                                                           */

    xmin = xmax = points[0].x;
    ymin = ymax = points[0].y;

    for(i = 1; i < npoints; i++)
        {
            xmin = min(xmin, points[i].x);
            xmax = max(xmax, points[i].x);
            ymin = min(ymin, points[i].y);
            ymax = max(ymax, points[i].y);
        }

    if(rect_off_screen(xmin, ymin, xmax, ymax))
        return;

    if(disp_type == SCREEN)
        {
            for(i = 0; i < npoints; i++)
                {
                    transpoints[i].x = (short)xcoord(points[i].x);
                    transpoints[i].y = (short)ycoord(points[i].y);
                }
            XFillPolygon(display, toplevel, gc, transpoints, npoints, Complex,
                         CoordModeOrigin);
        }
    else
        {
            fprintf(ps, "\n");

            for(i = npoints - 1; i >= 0; i--)
                fprintf(ps, "%.2f %.2f\n", XPOST(points[i].x),
                        YPOST(points[i].y));

            fprintf(ps, "%d fillpoly\n", npoints);
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void fillrect	(	float	x1,
		float	y1,
		float	x2,
		float	y2
	)

Definition at line 1324 of file graphics.c.

{

/* (x1,y1) and (x2,y2) are diagonally opposed corners in world coords. */

    unsigned int width, height;
    int xw1, yw1, xw2, yw2, xl, yt;

    if(rect_off_screen(x1, y1, x2, y2))
        return;

    if(disp_type == SCREEN)
        {
/* translate to X Windows calling convention. */
            xw1 = xcoord(x1);
            xw2 = xcoord(x2);
            yw1 = ycoord(y1);
            yw2 = ycoord(y2);
            xl = min(xw1, xw2);
            yt = min(yw1, yw2);
            width = abs(xw1 - xw2);
            height = abs(yw1 - yw2);
            XFillRectangle(display, toplevel, gc, xl, yt, width, height);
        }
    else
        {
            fprintf(ps, "%.2f %.2f %.2f %.2f fillrect\n", XPOST(x1),
                    YPOST(y1), XPOST(x2), YPOST(y2));
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void flushinput

(

void

)

Definition at line 1578 of file graphics.c.

{
    if(disp_type != SCREEN)
        return;
    XFlush(display);
}

Here is the caller graph for this function:

static void force_setcolor

(

int

cindex

)

[static]

Definition at line 262 of file graphics.c.

{

    static char *ps_cnames[NUM_COLOR] =
        { "white", "black", "grey55", "grey75",
        "blue", "green", "yellow", "cyan", "red", "darkgreen", "magenta",
        "bisque", "lightblue", "thistle", "plum", "khaki",
        "coral", "turquoise", "mediumpurple", "darkslateblue", "darkkhaki"
    };

    currentcolor = cindex;

    if(disp_type == SCREEN)
        {
            XSetForeground(display, gc, colors[cindex]);
        }
    else
        {
            fprintf(ps, "%s\n", ps_cnames[cindex]);
        }
}

Here is the caller graph for this function:

static void force_setfontsize

(

int

pointsize

)

[static]

Definition at line 361 of file graphics.c.

{

/* Valid point sizes are between 1 and MAX_FONT_SIZE */

    if(pointsize < 1)
        pointsize = 1;
    else if(pointsize > MAX_FONT_SIZE)
        pointsize = MAX_FONT_SIZE;

    currentfontsize = pointsize;


    if(disp_type == SCREEN)
        {
            if(!font_is_loaded[pointsize])
                {
                    load_font(pointsize);
                    font_is_loaded[pointsize] = 1;
                }
            XSetFont(display, gc, font_info[pointsize]->fid);
        }

    else
        {
            /* PostScript:  set up font and centering function */

            fprintf(ps, "%d setfontsize\n", pointsize);
        }
}

Here is the call graph for this function:

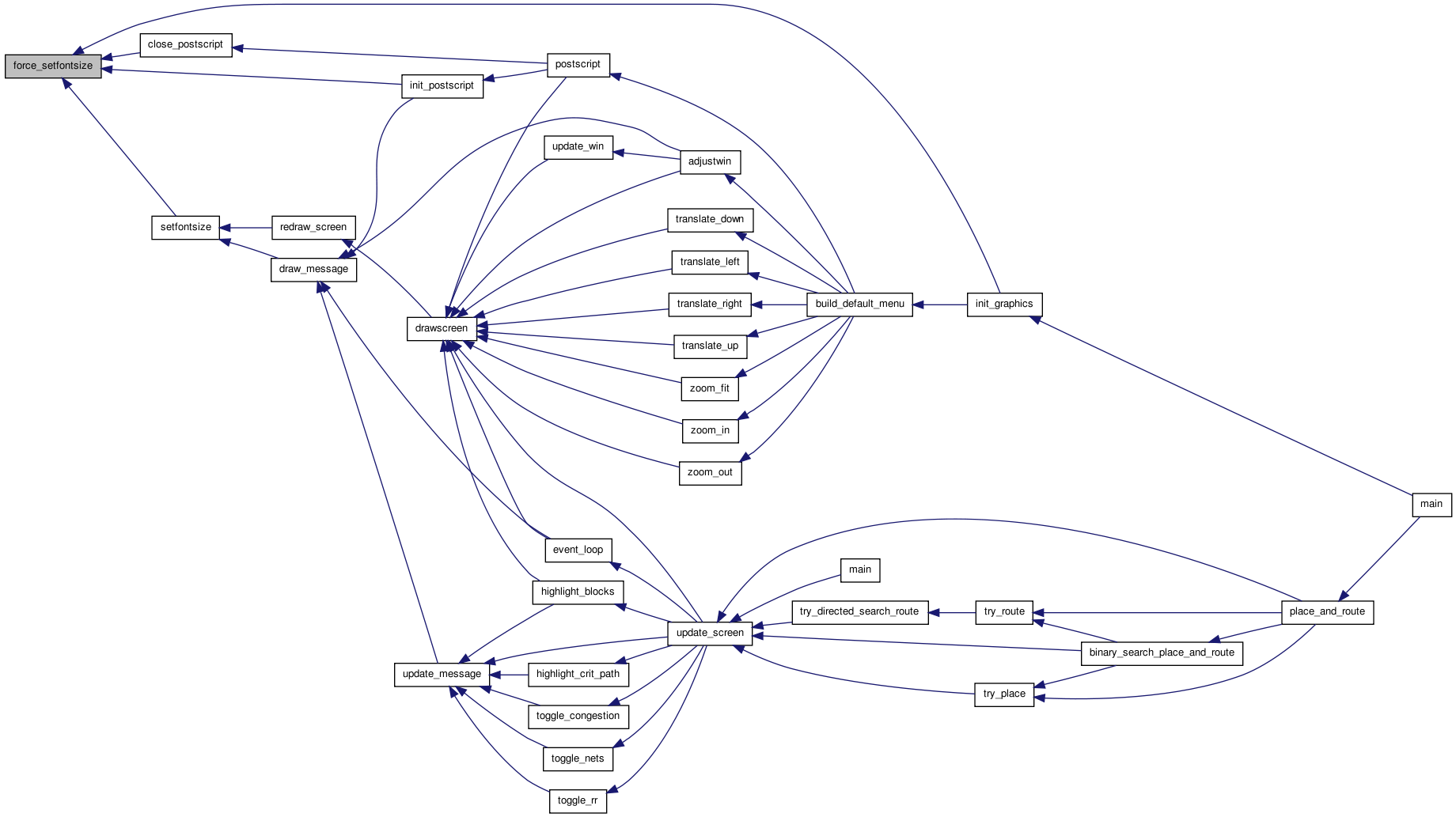

Here is the caller graph for this function:

static void force_setlinestyle

(

int

linestyle

)

[static]

Definition at line 295 of file graphics.c.

{

/* Note SOLID is 0 and DASHED is 1 for linestyle.                      */

/* PostScript and X commands needed, respectively. */

    static char *ps_text[2] = { "linesolid", "linedashed" };
    static int x_vals[2] = { LineSolid, LineOnOffDash };

    currentlinestyle = linestyle;

    if(disp_type == SCREEN)
        {
            XSetLineAttributes(display, gc, currentlinewidth,
                               x_vals[linestyle], CapButt, JoinMiter);
        }
    else
        {
            fprintf(ps, "%s\n", ps_text[linestyle]);
        }
}

Here is the caller graph for this function:

static void force_setlinewidth

(

int

linewidth

)

[static]

Definition at line 329 of file graphics.c.

{

/* linewidth should be greater than or equal to 0 to make any sense. */
/* Note SOLID is 0 and DASHED is 1 for linestyle.                    */

    static int x_vals[2] = { LineSolid, LineOnOffDash };

    currentlinewidth = linewidth;

    if(disp_type == SCREEN)
        {
            XSetLineAttributes(display, gc, linewidth,
                               x_vals[currentlinestyle], CapButt, JoinMiter);
        }
    else
        {
            fprintf(ps, "%d setlinewidth\n", linewidth);
        }
}

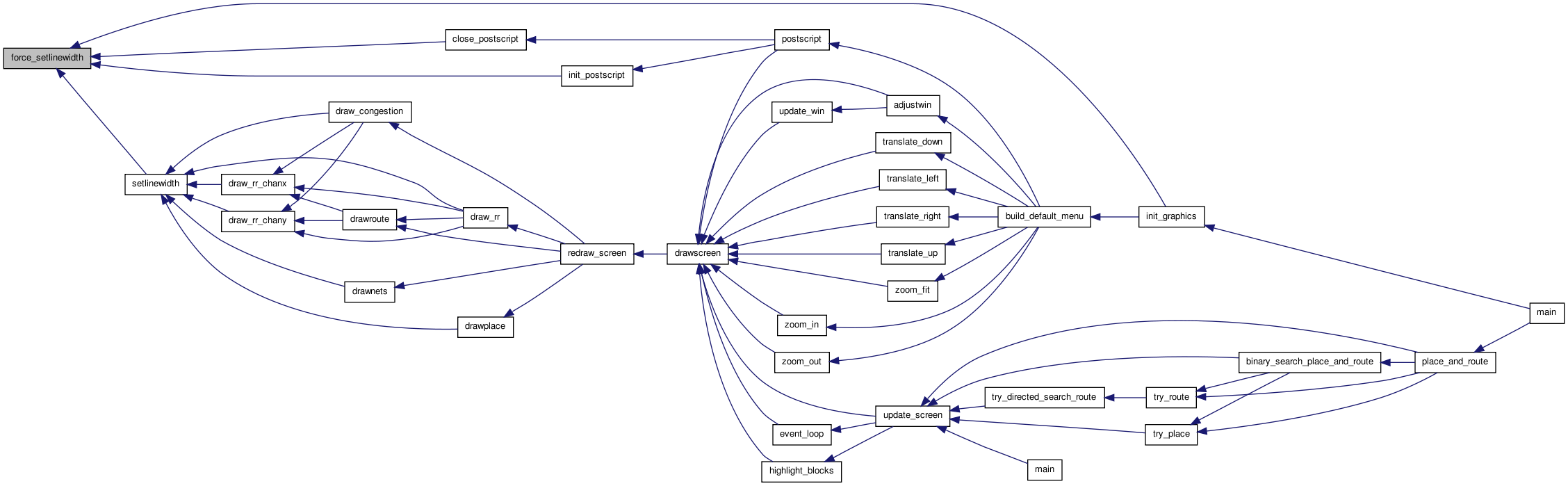

Here is the caller graph for this function:

void init_graphics

(

char *

window_name

)

Definition at line 699 of file graphics.c.

{

    /* Open the toplevel window, get the colors, 2 graphics         *
     * contexts, load a font, and set up the toplevel window        *
     * Calls build_default_menu to set up the default menu.         */

    char *display_name = NULL;
    int x, y;                   /* window position */
    unsigned int border_width = 2;      /* ignored by OpenWindows */
    XTextProperty windowName;

/* X Windows' names for my colours. */
    char *cnames[NUM_COLOR] = { "white", "black", "grey55", "grey75", "blue",
        "green", "yellow", "cyan", "red", "RGBi:0.0/0.5/0.0", "magenta",
        "bisque", "lightblue", "thistle", "plum", "khaki",
        "coral", "turquoise", "mediumpurple", "darkslateblue", "darkkhaki"
    };

    XColor exact_def;
    Colormap cmap;
    int i;
    unsigned long valuemask = 0;        /* ignore XGCvalues and use defaults */
    XGCValues values;
    XEvent event;


    disp_type = SCREEN;         /* Graphics go to screen, not ps */

    for(i = 0; i <= MAX_FONT_SIZE; i++)
        font_is_loaded[i] = 0;  /* No fonts loaded yet. */

    /* connect to X server */
    if((display = XOpenDisplay(display_name)) == NULL)
        {
            fprintf(stderr, "Cannot connect to X server %s\n",
                    XDisplayName(display_name));
            exit(-1);
        }

    /* get screen size from display structure macro */
    screen_num = DefaultScreen(display);
    display_width = DisplayWidth(display, screen_num);
    display_height = DisplayHeight(display, screen_num);

    x = y = 0;

    top_width = 2 * display_width / 3;
    top_height = 4 * display_height / 5;

    cmap = DefaultColormap(display, screen_num);
    private_cmap = None;

    for(i = 0; i < NUM_COLOR; i++)
        {
            if(!XParseColor(display, cmap, cnames[i], &exact_def))
                {
                    fprintf(stderr, "Color name %s not in database",
                            cnames[i]);
                    exit(-1);
                }
            if(!XAllocColor(display, cmap, &exact_def))
                {
                    fprintf(stderr, "Couldn't allocate color %s.\n",
                            cnames[i]);

                    if(private_cmap == None)
                        {
                            fprintf(stderr,
                                    "Will try to allocate a private colourmap.\n");
                            fprintf(stderr,
                                    "Colours will only display correctly when your "
                                    "cursor is in the graphics window.\n"
                                    "Exit other colour applications and rerun this "
                                    "program if you don't like that.\n\n");

                            private_cmap =
                                XCopyColormapAndFree(display, cmap);
                            cmap = private_cmap;
                            if(!XAllocColor(display, cmap, &exact_def))
                                {
                                    fprintf(stderr,
                                            "Couldn't allocate color %s as private.\n",
                                            cnames[i]);
                                    exit(1);
                                }
                        }

                    else
                        {
                            fprintf(stderr,
                                    "Couldn't allocate color %s as private.\n",
                                    cnames[i]);
                            exit(1);
                        }
                }
            colors[i] = exact_def.pixel;
        }

    toplevel =
        XCreateSimpleWindow(display, RootWindow(display, screen_num), x, y,
                            top_width, top_height, border_width,
                            colors[BLACK], colors[WHITE]);

    if(private_cmap != None)
        XSetWindowColormap(display, toplevel, private_cmap);

    /* hints stuff deleted. */

    XSelectInput(display, toplevel, ExposureMask | StructureNotifyMask |
                 ButtonPressMask);


    /* Create default Graphics Contexts.  valuemask = 0 -> use defaults. */
    gc = XCreateGC(display, toplevel, valuemask, &values);
    gc_menus = XCreateGC(display, toplevel, valuemask, &values);

    /* Create XOR graphics context for Rubber Banding */
    values.function = GXxor;
    values.foreground = colors[BLACK];
    gcxor = XCreateGC(display, toplevel, (GCFunction | GCForeground),
                      &values);

    /* specify font for menus.  */
    load_font(menu_font_size);
    font_is_loaded[menu_font_size] = 1;
    XSetFont(display, gc_menus, font_info[menu_font_size]->fid);

/* Set drawing defaults for user-drawable area.  Use whatever the *
 * initial values of the current stuff was set to.                */
    force_setfontsize(currentfontsize);
    force_setcolor(currentcolor);
    force_setlinestyle(currentlinestyle);
    force_setlinewidth(currentlinewidth);

    XStringListToTextProperty(&window_name, 1, &windowName);
    XSetWMName(display, toplevel, &windowName);
/* Uncomment to set icon name */
/* XSetWMIconName (display, toplevel, &windowName); */

/* XStringListToTextProperty copies the window_name string into            *
 * windowName.value.  Free this memory now.                                */

    free(windowName.value);

    XMapWindow(display, toplevel);
    build_textarea();
    build_default_menu();

/* The following is completely unnecessary if the user is using the       *
 * interactive (event_loop) graphics.  It waits for the first Expose      *
 * event before returning so that I can tell the window manager has got   *
 * the top-level window up and running.  Thus the user can start drawing  *
 * into this window immediately, and there's no danger of the window not  *
 * being ready and output being lost.                                     */

    XPeekIfEvent(display, &event, test_if_exposed, NULL);
}

Here is the call graph for this function:

Here is the caller graph for this function:

int init_postscript

(

char *

fname

)

Definition at line 1983 of file graphics.c.

{
/* Opens a file for PostScript output.  The header information,  *
 * clipping path, etc. are all dumped out.  If the file could    *
 * not be opened, the routine returns 0; otherwise it returns 1. */

    ps = fopen(fname, "w");
    if(ps == NULL)
        {
            printf("Error: could not open %s for PostScript output.\n",
                   fname);
            printf("Drawing to screen instead.\n");
            return (0);
        }
    disp_type = POSTSCRIPT;     /* Graphics go to postscript file now. */

/* Header for minimal conformance with the Adobe structuring convention */
    fprintf(ps, "%%!PS-Adobe-1.0\n");
    fprintf(ps, "%%%%DocumentFonts: Helvetica\n");
    fprintf(ps, "%%%%Pages: 1\n");
/* Set up postscript transformation macros and page boundaries */
    update_ps_transform();
/* Bottom margin is at ps_bot - 15. to leave room for the on-screen message. */
    fprintf(ps, "%%%%BoundingBox: %d %d %d %d\n",
            (int)ps_left, (int)(ps_bot - 15.), (int)ps_right, (int)ps_top);
    fprintf(ps, "%%%%EndComments\n");

    fprintf(ps, "/censhow   %%draw a centered string\n");
    fprintf(ps, " { moveto               %% move to proper spot\n");
    fprintf(ps, "   dup stringwidth pop  %% get x length of string\n");
    fprintf(ps, "   -2 div               %% Proper left start\n");
    fprintf(ps,
            "   yoff rmoveto         %% Move left that much and down half font height\n");
    fprintf(ps, "   show newpath } def   %% show the string\n\n");

    fprintf(ps, "/setfontsize     %% set font to desired size and compute "
            "centering yoff\n");
    fprintf(ps, " { /Helvetica findfont\n");
    fprintf(ps, "   exch scalefont\n");
    fprintf(ps, "   setfont         %% Font size set ...\n\n");
    fprintf(ps, "   0 0 moveto      %% Get vertical centering offset\n");
    fprintf(ps, "   (Xg) true charpath\n");
    fprintf(ps, "   flattenpath pathbbox\n");
    fprintf(ps, "   /ascent exch def pop -1 mul /descent exch def pop\n");
    fprintf(ps, "   newpath\n");
    fprintf(ps, "   descent ascent sub 2 div /yoff exch def } def\n\n");

    fprintf(ps, "%% Next two lines for debugging only.\n");
    fprintf(ps, "/str 20 string def\n");
    fprintf(ps, "/pnum {str cvs print (  ) print} def\n");

    fprintf(ps, "/drawline      %% draw a line from (x2,y2) to (x1,y1)\n");
    fprintf(ps, " { moveto lineto stroke } def\n\n");

    fprintf(ps, "/rect          %% outline a rectangle \n");
    fprintf(ps, " { /y2 exch def /x2 exch def /y1 exch def /x1 exch def\n");
    fprintf(ps, "   x1 y1 moveto\n");
    fprintf(ps, "   x2 y1 lineto\n");
    fprintf(ps, "   x2 y2 lineto\n");
    fprintf(ps, "   x1 y2 lineto\n");
    fprintf(ps, "   closepath } def\n\n");

    fprintf(ps, "/drawrect      %% draw outline of a rectanagle\n");
    fprintf(ps, " { rect stroke } def\n\n");

    fprintf(ps, "/fillrect      %% fill in a rectanagle\n");
    fprintf(ps, " { rect fill } def\n\n");

    fprintf(ps, "/drawarc { arc stroke } def           %% draw an arc\n");
    fprintf(ps, "/drawarcn { arcn stroke } def "
            "        %% draw an arc in the opposite direction\n\n");

    fprintf(ps, "%%Fill a counterclockwise or clockwise arc sector, "
            "respectively.\n");
    fprintf(ps,
            "/fillarc { moveto currentpoint 5 2 roll arc closepath fill } "
            "def\n");
    fprintf(ps,
            "/fillarcn { moveto currentpoint 5 2 roll arcn closepath fill } "
            "def\n\n");

    fprintf(ps,
            "/fillpoly { 3 1 roll moveto         %% move to first point\n"
            "   2 exch 1 exch {pop lineto} for   %% line to all other points\n"
            "   closepath fill } def\n\n");


    fprintf(ps, "%%Color Definitions:\n");
    fprintf(ps, "/white { 1 setgray } def\n");
    fprintf(ps, "/black { 0 setgray } def\n");
    fprintf(ps, "/grey55 { .55 setgray } def\n");
    fprintf(ps, "/grey75 { .75 setgray } def\n");
    fprintf(ps, "/blue { 0 0 1 setrgbcolor } def\n");
    fprintf(ps, "/green { 0 1 0 setrgbcolor } def\n");
    fprintf(ps, "/yellow { 1 1 0 setrgbcolor } def\n");
    fprintf(ps, "/cyan { 0 1 1 setrgbcolor } def\n");
    fprintf(ps, "/red { 1 0 0 setrgbcolor } def\n");
    fprintf(ps, "/darkgreen { 0 0.5 0 setrgbcolor } def\n");
    fprintf(ps, "/magenta { 1 0 1 setrgbcolor } def\n");
        fprintf(ps, "/bisque { 1 0.9 0.8 setrgbcolor } def\n");
        fprintf(ps, "/lightblue { 0.7 0.8 0.9 setrgbcolor } def\n");
        fprintf(ps, "/thistle { 0.8 0.7 0.8 setrgbcolor } def\n");
        fprintf(ps, "/plum {0.8 0.6 0.8 setrgbcolor } def\n");
        fprintf(ps, "/khaki { 1 0.9 0.6 setrgbcolor } def\n");
        fprintf(ps, "/coral { 1 0.7 0.6 setrgbcolor } def\n");
        fprintf(ps, "/turquoise { 0.5 0.6 0.9 setrgbcolor } def\n");
        fprintf(ps, "/mediumpurple { 0.7 0.6 0.7 setrgbcolor } def\n");
        fprintf(ps, "/darkslateblue { 0.7 0.5 0.7 setrgbcolor } def\n");
        fprintf(ps, "/darkkhaki { 0.9 0.7 0.4 setrgbcolor } def\n");

    fprintf(ps, "\n%%Solid and dashed line definitions:\n");
    fprintf(ps, "/linesolid {[] 0 setdash} def\n");
    fprintf(ps, "/linedashed {[3 3] 0 setdash} def\n");

    fprintf(ps, "\n%%%%EndProlog\n");
    fprintf(ps, "%%%%Page: 1 1\n\n");

/* Set up PostScript graphics state to match current one. */
    force_setcolor(currentcolor);
    force_setlinestyle(currentlinestyle);
    force_setlinewidth(currentlinewidth);
    force_setfontsize(currentfontsize);

/* Draw this in the bottom margin -- must do before the clippath is set */
    draw_message();

/* Set clipping on page. */
    fprintf(ps, "%.2f %.2f %.2f %.2f rect ", ps_left, ps_bot, ps_right,
            ps_top);
    fprintf(ps, "clip newpath\n\n");

    return (1);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void init_world	(	float	x1,
		float	y1,
		float	x2,
		float	y2
	)

Definition at line 1587 of file graphics.c.

{

/* Sets the coordinate system the user wants to draw into.          */

    xleft = x1;
    xright = x2;
    ytop = y1;
    ybot = y2;

    saved_xleft = xleft;        /* Save initial world coordinates to allow full */
    saved_xright = xright;      /* view button to zoom all the way out.         */
    saved_ytop = ytop;
    saved_ybot = ybot;

    if(disp_type == SCREEN)
        {
            update_transform();
        }
    else
        {
            update_ps_transform();
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void load_font

(

int

pointsize

)

[static]

Definition at line 234 of file graphics.c.

{

/* Makes sure the font of the specified size is loaded.  Point_size   *
 * MUST be between 1 and MAX_FONT_SIZE -- no check is performed here. */
/* Use proper point-size medium-weight upright helvetica font */

    char fontname[44];

    sprintf(fontname, "-*-helvetica-medium-r-*--*-%d0-*-*-*-*-*-*",
            pointsize);

#ifdef VERBOSE
    printf("Loading font: point size: %d, fontname: %s\n", pointsize,
           fontname);
#endif

/* Load font and get font information structure. */

    if((font_info[pointsize] = XLoadQueryFont(display, fontname)) == NULL)
        {
            fprintf(stderr, "Cannot open desired font\n");
            exit(-1);
        }
}

Here is the caller graph for this function:

static void map_button

(

int

bnum

)

[static]

Definition at line 557 of file graphics.c.

{

/* Maps a button onto the screen and set it up for input, etc.        */

    button[bnum].win = XCreateSimpleWindow(display, menu,
                                           button[bnum].xleft,
                                           button[bnum].ytop,
                                           button[bnum].width,
                                           button[bnum].height, 0,
                                           colors[WHITE], colors[LIGHTGREY]);
    XMapWindow(display, button[bnum].win);
    XSelectInput(display, button[bnum].win, ButtonPressMask);
    button[bnum].ispressed = 1;
}

Here is the caller graph for this function:

static void menutext	(	Window	win,
		int	xc,
		int	yc,
		char *	text
	)			[static]

Definition at line 878 of file graphics.c.

{

/* draws text center at xc, yc -- used only by menu drawing stuff */

    int len, width;

    len = strlen(text);
    width = XTextWidth(font_info[menu_font_size], text, len);
    XDrawString(display, win, gc_menus, xc - width / 2, yc +
                (font_info[menu_font_size]->ascent -
                 font_info[menu_font_size]->descent) / 2, text, len);
}

Here is the caller graph for this function:

static void postscript

(

void(*)(void)

drawscreen

)

[static]

Definition at line 1917 of file graphics.c.

{

/* Takes a snapshot of the screen and stores it in pic?.ps.  The *
 * first picture goes in pic1.ps, the second in pic2.ps, etc.    */

    static int piccount = 1;
    int success;
    char fname[20];

    sprintf(fname, "pic%d.ps", piccount);
    success = init_postscript(fname);

    if(success == 0)
        return;                 /* Couldn't open file, abort. */

    drawscreen();
    close_postscript();
    piccount++;
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void proceed

(

void(*)(void)

drawscreen

)

[static]

Definition at line 1940 of file graphics.c.

{

    /* Dummy routine.  Just exit the event loop. */

}

Here is the caller graph for this function:

static void quit

(

void(*)(void)

drawscreen

)

[static]

Definition at line 1949 of file graphics.c.

{

    close_graphics();
    exit(0);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static int rect_off_screen	(	float	x1,
		float	y1,
		float	x2,
		float	y2
	)			[static]

Definition at line 1226 of file graphics.c.

{

/* Return 1 if I can quarantee no part of this rectangle will         *
 * lie within the user drawing area.  Otherwise return 0.             *
 * Note:  this routine is only used to help speed (and to shrink ps   *
 * files) -- it will be highly effective when the graphics are zoomed *
 * in and lots are off-screen.  I don't have to pre-clip for          *
 * correctness.                                                       */

    float xmin, xmax, ymin, ymax;

    xmin = min(xleft, xright);
    if(x1 < xmin && x2 < xmin)
        return (1);

    xmax = max(xleft, xright);
    if(x1 > xmax && x2 > xmax)
        return (1);

    ymin = min(ytop, ybot);
    if(y1 < ymin && y2 < ymin)
        return (1);

    ymax = max(ytop, ybot);
    if(y1 > ymax && y2 > ymax)
        return (1);

    return (0);
}

Here is the caller graph for this function:

void setcolor

(

int

cindex

)

Definition at line 286 of file graphics.c.

{

    if(currentcolor != cindex)
        force_setcolor(cindex);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void setfontsize

(

int

pointsize

)

Definition at line 394 of file graphics.c.

{
/* For efficiency, this routine doesn't do anything if no change is *
 * implied.  If you want to force the graphics context or PS file   *
 * to have font info set, call force_setfontsize (this is necessary *
 * in initialization and X11 / Postscript switches).                */

    if(pointsize != currentfontsize)
        force_setfontsize(pointsize);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void setlinestyle

(

int

linestyle

)

Definition at line 320 of file graphics.c.

{

    if(linestyle != currentlinestyle)
        force_setlinestyle(linestyle);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void setlinewidth

(

int

linewidth

)

Definition at line 352 of file graphics.c.

{

    if(linewidth != currentlinewidth)
        force_setlinewidth(linewidth);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void setpoly	(	int	bnum,
		int	xc,
		int	yc,
		int	r,
		float	theta
	)			[static]

Definition at line 431 of file graphics.c.

{

/* Puts a triangle in the poly array for button[bnum] */

    int i;

    button[bnum].istext = 0;
    button[bnum].ispoly = 1;
    for(i = 0; i < 3; i++)
        {
            button[bnum].poly[i][0] = (int)(xc + r * cos(theta) + 0.5);
            button[bnum].poly[i][1] = (int)(yc + r * sin(theta) + 0.5);
            theta += 2 * PI / 3;
        }
}

Here is the caller graph for this function:

static Bool test_if_exposed	(	Display *	disp,
		XEvent *	event_ptr,
		XPointer	dummy
	)			[static]

Definition at line 860 of file graphics.c.

{

/* Returns True if the event passed in is an exposure event.   Note that *
 * the bool type returned by this function is defined in Xlib.h.         */

    if(event_ptr->type == Expose)
        {
            return (True);
        }

    return (False);
}

Here is the caller graph for this function:

static void translate_down

(

void(*)(void)

drawscreen

)

[static]

Definition at line 1743 of file graphics.c.

{

/* Moves view 1/2 screen down. */

    float ystep;

    ystep = (ybot - ytop) / 2.;
    ytop += ystep;
    ybot += ystep;
    update_transform();
    drawscreen();
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void translate_left

(

void(*)(void)

drawscreen

)

[static]

Definition at line 1759 of file graphics.c.

{

/* Moves view 1/2 screen left. */

    float xstep;

    xstep = (xright - xleft) / 2.;
    xleft -= xstep;
    xright -= xstep;
    update_transform();
    drawscreen();
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void translate_right

(

void(*)(void)

drawscreen

)

[static]

Definition at line 1775 of file graphics.c.

{

/* Moves view 1/2 screen right. */

    float xstep;

    xstep = (xright - xleft) / 2.;
    xleft += xstep;
    xright += xstep;
    update_transform();
    drawscreen();
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void translate_up

(

void(*)(void)

drawscreen

)

[static]

Definition at line 1727 of file graphics.c.

{

/* Moves view 1/2 screen up. */

    float ystep;

    ystep = (ybot - ytop) / 2.;
    ytop -= ystep;
    ybot -= ystep;
    update_transform();
    drawscreen();
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void turn_on_off

(

int

pressed

)

[static]

Definition at line 999 of file graphics.c.

{

/* Shows when the menu is active or inactive by colouring the *
 * buttons.                                                   */

    int i;

    for(i = 0; i < num_buttons; i++)
        {
            button[i].ispressed = pressed;
            drawbut(i);
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void unmap_button

(

int

bnum

)

[static]

Definition at line 575 of file graphics.c.

{

/* Unmaps a button from the screen.        */

    XUnmapWindow(display, button[bnum].win);
}

Here is the caller graph for this function:

void update_message

(

char *

msg

)

Definition at line 1659 of file graphics.c.

{

/* Changes the message to be displayed on screen.   */

    my_strncpy(message, msg, BUFSIZE);
    draw_message();
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void update_ps_transform

(

void

)

[static]

Definition at line 1077 of file graphics.c.

{

/* Postscript coordinates start at (0,0) for the lower left hand corner *
 * of the page and increase upwards and to the right.  For 8.5 x 11     *
 * sheet, coordinates go from (0,0) to (612,792).  Spacing is 1/72 inch.*
 * I'm leaving a minimum of half an inch (36 units) of border around    *
 * each edge.                                                           */

    float ps_width, ps_height;

    ps_width = 540.;            /* 72 * 7.5 */
    ps_height = 720.;           /* 72 * 10  */

    ps_xmult = ps_width / (xright - xleft);
    ps_ymult = ps_height / (ytop - ybot);
/* Need to use same scaling factor to preserve aspect ratio.   *
 * I show exactly as much on paper as the screen window shows, *
 * or the user specifies.                                      */
    if(fabs(ps_xmult) <= fabs(ps_ymult))
        {
            ps_left = 36.;
            ps_right = 36. + ps_width;
            ps_bot = 396. - fabs(ps_xmult * (ytop - ybot)) / 2.;
            ps_top = 396. + fabs(ps_xmult * (ytop - ybot)) / 2.;
/* Maintain aspect ratio but watch signs */
            ps_ymult = (ps_xmult * ps_ymult < 0) ? -ps_xmult : ps_xmult;
        }
    else
        {
            ps_bot = 36.;
            ps_top = 36. + ps_height;
            ps_left = 306. - fabs(ps_ymult * (xright - xleft)) / 2.;
            ps_right = 306. + fabs(ps_ymult * (xright - xleft)) / 2.;
/* Maintain aspect ratio but watch signs */
            ps_xmult = (ps_xmult * ps_ymult < 0) ? -ps_ymult : ps_ymult;
        }
}

Here is the caller graph for this function:

static void update_transform

(

void

)

[static]

Definition at line 1043 of file graphics.c.

{

/* Set up the factors for transforming from the user world to X Windows *
 * coordinates.                                                         */

    float mult, y1, y2, x1, x2;

/* X Window coordinates go from (0,0) to (width-1,height-1) */
    xmult = ((float)top_width - 1. - MWIDTH) / (xright - xleft);
    ymult = ((float)top_height - 1. - T_AREA_HEIGHT) / (ybot - ytop);
/* Need to use same scaling factor to preserve aspect ratio */
    if(fabs(xmult) <= fabs(ymult))
        {
            mult = fabs(ymult / xmult);
            y1 = ytop - (ybot - ytop) * (mult - 1.) / 2.;
            y2 = ybot + (ybot - ytop) * (mult - 1.) / 2.;
            ytop = y1;
            ybot = y2;
        }
    else
        {
            mult = fabs(xmult / ymult);
            x1 = xleft - (xright - xleft) * (mult - 1.) / 2.;
            x2 = xright + (xright - xleft) * (mult - 1.) / 2.;
            xleft = x1;
            xright = x2;
        }
    xmult = ((float)top_width - 1. - MWIDTH) / (xright - xleft);
    ymult = ((float)top_height - 1. - T_AREA_HEIGHT) / (ybot - ytop);
}

Here is the caller graph for this function:

static void update_win	(	int	x[2],
		int	y[2],
		void(*)(void)	drawscreen
	)			[static]

Definition at line 1791 of file graphics.c.

{
    float x1, x2, y1, y2;

    x[0] = min(x[0], top_width - MWIDTH);       /* Can't go under menu */
    x[1] = min(x[1], top_width - MWIDTH);
    y[0] = min(y[0], top_height - T_AREA_HEIGHT);       /* Can't go under text area */
    y[1] = min(y[1], top_height - T_AREA_HEIGHT);

    if((x[0] == x[1]) || (y[0] == y[1]))
        {
            printf("Illegal (zero area) window.  Window unchanged.\n");
            return;
        }
    x1 = XTOWORLD(min(x[0], x[1]));
    x2 = XTOWORLD(max(x[0], x[1]));
    y1 = YTOWORLD(min(y[0], y[1]));
    y2 = YTOWORLD(max(y[0], y[1]));
    xleft = x1;
    xright = x2;
    ytop = y1;
    ybot = y2;
    update_transform();
    drawscreen();
}

Here is the call graph for this function:

Here is the caller graph for this function:

static int which_button

(

Window

win

)

[static]

Definition at line 1016 of file graphics.c.

{
    int i;

    for(i = 0; i < num_buttons; i++)
        {
            if(button[i].win == win)
                return (i);
        }
    printf("Error:  Unknown button ID in which_button.\n");
    return (0);
}

Here is the caller graph for this function:

static int xcoord

(

float

worldx

)

[static]

Definition at line 189 of file graphics.c.

{
/* Translates from my internal coordinates to X Windows coordinates   *
 * in the x direction.  Add 0.5 at end for extra half-pixel accuracy. */

    int winx;

    winx = (int)((worldx - xleft) * xmult + 0.5);

/* Avoid overflow in the X Window routines.  This will allow horizontal  *
 * and vertical lines to be drawn correctly regardless of zooming, but   *
 * will cause diagonal lines that go way off screen to change their      *
 * slope as you zoom in.  The only way I can think of to completely fix  *
 * this problem is to do all the clipping in advance in floating point,  *
 * then convert to integers and call X Windows.  This is a lot of extra  *
 * coding, and means that coordinates will be clipped twice, even though *
 * this "Super Zoom" problem won't occur unless users zoom way in on     *
 * the graphics.                                                         */

    winx = max(winx, MINPIXEL);
    winx = min(winx, MAXPIXEL);

    return (winx);
}

Here is the caller graph for this function:

static int ycoord

(

float

worldy

)

[static]

Definition at line 216 of file graphics.c.

{
/* Translates from my internal coordinates to X Windows coordinates   *
 * in the y direction.  Add 0.5 at end for extra half-pixel accuracy. */

    int winy;

    winy = (int)((worldy - ytop) * ymult + 0.5);

/* Avoid overflow in the X Window routines. */
    winy = max(winy, MINPIXEL);
    winy = min(winy, MAXPIXEL);

    return (winy);
}

Here is the caller graph for this function:

static void zoom_fit

(

void(*)(void)

drawscreen

)

[static]

Definition at line 1710 of file graphics.c.

{

/* Sets the view back to the initial view set by init_world (i.e. a full     *
 * view) of all the graphics.                                                */

    xleft = saved_xleft;
    xright = saved_xright;
    ytop = saved_ytop;
    ybot = saved_ybot;

    update_transform();
    drawscreen();
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void zoom_in

(

void(*)(void)

drawscreen

)

[static]

Definition at line 1670 of file graphics.c.

{

/* Zooms in by a factor of 1.666. */

    float xdiff, ydiff;

    xdiff = xright - xleft;
    ydiff = ybot - ytop;
    xleft += xdiff / 5.;
    xright -= xdiff / 5.;
    ytop += ydiff / 5.;
    ybot -= ydiff / 5.;

    update_transform();
    drawscreen();
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void zoom_out

(

void(*)(void)

drawscreen

)

[static]

Definition at line 1690 of file graphics.c.

{

/* Zooms out by a factor of 1.666. */

    float xdiff, ydiff;

    xdiff = xright - xleft;
    ydiff = ybot - ytop;
    xleft -= xdiff / 3.;
    xright += xdiff / 3.;
    ytop -= ydiff / 3.;
    ybot += ydiff / 3.;

    update_transform();
    drawscreen();
}

Here is the call graph for this function:

Here is the caller graph for this function:

---

Variable Documentation

t_button* button [static]

Definition at line 117 of file graphics.c.

int colors[NUM_COLOR] [static]

Definition at line 149 of file graphics.c.

int currentcolor = BLACK [static]

Definition at line 141 of file graphics.c.

int currentfontsize = 10 [static]

Definition at line 144 of file graphics.c.

int currentlinestyle = SOLID [static]

Definition at line 142 of file graphics.c.

int currentlinewidth = 0 [static]

Definition at line 143 of file graphics.c.

int disp_type [static]

Definition at line 120 of file graphics.c.

Display* display [static]

Definition at line 121 of file graphics.c.

unsigned int display_height [static]

Definition at line 126 of file graphics.c.

unsigned int display_width [static]

Definition at line 126 of file graphics.c.

XFontStruct* font_info[MAX_FONT_SIZE+1] [static]

Definition at line 124 of file graphics.c.

int font_is_loaded[MAX_FONT_SIZE+1] [static]

Definition at line 125 of file graphics.c.

GC gc [static]

Definition at line 123 of file graphics.c.

GC gc_menus [static]

Definition at line 123 of file graphics.c.

GC gcxor [static]

Definition at line 123 of file graphics.c.

Window menu [static]

Definition at line 128 of file graphics.c.

const int menu_font_size = 14 [static]

Definition at line 115 of file graphics.c.

char message[BUFSIZE] = "\0" [static]

Definition at line 146 of file graphics.c.

int num_buttons [static]

Definition at line 118 of file graphics.c.

Colormap private_cmap [static]

Definition at line 138 of file graphics.c.

FILE* ps [static]

Definition at line 152 of file graphics.c.

float ps_bot [static]

Definition at line 134 of file graphics.c.

float ps_left [static]

Definition at line 134 of file graphics.c.

float ps_right [static]

Definition at line 134 of file graphics.c.

float ps_top [static]

Definition at line 134 of file graphics.c.

float ps_xmult [static]

Definition at line 136 of file graphics.c.

float ps_ymult [static]

Definition at line 136 of file graphics.c.

float saved_xleft [static]

Definition at line 132 of file graphics.c.

float saved_xright [static]

Definition at line 132 of file graphics.c.

float saved_ybot [static]

Definition at line 132 of file graphics.c.

float saved_ytop [static]

Definition at line 132 of file graphics.c.

int screen_num [static]

Definition at line 122 of file graphics.c.

Window textarea [static]

Definition at line 128 of file graphics.c.

unsigned int top_height [static]

Definition at line 127 of file graphics.c.

unsigned int top_width [static]

Definition at line 127 of file graphics.c.

Window toplevel [static]

Definition at line 128 of file graphics.c.

float xleft [static]

Definition at line 129 of file graphics.c.

float xmult [static]

Definition at line 137 of file graphics.c.

float xright [static]

Definition at line 129 of file graphics.c.

float ybot [static]

Definition at line 129 of file graphics.c.

float ymult [static]

Definition at line 137 of file graphics.c.

float ytop [static]

Definition at line 129 of file graphics.c.
