SRC/check_rr_graph.c File Reference

#include "util.h"
#include "vpr_types.h"
#include "globals.h"
#include "rr_graph.h"
#include "check_rr_graph.h"

Include dependency graph for check_rr_graph.c:

Go to the source code of this file.

Defines
#define	BUF_FLAG   1
#define	PTRANS_FLAG   2
#define	BUF_AND_PTRANS_FLAG   3
Functions
static boolean	rr_node_is_global_clb_ipin (int inode)
static void	check_pass_transistors (int from_node)
void	check_rr_graph (IN t_graph_type graph_type, IN int num_types, IN t_type_ptr types, IN int nx, IN int ny, IN struct s_grid_tile **grid, IN int nodes_per_chan, IN int Fs, IN int num_seg_types, IN int num_switches, IN t_segment_inf *segment_inf, IN int global_route_switch, IN int delayless_switch, IN int wire_to_ipin_switch, t_seg_details *seg_details, int *Fc_in, int *Fc_out, t_ivec ***rr_node_indices, int *****opin_to_track_map, int *****ipin_to_track_map, t_ivec ****track_to_ipin_lookup, t_ivec ***switch_block_conn, boolean *perturb_ipins)
void	check_node (int inode, enum e_route_type route_type)
Variables
static boolean	rr_graph_error
static boolean	rr_graph_warn

---

Define Documentation

#define BUF_AND_PTRANS_FLAG   3

Definition at line 12 of file check_rr_graph.c.

#define BUF_FLAG   1

Definition at line 10 of file check_rr_graph.c.

#define PTRANS_FLAG   2

Definition at line 11 of file check_rr_graph.c.

---

Function Documentation

void check_node	(	int	inode,
		enum e_route_type	route_type
	)

Definition at line 248 of file check_rr_graph.c.

{

/* This routine checks that the rr_node is inside the grid and has a valid  *
 * pin number, etc.                                                         */

    int xlow, ylow, xhigh, yhigh, ptc_num, capacity;
    t_rr_type rr_type;
    t_type_ptr type;
    int nodes_per_chan, tracks_per_node, num_edges, cost_index;
    float C, R;

    rr_type = rr_node[inode].type;
    xlow = rr_node[inode].xlow;
    xhigh = rr_node[inode].xhigh;
    ylow = rr_node[inode].ylow;
    yhigh = rr_node[inode].yhigh;
    ptc_num = rr_node[inode].ptc_num;
    capacity = rr_node[inode].capacity;
    type = NULL;

    if(xlow > xhigh || ylow > yhigh)
        {
            printf
                ("Error in check_node:  rr endpoints are (%d,%d) and (%d,%d).\n",
                 xlow, ylow, xhigh, yhigh);
            exit(1);
        }

    if(xlow < 0 || xhigh > nx + 1 || ylow < 0 || yhigh > ny + 1)
        {
            printf
                ("Error in check_node:  rr endpoints, (%d,%d) and (%d,%d), \n"
                 "are out of range.\n", xlow, ylow, xhigh, yhigh);
            exit(1);
        }

    if(ptc_num < 0)
        {
            printf("Error in check_node.  Inode %d (type %d) had a ptc_num\n"
                   "of %d.\n", inode, rr_type, ptc_num);
            exit(1);
        }

/* Check that the segment is within the array and such. */

    switch (rr_type)
        {

        case SOURCE:
        case SINK:
        case IPIN:
        case OPIN:
            /* This is used later as well */
            type = grid[xlow][ylow].type;

            if(type == NULL)
                {
                    printf
                        ("Error in check_node:  Node %d (type %d) is at an illegal\n"
                         " clb location (%d, %d).\n", inode, rr_type, xlow,
                         ylow);
                    exit(1);
                }
            if(xlow != xhigh || ylow != (yhigh - type->height + 1))
                {
                    printf
                        ("Error in check_node:  Node %d (type %d) has endpoints of\n"
                         "(%d,%d) and (%d,%d)\n", inode, rr_type, xlow, ylow,
                         xhigh, yhigh);
                    exit(1);
                }
            break;

        case CHANX:
            if(xlow < 1 || xhigh > nx || yhigh > ny || yhigh != ylow)
                {
                    printf("Error in check_node:  CHANX out of range.\n");
                    printf("Endpoints: (%d,%d) and (%d,%d)\n", xlow, ylow,
                           xhigh, yhigh);
                    exit(1);
                }
            if(route_type == GLOBAL && xlow != xhigh)
                {
                    printf
                        ("Error in check_node:  node %d spans multiple channel segments\n"
                         "which is not allowed with global routing.\n",
                         inode);
                    exit(1);
                }
            break;

        case CHANY:
            if(xhigh > nx || ylow < 1 || yhigh > ny || xlow != xhigh)
                {
                    printf("Error in check_node:  CHANY out of range.\n");
                    printf("Endpoints: (%d,%d) and (%d,%d)\n", xlow, ylow,
                           xhigh, yhigh);
                    exit(1);
                }
            if(route_type == GLOBAL && ylow != yhigh)
                {
                    printf
                        ("Error in check_node:  node %d spans multiple channel segments\n"
                         "which is not allowed with global routing.\n",
                         inode);
                    exit(1);
                }
            break;

        default:
            printf("Error in check_node:  Unexpected segment type: %d\n",
                   rr_type);
            exit(1);
        }

/* Check that it's capacities and such make sense. */

    switch (rr_type)
        {

        case SOURCE:

            if(ptc_num >= type->num_class
               || type->class_inf[ptc_num].type != DRIVER)
                {
                    printf
                        ("Error in check_node.  Inode %d (type %d) had a ptc_num\n"
                         "of %d.\n", inode, rr_type, ptc_num);
                    exit(1);
                }
            if(type->class_inf[ptc_num].num_pins != capacity)
                {
                    printf
                        ("Error in check_node.  Inode %d (type %d) had a capacity\n"
                         "of %d.\n", inode, rr_type, capacity);
                    exit(1);
                }

            break;

        case SINK:

            if(ptc_num >= type->num_class
               || type->class_inf[ptc_num].type != RECEIVER)
                {
                    printf
                        ("Error in check_node.  Inode %d (type %d) had a ptc_num\n"
                         "of %d.\n", inode, rr_type, ptc_num);
                    exit(1);
                }
            if(type->class_inf[ptc_num].num_pins != capacity)
                {
                    printf
                        ("Error in check_node.  Inode %d (type %d) has a capacity\n"
                         "of %d.\n", inode, rr_type, capacity);
                    exit(1);
                }
            break;

        case OPIN:

            if(ptc_num >= type->num_pins
               || type->class_inf[type->pin_class[ptc_num]].type != DRIVER)
                {
                    printf
                        ("Error in check_node.  Inode %d (type %d) had a ptc_num\n"
                         "of %d.\n", inode, rr_type, ptc_num);
                    exit(1);
                }

            if(capacity != 1)
                {
                    printf
                        ("Error in check_node:  Inode %d (type %d) has a capacity\n"
                         "of %d.\n", inode, rr_type, capacity);
                    exit(1);
                }
            break;

        case IPIN:
            if(ptc_num >= type->num_pins
               || type->class_inf[type->pin_class[ptc_num]].type != RECEIVER)
                {
                    printf
                        ("Error in check_node.  Inode %d (type %d) had a ptc_num\n"
                         "of %d.\n", inode, rr_type, ptc_num);
                    exit(1);
                }
            if(capacity != 1)
                {
                    printf
                        ("Error in check_node:  Inode %d (type %d) has a capacity\n"
                         "of %d.\n", inode, rr_type, capacity);
                    exit(1);
                }
            break;

        case CHANX:
            if(route_type == DETAILED)
                {
                    nodes_per_chan = chan_width_x[ylow];
                    tracks_per_node = 1;
                }
            else
                {
                    nodes_per_chan = 1;
                    tracks_per_node = chan_width_x[ylow];
                }

            if(ptc_num >= nodes_per_chan)
                {
                    printf
                        ("Error in check_node:  Inode %d (type %d) has a ptc_num\n"
                         "of %d.\n", inode, rr_type, ptc_num);
                    exit(1);
                }

            if(capacity != tracks_per_node)
                {
                    printf
                        ("Error in check_node:  Inode %d (type %d) has a capacity\n"
                         "of %d.\n", inode, rr_type, capacity);
                    exit(1);
                }
            break;

        case CHANY:
            if(route_type == DETAILED)
                {
                    nodes_per_chan = chan_width_y[xlow];
                    tracks_per_node = 1;
                }
            else
                {
                    nodes_per_chan = 1;
                    tracks_per_node = chan_width_y[xlow];
                }

            if(ptc_num >= nodes_per_chan)
                {
                    printf
                        ("Error in check_node:  Inode %d (type %d) has a ptc_num\n"
                         "of %d.\n", inode, rr_type, ptc_num);
                    exit(1);
                }

            if(capacity != tracks_per_node)
                {
                    printf
                        ("Error in check_node:  Inode %d (type %d) has a capacity\n"
                         "of %d.\n", inode, rr_type, capacity);
                    exit(1);
                }
            break;

        default:
            printf("Error in check_node:  Unexpected segment type: %d\n",
                   rr_type);
            exit(1);

        }

/* Check that the number of (out) edges is reasonable. */
    num_edges = rr_node[inode].num_edges;

    if(rr_type != SINK)
        {
            if(num_edges <= 0)
                {
                    printf("Error: in check_node: node %d has no edges.\n",
                           inode);
                    exit(1);
                }
        }

    else
        {                       /* SINK -- remove this check if feedthroughs allowed */
            if(num_edges != 0)
                {
                    printf("Error in check_node: node %d is a sink, but has "
                           "%d edges.\n", inode, num_edges);
                    exit(1);
                }
        }

/* Check that the capacitance, resistance and cost_index are reasonable. */

    C = rr_node[inode].C;
    R = rr_node[inode].R;

    if(rr_type == CHANX || rr_type == CHANY)
        {
            if(C < 0. || R < 0.)
                {
                    printf
                        ("Error in check_node: node %d of type %d has R = %g "
                         "and C = %g.\n", inode, rr_type, R, C);
                    exit(1);
                }
        }

    else
        {
            if(C != 0. || R != 0.)
                {
                    printf
                        ("Error in check_node: node %d of type %d has R = %g "
                         "and C = %g.\n", inode, rr_type, R, C);
                    exit(1);
                }
        }

    cost_index = rr_node[inode].cost_index;
    if(cost_index < 0 || cost_index >= num_rr_indexed_data)
        {
            printf("Error in check_node:  node %d cost index (%d) is out of "
                   "range.\n", inode, cost_index);
            exit(1);
        }
}

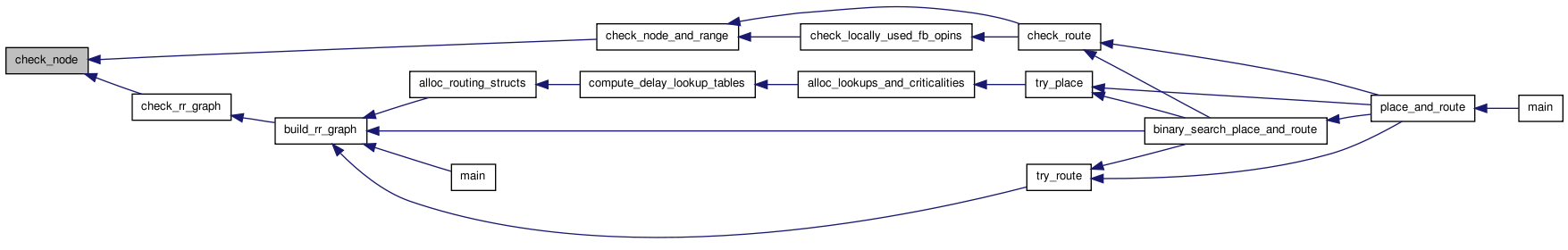

Here is the caller graph for this function:

static void check_pass_transistors

(

int

from_node

)

[static]

Definition at line 573 of file check_rr_graph.c.

{

/* This routine checks that all pass transistors in the routing truly are  *
 * bidirectional.  It may be a slow check, so don't use it all the time.   */

    int from_edge, to_node, to_edge, from_num_edges, to_num_edges;
    t_rr_type from_rr_type, to_rr_type;
    short from_switch_type;
    boolean trans_matched;


    from_rr_type = rr_node[from_node].type;
    if(from_rr_type != CHANX && from_rr_type != CHANY)
        return;

    from_num_edges = rr_node[from_node].num_edges;

    for(from_edge = 0; from_edge < from_num_edges; from_edge++)
        {
            to_node = rr_node[from_node].edges[from_edge];
            to_rr_type = rr_node[to_node].type;

            if(to_rr_type != CHANX && to_rr_type != CHANY)
                continue;

            from_switch_type = rr_node[from_node].switches[from_edge];

            if(switch_inf[from_switch_type].buffered)
                continue;

            /* We know that we have a pass transitor from from_node to to_node.  Now *
             * check that there is a corresponding edge from to_node back to         *
             * from_node.                                                            */

            to_num_edges = rr_node[to_node].num_edges;
            trans_matched = FALSE;

            for(to_edge = 0; to_edge < to_num_edges; to_edge++)
                {
                    if(rr_node[to_node].edges[to_edge] == from_node &&
                       rr_node[to_node].switches[to_edge] == from_switch_type)
                        {
                            trans_matched = TRUE;
                            break;
                        }
                }

            if(trans_matched == FALSE)
                {
                    printf
                        ("Error in check_pass_transistors:  Connection from node %d to\n"
                         "node %d uses a pass transistor (switch type %d), but there is\n"
                         "no corresponding pass transistor edge in the other direction.\n",
                         from_node, to_node, from_switch_type);
                    exit(1);
                }

        }                       /* End for all from_node edges */
}

Here is the caller graph for this function:

void check_rr_graph	(	IN t_graph_type	graph_type,
		IN int	num_types,
		IN t_type_ptr	types,
		IN int	nx,
		IN int	ny,
		IN struct s_grid_tile **	grid,
		IN int	nodes_per_chan,
		IN int	Fs,
		IN int	num_seg_types,
		IN int	num_switches,
		IN t_segment_inf *	segment_inf,
		IN int	global_route_switch,
		IN int	delayless_switch,
		IN int	wire_to_ipin_switch,
		t_seg_details *	seg_details,
		int *	Fc_in,
		int *	Fc_out,
		t_ivec ***	rr_node_indices,
		int *****	opin_to_track_map,
		int *****	ipin_to_track_map,
		t_ivec ****	track_to_ipin_lookup,
		t_ivec ***	switch_block_conn,
		boolean *	perturb_ipins
	)

Definition at line 28 of file check_rr_graph.c.

{


    int *num_edges_from_current_to_node;        /* [0..num_rr_nodes-1] */
    int *total_edges_to_node;   /* [0..num_rr_nodes-1] */
    char *switch_types_from_current_to_node;    /* [0..num_rr_nodes-1] */
    int inode, iedge, to_node, num_edges;
    short switch_type;
    t_rr_type rr_type, to_rr_type;
    enum e_route_type route_type;
        boolean is_fringe_warning_sent;

    route_type = DETAILED;
    if(graph_type == GRAPH_GLOBAL)
        {
            route_type = GLOBAL;
        }

    total_edges_to_node = (int *)my_calloc(num_rr_nodes, sizeof(int));
    num_edges_from_current_to_node = (int *)my_calloc(num_rr_nodes,
                                                      sizeof(int));
    switch_types_from_current_to_node = (char *)my_calloc(num_rr_nodes,
                                                          sizeof(char));

    for(inode = 0; inode < num_rr_nodes; inode++)
        {
            rr_type = rr_node[inode].type;
            num_edges = rr_node[inode].num_edges;

            check_node(inode, route_type);

/* Check all the connectivity (edges, etc.) information.                    */

            for(iedge = 0; iedge < num_edges; iedge++)
                {
                    to_node = rr_node[inode].edges[iedge];

                    if(to_node < 0 || to_node >= num_rr_nodes)
                        {
                            printf
                                ("Error in check_rr_graph:  node %d has an edge %d.\n"
                                 "Edge is out of range.\n", inode, to_node);
                            exit(1);
                        }

                    num_edges_from_current_to_node[to_node]++;
                    total_edges_to_node[to_node]++;

                    switch_type = rr_node[inode].switches[iedge];

                    if(switch_type < 0 || switch_type >= num_switches)
                        {
                            printf
                                ("Error in check_rr_graph:  node %d has a switch type %d.\n"
                                 "Switch type is out of range.\n", inode,
                                 switch_type);
                            exit(1);
                        }

                    if(switch_inf[switch_type].buffered)
                        switch_types_from_current_to_node[to_node] |=
                            BUF_FLAG;
                    else
                        switch_types_from_current_to_node[to_node] |=
                            PTRANS_FLAG;

                }               /* End for all edges of node. */


            for(iedge = 0; iedge < num_edges; iedge++)
                {
                    to_node = rr_node[inode].edges[iedge];

                    if(num_edges_from_current_to_node[to_node] > 1)
                        {
                            to_rr_type = rr_node[to_node].type;

                            if((to_rr_type != CHANX && to_rr_type != CHANY) ||
                               (rr_type != CHANX && rr_type != CHANY))
                                {
                                    printf
                                        ("Error in check_rr_graph:  node %d connects to node %d "
                                         "%d times.\n", inode, to_node,
                                         num_edges_from_current_to_node
                                         [to_node]);
                                    exit(1);
                                }

                            /* Between two wire segments.  Two connections are legal only if  *
                             * one connection is a buffer and the other is a pass transistor. */

                            else if(num_edges_from_current_to_node[to_node] !=
                                    2
                                    ||
                                    switch_types_from_current_to_node[to_node]
                                    != BUF_AND_PTRANS_FLAG)
                                {
                                    printf
                                        ("Error in check_rr_graph:  node %d connects to node %d "
                                         "%d times.\n", inode, to_node,
                                         num_edges_from_current_to_node
                                         [to_node]);
                                    exit(1);
                                }
                        }

                    num_edges_from_current_to_node[to_node] = 0;
                    switch_types_from_current_to_node[to_node] = 0;
                }

            /* Slow test below.  Leave commented out most of the time. */

#ifdef DEBUG
            check_pass_transistors(inode);
#endif

        }                       /* End for all rr_nodes */


/* I built a list of how many edges went to everything in the code above -- *
 * now I check that everything is reachable.                                */
        is_fringe_warning_sent = FALSE;

    for(inode = 0; inode < num_rr_nodes; inode++)
        {
            rr_type = rr_node[inode].type;

            if(rr_type != SOURCE)
                {
                    if(total_edges_to_node[inode] < 1 &&
                       !rr_node_is_global_clb_ipin(inode))
                        {
                                boolean is_fringe;
                                boolean is_wire;

                            /* A global FB input pin will not have any edges, and neither will  *
                             * a SOURCE.  Anything else is an error.                             */

                                is_fringe =  ((rr_node[inode].xlow == 1) || (rr_node[inode].ylow == 1)
                                                || (rr_node[inode].xhigh == nx) || (rr_node[inode].yhigh == ny));
                                is_wire = (rr_node[inode].type == CHANX || rr_node[inode].type == CHANY);

                                if (!is_fringe && !is_wire)
                                {
                                        printf ("Error in check_rr_graph:  node %d has no fanin.\n", inode);
                                        exit(1);
                                }
                                else if (!is_fringe_warning_sent)
                                {
                                        printf ("WARNING: in check_rr_graph:  fringe node %d has no fanin.\n"
                                                        "This is possible on the fringe for low Fc_out, N, and certain Lengths\n"
                                                        , inode);
                                        is_fringe_warning_sent = TRUE;
                                }
                        }
                }

            else
                {               /* SOURCE.  No fanin for now; change if feedthroughs allowed. */
                    if(total_edges_to_node[inode] != 0)
                        {
                            printf
                                ("Error in check_rr_graph:  SOURCE node %d has a fanin\n"
                                 "\tof %d, expected 0.\n", inode,
                                 total_edges_to_node[inode]);
                            exit(1);
                        }
                }
        }

    free(num_edges_from_current_to_node);
    free(total_edges_to_node);
    free(switch_types_from_current_to_node);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static boolean rr_node_is_global_clb_ipin

(

int

inode

)

[static]

Definition at line 228 of file check_rr_graph.c.

{

/* Returns TRUE if inode refers to a global FB input pin node.   */

    int ipin;
    t_type_ptr type;

    type = grid[rr_node[inode].xlow][rr_node[inode].ylow].type;

    if(rr_node[inode].type != IPIN)
        return (FALSE);

    ipin = rr_node[inode].ptc_num;

    return (type->is_global_pin[ipin]);
}

Here is the caller graph for this function:

---

Variable Documentation

boolean rr_graph_error [static]

Definition at line 24 of file check_rr_graph.c.

boolean rr_graph_warn [static]

Definition at line 25 of file check_rr_graph.c.
