SRC/rr_graph_sbox.c File Reference

#include <assert.h>
#include "util.h"
#include "vpr_types.h"
#include "rr_graph_sbox.h"
#include "rr_graph_util.h"

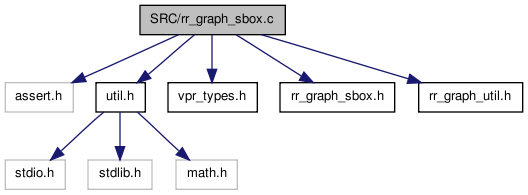

Include dependency graph for rr_graph_sbox.c:

Go to the source code of this file.

Defines
#define	SBOX_ERROR -1
Functions
int	get_simple_switch_block_track (IN enum e_side from_side, IN enum e_side to_side, IN int from_track, IN enum e_switch_block_type switch_block_type, IN int nodes_per_chan)
static enum e_side	get_sbox_side (IN int get_i, IN int get_j, IN t_rr_type get_type, IN int comp_i, IN int comp_j)
struct s_ivec ***	alloc_and_load_switch_block_conn (IN int nodes_per_chan, IN enum e_switch_block_type switch_block_type, IN int Fs)
void	free_switch_block_conn (struct s_ivec ***switch_block_conn, int nodes_per_chan)

Define Documentation

#define SBOX_ERROR -1

Definition at line 141 of file rr_graph_sbox.c.

Function Documentation

struct s_ivec*** alloc_and_load_switch_block_conn	(	IN int	nodes_per_chan,
		IN enum e_switch_block_type	switch_block_type,
		IN int	Fs
	)			`[read]`

Definition at line 47 of file rr_graph_sbox.c.

00052 00053 00054 00055 00056 00057 00058 00059 00060 00061 00062 00063 00064 00065 00066 00067 00068 00069 00070 00071         { 00072 00073 00074 00075 00076 00077 00078 00079 00080 00081 00082 00083 00084 00085 00086 00087 00088 00089 00090 00091 00092 00093 00094 00095 00096 00097 00098 00099 00100         } 00101 00102 00103 00104 00105         { 00106 00107 00108 00109 00110 00111 00112 00113 00114 00115 00116 00117 00118 00119 00120 00121 00122 00123         } 00124 00125 00126 00127 00128 }

class="fragment">00051 { enum e_side from_side, to_side; int from_track; struct s_ivec ***switch_block_conn = NULL; #ifdef CREATE_ECHO_FILES int i, j, k, l; FILE *out; #endif /* CREATE_ECHO_FILES */ /* Currently Fs must be 3 since each track maps once to each other side */ assert(3 == Fs); switch_block_conn = (struct s_ivec ***)alloc_matrix3(0, 3, 0, 3, 0, (nodes_per_chan - 1), sizeof(struct s_ivec)); for(from_side = 0; from_side < 4; from_side++) for(to_side = 0; to_side < 4; to_side++) { for(from_track = 0; from_track < nodes_per_chan; from_track++) { if(from_side != to_side) { switch_block_conn[from_side][to_side] [from_track].nelem = 1; switch_block_conn[from_side][to_side] [from_track].list = (int *)my_malloc(sizeof(int)); switch_block_conn[from_side][to_side] [from_track].list[0] = get_simple_switch_block_track (from_side, to_side, from_track, switch_block_type, nodes_per_chan); } else { /* from_side == to_side -> no connection. */ switch_block_conn[from_side][to_side] [from_track].nelem = 0; switch_block_conn[from_side][to_side] [from_track].list = NULL; } } } #ifdef CREATE_ECHO_FILES out = my_fopen("switch_block_conn.echo", "w"); for(l = 0; l < 4; ++l) for(k = 0; k < 4; ++k) { fprintf(out, "Side %d to %d\n", l, k); for(j = 0; j < nodes_per_chan; ++j) { fprintf(out, "%d: ", j); for(i = 0; i < switch_block_conn[l][k][j].nelem; ++i) { fprintf(out, "%d ", switch_block_conn[l][k][j]. list[i]); } fprintf(out, "\n"); } fprintf(out, "\n"); } fclose(out); #endif /* CREATE_ECHO_FILES */ return switch_block_conn;

Here is the call graph for this function:

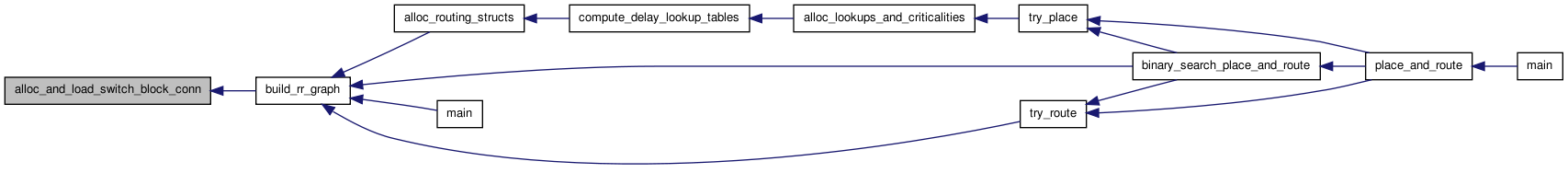

Here is the caller graph for this function:

void free_switch_block_conn	(	struct s_ivec ***	switch_block_conn,
		int	nodes_per_chan
	)

Definition at line 132 of file rr_graph_sbox.c.

00134 {
00135     /* Frees the switch_block_conn data structure. */
00136
00137     free_ivec_matrix3(switch_block_conn, 0, 3, 0, 3, 0, nodes_per_chan - 1);
00138 }

Here is the call graph for this function:

Here is the caller graph for this function:

static enum e_side get_sbox_side	(	IN int	get_i,
		IN int	get_j,
		IN t_rr_type	get_type,
		IN int	comp_i,
		IN int	comp_j
	)			`[static]`

int get_simple_switch_block_track	(	IN enum e_side	from_side,
		IN enum e_side	to_side,
		IN int	from_track,
		IN enum e_switch_block_type	switch_block_type,
		IN int	nodes_per_chan
	)

Definition at line 149 of file rr_graph_sbox.c.

00154 {
00155
00156 /* This routine returns the track number to which the from_track should     *
00157  * connect.  It supports three simple, Fs = 3, switch blocks.               */
00158
00159     int to_track;
00160
00161     to_track = SBOX_ERROR;      /* Can check to see if it's not set later. */
00162
00163     if(switch_block_type == SUBSET)
00164         {                       /* NB:  Global routing uses SUBSET too */
00165             to_track = from_track;
00166         }
00167
00168
00169 /* See S. Wilton Phd thesis, U of T, 1996 p. 103 for details on following. */
00170
00171     else if(switch_block_type == WILTON)
00172         {
00173
00174             if(from_side == LEFT)
00175                 {
00176
00177                     if(to_side == RIGHT)
00178                         {       /* CHANX to CHANX */
00179                             to_track = from_track;
00180                         }
00181                     else if(to_side == TOP)
00182                         {       /* from CHANX to CHANY */
00183                             to_track =
00184                                 (nodes_per_chan -
00185                                  from_track) % nodes_per_chan;
00186                         }
00187                     else if(to_side == BOTTOM)
00188                         {
00189                             to_track =
00190                                 (nodes_per_chan + from_track -
00191                                  1) % nodes_per_chan;
00192                         }
00193                 }
00194
00195             else if(from_side == RIGHT)
00196                 {
00197                     if(to_side == LEFT)
00198                         {       /* CHANX to CHANX */
00199                             to_track = from_track;
00200                         }
00201                     else if(to_side == TOP)
00202                         {       /* from CHANX to CHANY */
00203                             to_track =
00204                                 (nodes_per_chan + from_track -
00205                                  1) % nodes_per_chan;
00206                         }
00207                     else if(to_side == BOTTOM)
00208                         {
00209                             to_track =
00210                                 (2 * nodes_per_chan - 2 -
00211                                  from_track) % nodes_per_chan;
00212                         }
00213                 }
00214
00215             else if(from_side == BOTTOM)
00216                 {
00217                     if(to_side == TOP)
00218                         {       /* CHANY to CHANY */
00219                             to_track = from_track;
00220                         }
00221                     else if(to_side == LEFT)
00222                         {       /* from CHANY to CHANX */
00223                             to_track = (from_track + 1) % nodes_per_chan;
00224                         }
00225                     else if(to_side == RIGHT)
00226                         {
00227                             to_track =
00228                                 (2 * nodes_per_chan - 2 -
00229                                  from_track) % nodes_per_chan;
00230                         }
00231                 }
00232
00233             else if(from_side == TOP)
00234                 {
00235                     if(to_side == BOTTOM)
00236                         {       /* CHANY to CHANY */
00237                             to_track = from_track;
00238                         }
00239                     else if(to_side == LEFT)
00240                         {       /* from CHANY to CHANX */
00241                             to_track =
00242                                 (nodes_per_chan -
00243                                  from_track) % nodes_per_chan;
00244                         }
00245                     else if(to_side == RIGHT)
00246                         {
00247                             to_track = (from_track + 1) % nodes_per_chan;
00248                         }
00249                 }
00250
00251         }
00252     /* End switch_block_type == WILTON case. */
00253     else if(switch_block_type == UNIVERSAL)
00254         {
00255
00256             if(from_side == LEFT)
00257                 {
00258
00259                     if(to_side == RIGHT)
00260                         {       /* CHANX to CHANX */
00261                             to_track = from_track;
00262                         }
00263                     else if(to_side == TOP)
00264                         {       /* from CHANX to CHANY */
00265                             to_track = nodes_per_chan - 1 - from_track;
00266                         }
00267                     else if(to_side == BOTTOM)
00268                         {
00269                             to_track = from_track;
00270                         }
00271                 }
00272
00273             else if(from_side == RIGHT)
00274                 {
00275                     if(to_side == LEFT)
00276                         {       /* CHANX to CHANX */
00277                             to_track = from_track;
00278                         }
00279                     else if(to_side == TOP)
00280                         {       /* from CHANX to CHANY */
00281                             to_track = from_track;
00282                         }
00283                     else if(to_side == BOTTOM)
00284                         {
00285                             to_track = nodes_per_chan - 1 - from_track;
00286                         }
00287                 }
00288
00289             else if(from_side == BOTTOM)
00290                 {
00291                     if(to_side == TOP)
00292                         {       /* CHANY to CHANY */
00293                             to_track = from_track;
00294                         }
00295                     else if(to_side == LEFT)
00296                         {       /* from CHANY to CHANX */
00297                             to_track = from_track;
00298                         }
00299                     else if(to_side == RIGHT)
00300                         {
00301                             to_track = nodes_per_chan - 1 - from_track;
00302                         }
00303                 }
00304
00305             else if(from_side == TOP)
00306                 {
00307                     if(to_side == BOTTOM)
00308                         {       /* CHANY to CHANY */
00309                             to_track = from_track;
00310                         }
00311                     else if(to_side == LEFT)
00312                         {       /* from CHANY to CHANX */
00313                             to_track = nodes_per_chan - 1 - from_track;
00314                         }
00315                     else if(to_side == RIGHT)
00316                         {
00317                             to_track = from_track;
00318                         }
00319                 }
00320         }
00321
00322     /* End switch_block_type == UNIVERSAL case. */
00323     /* UDSD Modification by WMF Begin */
00324     if(switch_block_type == FULL)
00325         {                       /* Just a placeholder. No meaning in reality */
00326             to_track = from_track;
00327         }
00328 /* UDSD Modification by WMF End */
00329
00330     if(to_track == SBOX_ERROR)
00331         {
00332             printf
00333                 ("Error in get_simple_switch_block_track.  Unexpected connection.\n"
00334                  "from_side: %d  to_side: %d  switch_block_type: %d.\n",
00335                  from_side, to_side, switch_block_type);
00336             exit(1);
00337         }
00338
00339     return (to_track);
00340 }

Here is the caller graph for this function:
