SRC/rr_graph_util.c File Reference

#include "util.h"
#include "vpr_types.h"
#include "globals.h"
#include "rr_graph_util.h"

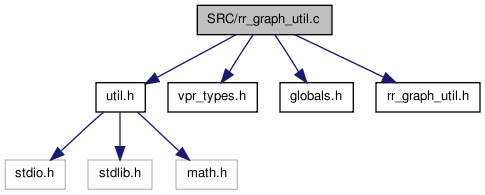

Include dependency graph for rr_graph_util.c:

Go to the source code of this file.

Functions
t_linked_edge *	insert_in_edge_list (IN t_linked_edge *head, IN int edge, IN short iswitch)
int	seg_index_of_cblock (t_rr_type from_rr_type, int to_node)
int	seg_index_of_sblock (int from_node, int to_node)

---

Function Documentation

t_linked_edge* insert_in_edge_list	(	IN t_linked_edge *	head,
		IN int	edge,
		IN short	iswitch
	)

Definition at line 10 of file rr_graph_util.c.

{

    /* Inserts a new element at the head of a linked list.  Returns the new head *
     * of the list.  One argument is the address of the head of a list of free   *
     * edge_list elements.  If there are any elements on this free list, the new *
     * element is taken from it.  Otherwise a new one is malloced.               */

    t_linked_edge *linked_edge;

    linked_edge = (t_linked_edge *) my_malloc(sizeof(t_linked_edge));

    linked_edge->edge = edge;
    linked_edge->iswitch = iswitch;
    linked_edge->next = head;

    return linked_edge;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int seg_index_of_cblock	(	t_rr_type	from_rr_type,
		int	to_node
	)

Definition at line 48 of file rr_graph_util.c.

{

/* Returns the segment number (distance along the channel) of the connection *
 * box from from_rr_type (CHANX or CHANY) to to_node (IPIN).                 */

    if(from_rr_type == CHANX)
        return (rr_node[to_node].xlow);
    else                        /* CHANY */
        return (rr_node[to_node].ylow);
}

Here is the caller graph for this function:

int seg_index_of_sblock	(	int	from_node,
		int	to_node
	)

Definition at line 63 of file rr_graph_util.c.

{

/* Returns the segment number (distance along the channel) of the switch box *
 * box from from_node (CHANX or CHANY) to to_node (CHANX or CHANY).  The     *
 * switch box on the left side of a CHANX segment at (i,j) has seg_index =   *
 * i-1, while the switch box on the right side of that segment has seg_index *
 * = i.  CHANY stuff works similarly.  Hence the range of values returned is *
 * 0 to nx (if from_node is a CHANX) or 0 to ny (if from_node is a CHANY).   */

    t_rr_type from_rr_type, to_rr_type;

    from_rr_type = rr_node[from_node].type;
    to_rr_type = rr_node[to_node].type;

    if(from_rr_type == CHANX)
        {
            if(to_rr_type == CHANY)
                {
                    return (rr_node[to_node].xlow);
                }
            else if(to_rr_type == CHANX)
                {
                    if(rr_node[to_node].xlow > rr_node[from_node].xlow)
                        {       /* Going right */
                            return (rr_node[from_node].xhigh);
                        }
                    else
                        {       /* Going left */
                            return (rr_node[to_node].xhigh);
                        }
                }
            else
                {
                    printf
                        ("Error in seg_index_of_sblock:  to_node %d is of type %d.\n",
                         to_node, to_rr_type);
                    exit(1);
                }
        }
    /* End from_rr_type is CHANX */
    else if(from_rr_type == CHANY)
        {
            if(to_rr_type == CHANX)
                {
                    return (rr_node[to_node].ylow);
                }
            else if(to_rr_type == CHANY)
                {
                    if(rr_node[to_node].ylow > rr_node[from_node].ylow)
                        {       /* Going up */
                            return (rr_node[from_node].yhigh);
                        }
                    else
                        {       /* Going down */
                            return (rr_node[to_node].yhigh);
                        }
                }
            else
                {
                    printf
                        ("Error in seg_index_of_sblock:  to_node %d is of type %d.\n",
                         to_node, to_rr_type);
                    exit(1);
                }
        }
    /* End from_rr_type is CHANY */
    else
        {
            printf
                ("Error in seg_index_of_sblock:  from_node %d is of type %d.\n",
                 from_node, from_rr_type);
            exit(1);
        }
}

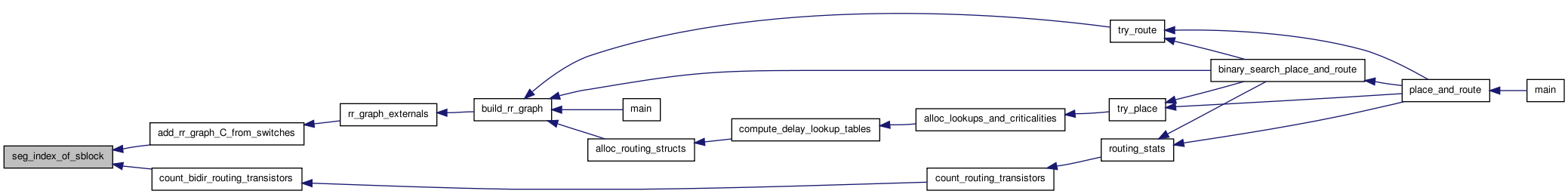

Here is the caller graph for this function:
