SRC/SetupVPR.c File Reference

#include <assert.h>
#include <string.h>
#include "util.h"
#include "vpr_types.h"
#include "check_netlist.h"
#include "OptionTokens.h"
#include "ReadOptions.h"
#include "read_netlist.h"
#include "globals.h"
#include "xml_arch.h"
#include "SetupVPR.h"

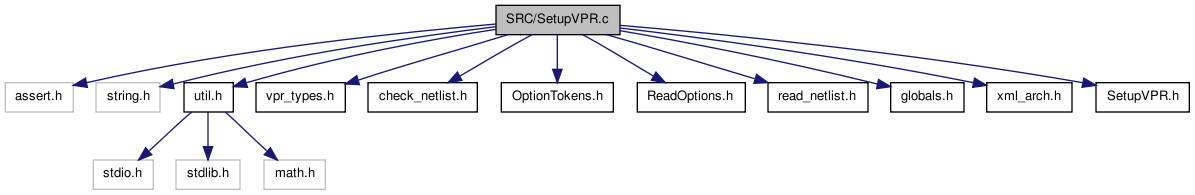

Include dependency graph for SetupVPR.c:

Go to the source code of this file.

Functions
static void	SetupOperation (IN t_options Options, OUT enum e_operation *Operation)
static void	SetupPlacerOpts (IN t_options Options, IN boolean TimingEnabled, OUT struct s_placer_opts *PlacerOpts)
static void	SetupAnnealSched (IN t_options Options, OUT struct s_annealing_sched *AnnealSched)
static void	SetupRouterOpts (IN t_options Options, IN boolean TimingEnabled, OUT struct s_router_opts *RouterOpts)
static void	SetupGlobalRoutingArch (OUT struct s_det_routing_arch *RoutingArch, OUT t_segment_inf **Segments)
static void	SetupRoutingArch (IN t_arch Arch, OUT struct s_det_routing_arch *RoutingArch)
static void	SetupTiming (IN t_options Options, IN t_arch Arch, IN boolean TimingEnabled, IN enum e_operation Operation, IN struct s_placer_opts PlacerOpts, IN struct s_router_opts RouterOpts, OUT t_timing_inf *Timing)
static void	load_subblock_info_to_type (INOUT t_subblock_data *subblocks, INOUT t_type_ptr type)
static void	InitArch (IN t_arch Arch)
static void	alloc_and_load_grid (INOUT int *num_instances_type)
static void	freeGrid ()
static void	CheckGrid (void)
static t_type_ptr	find_type_col (IN int x)
static void	SetupSwitches (IN t_arch Arch, INOUT struct s_det_routing_arch *RoutingArch, IN struct s_switch_inf *ArchSwitches, IN int NumArchSwitches)
void	SetupVPR (IN t_options Options, IN boolean TimingEnabled, OUT t_arch *Arch, OUT enum e_operation *Operation, OUT struct s_placer_opts *PlacerOpts, OUT struct s_annealing_sched *AnnealSched, OUT struct s_router_opts *RouterOpts, OUT struct s_det_routing_arch *RoutingArch, OUT t_segment_inf **Segments, OUT t_timing_inf *Timing, OUT t_subblock_data *Subblocks, OUT boolean *ShowGraphics, OUT int *GraphPause)
boolean	IsTimingEnabled (IN t_options Options)

---

Function Documentation

static void alloc_and_load_grid

(

INOUT int *

num_instances_type

)

[static]

Definition at line 268 of file SetupVPR.c.

{

    int i, j;
    t_type_ptr type;

#ifdef SHOW_ARCH
    FILE *dump;
#endif

    /* If both nx and ny are 1, we only have one valid location for a clb. *
     * That's a major problem, as won't be able to move the clb and the    *
     * find_to routine that tries moves in the placer will go into an      *
     * infinite loop trying to move it.  Exit with an error message        *
     * instead.                                                            */

    if((nx == 1) && (ny == 1) && (num_blocks > 0))
        {
            printf("Error:\n");
            printf
                ("Sorry, can't place a circuit with only one valid location\n");
            printf("for a logic block (clb).\n");
            printf("Try me with a more realistic circuit!\n");
            exit(1);
        }

    /* To remove this limitation, change ylow etc. in t_rr_node to        *
     * * be ints instead.  Used shorts to save memory.                      */
    if((nx > 32766) || (ny > 32766))
        {
            printf("Error:  nx and ny must be less than 32767, since the \n");
            printf("router uses shorts (16-bit) to store coordinates.\n");
            printf("nx: %d.  ny: %d.\n", nx, ny);
            exit(1);
        }

    assert(nx >= 1 && ny >= 1);

    grid = (struct s_grid_tile **)alloc_matrix(0, (nx + 1),
                                               0, (ny + 1),
                                               sizeof(struct s_grid_tile));

    /* Clear the full grid to have no type (NULL), no capacity, etc */
    for(i = 0; i <= (nx + 1); ++i)
        {
            for(j = 0; j <= (ny + 1); ++j)
                {
                    memset(&grid[i][j], 0, (sizeof(struct s_grid_tile)));
                }
        }

    for(i = 0; i < num_types; i++)
        {
            num_instances_type[i] = 0;
        }

    /* Nothing goes in the corners. */
    grid[0][0].type = grid[nx + 1][0].type = EMPTY_TYPE;
    grid[0][ny + 1].type = grid[nx + 1][ny + 1].type = EMPTY_TYPE;
    num_instances_type[EMPTY_TYPE->index] = 4;

    for(i = 1; i <= nx; i++)
        {
            grid[i][0].blocks =
                (int *)my_malloc(sizeof(int) * IO_TYPE->capacity);
            grid[i][0].type = IO_TYPE;

            grid[i][ny + 1].blocks =
                (int *)my_malloc(sizeof(int) * IO_TYPE->capacity);
            grid[i][ny + 1].type = IO_TYPE;

            for(j = 0; j < IO_TYPE->capacity; j++)
                {
                    grid[i][0].blocks[j] = EMPTY;
                    grid[i][ny + 1].blocks[j] = EMPTY;
                }
        }

    for(i = 1; i <= ny; i++)
        {
            grid[0][i].blocks =
                (int *)my_malloc(sizeof(int) * IO_TYPE->capacity);
            grid[0][i].type = IO_TYPE;

            grid[nx + 1][i].blocks =
                (int *)my_malloc(sizeof(int) * IO_TYPE->capacity);
            grid[nx + 1][i].type = IO_TYPE;
            for(j = 0; j < IO_TYPE->capacity; j++)
                {
                    grid[0][i].blocks[j] = EMPTY;
                    grid[nx + 1][i].blocks[j] = EMPTY;
                }
        }

    num_instances_type[IO_TYPE->index] = 2 * IO_TYPE->capacity * (nx + ny);

    for(i = 1; i <= nx; i++)
        {                       /* Interior (LUT) cells */
            type = find_type_col(i);
            for(j = 1; j <= ny; j++)
                {
                    grid[i][j].type = type;
                    grid[i][j].offset = (j - 1) % type->height;
                    if(j + grid[i][j].type->height - 1 - grid[i][j].offset >
                       ny)
                        {
                            grid[i][j].type = EMPTY_TYPE;
                            grid[i][j].offset = 0;
                        }

                    if(type->capacity > 1)
                        {
                            printf(ERRTAG
                                   "In FillArch() expected core blocks to have capacity <= 1 but "
                                   "(%d, %d) has type '%s' and capacity %d\n",
                                   i, j, grid[i][j].type->name,
                                   grid[i][j].type->capacity);
                            exit(1);
                        }

                    grid[i][j].blocks = (int *)my_malloc(sizeof(int));
                    grid[i][j].blocks[0] = EMPTY;
                    if(grid[i][j].offset == 0)
                        {
                            num_instances_type[grid[i][j].type->index]++;
                        }
                }
        }

    CheckGrid();

#ifdef SHOW_ARCH
    /* DEBUG code */
    dump = my_fopen("grid_type_dump.txt", "w");
    for(j = (ny + 1); j >= 0; --j)
        {
            for(i = 0; i <= (nx + 1); ++i)
                {
                    fprintf(dump, "%c", grid[i][j].type->name[1]);
                }
            fprintf(dump, "\n");
        }
    fclose(dump);
#endif
}

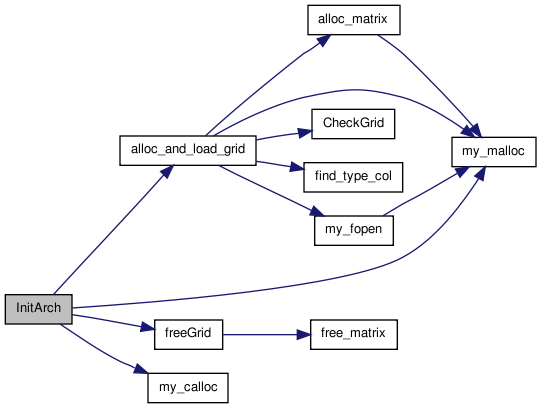

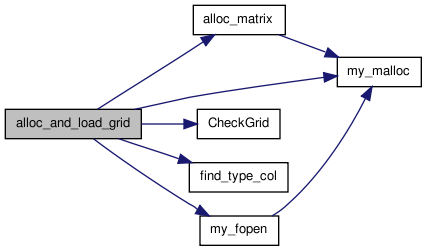

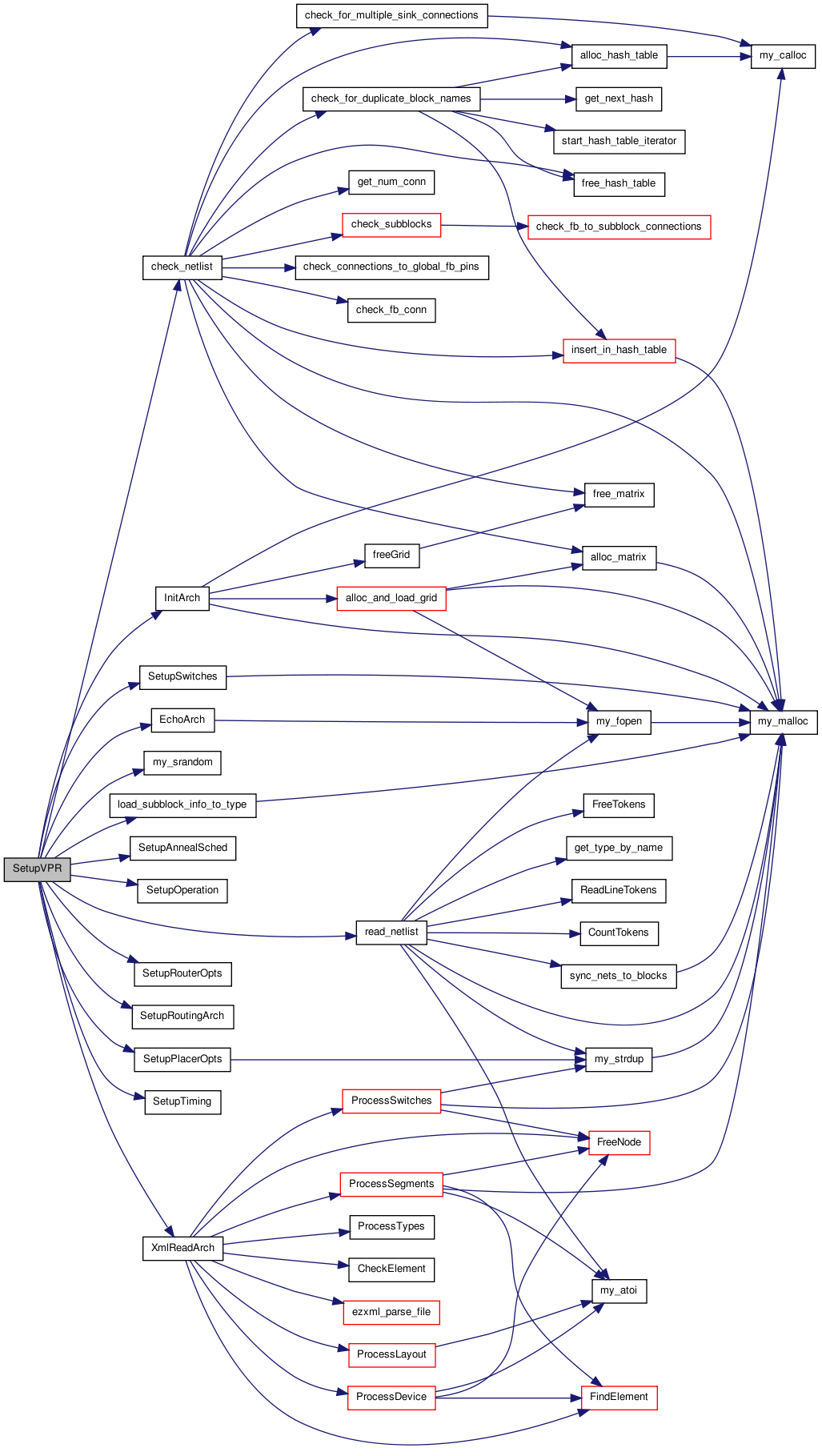

Here is the call graph for this function:

Here is the caller graph for this function:

static void CheckGrid

(

void

)

[static]

Definition at line 431 of file SetupVPR.c.

{
    int i, j;

    /* Check grid is valid */
    for(i = 0; i <= (nx + 1); ++i)
        {
            for(j = 0; j <= (ny + 1); ++j)
                {
                    if(NULL == grid[i][j].type)
                        {
                            printf(ERRTAG "grid[%d][%d] has no type.\n", i,
                                   j);
                            exit(1);
                        }

                    if(grid[i][j].usage != 0)
                        {
                            printf(ERRTAG
                                   "grid[%d][%d] has non-zero usage (%d) "
                                   "before netlist load.\n", i, j,
                                   grid[i][j].usage);
                            exit(1);
                        }

                    if((grid[i][j].offset < 0) ||
                       (grid[i][j].offset >= grid[i][j].type->height))
                        {
                            printf(ERRTAG
                                   "grid[%d][%d] has invalid offset (%d)\n",
                                   i, j, grid[i][j].offset);
                            exit(1);
                        }

                    if((NULL == grid[i][j].blocks) &&
                       (grid[i][j].type->capacity > 0))
                        {
                            printf(ERRTAG
                                   "grid[%d][%d] has no block list allocated.\n",
                                   i, j);
                            exit(1);
                        }
                }
        }
}

Here is the caller graph for this function:

static t_type_ptr find_type_col

(

IN int

x

)

[static]

Definition at line 478 of file SetupVPR.c.

{
    int i, j;
    int start, repeat;
    float rel;
    boolean match;
    int priority, num_loc;
    t_type_ptr column_type;

    priority = FILL_TYPE->grid_loc_def[0].priority;
    column_type = FILL_TYPE;

    for(i = 0; i < num_types; i++)
        {
            if(&type_descriptors[i] == IO_TYPE ||
               &type_descriptors[i] == EMPTY_TYPE ||
               &type_descriptors[i] == FILL_TYPE)
                continue;
            num_loc = type_descriptors[i].num_grid_loc_def;
            for(j = 0; j < num_loc; j++)
                {
                    if(priority <
                       type_descriptors[i].grid_loc_def[j].priority)
                        {
                            match = FALSE;
                            if(type_descriptors[i].grid_loc_def[j].
                               grid_loc_type == COL_REPEAT)
                                {
                                    start =
                                        type_descriptors[i].grid_loc_def[j].
                                        start_col;
                                    repeat =
                                        type_descriptors[i].grid_loc_def[j].
                                        repeat;
                                    if(start < 0)
                                        {
                                            start += (nx + 1);
                                        }
                                    if(x == start)
                                        {
                                            match = TRUE;
                                        }
                                    else if(repeat > 0 && x > start
                                            && start > 0)
                                        {
                                            if((x - start) % repeat == 0)
                                                {
                                                    match = TRUE;
                                                }
                                        }
                                }
                            else if(type_descriptors[i].grid_loc_def[j].
                                    grid_loc_type == COL_REL)
                                {
                                    rel =
                                        type_descriptors[i].grid_loc_def[j].
                                        col_rel;
                                    if(nint(rel * nx) == x)
                                        {
                                            match = TRUE;
                                        }
                                }
                            if(match)
                                {
                                    priority =
                                        type_descriptors[i].grid_loc_def[j].
                                        priority;
                                    column_type = &type_descriptors[i];
                                }
                        }
                }
        }
    return column_type;
}

Here is the caller graph for this function:

static void freeGrid

(

)

[static]

Definition at line 415 of file SetupVPR.c.

{
    int i, j;

    for(i = 0; i <= (nx + 1); ++i)
        {
            for(j = 0; j <= (ny + 1); ++j)
                {
                    free(grid[i][j].blocks);
                }
        }
    free_matrix(grid, 0, nx + 1, 0, sizeof(struct s_grid_tile));
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void InitArch

(

IN t_arch

Arch

)

[static]

Definition at line 130 of file SetupVPR.c.

{
    int *num_instances_type, *num_blocks_type;
    int i;
    int current, high, low;
    boolean fit;

    current = nint(sqrt(num_blocks));   /* current is the value of the smaller side of the FPGA */
    low = 1;
    high = -1;

    num_instances_type = my_calloc(num_types, sizeof(int));
    num_blocks_type = my_calloc(num_types, sizeof(int));

    for(i = 0; i < num_blocks; i++)
        {
            num_blocks_type[block[i].type->index]++;
        }

    if(Arch.clb_grid.IsAuto)
        {
            /* Auto-size FPGA, perform a binary search */
            while(high == -1 || low < high)
                {
                    /* Generate grid */
                    if(Arch.clb_grid.Aspect >= 1.0)
                        {
                            ny = current;
                            nx = nint(current * Arch.clb_grid.Aspect);
                        }
                    else
                        {
                            nx = current;
                            ny = nint(current / Arch.clb_grid.Aspect);
                        }
#if DEBUG
                    printf("Auto-sizing FPGA, try x = %d y = %d\n", nx, ny);
#endif
                    alloc_and_load_grid(num_instances_type);
                    freeGrid();

                    /* Test if netlist fits in grid */
                    fit = TRUE;
                    for(i = 0; i < num_types; i++)
                        {
                            if(num_blocks_type[i] > num_instances_type[i])
                                {
                                    fit = FALSE;
                                    break;
                                }
                        }

                    /* get next value */
                    if(!fit)
                        {
                            /* increase size of max */
                            if(high == -1)
                                {
                                    current = current * 2;
                                    if(current > MAX_SHORT)
                                        {
                                            printf(ERRTAG
                                                   "FPGA required is too large for current architecture settings\n");
                                            exit(1);
                                        }
                                }
                            else
                                {
                                    if(low == current)
                                        current++;
                                    low = current;
                                    current = low + ((high - low) / 2);
                                }
                        }
                    else
                        {
                            high = current;
                            current = low + ((high - low) / 2);
                        }
                }
            /* Generate grid */
            if(Arch.clb_grid.Aspect >= 1.0)
                {
                    ny = current;
                    nx = nint(current * Arch.clb_grid.Aspect);
                }
            else
                {
                    nx = current;
                    ny = nint(current / Arch.clb_grid.Aspect);
                }
            alloc_and_load_grid(num_instances_type);
            printf("FPGA auto-sized to, x = %d y = %d\n", nx, ny);
        }
    else
        {
            nx = Arch.clb_grid.W;
            ny = Arch.clb_grid.H;
            alloc_and_load_grid(num_instances_type);
        }

    /* Test if netlist fits in grid */
    fit = TRUE;
    for(i = 0; i < num_types; i++)
        {
            if(num_blocks_type[i] > num_instances_type[i])
                {
                    fit = FALSE;
                    break;
                }
        }
    if(!fit)
        {
            printf(ERRTAG "Not enough physical locations for type %s, "
                   "number of blocks is %d but number of locations is %d\n",
                   num_blocks_type[i], num_instances_type[i]);
            exit(1);
        }

        printf("\nResource Usage:\n");
        for(i = 0; i < num_types; i++)
        {
                printf("Netlist      %d\tblocks of type %s\n",
                        num_blocks_type[i], type_descriptors[i].name);
                printf("Architecture %d\tblocks of type %s\n",
                        num_instances_type[i], type_descriptors[i].name);
        }
        printf("\n");
    chan_width_x = (int *)my_malloc((ny + 1) * sizeof(int));
    chan_width_y = (int *)my_malloc((nx + 1) * sizeof(int));

    free(num_blocks_type);
    free(num_instances_type);
}

Here is the call graph for this function:

Here is the caller graph for this function:

boolean IsTimingEnabled

(

IN t_options

Options

)

Definition at line 1016 of file SetupVPR.c.

{
    /* First priority to the '--timing_analysis' flag */
    if(Options.Count[OT_TIMING_ANALYSIS])
        {
            return Options.TimingAnalysis;
        }
    return TRUE;
}

Here is the caller graph for this function:

static void load_subblock_info_to_type	(	INOUT t_subblock_data *	subblocks,
		INOUT t_type_ptr	type
	)			[static]

Definition at line 1029 of file SetupVPR.c.

{
    int iblk, i;
    int *num_subblocks_per_block;
    t_subblock **subblock_inf;

    num_subblocks_per_block = subblocks->num_subblocks_per_block;
    subblock_inf = subblocks->subblock_inf;

    /* This is also a hack, IO's have subblocks prespecified */
    if(type != IO_TYPE)
        {
            type_descriptors[type->index].max_subblock_inputs =
                type->num_receivers;
            type_descriptors[type->index].max_subblock_outputs =
                type->num_drivers;
            type_descriptors[type->index].max_subblocks = 1;
        }

    for(iblk = 0; iblk < num_blocks; iblk++)
        {
            if(block[iblk].type == type)
                {
                    subblock_inf[iblk] =
                        (t_subblock *) my_malloc(sizeof(t_subblock));
                    num_subblocks_per_block[iblk] = 1;
                    subblock_inf[iblk][0].name = block[iblk].name;
                    subblock_inf[iblk][0].inputs =
                        (int *)my_malloc(type->max_subblock_inputs *
                                         sizeof(int));
                    subblock_inf[iblk][0].outputs =
                        (int *)my_malloc(type->max_subblock_outputs *
                                         sizeof(int));
                    for(i = 0; i < type->num_pins; i++)
                        {
                            if(i < type->max_subblock_inputs)
                                {
                                    subblock_inf[iblk][0].inputs[i] =
                                        (block[iblk].nets[i] ==
                                         OPEN) ? OPEN : i;
                                }
                            else if(i <
                                    type->max_subblock_inputs +
                                    type->max_subblock_outputs)
                                {
                                    subblock_inf[iblk][0].outputs[i -
                                                                  type->
                                                                  max_subblock_inputs]
                                        =
                                        (block[iblk].nets[i] ==
                                         OPEN) ? OPEN : i;
                                }
                            else
                                {
                                    subblock_inf[iblk][0].clock =
                                        (block[iblk].nets[i] ==
                                         OPEN) ? OPEN : i;
                                }
                        }
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void SetupAnnealSched	(	IN t_options	Options,
		OUT struct s_annealing_sched *	AnnealSched
	)			[static]

Definition at line 799 of file SetupVPR.c.

{
    AnnealSched->alpha_t = 0.8; /* DEFAULT */
    if(Options.Count[OT_ALPHA_T])
        {
            AnnealSched->alpha_t = Options.PlaceAlphaT;
        }
    if(AnnealSched->alpha_t >= 1 || AnnealSched->alpha_t <= 0)
        {
            printf(ERRTAG "alpha_t must be between 0 and 1 exclusive\n");
            exit(1);
        }
    AnnealSched->exit_t = 0.01; /* DEFAULT */
    if(Options.Count[OT_EXIT_T])
        {
            AnnealSched->exit_t = Options.PlaceExitT;
        }
    if(AnnealSched->exit_t <= 0)
        {
            printf(ERRTAG "exit_t must be greater than 0\n");
            exit(1);
        }
    AnnealSched->init_t = 100.0;        /* DEFAULT */
    if(Options.Count[OT_INIT_T])
        {
            AnnealSched->init_t = Options.PlaceInitT;
        }
    if(AnnealSched->init_t <= 0)
        {
            printf(ERRTAG "init_t must be greater than 0\n");
            exit(1);
        }
    if(AnnealSched->init_t < AnnealSched->exit_t)
        {
            printf(ERRTAG "init_t must be greater or equal to than exit_t\n");
            exit(1);
        }
    AnnealSched->inner_num = 10.0;      /* DEFAULT */
        if(Options.Count[OT_FAST]) {
                AnnealSched->inner_num = 1.0;   /* DEFAULT for fast*/
        }
    if(Options.Count[OT_INNER_NUM])
        {
            AnnealSched->inner_num = Options.PlaceInnerNum;
        }
    if(AnnealSched->inner_num <= 0)
        {
            printf(ERRTAG "init_t must be greater than 0\n");
            exit(1);
        }
    AnnealSched->type = AUTO_SCHED;     /* DEFAULT */
    if((Options.Count[OT_ALPHA_T]) ||
       (Options.Count[OT_EXIT_T]) || (Options.Count[OT_INIT_T]))
        {
            AnnealSched->type = USER_SCHED;
        }
}

Here is the caller graph for this function:

static void SetupGlobalRoutingArch	(	OUT struct s_det_routing_arch *	RoutingArch,
		OUT t_segment_inf **	Segments
	)			[static]

static void SetupOperation	(	IN t_options	Options,
		OUT enum e_operation *	Operation
	)			[static]

Definition at line 993 of file SetupVPR.c.

{
    *Operation = PLACE_AND_ROUTE;       /* DEFAULT */
    if(Options.Count[OT_ROUTE_ONLY])
        {
            *Operation = ROUTE_ONLY;
        }
    if(Options.Count[OT_PLACE_ONLY])
        {
            *Operation = PLACE_ONLY;
        }
    if(Options.Count[OT_TIMING_ANALYZE_ONLY_WITH_NET_DELAY])
        {
            *Operation = TIMING_ANALYSIS_ONLY;
        }
}

Here is the caller graph for this function:

static void SetupPlacerOpts	(	IN t_options	Options,
		IN boolean	TimingEnabled,
		OUT struct s_placer_opts *	PlacerOpts
	)			[static]

Definition at line 862 of file SetupVPR.c.

{
    PlacerOpts->block_dist = 1; /* DEFAULT */
    if(Options.Count[OT_BLOCK_DIST])
        {
            PlacerOpts->block_dist = Options.block_dist;
        }

    PlacerOpts->inner_loop_recompute_divider = 0;       /* DEFAULT */
    if(Options.Count[OT_INNER_LOOP_RECOMPUTE_DIVIDER])
        {
            PlacerOpts->inner_loop_recompute_divider = Options.inner_loop_recompute_divider;
        }

    PlacerOpts->place_cost_exp = 1.0;   /* DEFAULT */
    if(Options.Count[OT_PLACE_COST_EXP])
        {
            PlacerOpts->place_cost_exp = Options.place_cost_exp;
        }

    PlacerOpts->td_place_exp_first = 1; /* DEFAULT */
    if(Options.Count[OT_TD_PLACE_EXP_FIRST])
        {
            PlacerOpts->td_place_exp_first = Options.place_exp_first;
        }

    PlacerOpts->td_place_exp_last = 8;  /* DEFAULT */
    if(Options.Count[OT_TD_PLACE_EXP_LAST])
        {
            PlacerOpts->td_place_exp_last = Options.place_exp_last;
        }

    PlacerOpts->place_cost_type = LINEAR_CONG;  /* DEFAULT */
    if(Options.Count[OT_PLACE_COST_TYPE])
        {
            PlacerOpts->place_cost_type = Options.PlaceCostType;
        }

    /* Depends on PlacerOpts->place_cost_type */
    PlacerOpts->place_algorithm = BOUNDING_BOX_PLACE;   /* DEFAULT */
    if(TimingEnabled)
        {
            PlacerOpts->place_algorithm = PATH_TIMING_DRIVEN_PLACE;     /* DEFAULT */
        }
    if(NONLINEAR_CONG == PlacerOpts->place_cost_type)
        {
            PlacerOpts->place_algorithm = BOUNDING_BOX_PLACE;   /* DEFAULT */
        }
    if(Options.Count[OT_PLACE_ALGORITHM])
        {
            PlacerOpts->place_algorithm = Options.PlaceAlgorithm;
        }

    PlacerOpts->num_regions = 4;        /* DEFAULT */
    if(Options.Count[OT_NUM_REGIONS])
        {
            PlacerOpts->num_regions = Options.PlaceNonlinearRegions;
        }

    PlacerOpts->pad_loc_file = NULL;    /* DEFAULT */
    if(Options.Count[OT_FIX_PINS])
        {
            if(Options.PinFile)
                {
                    PlacerOpts->pad_loc_file = my_strdup(Options.PinFile);
                }
        }

    PlacerOpts->pad_loc_type = FREE;    /* DEFAULT */
    if(Options.Count[OT_FIX_PINS])
        {
            PlacerOpts->pad_loc_type = (Options.PinFile ? USER : RANDOM);
        }

    /* Depends on PlacerOpts->place_cost_type */
    PlacerOpts->place_chan_width = 100; /* DEFAULT */
    if((NONLINEAR_CONG == PlacerOpts->place_cost_type) &&
       (Options.Count[OT_ROUTE_CHAN_WIDTH]))
        {
            PlacerOpts->place_chan_width = Options.RouteChanWidth;
        }
    if(Options.Count[OT_PLACE_CHAN_WIDTH])
        {
            PlacerOpts->place_chan_width = Options.PlaceChanWidth;
        }

    PlacerOpts->recompute_crit_iter = 1;        /* DEFAULT */
    if(Options.Count[OT_RECOMPUTE_CRIT_ITER])
        {
            PlacerOpts->recompute_crit_iter = Options.RecomputeCritIter;
        }

    PlacerOpts->timing_tradeoff = 0.5;  /* DEFAULT */
    if(Options.Count[OT_TIMING_TRADEOFF])
        {
            PlacerOpts->timing_tradeoff = Options.PlaceTimingTradeoff;
        }

    /* Depends on PlacerOpts->place_algorithm */
    PlacerOpts->enable_timing_computations = FALSE;     /* DEFAULT */
    if((PlacerOpts->place_algorithm == PATH_TIMING_DRIVEN_PLACE) ||
       (PlacerOpts->place_algorithm == NET_TIMING_DRIVEN_PLACE))
        {
            PlacerOpts->enable_timing_computations = TRUE;      /* DEFAULT */
        }
    if(Options.Count[OT_ENABLE_TIMING_COMPUTATIONS])
        {
            PlacerOpts->enable_timing_computations = Options.ShowPlaceTiming;
        }

    /* Depends on PlacerOpts->place_cost_type */
    PlacerOpts->place_freq = PLACE_ONCE;        /* DEFAULT */
    if(NONLINEAR_CONG == PlacerOpts->place_cost_type)
        {
            PlacerOpts->place_freq = PLACE_ALWAYS;      /* DEFAULT */
        }
    if((Options.Count[OT_ROUTE_CHAN_WIDTH]) ||
       (Options.Count[OT_PLACE_CHAN_WIDTH]))
        {
            PlacerOpts->place_freq = PLACE_ONCE;
        }
    if(Options.Count[OT_ROUTE_ONLY])
        {
            PlacerOpts->place_freq = PLACE_NEVER;
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void SetupRouterOpts	(	IN t_options	Options,
		IN boolean	TimingEnabled,
		OUT struct s_router_opts *	RouterOpts
	)			[static]

Definition at line 643 of file SetupVPR.c.

{
        RouterOpts->astar_fac = 1.2;    /* DEFAULT */
        if(Options.Count[OT_ASTAR_FAC])
        {
            RouterOpts->astar_fac = Options.astar_fac;
        }

    RouterOpts->bb_factor = 3;  /* DEFAULT */
        if(Options.Count[OT_FAST])
        {
                RouterOpts->bb_factor = 0;      /* DEFAULT */
        }
        if(Options.Count[OT_BB_FACTOR])
        {
            RouterOpts->bb_factor = Options.bb_factor;
        }

    RouterOpts->criticality_exp = 1.0;  /* DEFAULT */
        if(Options.Count[OT_CRITICALITY_EXP])
        {
            RouterOpts->criticality_exp = Options.criticality_exp;
        }

    RouterOpts->max_criticality = 0.99; /* DEFAULT */
        if(Options.Count[OT_MAX_CRITICALITY])
        {
            RouterOpts->max_criticality = Options.max_criticality;
        }

    RouterOpts->max_router_iterations = 50;     /* DEFAULT */
        if(Options.Count[OT_FAST])
        {
            RouterOpts->max_router_iterations = 10;
        }
        if(Options.Count[OT_MAX_ROUTER_ITERATIONS])
        {
            RouterOpts->max_router_iterations = Options.max_router_iterations;
        }

    RouterOpts->pres_fac_mult = 1.3;    /* DEFAULT */
        if(Options.Count[OT_PRES_FAC_MULT])
        {
            RouterOpts->pres_fac_mult = Options.pres_fac_mult;
        }


    RouterOpts->route_type = DETAILED;  /* DEFAULT */
    if(Options.Count[OT_ROUTE_TYPE])
        {
            RouterOpts->route_type = Options.RouteType;
        }

        RouterOpts->full_stats = FALSE; /* DEFAULT */
        if(Options.Count[OT_FULL_STATS])
        {
            RouterOpts->full_stats = TRUE;
        }

        RouterOpts->verify_binary_search = FALSE; /* DEFAULT */
        if(Options.Count[OT_VERIFY_BINARY_SEARCH])
        {
            RouterOpts->verify_binary_search = TRUE;
        }

    /* Depends on RouteOpts->route_type */
    RouterOpts->router_algorithm = DIRECTED_SEARCH;     /* DEFAULT */
    if(TimingEnabled)
        {
            RouterOpts->router_algorithm = TIMING_DRIVEN;       /* DEFAULT */
        }
    if(GLOBAL == RouterOpts->route_type)
        {
            RouterOpts->router_algorithm = DIRECTED_SEARCH;     /* DEFAULT */
        }
    if(Options.Count[OT_ROUTER_ALGORITHM])
        {
            RouterOpts->router_algorithm = Options.RouterAlgorithm;
        }

    RouterOpts->fixed_channel_width = NO_FIXED_CHANNEL_WIDTH;   /* DEFAULT */
    if(Options.Count[OT_ROUTE_CHAN_WIDTH])
        {
            RouterOpts->fixed_channel_width = Options.RouteChanWidth;
        }

    /* Depends on RouterOpts->router_algorithm */
    RouterOpts->initial_pres_fac = 0.5; /* DEFAULT */
    if(DIRECTED_SEARCH == RouterOpts->router_algorithm ||
                Options.Count[OT_FAST])
        {
            RouterOpts->initial_pres_fac = 10000.0;     /* DEFAULT */
        }
    if(Options.Count[OT_INITIAL_PRES_FAC])
        {
            RouterOpts->initial_pres_fac = Options.initial_pres_fac;
        }

    /* Depends on RouterOpts->router_algorithm */
    RouterOpts->base_cost_type = DELAY_NORMALIZED;      /* DEFAULT */
    if(BREADTH_FIRST == RouterOpts->router_algorithm)
        {
            RouterOpts->base_cost_type = DEMAND_ONLY;   /* DEFAULT */
        }
    if(DIRECTED_SEARCH == RouterOpts->router_algorithm)
        {
            RouterOpts->base_cost_type = DEMAND_ONLY;   /* DEFAULT */
        }
        if(Options.Count[OT_BASE_COST_TYPE])
        {
            RouterOpts->base_cost_type = Options.base_cost_type;
        }

    /* Depends on RouterOpts->router_algorithm */
    RouterOpts->first_iter_pres_fac = 0.5;      /* DEFAULT */
    if(BREADTH_FIRST == RouterOpts->router_algorithm)
        {
            RouterOpts->first_iter_pres_fac = 0.0;      /* DEFAULT */
        }
    if(DIRECTED_SEARCH == RouterOpts->router_algorithm ||
                Options.Count[OT_FAST])
        {
            RouterOpts->first_iter_pres_fac = 10000.0;  /* DEFAULT */
        }
        if(Options.Count[OT_FIRST_ITER_PRES_FAC])
        {
            RouterOpts->first_iter_pres_fac = Options.first_iter_pres_fac;
        }

    /* Depends on RouterOpts->router_algorithm */
    RouterOpts->acc_fac = 1.0;
    if(BREADTH_FIRST == RouterOpts->router_algorithm)
        {
            RouterOpts->acc_fac = 0.2;
        }
        if(Options.Count[OT_ACC_FAC])
        {
            RouterOpts->acc_fac = Options.acc_fac;
        }

    /* Depends on RouterOpts->route_type */
    RouterOpts->bend_cost = 0.0;        /* DEFAULT */
    if(GLOBAL == RouterOpts->route_type)
        {
            RouterOpts->bend_cost = 1.0;        /* DEFAULT */
        }
        if(Options.Count[OT_BEND_COST])
        {
            RouterOpts->bend_cost = Options.bend_cost;
        }
}

Here is the caller graph for this function:

static void SetupRoutingArch	(	IN t_arch	Arch,
		OUT struct s_det_routing_arch *	RoutingArch
	)			[static]

Definition at line 628 of file SetupVPR.c.

{

    RoutingArch->switch_block_type = Arch.SBType;
    RoutingArch->R_minW_nmos = Arch.R_minW_nmos;
    RoutingArch->R_minW_pmos = Arch.R_minW_pmos;
    RoutingArch->Fs = Arch.Fs;
    RoutingArch->directionality = BI_DIRECTIONAL;
    if(Arch.Segments)
        RoutingArch->directionality = Arch.Segments[0].directionality;
}

Here is the caller graph for this function:

static void SetupSwitches	(	IN t_arch	Arch,
		INOUT struct s_det_routing_arch *	RoutingArch,
		IN struct s_switch_inf *	ArchSwitches,
		IN int	NumArchSwitches
	)			[static]

Definition at line 581 of file SetupVPR.c.

{

    RoutingArch->num_switch = NumArchSwitches;

    /* Depends on RoutingArch->num_switch */
    RoutingArch->wire_to_ipin_switch = RoutingArch->num_switch;
    ++RoutingArch->num_switch;

    /* Depends on RoutingArch->num_switch */
    RoutingArch->delayless_switch = RoutingArch->num_switch;
    RoutingArch->global_route_switch = RoutingArch->delayless_switch;
    ++RoutingArch->num_switch;

    /* Alloc the list now that we know the final num_switch value */
    switch_inf =
        (struct s_switch_inf *)my_malloc(sizeof(struct s_switch_inf) *
                                         RoutingArch->num_switch);

    /* Copy the switch data from architecture file */
    memcpy(switch_inf, ArchSwitches,
           sizeof(struct s_switch_inf) * NumArchSwitches);

    /* Delayless switch for connecting sinks and sources with their pins. */
    switch_inf[RoutingArch->delayless_switch].buffered = TRUE;
    switch_inf[RoutingArch->delayless_switch].R = 0.;
    switch_inf[RoutingArch->delayless_switch].Cin = 0.;
    switch_inf[RoutingArch->delayless_switch].Cout = 0.;
    switch_inf[RoutingArch->delayless_switch].Tdel = 0.;

    /* The wire to ipin switch for all types. Curently all types
     * must share ipin switch. Some of the timing code would
     * need to be changed otherwise. */
    switch_inf[RoutingArch->wire_to_ipin_switch].buffered = TRUE;
    switch_inf[RoutingArch->wire_to_ipin_switch].R = 0.;
    switch_inf[RoutingArch->wire_to_ipin_switch].Cin = Arch.C_ipin_cblock;
    switch_inf[RoutingArch->wire_to_ipin_switch].Cout = 0.;
    switch_inf[RoutingArch->wire_to_ipin_switch].Tdel = Arch.T_ipin_cblock;
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void SetupTiming	(	IN t_options	Options,
		IN t_arch	Arch,
		IN boolean	TimingEnabled,
		IN enum e_operation	Operation,
		IN struct s_placer_opts	PlacerOpts,
		IN struct s_router_opts	RouterOpts,
		OUT t_timing_inf *	Timing
	)			[static]

Definition at line 555 of file SetupVPR.c.

{

    /* Don't do anything if they don't want timing */
    if(FALSE == TimingEnabled)
        {
            memset(Timing, 0, sizeof(t_timing_inf));
            Timing->timing_analysis_enabled = FALSE;
            return;
        }

    Timing->C_ipin_cblock = Arch.C_ipin_cblock;
    Timing->T_ipin_cblock = Arch.T_ipin_cblock;
    Timing->timing_analysis_enabled = TimingEnabled;
}

Here is the caller graph for this function:

void SetupVPR	(	IN t_options	Options,
		IN boolean	TimingEnabled,
		OUT t_arch *	Arch,
		OUT enum e_operation *	Operation,
		OUT struct s_placer_opts *	PlacerOpts,
		OUT struct s_annealing_sched *	AnnealSched,
		OUT struct s_router_opts *	RouterOpts,
		OUT struct s_det_routing_arch *	RoutingArch,
		OUT t_segment_inf **	Segments,
		OUT t_timing_inf *	Timing,
		OUT t_subblock_data *	Subblocks,
		OUT boolean *	ShowGraphics,
		OUT int *	GraphPause
	)

Definition at line 49 of file SetupVPR.c.

{

    SetupOperation(Options, Operation);
    SetupPlacerOpts(Options, TimingEnabled, PlacerOpts);
    SetupAnnealSched(Options, AnnealSched);
    SetupRouterOpts(Options, TimingEnabled, RouterOpts);

    XmlReadArch(Options.ArchFile, TimingEnabled, Arch,
                &type_descriptors, &num_types);

    *Segments = Arch->Segments;
    RoutingArch->num_segment = Arch->num_segments;

    SetupSwitches(*Arch, RoutingArch, Arch->Switches, Arch->num_switches);
    SetupRoutingArch(*Arch, RoutingArch);
    SetupTiming(Options, *Arch, TimingEnabled, *Operation,
                *PlacerOpts, *RouterOpts, Timing);

    /* init global variables */
    OutFilePrefix = Options.OutFilePrefix;
    grid_logic_tile_area = Arch->grid_logic_tile_area;
    ipin_mux_trans_size = Arch->ipin_mux_trans_size;

    /* Set seed for pseudo-random placement, default seed to 1 */
    PlacerOpts->seed = 1;
    if(Options.Count[OT_SEED])
        {
            PlacerOpts->seed = Options.Seed;
        }
    my_srandom(PlacerOpts->seed);

    *GraphPause = 1;            /* DEFAULT */
    if(Options.Count[OT_AUTO])
        {
            *GraphPause = Options.GraphPause;
        }
#ifdef NO_GRAPHICS
    *ShowGraphics = FALSE;      /* DEFAULT */
#else /* NO_GRAPHICS */
    *ShowGraphics = TRUE;       /* DEFAULT */
    if(Options.Count[OT_NODISP])
        {
            *ShowGraphics = FALSE;
        }
#endif /* NO_GRAPHICS */

#ifdef CREATE_ECHO_FILES
    EchoArch("arch.echo", type_descriptors, num_types);
#endif

    if(Options.NetFile)
        {
            read_netlist(Options.NetFile, num_types, type_descriptors,
                         IO_TYPE, 0, 1, Subblocks, &num_blocks, &block,
                         &num_nets, &net);
            /* This is done so that all blocks have subblocks and can be treated the same */
            load_subblock_info_to_type(Subblocks, IO_TYPE);
            check_netlist(Subblocks);
        }

    InitArch(*Arch);
}

Here is the call graph for this function:

Here is the caller graph for this function:
