SRC/path_delay.c File Reference

#include <stdio.h>
#include "util.h"
#include "vpr_types.h"
#include "globals.h"
#include "path_delay.h"
#include "path_delay2.h"
#include "net_delay.h"
#include "vpr_utils.h"
#include <assert.h>

Include dependency graph for path_delay.c:

Go to the source code of this file.

Defines
#define	T_CONSTANT_GENERATOR   -1000
Enumerations
enum	e_subblock_pin_type { SUB_INPUT = 0, SUB_OUTPUT, SUB_CLOCK, NUM_SUB_PIN_TYPES }
Functions
static int	alloc_and_load_pin_mappings (int ***block_pin_to_tnode_ptr, int *****snode_block_pin_to_tnode_ptr, t_subblock_data subblock_data, int ***num_uses_of_sblk_opin)
static void	free_pin_mappings (int **block_pin_to_tnode, int ****snode_block_pin_to_tnode, int *num_subblocks_per_block)
static void	alloc_and_load_fanout_counts (int ***num_uses_of_fb_ipin_ptr, int ****num_uses_of_sblk_opin_ptr, t_subblock_data subblock_data)
static void	free_fanout_counts (int **num_uses_of_fb_ipin, int ***num_uses_of_sblk_opin)
static float **	alloc_net_slack (void)
static void	compute_net_slacks (float **net_slack)
static void	alloc_and_load_tnodes_and_net_mapping (int **num_uses_of_fb_ipin, int ***num_uses_of_sblk_opin, int **block_pin_to_tnode, int ****snode_block_pin_to_tnode, t_subblock_data subblock_data, t_timing_inf timing_inf)
static void	build_fb_tnodes (int iblk, int *n_uses_of_fb_ipin, int **block_pin_to_tnode, int ***sub_pin_to_tnode, int num_subs, t_subblock *sub_inf, float T_fb_ipin_to_sblk_ipin)
static void	build_subblock_tnodes (int **n_uses_of_sblk_opin, int *node_block_pin_to_tnode, int ***sub_pin_to_tnode, int *num_subblocks_per_block, t_subblock **subblock_inf, t_timing_inf timing_inf, int iblk)
static boolean	is_global_clock (int iblk, int sub, int subpin, int *num_subblocks_per_block, t_subblock **subblock_inf)
static void	build_block_output_tnode (int inode, int iblk, int ipin, int **block_pin_to_tnode)
float **	alloc_and_load_timing_graph (t_timing_inf timing_inf, t_subblock_data subblock_data)
void	load_timing_graph_net_delays (float **net_delay)
void	free_timing_graph (float **net_slack)
void	print_net_slack (char *fname, float **net_slack)
void	print_timing_graph (char *fname)
float	load_net_slack (float **net_slack, float target_cycle_time)

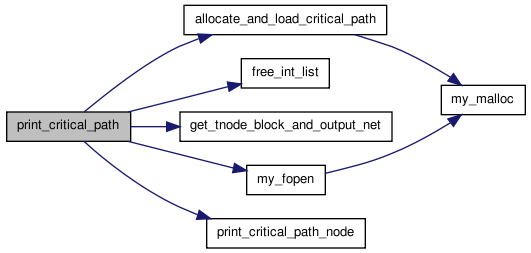

void	print_critical_path (char *fname, t_subblock_data subblock_data)
t_linked_int *	allocate_and_load_critical_path (void)
void	get_tnode_block_and_output_net (int inode, int *iblk_ptr, int *inet_ptr)
void	do_constant_net_delay_timing_analysis (t_timing_inf timing_inf, t_subblock_data subblock_data, float constant_net_delay_value)
Variables
static struct s_linked_vptr *	tedge_ch_list_head = NULL
static int	tedge_ch_bytes_avail = 0
static char *	tedge_ch_next_avail = NULL

---

Define Documentation

#define T_CONSTANT_GENERATOR   -1000

Definition at line 76 of file path_delay.c.

---

Enumeration Type Documentation

enum e_subblock_pin_type

Enumerator:

SUB_INPUT
SUB_OUTPUT
SUB_CLOCK
NUM_SUB_PIN_TYPES

Definition at line 80 of file path_delay.c.

{ SUB_INPUT = 0, SUB_OUTPUT, SUB_CLOCK, NUM_SUB_PIN_TYPES };

---

Function Documentation

static void alloc_and_load_fanout_counts	(	int ***	num_uses_of_fb_ipin_ptr,
		int ****	num_uses_of_sblk_opin_ptr,
		t_subblock_data	subblock_data
	)			[static]

Definition at line 456 of file path_delay.c.

{

/* Allocates and loads two arrays that say how many points each fb input    *
 * pin and each subblock output fan out to.                                 */

    int iblk;
    int **num_uses_of_fb_ipin, ***num_uses_of_sblk_opin;
    int *num_subblocks_per_block;
    t_subblock **subblock_inf;

    num_subblocks_per_block = subblock_data.num_subblocks_per_block;
    subblock_inf = subblock_data.subblock_inf;

    num_uses_of_fb_ipin = (int **)my_malloc(num_blocks * sizeof(int *));

    num_uses_of_sblk_opin = (int ***)my_malloc(num_blocks * sizeof(int **));

    for(iblk = 0; iblk < num_blocks; iblk++)
        {
            num_uses_of_fb_ipin[iblk] =
                (int *)my_calloc(block[iblk].type->num_pins, sizeof(int));
            num_uses_of_sblk_opin[iblk] =
                (int **)alloc_matrix(0, block[iblk].type->max_subblocks - 1,
                                     0,
                                     block[iblk].type->max_subblock_outputs -
                                     1, sizeof(int));

            load_one_fb_fanout_count(subblock_inf[iblk],
                                     num_subblocks_per_block[iblk],
                                     num_uses_of_fb_ipin[iblk],
                                     num_uses_of_sblk_opin[iblk], iblk);

        }                       /* End for all blocks */

    *num_uses_of_fb_ipin_ptr = num_uses_of_fb_ipin;
    *num_uses_of_sblk_opin_ptr = num_uses_of_sblk_opin;
}

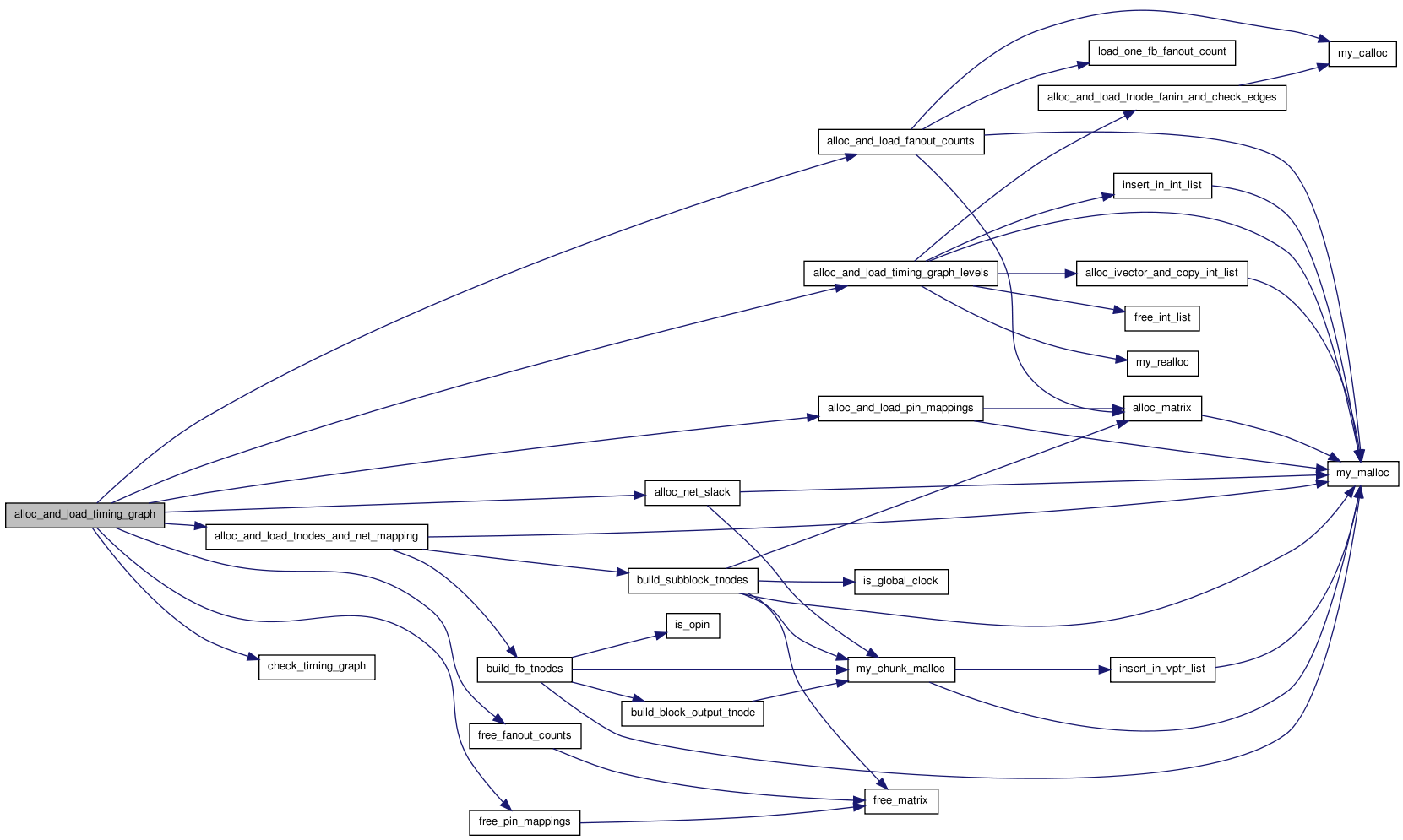

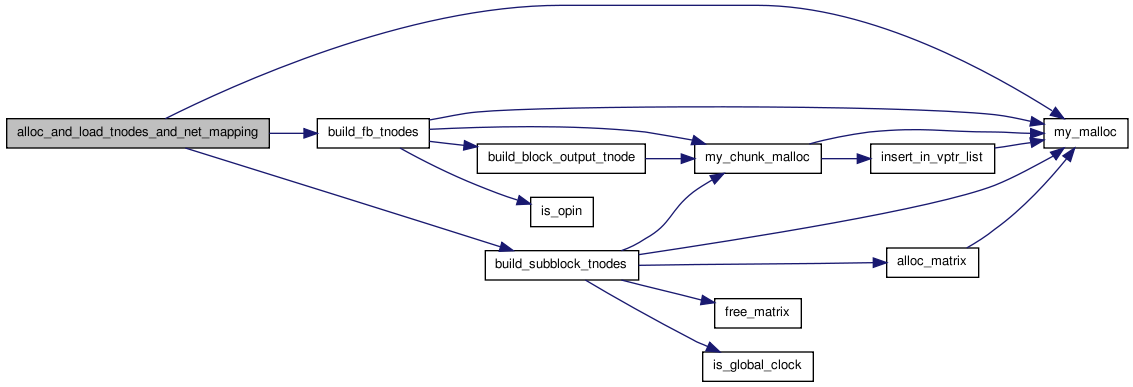

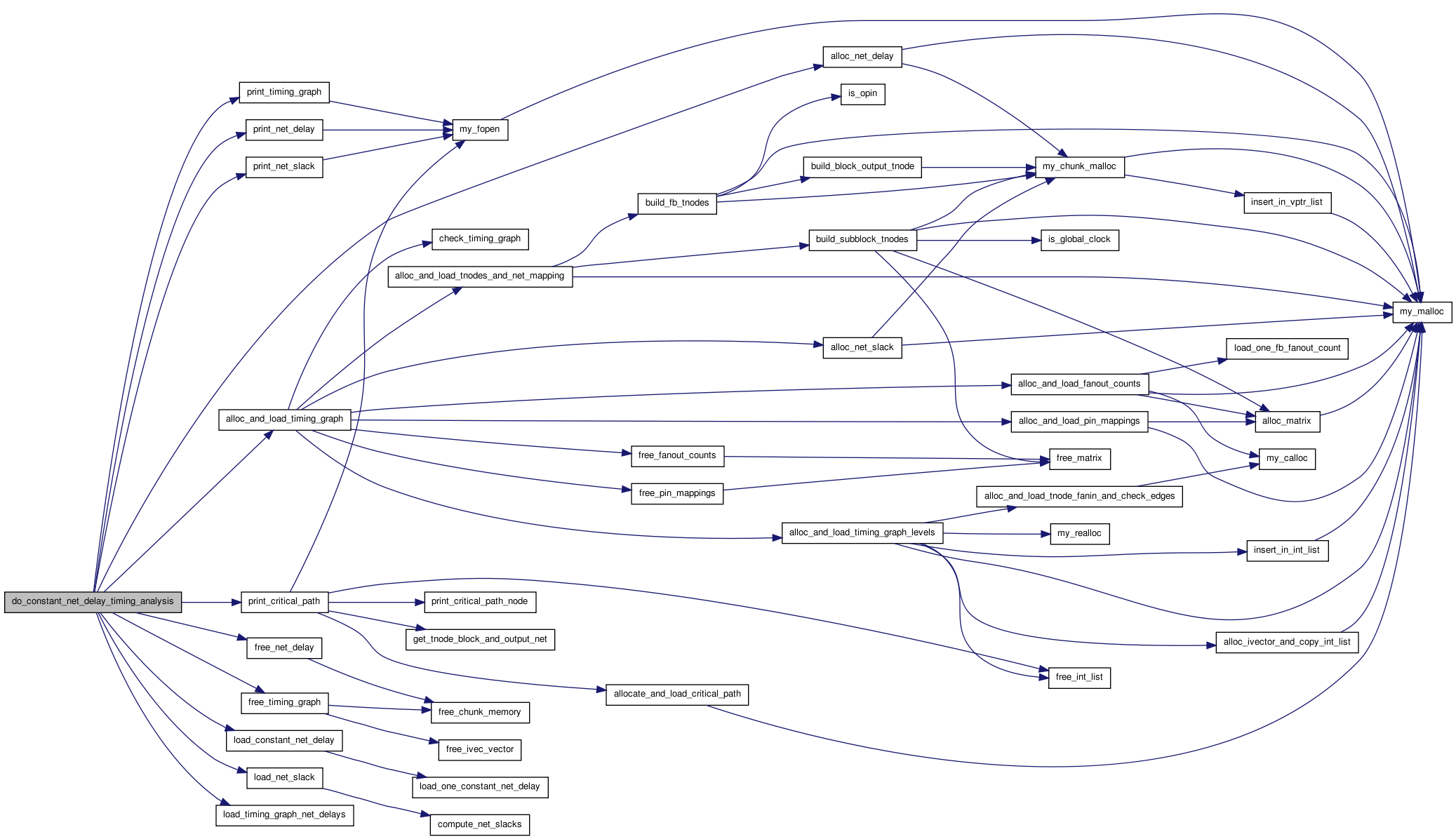

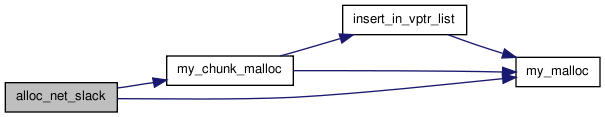

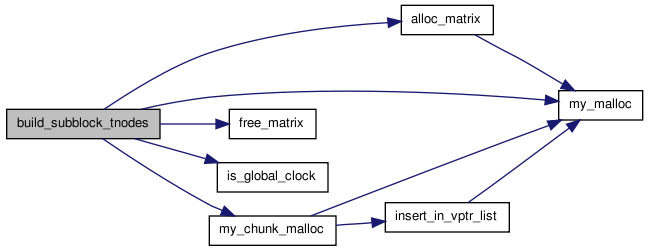

Here is the call graph for this function:

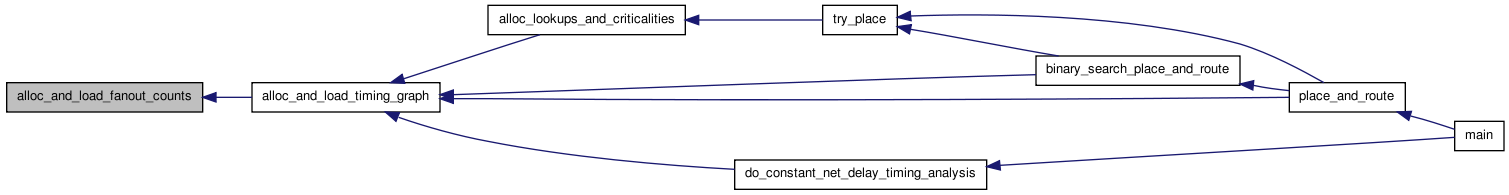

Here is the caller graph for this function:

static int alloc_and_load_pin_mappings	(	int ***	block_pin_to_tnode_ptr,
		int *****	snode_block_pin_to_tnode_ptr,
		t_subblock_data	subblock_data,
		int ***	num_uses_of_sblk_opin
	)			[static]

Definition at line 279 of file path_delay.c.

{

/* Allocates and loads the block_pin_to_tnode and snode_block_pin_to_tnode         *
 * structures, and computes num_tnodes.                                     */

    int iblk, isub, ipin, num_subblocks, opin, clk_pin;
    int curr_tnode;
    int ****snode_block_pin_to_tnode, **block_pin_to_tnode;
    int *num_subblocks_per_block;
    t_type_ptr type;
    t_subblock **subblock_inf;
    boolean has_inputs;

    num_subblocks_per_block = subblock_data.num_subblocks_per_block;
    subblock_inf = subblock_data.subblock_inf;


    block_pin_to_tnode = (int **)my_malloc(num_blocks * sizeof(int *));

    snode_block_pin_to_tnode =
        (int ****)my_malloc(num_blocks * sizeof(int ***));

    curr_tnode = 0;

    for(iblk = 0; iblk < num_blocks; iblk++)
        {
            type = block[iblk].type;
            block_pin_to_tnode[iblk] =
                (int *)my_malloc(type->num_pins * sizeof(int));
            /* First do the block mapping */
            for(ipin = 0; ipin < block[iblk].type->num_pins; ipin++)
                {
                    if(block[iblk].nets[ipin] == OPEN)
                        {
                            block_pin_to_tnode[iblk][ipin] = OPEN;
                        }
                    else
                        {
                            block_pin_to_tnode[iblk][ipin] = curr_tnode;
                            curr_tnode++;
                        }
                }

            /* Now do the subblock mapping. */

            num_subblocks = num_subblocks_per_block[iblk];
            snode_block_pin_to_tnode[iblk] = (int ***)alloc_matrix(0, num_subblocks - 1, 0, NUM_SUB_PIN_TYPES - 1, sizeof(int *));      /* [0..max_subblocks_for_type - 1][0..SUB_NUM_PIN_TYPES - 1] */

            for(isub = 0; isub < num_subblocks; isub++)
                {
                    /* Allocate space for each type of subblock pin */
                    snode_block_pin_to_tnode[iblk][isub][SUB_INPUT] =
                        (int *)my_malloc(type->max_subblock_inputs *
                                         sizeof(int));
                    snode_block_pin_to_tnode[iblk][isub][SUB_OUTPUT] =
                        (int *)my_malloc(type->max_subblock_outputs *
                                         sizeof(int));
                    snode_block_pin_to_tnode[iblk][isub][SUB_CLOCK] =
                        (int *)my_malloc(sizeof(int));

                    /* Pin ordering:  inputs, outputs, clock.   */

                    has_inputs = FALSE;
                    for(ipin = 0; ipin < type->max_subblock_inputs; ipin++)
                        {
                            if(subblock_inf[iblk][isub].inputs[ipin] != OPEN)
                                {
                                    has_inputs = TRUE;
                                    snode_block_pin_to_tnode[iblk][isub]
                                        [SUB_INPUT][ipin] = curr_tnode;
                                    curr_tnode++;
                                    if(type == IO_TYPE)
                                        curr_tnode++;   /* Output pad needs additional dummy sink node */
                                }
                            else
                                {
                                    snode_block_pin_to_tnode[iblk][isub]
                                        [SUB_INPUT][ipin] = OPEN;
                                }
                        }

                    /* subblock output  */

                    /* If the subblock opin is unused the subblock is empty and we    *
                     * shoudn't count it.                                             */
                    for(opin = 0; opin < type->max_subblock_outputs; opin++)
                        {

                            if(num_uses_of_sblk_opin[iblk][isub][opin] != 0)
                                {
                                    snode_block_pin_to_tnode[iblk][isub]
                                        [SUB_OUTPUT][opin] = curr_tnode;

                                    if(type == IO_TYPE)
                                        curr_tnode += 2;        /* Input pad needs a dummy source node */
                                    else if(has_inputs) /* Regular sblk */
                                        curr_tnode++;
                                    else        /* Constant generator. Make room for dummy input */
                                        curr_tnode += 2;
                                }
                            else
                                {
                                    snode_block_pin_to_tnode[iblk][isub]
                                        [SUB_OUTPUT][opin] = OPEN;
                                }
                        }

                    clk_pin = 0;

                    if(subblock_inf[iblk][isub].clock != OPEN)
                        {

                            /* If this is a sequential block, we have two more pins per used output: #1: the
                             * clock input (connects to the subblock output node) and #2: the
                             * sequential sink (which the subblock LUT inputs will connect to). */
                            snode_block_pin_to_tnode[iblk][isub][SUB_CLOCK]
                                [clk_pin] = curr_tnode;

                            for(opin = 0; opin < type->max_subblock_outputs;
                                opin++)
                                {
                                    if(subblock_inf[iblk][isub].
                                       outputs[opin] != OPEN)
                                        curr_tnode += 2;
                                }
                        }
                    else
                        {
                            snode_block_pin_to_tnode[iblk][isub][SUB_CLOCK]
                                [clk_pin] = OPEN;
                        }
                }

        }                       /* End for all blocks */

    *snode_block_pin_to_tnode_ptr = snode_block_pin_to_tnode;
    *block_pin_to_tnode_ptr = block_pin_to_tnode;
    return (curr_tnode);
}

Here is the call graph for this function:

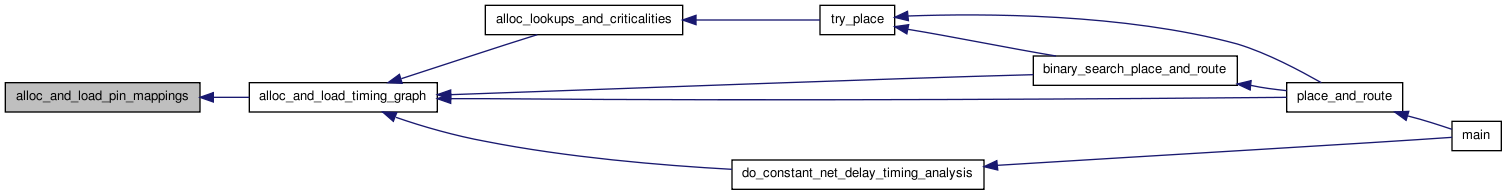

Here is the caller graph for this function:

float** alloc_and_load_timing_graph	(	t_timing_inf	timing_inf,
		t_subblock_data	subblock_data
	)

Definition at line 158 of file path_delay.c.

{

/* This routine builds the graph used for timing analysis.  Every fb or    *
 * subblock pin is a timing node (tnode).  The connectivity between pins is *
 * represented by timing edges (tedges).  All delay is marked on edges, not *
 * on nodes.  This routine returns an array that will store slack values:   *
 * net_slack[0..num_nets-1][1..num_pins-1].                                 */

/* The two arrays below are valid only for FBs, not pads.                  */
    int i;
    int **num_uses_of_fb_ipin;  /* [0..num_blocks-1][0..type->num_pins-1]       */
    int ***num_uses_of_sblk_opin;       /* [0..num_blocks-1][0..type->num_subblocks][0..type->max_subblock_outputs] */

/* Array for mapping from a pin on a block to a tnode index. For pads, only *
 * the first two pin locations are used (input to pad is first, output of   *
 * pad is second).  For fbs, all OPEN pins on the fb have their mapping   *
 * set to OPEN so I won't use it by mistake.                                */

    int **block_pin_to_tnode;   /* [0..num_blocks-1][0..num_pins-1]      */


/* Array for mapping from a pin on a subblock to a tnode index.  Unused     *
 * or nonexistent subblock pins have their mapping set to OPEN.             *
 * [0..num_blocks-1][0..num_subblocks_per_block-1][0..NUM_SUB_PIN_TYPES][0..total_subblock_pins-1]  */

    int ****snode_block_pin_to_tnode;

    int num_sinks;
    float **net_slack;          /* [0..num_nets-1][1..num_pins-1]. */

/************* End of variable declarations ********************************/

    if(tedge_ch_list_head != NULL)
        {
            printf("Error in alloc_and_load_timing_graph:\n"
                   "\tAn old timing graph still exists.\n");
            exit(1);
        }

/* If either of the checks below ever fail, change the definition of        *
 * tnode_descript to use ints instead of shorts for isubblk or ipin.        */

    for(i = 0; i < num_types; i++)
        {
            if(type_descriptors[i].num_pins > MAX_SHORT)
                {
                    printf
                        ("Error in alloc_and_load_timing_graph: pins for type %s is %d."
                         "\tWill cause short overflow in tnode_descript.\n",
                         type_descriptors[i].name,
                         type_descriptors[i].num_pins);
                    exit(1);
                }

            if(type_descriptors[i].max_subblocks > MAX_SHORT)
                {
                    printf
                        ("Error in alloc_and_load_timing_graph: max_subblocks_per_block"
                         "\tis %d -- will cause short overflow in tnode_descript.\n",
                         type_descriptors[i].max_subblocks);
                    exit(1);
                }
        }

    alloc_and_load_fanout_counts(&num_uses_of_fb_ipin,
                                 &num_uses_of_sblk_opin, subblock_data);

    num_tnodes = alloc_and_load_pin_mappings(&block_pin_to_tnode,
                                             &snode_block_pin_to_tnode,
                                             subblock_data,
                                             num_uses_of_sblk_opin);

    alloc_and_load_tnodes_and_net_mapping(num_uses_of_fb_ipin,
                                          num_uses_of_sblk_opin,
                                          block_pin_to_tnode,
                                          snode_block_pin_to_tnode,
                                          subblock_data, timing_inf);

    num_sinks = alloc_and_load_timing_graph_levels();

    check_timing_graph(subblock_data.num_const_gen, subblock_data.num_ff,
                       num_sinks);

    free_fanout_counts(num_uses_of_fb_ipin, num_uses_of_sblk_opin);
    free_pin_mappings(block_pin_to_tnode, snode_block_pin_to_tnode,
                      subblock_data.num_subblocks_per_block);

    net_slack = alloc_net_slack();
    return (net_slack);
}

Here is the call graph for this function:

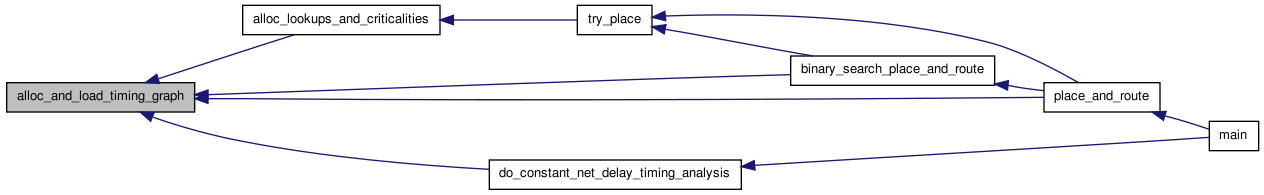

Here is the caller graph for this function:

static void alloc_and_load_tnodes_and_net_mapping	(	int **	num_uses_of_fb_ipin,
		int ***	num_uses_of_sblk_opin,
		int **	block_pin_to_tnode,
		int ****	snode_block_pin_to_tnode,
		t_subblock_data	subblock_data,
		t_timing_inf	timing_inf
	)			[static]

Definition at line 522 of file path_delay.c.

{

    int iblk;
    int *num_subblocks_per_block;
    t_subblock **subblock_inf;


    tnode = (t_tnode *) my_malloc(num_tnodes * sizeof(t_tnode));
    tnode_descript = (t_tnode_descript *) my_malloc(num_tnodes *
                                                    sizeof(t_tnode_descript));

    net_to_driver_tnode = (int *)my_malloc(num_nets * sizeof(int));

    subblock_inf = subblock_data.subblock_inf;
    num_subblocks_per_block = subblock_data.num_subblocks_per_block;


    for(iblk = 0; iblk < num_blocks; iblk++)
        {
            build_fb_tnodes(iblk, num_uses_of_fb_ipin[iblk],
                            block_pin_to_tnode,
                            snode_block_pin_to_tnode[iblk],
                            num_subblocks_per_block[iblk], subblock_inf[iblk],
                            block[iblk].type->type_timing_inf.
                            T_fb_ipin_to_sblk_ipin);

            build_subblock_tnodes(num_uses_of_sblk_opin[iblk],
                                  block_pin_to_tnode[iblk],
                                  snode_block_pin_to_tnode[iblk],
                                  num_subblocks_per_block, subblock_inf,
                                  timing_inf, iblk);
        }
}

Here is the call graph for this function:

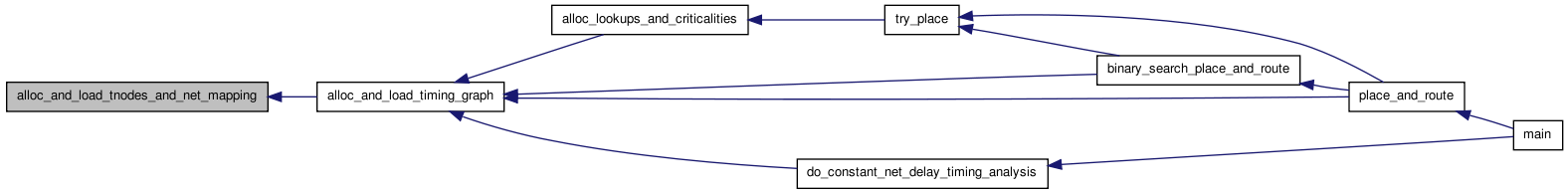

Here is the caller graph for this function:

static float ** alloc_net_slack

(

void

)

[static]

Definition at line 253 of file path_delay.c.

{

/* Allocates the net_slack structure.  Chunk allocated to save space.      */

    float **net_slack;          /* [0..num_nets-1][1..num_pins-1]  */
    float *tmp_ptr;
    int inet;

    net_slack = (float **)my_malloc(num_nets * sizeof(float *));

    for(inet = 0; inet < num_nets; inet++)
        {
            tmp_ptr =
                (float *)my_chunk_malloc(((net[inet].num_sinks + 1) - 1) *
                                         sizeof(float), &tedge_ch_list_head,
                                         &tedge_ch_bytes_avail,
                                         &tedge_ch_next_avail);
            net_slack[inet] = tmp_ptr - 1;      /* [1..num_pins-1] */
        }

    return (net_slack);
}

Here is the call graph for this function:

Here is the caller graph for this function:

t_linked_int* allocate_and_load_critical_path

(

void

)

Definition at line 1551 of file path_delay.c.

{

/* Finds the critical path and puts a list of the tnodes on the critical    *
 * path in a linked list, from the path SOURCE to the path SINK.            */

    t_linked_int *critical_path_head, *curr_crit_node, *prev_crit_node;
    int inode, iedge, to_node, num_at_level, i, crit_node, num_edges;
    float min_slack, slack;
    t_tedge *tedge;

    num_at_level = tnodes_at_level[0].nelem;
    min_slack = HUGE_FLOAT;
    crit_node = OPEN;           /* Stops compiler warnings. */

    for(i = 0; i < num_at_level; i++)
        {                       /* Path must start at SOURCE (no inputs) */
            inode = tnodes_at_level[0].list[i];
            slack = tnode[inode].T_req - tnode[inode].T_arr;

            if(slack < min_slack)
                {
                    crit_node = inode;
                    min_slack = slack;
                }
        }

    critical_path_head = (t_linked_int *) my_malloc(sizeof(t_linked_int));
    critical_path_head->data = crit_node;
    prev_crit_node = critical_path_head;
    num_edges = tnode[crit_node].num_edges;

    while(num_edges != 0)
        {                       /* Path will end at SINK (no fanout) */
            curr_crit_node = (t_linked_int *) my_malloc(sizeof(t_linked_int));
            prev_crit_node->next = curr_crit_node;
            tedge = tnode[crit_node].out_edges;
            min_slack = HUGE_FLOAT;

            for(iedge = 0; iedge < num_edges; iedge++)
                {
                    to_node = tedge[iedge].to_node;
                    slack = tnode[to_node].T_req - tnode[to_node].T_arr;

                    if(slack < min_slack)
                        {
                            crit_node = to_node;
                            min_slack = slack;
                        }
                }

            curr_crit_node->data = crit_node;
            prev_crit_node = curr_crit_node;
            num_edges = tnode[crit_node].num_edges;
        }

    prev_crit_node->next = NULL;
    return (critical_path_head);
}

Here is the call graph for this function:

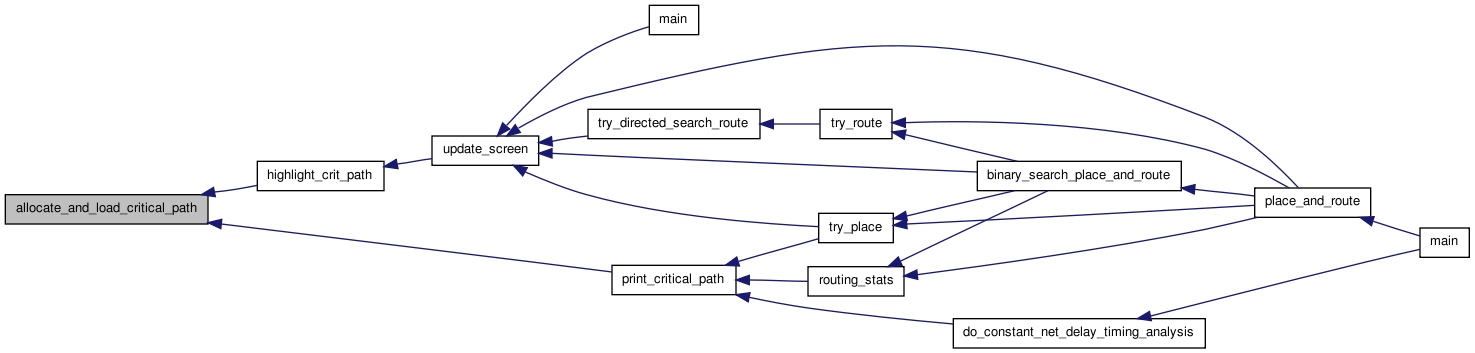

Here is the caller graph for this function:

static void build_block_output_tnode	(	int	inode,
		int	iblk,
		int	ipin,
		int **	block_pin_to_tnode
	)			[static]

Definition at line 702 of file path_delay.c.

{

/* Sets the number of edges and the edge array for an output pin from a      *
 * block.  This pin must be hooked to something -- i.e. not OPEN.            */

    int iedge, to_blk, to_pin, to_node, num_edges, inet;
    t_tedge *tedge;

    inet = block[iblk].nets[ipin];      /* Won't be OPEN, as inode exists */
    assert(inet != OPEN);       /* Sanity check. */

    net_to_driver_tnode[inet] = inode;

    num_edges = (net[inet].num_sinks + 1) - 1;
    tnode[inode].num_edges = num_edges;

    tnode[inode].out_edges = (t_tedge *) my_chunk_malloc(num_edges *
                                                         sizeof(t_tedge),
                                                         &tedge_ch_list_head,
                                                         &tedge_ch_bytes_avail,
                                                         &tedge_ch_next_avail);

    tedge = tnode[inode].out_edges;

    for(iedge = 0; iedge < (net[inet].num_sinks + 1) - 1; iedge++)
        {
            to_blk = net[inet].node_block[iedge + 1];

            to_pin = net[inet].node_block_pin[iedge + 1];

            to_node = block_pin_to_tnode[to_blk][to_pin];
            tedge[iedge].to_node = to_node;
            /* Set delay from net delays with a later call */
        }
}

Here is the call graph for this function:

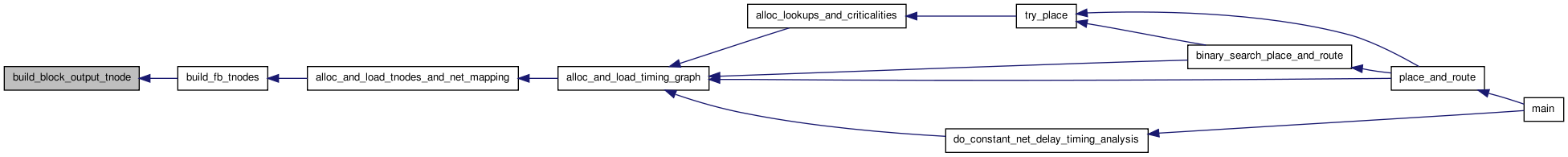

Here is the caller graph for this function:

static void build_fb_tnodes	(	int	iblk,
		int *	n_uses_of_fb_ipin,
		int **	block_pin_to_tnode,
		int ***	sub_pin_to_tnode,
		int	num_subs,
		t_subblock *	sub_inf,
		float	T_fb_ipin_to_sblk_ipin
	)			[static]

Definition at line 564 of file path_delay.c.

{

/* This routine builds the tnodes corresponding to the fb pins of this
 * block, and properly hooks them up to the rest of the graph. Note that
 * only the snode_block_pin_to_tnode, etc. element for this block is passed in.
 * Assumes that pins are ordered as [inputs][outputs][clk]
 */

    int isub, ipin, iedge, from_pin, opin;
    int inode, to_node, num_edges;
    t_tedge *tedge;
    int clk_pin;
    t_type_ptr type;
    int *next_ipin_edge;

    type = block[iblk].type;
    next_ipin_edge = (int *)my_malloc(type->num_pins * sizeof(int));
    clk_pin = 0;

/* Start by allocating the edge arrays, and for opins, loading them.    */

    for(ipin = 0; ipin < block[iblk].type->num_pins; ipin++)
        {
            inode = block_pin_to_tnode[iblk][ipin];

            if(inode != OPEN)
                {               /* Pin is used -> put in graph */
                    if(is_opin(ipin, block[iblk].type))
                        {
                            build_block_output_tnode(inode, iblk, ipin,
                                                     block_pin_to_tnode);
                            tnode_descript[inode].type = FB_OPIN;
                        }
                    else
                        {       /* FB ipin */
                            next_ipin_edge[ipin] = 0;   /* Reset */
                            num_edges = n_uses_of_fb_ipin[ipin];

                            /* if clock pin, timing edges go to each subblock output used */
                            for(isub = 0; isub < num_subs; isub++)
                                {
                                    if(sub_inf[isub].clock == ipin)
                                        {
                                            for(opin = 0;
                                                opin <
                                                type->max_subblock_outputs;
                                                opin++)
                                                {
                                                    if(sub_inf[isub].
                                                       outputs[opin] != OPEN)
                                                        {
                                                            num_edges++;
                                                        }
                                                }
                                            num_edges--;        /* Remove clock_pin count, replaced by outputs */
                                        }
                                }

                            tnode[inode].num_edges = num_edges;

                            tnode[inode].out_edges =
                                (t_tedge *) my_chunk_malloc(num_edges *
                                                            sizeof(t_tedge),
                                                            &tedge_ch_list_head,
                                                            &tedge_ch_bytes_avail,
                                                            &tedge_ch_next_avail);

                            tnode_descript[inode].type = FB_IPIN;
                        }

                    tnode_descript[inode].ipin = ipin;
                    tnode_descript[inode].isubblk = OPEN;
                    tnode_descript[inode].iblk = iblk;
                }
        }

/* Now load the edge arrays for the FB input pins. Do this by looking at   *
 * where the subblock input and clock pins are driven from.                 */

    for(isub = 0; isub < num_subs; isub++)
        {
            for(ipin = 0; ipin < type->max_subblock_inputs; ipin++)
                {
                    from_pin = sub_inf[isub].inputs[ipin];

                    /* Not OPEN and comes from fb ipin? */

                    if(from_pin != OPEN
                       && from_pin < block[iblk].type->num_pins)
                        {
                            inode = block_pin_to_tnode[iblk][from_pin];
                            assert(inode != OPEN);
                            to_node = sub_pin_to_tnode[isub][SUB_INPUT][ipin];
                            tedge = tnode[inode].out_edges;
                            iedge = next_ipin_edge[from_pin]++;
                            tedge[iedge].to_node = to_node;
                            tedge[iedge].Tdel = T_fb_ipin_to_sblk_ipin;
                        }
                }

            from_pin = sub_inf[isub].clock;

            if(from_pin != OPEN && from_pin < block[iblk].type->num_pins)
                {
                    inode = block_pin_to_tnode[iblk][from_pin];
                    to_node = sub_pin_to_tnode[isub][SUB_CLOCK][clk_pin];       /* Feeds seq. output */
                    /* connect to each output flip flop */
                    for(opin = 0; opin < type->max_subblock_outputs; opin++)
                        {
                            if(sub_inf[isub].outputs[opin] != OPEN)
                                {
                                    tedge = tnode[inode].out_edges;
                                    iedge = next_ipin_edge[from_pin]++;
                                    tedge[iedge].to_node = to_node;

                                    /* For the earliest possible clock I want this delay to be zero, so it       *
                                     * * arrives at flip flops at T = 0.  For later clocks or locally generated    *
                                     * * clocks that may accumulate delay (like the clocks in a ripple counter),   *
                                     * * I might want to make this delay nonzero.  Not worth bothering about now.  */

                                    tedge[iedge].Tdel = 0.;
                                    to_node += 2;
                                }
                        }
                }
        }
    free(next_ipin_edge);
}

Here is the call graph for this function:

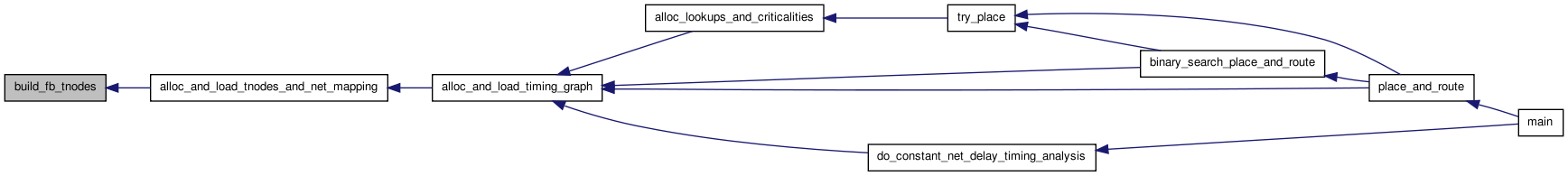

Here is the caller graph for this function:

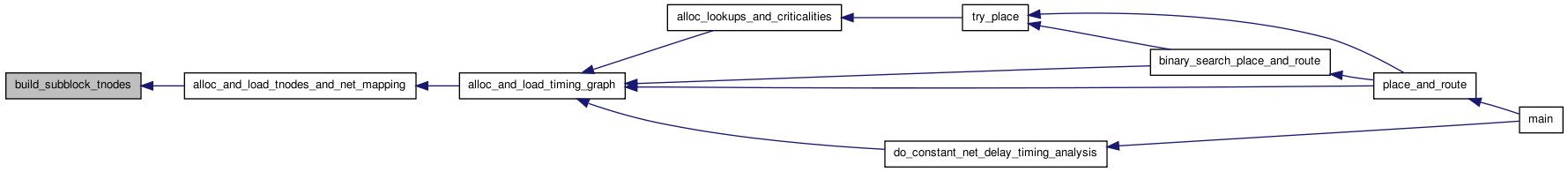

static void build_subblock_tnodes	(	int **	n_uses_of_sblk_opin,
		int *	node_block_pin_to_tnode,
		int ***	sub_pin_to_tnode,
		int *	num_subblocks_per_block,
		t_subblock **	subblock_inf,
		t_timing_inf	timing_inf,
		int	iblk
	)			[static]

Definition at line 744 of file path_delay.c.

{

/* This routine builds the tnodes of the subblock pins within one FB. Note *
 * that only the block_pin_to_tnode, etc. data for *this* block are passed  *
 * in.                                                                      */

    int isub, ipin, inode, to_node, from_pin, to_pin, opin, from_opin,
        clk_pin, used_opin_count;
    int num_subs, from_sub;
    t_subblock *sub_inf;
    int iedge, num_edges;
    float sink_delay;
    t_tedge *tedge;
    boolean has_inputs, has_outputs;
    int **next_sblk_opin_edge;  /* [0..max_subblocks-1][0..max_subblock_outputs-1] */
    int *num_opin_used_in_sblk; /* [0..max_subblocks-1] */
    t_type_ptr type = block[iblk].type;

    sub_inf = subblock_inf[iblk];
    num_subs = num_subblocks_per_block[iblk];

    next_sblk_opin_edge =
        (int **)alloc_matrix(0, type->max_subblocks - 1, 0,
                             type->max_subblock_outputs - 1, sizeof(int));
    num_opin_used_in_sblk =
        (int *)my_malloc(type->max_subblocks * sizeof(int));

    clk_pin = 0;

/* Allocate memory for output pins first. */
    for(isub = 0; isub < num_subs; isub++)
        {
            num_opin_used_in_sblk[isub] = 0;
            for(opin = 0; opin < type->max_subblock_outputs; opin++)
                {
                    inode = sub_pin_to_tnode[isub][SUB_OUTPUT][opin];

                    if(inode != OPEN)
                        {       /* Output is used -> timing node exists. */
                            num_opin_used_in_sblk[isub]++;
                            next_sblk_opin_edge[isub][opin] = 0;        /* Reset */
                            num_edges = n_uses_of_sblk_opin[isub][opin];
                            tnode[inode].num_edges = num_edges;

                            tnode[inode].out_edges =
                                (t_tedge *) my_chunk_malloc(num_edges *
                                                            sizeof(t_tedge),
                                                            &tedge_ch_list_head,
                                                            &tedge_ch_bytes_avail,
                                                            &tedge_ch_next_avail);

                            if(IO_TYPE == type)
                                {
                                    tnode_descript[inode].type = INPAD_OPIN;
                                    tnode[inode + 1].num_edges = 1;
                                    tnode[inode + 1].out_edges = (t_tedge *)
                                        my_chunk_malloc(sizeof(t_tedge),
                                                        &tedge_ch_list_head,
                                                        &tedge_ch_bytes_avail,
                                                        &tedge_ch_next_avail);
                                    tedge = tnode[inode + 1].out_edges;
                                    tedge[0].to_node = inode;

                                    /* For input pads, use sequential output for source timing delay (treat as register) */
                                    if(is_global_clock
                                       (iblk, isub, opin,
                                        num_subblocks_per_block,
                                        subblock_inf))
                                        tedge[0].Tdel = 0.;
                                    else
                                        tedge[0].Tdel =
                                            type->type_timing_inf.
                                            T_subblock[isub].T_seq_out[opin];

                                    tnode_descript[inode + 1].type =
                                        INPAD_SOURCE;
                                    tnode_descript[inode + 1].ipin = OPEN;
                                    tnode_descript[inode + 1].isubblk = isub;
                                    tnode_descript[inode + 1].iblk = iblk;
                                }
                            else
                                {
                                    tnode_descript[inode].type = SUBBLK_OPIN;
                                }

                            tnode_descript[inode].ipin = opin;
                            tnode_descript[inode].isubblk = isub;
                            tnode_descript[inode].iblk = iblk;
                        }
                }
        }

    /* First pass, load the subblock input pins to output pins without connecting edges to output pins.
     * If the subblock is used in sequential mode (i.e. is clocked), the two clock pin nodes.
     * Connect edges to output pins and take care of constant generators in second pass
     */
    for(isub = 0; isub < num_subs; isub++)
        {
            has_outputs = FALSE;

            for(opin = 0; opin < type->max_subblock_outputs; opin++)
                {
                    if(sub_pin_to_tnode[isub][SUB_OUTPUT][opin] != OPEN)
                        {
                            has_outputs = TRUE;
                        }
                }

            if(!has_outputs && type != IO_TYPE)
                {               /* Empty, so skip */
                    continue;
                }

            if(sub_inf[isub].clock != OPEN)
                {               /* Sequential mode */
                    inode = sub_pin_to_tnode[isub][SUB_CLOCK][clk_pin];
                    /* Each output of a subblock has a flip-flop sink and source */
                    for(opin = 0; opin < type->max_subblock_outputs; opin++)
                        {
                            if(sub_inf[isub].outputs[opin] != OPEN)
                                {
                                    /* First node is the clock input pin; it feeds the sequential output */
                                    tnode[inode].num_edges = 1;
                                    tnode[inode].out_edges = (t_tedge *)
                                        my_chunk_malloc(sizeof(t_tedge),
                                                        &tedge_ch_list_head,
                                                        &tedge_ch_bytes_avail,
                                                        &tedge_ch_next_avail);

                                    tnode_descript[inode].type = FF_SOURCE;
                                    tnode_descript[inode].ipin = OPEN;
                                    tnode_descript[inode].isubblk = isub;
                                    tnode_descript[inode].iblk = iblk;

                                    /* Now create the "sequential sink" -- i.e. the FF input node. */

                                    inode++;
                                    tnode[inode].num_edges = 0;
                                    tnode[inode].out_edges = NULL;

                                    tnode_descript[inode].type = FF_SINK;
                                    tnode_descript[inode].ipin = OPEN;
                                    tnode_descript[inode].isubblk = isub;
                                    tnode_descript[inode].iblk = iblk;
                                    inode++;
                                }
                        }
                }

            /* Build and hook up subblock inputs. */

            for(ipin = 0; ipin < type->max_subblock_inputs; ipin++)
                {
                    inode = sub_pin_to_tnode[isub][SUB_INPUT][ipin];

                    if(inode != OPEN)
                        {       /* tnode exists -> pin is used */
                            if(type == IO_TYPE)
                                {       /* Output pad */
                                    tnode[inode].num_edges = 1;
                                    opin = 0;
                                    tnode[inode].out_edges = (t_tedge *)
                                        my_chunk_malloc(sizeof(t_tedge),
                                                        &tedge_ch_list_head,
                                                        &tedge_ch_bytes_avail,
                                                        &tedge_ch_next_avail);
                                    tnode_descript[inode].type = OUTPAD_IPIN;
                                    tnode[inode + 1].num_edges = 0;
                                    tnode[inode + 1].out_edges = NULL;
                                    tedge = tnode[inode].out_edges;
                                    tedge[0].to_node = inode + 1;

                                    /* For output pads, use subblock combinational time
                                     * and sequential in for timing (treat as register) */
                                    tedge[0].Tdel =
                                        type->type_timing_inf.
                                        T_subblock[isub].T_comb[ipin][opin] +
                                        type->type_timing_inf.
                                        T_subblock[isub].T_seq_in[opin];

                                    tnode_descript[inode + 1].type =
                                        OUTPAD_SINK;
                                    tnode_descript[inode + 1].ipin = OPEN;
                                    tnode_descript[inode + 1].isubblk = isub;
                                    tnode_descript[inode + 1].iblk = iblk;
                                }
                            else
                                {
                                    tnode[inode].num_edges =
                                        num_opin_used_in_sblk[isub];
                                    tnode[inode].out_edges =
                                        (t_tedge *)
                                        my_chunk_malloc(num_opin_used_in_sblk
                                                        [isub] *
                                                        sizeof(t_tedge),
                                                        &tedge_ch_list_head,
                                                        &tedge_ch_bytes_avail,
                                                        &tedge_ch_next_avail);
                                    tnode[inode].num_edges =
                                        num_opin_used_in_sblk[isub];
                                    tnode_descript[inode].type = SUBBLK_IPIN;
                                }

                            tnode_descript[inode].ipin = ipin;
                            tnode_descript[inode].isubblk = isub;
                            tnode_descript[inode].iblk = iblk;
                        }
                }
        }                       /* End for each subblock */

    /* Second pass load the input pins to output pins array */
    /* Load the output pins edge arrays. */
    for(isub = 0; isub < num_subs; isub++)
        {
            used_opin_count = 0;
            for(opin = 0; opin < type->max_subblock_outputs; opin++)
                {
                    if(sub_pin_to_tnode[isub][SUB_OUTPUT][opin] == OPEN)
                        {       /* Empty, so skip */
                            continue;
                        }
                    for(ipin = 0; ipin < type->max_subblock_inputs; ipin++)
                        {       /* sblk opin to sblk ipin */

                            from_pin = sub_inf[isub].inputs[ipin];

                            /* Not OPEN and comes from local subblock output? */

                            if(from_pin >= type->num_pins)
                                {
                                    /* Convention for numbering netlist pins.
                                     * Internal connections are numbered subblock_index + subblock_output_index + num_pins
                                     */
                                    from_sub =
                                        (from_pin -
                                         type->num_pins) /
                                        type->max_subblock_outputs;
                                    from_opin =
                                        (from_pin -
                                         type->num_pins) %
                                        type->max_subblock_outputs;
                                    inode =
                                        sub_pin_to_tnode[from_sub][SUB_OUTPUT]
                                        [from_opin];
                                    to_node =
                                        sub_pin_to_tnode[isub][SUB_INPUT]
                                        [ipin];
                                    tedge = tnode[inode].out_edges;
                                    iedge = next_sblk_opin_edge[from_sub]
                                        [from_opin]++;
                                    tedge[iedge].to_node = to_node;
                                    tedge[iedge].Tdel =
                                        type->type_timing_inf.
                                        T_sblk_opin_to_sblk_ipin;
                                }
                        }
                    from_pin = sub_inf[isub].clock;     /* sblk opin to sblk clock */

                    /* Not OPEN and comes from local subblock output? */

                    if(from_pin >= type->num_pins)
                        {
                            from_sub =
                                (from_pin -
                                 type->num_pins) / type->max_subblock_outputs;
                            from_opin =
                                (from_pin -
                                 type->num_pins) % type->max_subblock_outputs;
                            inode = sub_pin_to_tnode[from_sub][SUB_OUTPUT]
                                [from_opin];
                            /* Feeds seq. output, one ff per output pin */
                            to_node =
                                sub_pin_to_tnode[isub][SUB_CLOCK][clk_pin] +
                                2 * used_opin_count;
                            tedge = tnode[inode].out_edges;
                            iedge =
                                next_sblk_opin_edge[from_sub][from_opin]++;
                            tedge[iedge].to_node = to_node;

                            /* NB: Could make sblk opin to clk delay parameter; not worth it right now. */
                            tedge[iedge].Tdel =
                                type->type_timing_inf.
                                T_sblk_opin_to_sblk_ipin;
                        }

                    to_pin = sub_inf[isub].outputs[opin];
                    if(to_pin != OPEN)
                        {       /* sblk opin goes to fb opin? */

                            /* Check that FB pin connects to something ->     *
                             * not just a mandatory BLE to FB opin connection */

                            if(block[iblk].nets[to_pin] != OPEN)
                                {
                                    to_node = node_block_pin_to_tnode[to_pin];
                                    inode = sub_pin_to_tnode[isub][SUB_OUTPUT]
                                        [opin];
                                    tedge = tnode[inode].out_edges;
                                    iedge = next_sblk_opin_edge[isub][opin]++;
                                    tedge[iedge].to_node = to_node;
                                    tedge[iedge].Tdel =
                                        type->type_timing_inf.
                                        T_sblk_opin_to_fb_opin;
                                }
                        }
                    used_opin_count++;
                }
        }

    /* Now load the subblock input pins and, if the subblock is used in        *
     * sequential mode (i.e. is clocked), the two clock pin nodes for the output pin.              */
    for(isub = 0; isub < num_subs; isub++)
        {
            used_opin_count = 0;
            for(opin = 0; opin < type->max_subblock_outputs; opin++)
                {

                    if(sub_pin_to_tnode[isub][SUB_OUTPUT][opin] == OPEN)        /* Empty, so skip */
                        continue;
                    /* Begin loading */
                    if(sub_inf[isub].clock == OPEN)
                        {       /* Combinational mode */
                            to_node =
                                sub_pin_to_tnode[isub][SUB_OUTPUT][opin];
                            sink_delay = 0;
                        }
                    else
                        {       /* Sequential mode.  Load two clock nodes. */
                            inode =
                                sub_pin_to_tnode[isub][SUB_CLOCK][clk_pin] +
                                2 * used_opin_count;

                            /* First node is the clock input pin; it feeds the sequential output */
                            tedge = tnode[inode].out_edges;
                            tedge[0].to_node =
                                sub_pin_to_tnode[isub][SUB_OUTPUT][opin];
                            tedge[0].Tdel =
                                type->type_timing_inf.T_subblock[isub].
                                T_seq_out[opin];

                            /* Now create the "sequential sink" -- i.e. the FF input node. */

                            inode++;
                            to_node = inode;
                            sink_delay =
                                type->type_timing_inf.T_subblock[isub].
                                T_seq_in[opin];
                        }

                    /* Build and hook up subblock inputs. */

                    has_inputs = FALSE;
                    for(ipin = 0; ipin < type->max_subblock_inputs; ipin++)
                        {
                            inode = sub_pin_to_tnode[isub][SUB_INPUT][ipin];

                            if(inode != OPEN)
                                {       /* tnode exists -> pin is used */
                                    has_inputs = TRUE;
                                    tedge = tnode[inode].out_edges;
                                    tedge[used_opin_count].to_node = to_node;
                                    tedge[used_opin_count].Tdel =
                                        sink_delay +
                                        type->type_timing_inf.
                                        T_subblock[isub].T_comb[ipin][opin];
                                }
                        }

                    if(!has_inputs && type != IO_TYPE)
                        {       /* Constant generator.  Give fake input. */

                            inode =
                                sub_pin_to_tnode[isub][SUB_OUTPUT][opin] + 1;
                            tnode[inode].num_edges = 1;
                            tnode[inode].out_edges =
                                (t_tedge *) my_chunk_malloc(sizeof(t_tedge),
                                                            &tedge_ch_list_head,
                                                            &tedge_ch_bytes_avail,
                                                            &tedge_ch_next_avail);
                            tedge = tnode[inode].out_edges;
                            tedge[used_opin_count].to_node = to_node;

                            /* Want constants generated early so they never affect the critical path. */

                            tedge[used_opin_count].Tdel =
                                T_CONSTANT_GENERATOR;

                            tnode_descript[inode].type = CONSTANT_GEN_SOURCE;
                            tnode_descript[inode].ipin = OPEN;
                            tnode_descript[inode].isubblk = isub;
                            tnode_descript[inode].iblk = iblk;
                        }
                    used_opin_count++;
                }
        }
    free_matrix(next_sblk_opin_edge, 0, type->max_subblocks - 1, 0,
                sizeof(int));
    free(num_opin_used_in_sblk);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void compute_net_slacks

(

float **

net_slack

)

[static]

Definition at line 1452 of file path_delay.c.

{

/* Puts the slack of each source-sink pair of block pins in net_slack.     */

    int inet, iedge, inode, to_node, num_edges;
    t_tedge *tedge;
    float T_arr, Tdel, T_req;

    for(inet = 0; inet < num_nets; inet++)
        {
            inode = net_to_driver_tnode[inet];
            T_arr = tnode[inode].T_arr;
            num_edges = tnode[inode].num_edges;
            tedge = tnode[inode].out_edges;

            for(iedge = 0; iedge < num_edges; iedge++)
                {
                    to_node = tedge[iedge].to_node;
                    Tdel = tedge[iedge].Tdel;
                    T_req = tnode[to_node].T_req;
                    net_slack[inet][iedge + 1] = T_req - T_arr - Tdel;
                }
        }
}

Here is the caller graph for this function:

void do_constant_net_delay_timing_analysis	(	t_timing_inf	timing_inf,
		t_subblock_data	subblock_data,
		float	constant_net_delay_value
	)

Definition at line 1644 of file path_delay.c.

{

/* Does a timing analysis (simple) where it assumes that each net has a      *
 * constant delay value.  Used only when operation == TIMING_ANALYSIS_ONLY.  */

    struct s_linked_vptr *net_delay_chunk_list_head;
    float **net_delay, **net_slack;

    float T_crit;

    net_slack = alloc_and_load_timing_graph(timing_inf, subblock_data);
    net_delay = alloc_net_delay(&net_delay_chunk_list_head);

    load_constant_net_delay(net_delay, constant_net_delay_value);
    load_timing_graph_net_delays(net_delay);
    T_crit = load_net_slack(net_slack, 0);

    printf("\n");
    printf("\nCritical Path: %g (s)\n", T_crit);

#ifdef CREATE_ECHO_FILES
    print_critical_path("critical_path.echo", subblock_data);
    print_timing_graph("timing_graph.echo");
    print_net_slack("net_slack.echo", net_slack);
    print_net_delay(net_delay, "net_delay.echo");
#endif /* CREATE_ECHO_FILES */

    free_timing_graph(net_slack);
    free_net_delay(net_delay, &net_delay_chunk_list_head);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void free_fanout_counts	(	int **	num_uses_of_fb_ipin,
		int ***	num_uses_of_sblk_opin
	)			[static]

Definition at line 499 of file path_delay.c.

{

/* Frees the fanout count arrays. */

    int iblk;
    t_type_ptr type;

    for(iblk = 0; iblk < num_blocks; iblk++)
        {
            type = block[iblk].type;
            free(num_uses_of_fb_ipin[iblk]);
            free_matrix(num_uses_of_sblk_opin[iblk], 0,
                        type->max_subblocks - 1, 0, sizeof(int));
        }

    free(num_uses_of_fb_ipin);
    free(num_uses_of_sblk_opin);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void free_pin_mappings	(	int **	block_pin_to_tnode,
		int ****	snode_block_pin_to_tnode,
		int *	num_subblocks_per_block
	)			[static]

Definition at line 425 of file path_delay.c.

{

/* Frees the arrays that map from pins to tnode coordinates. */

    int isub, iblk, isubtype, num_subblocks;

    for(iblk = 0; iblk < num_blocks; iblk++)
        {
            num_subblocks = num_subblocks_per_block[iblk];
            for(isub = 0; isub < num_subblocks; isub++)
                {
                    for(isubtype = 0; isubtype < NUM_SUB_PIN_TYPES;
                        isubtype++)
                        {
                            free(snode_block_pin_to_tnode[iblk][isub]
                                 [isubtype]);
                        }
                }
            free_matrix(snode_block_pin_to_tnode[iblk], 0,
                        num_subblocks_per_block[iblk] - 1, 0, sizeof(int *));
            free(block_pin_to_tnode[iblk]);
        }
    free(block_pin_to_tnode);
    free(snode_block_pin_to_tnode);
}

Here is the call graph for this function:

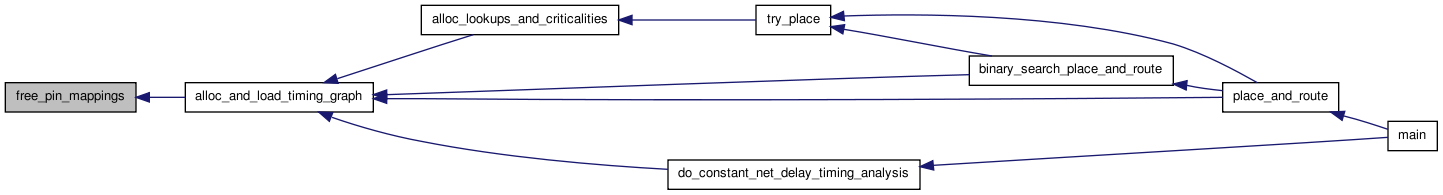

Here is the caller graph for this function:

void free_timing_graph

(

float **

net_slack

)

Definition at line 1217 of file path_delay.c.

{

/* Frees the timing graph data. */

    if(tedge_ch_list_head == NULL)
        {
            printf("Error in free_timing_graph: No timing graph to free.\n");
            exit(1);
        }

    free_chunk_memory(tedge_ch_list_head);
    free(tnode);
    free(tnode_descript);
    free(net_to_driver_tnode);
    free_ivec_vector(tnodes_at_level, 0, num_tnode_levels - 1);
    free(net_slack);

    tedge_ch_list_head = NULL;
    tedge_ch_bytes_avail = 0;
    tedge_ch_next_avail = NULL;

    tnode = NULL;
    tnode_descript = NULL;
    num_tnodes = 0;
    net_to_driver_tnode = NULL;
    tnodes_at_level = NULL;
    num_tnode_levels = 0;
}

Here is the call graph for this function:

Here is the caller graph for this function:

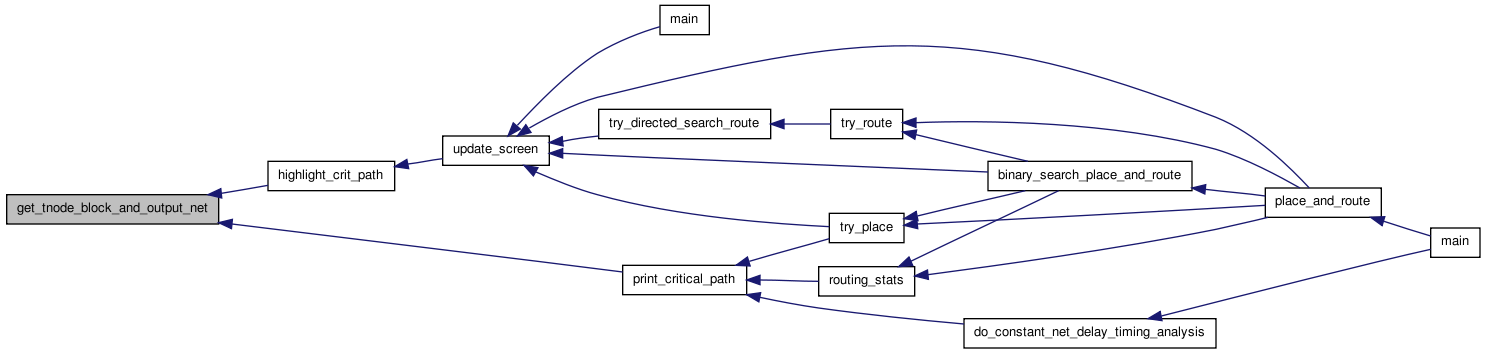

void get_tnode_block_and_output_net	(	int	inode,
		int *	iblk_ptr,
		int *	inet_ptr
	)

Definition at line 1613 of file path_delay.c.

{

/* Returns the index of the block that this tnode is part of.  If the tnode *
 * is a FB_OPIN or INPAD_OPIN (i.e. if it drives a net), the net index is  *
 * returned via inet_ptr.  Otherwise inet_ptr points at OPEN.               */

    int inet, ipin, iblk;
    t_tnode_type tnode_type;

    iblk = tnode_descript[inode].iblk;
    tnode_type = tnode_descript[inode].type;

    if(tnode_type == FB_OPIN || tnode_type == INPAD_OPIN)
        {
            ipin = tnode_descript[inode].ipin;
            inet = block[iblk].nets[ipin];
        }
    else
        {
            inet = OPEN;
        }

    *iblk_ptr = iblk;
    *inet_ptr = inet;
}

Here is the caller graph for this function:

static boolean is_global_clock	(	int	iblk,
		int	sub,
		int	subpin,
		int *	num_subblocks_per_block,
		t_subblock **	subblock_inf
	)			[static]

Definition at line 1152 of file path_delay.c.

{

/* Returns TRUE if the net driven by this block (which must be an INPAD) is  *
   (1) a global signal, and (2) used as a clock input to at least one block.
   Assumes that there is only one subblock in an IO
 */

    int inet, ipin, to_blk, to_pin, isub;
    t_type_ptr type = block[iblk].type;

    assert(type == IO_TYPE);

    inet = block[iblk].nets[subblock_inf[iblk][sub].outputs[subpin]];
    assert(inet != OPEN);

    if(!net[inet].is_global)
        return (FALSE);

    for(ipin = 1; ipin < (net[inet].num_sinks + 1); ipin++)
        {
            to_blk = net[inet].node_block[ipin];
            to_pin = net[inet].node_block_pin[ipin];

            for(isub = 0; isub < num_subblocks_per_block[to_blk]; isub++)
                {
                    if(subblock_inf[to_blk][isub].clock == to_pin)
                        return (TRUE);
                }
        }

    return (FALSE);
}

Here is the caller graph for this function:

float load_net_slack	(	float **	net_slack,
		float	target_cycle_time
	)

Definition at line 1345 of file path_delay.c.

{

/* Determines the slack of every source-sink pair of block pins in the      *
 * circuit.  The timing graph must have already been built.  target_cycle_  *
 * time is the target delay for the circuit -- if 0, the target_cycle_time  *
 * is set to the critical path found in the timing graph.  This routine     *
 * loads net_slack, and returns the current critical path delay.            */

    float T_crit, T_arr, Tdel, T_cycle, T_req;
    int inode, ilevel, num_at_level, i, num_edges, iedge, to_node;
    t_tedge *tedge;

/* Reset all arrival times to -ve infinity.  Can't just set to zero or the   *
 * constant propagation (constant generators work at -ve infinity) won't     *
 * work.                                                                     */

    for(inode = 0; inode < num_tnodes; inode++)
        tnode[inode].T_arr = T_CONSTANT_GENERATOR;

/* Compute all arrival times with a breadth-first analysis from inputs to   *
 * outputs.  Also compute critical path (T_crit).                           */

    T_crit = 0.;

/* Primary inputs arrive at T = 0. */

    num_at_level = tnodes_at_level[0].nelem;
    for(i = 0; i < num_at_level; i++)
        {
            inode = tnodes_at_level[0].list[i];
            tnode[inode].T_arr = 0.;
        }

    for(ilevel = 0; ilevel < num_tnode_levels; ilevel++)
        {
            num_at_level = tnodes_at_level[ilevel].nelem;

            for(i = 0; i < num_at_level; i++)
                {
                    inode = tnodes_at_level[ilevel].list[i];
                    T_arr = tnode[inode].T_arr;
                    num_edges = tnode[inode].num_edges;
                    tedge = tnode[inode].out_edges;
                    T_crit = max(T_crit, T_arr);

                    for(iedge = 0; iedge < num_edges; iedge++)
                        {
                            to_node = tedge[iedge].to_node;
                            Tdel = tedge[iedge].Tdel;
                            tnode[to_node].T_arr =
                                max(tnode[to_node].T_arr, T_arr + Tdel);
                        }
                }

        }

    if(target_cycle_time > 0.)  /* User specified target cycle time */
        T_cycle = target_cycle_time;
    else                        /* Otherwise, target = critical path */
        T_cycle = T_crit;

/* Compute the required arrival times with a backward breadth-first analysis *
 * from sinks (output pads, etc.) to primary inputs.                         */

    for(ilevel = num_tnode_levels - 1; ilevel >= 0; ilevel--)
        {
            num_at_level = tnodes_at_level[ilevel].nelem;

            for(i = 0; i < num_at_level; i++)
                {
                    inode = tnodes_at_level[ilevel].list[i];
                    num_edges = tnode[inode].num_edges;

                    if(num_edges == 0)
                        {       /* sink */
                            tnode[inode].T_req = T_cycle;
                        }
                    else
                        {
                            tedge = tnode[inode].out_edges;
                            to_node = tedge[0].to_node;
                            Tdel = tedge[0].Tdel;
                            T_req = tnode[to_node].T_req - Tdel;

                            for(iedge = 1; iedge < num_edges; iedge++)
                                {
                                    to_node = tedge[iedge].to_node;
                                    Tdel = tedge[iedge].Tdel;
                                    T_req =
                                        min(T_req,
                                            tnode[to_node].T_req - Tdel);
                                }

                            tnode[inode].T_req = T_req;
                        }
                }
        }

    compute_net_slacks(net_slack);

    return (T_crit);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void load_timing_graph_net_delays

(

float **

net_delay

)

Definition at line 1191 of file path_delay.c.

{

/* Sets the delays of the inter-FB nets to the values specified by          *
 * net_delay[0..num_nets-1][1..num_pins-1].  These net delays should have    *
 * been allocated and loaded with the net_delay routines.  This routine      *
 * marks the corresponding edges in the timing graph with the proper delay.  */

    int inet, ipin, inode;
    t_tedge *tedge;

    for(inet = 0; inet < num_nets; inet++)
        {
            inode = net_to_driver_tnode[inet];
            tedge = tnode[inode].out_edges;

/* Note that the edges of a tnode corresponding to a FB or INPAD opin must  *
 * be in the same order as the pins of the net driven by the tnode.          */

            for(ipin = 1; ipin < (net[inet].num_sinks + 1); ipin++)
                tedge[ipin - 1].Tdel = net_delay[inet][ipin];
        }
}

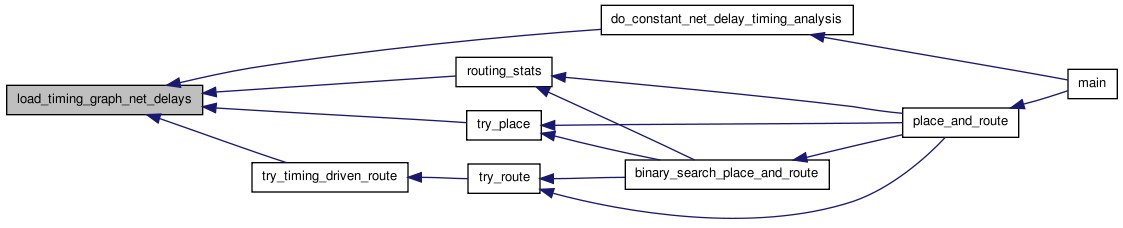

Here is the caller graph for this function:

void print_critical_path	(	char *	fname,
		t_subblock_data	subblock_data
	)

Definition at line 1480 of file path_delay.c.

{

/* Prints out the critical path to a file.  */

    t_linked_int *critical_path_head, *critical_path_node;
    FILE *fp;
    int non_global_nets_on_crit_path, global_nets_on_crit_path;
    int tnodes_on_crit_path, inode, iblk, inet;
    t_tnode_type type;
    float total_net_delay, total_logic_delay, Tdel;

    critical_path_head = allocate_and_load_critical_path();
    critical_path_node = critical_path_head;

    fp = my_fopen(fname, "w");

    non_global_nets_on_crit_path = 0;
    global_nets_on_crit_path = 0;
    tnodes_on_crit_path = 0;
    total_net_delay = 0.;
    total_logic_delay = 0.;

    while(critical_path_node != NULL)
        {
            Tdel =
                print_critical_path_node(fp, critical_path_node,
                                         subblock_data);
            inode = critical_path_node->data;
            type = tnode_descript[inode].type;
            tnodes_on_crit_path++;

            if(type == INPAD_OPIN || type == FB_OPIN)
                {
                    get_tnode_block_and_output_net(inode, &iblk, &inet);

                    if(!net[inet].is_global)
                        non_global_nets_on_crit_path++;
                    else
                        global_nets_on_crit_path++;

                    total_net_delay += Tdel;
                }
            else
                {
                    total_logic_delay += Tdel;
                }

            critical_path_node = critical_path_node->next;
        }

    fprintf(fp,
            "\nTnodes on crit. path: %d  Non-global nets on crit. path: %d."
            "\n", tnodes_on_crit_path, non_global_nets_on_crit_path);
    fprintf(fp, "Global nets on crit. path: %d.\n", global_nets_on_crit_path);
    fprintf(fp, "Total logic delay: %g (s)  Total net delay: %g (s)\n",
            total_logic_delay, total_net_delay);

    printf("Nets on crit. path: %d normal, %d global.\n",
           non_global_nets_on_crit_path, global_nets_on_crit_path);

    printf("Total logic delay: %g (s)  Total net delay: %g (s)\n",
           total_logic_delay, total_net_delay);

    fclose(fp);
    free_int_list(&critical_path_head);
}

Here is the call graph for this function:

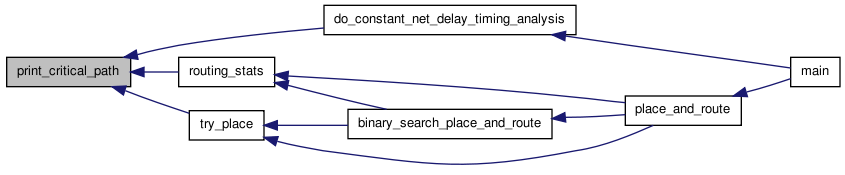

Here is the caller graph for this function:

void print_net_slack	(	char *	fname,
		float **	net_slack
	)

Definition at line 1249 of file path_delay.c.

{

/* Prints the net slacks into a file.                                     */

    int inet, ipin;
    FILE *fp;

    fp = my_fopen(fname, "w");

    fprintf(fp, "Net #\tSlacks\n\n");

    for(inet = 0; inet < num_nets; inet++)
        {
            fprintf(fp, "%5d", inet);
            for(ipin = 1; ipin < (net[inet].num_sinks + 1); ipin++)
                {
                    fprintf(fp, "\t%g", net_slack[inet][ipin]);
                }
            fprintf(fp, "\n");
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void print_timing_graph

(

char *

fname

)

Definition at line 1275 of file path_delay.c.

{

/* Prints the timing graph into a file.           */

    FILE *fp;
    int inode, iedge, ilevel, i;
    t_tedge *tedge;
    t_tnode_type itype;
    char *tnode_type_names[] = { "INPAD_SOURCE", "INPAD_OPIN",
        "OUTPAD_IPIN", "OUTPAD_SINK", "FB_IPIN", "FB_OPIN",
        "SUBBLK_IPIN", "SUBBLK_OPIN", "FF_SINK", "FF_SOURCE",
        "CONSTANT_GEN_SOURCE"
    };


    fp = my_fopen(fname, "w");

    fprintf(fp, "num_tnodes: %d\n", num_tnodes);
    fprintf(fp, "Node #\tType\t\tipin\tisubblk\tiblk\t# edges\t"
            "Edges (to_node, Tdel)\n\n");

    for(inode = 0; inode < num_tnodes; inode++)
        {
            fprintf(fp, "%d\t", inode);

            itype = tnode_descript[inode].type;
            fprintf(fp, "%-15.15s\t", tnode_type_names[itype]);

            fprintf(fp, "%d\t%d\t%d\t", tnode_descript[inode].ipin,
                    tnode_descript[inode].isubblk,
                    tnode_descript[inode].iblk);

            fprintf(fp, "%d\t", tnode[inode].num_edges);
            tedge = tnode[inode].out_edges;
            for(iedge = 0; iedge < tnode[inode].num_edges; iedge++)
                {
                    fprintf(fp, "\t(%4d,%7.3g)", tedge[iedge].to_node,
                            tedge[iedge].Tdel);
                }
            fprintf(fp, "\n");
        }

    fprintf(fp, "\n\nnum_tnode_levels: %d\n", num_tnode_levels);

    for(ilevel = 0; ilevel < num_tnode_levels; ilevel++)
        {
            fprintf(fp, "\n\nLevel: %d  Num_nodes: %d\nNodes:", ilevel,
                    tnodes_at_level[ilevel].nelem);
            for(i = 0; i < tnodes_at_level[ilevel].nelem; i++)
                fprintf(fp, "\t%d", tnodes_at_level[ilevel].list[i]);
        }

    fprintf(fp, "\n");
    fprintf(fp, "\n\nNet #\tNet_to_driver_tnode\n");

    for(i = 0; i < num_nets; i++)
        fprintf(fp, "%4d\t%6d\n", i, net_to_driver_tnode[i]);

    fprintf(fp, "\n\nNode #\t\tT_arr\t\tT_req\n\n");

    for(inode = 0; inode < num_tnodes; inode++)
        fprintf(fp, "%d\t%12g\t%12g\n", inode, tnode[inode].T_arr,
                tnode[inode].T_req);

    fclose(fp);
}

Here is the call graph for this function:

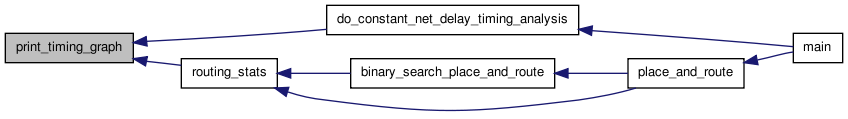

Here is the caller graph for this function:

---

Variable Documentation

int tedge_ch_bytes_avail = 0 [static]

Definition at line 89 of file path_delay.c.

struct s_linked_vptr* tedge_ch_list_head = NULL [static]

Definition at line 88 of file path_delay.c.

char* tedge_ch_next_avail = NULL [static]

Definition at line 90 of file path_delay.c.
