SRC/stats.c File Reference

#include <assert.h>
#include <stdio.h>
#include <math.h>
#include "util.h"
#include "vpr_types.h"
#include "globals.h"
#include "rr_graph_area.h"
#include "segment_stats.h"
#include "stats.h"
#include "net_delay.h"
#include "path_delay.h"

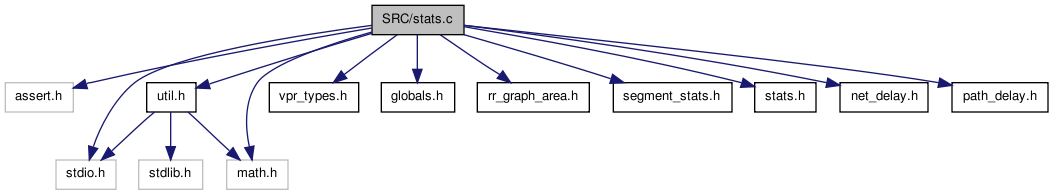

Include dependency graph for stats.c:

Go to the source code of this file.

Functions
static void	load_channel_occupancies (int **chanx_occ, int **chany_occ)
static void	get_num_bends_and_length (int inet, int *bends, int *length, int *segments)
static void	get_length_and_bends_stats (void)
static void	get_channel_occupancy_stats (void)
void	routing_stats (boolean full_stats, enum e_route_type route_type, int num_switch, t_segment_inf *segment_inf, int num_segment, float R_minW_nmos, float R_minW_pmos, enum e_directionality directionality, boolean timing_analysis_enabled, float **net_slack, float **net_delay, t_subblock_data subblock_data)
void	print_wirelen_prob_dist (void)
void	print_lambda (void)

---

Function Documentation

static void get_channel_occupancy_stats

(

void

)

[static]

Definition at line 161 of file stats.c.

{

/* Determines how many tracks are used in each channel.                    */

    int i, j, max_occ, total_x, total_y;
    float av_occ;
    int **chanx_occ;            /* [1..nx][0..ny] */
    int **chany_occ;            /* [0..nx][1..ny] */


    chanx_occ = (int **)alloc_matrix(1, nx, 0, ny, sizeof(int));
    chany_occ = (int **)alloc_matrix(0, nx, 1, ny, sizeof(int));
    load_channel_occupancies(chanx_occ, chany_occ);

    printf("\nX - Directed channels:\n\n");
    printf("j\tmax occ\tav_occ\t\tcapacity\n");

    total_x = 0;

    for(j = 0; j <= ny; j++)
        {
            total_x += chan_width_x[j];
            av_occ = 0.;
            max_occ = -1;

            for(i = 1; i <= nx; i++)
                {
                    max_occ = max(chanx_occ[i][j], max_occ);
                    av_occ += chanx_occ[i][j];
                }
            av_occ /= nx;
            printf("%d\t%d\t%-#9g\t%d\n", j, max_occ, av_occ,
                   chan_width_x[j]);
        }


    printf("\nY - Directed channels:\n\n");
    printf("i\tmax occ\tav_occ\t\tcapacity\n");

    total_y = 0;

    for(i = 0; i <= nx; i++)
        {
            total_y += chan_width_y[i];
            av_occ = 0.;
            max_occ = -1;

            for(j = 1; j <= ny; j++)
                {
                    max_occ = max(chany_occ[i][j], max_occ);
                    av_occ += chany_occ[i][j];
                }
            av_occ /= ny;
            printf("%d\t%d\t%-#9g\t%d\n", i, max_occ, av_occ,
                   chan_width_y[i]);
        }

    printf("\nTotal Tracks in X-direction: %d  in Y-direction: %d\n\n",
           total_x, total_y);

    free_matrix(chanx_occ, 1, nx, 0, sizeof(int));
    free_matrix(chany_occ, 0, nx, 1, sizeof(int));
}

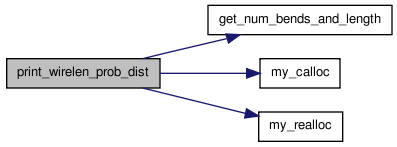

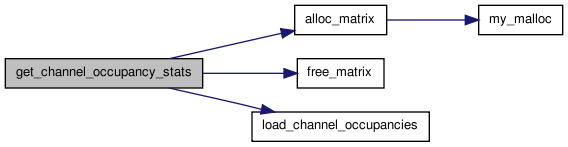

Here is the call graph for this function:

Here is the caller graph for this function:

static void get_length_and_bends_stats

(

void

)

[static]

Definition at line 95 of file stats.c.

{

/* Figures out maximum, minimum and average number of bends and net length   *
 * in the routing.                                                           */

    int inet, bends, total_bends, max_bends;
    int length, total_length, max_length;
    int segments, total_segments, max_segments;
    float av_bends, av_length, av_segments;
    int num_global_nets;


    max_bends = 0;
    total_bends = 0;
    max_length = 0;
    total_length = 0;
    max_segments = 0;
    total_segments = 0;
    num_global_nets = 0;

    for(inet = 0; inet < num_nets; inet++)
        {
            if(net[inet].is_global == FALSE)
                {               /* Globals don't count. */
                    get_num_bends_and_length(inet, &bends, &length,
                                             &segments);

                    total_bends += bends;
                    max_bends = max(bends, max_bends);

                    total_length += length;
                    max_length = max(length, max_length);

                    total_segments += segments;
                    max_segments = max(segments, max_segments);
                }
            else
                {
                    num_global_nets++;
                }
        }


    av_bends = (float)total_bends / (float)(num_nets - num_global_nets);
    printf
        ("\nAverage number of bends per net: %#g  Maximum # of bends: %d\n\n",
         av_bends, max_bends);

    av_length = (float)total_length / (float)(num_nets - num_global_nets);
    printf("\nThe number of routed nets (nonglobal): %d\n",
           num_nets - num_global_nets);
    printf("Wirelength results (all in units of 1 clb segments):\n");
    printf("\tTotal wirelength: %d   Average net length: %#g\n",
           total_length, av_length);
    printf("\tMaximum net length: %d\n\n", max_length);

    av_segments = (float)total_segments / (float)(num_nets - num_global_nets);
    printf("Wirelength results in terms of physical segments:\n");
    printf("\tTotal wiring segments used: %d   Av. wire segments per net: "
           "%#g\n", total_segments, av_segments);
    printf("\tMaximum segments used by a net: %d\n\n", max_segments);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void get_num_bends_and_length	(	int	inet,
		int *	bends,
		int *	length,
		int *	segments
	)			[static]

Definition at line 293 of file stats.c.

{

/* Counts and returns the number of bends, wirelength, and number of routing *
 * resource segments in net inet's routing.                                  */

    struct s_trace *tptr, *prevptr;
    int inode;
    t_rr_type curr_type, prev_type;
    int bends, length, segments;

    bends = 0;
    length = 0;
    segments = 0;

    prevptr = trace_head[inet]; /* Should always be SOURCE. */
    if(prevptr == NULL)
        {
            printf
                ("Error in get_num_bends_and_length:  net #%d has no traceback.\n",
                 inet);
            exit(1);
        }
    inode = prevptr->index;
    prev_type = rr_node[inode].type;

    tptr = prevptr->next;

    while(tptr != NULL)
        {
            inode = tptr->index;
            curr_type = rr_node[inode].type;

            if(curr_type == SINK)
                {               /* Starting a new segment */
                    tptr = tptr->next;  /* Link to existing path - don't add to len. */
                    if(tptr == NULL)
                        break;

                    curr_type = rr_node[tptr->index].type;
                }

            else if(curr_type == CHANX || curr_type == CHANY)
                {
                    segments++;
                    length += 1 + rr_node[inode].xhigh - rr_node[inode].xlow +
                        rr_node[inode].yhigh - rr_node[inode].ylow;

                    if(curr_type != prev_type
                       && (prev_type == CHANX || prev_type == CHANY))
                        bends++;
                }

            prev_type = curr_type;
            tptr = tptr->next;
        }

    *bends_ptr = bends;
    *len_ptr = length;
    *segments_ptr = segments;
}

Here is the caller graph for this function:

static void load_channel_occupancies	(	int **	chanx_occ,
		int **	chany_occ
	)			[static]

Definition at line 228 of file stats.c.

{

/* Loads the two arrays passed in with the total occupancy at each of the  *
 * channel segments in the FPGA.                                           */

    int i, j, inode, inet;
    struct s_trace *tptr;
    t_rr_type rr_type;

/* First set the occupancy of everything to zero. */

    for(i = 1; i <= nx; i++)
        for(j = 0; j <= ny; j++)
            chanx_occ[i][j] = 0;

    for(i = 0; i <= nx; i++)
        for(j = 1; j <= ny; j++)
            chany_occ[i][j] = 0;

/* Now go through each net and count the tracks and pins used everywhere */

    for(inet = 0; inet < num_nets; inet++)
        {

            if(net[inet].is_global)     /* Skip global nets. */
                continue;

            tptr = trace_head[inet];
            while(tptr != NULL)
                {
                    inode = tptr->index;
                    rr_type = rr_node[inode].type;

                    if(rr_type == SINK)
                        {
                            tptr = tptr->next;  /* Skip next segment. */
                            if(tptr == NULL)
                                break;
                        }

                    else if(rr_type == CHANX)
                        {
                            j = rr_node[inode].ylow;
                            for(i = rr_node[inode].xlow;
                                i <= rr_node[inode].xhigh; i++)
                                chanx_occ[i][j]++;
                        }

                    else if(rr_type == CHANY)
                        {
                            i = rr_node[inode].xlow;
                            for(j = rr_node[inode].ylow;
                                j <= rr_node[inode].yhigh; j++)
                                chany_occ[i][j]++;
                        }

                    tptr = tptr->next;
                }
        }
}

Here is the caller graph for this function:

void print_lambda

(

void

)

Definition at line 460 of file stats.c.

{

/* Finds the average number of input pins used per fb.  Does not    *
 * count inputs which are hooked to global nets (i.e. the clock     *
 * when it is marked global).                                       */

    int bnum, ipin;
    int num_inputs_used = 0;
    int iclass, inet;
    float lambda;
    t_type_ptr type;

    for(bnum = 0; bnum < num_blocks; bnum++)
        {
            type = block[bnum].type;
            assert(type != NULL);
            if(type != IO_TYPE)
                {
                    for(ipin = 0; ipin < type->num_pins; ipin++)
                        {
                            iclass = type->pin_class[ipin];
                            if(type->class_inf[iclass].type == RECEIVER)
                                {
                                    inet = block[bnum].nets[ipin];
                                    if(inet != OPEN)    /* Pin is connected? */
                                        if(net[inet].is_global == FALSE)        /* Not a global clock */
                                            num_inputs_used++;
                                }
                        }
                }
        }

    lambda = (float)num_inputs_used / (float)num_blocks;
    printf("Average lambda (input pins used per fb) is: %g\n", lambda);
}

void print_wirelen_prob_dist

(

void

)

Definition at line 360 of file stats.c.

{

/* Prints out the probability distribution of the wirelength / number   *
 * input pins on a net -- i.e. simulates 2-point net length probability *
 * distribution.                                                        */

    float *prob_dist;
    float norm_fac, two_point_length;
    int inet, bends, length, segments, index;
    float av_length;
    int prob_dist_size, i, incr;

    prob_dist_size = nx + ny + 10;
    prob_dist = (float *)my_calloc(prob_dist_size, sizeof(float));
    norm_fac = 0.;

    for(inet = 0; inet < num_nets; inet++)
        {
            if(net[inet].is_global == FALSE)
                {
                    get_num_bends_and_length(inet, &bends, &length,
                                             &segments);

/*  Assign probability to two integer lengths proportionately -- i.e.  *
 *  if two_point_length = 1.9, add 0.9 of the pins to prob_dist[2] and *
 *  only 0.1 to prob_dist[1].                                          */

                    two_point_length =
                        (float)length / (float)(net[inet].num_sinks);
                    index = (int)two_point_length;
                    if(index >= prob_dist_size)
                        {

                            printf
                                ("Warning: index (%d) to prob_dist exceeds its allocated size (%d)\n",
                                 index, prob_dist_size);
                            printf
                                ("Realloc'ing to increase 2-pin wirelen prob distribution array\n");
                            incr = index - prob_dist_size + 2;
                            prob_dist_size += incr;
                            prob_dist =
                                my_realloc(prob_dist,
                                           prob_dist_size * sizeof(float));
                            for(i = prob_dist_size - incr; i < prob_dist_size;
                                i++)
                                prob_dist[i] = 0.0;
                        }
                    prob_dist[index] +=
                        (net[inet].num_sinks) * (1 - two_point_length +
                                                 index);

                    index++;
                    if(index >= prob_dist_size)
                        {

                            printf
                                ("Warning: index (%d) to prob_dist exceeds its allocated size (%d)\n",
                                 index, prob_dist_size);
                            printf
                                ("Realloc'ing to increase 2-pin wirelen prob distribution array\n");
                            incr = index - prob_dist_size + 2;
                            prob_dist_size += incr;
                            prob_dist =
                                my_realloc(prob_dist,
                                           prob_dist_size * sizeof(float));
                            for(i = prob_dist_size - incr; i < prob_dist_size;
                                i++)
                                prob_dist[i] = 0.0;
                        }
                    prob_dist[index] += (net[inet].num_sinks) * (1 - index +
                                                                 two_point_length);

                    norm_fac += net[inet].num_sinks;
                }
        }

/* Normalize so total probability is 1 and print out. */

    printf("\nProbability distribution of 2-pin net lengths:\n\n");
    printf("Length    p(Lenth)\n");

    av_length = 0;

    for(index = 0; index < prob_dist_size; index++)
        {
            prob_dist[index] /= norm_fac;
            printf("%6d  %10.6f\n", index, prob_dist[index]);
            av_length += prob_dist[index] * index;
        }

    printf("\nThe number of 2-pin nets is ;%g;\n", norm_fac);
    printf("\nExpected value of 2-pin net length (R) is ;%g;\n", av_length);
    printf("\nTotal wire length is ;%g;\n", norm_fac * av_length);

    free(prob_dist);
}

Here is the call graph for this function:

Here is the caller graph for this function:

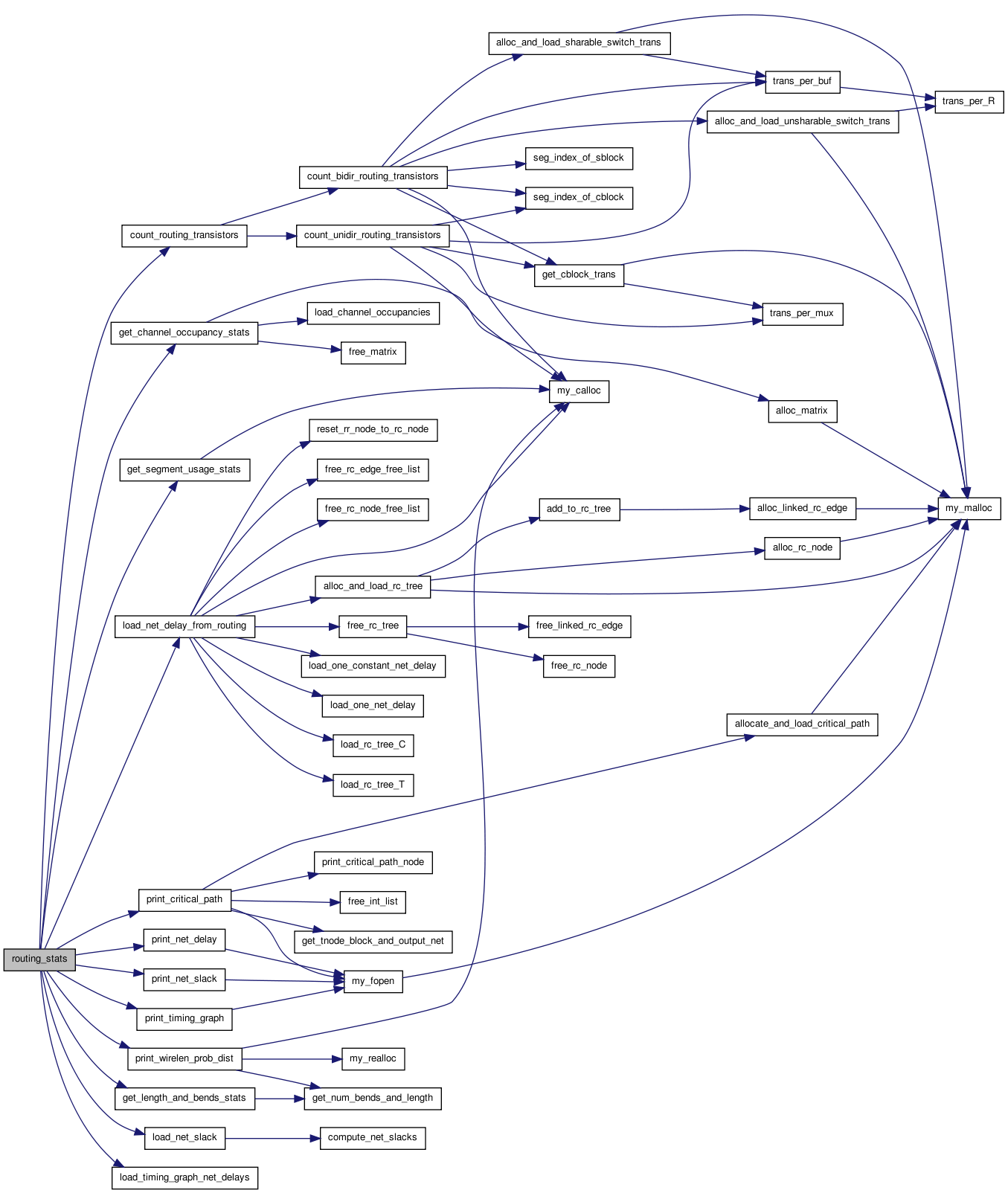

void routing_stats	(	boolean	full_stats,
		enum e_route_type	route_type,
		int	num_switch,
		t_segment_inf *	segment_inf,
		int	num_segment,
		float	R_minW_nmos,
		float	R_minW_pmos,
		enum e_directionality	directionality,
		boolean	timing_analysis_enabled,
		float **	net_slack,
		float **	net_delay,
		t_subblock_data	subblock_data
	)

Definition at line 34 of file stats.c.

{

/* Prints out various statistics about the current routing.  Both a routing *
 * and an rr_graph must exist when you call this routine.                   */

    float T_crit;


    get_length_and_bends_stats();
    get_channel_occupancy_stats();

    printf("Logic Area (in minimum width transistor areas):\n");
    printf("Total Logic Area: %g  Per 1x1 logic tile: %g\n",
           nx * ny * grid_logic_tile_area, grid_logic_tile_area);

    if(route_type == DETAILED)
        {
            count_routing_transistors(directionality, num_switch, segment_inf,
                                      R_minW_nmos, R_minW_pmos);
            get_segment_usage_stats(num_segment, segment_inf);

            if(timing_analysis_enabled)
                {
                    load_net_delay_from_routing(net_delay);

#ifdef CREATE_ECHO_FILES
                    print_net_delay(net_delay, "net_delay.echo");
#endif /* CREATE_ECHO_FILES */

                    load_timing_graph_net_delays(net_delay);
                    T_crit = load_net_slack(net_slack, 0);

#ifdef CREATE_ECHO_FILES
                    print_timing_graph("timing_graph.echo");
                    print_net_slack("net_slack.echo", net_slack);
                    print_critical_path("critical_path.echo", subblock_data);
#endif /* CREATE_ECHO_FILES */

                    printf("\n");
                    printf("Critical Path: %g (s)\n", T_crit);
                }
        }

    if(full_stats == TRUE)
        print_wirelen_prob_dist();
}

Here is the call graph for this function:

Here is the caller graph for this function:
