SRC/rr_graph_area.c File Reference

#include <math.h>
#include "util.h"
#include "vpr_types.h"
#include <assert.h>
#include "globals.h"
#include "rr_graph_util.h"
#include "rr_graph_area.h"

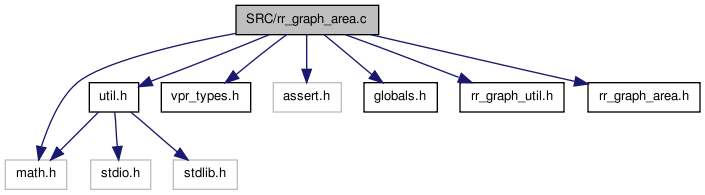

Include dependency graph for rr_graph_area.c:

Go to the source code of this file.

Functions
static void	count_bidir_routing_transistors (int num_switch, float R_minW_nmos, float R_minW_pmos)
static void	count_unidir_routing_transistors (t_segment_inf *segment_inf, float R_minW_nmos, float R_minW_pmos)
static float	get_cblock_trans (int *num_inputs_to_cblock, int max_inputs_to_cblock, float trans_cblock_to_lblock_buf, float trans_sram_bit)
static float *	alloc_and_load_unsharable_switch_trans (int num_switch, float trans_sram_bit, float R_minW_nmos)
static float *	alloc_and_load_sharable_switch_trans (int num_switch, float trans_sram_bit, float R_minW_nmos, float R_minW_pmos)
static float	trans_per_buf (float Rbuf, float R_minW_nmos, float R_minW_pmos)
static float	trans_per_mux (int num_inputs, float trans_sram_bit, float pass_trans_area)
static float	trans_per_R (float Rtrans, float R_minW_trans)
void	count_routing_transistors (enum e_directionality directionality, int num_switch, t_segment_inf *segment_inf, float R_minW_nmos, float R_minW_pmos)

---

Function Documentation

static float * alloc_and_load_sharable_switch_trans	(	int	num_switch,
		float	trans_sram_bit,
		float	R_minW_nmos,
		float	R_minW_pmos
	)			[static]

Definition at line 605 of file rr_graph_area.c.

{

/* Loads up an array that says how many transistor are needed to implement   *
 * the sharable portion of each switch type.  The SRAM bit of a switch and   *
 * the pass transistor (forming either the entire switch or the output part  *
 * of a tri-state buffer) are both unsharable.  Only the buffer part of a    *
 * buffer switch is sharable.                                                */

    float *sharable_switch_trans, Rbuf;
    int i;

    sharable_switch_trans = (float *)my_malloc(num_switch * sizeof(float));

    for(i = 0; i < num_switch; i++)
        {

            if(switch_inf[i].buffered == FALSE)
                {
                    sharable_switch_trans[i] = 0.;
                }
            else
                {               /* Buffer.  Set Rbuf = Rpass = 1/2 Rtotal. */
                    Rbuf = switch_inf[i].R / 2.;
                    sharable_switch_trans[i] =
                        trans_per_buf(Rbuf, R_minW_nmos, R_minW_pmos);
                }
        }

    return (sharable_switch_trans);
}

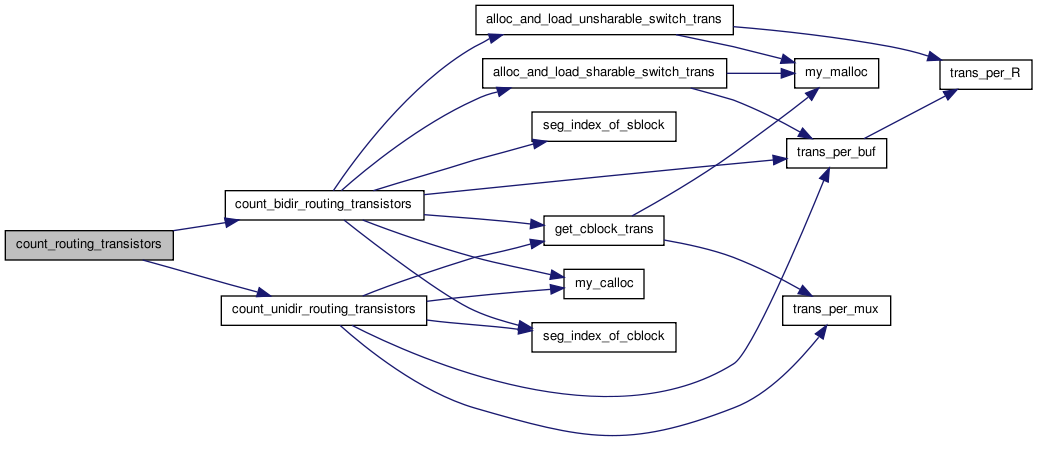

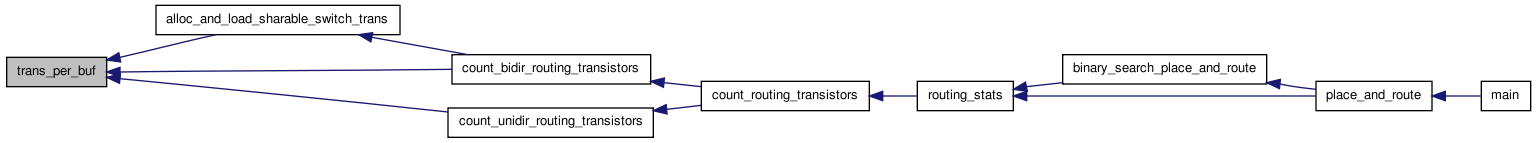

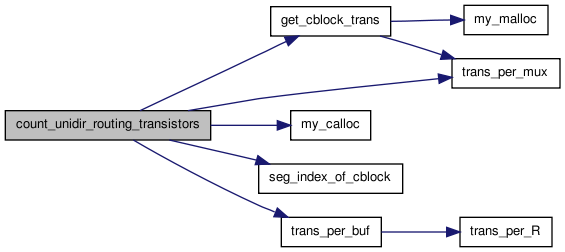

Here is the call graph for this function:

Here is the caller graph for this function:

static float * alloc_and_load_unsharable_switch_trans	(	int	num_switch,
		float	trans_sram_bit,
		float	R_minW_nmos
	)			[static]

Definition at line 569 of file rr_graph_area.c.

{

/* Loads up an array that says how many transistors are needed to implement  *
 * the unsharable portion of each switch type.  The SRAM bit of a switch and *
 * the pass transistor (forming either the entire switch or the output part  *
 * of a tri-state buffer) are both unsharable.                               */

    float *unsharable_switch_trans, Rpass;
    int i;

    unsharable_switch_trans = (float *)my_malloc(num_switch * sizeof(float));

    for(i = 0; i < num_switch; i++)
        {

            if(switch_inf[i].buffered == FALSE)
                {
                    Rpass = switch_inf[i].R;
                }
            else
                {               /* Buffer.  Set Rpass = Rbuf = 1/2 Rtotal. */
                    Rpass = switch_inf[i].R / 2.;
                }

            unsharable_switch_trans[i] = trans_per_R(Rpass, R_minW_nmos) +
                trans_sram_bit;
        }

    return (unsharable_switch_trans);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void count_bidir_routing_transistors	(	int	num_switch,
		float	R_minW_nmos,
		float	R_minW_pmos
	)			[static]

Definition at line 82 of file rr_graph_area.c.

{

/* Tri-state buffers are designed as a buffer followed by a pass transistor. *
 * I make Rbuffer = Rpass_transitor = 1/2 Rtri-state_buffer.                 *
 * I make the pull-up and pull-down sides of the buffer the same strength -- *
 * i.e. I make the p transistor R_minW_pmos / R_minW_nmos wider than the n   *
 * transistor.                                                               *
 *                                                                           *
 * I generate two area numbers in this routine:  ntrans_sharing and          *
 * ntrans_no_sharing.  ntrans_sharing exactly reflects what the timing       *
 * analyzer, etc. works with -- each switch is a completely self contained   *
 * pass transistor or tri-state buffer.  In the case of tri-state buffers    *
 * this is rather pessimisitic.  The inverter chain part of the buffer (as   *
 * opposed to the pass transistor + SRAM output part) can be shared by       *
 * several switches in the same location.  Obviously all the switches from   *
 * an OPIN can share one buffer.  Also, CHANX and CHANY switches at the same *
 * spot (i,j) on a single segment can share a buffer.  For a more realistic  *
 * area number I assume all buffered switches from a node that are at the    *
 * *same (i,j) location* can share one buffer.  Only the lowest resistance   *
 * (largest) buffer is implemented.  In practice, you might want to build    *
 * something that is 1.5x or 2x the largest buffer, so this may be a bit     *
 * optimistic (but I still think it's pretty reasonable).                    */


    int *num_inputs_to_cblock;  /* [0..num_rr_nodes-1], but all entries not    */

    /* corresponding to IPINs will be 0.           */

    boolean *cblock_counted;    /* [0..max(nx,ny)] -- 0th element unused. */
    float *shared_buffer_trans; /* [0..max_nx,ny)] */
    float *unsharable_switch_trans, *sharable_switch_trans;     /* [0..num_switch-1] */

    t_rr_type from_rr_type, to_rr_type;
    int from_node, to_node, iedge, num_edges, maxlen;
    int iswitch, i, j, iseg, max_inputs_to_cblock;
    float input_cblock_trans, shared_opin_buffer_trans;
    const float trans_sram_bit = 6.;

/* Two variables below are the accumulator variables that add up all the    *
 * transistors in the routing.  Make doubles so that they don't stop        *
 * incrementing once adding a switch makes a change of less than 1 part in  *
 * 10^7 to the total.  If this still isn't good enough (adding 1 part in    *
 * 10^15 will still be thrown away), compute the transistor count in        *
 * "chunks", by adding up inodes 1 to 1000, 1001 to 2000 and then summing   *
 * the partial sums together.                                               */

    double ntrans_sharing, ntrans_no_sharing;


/* Buffers from the routing to the ipin cblock inputs, and from the ipin    *
 * cblock outputs to the logic block, respectively.  Assume minimum size n  *
 * transistors, and ptransistors sized to make the pull-up R = pull-down R. */

    float trans_track_to_cblock_buf;
    float trans_cblock_to_lblock_buf;


    ntrans_sharing = 0.;
    ntrans_no_sharing = 0.;
    max_inputs_to_cblock = 0;

/* Assume the two buffers below are 4x minimum drive strength (enough to *
 * drive a fanout of up to 16 pretty nicely -- should cover a reasonable *
 * wiring C plus the fanout.                                             */

    trans_track_to_cblock_buf =
        trans_per_buf(R_minW_nmos / 4., R_minW_nmos, R_minW_pmos);

    trans_cblock_to_lblock_buf =
        trans_per_buf(R_minW_nmos / 4., R_minW_nmos, R_minW_pmos);

    num_inputs_to_cblock = (int *)my_calloc(num_rr_nodes, sizeof(int));

    maxlen = max(nx, ny) + 1;
    cblock_counted = (boolean *) my_calloc(maxlen, sizeof(boolean));
    shared_buffer_trans = (float *)my_calloc(maxlen, sizeof(float));

    unsharable_switch_trans =
        alloc_and_load_unsharable_switch_trans(num_switch, trans_sram_bit,
                                               R_minW_nmos);

    sharable_switch_trans =
        alloc_and_load_sharable_switch_trans(num_switch, trans_sram_bit,
                                             R_minW_nmos, R_minW_pmos);

    for(from_node = 0; from_node < num_rr_nodes; from_node++)
        {

            from_rr_type = rr_node[from_node].type;

            switch (from_rr_type)
                {

                case CHANX:
                case CHANY:
                    num_edges = rr_node[from_node].num_edges;

                    for(iedge = 0; iedge < num_edges; iedge++)
                        {

                            to_node = rr_node[from_node].edges[iedge];
                            to_rr_type = rr_node[to_node].type;

                            switch (to_rr_type)
                                {

                                case CHANX:
                                case CHANY:
                                    iswitch =
                                        rr_node[from_node].switches[iedge];

                                    if(switch_inf[iswitch].buffered)
                                        {
                                            iseg =
                                                seg_index_of_sblock(from_node,
                                                                    to_node);
                                            shared_buffer_trans[iseg] =
                                                max(shared_buffer_trans[iseg],
                                                    sharable_switch_trans
                                                    [iswitch]);

                                            ntrans_no_sharing +=
                                                unsharable_switch_trans
                                                [iswitch] +
                                                sharable_switch_trans
                                                [iswitch];
                                            ntrans_sharing +=
                                                unsharable_switch_trans
                                                [iswitch];
                                        }
                                    else if(from_node < to_node)
                                        {

                                            /* Pass transistor shared by two edges -- only count once.  *
                                             * Also, no part of a pass transistor is sharable.          */

                                            ntrans_no_sharing +=
                                                unsharable_switch_trans
                                                [iswitch];
                                            ntrans_sharing +=
                                                unsharable_switch_trans
                                                [iswitch];
                                        }
                                    break;

                                case IPIN:
                                    num_inputs_to_cblock[to_node]++;
                                    max_inputs_to_cblock =
                                        max(max_inputs_to_cblock,
                                            num_inputs_to_cblock[to_node]);

                                    iseg =
                                        seg_index_of_cblock(from_rr_type,
                                                            to_node);

                                    if(cblock_counted[iseg] == FALSE)
                                        {
                                            cblock_counted[iseg] = TRUE;
                                            ntrans_sharing +=
                                                trans_track_to_cblock_buf;
                                            ntrans_no_sharing +=
                                                trans_track_to_cblock_buf;
                                        }
                                    break;

                                default:
                                    printf
                                        ("Error in count_routing_transistors:  Unexpected \n"
                                         "connection from node %d (type %d) to node %d (type %d).\n",
                                         from_node, from_rr_type, to_node,
                                         to_rr_type);
                                    exit(1);
                                    break;

                                }       /* End switch on to_rr_type. */

                        }       /* End for each edge. */

                    /* Now add in the shared buffer transistors, and reset some flags. */

                    if(from_rr_type == CHANX)
                        {
                            for(i = rr_node[from_node].xlow - 1;
                                i <= rr_node[from_node].xhigh; i++)
                                {
                                    ntrans_sharing += shared_buffer_trans[i];
                                    shared_buffer_trans[i] = 0.;
                                }

                            for(i = rr_node[from_node].xlow;
                                i <= rr_node[from_node].xhigh; i++)
                                cblock_counted[i] = FALSE;

                        }
                    else
                        {       /* CHANY */
                            for(j = rr_node[from_node].ylow - 1;
                                j <= rr_node[from_node].yhigh; j++)
                                {
                                    ntrans_sharing += shared_buffer_trans[j];
                                    shared_buffer_trans[j] = 0.;
                                }

                            for(j = rr_node[from_node].ylow;
                                j <= rr_node[from_node].yhigh; j++)
                                cblock_counted[j] = FALSE;

                        }
                    break;

                case OPIN:
                    num_edges = rr_node[from_node].num_edges;
                    shared_opin_buffer_trans = 0.;

                    for(iedge = 0; iedge < num_edges; iedge++)
                        {
                            iswitch = rr_node[from_node].switches[iedge];
                            ntrans_no_sharing +=
                                unsharable_switch_trans[iswitch] +
                                sharable_switch_trans[iswitch];
                            ntrans_sharing +=
                                unsharable_switch_trans[iswitch];

                            shared_opin_buffer_trans =
                                max(shared_opin_buffer_trans,
                                    sharable_switch_trans[iswitch]);
                        }

                    ntrans_sharing += shared_opin_buffer_trans;
                    break;

                default:
                    break;

                }               /* End switch on from_rr_type */
        }                       /* End for all nodes */

    free(cblock_counted);
    free(shared_buffer_trans);
    free(unsharable_switch_trans);
    free(sharable_switch_trans);

/* Now add in the input connection block transistors. */

    input_cblock_trans = get_cblock_trans(num_inputs_to_cblock,
                                          max_inputs_to_cblock,
                                          trans_cblock_to_lblock_buf,
                                          trans_sram_bit);

    free(num_inputs_to_cblock);

    ntrans_sharing += input_cblock_trans;
    ntrans_no_sharing += input_cblock_trans;

    printf("\nRouting area (in minimum width transistor areas):\n");
    printf
        ("Assuming no buffer sharing (pessimistic). Total: %#g  Per logic tile: "
         "%#g\n", ntrans_no_sharing, ntrans_no_sharing / (float)(nx * ny));
    printf
        ("Assuming buffer sharing (slightly optimistic). Total: %#g  Per logic tile: "
         "%#g\n\n", ntrans_sharing, ntrans_sharing / (float)(nx * ny));
}

Here is the call graph for this function:

Here is the caller graph for this function:

void count_routing_transistors	(	enum e_directionality	directionality,
		int	num_switch,
		t_segment_inf *	segment_inf,
		float	R_minW_nmos,
		float	R_minW_pmos
	)

Definition at line 50 of file rr_graph_area.c.

{

/* Counts how many transistors are needed to implement the FPGA routing      *
 * resources.  Call this only when an rr_graph exists.  It does not count    *
 * the transistors used in logic blocks, but it counts the transistors in    *
 * the input connection block multiplexers and in the output pin drivers and *
 * pass transistors.  NB:  this routine assumes pass transistors always      *
 * generate two edges (one forward, one backward) between two nodes.         *
 * Physically, this is what happens -- make sure your rr_graph does it.      *
 *                                                                           *
 * I assume a minimum width transistor takes 1 unit of area.  A double-width *
 * transistor takes the twice the diffusion width, but the same spacing, so  *
 * I assume it takes 1.5x the area of a minimum-width transitor.             */
    if(directionality == BI_DIRECTIONAL)
        {
            count_bidir_routing_transistors(num_switch, R_minW_nmos,
                                            R_minW_pmos);
        }
    else
        {
            assert(directionality == UNI_DIRECTIONAL);
            count_unidir_routing_transistors(segment_inf, R_minW_nmos,
                                             R_minW_pmos);
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void count_unidir_routing_transistors	(	t_segment_inf *	segment_inf,
		float	R_minW_nmos,
		float	R_minW_pmos
	)			[static]

Definition at line 349 of file rr_graph_area.c.

{
    boolean *cblock_counted;    /* [0..max(nx,ny)] -- 0th element unused. */
    int *num_inputs_to_cblock;  /* [0..num_rr_nodes-1], but all entries not    */

    /* corresponding to IPINs will be 0.           */

    t_rr_type from_rr_type, to_rr_type;
    int i, j, iseg, from_node, to_node, iedge, num_edges, maxlen;
    int max_inputs_to_cblock, cost_index, seg_type, switch_type;
    float input_cblock_trans;
    const float trans_sram_bit = 6.;

/* Two variables below are the accumulator variables that add up all the    *
 * transistors in the routing.  Make doubles so that they don't stop        *
 * incrementing once adding a switch makes a change of less than 1 part in  *
 * 10^7 to the total.  If this still isn't good enough (adding 1 part in    *
 * 10^15 will still be thrown away), compute the transistor count in        *
 * "chunks", by adding up inodes 1 to 1000, 1001 to 2000 and then summing   *
 * the partial sums together.                                               */

    double ntrans;


/* Buffers from the routing to the ipin cblock inputs, and from the ipin    *
 * cblock outputs to the logic block, respectively.  Assume minimum size n  *
 * transistors, and ptransistors sized to make the pull-up R = pull-down R. */

    float trans_track_to_cblock_buf;
    float trans_cblock_to_lblock_buf;

    max_inputs_to_cblock = 0;

/* Assume the two buffers below are 4x minimum drive strength (enough to *
 * drive a fanout of up to 16 pretty nicely -- should cover a reasonable *
 * wiring C plus the fanout.                                             */

    trans_track_to_cblock_buf =
        trans_per_buf(R_minW_nmos / 4., R_minW_nmos, R_minW_pmos);

    trans_cblock_to_lblock_buf =
        trans_per_buf(R_minW_nmos / 4., R_minW_nmos, R_minW_pmos);

    num_inputs_to_cblock = (int *)my_calloc(num_rr_nodes, sizeof(int));
    maxlen = max(nx, ny) + 1;
    cblock_counted = (boolean *) my_calloc(maxlen, sizeof(boolean));

    ntrans = 0;
    for(from_node = 0; from_node < num_rr_nodes; from_node++)
        {

            from_rr_type = rr_node[from_node].type;

            switch (from_rr_type)
                {

                case CHANX:
                case CHANY:
                    num_edges = rr_node[from_node].num_edges;
                    cost_index = rr_node[from_node].cost_index;
                    seg_type = rr_indexed_data[cost_index].seg_index;
                    switch_type = segment_inf[seg_type].wire_switch;
                    assert(segment_inf[seg_type].wire_switch ==
                           segment_inf[seg_type].opin_switch);
                    assert(switch_inf[switch_type].mux_trans_size >= 1);        /* can't be smaller than min sized transistor */

                        assert(rr_node[from_node].num_opin_drivers == 0); /* undir has no opin or wire switches */
                        assert(rr_node[from_node].num_wire_drivers == 0); /* undir has no opin or wire switches */

                    /* Each wire segment begins with a multipexer followed by a driver for unidirectional */
                    /* Add up area of multiplexer */
                    ntrans +=
                                trans_per_mux(rr_node[from_node].fan_in,
                                      trans_sram_bit,
                                      switch_inf[switch_type].mux_trans_size);

                    /* Add up area of buffer */
                    if(switch_inf[switch_type].buf_size == 0)
                        {
                            ntrans +=
                                trans_per_buf(switch_inf[switch_type].R,
                                              R_minW_nmos, R_minW_pmos);
                        }
                    else
                        {
                            ntrans += switch_inf[switch_type].buf_size;
                        }

                    for(iedge = 0; iedge < num_edges; iedge++)
                        {

                            to_node = rr_node[from_node].edges[iedge];
                            to_rr_type = rr_node[to_node].type;

                            switch (to_rr_type)
                                {

                                case CHANX:
                                case CHANY:
                                    break;

                                case IPIN:
                                    num_inputs_to_cblock[to_node]++;
                                    max_inputs_to_cblock =
                                        max(max_inputs_to_cblock,
                                            num_inputs_to_cblock[to_node]);
                                    iseg =
                                        seg_index_of_cblock(from_rr_type,
                                                            to_node);

                                    if(cblock_counted[iseg] == FALSE)
                                        {
                                            cblock_counted[iseg] = TRUE;
                                            ntrans +=
                                                trans_track_to_cblock_buf;
                                        }
                                    break;

                                default:
                                    printf
                                        ("Error in count_routing_transistors:  Unexpected \n"
                                         "connection from node %d (type %d) to node %d (type %d).\n",
                                         from_node, from_rr_type, to_node,
                                         to_rr_type);
                                    exit(1);
                                    break;

                                }       /* End switch on to_rr_type. */

                        }       /* End for each edge. */

                    /* Reset some flags */
                    if(from_rr_type == CHANX)
                        {
                            for(i = rr_node[from_node].xlow;
                                i <= rr_node[from_node].xhigh; i++)
                                cblock_counted[i] = FALSE;

                        }
                    else
                        {       /* CHANY */
                            for(j = rr_node[from_node].ylow;
                                j <= rr_node[from_node].yhigh; j++)
                                cblock_counted[j] = FALSE;

                        }
                    break;
                case OPIN:
                    break;

                default:
                    break;

                }               /* End switch on from_rr_type */
        }                       /* End for all nodes */

    /* Now add in the input connection block transistors. */

    input_cblock_trans = get_cblock_trans(num_inputs_to_cblock,
                                          max_inputs_to_cblock,
                                          trans_cblock_to_lblock_buf,
                                          trans_sram_bit);

    free(cblock_counted);
    free(num_inputs_to_cblock);

    ntrans += input_cblock_trans;

    printf("\nRouting area (in minimum width transistor areas):\n");
    printf("Total Routing Area: %#g  Per logic tile: %#g\n", ntrans,
           ntrans / (float)(nx * ny));
}

Here is the call graph for this function:

Here is the caller graph for this function:

static float get_cblock_trans	(	int *	num_inputs_to_cblock,
		int	max_inputs_to_cblock,
		float	trans_cblock_to_lblock_buf,
		float	trans_sram_bit
	)			[static]

Definition at line 526 of file rr_graph_area.c.

{

/* Computes the transistors in the input connection block multiplexers and   *
 * the buffers from connection block outputs to the logic block input pins.  *
 * For speed, I precompute the number of transistors in the multiplexers of  *
 * interest.                                                                 */

    float *trans_per_cblock;    /* [0..max_inputs_to_cblock] */
    float trans_count;
    int i, num_inputs;

    trans_per_cblock = (float *)my_malloc((max_inputs_to_cblock + 1) *
                                          sizeof(float));

    trans_per_cblock[0] = 0.;   /* i.e., not an IPIN or no inputs */

/* With one or more inputs, add the mux and output buffer.  I add the output *
 * buffer even when the number of inputs = 1 (i.e. no mux) because I assume  *
 * I need the drivability just for metal capacitance.                        */

    for(i = 1; i <= max_inputs_to_cblock; i++)
        trans_per_cblock[i] =
            trans_per_mux(i, trans_sram_bit,
                          ipin_mux_trans_size) + trans_cblock_to_lblock_buf;

    trans_count = 0.;

    for(i = 0; i < num_rr_nodes; i++)
        {
            num_inputs = num_inputs_to_cblock[i];
            trans_count += trans_per_cblock[num_inputs];
        }

    free(trans_per_cblock);
    return (trans_count);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static float trans_per_buf	(	float	Rbuf,
		float	R_minW_nmos,
		float	R_minW_pmos
	)			[static]

Definition at line 642 of file rr_graph_area.c.

{

/* Returns the number of minimum width transistor area equivalents needed to *
 * implement this buffer.  Assumes a stage ratio of 4, and equal strength    *
 * pull-up and pull-down paths.                                              */

    int num_stage, istage;
    float trans_count, stage_ratio, Rstage;

    if(Rbuf > 0.6 * R_minW_nmos || Rbuf <= 0.)
        {                       /* Use a single-stage buffer */
            trans_count = trans_per_R(Rbuf, R_minW_nmos) + trans_per_R(Rbuf,
                                                                       R_minW_pmos);
        }
    else
        {                       /* Use a multi-stage buffer */

            /* Target stage ratio = 4.  1 minimum width buffer, then num_stage bigger *
             * ones.                                                                  */

            num_stage = nint(log10(R_minW_nmos / Rbuf) / log10(4.));
            num_stage = max(num_stage, 1);
            stage_ratio = pow(R_minW_nmos / Rbuf, 1. / (float)num_stage);

            Rstage = R_minW_nmos;
            trans_count = 0.;

            for(istage = 0; istage <= num_stage; istage++)
                {
                    trans_count +=
                        trans_per_R(Rstage, R_minW_nmos) + trans_per_R(Rstage,
                                                                       R_minW_pmos);
                    Rstage /= stage_ratio;
                }
        }

    return (trans_count);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static float trans_per_mux	(	int	num_inputs,
		float	trans_sram_bit,
		float	pass_trans_area
	)			[static]

Definition at line 686 of file rr_graph_area.c.

{

/* Returns the number of transistors needed to build a pass transistor mux. *
 * DOES NOT include input buffers or any output buffer.                     *
 * Attempts to select smart multiplexer size depending on number of inputs  *
 * For multiplexers with inputs 4 or less, one level is used, more has two  *
 * levels.                                                                  */
    float ntrans, sram_trans, pass_trans;
    int num_second_stage_trans;

    if(num_inputs <= 1)
        {
            return (0);
        }
    else if(num_inputs == 2)
        {
            pass_trans = 2 * pass_trans_area;
            sram_trans = 1 * trans_sram_bit;
        }
    else if(num_inputs <= 4)
        {
            /* One-hot encoding */
            pass_trans = num_inputs * pass_trans_area;
            sram_trans = num_inputs * trans_sram_bit;
        }
    else
        {
            /* This is a large multiplexer so design it using a two-level multiplexer   *
             * + 0.00001 is to make sure exact square roots two don't get rounded down  *
             * to one lower level.                                                      */
            num_second_stage_trans = floor(sqrt(num_inputs) + 0.00001);
            pass_trans =
                (num_inputs + num_second_stage_trans) * pass_trans_area;
            sram_trans =
                (ceil((float)num_inputs / num_second_stage_trans - 0.00001) +
                 num_second_stage_trans) * trans_sram_bit;
            if(num_second_stage_trans == 2)
                {
                    /* Can use one-bit instead of a two-bit one-hot encoding for the second stage */
                    /* Eliminates one sram bit counted earlier */
                    sram_trans -= 1 * trans_sram_bit;
                }
        }

    ntrans = pass_trans + sram_trans;
    return (ntrans);
}

Here is the caller graph for this function:

static float trans_per_R	(	float	Rtrans,
		float	R_minW_trans
	)			[static]

Definition at line 739 of file rr_graph_area.c.

{

/* Returns the number of minimum width transistor area equivalents needed    *
 * to make a transistor with Rtrans, given that the resistance of a minimum  *
 * width transistor of this type is R_minW_trans.                            */

    float trans_area;

    if(Rtrans <= 0.)            /* Assume resistances are nonsense -- use min. width */
        return (1.);

    if(Rtrans >= R_minW_trans)
        return (1.);

/* Area = minimum width area (1) + 0.5 for each additional unit of width.  *
 * The 50% factor takes into account the "overlapping" that occurs in      *
 * horizontally-paralleled transistors, and the need for only one spacing, *
 * not two (i.e. two min W transistors need two spaces; a 2W transistor    *
 * needs only 1).                                                          */

    trans_area = 0.5 * R_minW_trans / Rtrans + 0.5;
    return (trans_area);
}

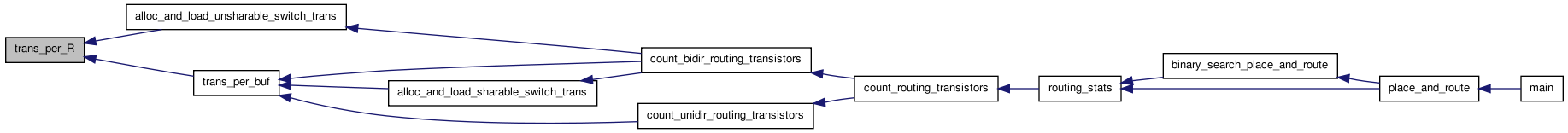

Here is the caller graph for this function:
