SRC/stats.h File Reference

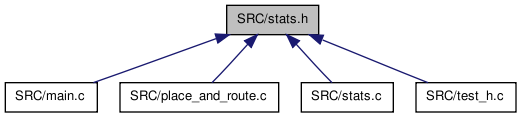

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	routing_stats (boolean full_stats, enum e_route_type route_type, int num_switch, t_segment_inf *segment_inf, int num_segment, float R_minW_nmos, float R_minW_pmos, enum e_directionality directionality, boolean timing_analysis_enabled, float **net_slack, float **net_delay, t_subblock_data subblock_data)
void	print_wirelen_prob_dist (void)
void	print_lambda (void)

---

Function Documentation

void print_lambda

(

void

)

Definition at line 460 of file stats.c.

{

/* Finds the average number of input pins used per fb.  Does not    *
 * count inputs which are hooked to global nets (i.e. the clock     *
 * when it is marked global).                                       */

    int bnum, ipin;
    int num_inputs_used = 0;
    int iclass, inet;
    float lambda;
    t_type_ptr type;

    for(bnum = 0; bnum < num_blocks; bnum++)
        {
            type = block[bnum].type;
            assert(type != NULL);
            if(type != IO_TYPE)
                {
                    for(ipin = 0; ipin < type->num_pins; ipin++)
                        {
                            iclass = type->pin_class[ipin];
                            if(type->class_inf[iclass].type == RECEIVER)
                                {
                                    inet = block[bnum].nets[ipin];
                                    if(inet != OPEN)    /* Pin is connected? */
                                        if(net[inet].is_global == FALSE)        /* Not a global clock */
                                            num_inputs_used++;
                                }
                        }
                }
        }

    lambda = (float)num_inputs_used / (float)num_blocks;
    printf("Average lambda (input pins used per fb) is: %g\n", lambda);
}

void print_wirelen_prob_dist

(

void

)

Definition at line 360 of file stats.c.

{

/* Prints out the probability distribution of the wirelength / number   *
 * input pins on a net -- i.e. simulates 2-point net length probability *
 * distribution.                                                        */

    float *prob_dist;
    float norm_fac, two_point_length;
    int inet, bends, length, segments, index;
    float av_length;
    int prob_dist_size, i, incr;

    prob_dist_size = nx + ny + 10;
    prob_dist = (float *)my_calloc(prob_dist_size, sizeof(float));
    norm_fac = 0.;

    for(inet = 0; inet < num_nets; inet++)
        {
            if(net[inet].is_global == FALSE)
                {
                    get_num_bends_and_length(inet, &bends, &length,
                                             &segments);

/*  Assign probability to two integer lengths proportionately -- i.e.  *
 *  if two_point_length = 1.9, add 0.9 of the pins to prob_dist[2] and *
 *  only 0.1 to prob_dist[1].                                          */

                    two_point_length =
                        (float)length / (float)(net[inet].num_sinks);
                    index = (int)two_point_length;
                    if(index >= prob_dist_size)
                        {

                            printf
                                ("Warning: index (%d) to prob_dist exceeds its allocated size (%d)\n",
                                 index, prob_dist_size);
                            printf
                                ("Realloc'ing to increase 2-pin wirelen prob distribution array\n");
                            incr = index - prob_dist_size + 2;
                            prob_dist_size += incr;
                            prob_dist =
                                my_realloc(prob_dist,
                                           prob_dist_size * sizeof(float));
                            for(i = prob_dist_size - incr; i < prob_dist_size;
                                i++)
                                prob_dist[i] = 0.0;
                        }
                    prob_dist[index] +=
                        (net[inet].num_sinks) * (1 - two_point_length +
                                                 index);

                    index++;
                    if(index >= prob_dist_size)
                        {

                            printf
                                ("Warning: index (%d) to prob_dist exceeds its allocated size (%d)\n",
                                 index, prob_dist_size);
                            printf
                                ("Realloc'ing to increase 2-pin wirelen prob distribution array\n");
                            incr = index - prob_dist_size + 2;
                            prob_dist_size += incr;
                            prob_dist =
                                my_realloc(prob_dist,
                                           prob_dist_size * sizeof(float));
                            for(i = prob_dist_size - incr; i < prob_dist_size;
                                i++)
                                prob_dist[i] = 0.0;
                        }
                    prob_dist[index] += (net[inet].num_sinks) * (1 - index +
                                                                 two_point_length);

                    norm_fac += net[inet].num_sinks;
                }
        }

/* Normalize so total probability is 1 and print out. */

    printf("\nProbability distribution of 2-pin net lengths:\n\n");
    printf("Length    p(Lenth)\n");

    av_length = 0;

    for(index = 0; index < prob_dist_size; index++)
        {
            prob_dist[index] /= norm_fac;
            printf("%6d  %10.6f\n", index, prob_dist[index]);
            av_length += prob_dist[index] * index;
        }

    printf("\nThe number of 2-pin nets is ;%g;\n", norm_fac);
    printf("\nExpected value of 2-pin net length (R) is ;%g;\n", av_length);
    printf("\nTotal wire length is ;%g;\n", norm_fac * av_length);

    free(prob_dist);
}

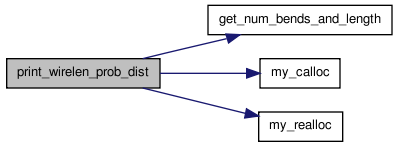

Here is the call graph for this function:

Here is the caller graph for this function:

void routing_stats	(	boolean	full_stats,
		enum e_route_type	route_type,
		int	num_switch,
		t_segment_inf *	segment_inf,
		int	num_segment,
		float	R_minW_nmos,
		float	R_minW_pmos,
		enum e_directionality	directionality,
		boolean	timing_analysis_enabled,
		float **	net_slack,
		float **	net_delay,
		t_subblock_data	subblock_data
	)

Definition at line 34 of file stats.c.

{

/* Prints out various statistics about the current routing.  Both a routing *
 * and an rr_graph must exist when you call this routine.                   */

    float T_crit;


    get_length_and_bends_stats();
    get_channel_occupancy_stats();

    printf("Logic Area (in minimum width transistor areas):\n");
    printf("Total Logic Area: %g  Per 1x1 logic tile: %g\n",
           nx * ny * grid_logic_tile_area, grid_logic_tile_area);

    if(route_type == DETAILED)
        {
            count_routing_transistors(directionality, num_switch, segment_inf,
                                      R_minW_nmos, R_minW_pmos);
            get_segment_usage_stats(num_segment, segment_inf);

            if(timing_analysis_enabled)
                {
                    load_net_delay_from_routing(net_delay);

#ifdef CREATE_ECHO_FILES
                    print_net_delay(net_delay, "net_delay.echo");
#endif /* CREATE_ECHO_FILES */

                    load_timing_graph_net_delays(net_delay);
                    T_crit = load_net_slack(net_slack, 0);

#ifdef CREATE_ECHO_FILES
                    print_timing_graph("timing_graph.echo");
                    print_net_slack("net_slack.echo", net_slack);
                    print_critical_path("critical_path.echo", subblock_data);
#endif /* CREATE_ECHO_FILES */

                    printf("\n");
                    printf("Critical Path: %g (s)\n", T_crit);
                }
        }

    if(full_stats == TRUE)
        print_wirelen_prob_dist();
}

Here is the call graph for this function:
