netlist_create_from_ast.c File Reference

#include <string.h>
#include <stdio.h>
#include <stdlib.h>
#include "types.h"
#include "globals.h"
#include "errors.h"
#include "netlist_utils.h"
#include "odin_util.h"
#include "ast_util.h"
#include "netlist_create_from_ast.h"
#include "string_cache.h"
#include "netlist_visualizer.h"
#include "parse_making_ast.h"
#include "node_creation_library.h"
#include "util.h"
#include "multipliers.h"
#include "hard_blocks.h"
#include "memories.h"

Include dependency graph for netlist_create_from_ast.c:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	INSTANTIATE_DRIVERS   1
#define	ALIAS_INPUTS   2
#define	COMBINATIONAL   1
#define	SEQUENTIAL   2
Functions
void	convert_ast_to_netlist_recursing_via_modules (ast_node_t *current_module, char *instance_name, int level)
signal_list_t *	netlist_expand_ast_of_module (ast_node_t *node, char *instance_name_prefix)
void	create_all_driver_nets_in_this_module (char *instance_name_prefix)
ast_node_t *	find_top_module ()
void	create_top_driver_nets (ast_node_t *module, char *instance_name_prefix)
void	create_top_output_nodes (ast_node_t *module, char *instance_name_prefix)
nnet_t *	define_nets_with_driver (ast_node_t *var_declare, char *instance_name_prefix)
nnet_t *	define_nodes_and_nets_with_driver (ast_node_t *var_declare, char *instance_name_prefix)
void	connect_hard_block_and_alias (ast_node_t *module_instance, char *instance_name_prefix)
void	connect_module_instantiation_and_alias (short PASS, ast_node_t *module_instance, char *instance_name_prefix)
void	create_symbol_table_for_module (ast_node_t *module_items)
signal_list_t *	create_gate (ast_node_t *gate, char *instance_name_prefix)
signal_list_t *	create_hard_block (ast_node_t *block, char *instance_name_prefix)
signal_list_t *	create_pins (ast_node_t *var_declare, char *name, char *instance_name_prefix)
signal_list_t *	create_output_pin (ast_node_t *var_declare, char *instance_name_prefix)
signal_list_t *	assignment_alias (ast_node_t *assignment, char *instance_name_prefix)
signal_list_t *	create_operation_node (ast_node_t *op, signal_list_t **input_lists, int list_size, char *instance_name_prefix)
void	terminate_continuous_assignment (ast_node_t *node, signal_list_t *assignment, char *instance_name_prefix)
void	terminate_registered_assignment (ast_node_t *always_node, signal_list_t *assignment, signal_list_t *potential_clocks, char *instance_name_prefix)
signal_list_t *	create_case (ast_node_t *case_ast, char *instance_name_prefix)
void	create_case_control_signals (ast_node_t *case_list_of_items, ast_node_t *compare_against, nnode_t *case_node, char *instance_name_prefix)
signal_list_t *	create_case_mux_statements (ast_node_t *case_list_of_items, nnode_t *case_node, char *instance_name_prefix)

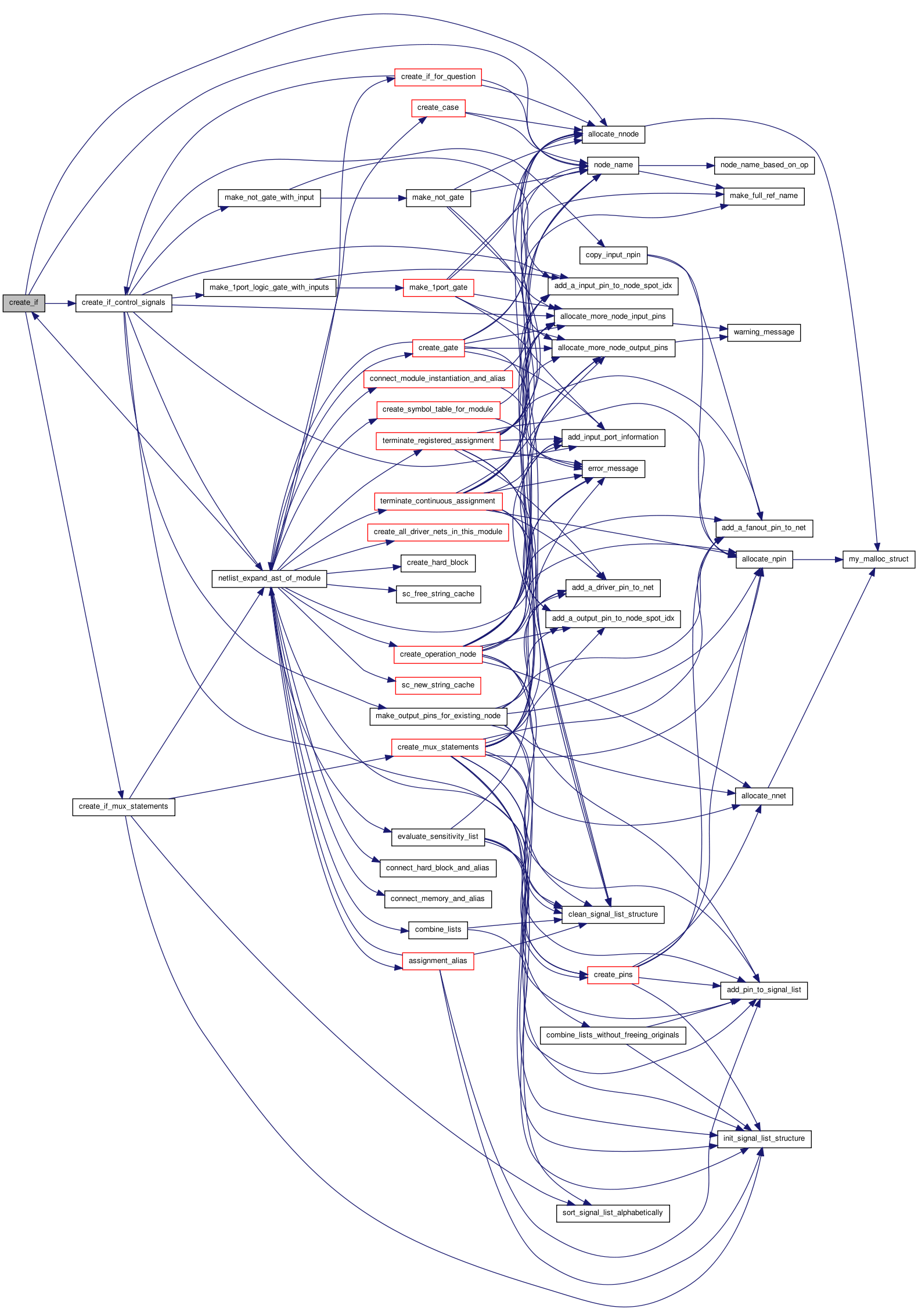

signal_list_t *	create_if (ast_node_t *if_ast, char *instance_name_prefix)

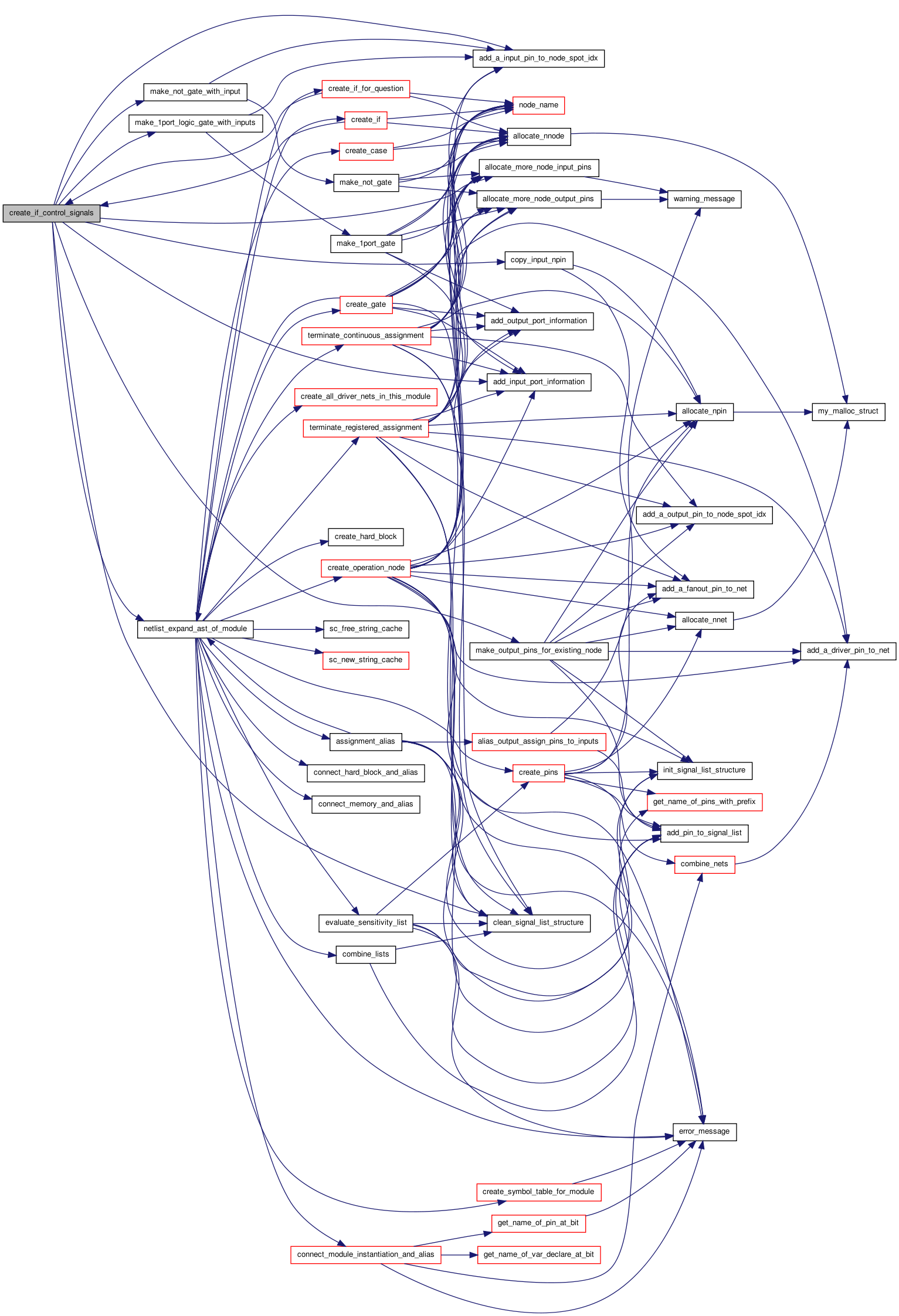

void	create_if_control_signals (ast_node_t *if_expression, nnode_t *if_node, char *instance_name_prefix)
signal_list_t *	create_if_mux_statements (ast_node_t *if_ast, nnode_t *if_node, char *instance_name_prefix)
signal_list_t *	create_if_for_question (ast_node_t *if_ast, char *instance_name_prefix)
signal_list_t *	create_if_question_mux_expressions (ast_node_t *if_ast, nnode_t *if_node, char *instance_name_prefix)

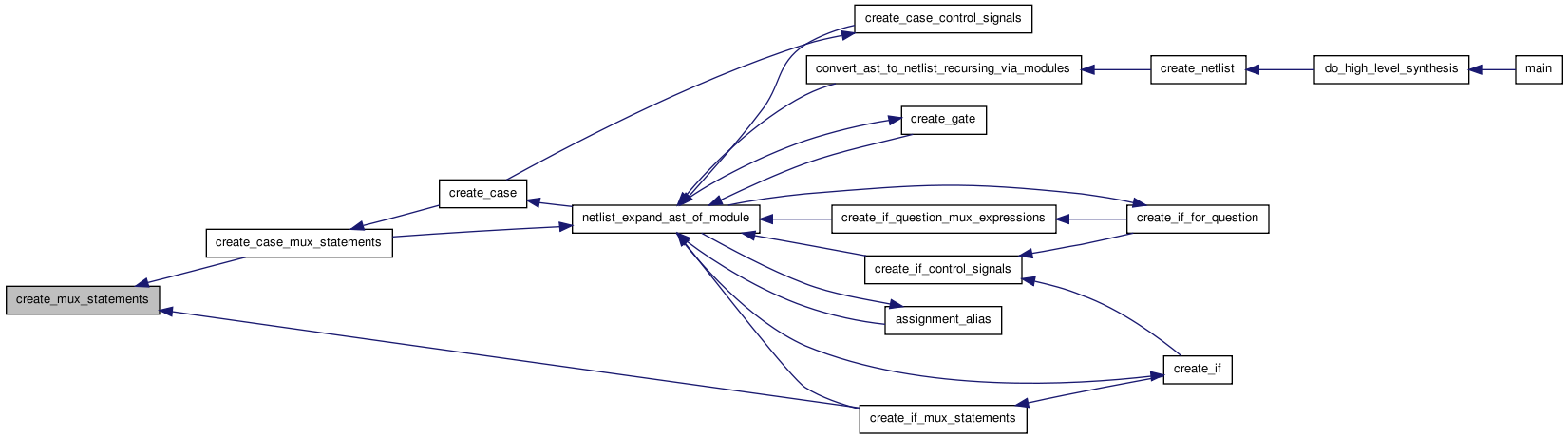

signal_list_t *	create_mux_statements (signal_list_t **statement_lists, nnode_t *case_node, int num_statement_lists, char *instance_name_prefix)
signal_list_t *	create_mux_expressions (signal_list_t **expression_lists, nnode_t *mux_node, int num_expression_lists, char *instance_name_prefix)
signal_list_t *	evaluate_sensitivity_list (ast_node_t *delay_control, char *instance_name_prefix)
int	alias_output_assign_pins_to_inputs (char_list_t *output_list, signal_list_t *input_list, ast_node_t *node)
int	find_smallest_non_numerical (ast_node_t *node, signal_list_t **input_list, int num_input_lists)

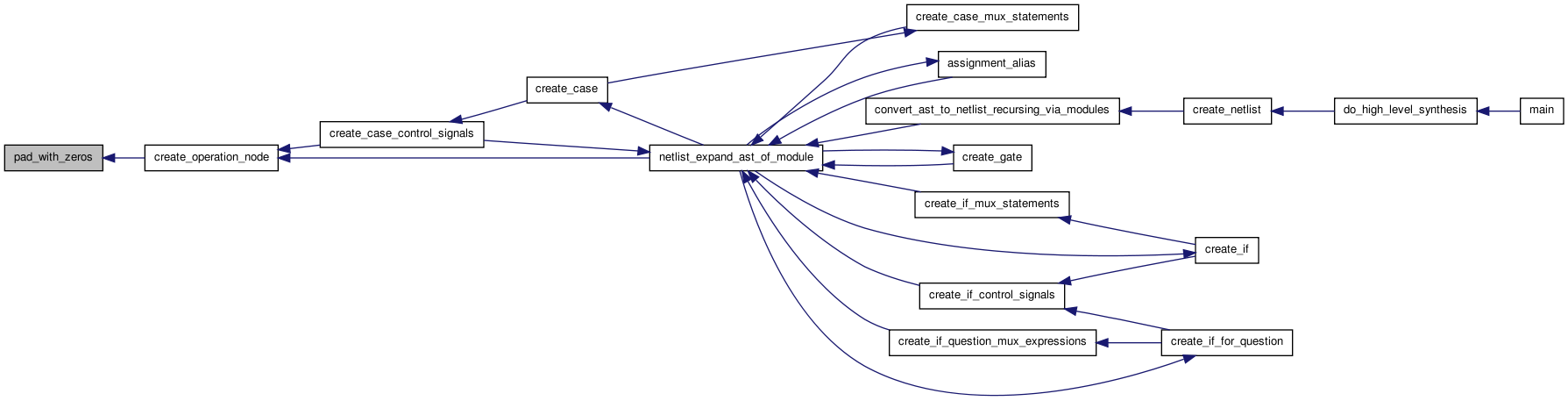

void	pad_with_zeros (ast_node_t *node, signal_list_t *list, int pad_size, char *instance_name_prefix)
void	look_for_clocks (netlist_t *netlist)

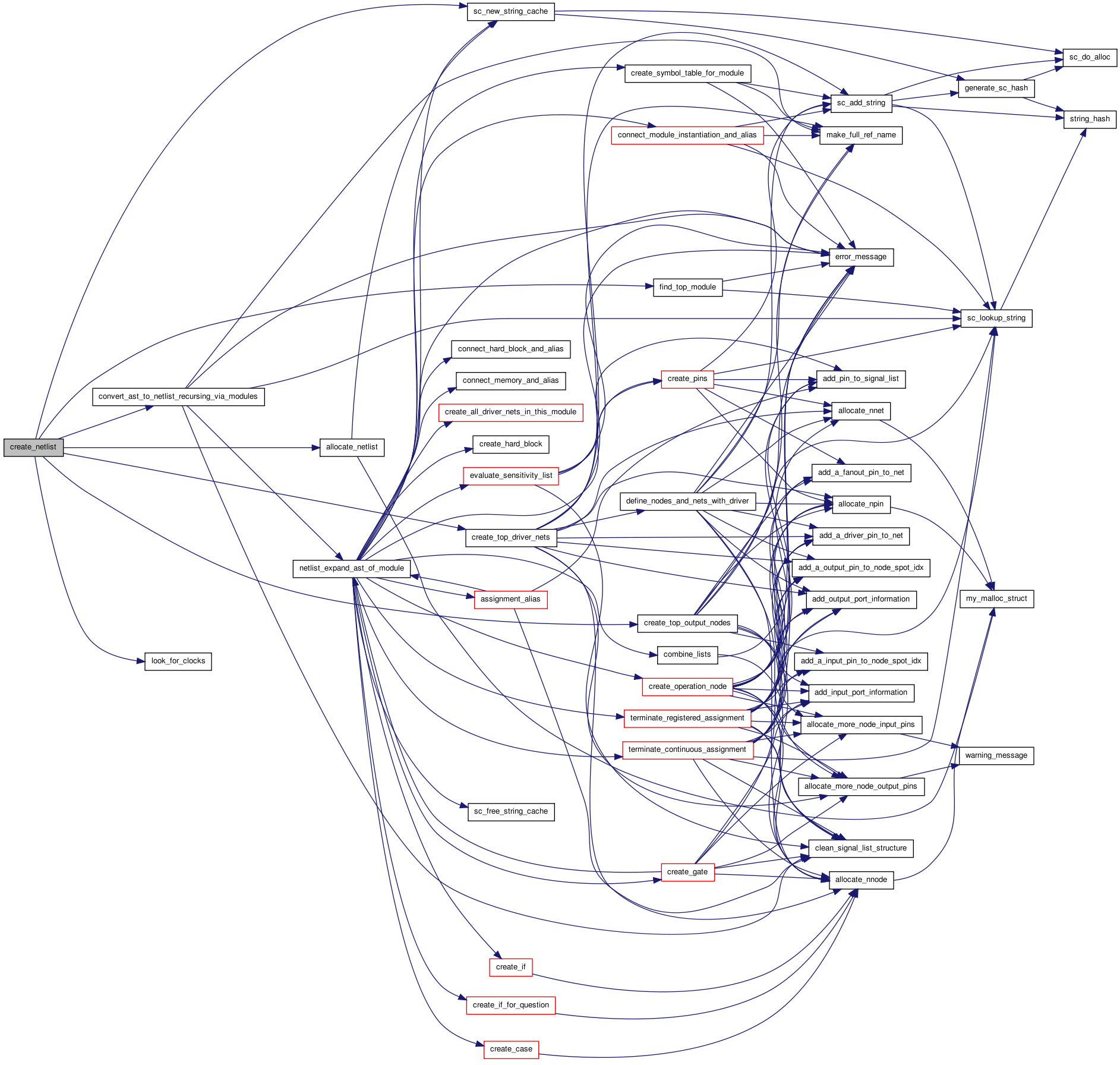

void	create_netlist ()
Variables
STRING_CACHE *	output_nets_sc
STRING_CACHE *	input_nets_sc
STRING_CACHE *	local_symbol_table_sc
ast_node_t **	local_symbol_table
int	num_local_symbol_table
signal_list_t *	local_clock_list
short	local_clock_found
int	local_clock_idx
char *	one_string = "ONE_VCC_CNS"
char *	zero_string = "ZERO_GND_ZERO"
char *	pad_string = "ZERO_PAD_ZERO"
ast_node_t *	top_module
netlist_t *	verilog_netlist
int	netlist_create_line_number = -2
int	type_of_circuit

---

Define Documentation

#define ALIAS_INPUTS   2

Definition at line 50 of file netlist_create_from_ast.c.

#define COMBINATIONAL   1

Definition at line 52 of file netlist_create_from_ast.c.

#define INSTANTIATE_DRIVERS   1

Definition at line 49 of file netlist_create_from_ast.c.

#define SEQUENTIAL   2

Definition at line 53 of file netlist_create_from_ast.c.

---

Function Documentation

int alias_output_assign_pins_to_inputs	(	char_list_t *	output_list,
		signal_list_t *	input_list,
		ast_node_t *	node
	)

Definition at line 1843 of file netlist_create_from_ast.c.

{
        int i;

        if (output_list->num_strings >= input_list->signal_list_size)
        {
                for (i = 0; i < input_list->signal_list_size; i++)
                {
                        input_list->signal_list[i]->name = output_list->strings[i];
                }
                for (i = input_list->signal_list_size; i < output_list->num_strings; i++)
                {
                        warning_message(NETLIST_ERROR, node->line_number, node->file_number, "More nets to drive then drivers, padding with ZEROs for driver %s\n", output_list->strings[i]);
                        add_pin_to_signal_list(input_list, get_a_zero_pin(verilog_netlist));
                        input_list->signal_list[i]->name = output_list->strings[i];
                }

                return output_list->num_strings;
        }
        else
        {
                for (i = 0; i < output_list->num_strings; i++)
                {
                        input_list->signal_list[i]->name = output_list->strings[i];
                }
                warning_message(NETLIST_ERROR, node->line_number, node->file_number, "May be a warning: appears that there are more driver pins then nets to drive, sometimes using decimal numbers causes this problem\n");
                return output_list->num_strings;
        }
}

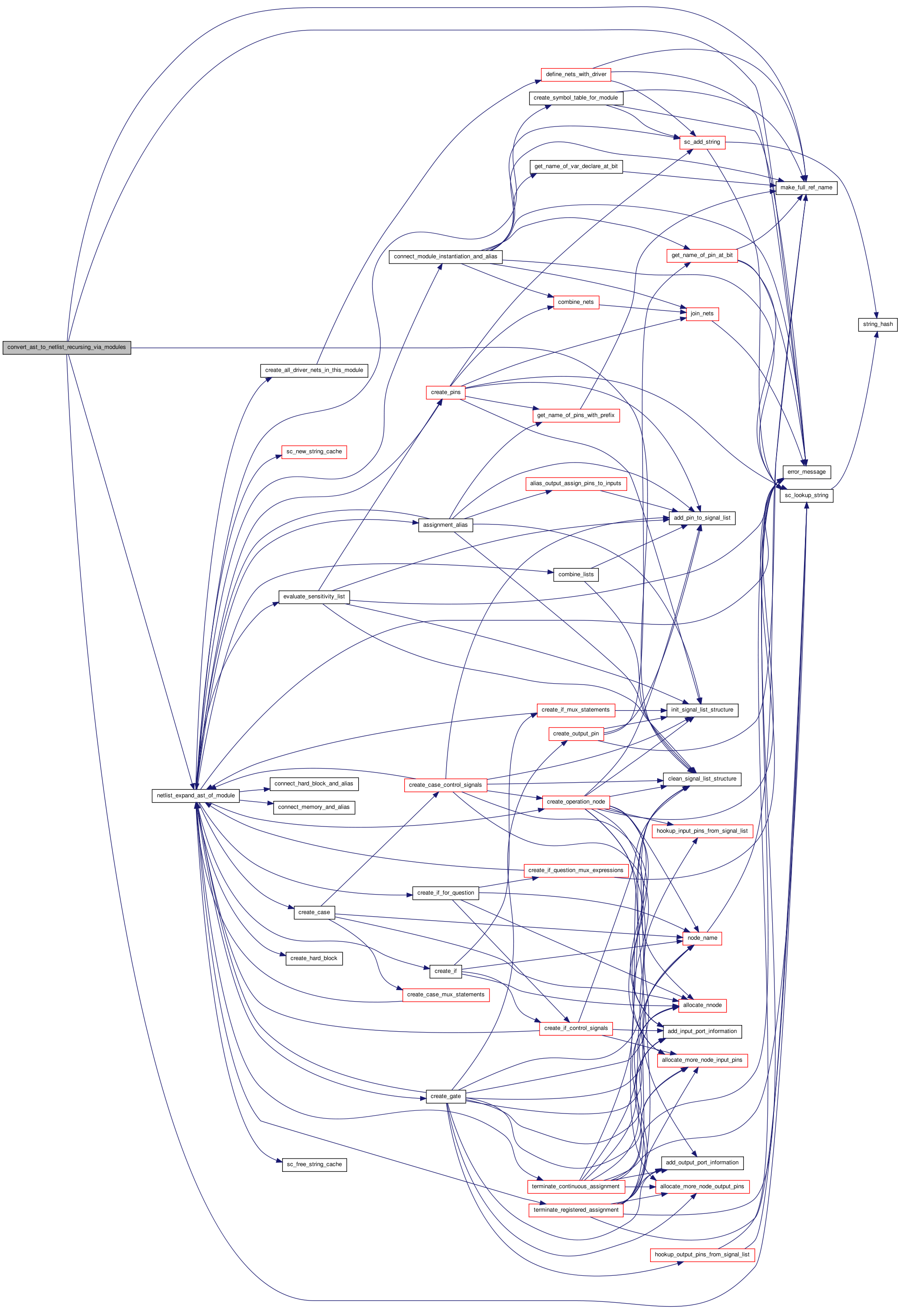

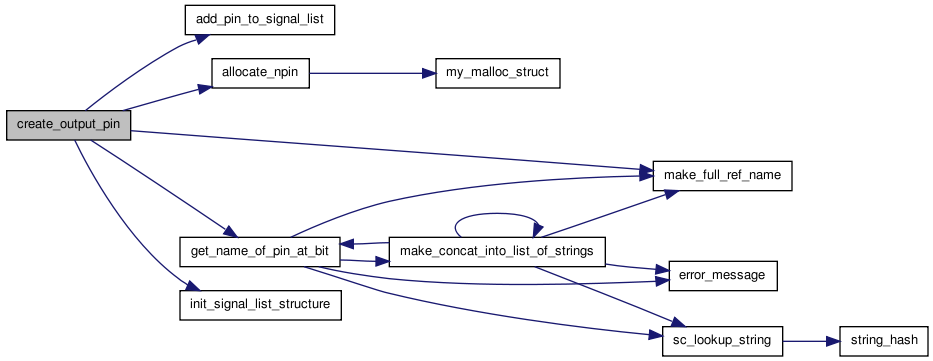

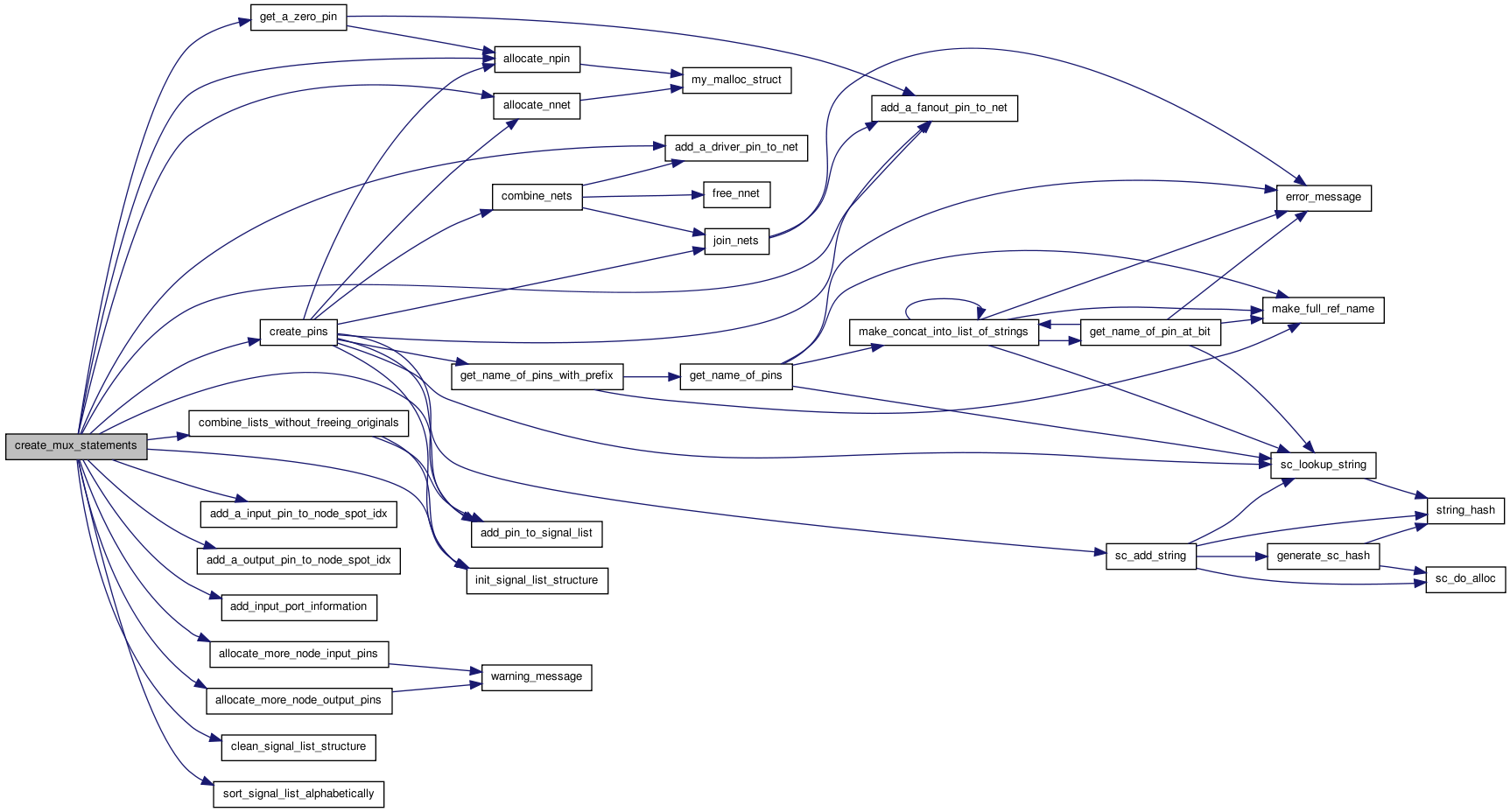

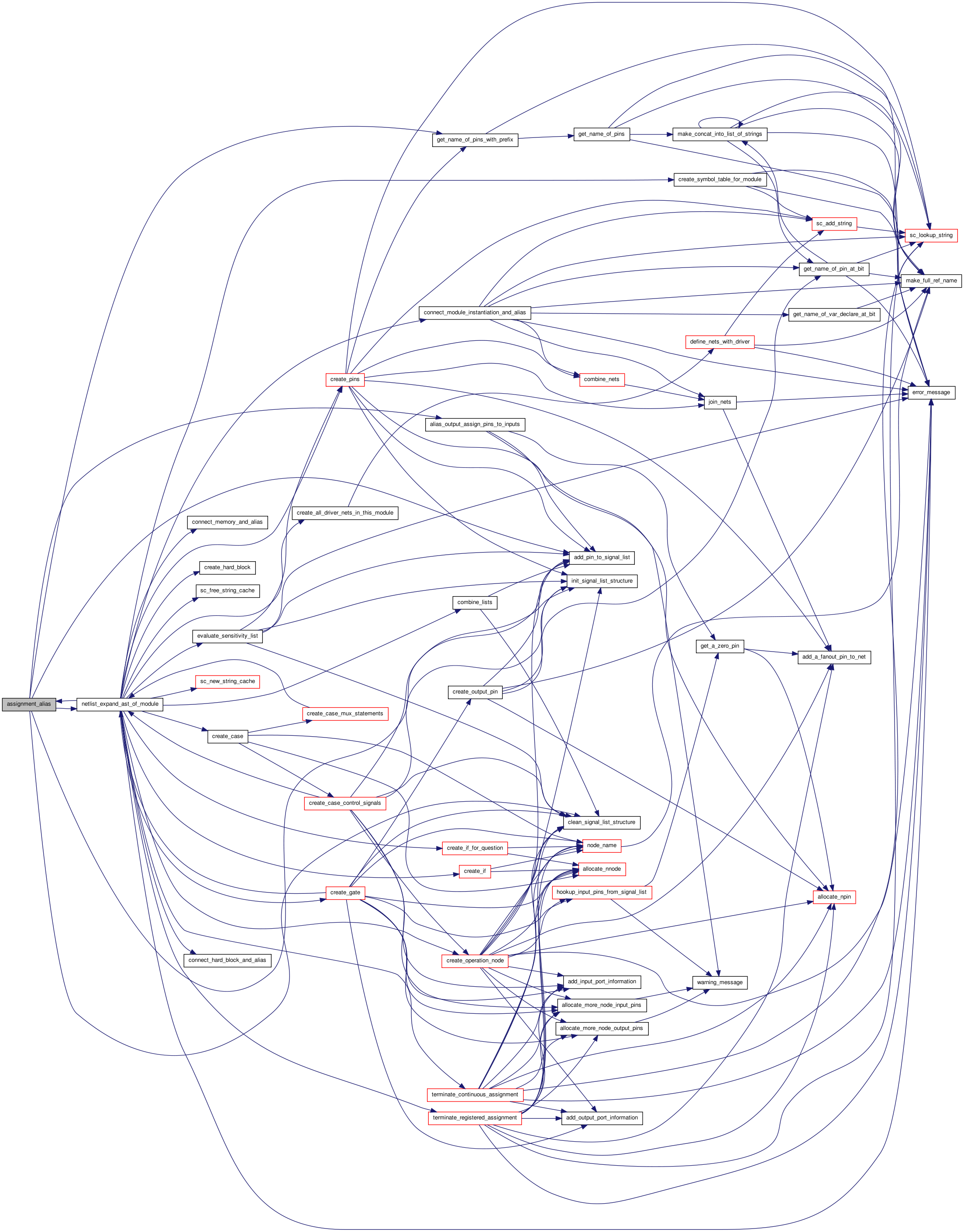

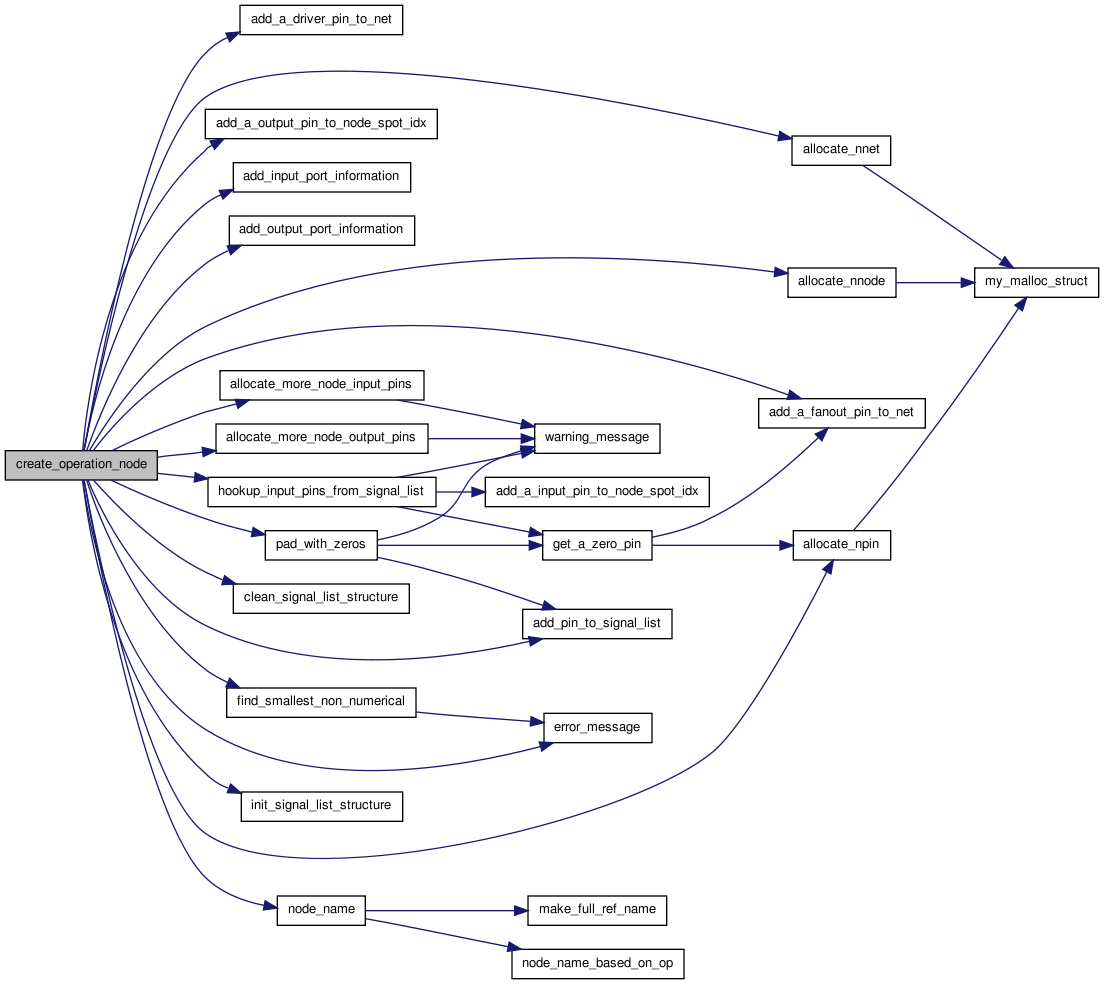

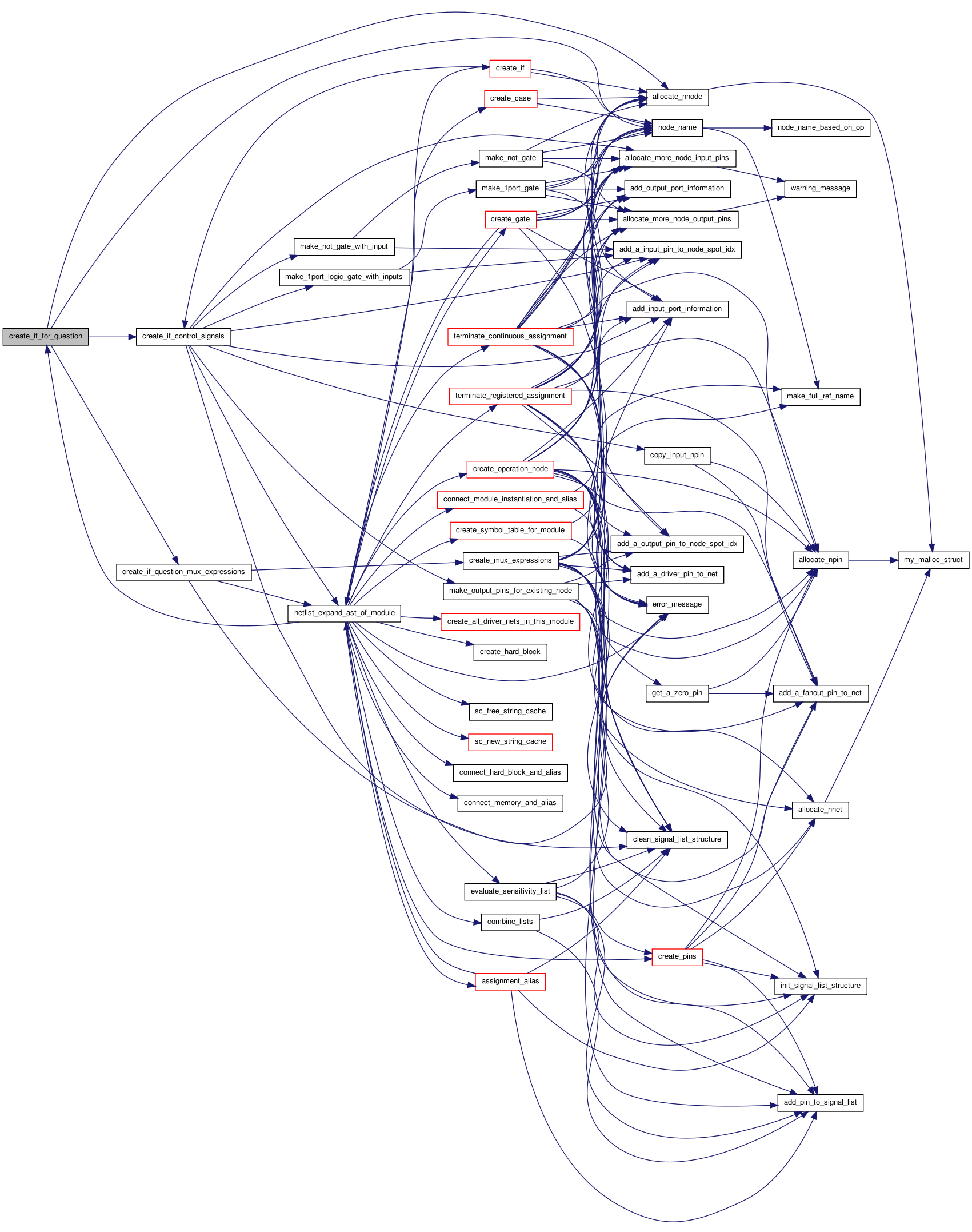

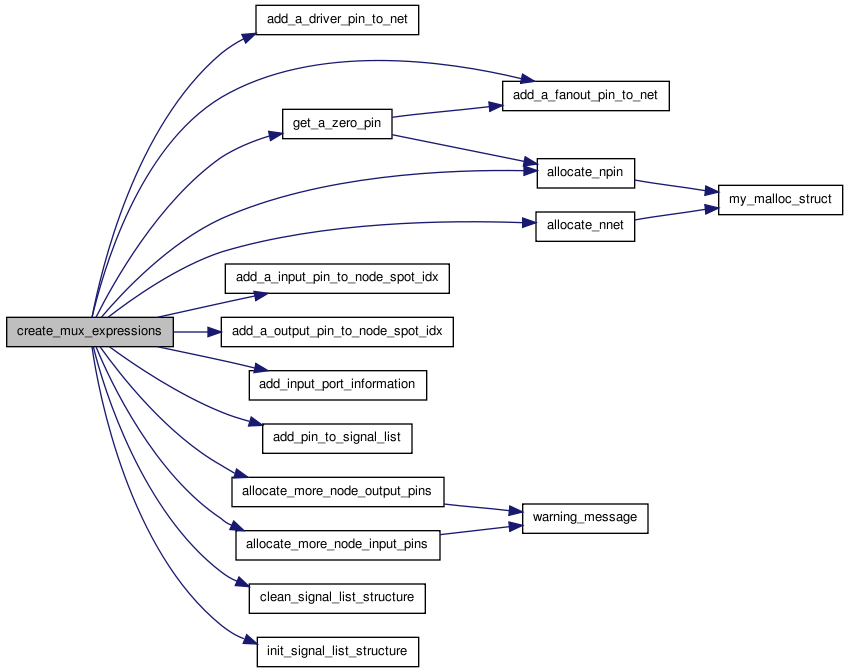

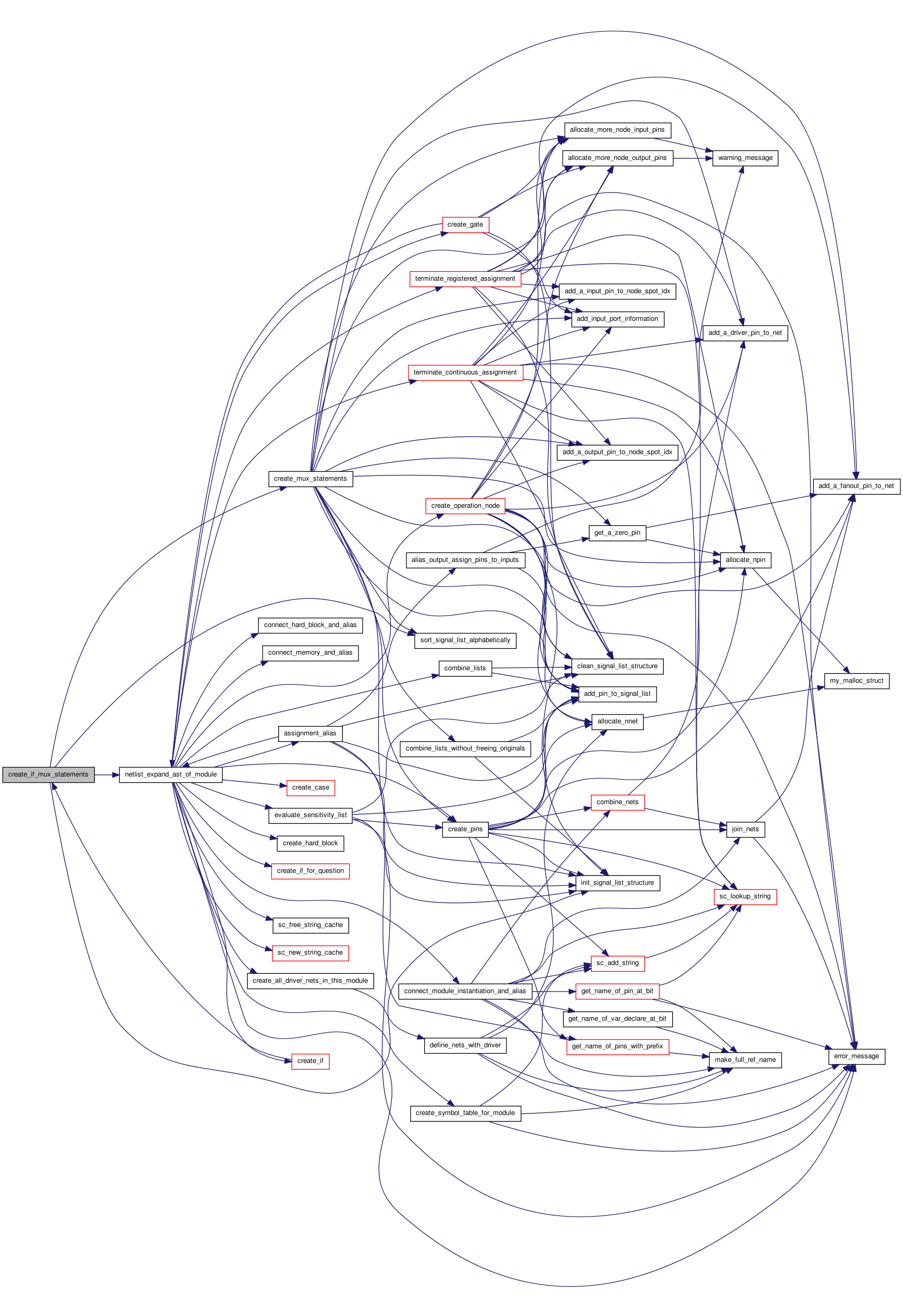

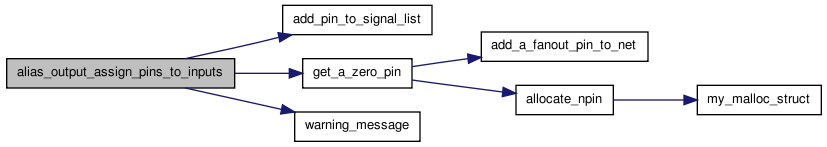

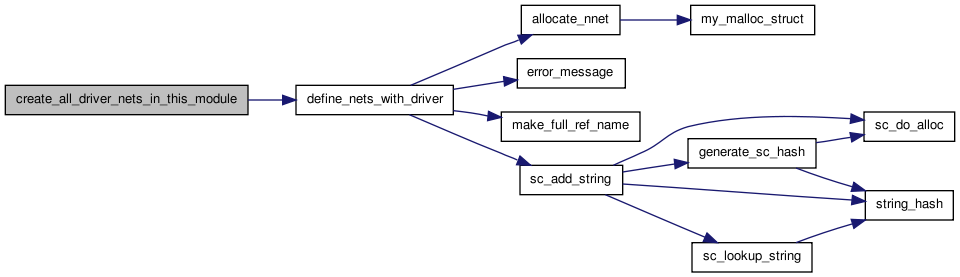

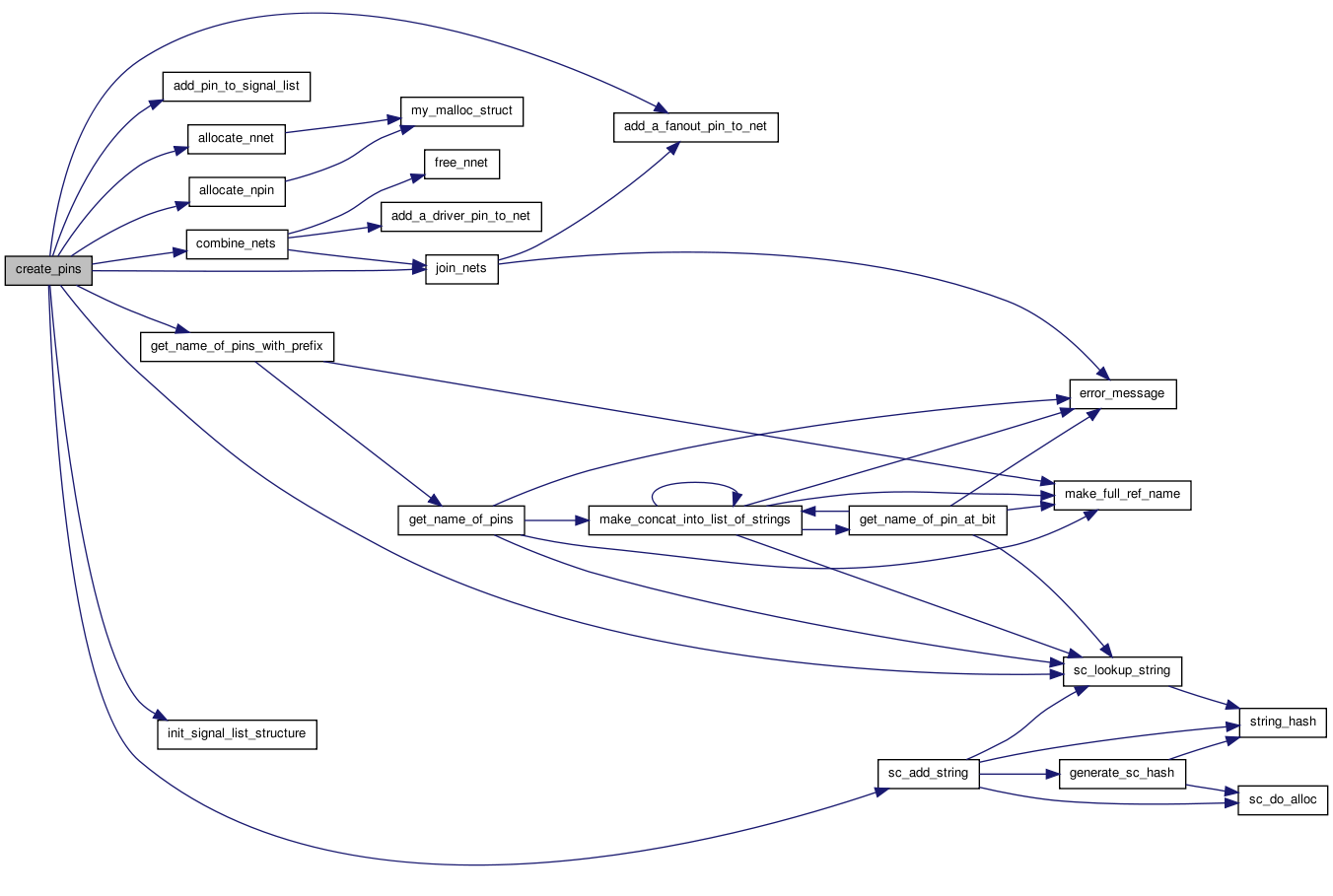

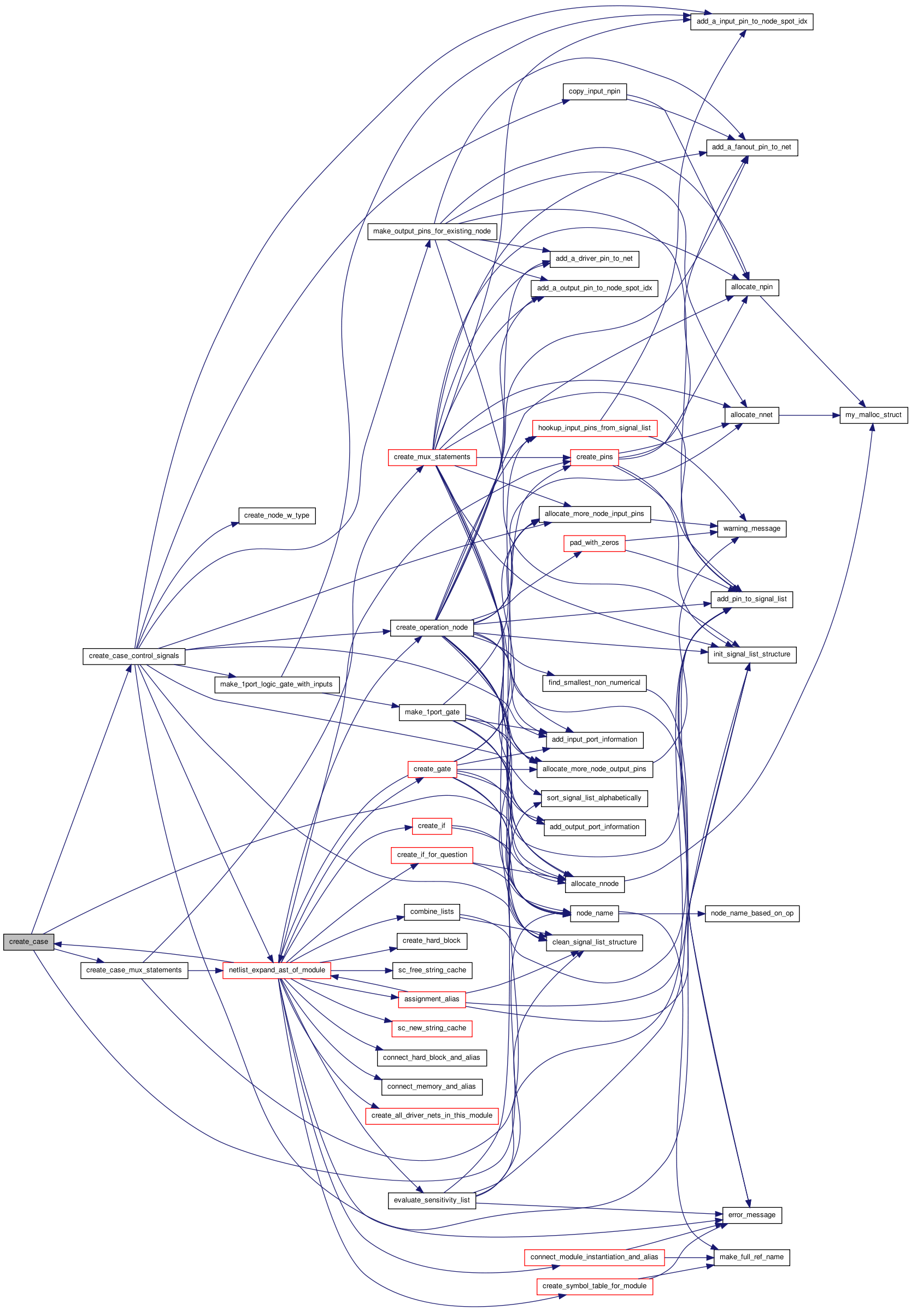

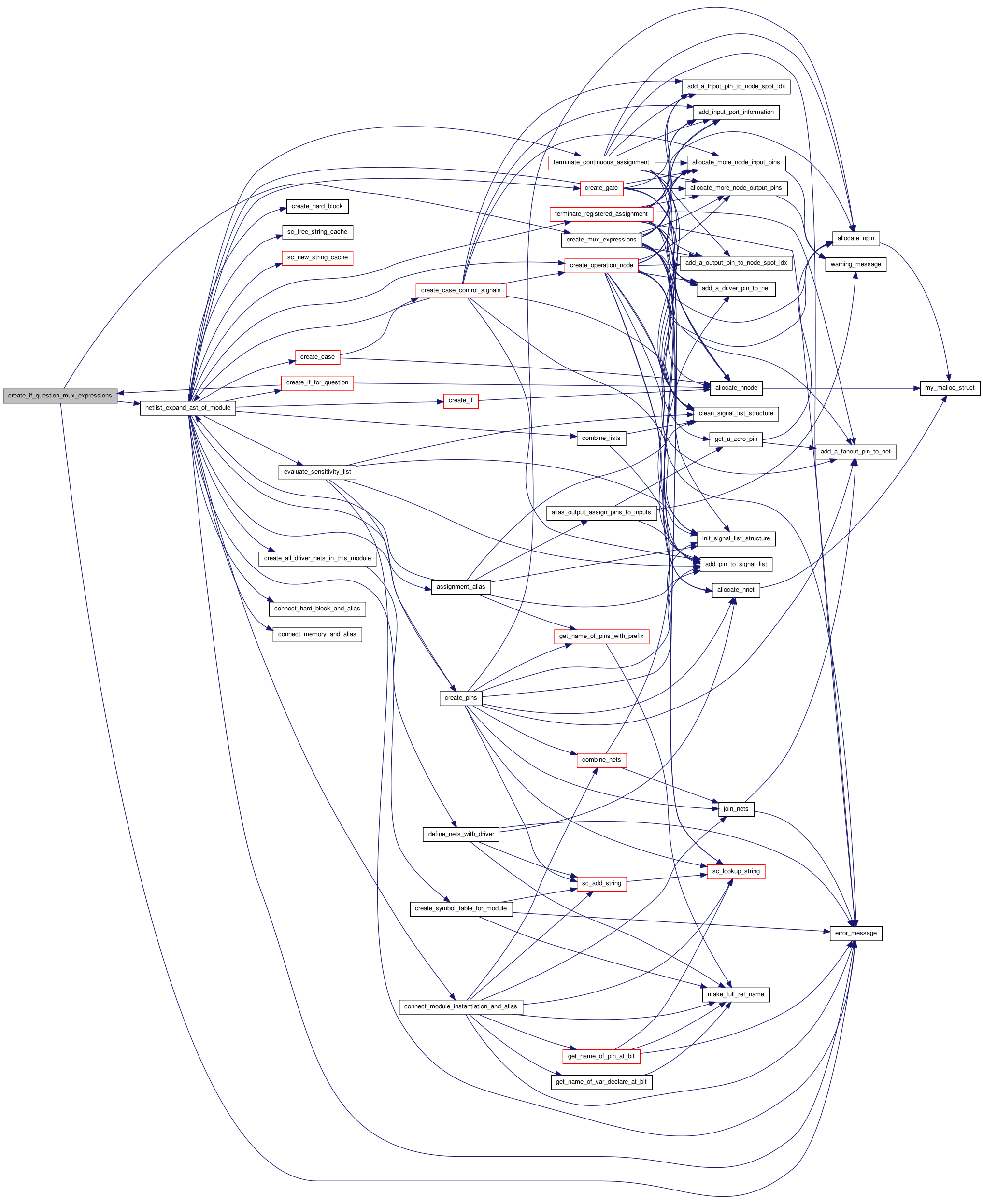

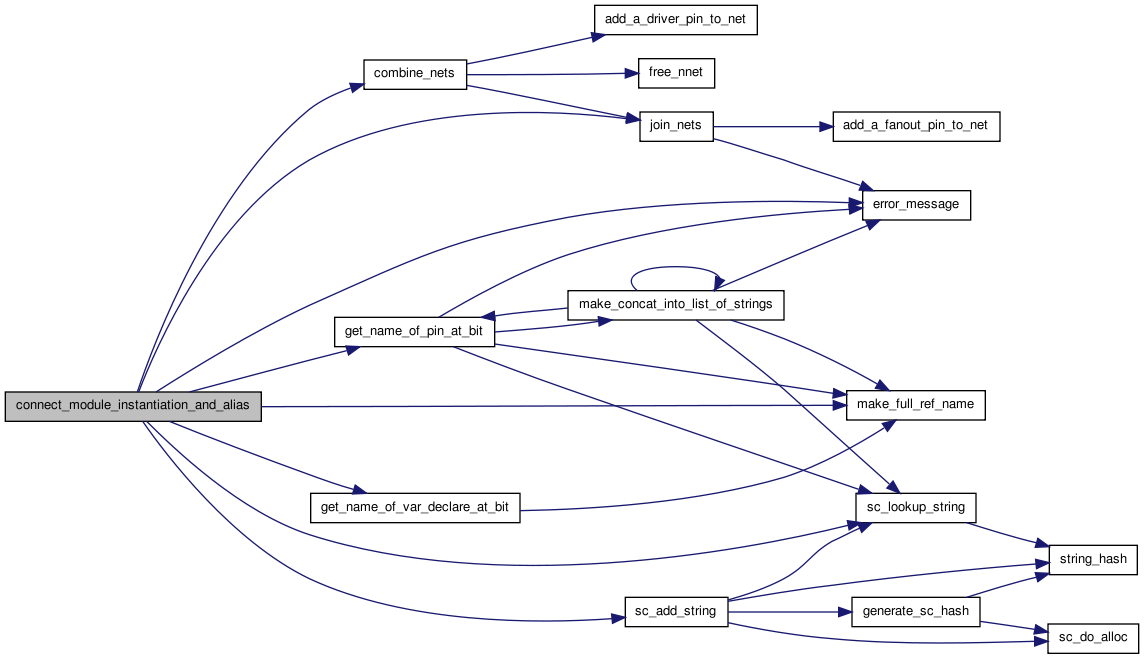

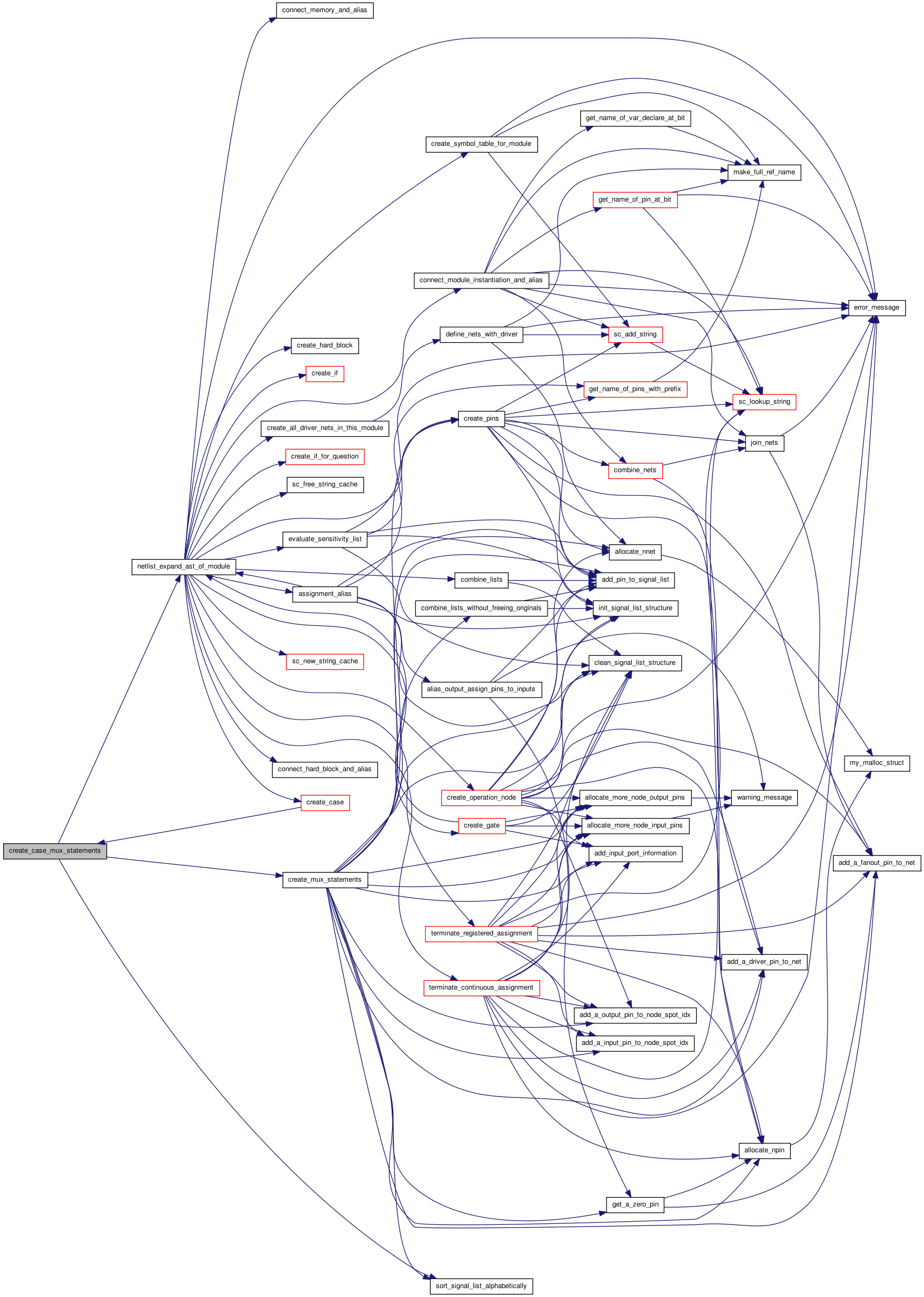

Here is the call graph for this function:

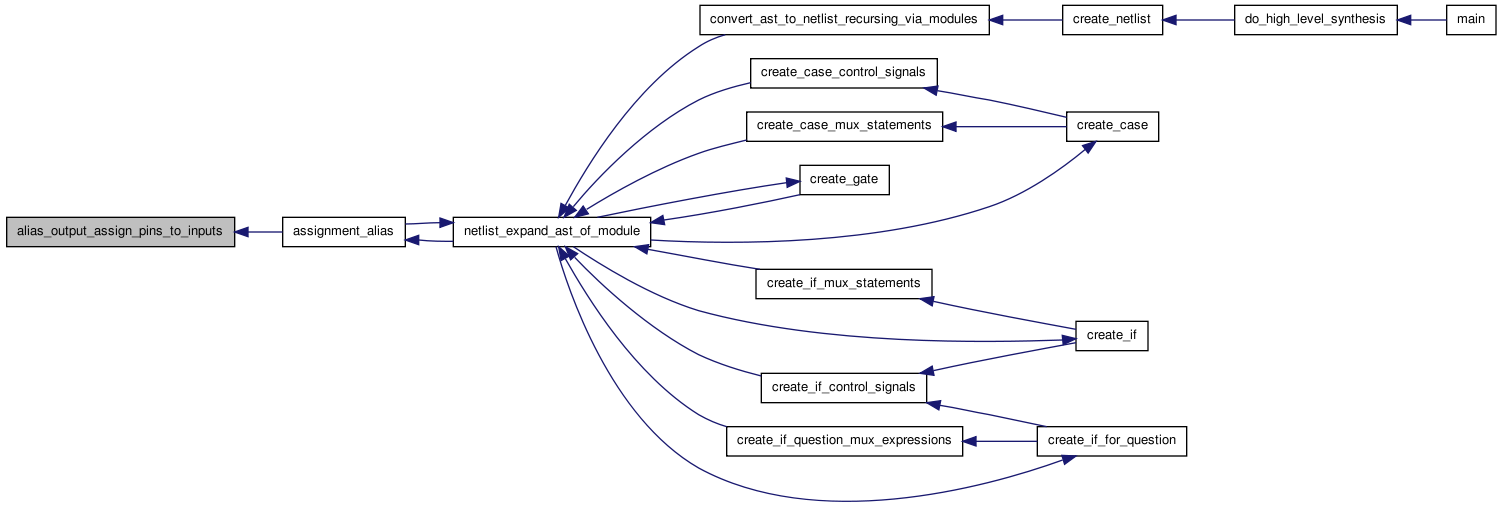

Here is the caller graph for this function:

signal_list_t * assignment_alias	(	ast_node_t *	assignment,
		char *	instance_name_prefix
	)

Definition at line 1643 of file netlist_create_from_ast.c.

{
        signal_list_t *in_1;
        signal_list_t *return_list;
        char_list_t *out_list;
        int i;
        int output_size;

        /* process the signal for the input gate */
        in_1 = netlist_expand_ast_of_module(assignment->children[1], instance_name_prefix);
        oassert(in_1 != NULL);
        out_list = get_name_of_pins_with_prefix(assignment->children[0], instance_name_prefix);
        oassert(out_list != NULL);
        oassert(out_list->strings != NULL);

        /* aliases the input pin names to the output names */
        output_size = alias_output_assign_pins_to_inputs(out_list, in_1, assignment);

        if (output_size < in_1->signal_list_size)
        {
                return_list = init_signal_list_structure();
                /* need to shrink the output list */
                for (i = 0; i < output_size; i++)
                {
                        add_pin_to_signal_list(return_list, in_1->signal_list[i]);
                }

                clean_signal_list_structure(in_1);
        }
        else
        {
                return_list = in_1;
        }

        /* clean the name string list since we don't need it anymore */
        free(out_list->strings);
        free(out_list);

        return return_list;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void connect_hard_block_and_alias	(	ast_node_t *	module_instance,
		char *	instance_name_prefix
	)

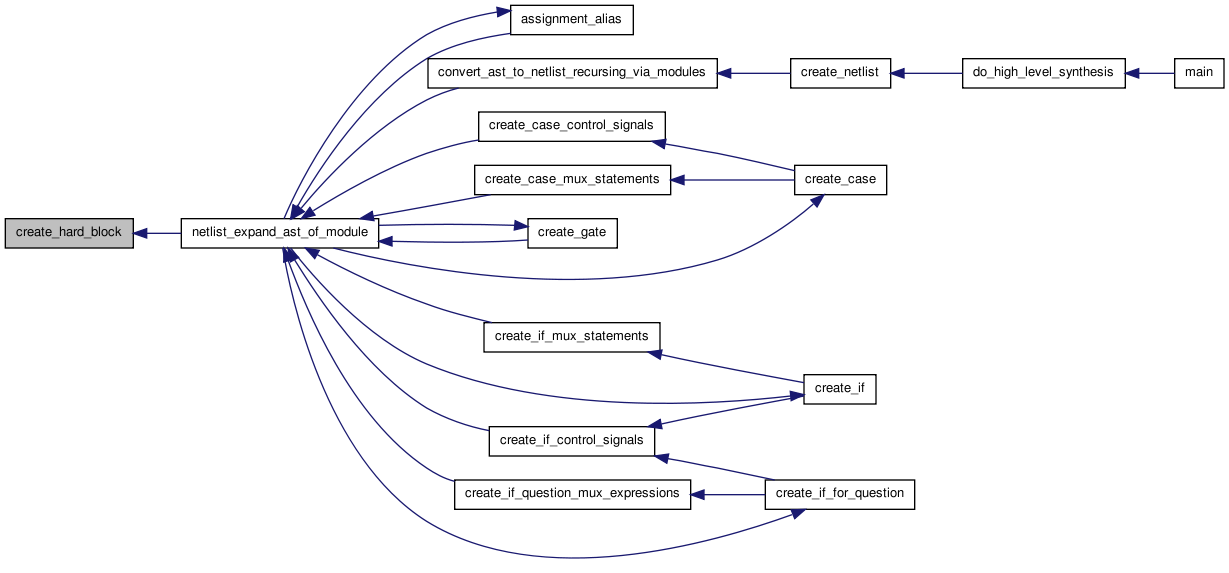

Here is the caller graph for this function:

void connect_module_instantiation_and_alias	(	short	PASS,
		ast_node_t *	module_instance,
		char *	instance_name_prefix
	)

Definition at line 1309 of file netlist_create_from_ast.c.

{
        int i, j;
        ast_node_t *module_node;
        ast_node_t *module_list;
        ast_node_t *module_instance_list = module_instance->children[1]->children[1]; // MODULE_INSTANCE->MODULE_INSTANCE_NAME(child[1])->MODULE_CONNECT_LIST(child[1])
        long sc_spot;
        long sc_spot_output;
        long sc_spot_input_old;
        long sc_spot_input_new;

        /* lookup the node of the module associated with this instantiated module */
        if ((sc_spot = sc_add_string(module_names_to_idx, module_instance->children[0]->types.identifier)) == -1)
        {
                error_message(NETLIST_ERROR, module_instance->line_number, module_instance->file_number, "Can't find module %s\n", module_instance->children[0]->types.identifier);
        }
        module_node = (ast_node_t*)module_names_to_idx->data[sc_spot];
        module_list = module_node->children[1]; // MODULE->VAR_DECLARE_LIST(child[1])

        if (module_list->num_children != module_instance_list->num_children)
        {
                error_message(NETLIST_ERROR, module_instance->line_number, module_instance->file_number, "Module instantiation (%s) and definition don't match in terms of ports\n", module_instance->children[0]->types.identifier);
        }

        for (i = 0; i < module_list->num_children; i++)
        {
                int port_size;
                ast_node_t *module_var_node = module_list->children[i]->children[0]; // VAR_DECLARE_LIST(child[i])->VAR_DECLARE_PORT(child[0])->VAR_DECLARE_input-or-output(child[0])
                ast_node_t *module_instance_var_node = module_instance_list->children[i]->children[1]; // MODULE_CONNECT_LIST(child[i])->MODULE_CONNECT(child[1]) // child[0] is for aliasing

                if (
                        ((PASS == INSTANTIATE_DRIVERS) && (module_list->children[i]->children[0]->types.variable.is_input))  // skip inputs on pass 1
                        ||
                        ((PASS == ALIAS_INPUTS) && (module_list->children[i]->children[0]->types.variable.is_output)) // skip outputs on pass 2
                )
                {
                        continue;
                }

                /* calculate the port details */
                if (module_var_node->children[1] == NULL)
                {
                        port_size = 1;
                }
                else if (module_var_node->children[3] == NULL)
                {
                        /* assume all arrays declared [largest:smallest] */
                        oassert(module_var_node->children[2]->types.number.value <= module_var_node->children[1]->types.number.value);
                        port_size = module_var_node->children[1]->types.number.value - module_var_node->children[2]->types.number.value +1;
                }
                else if (module_var_node->children[3] != NULL)
                {
                        /* MEMORY output */
                        oassert(FALSE);
                }

                for (j = 0; j < port_size; j++)
                {
                        if (module_list->children[i]->children[0]->types.variable.is_input)
                        {
                                /* IF - this spot in the module list is an input, then we need to find it in the string cache (as its old name), check if the new_name (the instantiation name)
                                 * is already a driver at this level.  IF it is a driver then we can hook the two up.  IF it's not we need to alias the pin name as it is used here since it
                                 * must be driven at a higher level of hierarchy in the tree of modules */
                                char *name_of_module_instance_of_input;
                                char *full_name;
                                char *alias_name;

                                if (port_size > 1)
                                {
                                        /* Get the name of the module instantiation pin */
                                        name_of_module_instance_of_input = get_name_of_pin_at_bit(module_instance_var_node, j);
                                        full_name = make_full_ref_name(instance_name_prefix, NULL, NULL, name_of_module_instance_of_input, -1);
                                        free(name_of_module_instance_of_input);

                                        /* make the new string for the alias name - has to be a identifier in the instantiated modules old names */
                                        name_of_module_instance_of_input = get_name_of_var_declare_at_bit(module_list->children[i]->children[0], j);
                                        alias_name = make_full_ref_name(instance_name_prefix, module_instance->children[0]->types.identifier, module_instance->children[1]->children[0]->types.identifier, name_of_module_instance_of_input, -1);
                                        free(name_of_module_instance_of_input);
                                }
                                else
                                {
                                        oassert(j == 0);

                                        /* Get the name of the module instantiation pin */
                                        name_of_module_instance_of_input = get_name_of_pin_at_bit(module_instance_var_node, -1);
                                        full_name = make_full_ref_name(instance_name_prefix, NULL, NULL, name_of_module_instance_of_input, -1);
                                        free(name_of_module_instance_of_input);

                                        name_of_module_instance_of_input = get_name_of_var_declare_at_bit(module_list->children[i]->children[0], 0);
                                        alias_name = make_full_ref_name(instance_name_prefix, module_instance->children[0]->types.identifier, module_instance->children[1]->children[0]->types.identifier, name_of_module_instance_of_input, -1);
                                        free(name_of_module_instance_of_input);
                                }

                                /* search for the old_input name */
                                if ((sc_spot_input_old = sc_lookup_string(input_nets_sc, alias_name)) == -1)
                                {
                                        /* doesn it have to exist since might only be used in module */
                                        error_message(NETLIST_ERROR, module_instance->line_number, module_instance->file_number, "This module port %s is unused in module %s", alias_name, module_node->children[0]->types.identifier);
                                }

                                /* check if the instantiation pin exists. */
                                if ((sc_spot_output = sc_lookup_string(output_nets_sc, full_name)) == -1)
                                {
                                        /* IF - no driver, then assume that it needs to be aliased to move up as an input */
                                        if ((sc_spot_input_new = sc_lookup_string(input_nets_sc, full_name)) == -1)
                                        {
                                                /* if this input is not yet used in this module then we'll add it */
                                                sc_spot_input_new = sc_add_string(input_nets_sc, full_name);

                                                /* copy the pin to the old spot */
                                                input_nets_sc->data[sc_spot_input_new] = input_nets_sc->data[sc_spot_input_old];
                                        }
                                        else
                                        {
                                                /* already exists so we'll join the nets */
                                                combine_nets((nnet_t*)input_nets_sc->data[sc_spot_input_old], (nnet_t*)input_nets_sc->data[sc_spot_input_new], verilog_netlist);
                                        }
                                }
                                else
                                {
                                        /* ELSE - we've found a matching net, so add this pin to the net */
                                        nnet_t* net = (nnet_t*)output_nets_sc->data[sc_spot_output];
                                        nnet_t* in_net = (nnet_t*)input_nets_sc->data[sc_spot_input_old];

                                        if ((net != in_net) && (net->combined == TRUE))
                                        {
                                                /* if they haven't been combined already, then join the inputs and output */
                                                join_nets(net, in_net);
                                                /* since the driver net is deleted, copy the spot of the in_net over */
                                                input_nets_sc->data[sc_spot_input_old] = (void*)net;
                                        }
                                        else if ((net != in_net) && (net->combined == FALSE))
                                        {
                                                /* if they haven't been combined already, then join the inputs and output */
                                                combine_nets(net, in_net, verilog_netlist);
                                                /* since the driver net is deleted, copy the spot of the in_net over */
                                                output_nets_sc->data[sc_spot_output] = (void*)in_net;
                                        }
                                }

                                /* IF the designer uses port names then make sure they line up */
                                if (module_instance_list->children[i]->children[0] != NULL)
                                {
                                        if (strcmp(module_instance_list->children[i]->children[0]->types.identifier, module_list->children[i]->children[0]->children[0]->types.identifier) != 0)
                                        {
                                                error_message(NETLIST_ERROR, module_list->children[i]->children[0]->line_number, module_list->children[i]->children[0]->file_number, "This module entry does not match up correctly (%s != %s).  Odin expects the order of ports to be the same\n", module_instance_list->children[i]->children[0]->types.identifier,  module_list->children[i]->children[0]->children[0]->types.identifier);
                                        }
                                }

                                free(full_name);
                                free(alias_name);
                        }
                        else if (module_list->children[i]->children[0]->types.variable.is_output)
                        {
                                /* ELSE IF - this is an output pin from the module.  We need to alias this output pin with it's calling name here so that everyone can see it at this level */
                                char *name_of_module_instance_of_input;
                                char *full_name;
                                char *alias_name;

                                /* make the new string for the alias name - has to be a identifier in the instantiated modules old names */
                                if (port_size > 1)
                                {
                                        /* Get the name of the module instantiation pin */
                                        name_of_module_instance_of_input = get_name_of_pin_at_bit(module_instance_var_node, j);
                                        full_name = make_full_ref_name(instance_name_prefix, NULL, NULL, name_of_module_instance_of_input, -1);
                                        free(name_of_module_instance_of_input);

                                        name_of_module_instance_of_input = get_name_of_var_declare_at_bit(module_list->children[i]->children[0], j);
                                        alias_name = make_full_ref_name(instance_name_prefix, module_instance->children[0]->types.identifier, module_instance->children[1]->children[0]->types.identifier, name_of_module_instance_of_input, -1);
                                        free(name_of_module_instance_of_input);
                                }
                                else
                                {
                                        oassert(j == 0);
                                        /* Get the name of the module instantiation pin */
                                        name_of_module_instance_of_input = get_name_of_pin_at_bit(module_instance_var_node, -1);
                                        full_name = make_full_ref_name(instance_name_prefix, NULL, NULL, name_of_module_instance_of_input, -1);
                                        free(name_of_module_instance_of_input);

                                        name_of_module_instance_of_input = get_name_of_var_declare_at_bit(module_list->children[i]->children[0], 0);
                                        alias_name = make_full_ref_name(instance_name_prefix, module_instance->children[0]->types.identifier, module_instance->children[1]->children[0]->types.identifier, name_of_module_instance_of_input, -1);
                                        free(name_of_module_instance_of_input);
                                }

                                /* check if the instantiation pin exists. */
                                if ((sc_spot_output = sc_lookup_string(output_nets_sc, alias_name)) == -1)
                                {
                                        error_message(NETLIST_ERROR, module_list->children[i]->children[0]->line_number, module_list->children[i]->children[0]->file_number, "This output (%s) must exist...must be an error\n", alias_name);
                                }

                                /* can already be there */
                                sc_spot_input_new = sc_add_string(output_nets_sc, full_name);

                                /* add this alias for the net */
                                output_nets_sc->data[sc_spot_input_new] = output_nets_sc->data[sc_spot_output];

                                /* IF the designer users port names then make sure they line up */
                                if (module_instance_list->children[i]->children[0] != NULL)
                                {
                                        if (strcmp(module_instance_list->children[i]->children[0]->types.identifier, module_list->children[i]->children[0]->children[0]->types.identifier) != 0)
                                        {
                                                error_message(NETLIST_ERROR, module_list->children[i]->children[0]->line_number, module_list->children[i]->children[0]->file_number, "This module entry does not match up correctly (%s != %s).  Odin expects the order of ports to be the same\n", module_instance_list->children[i]->children[0]->types.identifier,  module_list->children[i]->children[0]->children[0]->types.identifier);
                                        }
                                }

                                free(full_name);
                                free(alias_name);
                        }
                }
        }
}

Here is the call graph for this function:

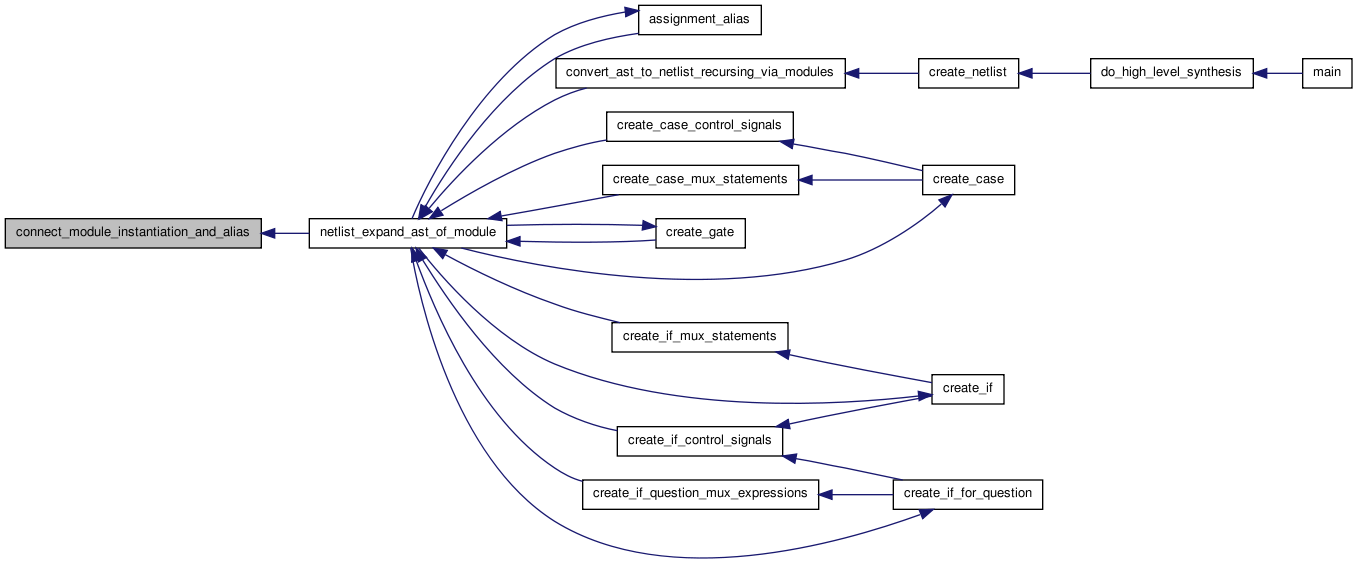

Here is the caller graph for this function:

void convert_ast_to_netlist_recursing_via_modules	(	ast_node_t *	current_module,
		char *	instance_name,
		int	level
	)

Definition at line 236 of file netlist_create_from_ast.c.

{
        int i;
        long sc_spot;
        signal_list_t *list = NULL;

        /* BASE CASE is when there are no other instantiations of modules in this module */
        if (current_module->types.module.size_module_instantiations == 0)
        {
                list = netlist_expand_ast_of_module(current_module, instance_name);
        }
        else
        {
                /* ELSE - we need to visit all the children before */
                for (i = 0; i < current_module->types.module.size_module_instantiations; i++)
                {
                        char *temp_instance_name;
                        /* make the stringed up module instance name - instance name is MODULE_INSTANCE->MODULE_NAMED_INSTANCE(child[1])->IDENTIFIER(child[0]).  module name is MODULE_INSTANCE->IDENTIFIER(child[0]) */
                        temp_instance_name = make_full_ref_name(instance_name, current_module->types.module.module_instantiations_instance[i]->children[0]->types.identifier, current_module->types.module.module_instantiations_instance[i]->children[1]->children[0]->types.identifier, NULL, -1);

                        /* lookup the name of the module associated with this instantiated point */
                        if ((sc_spot = sc_lookup_string(module_names_to_idx, current_module->types.module.module_instantiations_instance[i]->children[0]->types.identifier)) == -1)
                        {
                                error_message(NETLIST_ERROR, current_module->line_number, current_module->file_number, "Can't find module name %s\n", current_module->types.module.module_instantiations_instance[i]->children[0]->types.identifier);
                        }

                        /* recursive call point */
                        convert_ast_to_netlist_recursing_via_modules(((ast_node_t*)module_names_to_idx->data[sc_spot]), temp_instance_name, level+1);

                        /* free the string */
                        free(temp_instance_name);
                }

                /* once we've done everyone lower, we can do this module */
                netlist_expand_ast_of_module(current_module, instance_name);
        }

        if (list != NULL)
                clean_signal_list_structure(list);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void create_all_driver_nets_in_this_module

(

char *

instance_name_prefix

)

Definition at line 532 of file netlist_create_from_ast.c.

{
        /* with the top module we need to visit the entire ast tree */
        int i;

        /* use the symbol table to decide if driver */
        for (i = 0; i < num_local_symbol_table; i++)
        {
                oassert(local_symbol_table[i]->type == VAR_DECLARE);
                if (    (local_symbol_table[i]->types.variable.is_reg) /* all registers are drivers */
                        ||
                        ((local_symbol_table[i]->types.variable.is_wire) && (local_symbol_table[i]->types.variable.is_input == FALSE)) /* a wire that is an input can be a driver */
                        ||
                        ((local_symbol_table[i]->types.variable.is_output) && (local_symbol_table[i]->types.variable.is_reg == FALSE) && (local_symbol_table[i]->types.variable.is_wire == FALSE)) /* any output that has nothing else is an implied wire driver */
                   )
                {
                        /* create nets based on this driver as the name */
                        define_nets_with_driver(local_symbol_table[i], instance_name_prefix);
                }

        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

signal_list_t * create_case	(	ast_node_t *	case_ast,
		char *	instance_name_prefix
	)

Definition at line 2383 of file netlist_create_from_ast.c.

{
        signal_list_t *return_list;
        nnode_t *case_node;
        ast_node_t *case_list_of_items;
        ast_node_t *case_match_input;

        /* create the node */
        case_node = allocate_nnode();
        /* store all the relevant info */
        case_node->related_ast_node = case_ast;
        case_node->type = MULTI_PORT_MUX; // port 1 = control, port 2+ = mux options
        case_node->name = node_name(case_node, instance_name_prefix);

        /* pull out the identifier to match to "i.e. case(a_in)" - this is the pins we match against */
        case_match_input = case_ast->children[0];

        /* point to the case list */
        case_list_of_items = case_ast->children[1];

        /* create all the control structures for the case mux ... each bit will turn on one of the paths ... one hot mux */
        create_case_control_signals(case_list_of_items, case_match_input, case_node, instance_name_prefix);

        /* create the statements and integrate them into the mux */
        return_list = create_case_mux_statements(case_list_of_items, case_node, instance_name_prefix);

        return return_list;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void create_case_control_signals	(	ast_node_t *	case_list_of_items,
		ast_node_t *	compare_against,
		nnode_t *	case_node,
		char *	instance_name_prefix
	)

Definition at line 2415 of file netlist_create_from_ast.c.

{
        int i;
        signal_list_t *other_expressions_pin_list = init_signal_list_structure();

        /* reserve the first X pins of the mux for the control signals where X is the number of items */
        allocate_more_node_input_pins(case_node, case_list_of_items->num_children);
        /* record this port size */
        add_input_port_information(case_node, case_list_of_items->num_children);

        /* now go through each of the case items and build the comparison expressions */
        for (i = 0; i < case_list_of_items->num_children; i++)
        {
                if (case_list_of_items->children[i]->type == CASE_ITEM)
                {
                        /* IF - this is a normal case item, then process the case match and the details of the statement */
                        signal_list_t *case_compare_expression;
                        signal_list_t **case_compares = (signal_list_t **)malloc(sizeof(signal_list_t*)*2);
                        ast_node_t *logical_equal = create_node_w_type(BINARY_OPERATION, -1, -1);
                        logical_equal->types.operation.op = LOGICAL_EQUAL;

                        /* get the signals to compare against */
                        case_compares[0] = netlist_expand_ast_of_module(compare_against, instance_name_prefix);
                        case_compares[1] = netlist_expand_ast_of_module(case_list_of_items->children[i]->children[0], instance_name_prefix);

                        /* make a LOGIC_EQUAL gate that collects all the other signals and if they're all off */
                        case_compare_expression = create_operation_node(logical_equal, case_compares, 2, instance_name_prefix);
                        oassert(case_compare_expression->signal_list_size == 1);

                        /* hookup this pin to the spot in the case_node */
                        add_a_input_pin_to_node_spot_idx(case_node, case_compare_expression->signal_list[0], i);

                        /* copy that output pin to be put into the default */
                        add_pin_to_signal_list(other_expressions_pin_list, copy_input_npin(case_compare_expression->signal_list[0]));

                        /* clean up */
                        clean_signal_list_structure(case_compare_expression);

                        free(case_compares);
                }
                else if (case_list_of_items->children[i]->type == CASE_DEFAULT)
                {
                        /* take all the other pins from the case expressions and intstall in the condition */
                        nnode_t *default_node;
                        signal_list_t *default_expression;

                        oassert(i == case_list_of_items->num_children - 1); // has to be at the end

                        /* make a NOR gate that collects all the other signals and if they're all off */
                        default_node = make_1port_logic_gate_with_inputs(LOGICAL_NOR, case_list_of_items->num_children-1, other_expressions_pin_list, case_node, -1);
                        default_expression = make_output_pins_for_existing_node(default_node, 1);

                        /* copy that output pin to be put into the default */
                        add_a_input_pin_to_node_spot_idx(case_node, default_expression->signal_list[0], i);
                }
                else
                {
                        oassert(FALSE);
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

signal_list_t * create_case_mux_statements	(	ast_node_t *	case_list_of_items,
		nnode_t *	case_node,
		char *	instance_name_prefix
	)

Definition at line 2480 of file netlist_create_from_ast.c.

{
        signal_list_t **case_statement;
        signal_list_t *return_list;
        int i;

        /* make storage for statements and expressions */
        case_statement = (signal_list_t**)malloc(sizeof(signal_list_t*)*(case_list_of_items->num_children));

        /* now we will process the statements and add to the other ports */
        for (i = 0; i < case_list_of_items->num_children; i++)
        {
                if (case_list_of_items->children[i]->type == CASE_ITEM)
                {
                        /* IF - this is a normal case item, then process the case match and the details of the statement */
                        case_statement[i] = netlist_expand_ast_of_module(case_list_of_items->children[i]->children[1], instance_name_prefix);
                        sort_signal_list_alphabetically(case_statement[i]);
                }
                else if (case_list_of_items->children[i]->type == CASE_DEFAULT)
                {
                        oassert(i == case_list_of_items->num_children - 1); // has to be at the end
                        case_statement[i] = netlist_expand_ast_of_module(case_list_of_items->children[i]->children[0], instance_name_prefix);
                        sort_signal_list_alphabetically(case_statement[i]);
                }
                else
                {
                        oassert(FALSE);
                }
        }

        /* now with all the lists sorted, we do the matching and proper propogation */
        return_list = create_mux_statements(case_statement, case_node, case_list_of_items->num_children, instance_name_prefix);

        return return_list;
}

Here is the call graph for this function:

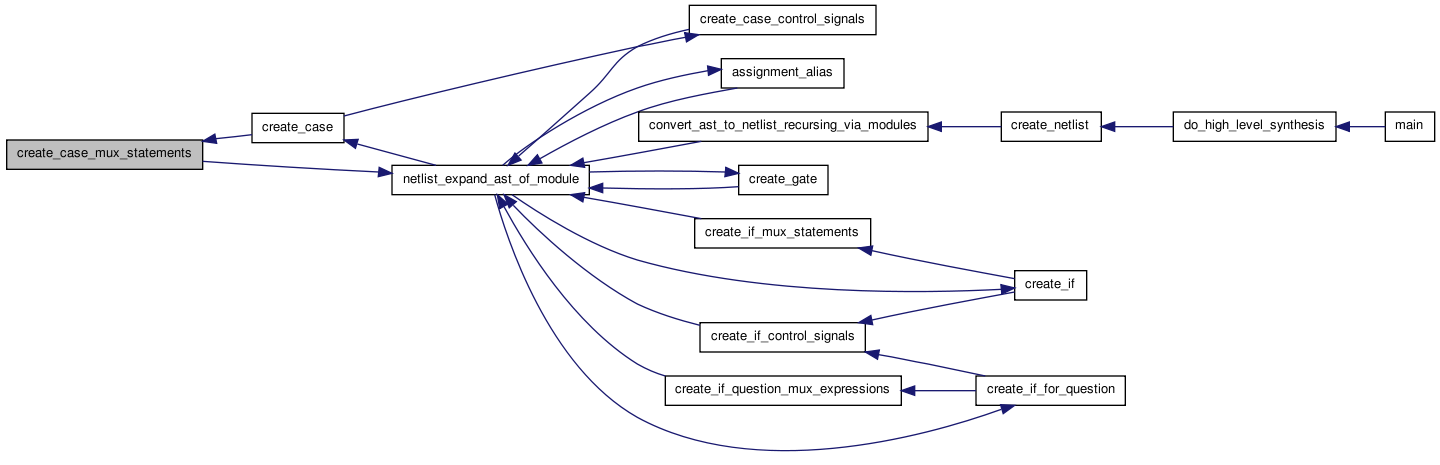

Here is the caller graph for this function:

signal_list_t * create_gate	(	ast_node_t *	gate,
		char *	instance_name_prefix
	)

Definition at line 1878 of file netlist_create_from_ast.c.

{
        signal_list_t *in_1, *in_2, *out_1;
        nnode_t *gate_node;
        ast_node_t *gate_instance = gate->children[0];

        if (gate_instance->children[3] == NULL)
        {
                /* IF one input gate */

                /* process the signal for the input gate */
                in_1 = netlist_expand_ast_of_module(gate_instance->children[2], instance_name_prefix);
                /* process the signal for the input ga$te */
                out_1 = create_output_pin(gate_instance->children[1], instance_name_prefix);
                oassert((in_1 != NULL) && (out_1 != NULL));

                /* create the node */
                gate_node = allocate_nnode();
                /* store all the relevant info */
                gate_node->related_ast_node = gate;
                gate_node->type = gate->types.operation.op;
                oassert(gate_node->type > 0);
                gate_node->name = node_name(gate_node, instance_name_prefix);
                /* allocate the pins needed */
                allocate_more_node_input_pins(gate_node, 1);
                add_input_port_information(gate_node, 1);
                allocate_more_node_output_pins(gate_node, 1);
                add_output_port_information(gate_node, 1);

                /* hookup the input pins */
                hookup_input_pins_from_signal_list(gate_node, 0, in_1, 0, 1, verilog_netlist);
                /* hookup the output pins */
                hookup_output_pins_from_signal_list(gate_node, 0, out_1, 0, 1);

                clean_signal_list_structure(in_1);
        }
        else
        {
                /* ELSE 2 input gate */

                /* process the signal for the input gate */
                in_1 = netlist_expand_ast_of_module(gate_instance->children[2], instance_name_prefix);
                in_2 = netlist_expand_ast_of_module(gate_instance->children[3], instance_name_prefix);
                /* process the signal for the input gate */
                out_1 = create_output_pin(gate_instance->children[1], instance_name_prefix);
                oassert((in_1 != NULL) && (in_2 != NULL) && (out_1 != NULL));

                /* create the node */
                gate_node = allocate_nnode();
                /* store all the relevant info */
                gate_node->related_ast_node = gate;
                gate_node->type = gate->types.operation.op;
                oassert(gate_node->type > 0);

                gate_node->name = node_name(gate_node, instance_name_prefix);
                /* allocate the needed pins */
                allocate_more_node_input_pins(gate_node, 2);
                add_input_port_information(gate_node, 1);
                add_input_port_information(gate_node, 1);
                allocate_more_node_output_pins(gate_node, 1);
                add_output_port_information(gate_node, 1);

                /* hookup the input pins */
                hookup_input_pins_from_signal_list(gate_node, 0, in_1, 0, 1, verilog_netlist);
                hookup_input_pins_from_signal_list(gate_node, 1, in_2, 0, 1, verilog_netlist);
                /* hookup the output pins */
                hookup_output_pins_from_signal_list(gate_node, 0, out_1, 0, 1);

                clean_signal_list_structure(in_1);
                clean_signal_list_structure(in_2);
        }

        return out_1;
}

Here is the call graph for this function:

Here is the caller graph for this function:

signal_list_t* create_hard_block	(	ast_node_t *	block,
		char *	instance_name_prefix
	)

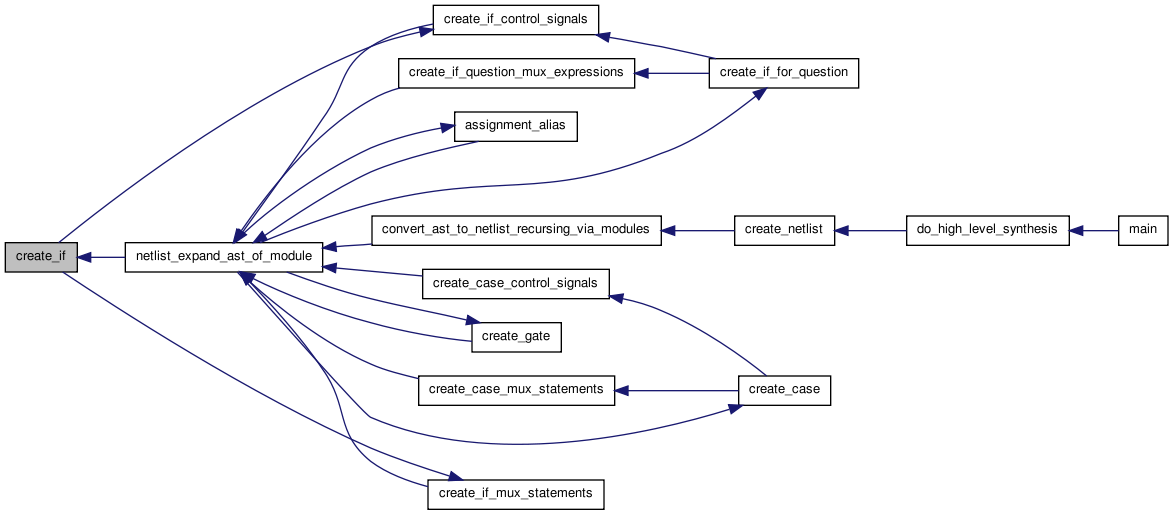

Here is the caller graph for this function:

signal_list_t * create_if	(	ast_node_t *	if_ast,
		char *	instance_name_prefix
	)

Definition at line 2269 of file netlist_create_from_ast.c.

{
        signal_list_t *return_list;
        nnode_t *if_node;

        /* create the node */
        if_node = allocate_nnode();
        /* store all the relevant info */
        if_node->related_ast_node = if_ast;
        if_node->type = MULTI_PORT_MUX; // port 1 = control, port 2+ = mux options
        if_node->name = node_name(if_node, instance_name_prefix);

        /* create the control structure for the if node */
        create_if_control_signals(if_ast->children[0], if_node, instance_name_prefix);

        /* create the statements and integrate them into the mux */
        return_list = create_if_mux_statements(if_ast, if_node, instance_name_prefix);

        return return_list;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void create_if_control_signals	(	ast_node_t *	if_expression,
		nnode_t *	if_node,
		char *	instance_name_prefix
	)

Definition at line 2293 of file netlist_create_from_ast.c.

{
        signal_list_t *if_logic_expression;
        signal_list_t *if_logic_expression_final;
        nnode_t *not_node;
        npin_t *not_pin;
        signal_list_t *out_pin_list;

        /* reserve the first 2 pins of the mux for the control signals */
        allocate_more_node_input_pins(if_node, 2);
        /* record this port size */
        add_input_port_information(if_node, 2);

        /* get the logic */
        if_logic_expression = netlist_expand_ast_of_module(if_expression, instance_name_prefix);
        oassert(if_logic_expression != NULL);

        if(if_logic_expression->signal_list_size != 1)
        {
                nnode_t *or_gate;
                signal_list_t *default_expression;

                or_gate = make_1port_logic_gate_with_inputs(LOGICAL_OR, if_logic_expression->signal_list_size, if_logic_expression, if_node, -1);
                default_expression = make_output_pins_for_existing_node(or_gate, 1);

                /* copy that output pin to be put into the default */
                add_a_input_pin_to_node_spot_idx(if_node, default_expression->signal_list[0], 0);

                if_logic_expression_final = default_expression;
        }
        else
        {
                /* hookup this pin to the spot in the if_node */
                add_a_input_pin_to_node_spot_idx(if_node, if_logic_expression->signal_list[0], 0);
                if_logic_expression_final = if_logic_expression;
        }

        /* hookup pin again to not gate and then to other spot */
        not_pin = copy_input_npin(if_logic_expression_final->signal_list[0]);

        /* make a NOT gate that collects all the other signals and if they're all off */
        not_node = make_not_gate_with_input(not_pin, if_node, -1);

        /* get the output pin of the not gate .... also adds a net inbetween and the linking output pin to node and net */
        out_pin_list = make_output_pins_for_existing_node(not_node, 1);
        oassert(out_pin_list->signal_list_size == 1);

        /* copy that output pin to be put into the default */
        add_a_input_pin_to_node_spot_idx(if_node, out_pin_list->signal_list[0], 1);

        clean_signal_list_structure(out_pin_list);
}

Here is the call graph for this function:

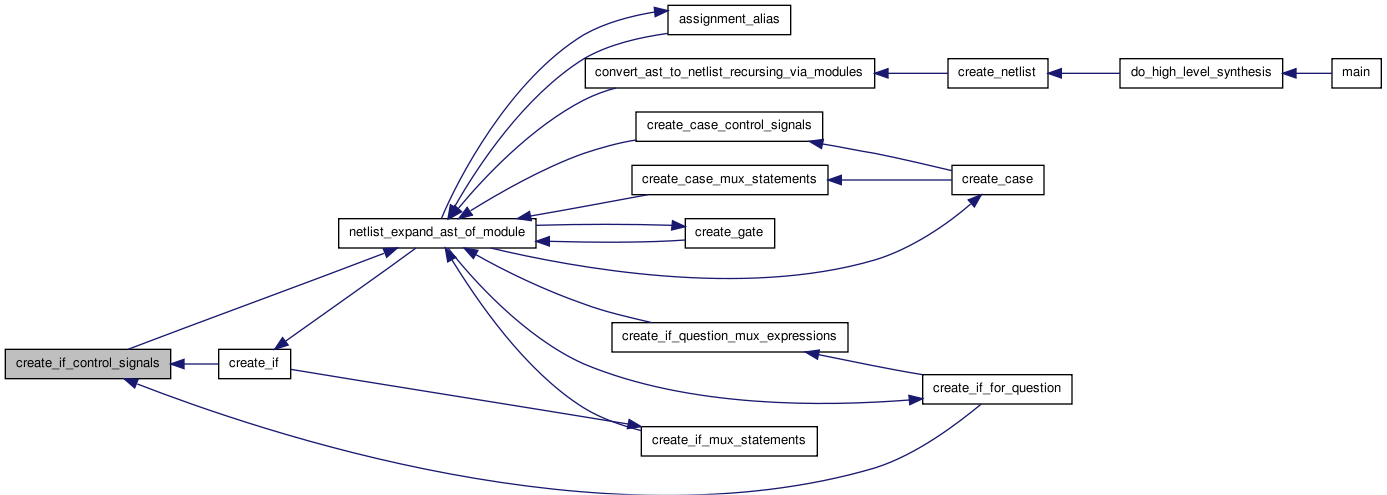

Here is the caller graph for this function:

signal_list_t * create_if_for_question	(	ast_node_t *	if_ast,
		char *	instance_name_prefix
	)

Definition at line 2213 of file netlist_create_from_ast.c.

{
        signal_list_t *return_list;
        nnode_t *if_node;

        /* create the node */
        if_node = allocate_nnode();
        /* store all the relevant info */
        if_node->related_ast_node = if_ast;
        if_node->type = MULTI_PORT_MUX; // port 1 = control, port 2+ = mux options
        if_node->name = node_name(if_node, instance_name_prefix);

        /* create the control structure for the if node */
        create_if_control_signals(if_ast->children[0], if_node, instance_name_prefix);

        /* create the statements and integrate them into the mux */
        return_list = create_if_question_mux_expressions(if_ast, if_node, instance_name_prefix);

        return return_list;
}

Here is the call graph for this function:

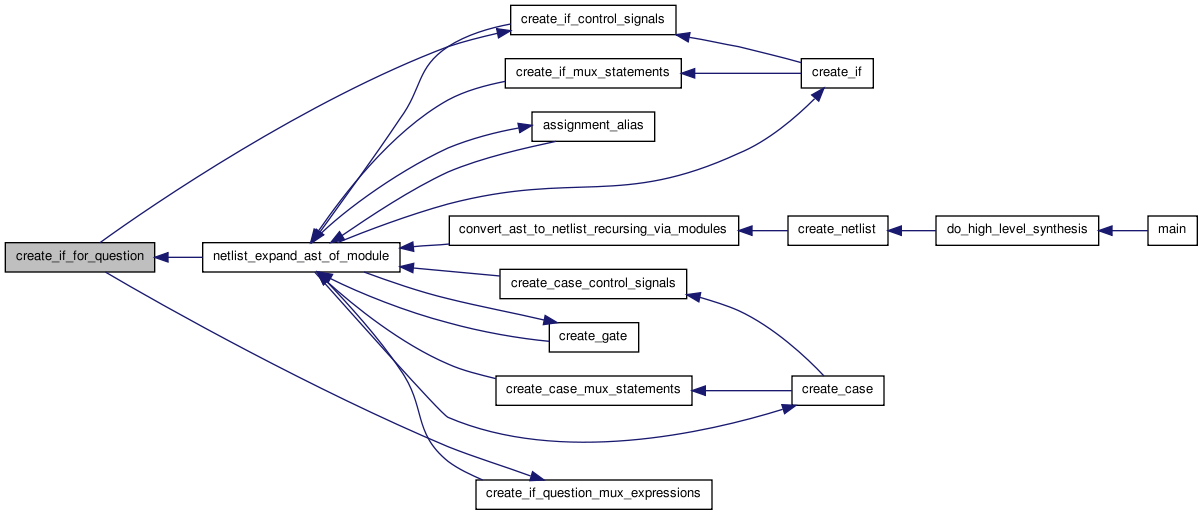

Here is the caller graph for this function:

signal_list_t * create_if_mux_statements	(	ast_node_t *	if_ast,
		nnode_t *	if_node,
		char *	instance_name_prefix
	)

Definition at line 2349 of file netlist_create_from_ast.c.

{
        signal_list_t **if_statements;
        signal_list_t *return_list;
        int i;

        /* make storage for statements and expressions */
        if_statements = (signal_list_t**)malloc(sizeof(signal_list_t*)*2);

        /* now we will process the statements and add to the other ports */
        for (i = 0; i < 2; i++)
        {
                if (if_ast->children[i+1] != NULL) // checking to see if statement exists.  +1 since first child is control expression
                {
                        /* IF - this is a normal case item, then process the case match and the details of the statement */
                        if_statements[i] = netlist_expand_ast_of_module(if_ast->children[i+1], instance_name_prefix);
                        sort_signal_list_alphabetically(if_statements[i]);
                }
                else
                {
                        /* ELSE - there is no if/else and we need to make a placeholder since it means there will be implied signals */
                        if_statements[i] = init_signal_list_structure();
                }
        }

        /* now with all the lists sorted, we do the matching and proper propogation */
        return_list = create_mux_statements(if_statements, if_node, 2, instance_name_prefix);

        return return_list;
}

Here is the call graph for this function:

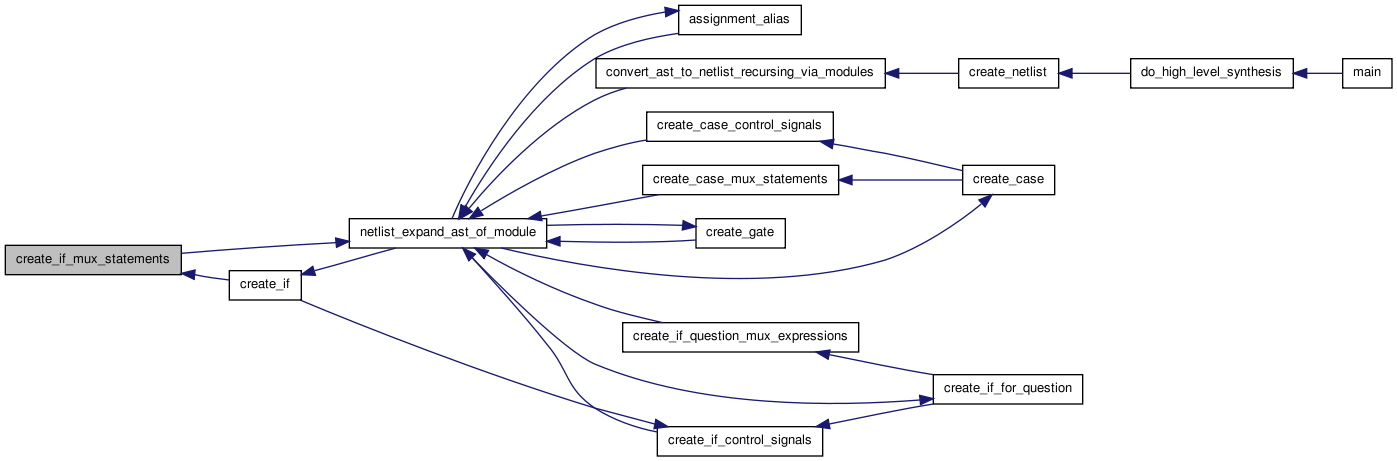

Here is the caller graph for this function:

signal_list_t * create_if_question_mux_expressions	(	ast_node_t *	if_ast,
		nnode_t *	if_node,
		char *	instance_name_prefix
	)

Definition at line 2237 of file netlist_create_from_ast.c.

{
        signal_list_t **if_expressions;
        signal_list_t *return_list;
        int i;

        /* make storage for statements and expressions */
        if_expressions = (signal_list_t**)malloc(sizeof(signal_list_t*)*2);

        /* now we will process the statements and add to the other ports */
        for (i = 0; i < 2; i++)
        {
                if (if_ast->children[i+1] != NULL) // checking to see if expression exists.  +1 since first child is control expression
                {
                        /* IF - this is a normal case item, then process the case match and the details of the statement */
                        if_expressions[i] = netlist_expand_ast_of_module(if_ast->children[i+1], instance_name_prefix);
                }
                else
                {
                        error_message(NETLIST_ERROR, if_ast->line_number, if_ast->file_number, "No such thing as a a = b ? z;\n");
                }
        }

        /* now with all the lists sorted, we do the matching and proper propogation */
        return_list = create_mux_expressions(if_expressions, if_node, 2, instance_name_prefix);

        return return_list;
}

Here is the call graph for this function:

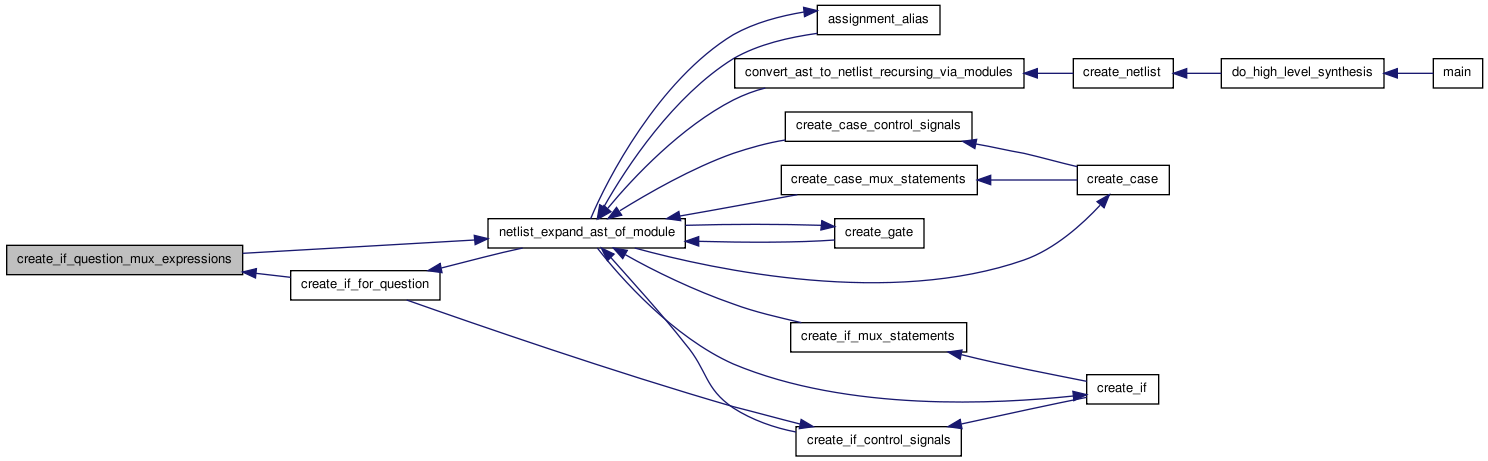

Here is the caller graph for this function:

signal_list_t * create_mux_expressions	(	signal_list_t **	expression_lists,
		nnode_t *	mux_node,
		int	num_expression_lists,
		char *	instance_name_prefix
	)

Definition at line 2617 of file netlist_create_from_ast.c.

{
        int i, j;
        signal_list_t *return_list = init_signal_list_structure();
        int max_index = -1;

        /* find the biggest element */
        for (i = 0; i < num_expression_lists; i++)
        {
                if (max_index < expression_lists[i]->signal_list_size)
                {
                        max_index = expression_lists[i]->signal_list_size;
                }
        }

        for (i = 0; i < max_index; i++)
        {
                npin_t *new_pin1;
                npin_t *new_pin2;
                nnet_t *new_net;
                new_pin1 = allocate_npin();
                new_pin2 = allocate_npin();
                new_net = allocate_nnet();

                /* allocate a port the width of all the signals ... one MUX */
                allocate_more_node_input_pins(mux_node, num_expression_lists);
                /* record the port information */
                add_input_port_information(mux_node, num_expression_lists);

                /* allocate the pins for the ouput port and pass out that pin for higher statements */
                allocate_more_node_output_pins(mux_node, 1);
                add_a_output_pin_to_node_spot_idx(mux_node, new_pin1, i);
                /* hook up new pin 1 into the new net */
                add_a_driver_pin_to_net(new_net, new_pin1);
                /* hook up the new pin 2 to this new net */
                add_a_fanout_pin_to_net(new_net, new_pin2);
                /* name it with this name */
                new_pin2->name = NULL;
                /* add this pin to the return list */
                add_pin_to_signal_list(return_list, new_pin2);

                /* going through each of the statement lists looking for common ones and building implied ones if they're not there */
                for (j = 0; j < num_expression_lists; j++)
                {
                        /* check if the current element for this case statement is defined */
                        if (i < expression_lists[j]->signal_list_size)
                        {
                                /* If there is a signal */
                                add_a_input_pin_to_node_spot_idx(mux_node, expression_lists[j]->signal_list[i], (i+1)*num_expression_lists+j);

                        }
                        else
                        {
                                /* Don't match, so this signal is an IMPLIED SIGNAL !!! */

                                /* implied signal for mux */
                                /* DON'T CARE - so hookup zero */
                                add_a_input_pin_to_node_spot_idx(mux_node, get_a_zero_pin(verilog_netlist), (i+1)*num_expression_lists+j);
                        }
                }
        }

        /* clean up */
        for (i = 0; i < num_expression_lists; i++)
        {
                clean_signal_list_structure(expression_lists[i]);
        }

        return return_list;
}

Here is the call graph for this function:

Here is the caller graph for this function:

signal_list_t * create_mux_statements	(	signal_list_t **	statement_lists,
		nnode_t *	case_node,
		int	num_statement_lists,
		char *	instance_name_prefix
	)

Definition at line 2519 of file netlist_create_from_ast.c.

{
        int i, j;
        signal_list_t *combined_lists;
        int *per_case_statement_idx;
        signal_list_t *return_list = init_signal_list_structure();
        int in_index = 1;
        int out_index = 0;

        /* allocate and initialize indexes */
        per_case_statement_idx = (int*)calloc(sizeof(int), num_statement_lists);

        /* make the uber list and sort it */
        combined_lists = combine_lists_without_freeing_originals(statement_lists, num_statement_lists);
        sort_signal_list_alphabetically(combined_lists);

        for (i = 0; i < combined_lists->signal_list_size; i++)
        {
                int i_skip = 0; // iskip is the number of statemnts that do have this signal so we can skip in the combine list
                npin_t *new_pin1;
                npin_t *new_pin2;
                nnet_t *new_net;
                new_pin1 = allocate_npin();
                new_pin2 = allocate_npin();
                new_net = allocate_nnet();

                /* allocate a port the width of all the signals ... one MUX */
                allocate_more_node_input_pins(mux_node, num_statement_lists);
                /* record the port size */
                add_input_port_information(mux_node, num_statement_lists);

                /* allocate the pins for the ouput port and pass out that pin for higher statements */
                allocate_more_node_output_pins(mux_node, 1);
                add_a_output_pin_to_node_spot_idx(mux_node, new_pin1, out_index);
                /* hook up new pin 1 into the new net */
                add_a_driver_pin_to_net(new_net, new_pin1);
                /* hook up the new pin 2 to this new net */
                add_a_fanout_pin_to_net(new_net, new_pin2);
                /* name it with this name */
                new_pin2->name = combined_lists->signal_list[i]->name;
                /* add this pin to the return list */
                add_pin_to_signal_list(return_list, new_pin2);

                /* going through each of the statement lists looking for common ones and building implied ones if they're not there */
                for (j = 0; j < num_statement_lists; j++)
                {
                        /* check if the current element for this case statement is defined */
                        if ((per_case_statement_idx[j] < statement_lists[j]->signal_list_size) && (strcmp(combined_lists->signal_list[i]->name, statement_lists[j]->signal_list[per_case_statement_idx[j]]->name) == 0))
                        {
                                /* If they match then we have a signal with this name and we can attach the pin */
                                add_a_input_pin_to_node_spot_idx(mux_node, statement_lists[j]->signal_list[per_case_statement_idx[j]], in_index*num_statement_lists+j);

                                per_case_statement_idx[j]++; // increment the local index
                                i_skip ++; // it's a match so the combo list will have atleast +1 entries the same
                        }
                        else
                        {
                                /* Don't match, so this signal is an IMPLIED SIGNAL !!! */

                                /* implied signal for mux */
                                if (type_of_circuit == SEQUENTIAL)
                                {
                                        /* lookup this driver name */
                                        signal_list_t *this_pin_list = create_pins(NULL, combined_lists->signal_list[i]->name, instance_name_prefix);
                                        oassert(this_pin_list->signal_list_size == 1);
                                        add_a_input_pin_to_node_spot_idx(mux_node, this_pin_list->signal_list[0], in_index*num_statement_lists+j);

                                        /* clean up */
                                        clean_signal_list_structure(this_pin_list);
                                }
                                else if (type_of_circuit == COMBINATIONAL)
                                {
                                        /* DON'T CARE - so hookup zero */
                                        add_a_input_pin_to_node_spot_idx(mux_node, get_a_zero_pin(verilog_netlist), in_index*num_statement_lists+j);
                                }
                                else
                                        oassert(FALSE);
                        }
                }

                i += i_skip - 1; // for every match move index i forward except this one wihich is handled by for i++
                in_index++;
                out_index++;
        }

        /* clean up */
        for (i = 0; i < num_statement_lists; i++)
        {
                clean_signal_list_structure(statement_lists[i]);
        }
        clean_signal_list_structure(combined_lists);

        return return_list;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void create_netlist

(

)

Definition at line 129 of file netlist_create_from_ast.c.

{
        /* just build all the fundamental elements, and then hookup with port definitions...every net has a named net as a variable instance...even modules...the only trick with modules will be instance names.  There are a few implied nets as in Muxes for cases, signals for flip-flops and memories */

        /* we will find the top module */
        top_module = find_top_module();
        if (!global_args.output_file)
        {
                global_args.output_file = malloc(strlen(top_module->children[0]->types.identifier) + 5 + 1);
                sprintf(global_args.output_file, "%s.blif", top_module->children[0]->types.identifier);
        }

        /* Since the modules are in a tree, we will bottom up build the netlist.  Essentially, we will go to the leafs of the module tree, build them upwards such that when we search for the nets, we will find them and can hook them up at that point */
        /* PASS 1 - we make all the nets based on registers defined in modules */

        /* initialize the string caches that hold the aliasing of module nets and input pins */
        output_nets_sc = sc_new_string_cache();
        input_nets_sc = sc_new_string_cache();
        /* initialize the storage of the top level drivers.  Assigned in create_top_driver_nets */
        verilog_netlist = allocate_netlist();

        /* now recursively parse the modules by going through the tree of modules starting at top */
        create_top_driver_nets(top_module, "top");
        convert_ast_to_netlist_recursing_via_modules(top_module, "top", 0);
        create_top_output_nodes(top_module, "top");

        /* now look for high-level signals */
        look_for_clocks(verilog_netlist);
}

Here is the call graph for this function:

Here is the caller graph for this function:

signal_list_t * create_operation_node	(	ast_node_t *	op,
		signal_list_t **	input_lists,
		int	list_size,
		char *	instance_name_prefix
	)

Definition at line 1958 of file netlist_create_from_ast.c.

{
        int i;
        signal_list_t *return_list = init_signal_list_structure();
        nnode_t *operation_node;
        int max_input_port_width = -1;
        int output_port_width = -1;
        int input_port_width = -1;
        int current_idx;

        /* create the node */
        operation_node = allocate_nnode();
        /* store all the relevant info */
        operation_node->related_ast_node = op;
        operation_node->type = op->types.operation.op;
        operation_node->name = node_name(operation_node, instance_name_prefix);

        current_idx = 0;

        /* analyse the inputs */
        for (i = 0; i < list_size; i++)
        {
                if (max_input_port_width < input_lists[i]->signal_list_size)
                {
                        max_input_port_width = input_lists[i]->signal_list_size;
                }
        }

        switch(operation_node->type)
        {
                case BITWISE_NOT: // ~
                        /* only one input port */
                        output_port_width = max_input_port_width;
                        input_port_width = output_port_width;
                        break;
                case ADD: // +
                        /* add the largest bit width + the other input padded with 0's */
                        output_port_width = max_input_port_width;
                        input_port_width = output_port_width;
                        break;
                case MINUS: // -
                        /* subtract the largest bit width + the other input padded with 0's ... concern for 2's comp */
                        output_port_width = max_input_port_width;
                        input_port_width = output_port_width;
                        break;
                case MULTIPLY: // *
                        /* pad the smaller one with 0's */
                        output_port_width = input_lists[0]->signal_list_size + input_lists[1]->signal_list_size;
                        input_port_width = -2;

                        /* Record multiply nodes for netlist optimization */
                        mult_list = insert_in_vptr_list(mult_list, operation_node);
                        break;
                case BITWISE_AND: // &
                case BITWISE_OR: // |
                case BITWISE_NAND: // ~&
                case BITWISE_NOR: // ~|
                case BITWISE_XNOR: // ~^
                case BITWISE_XOR: // ^
                        /* we'll padd the other inputs with 0, do it for the largest and throw a warning */
                        if (list_size == 2)
                        {
                                output_port_width = max_input_port_width;
                                input_port_width = output_port_width;
                        }
                        else
                        {
                                oassert(list_size == 1);
                                /* Logical reduction - same as a logic function */
                                output_port_width = 1;
                                input_port_width = max_input_port_width;
                        }
                        break;
                case SR: // >>
                case SL: // <<
                        /* Shifts doesn't matter about port size, but second input needs to be a number */
                        output_port_width = max_input_port_width;
                        input_port_width = -2;
                        break;
                case LOGICAL_NOT: // !
                case LOGICAL_OR: // ||
                case LOGICAL_AND: // &&
                        /* only one input port */
                        output_port_width = 1;
                        input_port_width = max_input_port_width;
                        break;
                case LT: // <
                case GT: // >
                case LOGICAL_EQUAL: // ==
                case NOT_EQUAL: // !=
                case LTE: // <=
                case GTE: // >=
                {
                        if (input_lists[0]->signal_list_size != input_lists[1]->signal_list_size)
                        {
                                int index_of_smallest = find_smallest_non_numerical(op, input_lists, 2);

                                input_port_width = input_lists[index_of_smallest]->signal_list_size;

                                /* pad the input lists */
                                pad_with_zeros(op, input_lists[0], input_port_width, instance_name_prefix);
                                pad_with_zeros(op, input_lists[1], input_port_width, instance_name_prefix);
                        }
                        else
                        {
                                input_port_width = input_lists[0]->signal_list_size;
                        }
                        output_port_width = 1;
                        break;
                }
                case DIVIDE: // /
                case MODULO: // %
                default:
                        error_message(NETLIST_ERROR,  op->line_number, op->file_number, "Operation not supported by Odin\n");
                        break;
        }

        oassert(input_port_width != -1);
        oassert(output_port_width != -1);

        for (i = 0; i < list_size; i++)
        {
                if ((operation_node->type == SR) || (operation_node->type == SL))
                {
                        /* for shift left or right, it's actually a one port operation.  Assume the 2nd port is constant */
                        if (i == 0)
                        {
                                /* allocate the pins needed */
                                allocate_more_node_input_pins(operation_node, input_lists[i]->signal_list_size);
                                /* record this port size */
                                add_input_port_information(operation_node, input_lists[i]->signal_list_size);
                                /* hookup the input pins */
                                hookup_input_pins_from_signal_list(operation_node, current_idx, input_lists[i], 0, input_lists[i]->signal_list_size, verilog_netlist);
                        }
                }
                else if (input_port_width != -2)
                {
                        /* IF taking port widths based on preset */
                        /* allocate the pins needed */
                        allocate_more_node_input_pins(operation_node, input_port_width);
                        /* record this port size */
                        add_input_port_information(operation_node, input_port_width);

                        /* hookup the input pins = will do padding of zeros for smaller port */
                        hookup_input_pins_from_signal_list(operation_node, current_idx, input_lists[i], 0, input_port_width, verilog_netlist);
                        current_idx += input_port_width;
                }
                else
                {
                        /* ELSE if taking the port widths as they are */
                        /* allocate the pins needed */
                        allocate_more_node_input_pins(operation_node, input_lists[i]->signal_list_size);
                        /* record this port size */
                        add_input_port_information(operation_node, input_lists[i]->signal_list_size);

                        /* hookup the input pins */
                        hookup_input_pins_from_signal_list(operation_node, current_idx, input_lists[i], 0, input_lists[i]->signal_list_size, verilog_netlist);

                        current_idx += input_lists[i]->signal_list_size;
                }


        }
        /* allocate the pins for the ouput port */
        allocate_more_node_output_pins(operation_node, output_port_width);
        add_output_port_information(operation_node, output_port_width);

        /* make the inplicit output list and hook up the outputs */
        for (i = 0; i < output_port_width; i++)
        {
                npin_t *new_pin1;
                npin_t *new_pin2;
                nnet_t *new_net;
                new_pin1 = allocate_npin();
                new_pin2 = allocate_npin();
                new_net = allocate_nnet();
                new_net->name = operation_node->name;
                /* hook the output pin into the node */
                add_a_output_pin_to_node_spot_idx(operation_node, new_pin1, i);
                /* hook up new pin 1 into the new net */
                add_a_driver_pin_to_net(new_net, new_pin1);
                /* hook up the new pin 2 to this new net */
                add_a_fanout_pin_to_net(new_net, new_pin2);

                /* add the new_pin 2 to the list of outputs */
                add_pin_to_signal_list(return_list, new_pin2);
        }

        for (i = 0; i < list_size; i++)
        {
                clean_signal_list_structure(input_lists[i]);
        }

        return return_list;
}

Here is the call graph for this function:

Here is the caller graph for this function:

signal_list_t * create_output_pin	(	ast_node_t *	var_declare,
		char *	instance_name_prefix
	)

Definition at line 1620 of file netlist_create_from_ast.c.

{
        char *name_of_pin;
        char *full_name;
        signal_list_t *return_sig_list = init_signal_list_structure();
        npin_t *new_pin;

        /* get the name of the pin */
        name_of_pin = get_name_of_pin_at_bit(var_declare, -1);
        full_name = make_full_ref_name(instance_name_prefix, NULL, NULL, name_of_pin, -1);
        free(name_of_pin);

        new_pin = allocate_npin();
        new_pin->name = full_name;

        add_pin_to_signal_list(return_sig_list, new_pin);

        return return_sig_list;
}

Here is the call graph for this function:

Here is the caller graph for this function:

signal_list_t * create_pins	(	ast_node_t *	var_declare,
		char *	name,
		char *	instance_name_prefix
	)

Definition at line 1528 of file netlist_create_from_ast.c.

{
        int i;
        signal_list_t *return_sig_list = init_signal_list_structure();
        long sc_spot;
        long sc_spot_output;
        npin_t *new_pin;
        nnet_t *new_in_net;
        char_list_t *pin_lists;

        if (name == NULL)
        {
                /* get all the pins */
                pin_lists = get_name_of_pins_with_prefix(var_declare, instance_name_prefix);
        }
        else if (var_declare == NULL)
        {
                /* if you have the name and just want a pin then use this method */
                pin_lists = (char_list_t*)malloc(sizeof(char_list_t)*1);
                pin_lists->strings = (char**)malloc(sizeof(char*));
                pin_lists->strings[0] = name;
                pin_lists->num_strings = 1;
        }
        else
                oassert(FALSE);

        for (i = 0; i < pin_lists->num_strings; i++)
        {
                new_pin = allocate_npin();
                new_pin->name = pin_lists->strings[i];

                /* check if the instantiation pin exists. */
                if (strstr(pin_lists->strings[i], "ONE_VCC_CNS") != NULL)
                {
                        add_a_fanout_pin_to_net(verilog_netlist->one_net, new_pin);
                        sc_spot = sc_add_string(input_nets_sc, pin_lists->strings[i]);
                        input_nets_sc->data[sc_spot] = (void*)verilog_netlist->one_net;
                }
                else if (strstr(pin_lists->strings[i], "ZERO_GND_ZERO") != NULL)
                {
                        add_a_fanout_pin_to_net(verilog_netlist->zero_net, new_pin);
                        sc_spot = sc_add_string(input_nets_sc, pin_lists->strings[i]);
                        input_nets_sc->data[sc_spot] = (void*)verilog_netlist->zero_net;
                }
                else
                {
                        /* search for the input name  if already exists...needs to be added to string cache in case it's an input pin */
                        if ((sc_spot = sc_lookup_string(input_nets_sc, pin_lists->strings[i])) == -1)
                        {
                                new_in_net = allocate_nnet();

                                sc_spot = sc_add_string(input_nets_sc, pin_lists->strings[i]);
                                input_nets_sc->data[sc_spot] = (void*)new_in_net;
                        }

                        /* store the pin in this net */
                        add_a_fanout_pin_to_net((nnet_t*)input_nets_sc->data[sc_spot], new_pin);

                        if ((sc_spot_output = sc_lookup_string(output_nets_sc, pin_lists->strings[i])) != -1)
                        {
                                /* ELSE - we've found a matching net, so add this pin to the net */
                                nnet_t* net = (nnet_t*)output_nets_sc->data[sc_spot_output];
                                if ((net != (nnet_t*)input_nets_sc->data[sc_spot]) && (net->combined == TRUE))
                                {
                                        /* IF - the input and output nets don't match, then they need to be joined */
                                        join_nets(net, (nnet_t*)input_nets_sc->data[sc_spot]);
                                        /* since the driver net is deleted, copy the spot of the in_net over */
                                        input_nets_sc->data[sc_spot] = (void*)net;
                                }
                                else if ((net != (nnet_t*)input_nets_sc->data[sc_spot]) && (net->combined == FALSE))
                                {
                                        /* IF - the input and output nets don't match, then they need to be joined */
                                        combine_nets(net, (nnet_t*)input_nets_sc->data[sc_spot], verilog_netlist);
                                        /* since the driver net is deleted, copy the spot of the in_net over */
                                        output_nets_sc->data[sc_spot_output] = (void*)input_nets_sc->data[sc_spot];
                                }
                        }
                }

                /* add the pin now stored in the string chache to the returned signal list */
                add_pin_to_signal_list(return_sig_list, new_pin);
        }

        return return_sig_list;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void create_symbol_table_for_module

(

ast_node_t *

module_items

)

Definition at line 955 of file netlist_create_from_ast.c.

{
        /* with the top module we need to visit the entire ast tree */
        int i, j;
        char *temp_string;
        long sc_spot;
        oassert(module_items->type == MODULE_ITEMS);

        /* search for VAR_DECLARE_LISTS */
        if (module_items->num_children > 0)
        {
                for (i = 0; i < module_items->num_children; i++)
                {
                        if (module_items->children[i]->type == VAR_DECLARE_LIST)
                        {
                                /* go through the vars in this declare list */
                                for (j = 0; j < module_items->children[i]->num_children; j++)
                                {
                                        ast_node_t *var_declare = module_items->children[i]->children[j];

                                        /* parameters are already dealt with */
                                        if (var_declare->types.variable.is_parameter)
                                                continue;

                                        oassert(module_items->children[i]->children[j]->type == VAR_DECLARE);
                                        oassert(        (var_declare->types.variable.is_input) ||
                                                (var_declare->types.variable.is_output) ||
                                                (var_declare->types.variable.is_reg) ||
                                                (var_declare->types.variable.is_wire));

                                        /* make the string to add to the string cache */
                                        temp_string = make_full_ref_name(NULL, NULL, NULL, var_declare->children[0]->types.identifier, -1);
                                        /* look for that element */
                                        sc_spot = sc_add_string(local_symbol_table_sc, temp_string);
                                        if (local_symbol_table_sc->data[sc_spot] != NULL)
                                        {
                                                /* ERROR checks here
                                                 * output with reg is fine
                                                 * output with wire is fine
                                                 * Then update the stored string chache entry with information */
                                                if ((var_declare->types.variable.is_input) &&
                                                        ((((ast_node_t*)local_symbol_table_sc->data[sc_spot])->types.variable.is_reg) || (((ast_node_t*)local_symbol_table_sc->data[sc_spot])->types.variable.is_wire)))
                                                {
                                                        error_message(NETLIST_ERROR, var_declare->line_number, var_declare->file_number, "Input defined as wire or reg means it is a driver in this module.  Not possible\n");
                                                }
                                                /* MORE ERRORS ... could check for same declaration name ... */
                                                else if (var_declare->types.variable.is_output)
                                                {
                                                        /* copy all the reg and wire info over */
                                                        ((ast_node_t*)local_symbol_table_sc->data[sc_spot])->types.variable.is_output = TRUE;
                                                }
                                                else if ((var_declare->types.variable.is_reg) || (var_declare->types.variable.is_wire))
                                                {
                                                        /* copy the output status over */
                                                        ((ast_node_t*)local_symbol_table_sc->data[sc_spot])->types.variable.is_wire = var_declare->types.variable.is_wire;
                                                        ((ast_node_t*)local_symbol_table_sc->data[sc_spot])->types.variable.is_reg = var_declare->types.variable.is_reg;
                                                }
                                        }
                                        else
                                        {
                                                /* store the data which is an idx here */
                                                local_symbol_table_sc->data[sc_spot] = (void*)var_declare;

                                                /* store the symbol */
                                                local_symbol_table = (ast_node_t **)realloc(local_symbol_table, sizeof(ast_node_t*)*(num_local_symbol_table+1));
                                                local_symbol_table[num_local_symbol_table] = var_declare;
                                                num_local_symbol_table ++;
                                        }
                                        free(temp_string);
                                }
                        }
                }
        }
        else
        {
                error_message(NETLIST_ERROR, module_items->line_number, module_items->file_number, "Empty module\n");
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void create_top_driver_nets	(	ast_node_t *	module,
		char *	instance_name_prefix
	)

Definition at line 562 of file netlist_create_from_ast.c.

{
        /* with the top module we need to visit the entire ast tree */
        int i, j;
        long sc_spot;
        ast_node_t *module_items = module->children[2];
        npin_t *new_pin;

        oassert(module_items->type == MODULE_ITEMS);

        /* search for VAR_DECLARE_LISTS */
        if (module_items->num_children > 0)
        {
                for (i = 0; i < module_items->num_children; i++)
                {
                        if (module_items->children[i]->type == VAR_DECLARE_LIST)
                        {
                                /* go through the vars in this declare list looking for inputs to make drivers */
                                for (j = 0; j < module_items->children[i]->num_children; j++)
                                {
                                        if (module_items->children[i]->children[j]->types.variable.is_input)
                                        {
                                                define_nodes_and_nets_with_driver(module_items->children[i]->children[j], instance_name_prefix);
                                        }
                                }
                        }
                }
        }
        else
        {
                error_message(NETLIST_ERROR, module_items->line_number, module_items->file_number, "Module is empty\n");
        }

        /* create the constant nets */
        verilog_netlist->zero_net = allocate_nnet();
        verilog_netlist->gnd_node = allocate_nnode();
        verilog_netlist->gnd_node->type = GND_NODE;
        allocate_more_node_output_pins(verilog_netlist->gnd_node, 1);
        add_output_port_information(verilog_netlist->gnd_node, 1);
        new_pin = allocate_npin();
        add_a_output_pin_to_node_spot_idx(verilog_netlist->gnd_node, new_pin, 0);
        add_a_driver_pin_to_net(verilog_netlist->zero_net, new_pin);

        verilog_netlist->one_net = allocate_nnet();
        verilog_netlist->vcc_node = allocate_nnode();
        verilog_netlist->vcc_node->type = VCC_NODE;
        allocate_more_node_output_pins(verilog_netlist->vcc_node, 1);
        add_output_port_information(verilog_netlist->vcc_node, 1);
        new_pin = allocate_npin();
        add_a_output_pin_to_node_spot_idx(verilog_netlist->vcc_node, new_pin, 0);
        add_a_driver_pin_to_net(verilog_netlist->one_net, new_pin);

        verilog_netlist->pad_net = allocate_nnet();
        verilog_netlist->pad_node = allocate_nnode();
        verilog_netlist->pad_node->type = PAD_NODE;
        allocate_more_node_output_pins(verilog_netlist->pad_node, 1);
        add_output_port_information(verilog_netlist->pad_node, 1);
        new_pin = allocate_npin();
        add_a_output_pin_to_node_spot_idx(verilog_netlist->pad_node, new_pin, 0);
        add_a_driver_pin_to_net(verilog_netlist->pad_net, new_pin);

        /* CREATE the driver for the ZERO */
        zero_string = make_full_ref_name(instance_name_prefix, NULL, NULL, zero_string, -1);
        verilog_netlist->gnd_node->name = zero_string;

        sc_spot = sc_add_string(output_nets_sc, zero_string);
        if (output_nets_sc->data[sc_spot] != NULL)
        {
                error_message(NETLIST_ERROR, module_items->line_number, module_items->file_number, "Error in Odin\n");
        }
        /* store the data which is an idx here */
        output_nets_sc->data[sc_spot] = (void*)verilog_netlist->zero_net;
        verilog_netlist->zero_net->name = zero_string;

        /* CREATE the driver for the ONE and store twice */
        one_string = make_full_ref_name(instance_name_prefix, NULL, NULL, one_string, -1);
        verilog_netlist->vcc_node->name = one_string;

        sc_spot = sc_add_string(output_nets_sc, one_string);
        if (output_nets_sc->data[sc_spot] != NULL)
        {
                error_message(NETLIST_ERROR, module_items->line_number, module_items->file_number, "Error in Odin\n");
        }
        /* store the data which is an idx here */
        output_nets_sc->data[sc_spot] = (void*)verilog_netlist->one_net;
        verilog_netlist->one_net->name = one_string;

        /* CREATE the driver for the PAD */
        pad_string = make_full_ref_name(instance_name_prefix, NULL, NULL, pad_string, -1);
        verilog_netlist->pad_node->name = pad_string;

        sc_spot = sc_add_string(output_nets_sc, pad_string);
        if (output_nets_sc->data[sc_spot] != NULL)
        {
                error_message(NETLIST_ERROR, module_items->line_number, module_items->file_number, "Error in Odin\n");
        }
        /* store the data which is an idx here */
        output_nets_sc->data[sc_spot] = (void*)verilog_netlist->pad_net;
        verilog_netlist->pad_net->name = pad_string;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void create_top_output_nodes	(	ast_node_t *	module,
		char *	instance_name_prefix
	)

Definition at line 669 of file netlist_create_from_ast.c.

{
        /* with the top module we need to visit the entire ast tree */
        int i, j, k;
        long sc_spot;
        ast_node_t *module_items = module->children[2];
        nnode_t *new_node;

        oassert(module_items->type == MODULE_ITEMS);

        /* search for VAR_DECLARE_LISTS */
        if (module_items->num_children > 0)
        {
                for (i = 0; i < module_items->num_children; i++)
                {
                        if (module_items->children[i]->type == VAR_DECLARE_LIST)
                        {
                                /* go through the vars in this declare list */
                                for (j = 0; j < module_items->children[i]->num_children; j++)
                                {
                                        if (module_items->children[i]->children[j]->types.variable.is_output)
                                        {
                                                char *full_name;
                                                ast_node_t *var_declare = module_items->children[i]->children[j];
                                                npin_t *new_pin;

                                                /* decide what type of variable this is */
                                                if (var_declare->children[1] == NULL)
                                                {
                                                        /* IF - this is a identifier then find it in the output_nets and hook it up to a newly created node */
                                                        /* get the name of the pin */
                                                        full_name = make_full_ref_name(instance_name_prefix, NULL, NULL, var_declare->children[0]->types.identifier, -1);

                                                        /* check if the instantiation pin exists. */
                                                        if ((sc_spot = sc_lookup_string(output_nets_sc, full_name)) == -1)
                                                        {
                                                                error_message(NETLIST_ERROR, var_declare->children[0]->line_number, var_declare->children[0]->file_number, "Output pin (%s) is not hooked up!!!\n", full_name);
                                                        }

                                                        new_pin = allocate_npin();
                                                        /* hookup this pin to this net */
                                                        add_a_fanout_pin_to_net((nnet_t*)output_nets_sc->data[sc_spot], new_pin);

                                                        /* create the node */
                                                        new_node = allocate_nnode();
                                                        new_node->related_ast_node = module_items->children[i]->children[j];
                                                        new_node->name = full_name;
                                                        new_node->type = OUTPUT_NODE;
                                                        /* allocate the pins needed */
                                                        allocate_more_node_input_pins(new_node, 1);
                                                        add_input_port_information(new_node, 1);

                                                        /* hookup the pin, and node */
                                                        add_a_input_pin_to_node_spot_idx(new_node, new_pin, 0);

                                                        /* record this node */
                                                        verilog_netlist->top_output_nodes = (nnode_t**)realloc(verilog_netlist->top_output_nodes, sizeof(nnode_t*)*(verilog_netlist->num_top_output_nodes+1));
                                                        verilog_netlist->top_output_nodes[verilog_netlist->num_top_output_nodes] = new_node;
                                                        verilog_netlist->num_top_output_nodes++;
                                                }
                                                else if (var_declare->children[3] == NULL)
                                                {
                                                        /* assume digit 1 is largest */
                                                        for (k = var_declare->children[2]->types.number.value; k <= var_declare->children[1]->types.number.value; k++)
                                                        {
                                                                /* get the name of the pin */
                                                                full_name = make_full_ref_name(instance_name_prefix, NULL, NULL, var_declare->children[0]->types.identifier, k);

                                                                /* check if the instantiation pin exists. */
                                                                if ((sc_spot = sc_lookup_string(output_nets_sc, full_name)) == -1)
                                                                {
                                                                        error_message(NETLIST_ERROR, var_declare->children[0]->line_number, var_declare->children[0]->file_number, "Output pin (%s) is not hooked up!!!\n", full_name);
                                                                }
                                                                new_pin = allocate_npin();
                                                                /* hookup this pin to this net */
                                                                add_a_fanout_pin_to_net((nnet_t*)output_nets_sc->data[sc_spot], new_pin);

                                                                /* create the node */
                                                                new_node = allocate_nnode();
                                                                new_node->related_ast_node = module_items->children[i]->children[j];
                                                                new_node->name = full_name;
                                                                new_node->type = OUTPUT_NODE;
                                                                /* allocate the pins needed */
                                                                allocate_more_node_input_pins(new_node, 1);
                                                                add_input_port_information(new_node, 1);

                                                                /* hookup the pin, and node */
                                                                add_a_input_pin_to_node_spot_idx(new_node, new_pin, 0);

                                                                /* record this node */
                                                                verilog_netlist->top_output_nodes = (nnode_t**)realloc(verilog_netlist->top_output_nodes, sizeof(nnode_t*)*(verilog_netlist->num_top_output_nodes+1));
                                                                verilog_netlist->top_output_nodes[verilog_netlist->num_top_output_nodes] = new_node;
                                                                verilog_netlist->num_top_output_nodes++;
                                                        }
                                                }
                                                else
                                                {
                                                        /* MEMORY */
                                                        error_message(NETLIST_ERROR, var_declare->children[0]->line_number, var_declare->children[0]->file_number, "Memory not handled ... yet!\n");
                                                }
                                        }
                                }
                        }
                }
        }
        else
        {
                error_message(NETLIST_ERROR, module_items->line_number, module_items->file_number, "Empty module\n");
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

nnet_t * define_nets_with_driver	(	ast_node_t *	var_declare,
		char *	instance_name_prefix
	)

Definition at line 784 of file netlist_create_from_ast.c.

{
        int i;
        char *temp_string;
        long sc_spot;
        nnet_t *new_net = NULL;

        if (var_declare->children[1] == NULL)
        {
                /* FOR single driver signal since spots 1, 2, 3, 4 are NULL */

                /* create the net */
                new_net = allocate_nnet();

                /* make the string to add to the string cache */
                temp_string = make_full_ref_name(instance_name_prefix, NULL, NULL, var_declare->children[0]->types.identifier, -1);

                /* look for that element */
                sc_spot = sc_add_string(output_nets_sc, temp_string);
                if (output_nets_sc->data[sc_spot] != NULL)
                {
                        error_message(NETLIST_ERROR, var_declare->children[0]->line_number, var_declare->children[0]->file_number, "Net (%s) with the same name already created\n", temp_string);
                }
                /* store the data which is an idx here */
                output_nets_sc->data[sc_spot] = (void*)new_net;
                new_net->name = temp_string;
        }
        else if (var_declare->children[3] == NULL)
        {
                /* FOR array driver  since sport 3 and 4 are NULL */
                oassert((var_declare->children[1]->type == NUMBERS) && (var_declare->children[2]->type == NUMBERS)) ;

                /* This register declaration is a range as opposed to a single bit so we need to define each element */
                /* assume digit 1 is largest */
                for (i = var_declare->children[2]->types.number.value; i <= var_declare->children[1]->types.number.value; i++)
                {
                        /* create the net */
                        new_net = allocate_nnet();

                        /* create the string to add to the cache */
                        temp_string = make_full_ref_name(instance_name_prefix, NULL, NULL, var_declare->children[0]->types.identifier, i);

                        sc_spot = sc_add_string(output_nets_sc, temp_string);
                        if (output_nets_sc->data[sc_spot] != NULL)
                        {
                                error_message(NETLIST_ERROR, var_declare->children[0]->line_number, var_declare->children[0]->file_number, "Net (%s) with the same name already created\n", temp_string);
                        }
                        /* store the data which is an idx here */
                        output_nets_sc->data[sc_spot] = (void*)new_net;
                        new_net->name = temp_string;
                }
        }
        else if (var_declare->children[3] != NULL)
        {
                /* FOR memory */
                oassert(FALSE);
        }

        return new_net;
}

Here is the call graph for this function:

Here is the caller graph for this function:

nnet_t * define_nodes_and_nets_with_driver	(	ast_node_t *	var_declare,
		char *	instance_name_prefix
	)

Definition at line 850 of file netlist_create_from_ast.c.

{
        int i;
        char *temp_string;
        long sc_spot;
        nnet_t *new_net = NULL;
        npin_t *new_pin;
        nnode_t *new_node;

        if (var_declare->children[1] == NULL)
        {
                /* FOR single driver signal since spots 1, 2, 3, 4 are NULL */

                /* create the net */
                new_net = allocate_nnet();

                temp_string = make_full_ref_name(instance_name_prefix, NULL, NULL, var_declare->children[0]->types.identifier, -1);

                sc_spot = sc_add_string(output_nets_sc, temp_string);
                if (output_nets_sc->data[sc_spot] != NULL)
                {
                        error_message(NETLIST_ERROR, var_declare->children[0]->line_number, var_declare->children[0]->file_number, "Net (%s) with the same name already created\n", temp_string);
                }
                /* store the data which is an idx here */
                output_nets_sc->data[sc_spot] = (void*)new_net;
                new_net->name = temp_string;

                /* create this node and make the pin connection to the net */
                new_pin = allocate_npin();
                new_node = allocate_nnode();
                new_node->name = temp_string;

                new_node->related_ast_node = var_declare;
                new_node->type = INPUT_NODE;
                /* allocate the pins needed */
                allocate_more_node_output_pins(new_node, 1);
                add_output_port_information(new_node, 1);

                /* hookup the pin, net, and node */
                add_a_output_pin_to_node_spot_idx(new_node, new_pin, 0);
                add_a_driver_pin_to_net(new_net, new_pin);

                /* store it in the list of input nodes */
                verilog_netlist->top_input_nodes = (nnode_t**)realloc(verilog_netlist->top_input_nodes, sizeof(nnode_t*)*(verilog_netlist->num_top_input_nodes+1));
                verilog_netlist->top_input_nodes[verilog_netlist->num_top_input_nodes] = new_node;
                verilog_netlist->num_top_input_nodes++;
        }
        else if (var_declare->children[3] == NULL)
        {
                /* FOR array driver  since sport 3 and 4 are NULL */
                oassert((var_declare->children[1]->type == NUMBERS) && (var_declare->children[2]->type == NUMBERS)) ;

                /* assume digit 1 is largest */
                for (i = var_declare->children[2]->types.number.value; i <= var_declare->children[1]->types.number.value; i++)
                {
                        /* create the net */
                        new_net = allocate_nnet();

                        /* FOR single driver signal */
                        temp_string = make_full_ref_name(instance_name_prefix, NULL, NULL, var_declare->children[0]->types.identifier, i);

                        sc_spot = sc_add_string(output_nets_sc, temp_string);
                        if (output_nets_sc->data[sc_spot] != NULL)
                        {
                                error_message(NETLIST_ERROR, var_declare->children[0]->line_number, var_declare->children[0]->file_number, "Net (%s) with the same name already created\n", temp_string);
                        }
                        /* store the data which is an idx here */
                        output_nets_sc->data[sc_spot] = (void*)new_net;
                        new_net->name = temp_string;

                        /* create this node and make the pin connection to the net */
                        new_pin = allocate_npin();
                        new_node = allocate_nnode();

                        new_node->related_ast_node = var_declare;
                        new_node->name = temp_string;
                        new_node->type = INPUT_NODE;
                        /* allocate the pins needed */
                        allocate_more_node_output_pins(new_node, 1);
                        add_output_port_information(new_node, 1);

                        /* hookup the pin, net, and node */
                        add_a_output_pin_to_node_spot_idx(new_node, new_pin, 0);
                        add_a_driver_pin_to_net(new_net, new_pin);

                        /* store it in the list of input nodes */
                        verilog_netlist->top_input_nodes = (nnode_t**)realloc(verilog_netlist->top_input_nodes, sizeof(nnode_t*)*(verilog_netlist->num_top_input_nodes+1));
                        verilog_netlist->top_input_nodes[verilog_netlist->num_top_input_nodes] = new_node;
                        verilog_netlist->num_top_input_nodes++;
                }
        }
        else if (var_declare->children[3] != NULL)
        {
                /* FOR memory */
                oassert(FALSE);
        }

        return new_net;
}

Here is the call graph for this function:

Here is the caller graph for this function:

signal_list_t * evaluate_sensitivity_list	(	ast_node_t *	delay_control,
		char *	instance_name_prefix
	)

Definition at line 2157 of file netlist_create_from_ast.c.

{
        int i;
        short edge_type = -1;
        signal_list_t *return_sig_list = init_signal_list_structure();
        signal_list_t *temp_list;

        oassert(delay_control->type == DELAY_CONTROL);

        for (i = 0; i < delay_control->num_children; i++)
        {
                if (    ((delay_control->children[i]->type == NEGEDGE) || (delay_control->children[i]->type == POSEDGE))
                        &&
                        ((edge_type == -1) || (edge_type == SEQUENTIAL)))
                {
                        edge_type = SEQUENTIAL;

                        temp_list = create_pins(delay_control->children[i]->children[0], NULL, instance_name_prefix);
                        oassert(temp_list->signal_list_size == 1);

                        add_pin_to_signal_list(return_sig_list, temp_list->signal_list[0]);
                        clean_signal_list_structure(temp_list);
                }
                else if ((edge_type == -1) || (edge_type == COMBINATIONAL))
                {
                        /* ELSE - a combinational edge and we don't need to do anything */
                        edge_type = COMBINATIONAL;
                }
                else
                {
                        error_message(NETLIST_ERROR, delay_control->line_number, delay_control->file_number, "Sensitivity list switches from sequential and combinational.  You can't define somthing like always @(posedgel clock or a).\n");
                }
        }

        /* update the analysis type of this block of statements */
        if (edge_type == -1)
        {
                error_message(NETLIST_ERROR, delay_control->line_number, delay_control->file_number, "Sensitivity list error...looks empty?\n");
        }
        else if (edge_type == COMBINATIONAL)
        {
                clean_signal_list_structure(return_sig_list);
                return_sig_list = NULL;
                type_of_circuit = edge_type;
        }
        else if (edge_type == SEQUENTIAL)
        {
                type_of_circuit = edge_type;
        }

        return return_sig_list;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int find_smallest_non_numerical	(	ast_node_t *	node,
		signal_list_t **	input_list,
		int	num_input_lists
	)

Definition at line 2691 of file netlist_create_from_ast.c.

{
        int i;
        int smallest;
        int smallest_idx;
        short *tested = (short*)calloc(sizeof(short), num_input_lists);
        short found_non_numerical = FALSE;

        while(found_non_numerical == FALSE)
        {
                smallest_idx = -1;
                smallest = -1;

                /* find the smallest width, now verify that it's not a number */
                for (i = 0; i < num_input_lists; i++)
                {
                        if (tested[i] == 1)
                        {
                                /* skip the ones we've already tried */
                                continue;
                        }
                        if ((smallest == -1) || (smallest >= input_list[i]->signal_list_size))
                        {
                                smallest = input_list[i]->signal_list_size;
                                smallest_idx = i;
                        }
                }

                if (smallest_idx == -1)
                {
                        error_message(NETLIST_ERROR, node->line_number, node->file_number, "all numbers in padding non numericals\n");
                }
                else
                {
                        /* mark that we're evaluating this input */
                        tested[smallest_idx] = TRUE;

                        /* check if the smallest is not a number */
                        for (i = 0; i < input_list[smallest_idx]->signal_list_size; i++)
                        {
                                if (input_list[smallest_idx]->signal_list[i]->name == NULL)
                                {
                                        /* Not a number so this is the smallest */
                                        found_non_numerical = TRUE;
                                        break;
                                }
                                if (!((strstr(input_list[smallest_idx]->signal_list[i]->name, "ONE_VCC_CNS") != NULL) || strstr(input_list[smallest_idx]->signal_list[i]->name, "ZERO_GND_ZERO") != NULL))
                                {
                                        /* Not a number so this is the smallest */
                                        found_non_numerical = TRUE;
                                        break;
                                }
                        }
                }
        }

        return smallest_idx;
}

Here is the call graph for this function:

Here is the caller graph for this function:

ast_node_t * find_top_module

(

)

Definition at line 180 of file netlist_create_from_ast.c.

{
        int i, j;
        long sc_spot;
        int found_top = -1;

        /* go through all the instantiations for each module and mark them if they've be instantiated */
        for (i = 0; i < num_modules; i++)
        {
                for (j = 0; j < ast_modules[i]->types.module.size_module_instantiations; j++)
                {
                        /* Check to see if the module is a hard block - a hard block is
                                never the top level! */
#ifdef VPR6
                        if ((sc_spot = sc_lookup_string(hard_block_names, ast_modules[i]->types.module.module_instantiations_instance[j]->children[0]->types.identifier)) == -1)
#endif
                        {
                                /* get the module index from the string cache */
                                if ((sc_spot = sc_lookup_string(module_names_to_idx, ast_modules[i]->types.module.module_instantiations_instance[j]->children[0]->types.identifier)) == -1)
                                {
                                        error_message(NETLIST_ERROR, ast_modules[i]->line_number, ast_modules[i]->file_number, "Can't find module name (%s)\n", ast_modules[i]->types.module.module_instantiations_instance[j]->types.identifier);
                                }

                                /* use that number to mark this module as instantiated */
                                ast_modules[((ast_node_t*)module_names_to_idx->data[sc_spot])->types.module.index]->types.module.is_instantiated = TRUE;
                        }
                }
        }

        /* now check for which module wasn't marked...this one will be the top */
        for (i = 0; i < num_modules; i++)
        {
                if ((ast_modules[i]->types.module.is_instantiated == FALSE) && (found_top == -1))
                {
                        found_top = i;
                }
                else if ((ast_modules[i]->types.module.is_instantiated == FALSE) && (found_top != -1))
                {
                        error_message(NETLIST_ERROR, ast_modules[i]->line_number, ast_modules[i]->file_number, "Two top level modules - Odin II cannot deal with these types of designs\n");
                }
        }

        /* check atleast one module is top ... and only one */
        if (found_top == -1)
        {
                error_message(NETLIST_ERROR, -1, -1, "Could not find a top level module\n");
        }

        return ast_modules[found_top];
}

Here is the call graph for this function:

Here is the caller graph for this function:

void look_for_clocks

(

netlist_t *

netlist

)

Definition at line 162 of file netlist_create_from_ast.c.

{
        int i;

        for (i = 0; i < netlist->num_ff_nodes; i++)
        {
                if (netlist->ff_nodes[i]->input_pins[1]->net->driver_pin->node->type != CLOCK_NODE)
                {
                        netlist->ff_nodes[i]->input_pins[1]->net->driver_pin->node->type = CLOCK_NODE;
                }
        }
}

Here is the caller graph for this function:

signal_list_t * netlist_expand_ast_of_module	(	ast_node_t *	node,
		char *	instance_name_prefix
	)

Definition at line 283 of file netlist_create_from_ast.c.

{
        /* with the top module we need to visit the entire ast tree */
        int i;
        short *child_skip_list = NULL; // list of children not to traverse into
        short skip_children = FALSE; // skips the DFS completely if TRUE
        signal_list_t *return_sig_list = NULL;
        signal_list_t **children_signal_list = NULL;

        if (node == NULL)
        {
                /* print out the node and label details */
        }
        else
        {
                /* make a skip list of nodes in the tree we don't need to visit for this node.  For example, a module we know that the 0th entry is the identifier of the module */
                if (node->num_children > 0)
                {
                        child_skip_list = (short*)calloc(node->num_children, sizeof(short));
                        children_signal_list = (signal_list_t**)malloc(sizeof(signal_list_t*)*node->num_children);
                }

                /* ------------------------------------------------------------------------------*/
                /* PRE AMBLE */
                switch(node->type)
                {
                        case FILE_ITEMS:
                                oassert(FALSE);
                                break;
                        case MODULE:
                                /* set the skip list */
                                child_skip_list[0] = TRUE; /* skip the identifier */
                                child_skip_list[1] = TRUE; /* skip portlist ... we'll use where they're defined */
                                break;
                        case MODULE_ITEMS:
                                /* items include: wire, reg, input, outputs, assign, gate, module_instance, always */

                                /* make the symbol table */
                                local_symbol_table_sc = sc_new_string_cache();
                                local_symbol_table = NULL;
                                num_local_symbol_table = 0;
                                create_symbol_table_for_module(node);
                                local_clock_found = FALSE;

                                /* create all the driven nets based on the "reg" registers */
                                create_all_driver_nets_in_this_module(instance_name_prefix);

                                /* process elements in the list */
                                if (node->num_children > 0)
                                {
                                        for (i = 0; i < node->num_children; i++)
                                        {
                                                if (node->children[i]->type == VAR_DECLARE_LIST)
                                                {
                                                        /* IF - The port lists of this module are handled else where */
                                                        child_skip_list[i] = TRUE;
                                                }
                                                else if (node->children[i]->type == MODULE_INSTANCE)
                                                {
                                                        /* ELSE IF - we deal with instantiations of modules twice to alias input and output nets.  In this
 *                                                      pass we are looking for any drivers emerging from a module */

                                                        /* make the aliases for all the drivers as they're passed through modules */
                                                        connect_module_instantiation_and_alias(INSTANTIATE_DRIVERS, node->children[i], instance_name_prefix);

                                                        /* is a call site for another module.  Alias names to nets and pins */
                                                        child_skip_list[i] = TRUE;
                                                }
                                        }
                                }
                                break;
                        case GATE:
                                /* create gate instances */
                                return_sig_list = create_gate(node, instance_name_prefix);
                                /* create_gate does it's own instantiations so skip the children in the traverse */
                                skip_children = TRUE;
                                break;
                        /* ---------------------- */
                        /* All these are input references that we need to grab their pins from by create_pin */
                        case ARRAY_REF:
                        case CONCATENATE:
                        case IDENTIFIERS:
                        case RANGE_REF:
                        case NUMBERS:
                        {
                                return_sig_list = create_pins(node, NULL, instance_name_prefix);
                                /* children are traversed in the create_pin function */
                                skip_children = TRUE;
                                break;
                        }
                        /* ---------------------- */
                        case ASSIGN:
                                /* combinational path */
                                type_of_circuit = COMBINATIONAL;
                                break;
                        case BLOCKING_STATEMENT:
                                if (type_of_circuit == SEQUENTIAL)
                                {
                                        error_message(NETLIST_ERROR, node->line_number, node->file_number, "ODIN doesn't handle blocking statements in Sequential blocks\n");
                                }
                                else
                                {
                                        return_sig_list = assignment_alias(node, instance_name_prefix);
                                        skip_children = TRUE;
                                }
                                break;
                        case NON_BLOCKING_STATEMENT:
                                if (type_of_circuit != SEQUENTIAL)
                                {
                                        error_message(NETLIST_ERROR, node->line_number, node->file_number, "ODIN doesn't handle non blocking statements in combinational blocks\n");
                                }
                                return_sig_list = assignment_alias(node, instance_name_prefix);
                                skip_children = TRUE;
                                break;
                        case ALWAYS:
                                /* evaluate if this is a sensitivity list with posedges/negedges (=SEQUENTIAL) or none (=COMBINATIONAL) */
                                local_clock_list = evaluate_sensitivity_list(node->children[0], instance_name_prefix);
                                child_skip_list[0] = TRUE;
                                break;
                        case CASE:
                                return_sig_list = create_case(node, instance_name_prefix);
                                skip_children = TRUE;
                                break;
                        case IF:
                                return_sig_list = create_if(node, instance_name_prefix);
                                skip_children = TRUE;
                                break;
                        case IF_Q:
                                return_sig_list = create_if_for_question(node, instance_name_prefix);
                                skip_children = TRUE;
                                break;
#ifdef VPR6
                        case HARD_BLOCK:
                                /* set the skip list */
                                child_skip_list[0] = TRUE; /* skip the identifier */
                                child_skip_list[1] = TRUE; /* skip portlist ... we'll use where they're defined */
                                return_sig_list = create_hard_block(node, instance_name_prefix);
                                break;
#endif
                        default:
                                break;
                }
                /* ------------------------------------------------------------------------------*/
                /* This is the depth first traverse (DFT aka DFS) of the ast nodes that make up the netlist. */
                if (skip_children == FALSE)
                {
                        /* traverse all the children */
                        for (i = 0; i < node->num_children; i++)
                        {
                                if (child_skip_list[i] == FALSE)
                                {
                                        /* recursively call through the tree going to each instance.  This is depth first traverse. */
                                        children_signal_list[i] = netlist_expand_ast_of_module(node->children[i], instance_name_prefix);
                                }
                        }
                }

                /* ------------------------------------------------------------------------------*/
                /* POST AMBLE - process the children */
                switch(node->type)
                {
                        case FILE_ITEMS:
                                oassert(FALSE);
                                break;
                        case MODULE_ITEMS:
                        {
                                if (node->num_children > 0)
                                {
                                        for (i = 0; i < node->num_children; i++)
                                        {
                                                if (node->children[i]->type == MODULE_INSTANCE)
                                                {
                                                        /* make the aliases for all the drivers as they're passed through modules.  This is the
                                                        second time we call this */
                                                        connect_module_instantiation_and_alias(ALIAS_INPUTS, node->children[i], instance_name_prefix);
                                                }
                                        }
                                }

                                /* free the symbol table for this module since we're done processing */
                                sc_free_string_cache(local_symbol_table_sc);
                                free(local_symbol_table);

                                break;
                        }
                        case ASSIGN:
                                oassert(node->num_children == 1);
                                /* attach the drivers to the driver nets */
                                terminate_continuous_assignment(node, children_signal_list[0], instance_name_prefix);
                                break;
                        case ALWAYS:
                                /* attach the drivers to the driver nets */
                                if (type_of_circuit == COMBINATIONAL)
                                {
                                        /* idx 1 element since alwayss has DELAY Control first */
                                        terminate_continuous_assignment(node, children_signal_list[1], instance_name_prefix);
                                }
                                else if (type_of_circuit == SEQUENTIAL)
                                {
                                        terminate_registered_assignment(node, children_signal_list[1], local_clock_list, instance_name_prefix);
                                }
                                else
                                        oassert(FALSE);
                                break;
                        case BINARY_OPERATION:
                                oassert(node->num_children == 2);
                                return_sig_list = create_operation_node(node, children_signal_list, node->num_children, instance_name_prefix);
                                break;
                        case UNARY_OPERATION:
                                oassert(node->num_children == 1);
                                return_sig_list = create_operation_node(node, children_signal_list, node->num_children, instance_name_prefix);
                                break;
                        case BLOCK:
                                return_sig_list = combine_lists(children_signal_list, node->num_children);
                                break;
#ifdef VPR6
                        case MEMORY:
                                connect_memory_and_alias(node, instance_name_prefix);
                                break;
                        case HARD_BLOCK:
                                connect_hard_block_and_alias(node, instance_name_prefix);
                                break;
#endif
                        case IF:
                        default:
                                break;
                }
                /* ------------------------------------------------------------------------------*/
        }

        /* cleaning */
        if (child_skip_list != NULL)
        {
                free(child_skip_list);
        }
        if (children_signal_list != NULL)
        {
                free(children_signal_list);
        }

        return return_sig_list;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void pad_with_zeros	(	ast_node_t *	node,
		signal_list_t *	list,
		int	pad_size,
		char *	instance_name_prefix
	)

Definition at line 2753 of file netlist_create_from_ast.c.

{
        int i;

        if (pad_size > list->signal_list_size)
        {
                for (i = list->signal_list_size; i < pad_size; i++)
                {
                        warning_message(NETLIST_ERROR, node->line_number, node->file_number, "padding an input port with 0 for operation (likely compare)\n");
                        add_pin_to_signal_list(list, get_a_zero_pin(verilog_netlist));
                }
        }
        else if (pad_size < list->signal_list_size)
        {
                warning_message(NETLIST_ERROR, node->line_number, node->file_number, "May be a warning: appears that there are more driver pins then nets to drive.  This means that for this operation you are losing some of the most significant bits\n");
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void terminate_continuous_assignment	(	ast_node_t *	node,
		signal_list_t *	assignment,
		char *	instance_name_prefix
	)

Definition at line 1787 of file netlist_create_from_ast.c.

{
        int i;
        long sc_spot;
        npin_t *buf_input_pin;
        npin_t *buf_output_pin;

        for (i = 0; i < assignment->signal_list_size; i++)
        {
                nnode_t *buf_node;

                /* look up the net */
                if ((sc_spot = sc_lookup_string(output_nets_sc, assignment->signal_list[i]->name)) == -1)
                {
                        error_message(NETLIST_ERROR, node->line_number, node->file_number, "Assignment (%s) is missing driver\n", assignment->signal_list[i]->name);
                }

                /* check if the instantiation pin exists. */
                if (((nnet_t*)output_nets_sc->data[sc_spot])->name == NULL)
                {
                        ((nnet_t*)output_nets_sc->data[sc_spot])->name = assignment->signal_list[i]->name;
                }

                buf_node = allocate_nnode();
                buf_node->type = BUF_NODE;
                /* create the unique name for this gate */
                buf_node->name = node_name(buf_node, instance_name_prefix);

                buf_node->related_ast_node = node;
                /* allocate the pins needed */
                allocate_more_node_input_pins(buf_node, 1);
                add_input_port_information(buf_node, 1);
                allocate_more_node_output_pins(buf_node, 1);
                add_output_port_information(buf_node, 1);

                /* hookup the driver pin (the in_1) to to this net (the lookup) */
                buf_input_pin = assignment->signal_list[i];
                add_a_input_pin_to_node_spot_idx(buf_node, buf_input_pin, 0);

                /* finally hookup the output pin of the flip flop to the orginal driver net */
                buf_output_pin = allocate_npin();
                add_a_output_pin_to_node_spot_idx(buf_node, buf_output_pin, 0);
                if(((nnet_t*)output_nets_sc->data[sc_spot])->driver_pin != NULL)
                {
                        error_message(NETLIST_ERROR, node->line_number, node->file_number, "You've defined this driver %s twice (i.e. in the statement block you've probably put the statement as a = b; a = c; in some form that's incorrect)\n", assignment->signal_list[i]->name);
                }
                add_a_driver_pin_to_net((nnet_t*)output_nets_sc->data[sc_spot], buf_output_pin);
        }

        clean_signal_list_structure(assignment);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void terminate_registered_assignment	(	ast_node_t *	always_node,
		signal_list_t *	assignment,
		signal_list_t *	potential_clocks,
		char *	instance_name_prefix
	)

Definition at line 1687 of file netlist_create_from_ast.c.

{
        int i;
        long sc_spot;
        npin_t *ff_input_pin;
        npin_t *ff_output_pin;

        oassert(potential_clocks != NULL);

        /* figure out which one is the clock */
        if (local_clock_found == FALSE)
        {
                for (i = 0; i < potential_clocks->signal_list_size; i++)
                {
                        nnet_t *temp_net;
                        /* searching for the clock with no net */
                        if ((sc_spot = sc_lookup_string(output_nets_sc, potential_clocks->signal_list[i]->name)) == -1)
                        {
                                if ((sc_spot = sc_lookup_string(input_nets_sc, potential_clocks->signal_list[i]->name)) == -1)
                                {
                                        error_message(NETLIST_ERROR, always_node->line_number, always_node->file_number, "Sensitivity list element (%s) is not a driver or net ... must be\n", potential_clocks->signal_list[i]->name);
                                }
                                temp_net = (nnet_t*)input_nets_sc->data[sc_spot];
                        }
                        else
                        {
                                temp_net = (nnet_t*)output_nets_sc->data[sc_spot];
                        }


                        if (
                                (((temp_net->num_fanout_pins == 1) && (temp_net->fanout_pins[0]->node == NULL)) || (temp_net->num_fanout_pins == 0))
                                && (local_clock_found == TRUE))
                        {
                                error_message(NETLIST_ERROR, always_node->line_number, always_node->file_number, "Suspected second clock (%s).  In a sequential sensitivity list, Odin expects the clock not to drive anything and any other signals in this list to drive stuff.  For example, a reset in the sensitivy list has to be hooked up to something in the always block.\n", potential_clocks->signal_list[i]->name);
                        }
                        else if (temp_net->num_fanout_pins == 0)
                        {
                                /* If this element is in the sensitivity list and doesn't drive anything it's the clock */
                                local_clock_found = TRUE;
                                local_clock_idx = i;
                        }
                        else if ((temp_net->num_fanout_pins == 1) && (temp_net->fanout_pins[0]->node == NULL))
                        {
                                /* If this element is in the sensitivity list and doesn't drive anything it's the clock */
                                local_clock_found = TRUE;
                                local_clock_idx = i;
                        }

                }
        }

        /* in continuous assign we can hook up the inputs to the driving side of the nets */
        for (i = 0; i < assignment->signal_list_size; i++)
        {
                nnode_t *ff_node = allocate_nnode();
                /* look up the net */
                if ((sc_spot = sc_lookup_string(output_nets_sc, assignment->signal_list[i]->name)) == -1)
                {
                        error_message(NETLIST_ERROR, always_node->line_number, always_node->file_number, "Assignment is missing driver (%s)\n", assignment->signal_list[i]->name);
                }

                /* HERE create the ff node and hookup everything */
                ff_node->related_ast_node = always_node;

                ff_node->type = FF_NODE;
                /* create the unique name for this gate */
                ff_node->name = node_name(ff_node, instance_name_prefix);
                /* allocate the pins needed */
                allocate_more_node_input_pins(ff_node, 2);
                add_input_port_information(ff_node, 1);
                allocate_more_node_output_pins(ff_node, 1);
                add_output_port_information(ff_node, 1);

                /* add the clock to the flip_flop */
                /* add a fanout pin */
                npin_t *fanout_pin_of_clock = allocate_npin();
                add_a_fanout_pin_to_net(potential_clocks->signal_list[local_clock_idx]->net, fanout_pin_of_clock);
                add_a_input_pin_to_node_spot_idx(ff_node, fanout_pin_of_clock, 1);

                /* hookup the driver pin (the in_1) to to this net (the lookup) */
                ff_input_pin = assignment->signal_list[i];
                add_a_input_pin_to_node_spot_idx(ff_node, assignment->signal_list[i], 0);

                /* finally hookup the output pin of the flip flop to the orginal driver net */
                ff_output_pin = allocate_npin();
                add_a_output_pin_to_node_spot_idx(ff_node, ff_output_pin, 0);
                add_a_driver_pin_to_net((nnet_t*)output_nets_sc->data[sc_spot], ff_output_pin);

                verilog_netlist->ff_nodes = (nnode_t**)realloc(verilog_netlist->ff_nodes, sizeof(nnode_t*)*(verilog_netlist->num_ff_nodes+1));
                verilog_netlist->ff_nodes[verilog_netlist->num_ff_nodes] = ff_node;
                verilog_netlist->num_ff_nodes++;
        }

        clean_signal_list_structure(assignment);
}

Here is the call graph for this function:

Here is the caller graph for this function:

---

Variable Documentation

STRING_CACHE* input_nets_sc

Definition at line 56 of file netlist_create_from_ast.c.

short local_clock_found

Definition at line 62 of file netlist_create_from_ast.c.

int local_clock_idx

Definition at line 63 of file netlist_create_from_ast.c.

signal_list_t* local_clock_list

Definition at line 61 of file netlist_create_from_ast.c.

ast_node_t** local_symbol_table

Definition at line 59 of file netlist_create_from_ast.c.

STRING_CACHE* local_symbol_table_sc

Definition at line 58 of file netlist_create_from_ast.c.

int netlist_create_line_number = -2

Definition at line 74 of file netlist_create_from_ast.c.

int num_local_symbol_table

Definition at line 60 of file netlist_create_from_ast.c.

char* one_string = "ONE_VCC_CNS"

Definition at line 66 of file netlist_create_from_ast.c.

STRING_CACHE* output_nets_sc

Definition at line 55 of file netlist_create_from_ast.c.

char* pad_string = "ZERO_PAD_ZERO"

Definition at line 68 of file netlist_create_from_ast.c.

ast_node_t* top_module

Definition at line 70 of file netlist_create_from_ast.c.

int type_of_circuit

Definition at line 76 of file netlist_create_from_ast.c.

netlist_t* verilog_netlist

Definition at line 72 of file netlist_create_from_ast.c.

char* zero_string = "ZERO_GND_ZERO"

Definition at line 67 of file netlist_create_from_ast.c.
