verify_blif.c File Reference

#include <stdlib.h>
#include <stdio.h>
#include <unistd.h>
#include <string.h>
#include "arch_types.h"
#include "globals.h"
#include "types.h"
#include "util.h"
#include "netlist_utils.h"
#include "read_xml_arch_file.h"
#include "simulate_blif.h"
#include "read_blif.h"
#include "multipliers.h"
#include "hard_blocks.h"
#include "memories.h"
#include "netlist_visualizer.h"
#include "print_netlist.h"

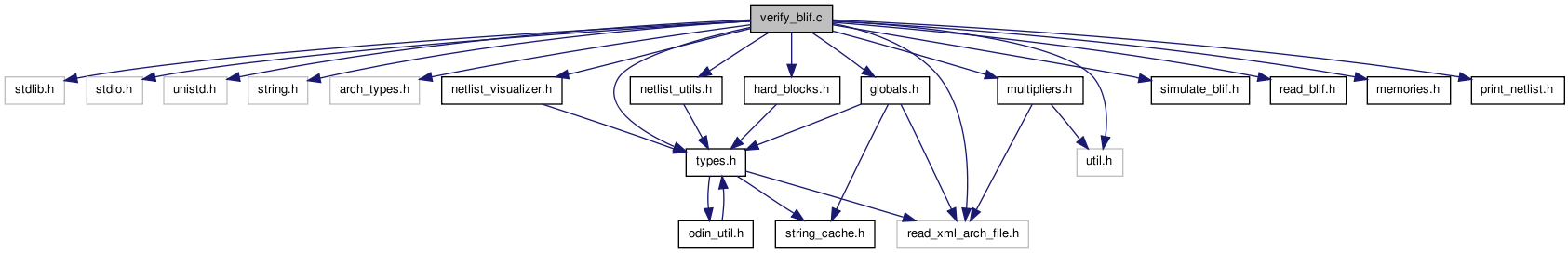

Include dependency graph for verify_blif.c:

Go to the source code of this file.

Functions
void	do_simulation_of_netlist ()
void	get_options (int argc, char **argv)
int	main (int argc, char **argv)
Variables
global_args_read_blif_t	global_args_read_blif
t_arch	Arch
t_type_descriptor *	type_descriptors
config_t	configuration
char *	one_string = "ONE_VCC_CNS"
char *	zero_string = "ZERO_GND_ZERO"
char *	pad_string = "ZERO_PAD_ZERO"
static const char *	optString = "hHa:b:s:S:h:H:g:G:t:T:c:"

---

Function Documentation

void do_simulation_of_netlist

(

)

Definition at line 125 of file verify_blif.c.

{
        if (global_args_read_blif.sim_type == NO_SIMULATION)
                return;
        printf("---------------------------------------------------------------------------------------------");
        printf("Netlist Simulation Begin\n");
        if (global_args_read_blif.sim_type == GENERATE_VECTORS)
        {
                printf("Testing new (random) vectors.\n");
                simulate_new_vectors(global_args_read_blif.num_test_vectors,blif_netlist);
        }
        else //global_args_read_blif.sim_type == TEST_EXISTING_VECTORS
        {
                printf("Testing existing vectors.\n");
                simulate_blif(global_args_read_blif.sim_vectors_file,blif_netlist);
        }
        printf("\n--------------------------------------------------------------------\n");
}

Here is the call graph for this function:

void get_options	(	int	argc,
		char **	argv
	)

Definition at line 149 of file verify_blif.c.

{
        int opt = 0;

        /* set up the global arguments to there defualts */
        global_args_read_blif.config_file = NULL;
        global_args_read_blif.blif_file = NULL;
        global_args_read_blif.arch_file = NULL;
        global_args_read_blif.sim_vectors_file = NULL;
        global_args_read_blif.sim_type = NO_SIMULATION;
        global_args_read_blif.num_test_vectors = 0;


   /* Does not read from a config file as of now. Can be included later  */


        /* read in the option line */
        opt = getopt(argc, argv, optString);

        while(opt != -1)
        {
                switch(opt)
                {
                /* arch file */
                case 'a':
                        global_args_read_blif.arch_file = optarg;
                        break;
                /* config file not included yet */
                case 'c':
                        global_args_read_blif.config_file = optarg;
                        break;

                /* blif file */
                case 'b':
                        global_args_read_blif.blif_file = optarg;
                        break;

                case 'h':
                case 'H':
                        printf("Usage: verify_blif.exe\n\t Options :\n\t\t-c <config_file_name.xml>\n\t\t-b <input_blif_fil_name.blif>\n\t\t-a <architecture_file_in_VPR6.0_form>\n\nSimulation options:\n\t\t -g <number_of_random_test_vectors\n\t\t -s <Simulate a particular input_vector_file>\n\t\t -t test_vector_file\n");
                        exit(-1);
                        break;

                /* simulation options */
                case 'g':
                case 'G':
                        global_args_read_blif.num_test_vectors = atoi(optarg);
                        global_args_read_blif.sim_type = GENERATE_VECTORS;
                        break;
                case 't':
                case 'T':
                        global_args_read_blif.sim_vectors_file = optarg;
                        global_args_read_blif.sim_type = TEST_EXISTING_VECTORS;
                        break;
                case 's':
                case 'S':
                        global_args_read_blif.sim_vectors_file = optarg;
                        break;
                default :
                        printf("Usage: \"verify_blif.exe -h\" for usage\n");
                        exit(-1);
                        break;
                }

                opt = getopt(argc, argv, optString);

        }

        if ((global_args_read_blif.config_file == NULL) && ((global_args_read_blif.blif_file == NULL)|| (global_args_read_blif.arch_file==NULL)))

        {
                printf("Error: must include either a config file, or a blif file and Fpga Architecture file \n");
                exit(-1);
        }

}

int main	(	int	argc,
		char **	argv
	)

Definition at line 64 of file verify_blif.c.

{
    int num_types; // not sure what value does this store
    printf("----------------------------------------------------------------------\n");
    printf("Reading the verify_blif for verification\n");

    // reading the command line flags
    get_options(argc,argv);

    /* read the configuration file (unavailable) */
    if (global_args_read_blif.config_file != NULL)
        {
                printf("Reading Configuration file\n");
                printf("Config read function not included yet\n");
        }

    /* read the architecture file */
    if (global_args_read_blif.arch_file != NULL)
    {
       printf("Reading FPGA Architecture file\n");
#ifdef VPR5
       t_clocks ClockDetails = { 0 };
       t_power PowerDetails = { 0 };
       XmlReadArch(global_args_read_blif.arch_file, FALSE, &Arch, &type_descriptors, &num_types, &ClockDetails, &PowerDetails);
#endif
#ifdef VPR6
       XmlReadArch(global_args_read_blif.arch_file, FALSE, &Arch, &type_descriptors, &num_types);
#endif
    }

printf("--------------------------------------------------------------------------\n");
printf("Reading the read_blif and Extracting the netlist\n");
    //lut_size = type_descriptors[2].max_subblock_inputs; /* VPR6 does not support
   read_blif(global_args_read_blif.blif_file);

printf("Printing the netlist as a graph\n");
    char path[]=".";
    char name[]="net_blif1";
    graphVizOutputNetlist(path,name,1, blif_netlist);
    /* prints the netlist as net_blif.dot */

printf("Extraction of netlist Completed\n");
    // Call the function to due simulation of the extracted netlist
    do_simulation_of_netlist();

#ifdef print_netlist
        print_netlist_for_checking(blif_netlist,"blif_netlist");
#endif

return 0;
}

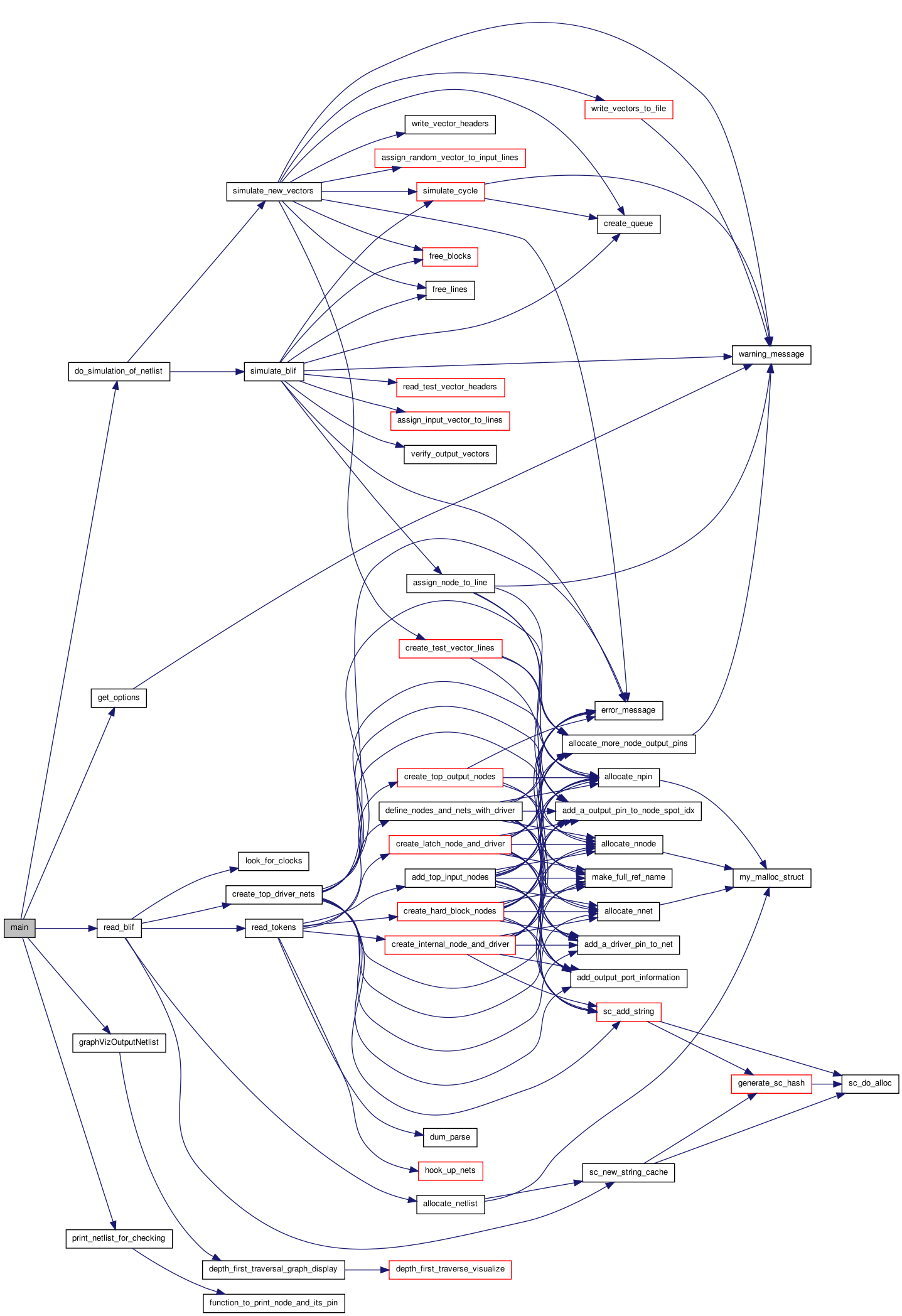

Here is the call graph for this function:

---

Variable Documentation

t_arch Arch

Definition at line 48 of file verify_blif.c.

config_t configuration

Definition at line 50 of file verify_blif.c.

global_args_read_blif_t global_args_read_blif

Definition at line 47 of file verify_blif.c.

char* one_string = "ONE_VCC_CNS"

Definition at line 54 of file verify_blif.c.

const char* optString = "hHa:b:s:S:h:H:g:G:t:T:c:" [static]

Definition at line 145 of file verify_blif.c.

char* pad_string = "ZERO_PAD_ZERO"

Definition at line 56 of file verify_blif.c.

t_type_descriptor* type_descriptors

Definition at line 49 of file verify_blif.c.

char* zero_string = "ZERO_GND_ZERO"

Definition at line 55 of file verify_blif.c.
