netlist_utils.h File Reference

#include "types.h"

Include dependency graph for netlist_utils.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
nnode_t *	allocate_nnode ()
npin_t *	allocate_npin ()
void	free_npin (npin_t *to_free)
npin_t *	get_a_zero_pin (netlist_t *netlist)
npin_t *	get_a_pad_pin (netlist_t *netlist)
npin_t *	get_a_one_pin (netlist_t *netlist)
npin_t *	copy_input_npin (npin_t *copy_pin)
npin_t *	copy_output_npin (npin_t *copy_pin)
nnet_t *	allocate_nnet ()
void	free_nnode (nnode_t *to_free)
void	free_nnet (nnet_t *to_free)
void	allocate_more_node_input_pins (nnode_t *node, int width)
void	allocate_more_node_output_pins (nnode_t *node, int width)
void	move_a_input_pin (nnode_t *node, int old_idx, int new_idx)
void	move_a_output_pin (nnode_t *node, int old_idx, int new_idx)
void	add_a_input_pin_to_node_spot_idx (nnode_t *node, npin_t *pin, int pin_idx)
void	add_a_fanout_pin_to_net (nnet_t *net, npin_t *pin)
void	add_a_output_pin_to_node_spot_idx (nnode_t *node, npin_t *pin, int pin_idx)
void	add_a_driver_pin_to_net (nnet_t *net, npin_t *pin)
void	add_output_port_information (nnode_t *node, int port_width)
void	add_input_port_information (nnode_t *node, int port_width)
void	combine_nets (nnet_t *output_net, nnet_t *input_net, netlist_t *netlist)
void	join_nets (nnet_t *net, nnet_t *input_net)
void	remap_pin_to_new_net (npin_t *pin, nnet_t *new_net)
void	remap_pin_to_new_node (npin_t *pin, nnode_t *new_node, int pin_idx)
signal_list_t *	init_signal_list_structure ()
void	add_pin_to_signal_list (signal_list_t *list, npin_t *pin)
void	sort_signal_list_alphabetically (signal_list_t *list)
signal_list_t *	combine_lists (signal_list_t **signal_lists, int num_signal_lists)
signal_list_t *	combine_lists_without_freeing_originals (signal_list_t **signal_lists, int num_signal_lists)
void	clean_signal_list_structure (signal_list_t *list)
void	hookup_hb_input_pins_from_signal_list (nnode_t *node, int n_start_idx, signal_list_t *input_list, int il_start_idx, int width, netlist_t *netlist)
void	hookup_input_pins_from_signal_list (nnode_t *node, int n_start_idx, signal_list_t *input_list, int il_start_idx, int width, netlist_t *netlist)
void	hookup_output_pins_from_signal_list (nnode_t *node, int n_start_idx, signal_list_t *output_list, int ol_start_idx, int width)
signal_list_t *	make_output_pins_for_existing_node (nnode_t *node, int width)
void	connect_nodes (nnode_t *out_node, int out_idx, nnode_t *in_node, int in_idx)
int	count_nodes_in_netlist (netlist_t *netlist)
netlist_t *	allocate_netlist ()
void	free_netlist (netlist_t *to_free)
void	add_node_to_netlist (netlist_t *netlist, nnode_t *node, short special_node)
void	mark_clock_node (netlist_t *netlist, char *clock_name)

---

Function Documentation

void add_a_driver_pin_to_net	(	nnet_t *	net,
		npin_t *	pin
	)

Definition at line 393 of file netlist_utils.c.

{
        oassert(net != NULL);
        oassert(pin != NULL);
        oassert(pin->type != INPUT);
        /* assumes the pin spots have been allocated and the pin */
        net->driver_pin = pin;
        /* record the node and pin spot in the pin */
        pin->net = net;
        pin->type = OUTPUT;
}

Here is the caller graph for this function:

void add_a_fanout_pin_to_net	(	nnet_t *	net,
		npin_t *	pin
	)

Definition at line 359 of file netlist_utils.c.

{
        oassert(net != NULL);
        oassert(pin != NULL);
        oassert(pin->type != OUTPUT);
        /* assumes the pin spots have been allocated and the pin */
        net->fanout_pins = (npin_t**)realloc(net->fanout_pins, sizeof(npin_t*)*(net->num_fanout_pins+1));
        net->fanout_pins[net->num_fanout_pins] = pin;
        net->num_fanout_pins++;
        /* record the node and pin spot in the pin */
        pin->net = net;
        pin->pin_net_idx = net->num_fanout_pins-1;
        pin->type = INPUT;
}

Here is the caller graph for this function:

void add_a_input_pin_to_node_spot_idx	(	nnode_t *	node,
		npin_t *	pin,
		int	pin_idx
	)

Definition at line 343 of file netlist_utils.c.

{
        oassert(node != NULL);
        oassert(pin != NULL);
        oassert(pin_idx < node->num_input_pins);
        /* assumes the pin spots have been allocated and the pin */
        node->input_pins[pin_idx] = pin;
        /* record the node and pin spot in the pin */
        pin->type = INPUT;
        pin->node = node;
        pin->pin_node_idx = pin_idx;
}

Here is the caller graph for this function:

void add_a_output_pin_to_node_spot_idx	(	nnode_t *	node,
		npin_t *	pin,
		int	pin_idx
	)

Definition at line 377 of file netlist_utils.c.

{
        oassert(node != NULL);
        oassert(pin != NULL);
        oassert(pin_idx < node->num_output_pins);
        /* assumes the pin spots have been allocated and the pin */
        node->output_pins[pin_idx] = pin;
        /* record the node and pin spot in the pin */
        pin->type = OUTPUT;
        pin->node = node;
        pin->pin_node_idx = pin_idx;
}

Here is the caller graph for this function:

void add_input_port_information	(	nnode_t *	node,
		int	port_width
	)

Definition at line 186 of file netlist_utils.c.

{
        node->input_port_sizes = (int *)realloc(node->input_port_sizes, sizeof(int)*(node->num_input_port_sizes+1));
        node->input_port_sizes[node->num_input_port_sizes] = port_width;
        node->num_input_port_sizes++;
}

Here is the caller graph for this function:

void add_node_to_netlist	(	netlist_t *	netlist,
		nnode_t *	node,
		short	special_node
	)

Definition at line 894 of file netlist_utils.c.

{
        long sc_spot;

//      if (node->type != OUTPUT_NODE)
        {
                /* add the node to the list */
                sc_spot = sc_add_string(netlist->nodes_sc, node->name);
                if (netlist->nodes_sc->data[sc_spot] != NULL)
                {
                        error_message(NETLIST_ERROR, linenum, -1, "Two nodes with the same name (%s)\n", node->name);
                }
                netlist->nodes_sc->data[sc_spot] = (void*)node;
        }

        if (special_node == INPUT_NODE)
        {
                /* This is for clocks, gnd, and vcc */
                /* store the input nodes for traversal */
                netlist->top_input_nodes = (nnode_t**)realloc(netlist->top_input_nodes, sizeof(nnode_t*)*(netlist->num_top_input_nodes+1));
                netlist->top_input_nodes[netlist->num_top_input_nodes] = node;
                netlist->num_top_input_nodes++;
        }
        else if (node->type == INPUT_NODE)
        {
                /* store the input nodes for traversal */
                netlist->top_input_nodes = (nnode_t**)realloc(netlist->top_input_nodes, sizeof(nnode_t*)*(netlist->num_top_input_nodes+1));
                netlist->top_input_nodes[netlist->num_top_input_nodes] = node;
                netlist->num_top_input_nodes++;
        }
        else if (node->type == OUTPUT_NODE)
        {
                netlist->top_output_nodes = (nnode_t**)realloc(netlist->top_output_nodes, sizeof(nnode_t*)*(netlist->num_top_output_nodes+1));
                netlist->top_output_nodes[netlist->num_top_output_nodes] = node;
                netlist->num_top_output_nodes++;
        }
        else if (node->type == FF_NODE)
        {
                netlist->ff_nodes = (nnode_t**)realloc(netlist->ff_nodes, sizeof(nnode_t*)*(netlist->num_ff_nodes+1));
                netlist->ff_nodes[netlist->num_ff_nodes] = node;
                netlist->num_ff_nodes++;
        }
        else
        {
                netlist->internal_nodes = (nnode_t**)realloc(netlist->internal_nodes, sizeof(nnode_t*)*(netlist->num_internal_nodes+1));
                netlist->internal_nodes[netlist->num_internal_nodes] = node;
                netlist->num_internal_nodes++;
        }
}

Here is the call graph for this function:

void add_output_port_information	(	nnode_t *	node,
		int	port_width
	)

Definition at line 176 of file netlist_utils.c.

{
        node->output_port_sizes = (int *)realloc(node->output_port_sizes, sizeof(int)*(node->num_output_port_sizes+1));
        node->output_port_sizes[node->num_output_port_sizes] = port_width;
        node->num_output_port_sizes++;
}

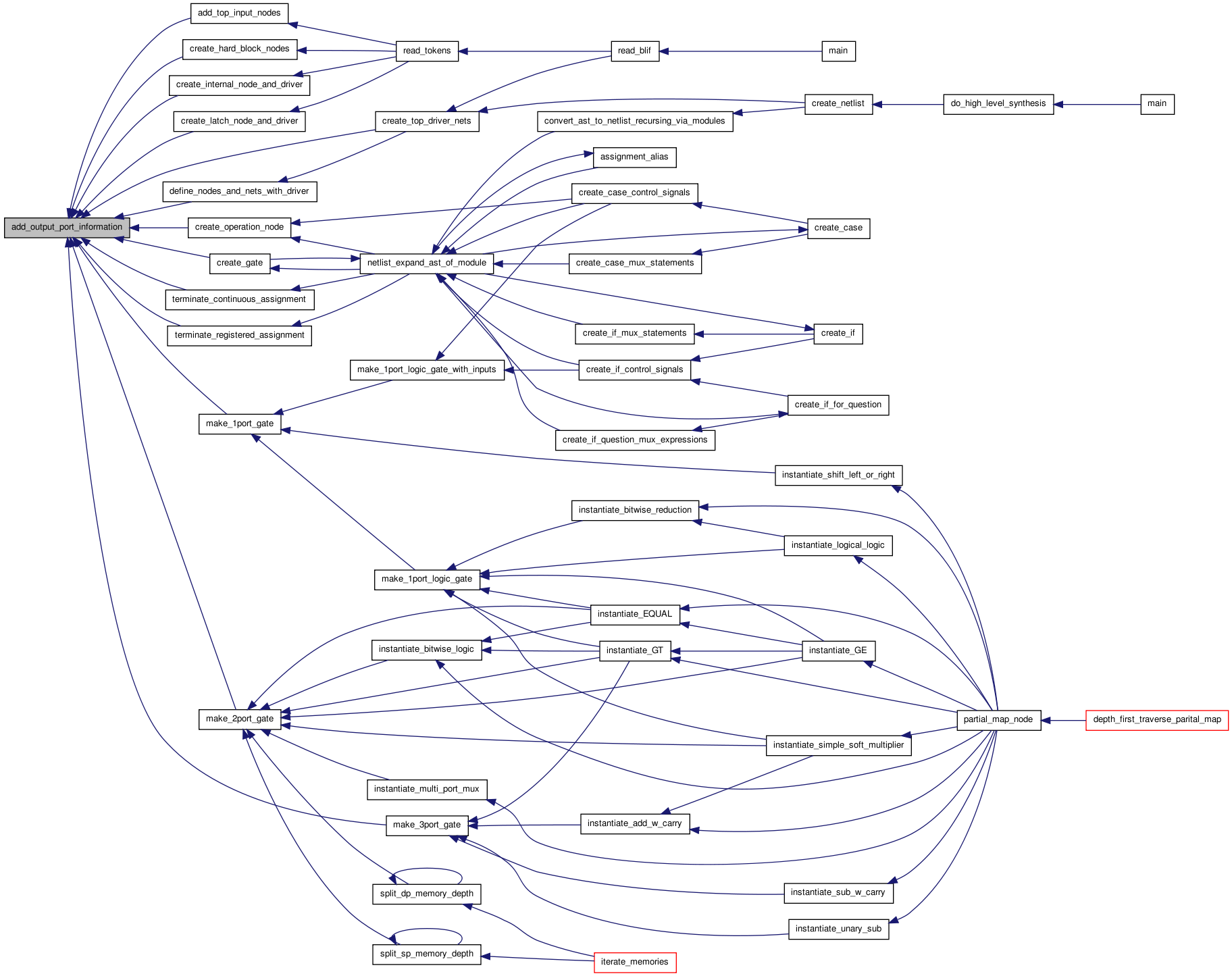

Here is the caller graph for this function:

void add_pin_to_signal_list	(	signal_list_t *	list,
		npin_t *	pin
	)

Definition at line 570 of file netlist_utils.c.

{
        list->signal_list = (npin_t**)realloc(list->signal_list, sizeof(npin_t*)*(list->signal_list_size+1));
        list->signal_list[list->signal_list_size] = pin;
        list->signal_list_size++;
}

Here is the caller graph for this function:

void allocate_more_node_input_pins	(	nnode_t *	node,
		int	width
	)

Definition at line 133 of file netlist_utils.c.

{
        int i;

        if (width <= 0)
        {
                warning_message(NETLIST_ERROR, -1, -1, "tried adding output pins for with <= 0 %s\n", node->name);
                return;
        }

        node->input_pins = (npin_t**)realloc(node->input_pins, sizeof(npin_t*)*(node->num_input_pins+width));
        for (i = 0; i < width; i++)
        {
                node->input_pins[node->num_input_pins+i] = NULL;
        }
        node->num_input_pins += width;
}

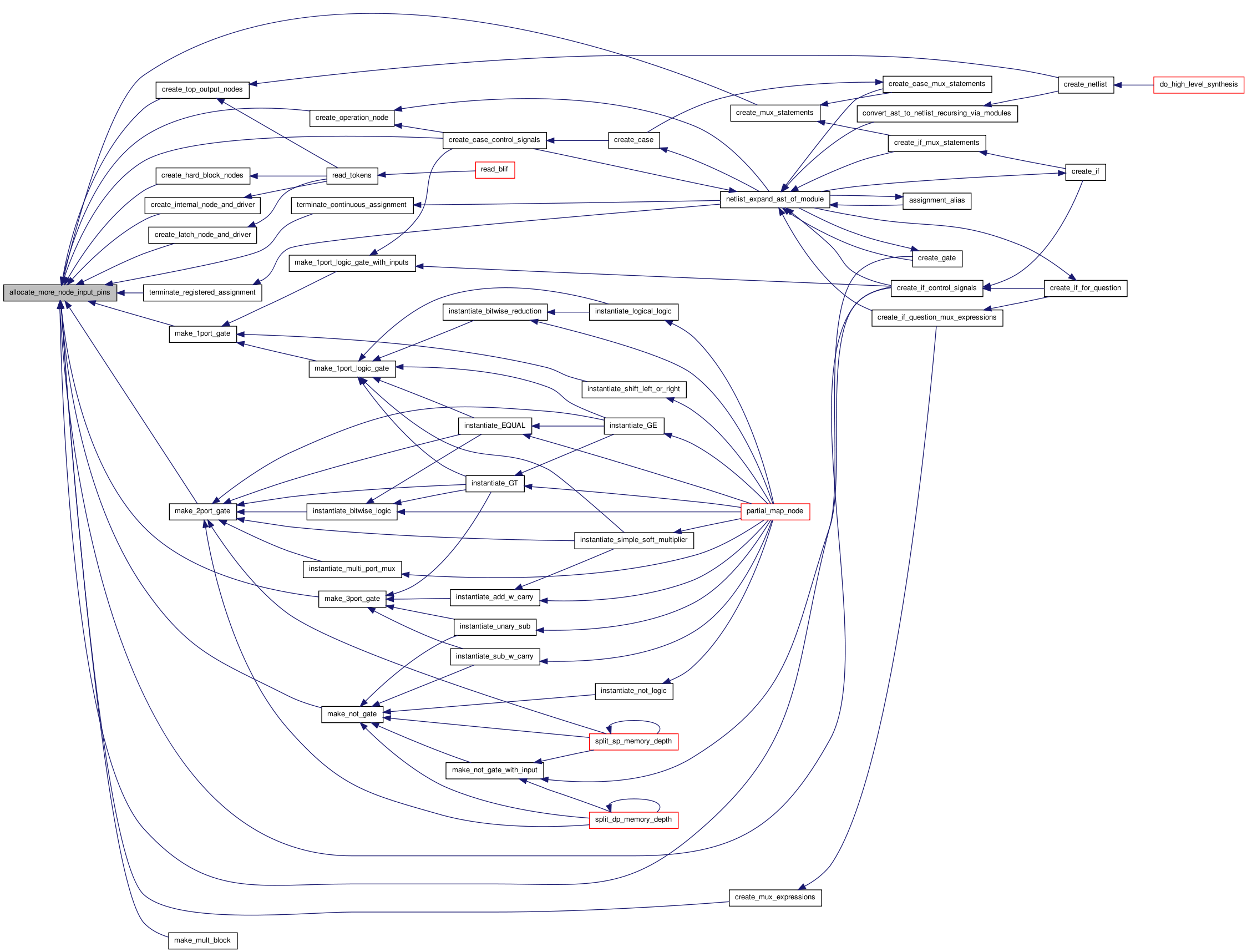

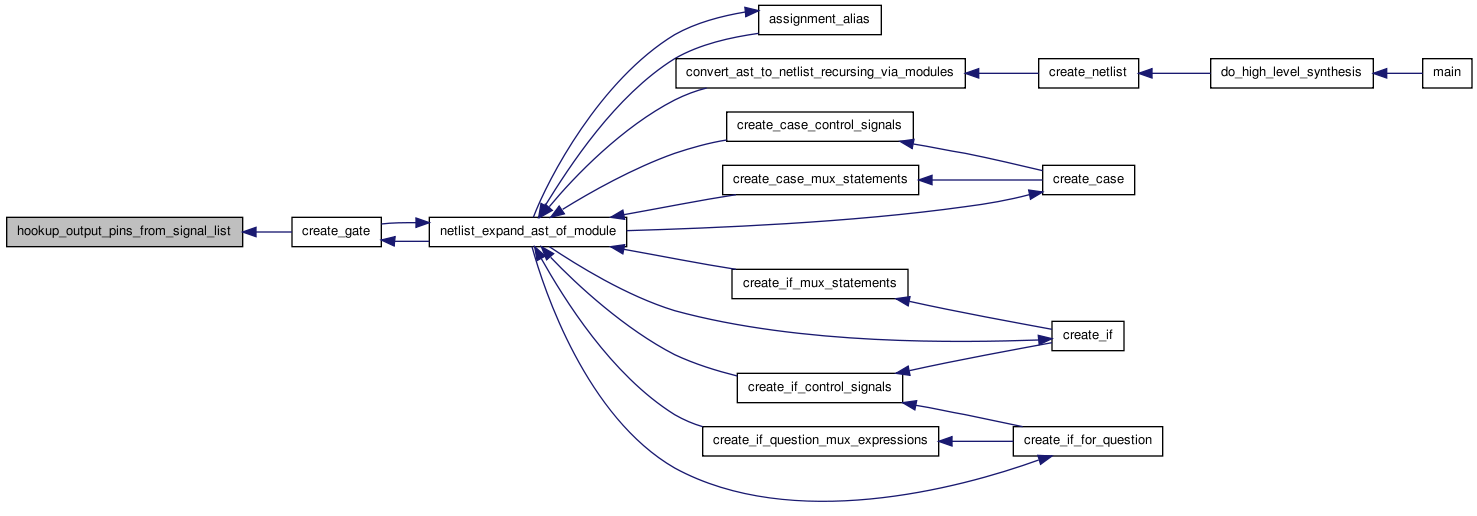

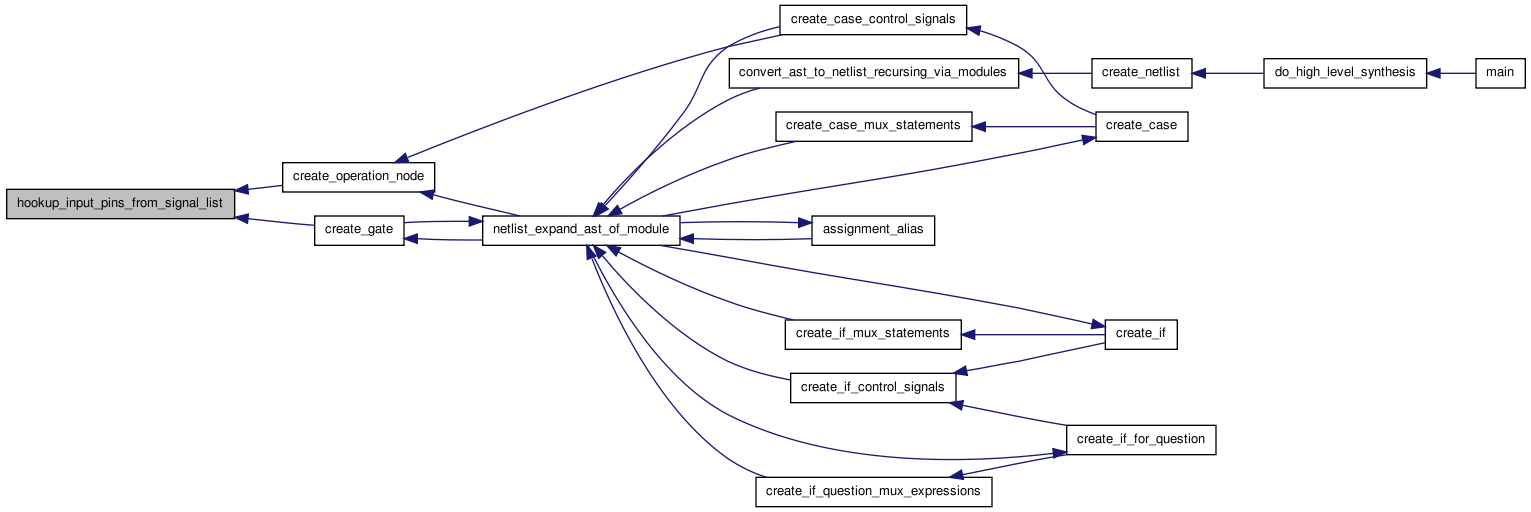

Here is the call graph for this function:

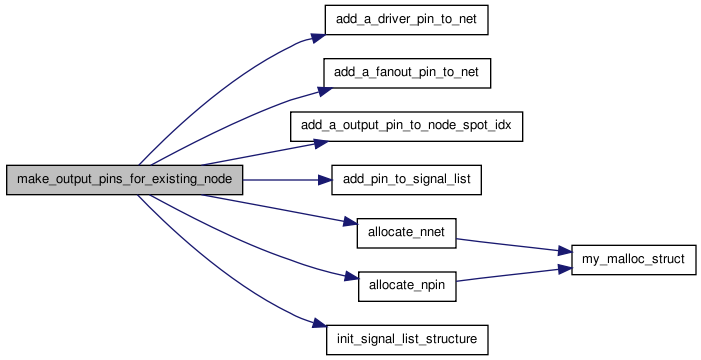

Here is the caller graph for this function:

void allocate_more_node_output_pins	(	nnode_t *	node,
		int	width
	)

Definition at line 155 of file netlist_utils.c.

{
        int i;

        if (width <= 0)
        {
                warning_message(NETLIST_ERROR, -1, -1, "tried adding output pins for with <= 0 %s\n", node->name);
                return;
        }

        node->output_pins = (npin_t**)realloc(node->output_pins, sizeof(npin_t*)*(node->num_output_pins+width));
        for (i = 0; i < width; i++)
        {
                node->output_pins[node->num_output_pins+i] = NULL;
        }
        node->num_output_pins += width;
}

Here is the call graph for this function:

Here is the caller graph for this function:

netlist_t* allocate_netlist

(

)

Definition at line 835 of file netlist_utils.c.

{
        netlist_t *new_netlist;

        new_netlist = (netlist_t *)my_malloc_struct(sizeof(netlist_t));

        new_netlist->gnd_node = NULL;
        new_netlist->vcc_node = NULL;
        new_netlist->pad_node = NULL;
        new_netlist->zero_net = NULL;
        new_netlist->one_net = NULL;
        new_netlist->pad_net = NULL;
        new_netlist->top_input_nodes = NULL;
        new_netlist->num_top_input_nodes = 0;
        new_netlist->top_output_nodes = NULL;
        new_netlist->num_top_output_nodes = 0;
        new_netlist->ff_nodes = NULL;
        new_netlist->num_ff_nodes = 0;
        new_netlist->internal_nodes = NULL;
        new_netlist->num_internal_nodes = 0;
        new_netlist->clocks = NULL;
        new_netlist->num_clocks = 0;

        new_netlist->forward_levels = NULL;
        new_netlist->num_forward_levels = 0;
        new_netlist->num_at_forward_level = NULL;
        new_netlist->backward_levels = NULL;
        new_netlist->num_backward_levels = 0;
        new_netlist->num_at_backward_level = NULL;
        new_netlist->sequential_level_nodes = NULL;
        new_netlist->num_sequential_levels = 0;
        new_netlist->num_at_sequential_level = NULL;
        new_netlist->sequential_level_combinational_termination_node = NULL;
        new_netlist->num_sequential_level_combinational_termination_nodes = 0;
        new_netlist->num_at_sequential_level_combinational_termination_node = NULL;

        /* initialize the string chaches */
        new_netlist->nets_sc = sc_new_string_cache();
        new_netlist->out_pins_sc = sc_new_string_cache();
        new_netlist->nodes_sc = sc_new_string_cache();

        new_netlist->stats = NULL;

        return new_netlist;
}

Here is the call graph for this function:

Here is the caller graph for this function:

nnet_t* allocate_nnet

(

)

Definition at line 270 of file netlist_utils.c.

{
        nnet_t *new_net;

        new_net = (nnet_t*)my_malloc_struct(sizeof(nnet_t));

        new_net->name = NULL;
        new_net->driver_pin = NULL;
        new_net->fanout_pins = NULL;
        new_net->num_fanout_pins = 0;
        new_net->combined = FALSE;

        new_net->net_data = NULL;
        new_net->unique_net_data_id = -1;

        return new_net;
}

Here is the call graph for this function:

Here is the caller graph for this function:

nnode_t* allocate_nnode

(

)

Definition at line 38 of file netlist_utils.c.

{
        nnode_t *new_node;

        new_node = (nnode_t *)my_malloc_struct(sizeof(nnode_t));

        new_node->name = NULL;
        new_node->type = NO_OP;
        new_node->related_ast_node = NULL;
        new_node->traverse_visited = -1;

        new_node->input_pins = NULL;
        new_node->num_input_pins = 0;
        new_node->output_pins = NULL;
        new_node->num_output_pins = 0;

        new_node->input_port_sizes = NULL;
        new_node->num_input_port_sizes = 0;
        new_node->output_port_sizes = NULL;
        new_node->num_output_port_sizes = 0;

        new_node->node_data = NULL;
        new_node->unique_node_data_id = -1;

        new_node->forward_level = -1;
        new_node->backward_level = -1;
        new_node->sequential_level = -1;
        new_node->sequential_terminator = FALSE;

        new_node->internal_netlist = NULL;

        new_node->associated_function = NULL;

        new_node->simulate_block_cycle = NULL;
        new_node->memory_data = NULL;

        new_node->bit_map= NULL;
        new_node->bit_map_line_count=0;

        return new_node;
}

Here is the call graph for this function:

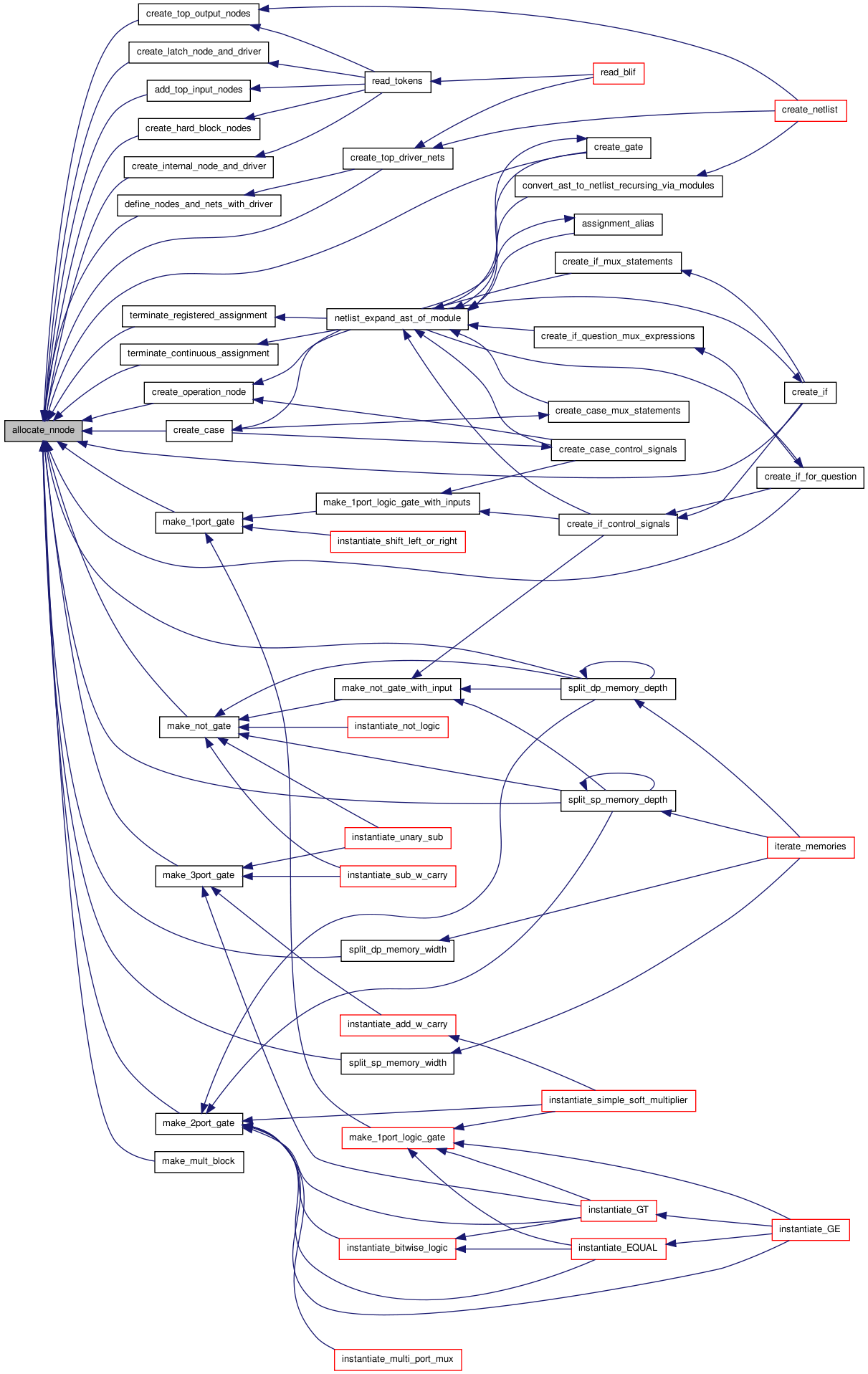

Here is the caller graph for this function:

npin_t* allocate_npin

(

)

Definition at line 196 of file netlist_utils.c.

{
        npin_t *new_pin;

        new_pin = (npin_t *)my_malloc_struct(sizeof(npin_t));

        new_pin->name = NULL;
        new_pin->type = NO_ID;
        new_pin->net = NULL;
        new_pin->pin_net_idx = -1;
        new_pin->node = NULL;
        new_pin->pin_node_idx = -1;
        new_pin->mapping = NULL;

        new_pin->sim_state = (sim_state_t *)malloc(sizeof(sim_state_t));
        new_pin->sim_state->cycle = -1;
        new_pin->sim_state->value = -1;
        new_pin->sim_state->prev_value = -1;

        return new_pin;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void clean_signal_list_structure

(

signal_list_t *

list

)

Definition at line 677 of file netlist_utils.c.

{
        if (list == NULL)
                return;
        if (list->signal_list != NULL)
                free(list->signal_list);
        list->signal_list_size = 0;

        free(list);
}

Here is the caller graph for this function:

signal_list_t* combine_lists	(	signal_list_t **	signal_lists,
		int	num_signal_lists
	)

Definition at line 580 of file netlist_utils.c.

{
        int i, j;

        for (i = 1; i < num_signal_lists; i++)
        {
                for (j = 0; j < signal_lists[i]->signal_list_size; j++)
                {
                        add_pin_to_signal_list(signal_lists[0], signal_lists[i]->signal_list[j]);
                }
                clean_signal_list_structure(signal_lists[i]);
        }

        return signal_lists[0];
}

Here is the call graph for this function:

Here is the caller graph for this function:

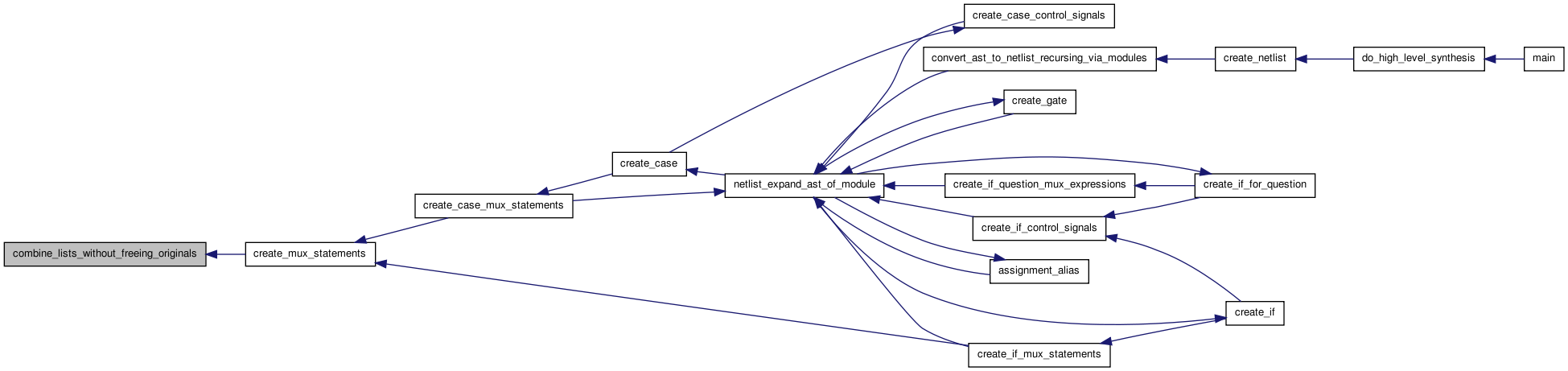

signal_list_t* combine_lists_without_freeing_originals	(	signal_list_t **	signal_lists,
		int	num_signal_lists
	)

Definition at line 599 of file netlist_utils.c.

{
        int i, j;
        signal_list_t *return_list = init_signal_list_structure();

        for (i = 0; i < num_signal_lists; i++)
        {
                for (j = 0; j < signal_lists[i]->signal_list_size; j++)
                {
                        add_pin_to_signal_list(return_list, signal_lists[i]->signal_list[j]);
                }
        }

        return return_list;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void combine_nets	(	nnet_t *	output_net,
		nnet_t *	input_net,
		netlist_t *	netlist
	)

Definition at line 411 of file netlist_utils.c.

{
        /* copy the driver over to the new_net */
        if (output_net->driver_pin != NULL)
        {
                /* IF - there is a pin assigned to this net, then copy it */
                add_a_driver_pin_to_net(input_net, output_net->driver_pin);
        }
        /* in case there are any fanouts in output net (should only be zero and one nodes */
        join_nets(input_net, output_net);
        /* mark that this is combined */
        input_net->combined = TRUE;

        /* special cases for global nets */
        if (output_net == netlist->zero_net)
        {
                netlist->zero_net = input_net;
        }
        else if (output_net == netlist->one_net)
        {
                netlist->one_net = input_net;
        }

        /* free the driver net */
        free_nnet(output_net);
}

Here is the call graph for this function:

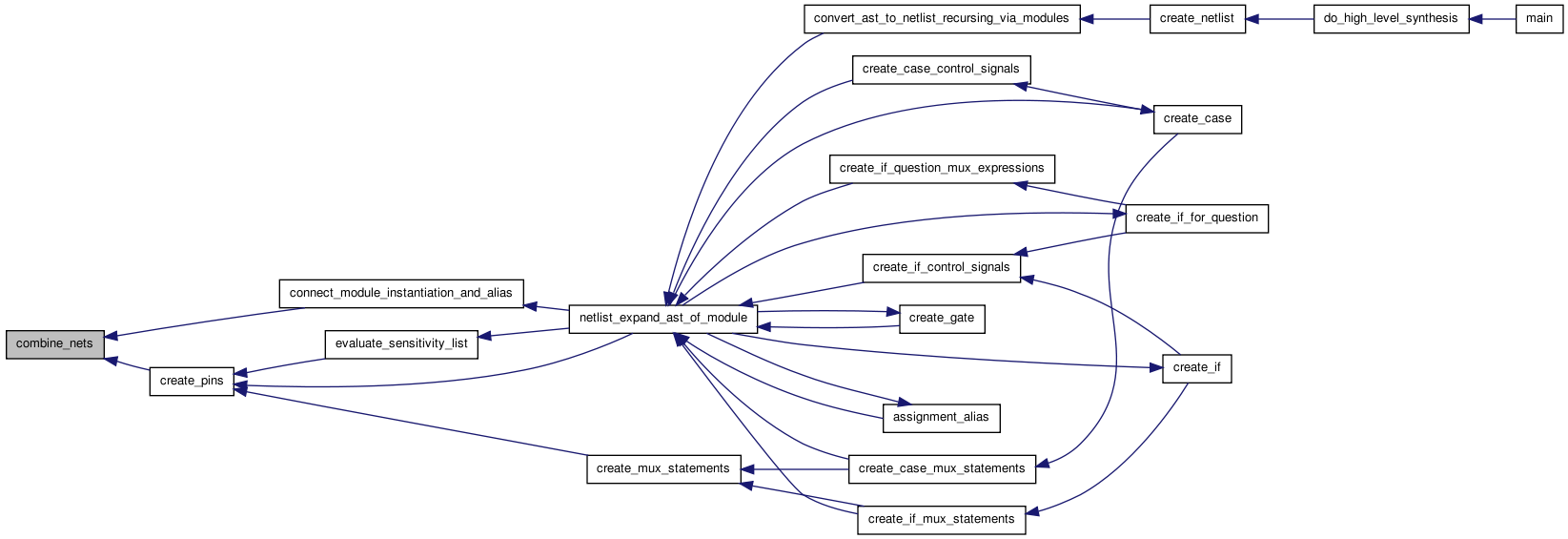

Here is the caller graph for this function:

void connect_nodes	(	nnode_t *	out_node,
		int	out_idx,
		nnode_t *	in_node,
		int	in_idx
	)

Definition at line 514 of file netlist_utils.c.

{
        npin_t *new_in_pin;

        oassert(out_node->num_output_pins > out_idx);
        oassert(in_node->num_input_pins > in_idx);

        new_in_pin = allocate_npin();

        /* create the pin that hooks up to the input */
        add_a_input_pin_to_node_spot_idx(in_node, new_in_pin, in_idx);

        if (out_node->output_pins[out_idx] == NULL)
        {
                /* IF - this node has no output net or pin */
                npin_t *new_out_pin;
                nnet_t *new_net;
                new_net = allocate_nnet();
                new_out_pin = allocate_npin();

                /* create the pin that hooks up to the input */
                add_a_output_pin_to_node_spot_idx(out_node, new_out_pin, out_idx);
                /* hook up in pin out of the new net */
                add_a_fanout_pin_to_net(new_net, new_in_pin);
                /* hook up the new pin 2 to this new net */
                add_a_driver_pin_to_net(new_net, new_out_pin);
        }
        else
        {
                /* ELSE - there is a net so we just add a fanout */
                /* hook up in pin out of the new net */
                add_a_fanout_pin_to_net(out_node->output_pins[out_idx]->net, new_in_pin);
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

npin_t* copy_input_npin

(

npin_t *

copy_pin

)

Definition at line 238 of file netlist_utils.c.

{
        npin_t *new_pin = allocate_npin();
        oassert(copy_pin->type == INPUT);

        new_pin->name = copy_pin->name;
        new_pin->type = copy_pin->type;
        new_pin->mapping = copy_pin->mapping;
        if (copy_pin->net != NULL)
        {
                add_a_fanout_pin_to_net(copy_pin->net, new_pin);
        }

        return new_pin;
}

Here is the call graph for this function:

Here is the caller graph for this function:

npin_t* copy_output_npin

(

npin_t *

copy_pin

)

Definition at line 222 of file netlist_utils.c.

{
        npin_t *new_pin = allocate_npin();
        oassert(copy_pin->type == OUTPUT);

        new_pin->name = copy_pin->name;
        new_pin->type = copy_pin->type;
        new_pin->net = copy_pin->net;
        new_pin->mapping = copy_pin->mapping;
        return new_pin;
}

Here is the call graph for this function:

Here is the caller graph for this function:

int count_nodes_in_netlist

(

netlist_t *

netlist

)

Definition at line 768 of file netlist_utils.c.

{
        int i;
        int count = 0;

        /* now traverse the ground and vcc pins */
        depth_traverse_count(netlist->gnd_node, &count,  COUNT_NODES);
        depth_traverse_count(netlist->vcc_node, &count, COUNT_NODES);
        depth_traverse_count(netlist->pad_node, &count, COUNT_NODES);

        /* start with the primary input list */
        for (i = 0; i < netlist->num_top_input_nodes; i++)
        {
                if (netlist->top_input_nodes[i] != NULL)
                {
                        depth_traverse_count(netlist->top_input_nodes[i], &count,  COUNT_NODES);
                }
        }

        return count;
}

Here is the call graph for this function:

void free_netlist

(

netlist_t *

to_free

)

Definition at line 884 of file netlist_utils.c.

{
        sc_free_string_cache(to_free->nets_sc);
        sc_free_string_cache(to_free->out_pins_sc);
        sc_free_string_cache(to_free->nodes_sc);
}

Here is the call graph for this function:

void free_nnet

(

nnet_t *

to_free

)

Definition at line 292 of file netlist_utils.c.

{
        if (to_free != NULL)
        {
                free(to_free);
        }
}

Here is the caller graph for this function:

void free_nnode

(

nnode_t *

to_free

)

Definition at line 83 of file netlist_utils.c.

{
        int i;

        if (to_free != NULL)
        {
                /* need to free node_data */

                for (i = 0; i < to_free->num_input_pins; i++)
                {
                        if (to_free->input_pins[i] != NULL)
                        {
                                free_npin(to_free->input_pins[i]);
                                to_free->input_pins[i] = NULL;
                        }
                }
                if (to_free->input_pins != NULL)
                {
                        free(to_free->input_pins);
                        to_free->input_pins = NULL;
                }

                for (i = 0; i < to_free->num_output_pins; i++)
                {
                        if (to_free->output_pins[i] != NULL)
                        {
                                free_npin(to_free->output_pins[i]);
                                to_free->output_pins[i] = NULL;
                        }
                }
                if (to_free->output_pins != NULL)
                {
                        free(to_free->output_pins);
                        to_free->output_pins = NULL;
                }

                if (to_free->input_port_sizes != NULL)
                        free(to_free->input_port_sizes);
                if (to_free->output_port_sizes != NULL)
                        free(to_free->output_port_sizes);

                /* now free the node */
                free(to_free);
        }
}

Here is the call graph for this function:

void free_npin

(

npin_t *

to_free

)

Definition at line 258 of file netlist_utils.c.

{
        if (to_free != NULL)
        {
                free(to_free->sim_state);
                free(to_free);
        }
}

Here is the caller graph for this function:

npin_t* get_a_one_pin

(

netlist_t *

netlist

)

Definition at line 64 of file node_creation_library.c.

{
        npin_t *one_fanout_pin = allocate_npin();
        one_fanout_pin->name = one_string;
        add_a_fanout_pin_to_net(netlist->one_net, one_fanout_pin);
        return one_fanout_pin;
}

Here is the call graph for this function:

Here is the caller graph for this function:

npin_t* get_a_pad_pin

(

netlist_t *

netlist

)

Definition at line 40 of file node_creation_library.c.

{
        npin_t *pad_fanout_pin = allocate_npin();
        pad_fanout_pin->name = pad_string;
        add_a_fanout_pin_to_net(netlist->pad_net, pad_fanout_pin);
        return pad_fanout_pin;
}

Here is the call graph for this function:

Here is the caller graph for this function:

npin_t* get_a_zero_pin

(

netlist_t *

netlist

)

Definition at line 52 of file node_creation_library.c.

{
        npin_t *zero_fanout_pin = allocate_npin();
        zero_fanout_pin->name = zero_string;
        add_a_fanout_pin_to_net(netlist->zero_net, zero_fanout_pin);
        return zero_fanout_pin;
}

Here is the call graph for this function:

Here is the caller graph for this function:

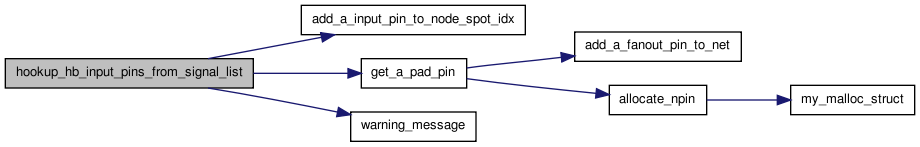

void hookup_hb_input_pins_from_signal_list	(	nnode_t *	node,
		int	n_start_idx,
		signal_list_t *	input_list,
		int	il_start_idx,
		int	width,
		netlist_t *	netlist
	)

Definition at line 717 of file netlist_utils.c.

{
        int i;

        for (i = 0; i < width; i++)
        {
                if (il_start_idx+i < input_list->signal_list_size)
                {
                        oassert(input_list->signal_list_size > (il_start_idx+i));
                        add_a_input_pin_to_node_spot_idx(node, input_list->signal_list[il_start_idx+i], n_start_idx+i);
                }
                else
                {
                        /* connect with "pad" signal for later resolution */
                        add_a_input_pin_to_node_spot_idx(node, get_a_pad_pin(netlist), n_start_idx+i);
                        warning_message(NETLIST_ERROR, -1, -1, "padding an input port with HB_PAD for node %s\n", node->name);
                }
        }
}

Here is the call graph for this function:

void hookup_input_pins_from_signal_list	(	nnode_t *	node,
		int	n_start_idx,
		signal_list_t *	input_list,
		int	il_start_idx,
		int	width,
		netlist_t *	netlist
	)

Definition at line 692 of file netlist_utils.c.

{
        int i;

        for (i = 0; i < width; i++)
        {
                if (il_start_idx+i < input_list->signal_list_size)
                {
                        oassert(input_list->signal_list_size > (il_start_idx+i));
                        add_a_input_pin_to_node_spot_idx(node, input_list->signal_list[il_start_idx+i], n_start_idx+i);
                }
                else
                {
                        /* pad with 0's */
                        add_a_input_pin_to_node_spot_idx(node, get_a_zero_pin(netlist), n_start_idx+i);
                        warning_message(NETLIST_ERROR, -1, -1, "padding an input port with 0 for node %s\n", node->name);
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void hookup_output_pins_from_signal_list	(	nnode_t *	node,
		int	n_start_idx,
		signal_list_t *	output_list,
		int	ol_start_idx,
		int	width
	)

Definition at line 741 of file netlist_utils.c.

{
        int i;
        long sc_spot_output;

        for (i = 0; i < width; i++)
        {
                oassert(output_list->signal_list_size > (ol_start_idx+i));

                /* hook outpin to the node */
                add_a_output_pin_to_node_spot_idx(node, output_list->signal_list[ol_start_idx+i], n_start_idx+i);

                if ((sc_spot_output = sc_lookup_string(output_nets_sc, output_list->signal_list[ol_start_idx+i]->name)) == -1)
                {
                        /* this output pin does not have a net OR we couldn't find it */
                        error_message(NETLIST_ERROR, -1, -1, "Net for driver (%s) doesn't exist for node %s\n", output_list->signal_list[ol_start_idx+i]->name, node->name);
                }

                /* hook the outpin into the net */
                add_a_driver_pin_to_net(((nnet_t*)output_nets_sc->data[sc_spot_output]), output_list->signal_list[ol_start_idx+i]);
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

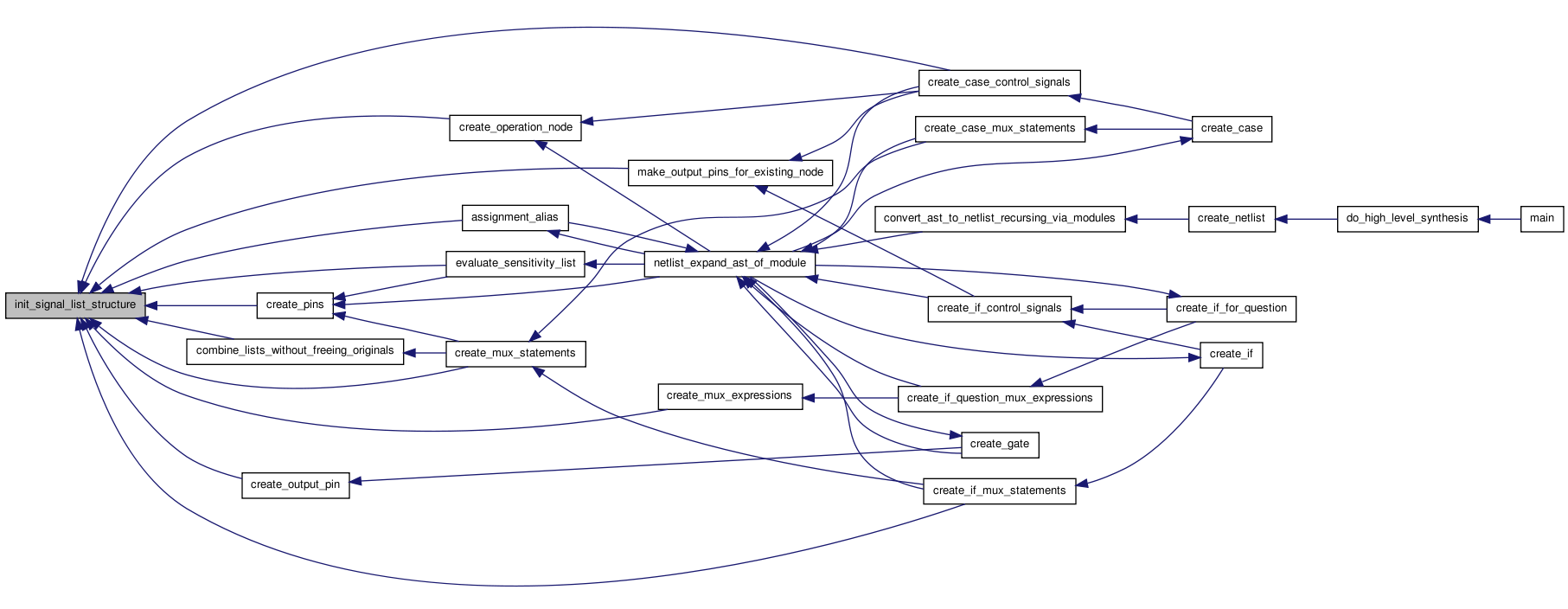

signal_list_t* init_signal_list_structure

(

)

Definition at line 554 of file netlist_utils.c.

{
        signal_list_t *list;
        list = (signal_list_t*)malloc(sizeof(signal_list_t));

        list->signal_list_size = 0;
        list->signal_list = NULL;
        list->is_memory = FALSE;

        return list;
}

Here is the caller graph for this function:

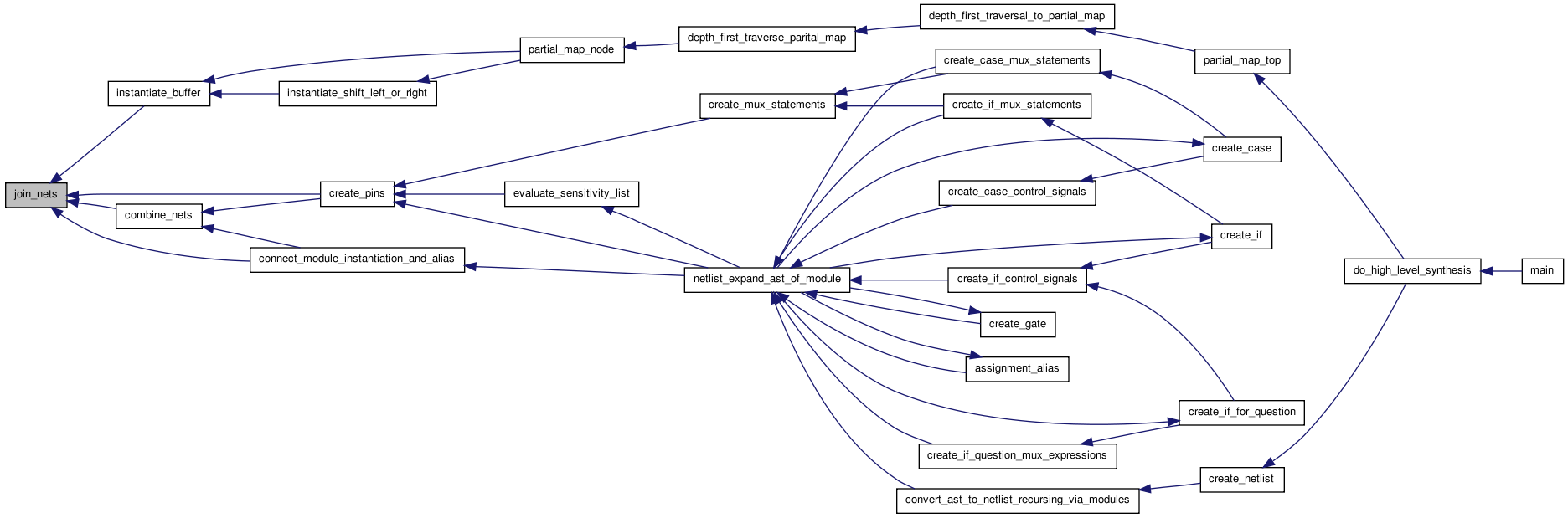

void join_nets	(	nnet_t *	net,
		nnet_t *	input_net
	)

Definition at line 442 of file netlist_utils.c.

{
        int i;

        if (join_to_net == other_net)
        {
                if ((join_to_net->driver_pin != NULL ) && (join_to_net->driver_pin->node != NULL) && join_to_net->driver_pin->node->related_ast_node != NULL)
                        error_message(NETLIST_ERROR, join_to_net->driver_pin->node->related_ast_node->line_number, join_to_net->driver_pin->node->related_ast_node->file_number, "This is a combinational loop\n");
                else
                        error_message(NETLIST_ERROR, -1, -1, "This is a combinational loop\n");
                if ((join_to_net->fanout_pins[0] != NULL ) && (join_to_net->fanout_pins[0]->node != NULL) && join_to_net->fanout_pins[0]->node->related_ast_node != NULL)
                        error_message(NETLIST_ERROR, join_to_net->fanout_pins[0]->node->related_ast_node->line_number, join_to_net->fanout_pins[0]->node->related_ast_node->file_number, "This is a combinational loop with more info\n");
                else
                        error_message(NETLIST_ERROR, -1, -1, "Same error - This is a combinational loop\n");
        }

        /* copy the driver over to the new_net */
        for (i = 0; i < other_net->num_fanout_pins; i++)
        {
                if (other_net->fanout_pins[i] != NULL)
                {
                        add_a_fanout_pin_to_net(join_to_net, other_net->fanout_pins[i]);
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

signal_list_t* make_output_pins_for_existing_node	(	nnode_t *	node,
		int	width
	)

Definition at line 644 of file netlist_utils.c.

{
        signal_list_t *return_list = init_signal_list_structure();
        int i;

        oassert(node->num_output_pins == width);

        for (i = 0; i < width; i++)
        {
                npin_t *new_pin1;
                npin_t *new_pin2;
                nnet_t *new_net;
                new_pin1 = allocate_npin();
                new_pin2 = allocate_npin();
                new_net = allocate_nnet();
                new_net->name = node->name;
                /* hook the output pin into the node */
                add_a_output_pin_to_node_spot_idx(node, new_pin1, i);
                /* hook up new pin 1 into the new net */
                add_a_driver_pin_to_net(new_net, new_pin1);
                /* hook up the new pin 2 to this new net */
                add_a_fanout_pin_to_net(new_net, new_pin2);

                /* add the new_pin2 to the list of pins */
                add_pin_to_signal_list(return_list, new_pin2);
        }

        return return_list;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void mark_clock_node	(	netlist_t *	netlist,
		char *	clock_name
	)

Definition at line 948 of file netlist_utils.c.

{
        long sc_spot;
        nnet_t *clock_net;
        nnode_t *clock_node;

        /* lookup the node */
        if ((sc_spot = sc_lookup_string(netlist->nets_sc, clock_name)) == -1)
        {
                error_message(NETLIST_ERROR, linenum, -1, "clock input does not exist (%s)\n", clock_name);
        }
        clock_net = (nnet_t*)netlist->nets_sc->data[sc_spot];
        clock_node = clock_net->driver_pin->node;

        netlist->clocks = (nnode_t**)realloc(netlist->clocks, sizeof(nnode_t*)*(netlist->num_clocks+1));
        netlist->clocks[netlist->num_clocks] = clock_node;
        netlist->num_clocks++;

        /* Mark it as a special set of inputs */
        clock_node->type = CLOCK_NODE;
}

Here is the call graph for this function:

void move_a_input_pin	(	nnode_t *	node,
		int	old_idx,
		int	new_idx
	)

Definition at line 323 of file netlist_utils.c.

{
        npin_t *pin;

        oassert(node != NULL);
        oassert(((old_idx >= 0) && (old_idx < node->num_input_pins)));
        oassert(((new_idx >= 0) && (new_idx < node->num_input_pins)));
        /* assumes the pin spots have been allocated and the pin */
        node->input_pins[new_idx] = node->input_pins[old_idx];
        pin = node->input_pins[old_idx];
        node->input_pins[old_idx] = NULL;
        /* record the node and pin spot in the pin */
        pin->type = INPUT;
        pin->node = node;
        pin->pin_node_idx = new_idx;
}

void move_a_output_pin	(	nnode_t *	node,
		int	old_idx,
		int	new_idx
	)

Definition at line 303 of file netlist_utils.c.

{
        npin_t *pin;

        oassert(node != NULL);
        oassert(((old_idx >= 0) && (old_idx < node->num_output_pins)));
        oassert(((new_idx >= 0) && (new_idx < node->num_output_pins)));
        /* assumes the pin spots have been allocated and the pin */
        pin = node->output_pins[old_idx];
        node->output_pins[new_idx] = node->output_pins[old_idx];
        node->output_pins[old_idx] = NULL;
        /* record the node and pin spot in the pin */
        pin->type = OUTPUT;
        pin->node = node;
        pin->pin_node_idx = new_idx;
}

void remap_pin_to_new_net	(	npin_t *	pin,
		nnet_t *	new_net
	)

Definition at line 471 of file netlist_utils.c.

{
        if (pin->type == INPUT)
        {
                /* clean out the entry in the old net */
                pin->net->fanout_pins[pin->pin_net_idx] = NULL;
                /* do the new addition */
                add_a_fanout_pin_to_net(new_net, pin);
        }
        else if (pin->type == OUTPUT)
        {
                /* clean out the entry in the old net */
                pin->net->driver_pin = NULL;
                /* do the new addition */
                add_a_driver_pin_to_net(new_net, pin);
        }
}

Here is the call graph for this function:

void remap_pin_to_new_node	(	npin_t *	pin,
		nnode_t *	new_node,
		int	pin_idx
	)

Definition at line 492 of file netlist_utils.c.

{
        if (pin->type == INPUT)
        {
                /* clean out the entry in the old net */
                pin->node->input_pins[pin->pin_node_idx] = NULL;
                /* do the new addition */
                add_a_input_pin_to_node_spot_idx(new_node, pin, pin_idx);
        }
        else if (pin->type == OUTPUT)
        {
                /* clean out the entry in the old net */
                pin->node->output_pins[pin->pin_node_idx] = NULL;
                /* do the new addition */
                add_a_output_pin_to_node_spot_idx(new_node, pin, pin_idx);
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void sort_signal_list_alphabetically

(

signal_list_t *

list

)

Definition at line 619 of file netlist_utils.c.

{
        int i, j;
        npin_t *tmp_pin;

        for (i = 0; i < list->signal_list_size-1; i++)
        {
                for (j = 0; j< (list->signal_list_size-1-i); j++)
                {
                        /* compare the neighbours */
                        if (strcmp(list->signal_list[j+1]->name, list->signal_list[j]->name) < 0 )
                        {
                                tmp_pin = list->signal_list[j];
                                list->signal_list[j] = list->signal_list[j+1];
                                list->signal_list[j+1] = tmp_pin;
                        }
                }
        }
}

Here is the caller graph for this function:
