SRC/draw.h File Reference

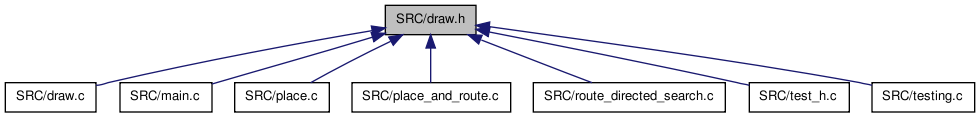

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	update_screen (int priority, char *msg, enum pic_type pic_on_screen_val, boolean crit_path_button_enabled)
void	alloc_draw_structs (void)
void	init_draw_coords (float clb_width)
void	set_graphics_state (boolean show_graphics_val, int gr_automode_val, enum e_route_type route_type)

---

Function Documentation

void alloc_draw_structs

(

void

)

Definition at line 455 of file draw.c.

{

    /* Allocate the structures needed to draw the placement and routing.  Set *
     * up the default colors for blocks and nets.                             */

    tile_x = (float *)my_malloc((nx + 2) * sizeof(float));
    tile_y = (float *)my_malloc((ny + 2) * sizeof(float));

    net_color = (enum color_types *)
        my_malloc(num_nets * sizeof(enum color_types));

    block_color = (enum color_types *)
        my_malloc(num_blocks * sizeof(enum color_types));

    deselect_all();             /* Set initial colors */
}

Here is the call graph for this function:

Here is the caller graph for this function:

void init_draw_coords

(

float

clb_width

)

Definition at line 475 of file draw.c.

{

    /* Load the arrays containing the left and bottom coordinates of the clbs   *
     * forming the FPGA.  tile_width_val sets the width and height of a drawn    *
     * clb.                                                                     */

    int i;
    int j;

    if(!show_graphics)
        return;                 /* -nodisp was selected. */

    tile_width = width_val;
    pin_size = 0.3;
    for(i = 0; i < num_types; ++i)
        {
            pin_size =
                min(pin_size,
                    (tile_width / (4.0 * type_descriptors[i].num_pins)));
        }

    j = 0;
    for(i = 0; i < (nx + 1); i++)
        {
            tile_x[i] = (i * tile_width) + j;
            j += chan_width_y[i] + 1;   /* N wires need N+1 units of space */
        }
    tile_x[nx + 1] = ((nx + 1) * tile_width) + j;

    j = 0;
    for(i = 0; i < (ny + 1); ++i)
        {
            tile_y[i] = (i * tile_width) + j;
            j += chan_width_x[i] + 1;
        }
    tile_y[ny + 1] = ((ny + 1) * tile_width) + j;

    init_world(0.0,
               tile_y[ny + 1] + tile_width, tile_x[nx + 1] + tile_width, 0.0);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void set_graphics_state	(	boolean	show_graphics_val,
		int	gr_automode_val,
		enum e_route_type	route_type
	)

Definition at line 155 of file draw.c.

{

    /* Sets the static show_graphics and gr_automode variables to the    *
     * desired values.  They control if graphics are enabled and, if so, *
     * how often the user is prompted for input.                         */

    show_graphics = show_graphics_val;
    gr_automode = gr_automode_val;
    draw_route_type = route_type;
}

Here is the caller graph for this function:

void update_screen	(	int	priority,
		char *	msg,
		enum pic_type	pic_on_screen_val,
		boolean	crit_path_button_enabled
	)

Definition at line 171 of file draw.c.

{

    /* Updates the screen if the user has requested graphics.  The priority  *
     * value controls whether or not the Proceed button must be clicked to   *
     * continue.  Saves the pic_on_screen_val to allow pan and zoom redraws. */

    if(!show_graphics)          /* Graphics turned off */
        return;



    /* If it's the type of picture displayed has changed, set up the proper  *
     * buttons.                                                              */
    if(pic_on_screen != pic_on_screen_val)
        {
            if(pic_on_screen_val == PLACEMENT && pic_on_screen == NO_PICTURE)
                {
                    create_button("Window", "Toggle Nets", toggle_nets);
                }
            else if(pic_on_screen_val == ROUTING
                    && pic_on_screen == PLACEMENT)
                {
                    create_button("Toggle Nets", "Toggle RR", toggle_rr);
                    create_button("Toggle RR", "Congestion",
                                  toggle_congestion);

                    if(crit_path_button_enabled)
                        {
                            create_button("Congestion", "Crit. Path",
                                          highlight_crit_path);
                        }
                }
            else if(pic_on_screen_val == PLACEMENT
                    && pic_on_screen == ROUTING)
                {
                    destroy_button("Toggle RR");
                    destroy_button("Congestion");

                    if(crit_path_button_enabled)
                        {
                            destroy_button("Crit. Path");
                        }
                }
            else if(pic_on_screen_val == ROUTING
                    && pic_on_screen == NO_PICTURE)
                {
                    create_button("Window", "Toggle Nets", toggle_nets);
                    create_button("Toggle Nets", "Toggle RR", toggle_rr);
                    create_button("Toggle RR", "Congestion",
                                  toggle_congestion);

                    if(crit_path_button_enabled)
                        {
                            create_button("Congestion", "Crit. Path",
                                          highlight_crit_path);
                        }
                }
        }
    /* Save the main message. */

    my_strncpy(default_message, msg, BUFSIZE);

    pic_on_screen = pic_on_screen_val;
    update_message(msg);
    drawscreen();
    if(priority >= gr_automode)
        {
            event_loop(highlight_blocks, drawscreen);
        }
    else
        {
            flushinput();
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:
