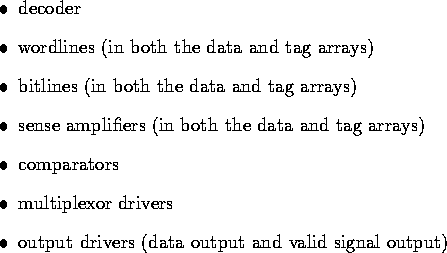

This section gives an overview of key portions of the cache read access and cycle time model. The access and cycle times were derived by estimating delays due to the following components:
The delay of each these components is estimated separately and the results combined to estimate the access and cycle time of the entire cache. A complete description of each component can be found in [3]. In this paper, we focus on those parts that differ significantly from Wada's model.
