SRC/route_directed_search.c File Reference

#include <stdio.h>
#include <assert.h>
#include <sys/types.h>
#include "util.h"
#include "vpr_types.h"
#include "globals.h"
#include "mst.h"
#include "route_export.h"
#include "route_common.h"
#include "route_directed_search.h"
#include "draw.h"

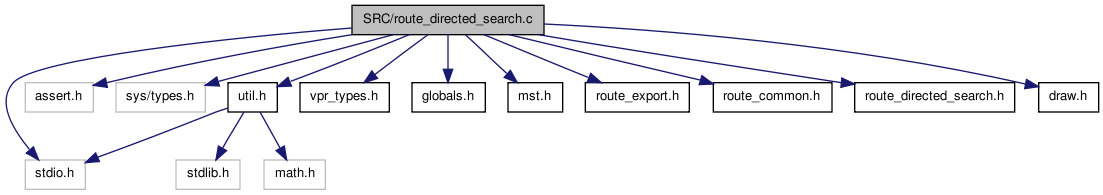

Include dependency graph for route_directed_search.c:

Go to the source code of this file.

Defines
#define	ROUND_UP(x)   (ceil (x - 0.001))
Functions
static boolean	directed_search_route_net (int inet, float pres_fac, float astar_fac, float bend_cost, t_mst_edge **mst)
static void	directed_search_expand_trace_segment (struct s_trace *start_ptr, int target_node, float astar_fac, int remaining_connections_to_sink)
static void	directed_search_expand_neighbours (struct s_heap *current, int inet, float bend_cost, int target_node, float astar_fac)
static void	directed_search_add_source_to_heap (int inet, int target_node, float astar_fac)
static float	get_directed_search_expected_cost (int inode, int target_node)
static int	get_expected_segs_to_target (int inode, int target_node, int *num_segs_ortho_dir_ptr)
boolean	try_directed_search_route (struct s_router_opts router_opts, t_ivec **fb_opins_used_locally, int width_fac, t_mst_edge **mst)

---

Define Documentation

#define ROUND_UP

(

x

)

(ceil (x - 0.001))

Definition at line 537 of file route_directed_search.c.

---

Function Documentation

static void directed_search_add_source_to_heap	(	int	inet,
		int	target_node,
		float	astar_fac
	)			[static]

Definition at line 456 of file route_directed_search.c.

{

/* Adds the SOURCE of this net to the heap.  Used to start a net's routing. */

    int inode;
    float back_cost, tot_cost;

    inode = net_rr_terminals[inet][0];  /* SOURCE */
    back_cost = 0.0 + get_rr_cong_cost(inode);

    /* setting the total cost to 0 because it's the only element on the heap */
    if(!is_empty_heap())
        {
            printf
                ("Error: Wrong Assumption: in directed_search_add_source_to_heap "
                 "the heap is not empty. Need to properly calculate source node's cost.\n");
            exit(1);
        }

    /* WMF: path cost is 0. could use tot_cost = 0 to save some computation time, but
     * for consistency, I chose to do the expected cost calculation. */
    tot_cost =
        back_cost + astar_fac * get_directed_search_expected_cost(inode,
                                                                  target_node);
    node_to_heap(inode, tot_cost, NO_PREVIOUS, NO_PREVIOUS, back_cost, OPEN);

}

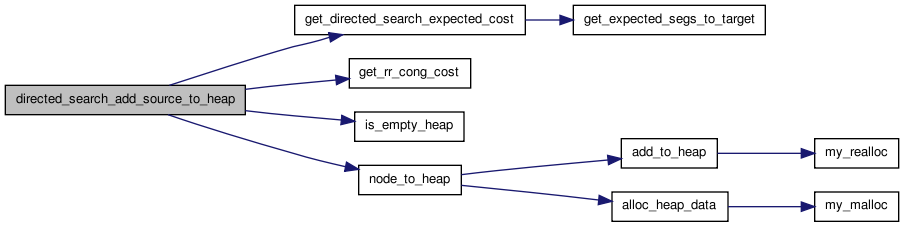

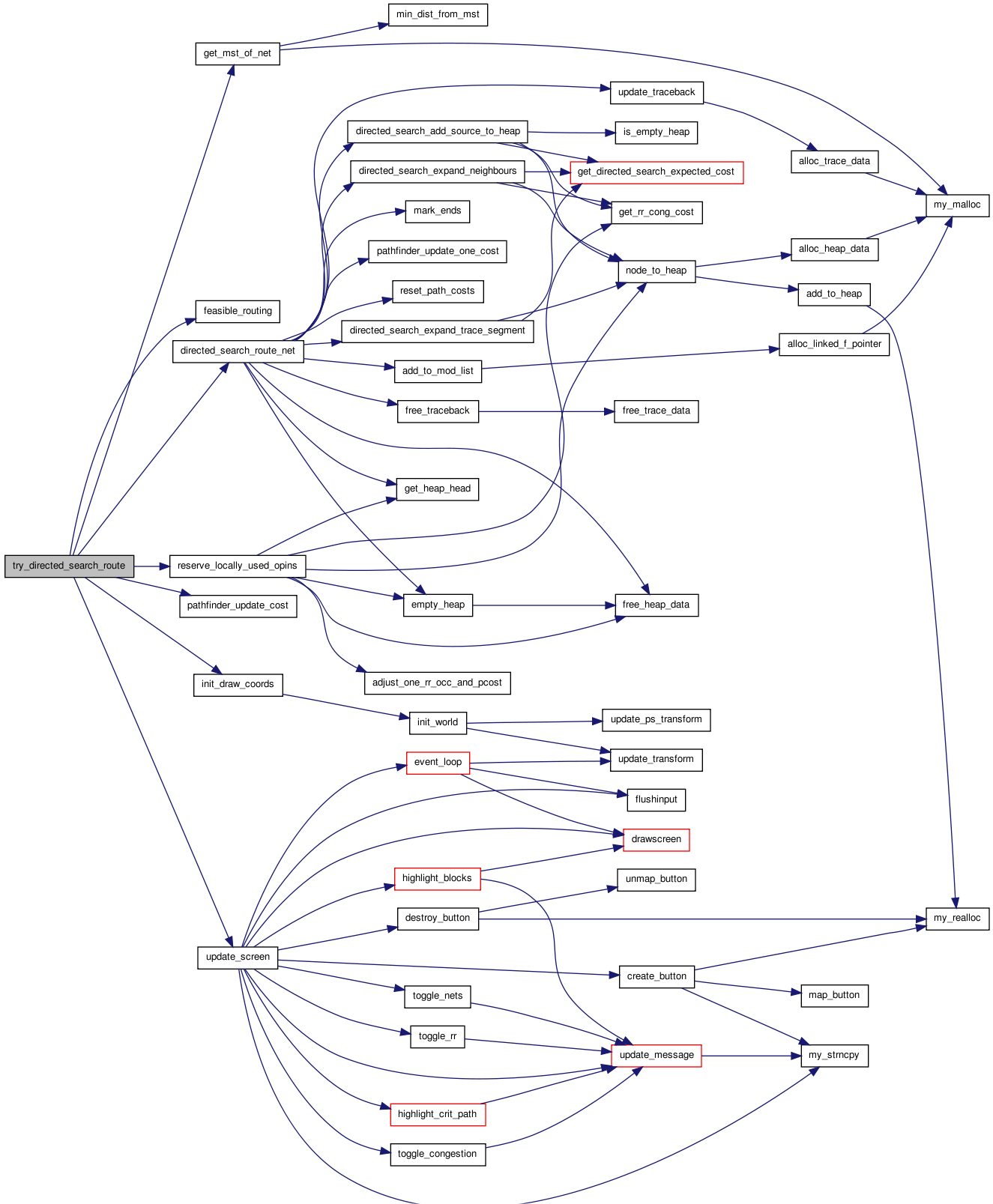

Here is the call graph for this function:

Here is the caller graph for this function:

static void directed_search_expand_neighbours	(	struct s_heap *	current,
		int	inet,
		float	bend_cost,
		int	target_node,
		float	astar_fac
	)			[static]

Definition at line 386 of file route_directed_search.c.

{

/* Puts all the rr_nodes adjacent to current on the heap.  rr_nodes outside   *
 * the expanded bounding box specified in route_bb are not added to the     *
 * heap.  back_cost is the path_cost to get to inode. total cost i.e.
 * tot_cost is path_cost + (expected_cost to target sink) */

    int iconn, to_node, num_edges, inode, target_x, target_y;
    t_rr_type from_type, to_type;
    float new_tot_cost, old_back_pcost, new_back_pcost;

    inode = current->index;
    old_back_pcost = current->backward_path_cost;
    num_edges = rr_node[inode].num_edges;

    target_x = rr_node[target_node].xhigh;
    target_y = rr_node[target_node].yhigh;

    for(iconn = 0; iconn < num_edges; iconn++)
        {
            to_node = rr_node[inode].edges[iconn];

            if(rr_node[to_node].xhigh < route_bb[inet].xmin ||
               rr_node[to_node].xlow > route_bb[inet].xmax ||
               rr_node[to_node].yhigh < route_bb[inet].ymin ||
               rr_node[to_node].ylow > route_bb[inet].ymax)
                continue;       /* Node is outside (expanded) bounding box. */

/* Prune away IPINs that lead to blocks other than the target one.  Avoids  *
 * the issue of how to cost them properly so they don't get expanded before *
 * more promising routes, but makes route-throughs (via CLBs) impossible.   *
 * Change this if you want to investigate route-throughs.                   */

            to_type = rr_node[to_node].type;
            if(to_type == IPIN && (rr_node[to_node].xhigh != target_x ||
                                   rr_node[to_node].yhigh != target_y))
                continue;

/* new_back_pcost stores the "known" part of the cost to this node -- the   *
 * congestion cost of all the routing resources back to the existing route  *
 * new_tot_cost
 * is this "known" backward cost + an expected cost to get to the target.   */

            new_back_pcost = old_back_pcost + get_rr_cong_cost(to_node);

            if(bend_cost != 0.)
                {
                    from_type = rr_node[inode].type;
                    to_type = rr_node[to_node].type;
                    if((from_type == CHANX && to_type == CHANY) ||
                       (from_type == CHANY && to_type == CHANX))
                        new_back_pcost += bend_cost;
                }

            /* Calculate the new total cost = path cost + astar_fac * remaining distance to target */
            new_tot_cost = new_back_pcost + astar_fac *
                get_directed_search_expected_cost(to_node, target_node);

            node_to_heap(to_node, new_tot_cost, inode, iconn, new_back_pcost,
                         OPEN);
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static void directed_search_expand_trace_segment	(	struct s_trace *	start_ptr,
		int	target_node,
		float	astar_fac,
		int	remaining_connections_to_sink
	)			[static]

Definition at line 313 of file route_directed_search.c.

{

/* Adds all the rr_nodes in the entire traceback from SOURCE to all SINKS   *
 * routed so far (partial routing).
 * This allows expansion to begin from the existing wiring.  The            *
 * remaining_connections_to_sink value is 0 if the route segment ending     *
 * at this location is the last one to connect to the SINK ending the route *
 * segment.  This is the usual case.  If it is not the last connection this *
 * net must make to this SINK, I have a hack to ensure the next connection  *
 * to this SINK goes through a different IPIN.  Without this hack, the      *
 * router would always put all the connections from this net to this SINK   *
 * through the same IPIN.  With LUTs or cluster-based logic blocks, you     *
 * should never have a net connecting to two logically-equivalent pins on   *
 * the same logic block, so the hack will never execute.  If your logic     *
 * block is an and-gate, however, nets might connect to two and-inputs on   *
 * the same logic block, and since the and-inputs are logically-equivalent, *
 * this means two connections to the same SINK.                             */

    struct s_trace *tptr;
    int inode, backward_path_cost, tot_cost;

    tptr = start_ptr;

    if(remaining_connections_to_sink == 0)
        {                       /* Usual case. */
            while(tptr != NULL)
                {
                    /* WMF: partial routing is added to the heap with path cost of 0, because
                     * new extension to the next sink can start at any point on current partial
                     * routing. However, for directed search the total cost must be made to favor
                     * the points of current partial routing that are NEAR the next sink (target sink) */

                    /* WMF: IPINs and SINKs should be excluded from the heap in this
                     * since they NEVER connect TO any rr_node (no to_edges), but since they have
                     * no to_edges, it's ok (ROUTE_THROUGHS are disabled). To clarify, see
                     * rr_graph.c to find out rr_node[inode].num_edges = 0 for SINKs and
                     * rr_node[inode].num_edges = 1 for INPINs */

                    inode = tptr->index;

                    if(!
                       (rr_node[inode].type == IPIN
                        || rr_node[inode].type == SINK))
                        {

                            backward_path_cost = 0;
                            tot_cost =
                                backward_path_cost +
                                astar_fac *
                                get_directed_search_expected_cost(inode,
                                                                  target_node);
                            node_to_heap(inode, tot_cost, NO_PREVIOUS,
                                         NO_PREVIOUS, backward_path_cost,
                                         OPEN);
                        }

                    tptr = tptr->next;
                }
        }

    else
        {                       /* This case never executes for most logic blocks. */
            printf("Warning: Multiple connections from net to the same sink. "
                   "This should not happen for LUT/Cluster based logic blocks. Aborting.\n");
            exit(1);
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

static boolean directed_search_route_net	(	int	inet,
		float	pres_fac,
		float	astar_fac,
		float	bend_cost,
		t_mst_edge **	mst
	)			[static]

Definition at line 158 of file route_directed_search.c.

{

/* Uses a maze routing (Dijkstra's) algorithm to route a net.  The net       *
 * begins at the net output, and expands outward until it hits a target      *
 * pin.  The algorithm is then restarted with the entire first wire segment  *
 * included as part of the source this time.  For an n-pin net, the maze     *
 * router is invoked n-1 times to complete all the connections.  Inet is     *
 * the index of the net to be routed.  Bends are penalized by bend_cost      *
 * (which is typically zero for detailed routing and nonzero only for global *
 * routing), since global routes with lots of bends are tougher to detailed  *
 * route (using a detailed router like SEGA).                                *
 * If this routine finds that a net *cannot* be connected (due to a complete *
 * lack of potential paths, rather than congestion), it returns FALSE, as    *
 * routing is impossible on this architecture.  Otherwise it returns TRUE.   */
/* WMF: This is the directed search (A-star) version of maze router. */

    int inode, remaining_connections_to_sink;
    int itarget, target_pin, target_node;
    struct s_heap *current;
    struct s_trace *new_route_start_tptr;
    float old_tcost, new_tcost, old_back_cost, new_back_cost;

/* Rip-up any old routing. */
    /* WMF: For the 1st router iteration trace_head[inet] is NULL, as it is
     * my_calloc'ed in alloc_route_structs() so the following does nothing.
     * However, for subsequent iterations, trace_head[inet] contains the previous
     * ieration's routing for this net. */
    pathfinder_update_one_cost(trace_head[inet], -1, pres_fac);
    free_traceback(inet);       /* kills trace, and set the trace head and tail to NULL */

    /* adding the SOURCE node to the heap with correct total cost */
    target_pin = mst[inet][0].to_node;
    target_node = net_rr_terminals[inet][target_pin];
    directed_search_add_source_to_heap(inet, target_node, astar_fac);

    mark_ends(inet);

    remaining_connections_to_sink = 0;

    for(itarget = 0; itarget < net[inet].num_sinks; itarget++)
        {
            target_pin = mst[inet][itarget].to_node;
            target_node = net_rr_terminals[inet][target_pin];

            /*    printf ("Target #%d, pin number %d, target_node: %d.\n",
             * itarget, target_pin, target_node);  */

            /* WMF: since the heap has been emptied, need to restart the wavefront
             * from the current partial routing, starting at the trace_head (SOURCE)
             * Note: in the 1st iteration, there is no trace (no routing at all for this net)
             * i.e. trace_head[inet] == NULL (found in free_traceback() in route_common.c,
             * which is called before the routing of any net),
             * so this routine does nothing, but the heap does have the SOURCE node due
             * to directed_search_add_source_to_heap (inet) before the loop */
            directed_search_expand_trace_segment(trace_head[inet],
                                                 target_node, astar_fac,
                                                 remaining_connections_to_sink);

            current = get_heap_head();

            if(current == NULL)
                {               /* Infeasible routing.  No possible path for net. */
                    reset_path_costs(); /* Clean up before leaving. */
                    return (FALSE);
                }

            inode = current->index;

            while(inode != target_node)
                {
                    old_tcost = rr_node_route_inf[inode].path_cost;
                    new_tcost = current->cost;

                    /* WMF: not needed if Vaughn initialized rr_node_route_inf[inode].backward_path_cost
                     * to HUGE_FLOAT along with rr_node_route_inf[inode].path_cost */
                    if(old_tcost > 0.99 * HUGE_FLOAT)   /* First time touched. */
                        old_back_cost = HUGE_FLOAT;
                    else
                        old_back_cost =
                            rr_node_route_inf[inode].backward_path_cost;

                    new_back_cost = current->backward_path_cost;

                    /* I only re-expand a node if both the "known" backward cost is lower  *
                     * in the new expansion (this is necessary to prevent loops from       *
                     * forming in the routing and causing havoc) *and* the expected total  *
                     * cost to the sink is lower than the old value.  Different R_upstream *
                     * values could make a path with lower back_path_cost less desirable   *
                     * than one with higher cost.  Test whether or not I should disallow   *
                     * re-expansion based on a higher total cost.                          */

                    /* updating the maze (Dijktra's min dist algorithm) if found "shorter" path */
                    if(old_tcost > new_tcost && old_back_cost > new_back_cost)
                        {
/*       if (old_tcost > new_tcost) {     */
                            rr_node_route_inf[inode].prev_node =
                                current->u.prev_node;
                            rr_node_route_inf[inode].prev_edge =
                                current->prev_edge;
                            rr_node_route_inf[inode].path_cost = new_tcost;
                            rr_node_route_inf[inode].backward_path_cost =
                                new_back_cost;

                            if(old_tcost > 0.99 * HUGE_FLOAT)   /* First time touched. */
                                add_to_mod_list(&rr_node_route_inf[inode].
                                                path_cost);

                            directed_search_expand_neighbours(current, inet,
                                                              bend_cost,
                                                              target_node,
                                                              astar_fac);
                        }

                    free_heap_data(current);
                    current = get_heap_head();

                    if(current == NULL)
                        {       /* Impossible routing.  No path for net. */
                            reset_path_costs();
                            return (FALSE);
                        }

                    inode = current->index;
                }

            rr_node_route_inf[inode].target_flag--;     /* Connected to this SINK. */
            remaining_connections_to_sink =
                rr_node_route_inf[inode].target_flag;

            /* keep info on the current routing of this net */
            new_route_start_tptr = update_traceback(current, inet);

            free_heap_data(current);
            /* update the congestion costs of rr_nodes due to the routing to this sink
             * so only those nodes used in the partial routing of this sink and not
             * of the entire net (remember we're in a loop for this net over its sinks) */
            pathfinder_update_one_cost(new_route_start_tptr, 1, pres_fac);

            /* WMF: MUST empty heap and recalculate all total costs, because
             * for the next sink, the target destination is changed, so the expected
             * cost calculation is changed also, meaning all the nodes on the heap have
             * "stale" total costs (costs based on last sink). */
            empty_heap();
            reset_path_costs();
        }

    return (TRUE);
}

Here is the call graph for this function:

Here is the caller graph for this function:

static float get_directed_search_expected_cost	(	int	inode,
		int	target_node
	)			[static]

Definition at line 489 of file route_directed_search.c.

{

/* Determines the expected cost (due to resouce cost i.e. distance) to reach  *
 * the target node from inode.  It doesn't include the cost of inode --       *
 * that's already in the "known" path_cost.                                   */

    t_rr_type rr_type;
    int cost_index, ortho_cost_index, num_segs_same_dir, num_segs_ortho_dir;
    float cong_cost;

    rr_type = rr_node[inode].type;

    if(rr_type == CHANX || rr_type == CHANY)
        {
            num_segs_same_dir =
                get_expected_segs_to_target(inode, target_node,
                                            &num_segs_ortho_dir);
            cost_index = rr_node[inode].cost_index;
            ortho_cost_index = rr_indexed_data[cost_index].ortho_cost_index;

            cong_cost =
                num_segs_same_dir * rr_indexed_data[cost_index].base_cost +
                num_segs_ortho_dir *
                rr_indexed_data[ortho_cost_index].base_cost;
            cong_cost +=
                rr_indexed_data[IPIN_COST_INDEX].base_cost +
                rr_indexed_data[SINK_COST_INDEX].base_cost;

            return (cong_cost);
        }

    else if(rr_type == IPIN)
        {                       /* Change if you're allowing route-throughs */
            return (rr_indexed_data[SINK_COST_INDEX].base_cost);
        }

    else
        {                       /* Change this if you want to investigate route-throughs */
            return (0.);
        }
}

Here is the call graph for this function:

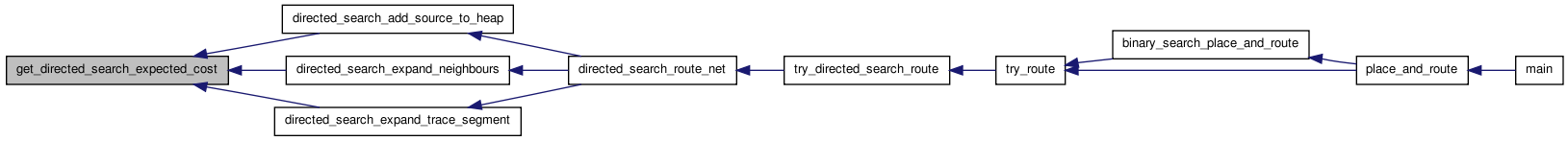

Here is the caller graph for this function:

static int get_expected_segs_to_target	(	int	inode,
		int	target_node,
		int *	num_segs_ortho_dir_ptr
	)			[static]

Definition at line 541 of file route_directed_search.c.

{

/* Returns the number of segments the same type as inode that will be needed *
 * to reach target_node (not including inode) in each direction (the same    *
 * direction (horizontal or vertical) as inode and the orthogonal direction).*/

    t_rr_type rr_type;
    int target_x, target_y, num_segs_same_dir, cost_index, ortho_cost_index;
    int no_need_to_pass_by_clb;
    float inv_length, ortho_inv_length, ylow, yhigh, xlow, xhigh;

    target_x = rr_node[target_node].xlow;
    target_y = rr_node[target_node].ylow;
    cost_index = rr_node[inode].cost_index;
    inv_length = rr_indexed_data[cost_index].inv_length;
    ortho_cost_index = rr_indexed_data[cost_index].ortho_cost_index;
    ortho_inv_length = rr_indexed_data[ortho_cost_index].inv_length;
    rr_type = rr_node[inode].type;

    if(rr_type == CHANX)
        {
            ylow = rr_node[inode].ylow;
            xhigh = rr_node[inode].xhigh;
            xlow = rr_node[inode].xlow;

            /* Count vertical (orthogonal to inode) segs first. */

            if(ylow > target_y)
                {               /* Coming from a row above target? */
                    *num_segs_ortho_dir_ptr =
                        ROUND_UP((ylow - target_y + 1.) * ortho_inv_length);
                    no_need_to_pass_by_clb = 1;
                }
            else if(ylow < target_y - 1)
                {               /* Below the FB bottom? */
                    *num_segs_ortho_dir_ptr = ROUND_UP((target_y - ylow) *
                                                       ortho_inv_length);
                    no_need_to_pass_by_clb = 1;
                }
            else
                {               /* In a row that passes by target FB */
                    *num_segs_ortho_dir_ptr = 0;
                    no_need_to_pass_by_clb = 0;
                }

            /* Now count horizontal (same dir. as inode) segs. */

            if(xlow > target_x + no_need_to_pass_by_clb)
                {
                    num_segs_same_dir =
                        ROUND_UP((xlow - no_need_to_pass_by_clb -
                                  target_x) * inv_length);
                }
            else if(xhigh < target_x - no_need_to_pass_by_clb)
                {
                    num_segs_same_dir =
                        ROUND_UP((target_x - no_need_to_pass_by_clb -
                                  xhigh) * inv_length);
                }
            else
                {
                    num_segs_same_dir = 0;
                }
        }

    else
        {                       /* inode is a CHANY */
            ylow = rr_node[inode].ylow;
            yhigh = rr_node[inode].yhigh;
            xlow = rr_node[inode].xlow;

            /* Count horizontal (orthogonal to inode) segs first. */

            if(xlow > target_x)
                {               /* Coming from a column right of target? */
                    *num_segs_ortho_dir_ptr =
                        ROUND_UP((xlow - target_x + 1.) * ortho_inv_length);
                    no_need_to_pass_by_clb = 1;
                }
            else if(xlow < target_x - 1)
                {               /* Left of and not adjacent to the FB? */
                    *num_segs_ortho_dir_ptr = ROUND_UP((target_x - xlow) *
                                                       ortho_inv_length);
                    no_need_to_pass_by_clb = 1;
                }
            else
                {               /* In a column that passes by target FB */
                    *num_segs_ortho_dir_ptr = 0;
                    no_need_to_pass_by_clb = 0;
                }

            /* Now count vertical (same dir. as inode) segs. */

            if(ylow > target_y + no_need_to_pass_by_clb)
                {
                    num_segs_same_dir =
                        ROUND_UP((ylow - no_need_to_pass_by_clb -
                                  target_y) * inv_length);
                }
            else if(yhigh < target_y - no_need_to_pass_by_clb)
                {
                    num_segs_same_dir =
                        ROUND_UP((target_y - no_need_to_pass_by_clb -
                                  yhigh) * inv_length);
                }
            else
                {
                    num_segs_same_dir = 0;
                }
        }

    return (num_segs_same_dir);
}

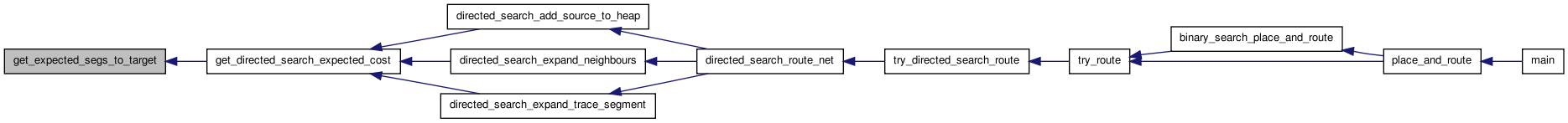

Here is the caller graph for this function:

boolean try_directed_search_route	(	struct s_router_opts	router_opts,
		t_ivec **	fb_opins_used_locally,
		int	width_fac,
		t_mst_edge **	mst
	)

Definition at line 48 of file route_directed_search.c.

{

/* Iterated maze router ala Pathfinder Negotiated Congestion algorithm,  *
 * (FPGA 95 p. 111).  Returns TRUE if it can route this FPGA, FALSE if   *
 * it can't.                                                             */

    float pres_fac;
    boolean success, is_routable, rip_up_local_opins;
    int itry, inet;

    /* char msg[100]; */

    /* mst not built as good as it should, ideally, just have it after placement once only
         however, rr_node numbers changed when the channel width changes so forced to do it here */
    if(mst)
        {
            for(inet = 0; inet < num_nets; inet++)
                {
                    free(mst[inet]);
                    mst[inet] = get_mst_of_net(inet);
                }
        }

/* Usually the first iteration uses a very small (or 0) pres_fac to find  *
 * the shortest path and get a congestion map.  For fast compiles, I set  *
 * pres_fac high even for the first iteration.                            */

    pres_fac = router_opts.first_iter_pres_fac;

    for(itry = 1; itry <= router_opts.max_router_iterations; itry++)
        {

            for(inet = 0; inet < num_nets; inet++)
                {
                    if(net[inet].is_global == FALSE)
                        {       /* Skip global nets. */

                            is_routable =
                                directed_search_route_net(inet, pres_fac,
                                                          router_opts.
                                                          astar_fac,
                                                          router_opts.
                                                          bend_cost, mst);

                            /* Impossible to route? (disconnected rr_graph) */

                            if(!is_routable)
                                {
                                    printf("Routing failed.\n");
                                    return (FALSE);
                                }

                        }
                }

            /* Make sure any FB OPINs used up by subblocks being hooked directly     *
             * to them are reserved for that purpose.                                 */

            if(itry == 1)
                rip_up_local_opins = FALSE;
            else
                rip_up_local_opins = TRUE;

            reserve_locally_used_opins(pres_fac, rip_up_local_opins,
                                       fb_opins_used_locally);

            success = feasible_routing();
            if(success)
                {
                    printf
                        ("Successfully routed after %d routing iterations by Directed Search.\n",
                         itry);
                    return (TRUE);
                }
#if 0
            else
                {
                    sprintf(msg,
                            "After iteration %d routing failed (A*) with a channel width factor of %d and Fc_int of %d, Fs_int of %d.",
                            itry, width_fac, Fc_int, Fs_int);
                    init_draw_coords(pins_per_clb);
                    update_screen(MAJOR, msg, ROUTING, FALSE);
                }
#endif


            if(itry == 1)
                {
                    pres_fac = router_opts.initial_pres_fac;
                    pathfinder_update_cost(pres_fac, 0.);       /* Acc_fac=0 for first iter. */
                }
            else
                {
                    pres_fac *= router_opts.pres_fac_mult;
                    pathfinder_update_cost(pres_fac, router_opts.acc_fac);
                }

        }

    printf("Routing failed.\n");

    return (FALSE);
}

Here is the call graph for this function:

Here is the caller graph for this function:
