Base-Emitter and Base-Collector Capacitances

Diffusion and depletion capacitances are modeled for both junctions of the transistor model in a manner very similar to the Gummel-Poon model.

For Vbc FC • VJC

where

and

For Vbc > FC • VJC

For Vbe FC • VJE

where

For Vbe > FC • VJE

The diffusion capacitance for Cbe is somewhat differently formulated vs. that of Cbc. The transit time is not a constant for the diffusion capacitance for Cbe, but is a function of both junction voltages, formulated in a manner similar to the modified Gummel-Poon model. The total base-emitter charge is equal to the sum of the base-emitter depletion charge (which is a function of Vbe only) and the so-called transit charge (which is a function of both Vbe and Vbc).

where

and

and

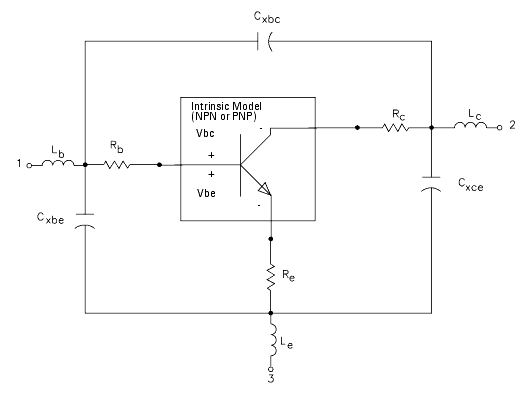

Equivalent Circuit

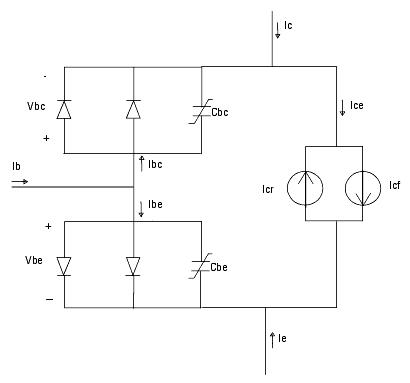

Intrinsic Model
