output_graphcrunch_format.c File Reference

#include <string.h>
#include <stdio.h>
#include <stdlib.h>
#include "types.h"
#include "globals.h"
#include "netlist_utils.h"
#include "odin_util.h"

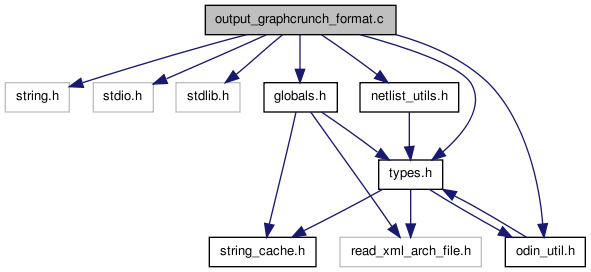

Include dependency graph for output_graphcrunch_format.c:

Go to the source code of this file.

Functions
void	depth_first_traverse_graphcrunch (FILE *out, short marker_value, netlist_t *netlist)
void	depth_first_traversal_graphcrunch_display (nnode_t *node, FILE *fp, int traverse_mark_number)
void	graphcrunch_output (char *path, char *name, short marker_value, netlist_t *netlist)

---

Function Documentation

void depth_first_traversal_graphcrunch_display	(	nnode_t *	node,
		FILE *	fp,
		int	traverse_mark_number
	)

Definition at line 79 of file output_graphcrunch_format.c.

{
        int i, j;
        nnode_t *next_node;
        nnet_t *next_net;

        if (node->traverse_visited == traverse_mark_number)
        {
                return;
        }
        else
        {
                /* ELSE - this is a new node so depth visit it */
                char *temp_string;
                char *temp_string2;

                /* mark that we have visitied this node now */
                node->traverse_visited = traverse_mark_number;

                for (i = 0; i < node->num_output_pins; i++)
                {
                        if (node->output_pins[i]->net == NULL)
                                continue;

                        next_net = node->output_pins[i]->net;
                        for (j = 0; j < next_net->num_fanout_pins; j++)
                        {
                                if (next_net->fanout_pins[j] == NULL)
                                        continue;

                                next_node = next_net->fanout_pins[j]->node;
                                if (next_node == NULL)
                                        continue;

                                //temp_string = make_string_based_on_id(node);
                                //temp_string2 = make_string_based_on_id(next_node);
                                temp_string = make_simple_name(node->name, "^-+.", '_');
                                temp_string2 = make_simple_name(next_node->name, "^-+.", '_');

                                if (node->type == OUTPUT_NODE)
                                {
                                        /* renaming for output nodes */
                                        temp_string = (char*)realloc(temp_string, sizeof(char)*strlen(temp_string)+1+2);
                                        sprintf(temp_string, "%s_O", temp_string);
                                }
                                if (next_node->type == OUTPUT_NODE)
                                {
                                        /* renaming for output nodes */
                                        temp_string2 = (char*)realloc(temp_string2, sizeof(char)*strlen(temp_string2)+1+2);
                                        sprintf(temp_string2, "%s_O", temp_string2);
                                }

                                fprintf(fp, "%s\t%s\n", temp_string, temp_string2);

                                free(temp_string);
                                free(temp_string2);

                                /* recursive call point */
                                depth_first_traversal_graphcrunch_display(next_node, fp, traverse_mark_number);
                        }
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void depth_first_traverse_graphcrunch	(	FILE *	out,
		short	marker_value,
		netlist_t *	netlist
	)

Definition at line 57 of file output_graphcrunch_format.c.

{
        int i;

        /* start with the primary input list */
        for (i = 0; i < netlist->num_top_input_nodes; i++)
        {
                if (netlist->top_input_nodes[i] != NULL)
                {
                        depth_first_traversal_graphcrunch_display(netlist->top_input_nodes[i], out, marker_value);
                }
        }
        /* now traverse the ground and vcc pins */
        if (netlist->gnd_node != NULL)
                depth_first_traversal_graphcrunch_display(netlist->gnd_node, out, marker_value);
        if (netlist->vcc_node != NULL)
                depth_first_traversal_graphcrunch_display(netlist->vcc_node, out, marker_value);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void graphcrunch_output	(	char *	path,
		char *	name,
		short	marker_value,
		netlist_t *	netlist
	)

Definition at line 39 of file output_graphcrunch_format.c.

{
        char path_and_file[4096];
        FILE *fp;

        /* open the file */
        sprintf(path_and_file, "%s/%s", path, name);
        fp = fopen(path_and_file, "w");

        depth_first_traverse_graphcrunch(fp, marker_value, netlist);

        /* close graph */
        fclose(fp);
}

Here is the call graph for this function:
