node_creation_library.h File Reference

#include "types.h"

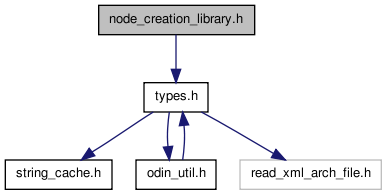

Include dependency graph for node_creation_library.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions

nnode_t * make_not_gate_with_input (npin_t *input_pin, nnode_t *node, short mark)
nnode_t * make_1port_logic_gate_with_inputs (operation_list type, int width, signal_list_t *pin_list, nnode_t *node, short mark)
nnode_t * make_2port_logic_gates_with_inputs (operation_list type, int width_port1, signal_list_t *pin_list1, int width_port2, signal_list_t *pin_list2, nnode_t *node, short mark)
nnode_t * make_not_gate (nnode_t *node, short mark)
nnode_t * make_1port_logic_gate (operation_list type, int width, nnode_t *node, short mark)
nnode_t * make_1port_gate (operation_list type, int width_input, int width_output, nnode_t *node, short mark)
nnode_t * make_2port_gate (operation_list type, int width_port1, int width_port2, int width_output, nnode_t *node, short mark)
nnode_t * make_3port_gate (operation_list type, int width_port1, int width_port2, int width_port3, int width_output, nnode_t *node, short mark)
npin_t * get_a_zero_pin ()
npin_t * get_a_one_pin ()
char * node_name_based_on_op (nnode_t *node)
char * node_name (nnode_t *node, char *instance_prefix_name)
char * hard_node_name (nnode_t *node, char *instance_name_prefix, char *hb_name, char *hb_inst)
nnode_t * make_mult_block (nnode_t *node, short mark)

Function Documentation

npin_t* get_a_one_pin (  )
npin_t* get_a_zero_pin (  )
char* hard_node_name ( nnode_t *  node,
char *  instance_name_prefix,
char *  hb_name,
char *  hb_inst
)

Definition at line 409 of file node_creation_library.c.

00410 {
00411         char *return_node_name;
00412
00413         /* create the unique name for this node */
00414         return_node_name = make_full_ref_name(instance_name_prefix, hb_name, hb_inst, NULL, -1);
00415
00416         unique_node_name_id ++;
00417
00418         return return_node_name;
00419 }

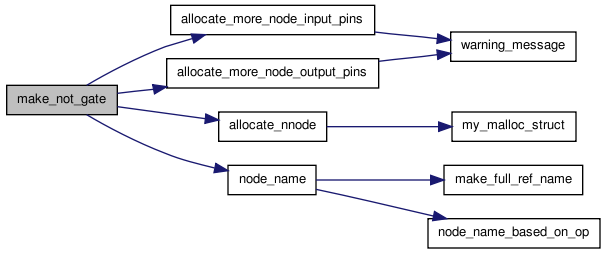

Here is the call graph for this function:

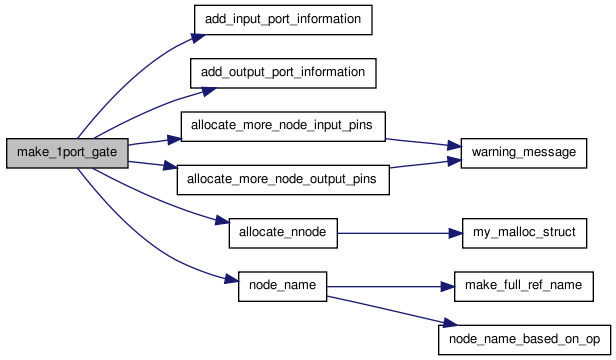

nnode_t* make_1port_gate ( operation_list  type,
int  width_input,
int  width_output,
nnode_t *  node,
short  mark
)

Definition at line 115 of file node_creation_library.c.

00116 {
00117         nnode_t *logic_node;
00118
00119         logic_node = allocate_nnode();
00120         logic_node->traverse_visited = mark;
00121         logic_node->type = type;
00122         logic_node->name = node_name(logic_node, node->name);
00123         logic_node->related_ast_node = node->related_ast_node;
00124
00125         /* add the input ports as needed */
00126         allocate_more_node_input_pins(logic_node, width_input);
00127         add_input_port_information(logic_node, width_input);
00128         /* add output */
00129         allocate_more_node_output_pins(logic_node, width_output);
00130         add_output_port_information(logic_node, width_output);
00131
00132         return logic_node;
00133 }

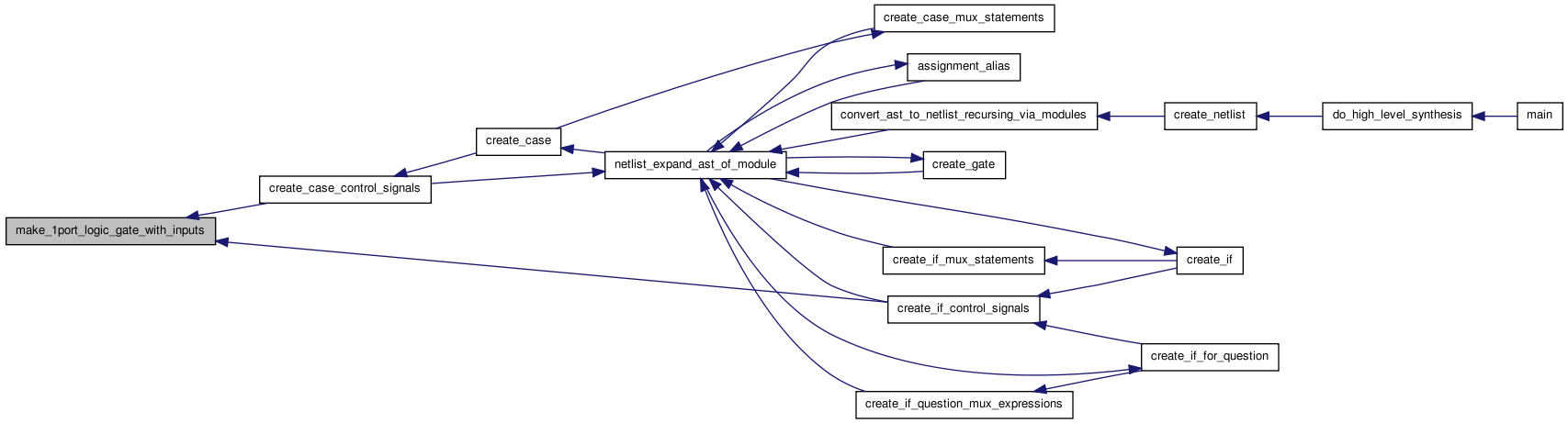

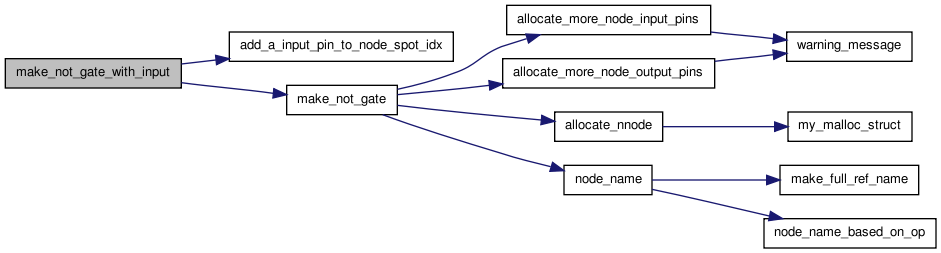

Here is the call graph for this function:

Here is the caller graph for this function:

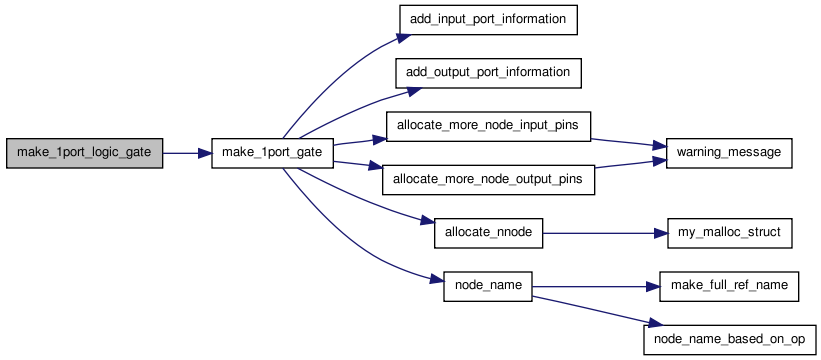

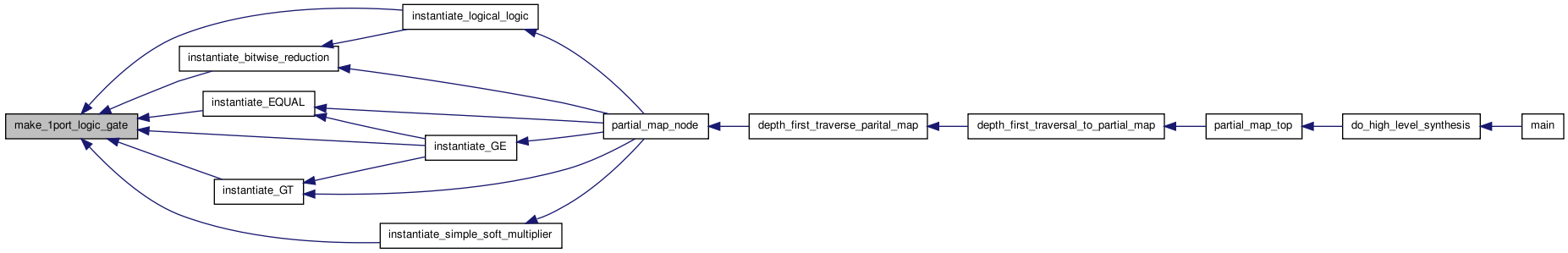

nnode_t* make_1port_logic_gate ( operation_list  type,
int  width,
nnode_t *  node,
short  mark
)

Definition at line 138 of file node_creation_library.c.

00139 {
00140         nnode_t *logic_node;
00141
00142         logic_node = make_1port_gate(type, width, 1, node, mark);
00143
00144         return logic_node;
00145 }

Here is the call graph for this function:

Here is the caller graph for this function:

nnode_t* make_1port_logic_gate_with_inputs ( operation_list  type,
int  width,
signal_list_t *  pin_list,
nnode_t *  node,
short  mark
)

Definition at line 151 of file node_creation_library.c.

00152 {
00153         nnode_t *logic_node;
00154         int i;
00155
00156         logic_node = make_1port_gate(type, width, 1, node, mark);
00157
00158         /* hookup all the pins */
00159         for (i = 0; i < width; i++)
00160         {
00161                 add_a_input_pin_to_node_spot_idx(logic_node, pin_list->signal_list[i], i);
00162         }
00163
00164         return logic_node;
00165 }

Here is the call graph for this function:

Here is the caller graph for this function:

nnode_t* make_2port_gate ( operation_list  type,
int  width_port1,
int  width_port2,
int  width_output,
nnode_t *  node,
short  mark
)

Definition at line 198 of file node_creation_library.c.

00199 {
00200         nnode_t *logic_node = allocate_nnode();
00201         logic_node->traverse_visited = mark;
00202         logic_node->type = type;
00203         logic_node->name = node_name(logic_node, node->name);
00204         logic_node->related_ast_node = node->related_ast_node;
00205
00206         /* add the input ports as needed */
00207         allocate_more_node_input_pins(logic_node, width_port1);
00208         add_input_port_information(logic_node, width_port1);
00209         allocate_more_node_input_pins(logic_node, width_port2);
00210         add_input_port_information(logic_node, width_port2);
00211         /* add output */
00212         allocate_more_node_output_pins(logic_node, width_output);
00213         add_output_port_information(logic_node, width_output);
00214
00215         return logic_node;
00216 }

Here is the call graph for this function:

Here is the caller graph for this function:

nnode_t* make_2port_logic_gates_with_inputs ( operation_list  type,
int  width_port1,
signal_list_t *  pin_list1,
int  width_port2,
signal_list_t *  pin_list2,
nnode_t *  node,
short  mark
)
nnode_t* make_3port_gate ( operation_list  type,
int  width_port1,
int  width_port2,
int  width_port3,
int  width_output,
nnode_t *  node,
short  mark
)

Definition at line 171 of file node_creation_library.c.

00172 {
00173         nnode_t *logic_node = allocate_nnode();
00174         logic_node->traverse_visited = mark;
00175         logic_node->type = type;
00176         logic_node->name = node_name(logic_node, node->name);
00177         logic_node->related_ast_node = node->related_ast_node;
00178
00179         /* add the input ports as needed */
00180         allocate_more_node_input_pins(logic_node, width_port1);
00181         add_input_port_information(logic_node, width_port1);
00182         allocate_more_node_input_pins(logic_node, width_port2);
00183         add_input_port_information(logic_node, width_port2);
00184         allocate_more_node_input_pins(logic_node, width_port3);
00185         add_input_port_information(logic_node, width_port3);
00186         /* add output */
00187         allocate_more_node_output_pins(logic_node, width_output);
00188         add_output_port_information(logic_node, width_output);
00189
00190         return logic_node;
00191 }

Here is the call graph for this function:

Here is the caller graph for this function:

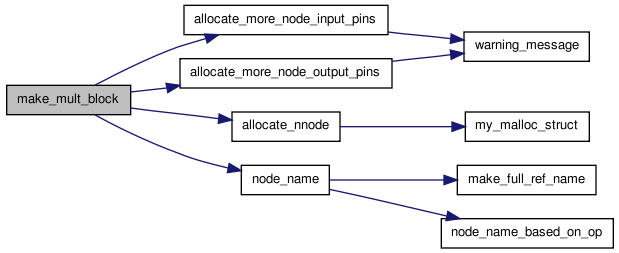

nnode_t* make_mult_block ( nnode_t *  node,
short  mark
)

Definition at line 441 of file node_creation_library.c.

00442 {
00443         nnode_t *logic_node;
00444
00445         logic_node = allocate_nnode();
00446         logic_node->traverse_visited = mark;
00447         logic_node->type = MULTIPLY;
00448         logic_node->name = node_name(logic_node, node->name);
00449         logic_node->related_ast_node = node->related_ast_node;
00450         logic_node->input_port_sizes = node->input_port_sizes;
00451         logic_node->num_input_port_sizes = node->num_input_port_sizes;
00452         logic_node->output_port_sizes = node->output_port_sizes;
00453         logic_node->num_output_port_sizes = node->num_output_port_sizes;
00454
00455         allocate_more_node_input_pins(logic_node, node->num_input_pins);
00456         allocate_more_node_output_pins(logic_node, node->num_output_pins);
00457
00458         return logic_node;
00459 }

Here is the call graph for this function:

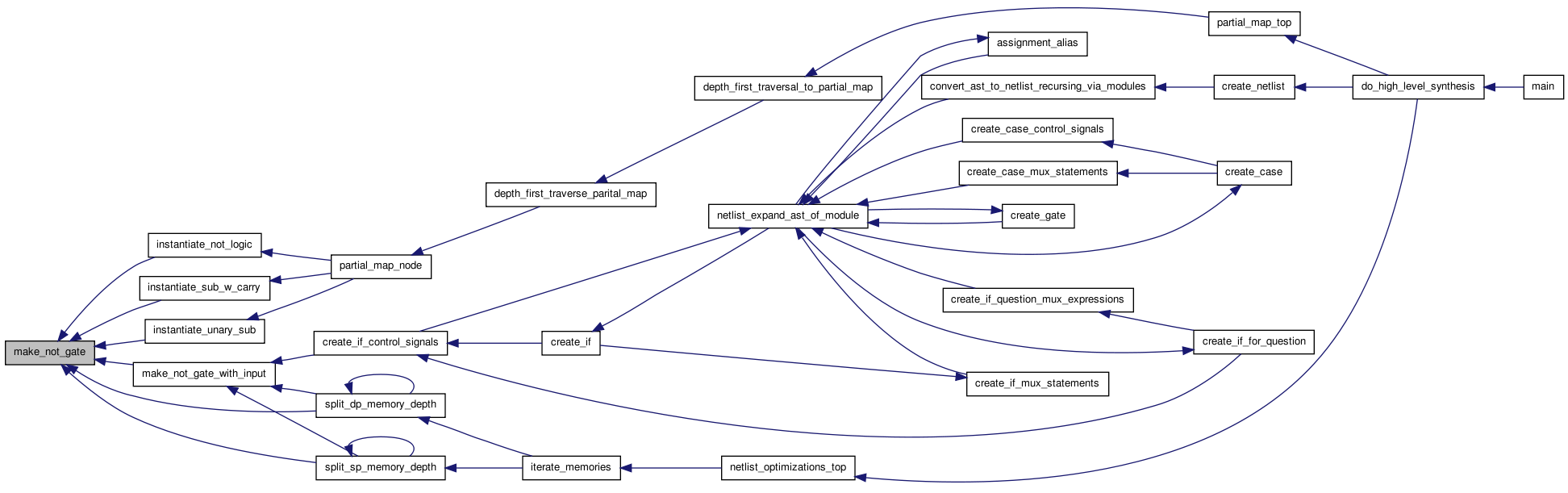

nnode_t* make_not_gate ( nnode_t *  node,
short  mark
)

Definition at line 94 of file node_creation_library.c.

00095 {
00096         nnode_t *logic_node;
00097
00098         logic_node = allocate_nnode();
00099         logic_node->traverse_visited = mark;
00100         logic_node->type = LOGICAL_NOT;
00101         logic_node->name = node_name(logic_node, node->name);
00102         logic_node->related_ast_node = node->related_ast_node;
00103
00104         allocate_more_node_input_pins(logic_node, 1);
00105         allocate_more_node_output_pins(logic_node, 1);
00106
00107         return logic_node;
00108
00109 }

Here is the call graph for this function:

Here is the caller graph for this function:

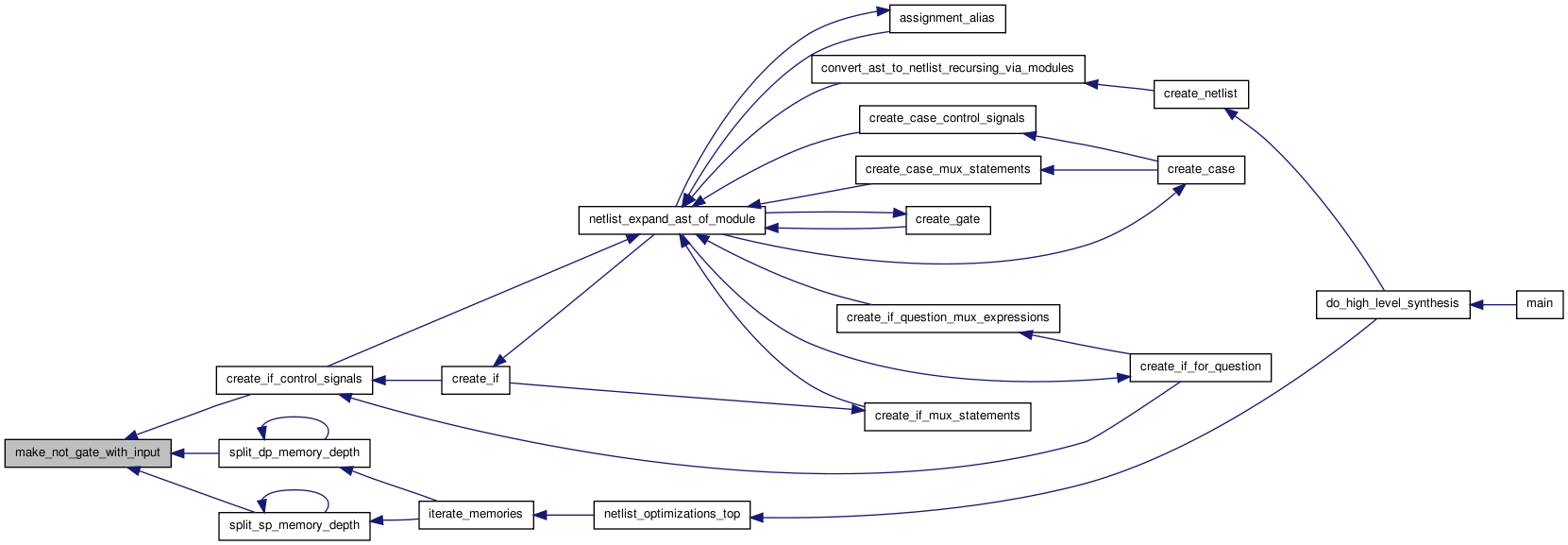

nnode_t* make_not_gate_with_input ( npin_t *  input_pin,
nnode_t *  node,
short  mark
)

Definition at line 77 of file node_creation_library.c.

00078 {
00079         nnode_t *logic_node;
00080
00081         logic_node = make_not_gate(node, mark);
00082
00083         /* add the input ports as needed */
00084         add_a_input_pin_to_node_spot_idx(logic_node, input_pin, 0);
00085
00086         return logic_node;
00087
00088 }

Here is the call graph for this function:

Here is the caller graph for this function:

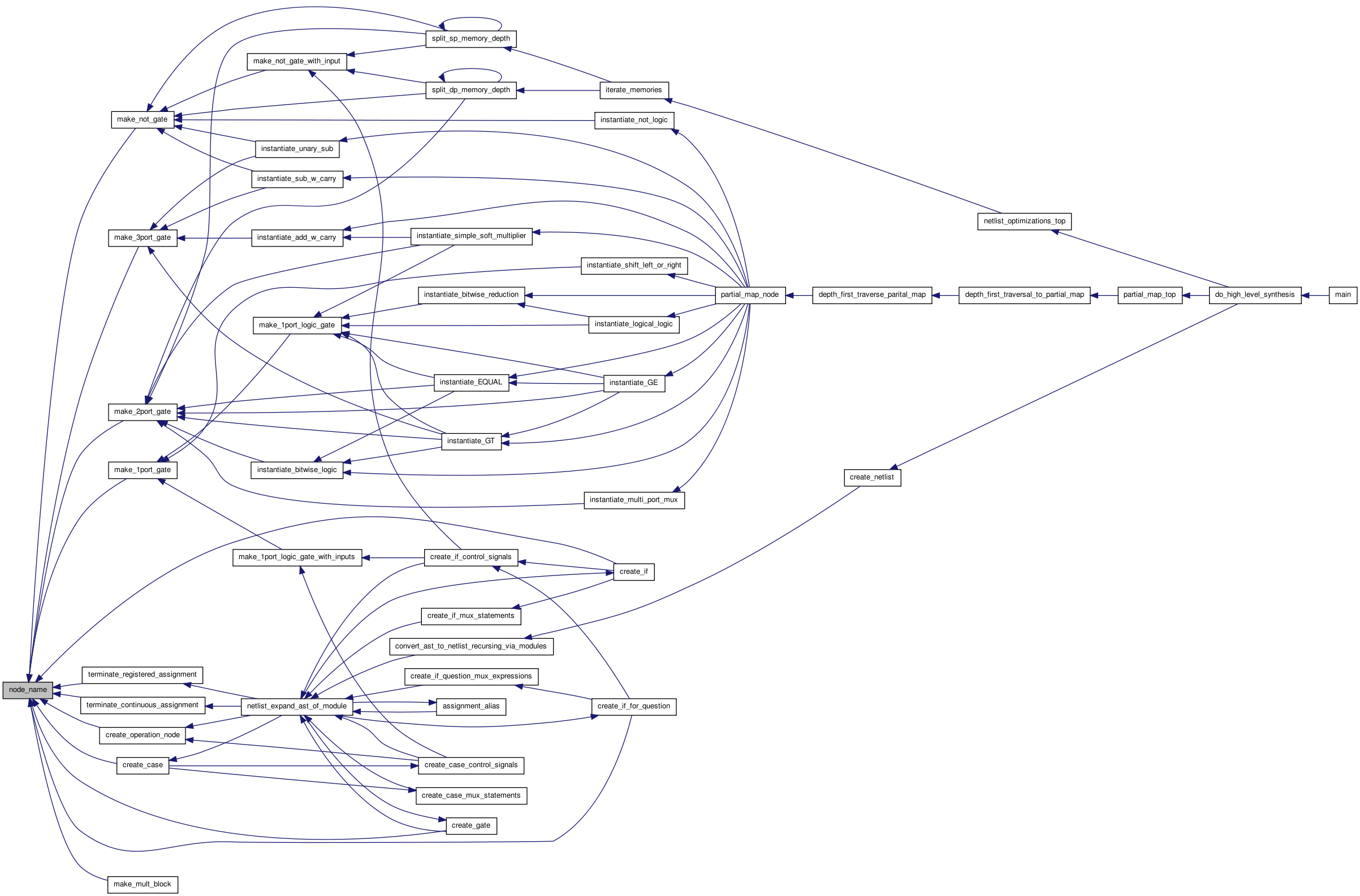

char* node_name ( nnode_t *  node,
char *  instance_prefix_name
)

Definition at line 425 of file node_creation_library.c.

00426 {
00427         char *return_node_name;
00428
00429         /* create the unique name for this node */
00430         return_node_name = make_full_ref_name(instance_name_prefix, NULL, NULL, node_name_based_on_op(node), unique_node_name_id);
00431
00432         unique_node_name_id ++;
00433
00434         return return_node_name;
00435 }

Here is the call graph for this function:

Here is the caller graph for this function:

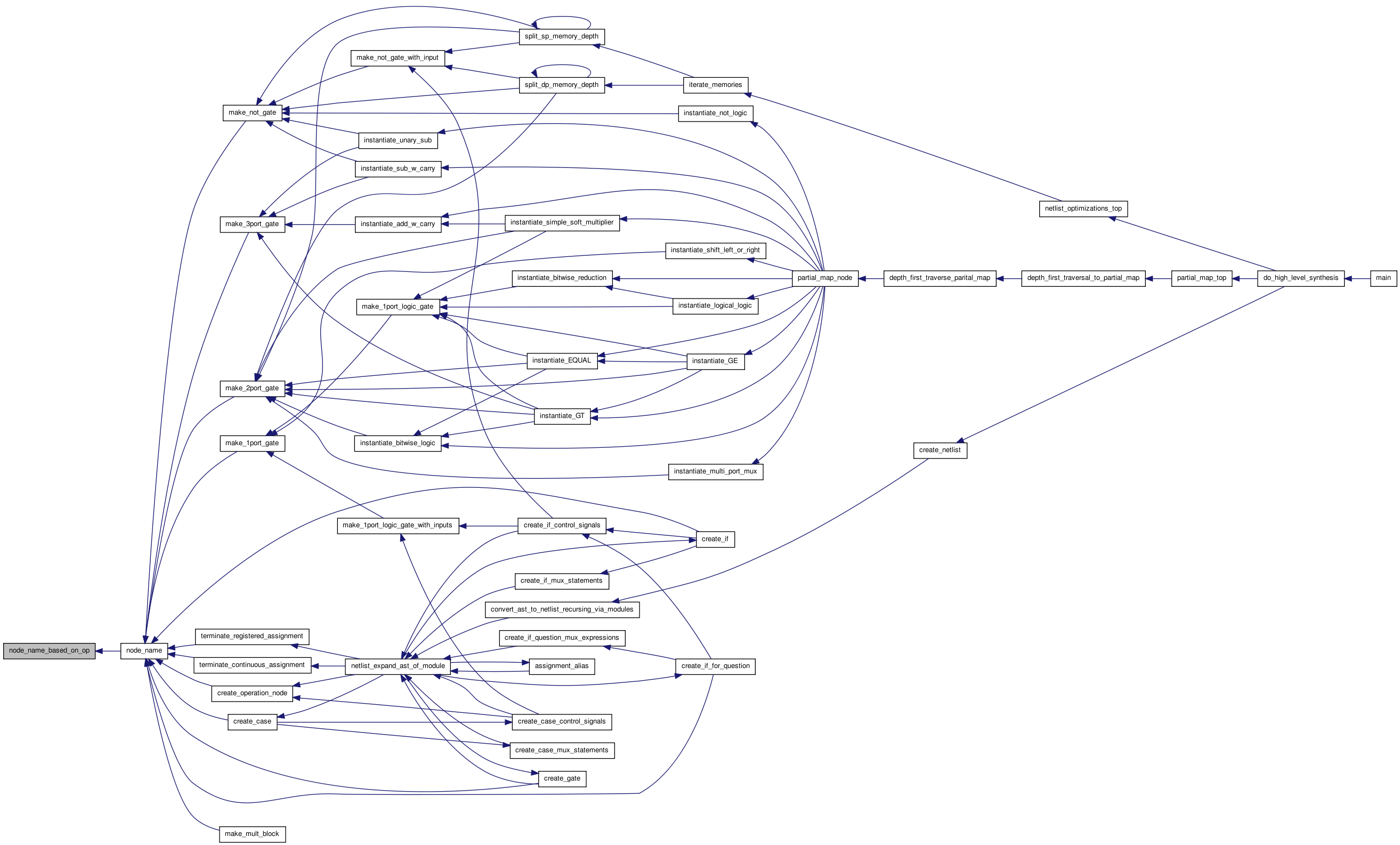

char* node_name_based_on_op ( nnode_t *  node  )

Definition at line 266 of file node_creation_library.c.

00267 {
00268         char *return_string;
00269
00270         switch(node->type)
00271         {
00272                 case MULTI_PORT_MUX:
00273                         return_string = MULTI_PORT_MUX_string;
00274                         break;
00275                 case FF_NODE:
00276                         return_string = FF_NODE_string;
00277                         break;
00278                 case BUF_NODE:
00279                         return_string = BUF_NODE_string;
00280                         break;
00281                 case CLOCK_NODE:
00282                         return_string = CLOCK_NODE_string;
00283                         break;
00284                 case INPUT_NODE:
00285                         return_string = INPUT_NODE_string;
00286                         break;
00287                 case OUTPUT_NODE:
00288                         return_string = OUTPUT_NODE_string;
00289                         break;
00290                 case GND_NODE:
00291                         return_string = GND_NODE_string;
00292                         break;
00293                 case VCC_NODE:
00294                         return_string = VCC_NODE_string;
00295                         break;
00296                 case ADD:
00297                         return_string = ADD_string;
00298                         break;
00299                 case MINUS:
00300                         return_string = MINUS_string;
00301                         break;
00302                 case BITWISE_NOT:
00303                         return_string = BITWISE_NOT_string;
00304                         break;
00305                 case BITWISE_AND:
00306                         return_string = BITWISE_AND_string;
00307                         break;
00308                 case BITWISE_OR:
00309                         return_string = BITWISE_OR_string;
00310                         break;
00311                 case BITWISE_NAND:
00312                         return_string = BITWISE_NAND_string;
00313                         break;
00314                 case BITWISE_NOR:
00315                         return_string = BITWISE_NOR_string;
00316                         break;
00317                 case BITWISE_XNOR:
00318                         return_string = BITWISE_XNOR_string;
00319                         break;
00320                 case BITWISE_XOR:
00321                         return_string = BITWISE_XOR_string;
00322                         break;
00323                 case LOGICAL_NOT:
00324                         return_string = LOGICAL_NOT_string;
00325                         break;
00326                 case LOGICAL_OR:
00327                         return_string = LOGICAL_OR_string;
00328                         break;
00329                 case LOGICAL_AND:
00330                         return_string = LOGICAL_AND_string;
00331                         break;
00332                 case LOGICAL_NOR:
00333                         return_string = LOGICAL_NOR_string;
00334                         break;
00335                 case LOGICAL_NAND:
00336                         return_string = LOGICAL_NAND_string;
00337                         break;
00338                 case LOGICAL_XOR:
00339                         return_string = LOGICAL_XOR_string;
00340                         break;
00341                 case LOGICAL_XNOR:
00342                         return_string = LOGICAL_XNOR_string;
00343                         break;
00344                 case MULTIPLY:
00345                         return_string = MULTIPLY_string;
00346                         break;
00347                 case DIVIDE:
00348                         return_string = DIVIDE_string;
00349                         break;
00350                 case MODULO:
00351                         return_string = MODULO_string;
00352                         break;
00353                 case LT:
00354                         return_string = LT_string;
00355                         break;
00356                 case GT:
00357                         return_string = GT_string;
00358                         break;
00359                 case LOGICAL_EQUAL:
00360                         return_string = LOGICAL_EQUAL_string;
00361                         break;
00362                 case NOT_EQUAL:
00363                         return_string = NOT_EQUAL_string;
00364                         break;
00365                 case LTE:
00366                         return_string = LTE_string;
00367                         break;
00368                 case GTE:
00369                         return_string = GTE_string;
00370                         break;
00371                 case SR:
00372                         return_string = SR_string;
00373                         break;
00374                 case SL:
00375                         return_string = SL_string;
00376                         break;
00377                 case CASE_EQUAL:
00378                         return_string = CASE_EQUAL_string;
00379                         break;
00380                 case CASE_NOT_EQUAL:
00381                         return_string = CASE_NOT_EQUAL_string;
00382                         break;
00383                 case ADDER_FUNC:
00384                         return_string = ADDER_FUNC_string;
00385                         break;
00386                 case CARRY_FUNC:
00387                         return_string = CARRY_FUNC_string;
00388                         break;
00389                 case MUX_2:
00390                         return_string = MUX_2_string;
00391                         break;
00392                 case MEMORY:
00393                         return_string = MEMORY_string;
00394                         break;
00395                 case HARD_IP:
00396                         return_string = HARD_IP_string;
00397                         break;
00398                 default:
00399                         oassert(FALSE);
00400                         break;
00401         }
00402         return return_string;
00403 }

Here is the caller graph for this function:

Generated on Tue Aug 2 10:43:37 2011 for ODIN_II by  doxygen 1.6.3
