netlist_stats.c File Reference

#include <string.h>
#include <stdio.h>
#include <stdlib.h>
#include <stdarg.h>
#include "types.h"
#include "globals.h"
#include "errors.h"
#include "netlist_utils.h"
#include "odin_util.h"
#include "netlist_stats.h"
#include "multipliers.h"

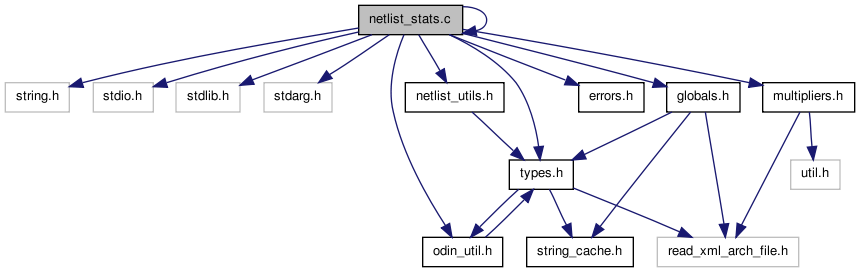

Include dependency graph for netlist_stats.c:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	depth_first_traverse_stats (FILE *out, short marker_value, netlist_t *netlist)
void	depth_first_traversal_graphcrunch_stats (nnode_t *node, FILE *fp, int traverse_mark_number)
void	display_per_node_stats (FILE *fp, netlist_t *netlist)
void	display_node_stats (FILE *fp, nnode_t *node)
void	calculate_avg_fanout (netlist_t *netlist)
void	calculate_avg_fanin (netlist_t *netlist)
int	num_fanouts_on_output_pin (nnode_t *node, int output_pin_idx)
void	add_to_distribution (int **distrib_ptr, int *distrib_size, int new_element)
void	calculate_combinational_shapes (netlist_t *netlist)
void	netlist_stats (netlist_t *netlist, char *path, char *name)

---

Function Documentation

void add_to_distribution	(	int **	distrib_ptr,
		int *	distrib_size,
		int	new_element
	)

Definition at line 434 of file netlist_stats.c.

{
        if (new_element < (*distrib_size))
        {
                /* IF - the distribution is already big enough */
                (*distrib_ptr)[new_element]++;
        }
        else
        {
                (*distrib_size)++;
                (*distrib_ptr) = (int*)realloc((*distrib_ptr), sizeof(int)*(new_element+1));
                (*distrib_ptr)[new_element]++;
        }
}

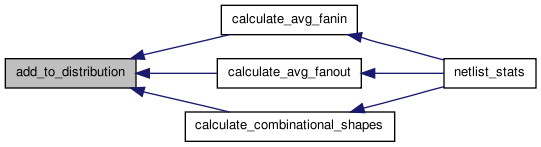

Here is the caller graph for this function:

void calculate_avg_fanin

(

netlist_t *

netlist

)

Definition at line 241 of file netlist_stats.c.

{
        int i;
        long fanin_total = 0;

        /* GND nnode_t *gnd_node;*/

        /* VCC nnode_t *vcc_node;*/

        /* PIs nnode_t** top_input_nodes;
        int num_top_input_nodes; */

        /* POs nnode_t** top_output_nodes;
        int num_top_output_nodes; */
        fanin_total += netlist->num_top_output_nodes;
        for (i = 0; i <  netlist->num_top_output_nodes; i++)
        {
                add_to_distribution(&netlist->stats->fanin_distribution, &netlist->stats->num_fanin_distribution, 1);
        }

        /* FFs nnode_t** ff_nodes;
        int num_ff_nodes; */
        fanin_total += netlist->num_ff_nodes;
        for (i = 0; i <  netlist->num_ff_nodes; i++)
        {
                add_to_distribution(&netlist->stats->fanin_distribution, &netlist->stats->num_fanin_distribution, 1);
        }

        /* COBINATIONAL nnode_t** internal_nodes;
        int num_internal_nodes; */
        for (i = 0; i < netlist->num_internal_nodes; i++)
        {
                fanin_total += netlist->internal_nodes[i]->num_input_pins;
                /* fanin is number of input pins */
                add_to_distribution(&netlist->stats->fanin_distribution, &netlist->stats->num_fanin_distribution, netlist->internal_nodes[i]->num_input_pins);
        }

        /* CLOCKS nnode_t** clocks;
        int num_clocks; */

        /* calculate the arithmetic average */
        netlist->stats->average_fanin = (float)(fanin_total)/(float)(netlist->num_top_output_nodes+netlist->num_ff_nodes+ netlist->num_internal_nodes);
        netlist->stats->num_edges_fi = fanin_total;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void calculate_avg_fanout

(

netlist_t *

netlist

)

Definition at line 163 of file netlist_stats.c.

{
        int i, j;
        long fanout_total = 0;
        long node_fanout;
        long output_pins_total = 0;

        /* GND nnode_t *gnd_node;*/

        /* VCC nnode_t *vcc_node;*/

        /* PIs nnode_t** top_input_nodes;
        int num_top_input_nodes; */
        for (i = 0; i < netlist->num_top_input_nodes; i++)
        {
                if (netlist->top_input_nodes[i]->type == CLOCK_NODE)
                        continue;

                for (j = 0; j < netlist->top_input_nodes[i]->num_output_pins; j++)
                {
                        node_fanout = num_fanouts_on_output_pin(netlist->top_input_nodes[i], j);
                        if (node_fanout > 0)
                        {
                                output_pins_total ++;
                                add_to_distribution(&netlist->stats->fanout_distribution, &netlist->stats->num_fanout_distribution, node_fanout);
                                fanout_total += node_fanout;
                        }
                }
        }

        /* POs nnode_t** top_output_nodes;
        int num_top_output_nodes; */

        /* FFs nnode_t** ff_nodes;
        int num_ff_nodes; */
        for (i = 0; i < netlist->num_ff_nodes; i++)
        {
                for (j = 0; j < netlist->ff_nodes[i]->num_output_pins; j++)
                {
                        node_fanout = num_fanouts_on_output_pin(netlist->ff_nodes[i], j);
                        if (node_fanout > 0)
                        {
                                output_pins_total ++;
                                add_to_distribution(&netlist->stats->fanout_distribution, &netlist->stats->num_fanout_distribution, node_fanout);
                                fanout_total += node_fanout;
                        }
                }
        }

        /* COBINATIONAL nnode_t** internal_nodes;
        int num_internal_nodes; */
        for (i = 0; i < netlist->num_internal_nodes; i++)
        {
                for (j = 0; j < netlist->internal_nodes[i]->num_output_pins; j++)
                {
                        node_fanout = num_fanouts_on_output_pin(netlist->internal_nodes[i], j);
                        if (node_fanout > 0)
                        {
                                output_pins_total ++;
                                add_to_distribution(&netlist->stats->fanout_distribution, &netlist->stats->num_fanout_distribution, node_fanout);
                                fanout_total += node_fanout;
                        }
                }
        }

        /* CLOCKS nnode_t** clocks;
        int num_clocks; */

        /* calculate the arithmetic average */
        netlist->stats->average_fanout = (float)(fanout_total)/(float)(output_pins_total);
        netlist->stats->num_edges_fo = fanout_total;
        netlist->stats->num_output_pins = output_pins_total;
        netlist->stats->average_output_pins_per_node = (float)output_pins_total/(float)(netlist->num_internal_nodes+netlist->num_ff_nodes+netlist->num_top_input_nodes);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void calculate_combinational_shapes

(

netlist_t *

netlist

)

Definition at line 292 of file netlist_stats.c.

{
        int i;

        netlist->stats->combinational_shape = (int **)malloc(sizeof(int*)*netlist->num_sequential_levels);
        netlist->stats->num_combinational_shape_for_sequential_level = (int *)malloc(sizeof(int)*netlist->num_sequential_levels);

        /* initializ the shape records */
        for (i = 0; i < netlist->num_sequential_levels; i++)
        {
                netlist->stats->num_combinational_shape_for_sequential_level = 0;
                netlist->stats->combinational_shape = NULL;
        }

        /* COBINATIONAL nnode_t** internal_nodes;
        int num_internal_nodes; */
        for (i = 0; i < netlist->num_internal_nodes; i++)
        {
                /* add the delay to the sequential level shape */
                add_to_distribution(&netlist->stats->combinational_shape[netlist->internal_nodes[i]->sequential_level], &netlist->stats->num_combinational_shape_for_sequential_level[netlist->internal_nodes[i]->sequential_level], netlist->internal_nodes[i]->forward_level);
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void depth_first_traversal_graphcrunch_stats	(	nnode_t *	node,
		FILE *	fp,
		int	traverse_mark_number
	)

Definition at line 340 of file netlist_stats.c.

{
        int i, j;
        nnode_t *next_node;
        nnet_t *next_net;

        if (node->traverse_visited == traverse_mark_number)
        {
                return;
        }
        else
        {
                /* ELSE - this is a new node so depth visit it */
                char *temp_string;
                char *temp_string2;

                /* mark that we have visitied this node now */
                node->traverse_visited = traverse_mark_number;

                for (i = 0; i < node->num_output_pins; i++)
                {
                        if (node->output_pins[i]->net == NULL)
                                continue;

                        next_net = node->output_pins[i]->net;
                        for (j = 0; j < next_net->num_fanout_pins; j++)
                        {
                                if (next_net->fanout_pins[j] == NULL)
                                        continue;

                                next_node = next_net->fanout_pins[j]->node;
                                if (next_node == NULL)
                                        continue;

                                //temp_string = make_string_based_on_id(node);
                                //temp_string2 = make_string_based_on_id(next_node);
                                temp_string = make_simple_name(node->name, "^-+.", '_');
                                temp_string2 = make_simple_name(next_node->name, "^-+.", '_');

                                if (node->type == OUTPUT_NODE)
                                {
                                        /* renaming for output nodes */
                                        temp_string = (char*)realloc(temp_string, sizeof(char)*strlen(temp_string)+1+2);
                                        sprintf(temp_string, "%s_O", temp_string);
                                }
                                if (next_node->type == OUTPUT_NODE)
                                {
                                        /* renaming for output nodes */
                                        temp_string2 = (char*)realloc(temp_string2, sizeof(char)*strlen(temp_string2)+1+2);
                                        sprintf(temp_string2, "%s_O", temp_string2);
                                }

                                fprintf(fp, "%s\t%s\n", temp_string, temp_string2);

                                free(temp_string);
                                free(temp_string2);

                                /* recursive call point */
                                depth_first_traversal_graphcrunch_stats(next_node, fp, traverse_mark_number);
                        }
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void depth_first_traverse_stats	(	FILE *	out,
		short	marker_value,
		netlist_t *	netlist
	)

Definition at line 318 of file netlist_stats.c.

{
        int i;

        /* start with the primary input list */
        for (i = 0; i < netlist->num_top_input_nodes; i++)
        {
                if (netlist->top_input_nodes[i] != NULL)
                {
                        depth_first_traversal_graphcrunch_stats(netlist->top_input_nodes[i], out, marker_value);
                }
        }
        /* now traverse the ground and vcc pins */
        if (netlist->gnd_node != NULL)
                depth_first_traversal_graphcrunch_stats(netlist->gnd_node, out, marker_value);
        if (netlist->vcc_node != NULL)
                depth_first_traversal_graphcrunch_stats(netlist->vcc_node, out, marker_value);
}

Here is the call graph for this function:

Here is the caller graph for this function:

void display_node_stats	(	FILE *	fp,
		nnode_t *	node
	)

Definition at line 154 of file netlist_stats.c.

{
        fprintf(fp, "Node name: %s -->", node->name);
        fprintf(fp, "inputs: %d; outputs: %d; delay: %d; backward_delay: %d; sequential_level: %d; is_seq_term: %d\n", node->num_input_pins, node->num_output_pins, node->forward_level, node->backward_level, node->sequential_level, node->sequential_terminator);
}

Here is the caller graph for this function:

void display_per_node_stats	(	FILE *	fp,
		netlist_t *	netlist
	)

Definition at line 91 of file netlist_stats.c.

{
        int i;

        /* GND nnode_t *gnd_node;*/
        fprintf(fp, "GND NODE");
        fprintf(fp, "gnd-----------------------------------------------------");
        display_node_stats(fp, netlist->gnd_node);

        /* VCC nnode_t *vcc_node;*/
        fprintf(fp, "VCC NODE");
        fprintf(fp, "vcc-----------------------------------------------------");
        display_node_stats(fp, netlist->vcc_node);

        /* PIs nnode_t** top_input_nodes;
        int num_top_input_nodes; */
        fprintf(fp, "PI NODEs");
        fprintf(fp, "pi-----------------------------------------------------");
        for (i = 0; i < netlist->num_top_input_nodes; i++)
        {
                display_node_stats(fp, netlist->top_input_nodes[i]);
        }

        /* POs nnode_t** top_output_nodes;
        int num_top_output_nodes; */
        fprintf(fp, "PO NODEs");
        fprintf(fp, "po-----------------------------------------------------");
        for (i = 0; i < netlist->num_top_output_nodes; i++)
        {
                display_node_stats(fp, netlist->top_output_nodes[i]);
        }

        /* FFs nnode_t** ff_nodes;
        int num_ff_nodes; */
        fprintf(fp, "FF NODEs");
        fprintf(fp, "ff-----------------------------------------------------");
        for (i = 0; i < netlist->num_ff_nodes; i++)
        {
                display_node_stats(fp, netlist->ff_nodes[i]);
        }

        /* COBINATIONAL nnode_t** internal_nodes;
        int num_internal_nodes; */
        fprintf(fp, "COMBO NODEs");
        fprintf(fp, "combo-----------------------------------------------------");
        for (i = 0; i < netlist->num_internal_nodes; i++)
        {
                display_node_stats(fp, netlist->internal_nodes[i]);
        }

        /* CLOCKS nnode_t** clocks;
        int num_clocks; */
        fprintf(fp, "CLOCK NODEs");
        fprintf(fp, "clock-----------------------------------------------------");
        for (i = 0; i < netlist->num_clocks; i++)
        {
                display_node_stats(fp, netlist->clocks[i]);
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void netlist_stats	(	netlist_t *	netlist,
		char *	path,
		char *	name
	)

Definition at line 50 of file netlist_stats.c.

{
        FILE *fp;
        char path_and_file[4096];

        /* open the file */
        sprintf(path_and_file, "%s/%s", path, name);
        fp = fopen(path_and_file, "w");

        /* allocate the stat structure */
        netlist->stats = (netlist_stats_t*)malloc(sizeof(netlist_stats_t));
        netlist->stats->fanin_distribution = NULL;
        netlist->stats->num_fanin_distribution = 0;
        netlist->stats->fanout_distribution = NULL;
        netlist->stats->num_fanout_distribution = 0;

        /* collect high-lelve stats */
        netlist->stats->num_inputs = netlist->num_top_input_nodes;
        netlist->stats->num_outputs = netlist->num_top_output_nodes;
        netlist->stats->num_ff_nodes = netlist->num_ff_nodes;
        netlist->stats->num_logic_nodes = netlist->num_internal_nodes;
        netlist->stats->num_nodes = netlist->stats->num_inputs + netlist->stats->num_outputs + netlist->stats->num_ff_nodes + netlist->stats->num_logic_nodes;

        /* calculate the average fanout */
        calculate_avg_fanout(netlist);
        /* calculate the average fanin */
        calculate_avg_fanin(netlist);
        /* calculate combinational shape of each sequential level */
        calculate_combinational_shapes(netlist);

        /* traverse the netlist looking for the stats */
        depth_first_traverse_stats(fp, STATS, netlist);

        display_per_node_stats(fp, netlist);

        fclose(fp);
}

Here is the call graph for this function:

int num_fanouts_on_output_pin	(	nnode_t *	node,
		int	output_pin_idx
	)

Definition at line 407 of file netlist_stats.c.

{
        nnet_t *next_net;
        int return_value = 0;
        int j;

        if (node->output_pins[output_pin_idx]->net == NULL)
                return 0;

        next_net = node->output_pins[output_pin_idx]->net;
        for (j = 0; j < next_net->num_fanout_pins; j++)
        {
                if (next_net->fanout_pins[j] == NULL)
                        continue;

                if (next_net->fanout_pins[j]->node == NULL)
                        continue;

                return_value++;
        }

        return return_value;
}

Here is the caller graph for this function:
