activity_estimation.c File Reference

#include <string.h>
#include <stdio.h>
#include <stdlib.h>
#include "types.h"
#include "types.h"
#include "read_xml_arch_file.h"
#include "string_cache.h"
#include "odin_util.h"
#include "util.h"

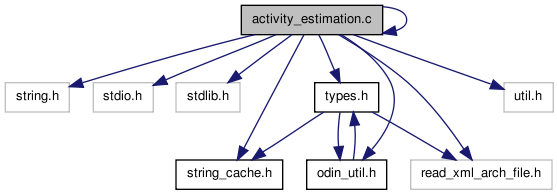

Include dependency graph for activity_estimation.c:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	DEFAULT_STATIC_PROBABILITY   .5
#define	DEFAULT_TRANSITION_DENSITY   .5
#define	ACT_NUM_ITER   3
#define	activation_t   struct activation_t_t
Functions
void	initialize_probabilities (char *input_file, netlist_t *netlist)
void	calc_transition_density (netlist_t *netlist)
void	calc_probabilities_and_init_act_data (netlist_t *netlist)
short *	boolean_difference (nnode_t *node, int variable_spot)
double	calc_density (nnode_t *node, int variable_spot, short *boolean_difference)
void	output_activation_file_ace_and_function_file (char *output_filename, int lut_size, netlist_t *LUT_netlist, netlist_t *CLUSTER_netlist)
void	cleanup_activation (netlist_t *netlist)
void	activity_estimation (char *input_filename, char *output_filename, int lut_size, netlist_t *LUT_netlist, netlist_t *CLUSTER_netlist)

---

Define Documentation

#define ACT_NUM_ITER   3

Definition at line 40 of file activity_estimation.c.

#define activation_t   struct activation_t_t

Definition at line 42 of file activity_estimation.c.

#define DEFAULT_STATIC_PROBABILITY   .5

Definition at line 37 of file activity_estimation.c.

#define DEFAULT_TRANSITION_DENSITY   .5

Definition at line 38 of file activity_estimation.c.

---

Function Documentation

void activity_estimation	(	char *	input_filename,
		char *	output_filename,
		int	lut_size,
		netlist_t *	LUT_netlist,
		netlist_t *	CLUSTER_netlist
	)

Definition at line 61 of file activity_estimation.c.

{
        /* levelize the graph. Note, can't levelize the ClUSTER_netlist since there are loops */
        levelize_and_check_for_combinational_loop_and_liveness(FALSE, LUT_netlist);

        /* initializes the data structures and the PI */
        initialize_probabilities(input_filename, LUT_netlist);

        /* Calculate the probabilities for each of the nodes in the LUT_netlist */
        calc_probabilities_and_init_act_data(LUT_netlist);

        /* calculate the transition density for each node */
        calc_transition_density(LUT_netlist);

        /* Output file with the transition densities */
        output_activation_file_ace_and_function_file(output_filename, lut_size, LUT_netlist, CLUSTER_netlist);

        /* cleanup the data structures so we can use node_data in another algorithm */
        cleanup_activation(LUT_netlist);

        /* Path is where we are */
//      graphVizOutputNetlist(configuration.debug_output_path, "blif", 1, blif_gnd_node, blif_vcc_node, blif_input_nodes, num_blif_input_nodes);
}

Here is the call graph for this function:

short * boolean_difference	(	nnode_t *	node,
		int	variable_spot
	)

Definition at line 393 of file activity_estimation.c.

{
        int i, l;
        short *return_function;
        int function_size;
        long long skip_size = 1 << variable_spot;
        int index;

        oassert(node->num_input_pins < sizeof (long long int)*8);
        oassert(node->associated_function != NULL);
        oassert(node->num_input_pins > 1);

        /* calculate the size of the boolean difference */
        function_size = pow2(node->num_input_pins-1);

        return_function = (short*)calloc(sizeof(short), function_size);

        for (i = 0; i < function_size; i++)
        {
                long long int place = 1;
                long long int index_plus = 1;
                index = 0;

                /* IF - this function value is on then calculate the probability */
                for (l = 0; l < node->num_input_pins-1; l++)
                {
                        /* move the bit collumn */
                        if (l == variable_spot)
                        {
                                index_plus = index_plus << 1;
                        }

                        if ((i & place) > 0) // if this bit is high
                        {
                                index += index_plus;
                        }

                        place = place << 1;
                        index_plus = index_plus << 1;
                }

                /* do the boolean xor of this element */
                return_function[i] = node->associated_function[index] ^ node->associated_function[index+skip_size];
        }

        return return_function;
}

Here is the call graph for this function:

Here is the caller graph for this function:

double calc_density	(	nnode_t *	node,
		int	variable_spot,
		short *	boolean_difference
	)

Definition at line 444 of file activity_estimation.c.

{
        int i, l;
        int function_size;
        double totalProb = 0;
        double input_density;

        oassert(node->num_input_pins < sizeof (long long int)*8);

        if ((node->input_pins[variable_spot] != NULL) && (node->input_pins[variable_spot]->net->driver_pin != NULL) && (node->input_pins[variable_spot]->net->driver_pin->node != NULL))
        {
                nnode_t *input_node = node->input_pins[variable_spot]->net->driver_pin->node;
                int input_node_pin = node->input_pins[variable_spot]->net->driver_pin->pin_node_idx;
                activation_t *input_data = (activation_t*)input_node->node_data;
                oassert(input_node->unique_node_data_id == ACTIVATION);

                input_density = input_data->transition_density[input_node_pin];
        }
        else
        {
                oassert(FALSE);
        }

        /* calculate the size of the boolean difference */
        function_size = pow2(node->num_input_pins-1);

        for (i = 0; i < function_size; i++)
        {
                long long int place = 1;
                double probVal = 1;
                int index = -1;

                if (boolean_difference[i] == 1)
                {
                        /* IF - this function value is on then calculate the probability */
                        for (l = 0; l < node->num_input_pins-1; l++)
                        {
                                nnode_t *input_node;
                                activation_t *input_data;
                                int input_node_pin;

                                /* move the bit collumn */
                                if (l == variable_spot)
                                {
                                        /* skip this one */
                                        index += 2;
                                }
                                else
                                {
                                        index ++;
                                }

                                input_node = node->input_pins[index]->net->driver_pin->node;
                                input_node_pin = node->input_pins[index]->net->driver_pin->pin_node_idx;
                                input_data = (activation_t*)input_node->node_data;
                                oassert(input_node->unique_node_data_id == ACTIVATION);

                                if ((i & place) > 0) // if this bit is high
                                {
                                        probVal = probVal * input_data->static_probability[input_node_pin];
                                }
                                else
                                {
                                        probVal = probVal * (1-input_data->static_probability[input_node_pin]);
                                }

                                place = place << 1;
                        }
                        totalProb += probVal;
                }
        }

        oassert(totalProb <= 1.1);
        if (totalProb > 1)
                totalProb = 1; // for rounding errors

//      oassert(totalProb * input_density < 1);
        return totalProb * input_density;
}

Here is the call graph for this function:

Here is the caller graph for this function:

void calc_probabilities_and_init_act_data

(

netlist_t *

netlist

)

Definition at line 275 of file activity_estimation.c.

{
        int i, j, k, l, rep;
        activation_t *act_data;

        for (rep = 0; rep < ACT_NUM_ITER; rep++)
        {
                /* progress from the primary inputs (in the forward level 0) to each stage */
                for (i = 0; i < netlist->num_forward_levels; i++)
                {
                        for (j = 0; j < netlist->num_at_forward_level[i]; j++)
                        {
                                /* initialize the activation data */
                                nnode_t *current_node = netlist->forward_levels[i][j];
                                act_data = (activation_t*)current_node->node_data;

                                /* All other levels we pass through the probabilities and calculate Transition prbability for the DEnsity calculation */
                                if (current_node->type == BLIF_FUNCTION)
                                {
                                        double totalProb = 0;
                                        int function_size = pow2(current_node->num_input_pins);

                                        if (rep == 0)
                                        {
                                                /* only one output */
                                                act_data->static_probability = (double*)malloc(sizeof(double));
                                        }

                                        for (k = 0; k < function_size; k++)
                                        {
                                                long long int place = 1;
                                                double probVal = 1;

                                                if (current_node->associated_function[k] == 1)
                                                {
                                                        /* IF - this function value is on then calculate the probability */
                                                        for (l = 0; l < current_node->num_input_pins; l++)
                                                        {
                                                                nnode_t *input_node = current_node->input_pins[l]->net->driver_pin->node;
                                                                int input_node_pin = current_node->input_pins[l]->net->driver_pin->pin_node_idx;
                                                                activation_t *input_data = (activation_t*)input_node->node_data;
                                                                oassert(input_node->unique_node_data_id == ACTIVATION);

                                                                if ((k & place) > 0) // if this bit is high
                                                                {
                                                                        probVal = probVal * input_data->static_probability[input_node_pin];
                                                                }
                                                                else
                                                                {
                                                                        probVal = probVal * (1-input_data->static_probability[input_node_pin]);
                                                                }
                                                                /* move the bit collumn */
                                                                place = place << 1;
                                                        }

                                                        totalProb += probVal;
                                                }

                                        }
                                        /* store the total probability */
                                        act_data->static_probability[0] = totalProb;
                                }
                                else if (current_node->type == FF_NODE)
                                {
                                        if (rep != 0)
                                        {
                                                /* ONLY do calculations after first repetition */
                                                nnode_t *input_node = current_node->input_pins[0]->net->driver_pin->node;
                                                int input_node_pin = current_node->input_pins[0]->net->driver_pin->pin_node_idx;
                                                activation_t *input_data = (activation_t*)input_node->node_data;
                                                oassert(input_node->unique_node_data_id == ACTIVATION);

                                                act_data->static_probability[0] = input_data->static_probability[input_node_pin];
                                        }
                                }
                                else if (current_node->type == OUTPUT_NODE)
                                {
                                        nnode_t *input_node = current_node->input_pins[0]->net->driver_pin->node;
                                        int input_node_pin = current_node->input_pins[0]->net->driver_pin->pin_node_idx;
                                        activation_t *input_data = (activation_t*)input_node->node_data;
                                        oassert(input_node->unique_node_data_id == ACTIVATION);

                                        if (rep == 0)
                                        {
                                                /* only one output */
                                                act_data->static_probability = (double*)malloc(sizeof(double));
                                        }

                                        act_data->static_probability[0] = input_data->static_probability[input_node_pin];
                                }
                                else if ((current_node->type == INPUT_NODE) || (current_node->type == VCC_NODE) || (current_node->type == GND_NODE))
                                {
                                        oassert(current_node->unique_node_data_id == ACTIVATION);
                                        continue; // skip transition probability calculation
                                }
                                else
                                {
                                        oassert(FALSE);
                                }

                                if (rep == 0)
                                {
                                        /* calculate transition probability */
                                        act_data->transition_probability = (double*)malloc(sizeof(double)*current_node->num_output_pins);
                                }

                                for (k = 0; k < current_node->num_output_pins; k++)
                                {
                                        act_data->transition_probability[k] = 2 * (act_data->static_probability[k] * (1-act_data->static_probability[k]));
                                }
                        }
                }
        }
}

Here is the call graph for this function:

Here is the caller graph for this function:

void calc_transition_density

(

netlist_t *

netlist

)

Definition at line 88 of file activity_estimation.c.

{
        int i, j, m;
        activation_t *act_data;

        /* progress from the primary inputs (in the forward level 0) to each stage */
        for (i = 0; i < netlist->num_forward_levels; i++)
        {
                for (j = 0; j < netlist->num_at_forward_level[i]; j++)
                {
                        /* initialize the activation data */
                        nnode_t *current_node = netlist->forward_levels[i][j];
                        act_data = (activation_t*)current_node->node_data;

                        /* All other levels we pass through the probabilities and calculate Transition prbability for the DEnsity calculation */
                        if (current_node->type == BLIF_FUNCTION)
                        {
                                /* only one output */
                                act_data->transition_density = (double*)malloc(sizeof(double)); // only one output

                                if (current_node->num_input_pins == 1)
                                {
                                        /* If this is a Constant, NOT or a BUFFER then the transition density is easy to calculate */
                                        nnode_t *input_node = current_node->input_pins[0]->net->driver_pin->node;
                                        int input_node_pin = current_node->input_pins[0]->net->driver_pin->pin_node_idx;
                                        activation_t *input_data = (activation_t*)input_node->node_data;
                                        oassert(input_node->unique_node_data_id == ACTIVATION);

                                        if ((current_node->associated_function[0] == 0) && (current_node->associated_function[1] == 0))
                                                /* CONSTANT 0 */
                                                act_data->transition_density[0] = 0;
                                        if ((current_node->associated_function[0] == 0) && (current_node->associated_function[1] == 1))
                                                /* BUFFER */
                                                act_data->transition_density[0] = input_data->transition_density[input_node_pin];
                                        if ((current_node->associated_function[0] == 1) && (current_node->associated_function[1] == 0))
                                                /* NOT */
                                                act_data->transition_density[0] = input_data->transition_density[input_node_pin];
                                        if ((current_node->associated_function[0] == 1) && (current_node->associated_function[1] == 1))
                                                /* CONSTANT 1 */
                                                act_data->transition_density[0] = 0;
                                }
                                else
                                {
                                        double density_val = 0.0;

                                        /* calculate the transition densities sumof(D(y)*P(boolean_diff, y) */
                                        for (m = 0; m < current_node->num_input_pins; m++)
                                        {
                                                short *boolean_difference_function;

                                                /* calculate hte boolean difference */
                                                boolean_difference_function = boolean_difference(current_node, m);

                                                /* now calculate the denisty of this input ... sum of */
                                                density_val = density_val + calc_density(current_node, m, boolean_difference_function);

                                                /* free the array */
                                                free(boolean_difference_function);
                                        }

                                        act_data->transition_density[0] = density_val;
                                }
                        }
                        else if (current_node->type == FF_NODE)
                        {
                                nnode_t *input_node = current_node->input_pins[0]->net->driver_pin->node;
                                int input_node_pin = current_node->input_pins[0]->net->driver_pin->pin_node_idx;
                                activation_t *input_data = (activation_t*)input_node->node_data;
                                oassert(input_node->unique_node_data_id == ACTIVATION);

                                /* just store since allocated in the initialization */
                                act_data->transition_density = (double*)malloc(sizeof(double));
                                act_data->transition_density[0] = 2 * (input_data->static_probability[input_node_pin] * (1-input_data->static_probability[input_node_pin]));
                        }
                        else if (current_node->type == OUTPUT_NODE)
                        {
                                nnode_t *input_node = current_node->input_pins[0]->net->driver_pin->node;
                                int input_node_pin = current_node->input_pins[0]->net->driver_pin->pin_node_idx;
                                activation_t *input_data = (activation_t*)input_node->node_data;
                                oassert(input_node->unique_node_data_id == ACTIVATION);

                                /* allocate and stre through */
                                act_data->transition_density = (double*)malloc(sizeof(double));
                                act_data->transition_density[0] = input_data->static_probability[input_node_pin];
                        }
                        else if ((current_node->type == INPUT_NODE) || (current_node->type == VCC_NODE) || (current_node->type == GND_NODE))
                        {
                                oassert(current_node->unique_node_data_id == ACTIVATION);
                        }
                        else
                        {
                                oassert(FALSE);
                        }
                }
        }
}

Here is the call graph for this function:

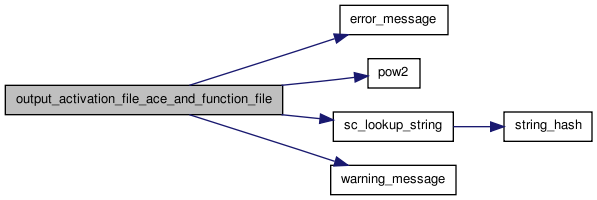

Here is the caller graph for this function:

void cleanup_activation

(

netlist_t *

netlist

)

Definition at line 852 of file activity_estimation.c.

{
        int i, j;

        for (i = 0; i < netlist->num_forward_levels; i++)
        {
                for (j = 0; j < netlist->num_at_forward_level[i]; j++)
                {
                        /* initialize the activation data */
                        nnode_t *current_node = netlist->forward_levels[i][j];
                        activation_t *act_data = (activation_t*)current_node->node_data;
                        oassert(act_data != NULL);

                        if (act_data->static_probability != NULL)
                                free(act_data->static_probability);
                        if (act_data->transition_density != NULL)
                                free(act_data->transition_density);
                        if (act_data->transition_probability != NULL)
                                free(act_data->transition_probability);

                        free(act_data);
                        current_node->unique_node_data_id = RESET;
                }
        }
}

Here is the caller graph for this function:

void initialize_probabilities	(	char *	input_file,
		netlist_t *	netlist
	)

Definition at line 188 of file activity_estimation.c.

{
        int i, j;
        activation_t *act_data;

        for (i = 0; i < netlist->num_forward_levels; i++)
        {
                for (j = 0; j < netlist->num_at_forward_level[i]; j++)
                {
                        /* initialize the activation data */
                        nnode_t *current_node = netlist->forward_levels[i][j];
                        oassert(current_node->unique_node_data_id == RESET);

                        current_node->unique_node_data_id = ACTIVATION;
                        act_data = (activation_t*)malloc(sizeof(activation_t));
                        current_node->node_data = (void*)act_data;

                        if (current_node->type == INPUT_NODE)
                        {
                                oassert(i == 0);
                                /* IF - PI and FFs, then we set their probability */
                                if (input_file != NULL)
                                {
                                        /* READ input probabilities */
                                        oassert(FALSE);

                                        /* READ in the input file */

                                        /* exit since all read */
                                        i = netlist->num_forward_levels;
                                }
                                else
                                {
                                        /* initialize all the initial probabilities */
                                        act_data->static_probability = (double*)malloc(sizeof(double));
                                        act_data->transition_probability = (double*)malloc(sizeof(double));
                                        act_data->transition_density = (double*)malloc(sizeof(double));

                                        act_data->static_probability[0] = DEFAULT_STATIC_PROBABILITY;
                                        act_data->transition_probability[0] = -1;
                                        act_data->transition_density[0] = DEFAULT_TRANSITION_DENSITY;
                                }
                        }
                        else if (current_node->type == GND_NODE)
                        {
                                /* initialize all the initial probabilities */
                                act_data->static_probability = (double*)malloc(sizeof(double));
                                act_data->transition_probability = (double*)malloc(sizeof(double));
                                act_data->transition_density = (double*)malloc(sizeof(double));

                                act_data->static_probability[0] = 0.0;
                                act_data->transition_probability[0] = -1;
                                act_data->transition_density[0] = 0;

                        }
                        else if (current_node->type == VCC_NODE)
                        {
                                /* initialize all the initial probabilities */
                                act_data->static_probability = (double*)malloc(sizeof(double));
                                act_data->transition_probability = (double*)malloc(sizeof(double));
                                act_data->transition_density = (double*)malloc(sizeof(double));

                                act_data->static_probability[0] = 1.0;
                                act_data->transition_probability[0] = -1;
                                act_data->transition_density[0] = 0;

                        }
                        else if (current_node->type == FF_NODE)
                        {
                                /* initialize all the initial probabilities */
                                act_data->static_probability = (double*)malloc(sizeof(double));
                                act_data->transition_probability = (double*)malloc(sizeof(double));
                                act_data->transition_density = (double*)malloc(sizeof(double));

                                act_data->static_probability[0] = DEFAULT_STATIC_PROBABILITY;
                                act_data->transition_probability[0] = -1;
                                act_data->transition_density[0] = -1;
                        }
                }
        }
}

Here is the caller graph for this function:

void output_activation_file_ace_and_function_file	(	char *	output_filename,
		int	lut_size,
		netlist_t *	LUT_netlist,
		netlist_t *	CLUSTER_netlist
	)

Definition at line 531 of file activity_estimation.c.

{
        char *ace_file_name = (char*)malloc(sizeof(char)*(strlen(output_filename)+4+1));
        char *ac2_file_name = (char*)malloc(sizeof(char)*(strlen(output_filename)+4+1));
        char *function_file_name = (char*)malloc(sizeof(char)*(strlen(output_filename)+4+1));
        int i, j, k, l;
        FILE *ace_out;
        FILE *ac2_out;
        FILE *function_out;
        long sc_spot;
        nnode_t *lut_node;
        activation_t *act_data;

        sprintf(ace_file_name, "%s.ace", output_filename);
        sprintf(ac2_file_name, "%s.ac2", output_filename);
        sprintf(function_file_name, "%s.fun", output_filename);

        ace_out = fopen(ace_file_name, "w");
        if (ace_out == NULL)
        {
                error_message(ACTIVATION_ERROR, -1, -1, "Could not open output file %s\n", ace_file_name);
        }
        ac2_out = fopen(ac2_file_name, "w");
        if (ac2_out == NULL)
        {
                error_message(ACTIVATION_ERROR, -1, -1, "Could not open output file %s\n", ac2_file_name);
        }
        function_out = fopen(function_file_name, "w");
        if (function_out == NULL)
        {
                error_message(ACTIVATION_ERROR, -1, -1, "Could not open output file %s\n", function_file_name);
        }

        /* Go through the LUT netlist and print out the ace files */
        for (i = 0; i < LUT_netlist->num_forward_levels; i++)
        {
                for (j = 0; j < LUT_netlist->num_at_forward_level[i]; j++)
                {
                        /* initialize the activation data */
                        nnode_t *current_node = LUT_netlist->forward_levels[i][j];
                        activation_t *act_data = (activation_t*)current_node->node_data;

                        if (current_node->type != OUTPUT_NODE)
                        {
                                for (k = 0; k < current_node->num_output_pins; k++)
                                {
                                        if (current_node->output_pins[0]->net->num_fanout_pins != 0)
                                        {
                                                /* IF this node fans out */
                                                fprintf(ace_out, "%s %f %f\n", current_node->name, act_data->static_probability[k], act_data->transition_density[k]);
                                        }
                                }
                        }
                        else
                        {
                                fprintf(ace_out, "out:%s %f %f\n", current_node->name, act_data->static_probability[0], act_data->transition_density[0]);
                        }
                }
        }

        fclose(ace_out);

        /* now create the ac2 file and function file */

        /* first we spit out the clocks */
        for (i = 0; i < CLUSTER_netlist->num_clocks; i++)
        {
                nnode_t *cluster_node = CLUSTER_netlist->clocks[i];
                fprintf (ac2_out, "global_net_probability %s 0.5\n", cluster_node->name);
                fprintf (ac2_out, "global_net_density %s 2.0\n", cluster_node->name);
        }

        /* next we make the intercluster probabilities for inputs */
        for (i = 0; i < CLUSTER_netlist->num_top_input_nodes; i++)
        {
                nnode_t *cluster_node = CLUSTER_netlist->top_input_nodes[i];

                if (cluster_node->type == CLOCK_NODE)
                {
                        continue;
                }

                /* find the equivalent blif point */
                if ((sc_spot = sc_lookup_string(LUT_netlist->nodes_sc, cluster_node->name)) == -1)
                {
                        warning_message(ACTIVATION_ERROR, -1, -1, "Could not find %s INPUT in LUT netlist ...\n", cluster_node->name);
                        continue;
                }
                lut_node = (nnode_t *)LUT_netlist->nodes_sc->data[sc_spot];
                act_data = (activation_t*)lut_node->node_data;

                oassert(lut_node->num_output_pins == 1); /* assumption now, but will change with heterognenous blocks */
                fprintf (ac2_out, "intercluster_net_probability %s %f\n", cluster_node->name, act_data->static_probability[0]);
                fprintf (ac2_out, "intercluster_net_density %s %f\n", cluster_node->name, act_data->transition_density[0]);
        }

        /* next we make the intercluster probabilities for inputs */
        for (i = 0; i < CLUSTER_netlist->num_top_output_nodes; i++)
        {
                nnode_t *cluster_node = CLUSTER_netlist->top_output_nodes[i];

                /* find the equivalent blif point */
                if ((sc_spot = sc_lookup_string(LUT_netlist->nodes_sc, cluster_node->name)) == -1)
                {
                        warning_message(ACTIVATION_ERROR, -1, -1, "Could not find %s OUTPUT in LUT netlist ...\n", cluster_node->name);
                        continue;
                }
                lut_node = (nnode_t *)LUT_netlist->nodes_sc->data[sc_spot];
                act_data = (activation_t*)lut_node->node_data;

                oassert(lut_node->num_output_pins == 0); /* assumption now, but will change with heterognenous blocks */
                fprintf (ac2_out, "intercluster_net_probability %s %f\n", (cluster_node->name+4), act_data->static_probability[0]); /* +4 to skip "out:" that isn't needed in output */
                fprintf (ac2_out, "intercluster_net_density %s %f\n", (cluster_node->name+4), act_data->transition_density[0]);
        }

        /* next we make the intercluster probabilities */
        for (i = 0; i < CLUSTER_netlist->num_internal_nodes; i++)
        {
                nnode_t *cluster_node = CLUSTER_netlist->internal_nodes[i];
                netlist_t* internal_subblocks = cluster_node->internal_netlist;

                if (internal_subblocks == NULL)
                {
                        /* INPUT/OUTPUT pins and globals (clocks) have no subblocks */
                        continue;
                }

                /* now we process the internal structure of the node, which represents the subblocks.  This is stored in an internall netlist. */
                for (k = 0; k < internal_subblocks->num_internal_nodes; k++)
                {
                        nnode_t *current_subblock = internal_subblocks->internal_nodes[k];
                        char *output_search_name = (char*)malloc(sizeof(char)*(strlen(current_subblock->name)+1+4));
                        sprintf(output_search_name, "out:%s", current_subblock->name);

                        if ((sc_spot = sc_lookup_string(internal_subblocks->nodes_sc, output_search_name)) != -1)
                        {
                                /* IF - this is an output of the cluster then we need inter cluster info */

                                /* now find this node */
                                /* find the equivalent blif point */
                                if ((sc_spot = sc_lookup_string(LUT_netlist->nodes_sc, current_subblock->name)) == -1)
                                {
                                        error_message(ACTIVATION_ERROR, -1, -1, "Could not find %s in LUT netlist ...\n", current_subblock->name);
                                }
                                lut_node = (nnode_t *)LUT_netlist->nodes_sc->data[sc_spot];
                                act_data = (activation_t*)lut_node->node_data;

                                /* Finally, put in th output switching values */
                                fprintf (ac2_out, "intercluster_net_probability %s %f\n", current_subblock->name, act_data->static_probability[0]);
                                fprintf (ac2_out, "intercluster_net_density %s %f\n", current_subblock->name, act_data->transition_density[0]);
                        }

                        free(output_search_name);
                }
        }

        /* next we process the subblocks */
        for (i = 0; i < CLUSTER_netlist->num_internal_nodes; i++)
        {
                nnode_t *cluster_node = CLUSTER_netlist->internal_nodes[i];
                netlist_t* internal_subblocks = cluster_node->internal_netlist;

                if (internal_subblocks == NULL)
                {
                        /* INPUT/OUTPUT pins and globals (clocks) have no subblocks */
                        oassert(FALSE);
                        continue;
                }

                /* now we process the internal structure of the node, which represents the subblocks.  This is stored in an internall netlist. */
                for (k = 0; k < internal_subblocks->num_internal_nodes; k++)
                {
                        nnode_t *current_subblock = internal_subblocks->internal_nodes[k];
                        char probability_string[4096];
                        char density_string[4096];
                        int input_active_count = 0;
                        short is_clock = FALSE;
                        int input_index = 0;

                        sprintf(probability_string, "subblock_probability %s", current_subblock->name);
                        sprintf(density_string, "subblock_density %s", current_subblock->name);

                        /* first get all the input values */
                        for (l = 0; l < lut_size+1; l++)
                        {
                                if (current_subblock->input_pins[input_index] != NULL)
                                {
                                        nnode_t *input_node = current_subblock->input_pins[input_index]->net->driver_pin->node;

                                        /* find the equivalent blif point */
                                        if ((sc_spot = sc_lookup_string(LUT_netlist->nodes_sc, input_node->name)) == -1)
                                        {
                                                error_message(ACTIVATION_ERROR, -1, -1, "Could not find %s in LUT netlist ...\n", input_node->name);
                                        }
                                        lut_node = (nnode_t *)LUT_netlist->nodes_sc->data[sc_spot];
                                        act_data = (activation_t*)lut_node->node_data;

                                        if (lut_node->type == CLOCK_NODE)
                                        {
                                                /* IF - the clock spot */
                                                if (l == lut_size)
                                                {
                                                        /* only print it out if this is the last spot */
                                                        sprintf(probability_string, "%s %f", probability_string, act_data->static_probability[0]);
                                                        sprintf(density_string, "%s %f", density_string,  act_data->transition_density[0]);
                                                        is_clock = TRUE;
                                                }
                                                else
                                                {
                                                        sprintf(probability_string, "%s 0.0", probability_string);
                                                        sprintf(density_string, "%s 0.0", density_string);
                                                }
                                        }
                                        else
                                        {
                                                sprintf(probability_string, "%s %f", probability_string, act_data->static_probability[0]);
                                                sprintf(density_string, "%s %f", density_string,  act_data->transition_density[0]);

                                                input_index++;
                                        }

                                        input_active_count ++;
                                }
                                else
                                {
                                        /* No connection to this input */
                                        sprintf(probability_string, "%s 0.0", probability_string);
                                        sprintf(density_string, "%s 0.0", density_string);
                                }
                        }

                        if (is_clock == FALSE)
                        {
                                /* IF - there is no clock meaning this is just a LUT, output the probabilities */
                                sprintf(probability_string, "%s 0.0", probability_string);
                                sprintf(density_string, "%s 0.0", density_string);
                        }

                        /* now find this node */
                        /* find the equivalent blif point */
                        if ((sc_spot = sc_lookup_string(LUT_netlist->nodes_sc, current_subblock->name)) == -1)
                        {
                                error_message(ACTIVATION_ERROR, -1, -1, "Could not find %s in LUT netlist ...\n", current_subblock->name);
                        }
                        lut_node = (nnode_t *)LUT_netlist->nodes_sc->data[sc_spot];
                        act_data = (activation_t*)lut_node->node_data;

                        /* find the values of the switching between LUT and FF */
                        if ((lut_node->type == FF_NODE) && (input_active_count > 0))
                        {
                                /* LUT + FF */
                                /* IF - this is a FF node and has more than 1 input, then it's a LUT-FF */
                                activation_t *input_node_to_ff_act_data = (activation_t *)lut_node->input_pins[0]->net->driver_pin->node->node_data;
                                sprintf(probability_string, "%s %f", probability_string, input_node_to_ff_act_data->static_probability[0]);
                                sprintf(density_string, "%s %f", density_string,  input_node_to_ff_act_data->transition_density[0]);

                                /* print out the function of this node based on it's inputs function */
                                oassert (lut_node->input_pins[0]->net->driver_pin->node->associated_function != NULL)
                                fprintf(function_out, "subblock_function %s ", lut_node->name);

                                for (l = 0; l < pow2(lut_size); l++)
                                {
                                        fprintf(function_out, "%d", lut_node->input_pins[0]->net->driver_pin->node->associated_function[l]);
                                }

                                fprintf(function_out, "\n");
                        }
                        else if (lut_node->type == FF_NODE)
                        {
                                /* FF */
                                /* ELSE - this is a FF_NODE only */
                                sprintf(probability_string, "%s 0.0", probability_string);
                                sprintf(density_string, "%s 0.0", density_string);

                                /* output function is just a buffer since this is just a FF */
                                fprintf(function_out, "subblock_function %s ", lut_node->name);
                                for (l = 0; l < pow2(lut_size); l++)
                                {
                                        if (l % 2 == 0)
                                        {
                                                fprintf(function_out, "0");
                                        }
                                        else
                                        {
                                                fprintf(function_out, "1");
                                        }
                                }
                                fprintf(function_out, "\n");
                        }
                        else
                        {
                                /* LUT */
                                /* print out the function of this node based on it's just a LUT */
                                oassert (lut_node->associated_function != NULL)
                                fprintf(function_out, "subblock_function %s ", lut_node->name);

                                for (l = 0; l < pow2(lut_size); l++)
                                {
                                        fprintf(function_out, "%d", lut_node->associated_function[l]);
                                }

                                fprintf(function_out, "\n");
                        }

                        /* Finally, put in th output switching values */
                        sprintf(probability_string, "%s %f", probability_string, act_data->static_probability[0]);
                        sprintf(density_string, "%s %f", density_string,  act_data->transition_density[0]);

                        /* output the values created for the subblock */
                        fprintf(ac2_out, "%s\n", probability_string);
                        fprintf(ac2_out, "%s\n", density_string);
                }
        }

        fclose(function_out);
        fclose(ac2_out);
}

Here is the call graph for this function:

Here is the caller graph for this function:
