ns3::PLC_HalfDuplexOfdmPhy Class Reference

Base class for half duplex OFDM PHY devices. More...

#include <plc-phy.h>

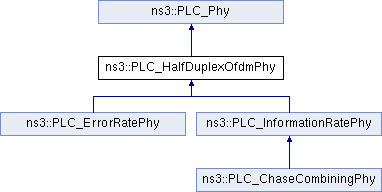

Inheritance diagram for ns3::PLC_HalfDuplexOfdmPhy:

List of all members.

Public Types
enum	State { IDLE, TX, RX }
Public Member Functions
	PLC_HalfDuplexOfdmPhy ()
void	CreateInterfaces (Ptr< PLC_Outlet > outlet, Ptr< SpectrumValue > txPsd, Ptr< PLC_Impedance > rxImpedance=0, Ptr< PLC_Impedance > txImpedance=0)
Ptr< PLC_Outlet >	GetOutlet (void)
void	SetTxPowerSpectralDensity (Ptr< SpectrumValue > txPsd)
Ptr< const SpectrumValue >	GetTxPowerSpectralDensity (void)
Ptr< PLC_TxInterface >	GetTxInterface (void)
Ptr< PLC_RxInterface >	GetRxInterface (void)
void	SetShuntImpedance (Ptr< PLC_Impedance > shuntImpedance)
void	SetRxImpedance (Ptr< PLC_Impedance > rxImpedance)
void	SetTxImpedance (Ptr< PLC_Impedance > txImpedance)
Ptr< PLC_Impedance >	GetShuntImpedance (void)
Ptr< PLC_Impedance >	GetRxImpedance (void)
Ptr< PLC_Impedance >	GetTxImpedance (void)
void	SetNoiseFloor (Ptr< const SpectrumValue > noiseFloor)
void	CcaRequest (void)
void	CancelCca (void)
void	EndCca (void)
void	SetCcaConfirmCallback (PLC_PhyCcaConfirmCallback c)
void	ChangeState (State newState)
State	GetState (void)
bool	IsBusy (void)
Static Public Member Functions
static TypeId	GetTypeId (void)
static void	SetGuardIntervalDuration (Time duration)
static Time	GetGuardIntervalDuration (void)
Protected Member Functions
virtual void	DoStart (void)
virtual void	DoDispose (void)
virtual void	DoSetNoiseFloor (Ptr< const SpectrumValue > noiseFloor)=0
virtual PLC_ChannelTransferImpl *	DoGetChannelTransferImpl (Ptr< PLC_Phy > rxPhy)
void	ComputeEquivalentImpedances (void)
virtual PLC_PhyCcaResult	ClearChannelAssessment (void)=0
Time	CalculateTxDuration (size_t nSymbols)
void	SwitchImpedance (State state)
Protected Attributes
Ptr< PLC_Outlet >	m_outlet
Ptr< SpectrumValue >	m_txPsd
Ptr< PLC_TxInterface >	m_txInterface
Ptr< PLC_RxInterface >	m_rxInterface
Ptr< PLC_Impedance >	m_shuntImpedance
Ptr< PLC_Impedance >	m_txImpedance
Ptr< PLC_Impedance >	m_rxImpedance
Ptr< PLC_Impedance >	m_eqRxImpedance
Ptr< PLC_Impedance >	m_eqTxImpedance
size_t	m_numSubcarriers
uint32_t	m_locked_txId
Ptr< Packet >	m_incoming_packet
std::map< uint32_t, Ptr< const SpectrumValue > >	m_rxNoisePsdMap
EventId	m_ccaEndEvent
PLC_PhyCcaConfirmCallback	m_ccaConfirmCallback
State	m_state
TracedCallback< Time, State >	m_PhyStateLogger
Static Protected Attributes
static Time	guard_interval_duration = Seconds(0)

---

Detailed Description

Base class for half duplex OFDM PHY devices.

Each half duplex PHY owns both a txInterface for transmitting and a rxInterface for receiving. Depending on the PHY's state the access impedance of the device may change, which influences channel transfer functions. The number of OFDM subbands to be used will be implicitly defined by the SpectrumModel of the transmit power spectral density.

TODO: masking subbands when not all of them are used (e.g. because of using pilot tones, bad snr)

The link layer performance between PHY devices is also depends on the Modulation and Coding Scheme and the error model used to abstract from real physical devices.

---

Member Enumeration Documentation

enum ns3::PLC_HalfDuplexOfdmPhy::State

Three states of the half duplex phy

---

Constructor & Destructor Documentation

ns3::PLC_HalfDuplexOfdmPhy::PLC_HalfDuplexOfdmPhy

(

)

Constructor

---

Member Function Documentation

void ns3::PLC_HalfDuplexOfdmPhy::CancelCca

(

void

)

Cancel previous CcaRequest

void ns3::PLC_HalfDuplexOfdmPhy::CcaRequest

(

void

)

Clear Channel Assessment request Typically called by MAC layer

void ns3::PLC_HalfDuplexOfdmPhy::ChangeState

(

State

newState

)

Change the PHY's state to newState

Parameters:

newState

void ns3::PLC_HalfDuplexOfdmPhy::CreateInterfaces	(	Ptr< PLC_Outlet >	outlet,
		Ptr< SpectrumValue >	txPsd,
		Ptr< PLC_Impedance >	rxImpedance = 0,
		Ptr< PLC_Impedance >	txImpedance = 0
	)

Creates rx and tx interface, respectively, on outlet

If an impedance has been assigned previously to outlet, the value will be treated as shunt impedance to the device. By initializing txPsd the SpectrumModel and the OFDM subbands are defined

Parameters:

outlet
txPsd

void ns3::PLC_HalfDuplexOfdmPhy::EndCca

(

void

)

Clear Channel Assessment listening end

Ptr<PLC_Outlet> ns3::PLC_HalfDuplexOfdmPhy::GetOutlet

(

void

)

[inline]

Returns:

Outlet the device is attached to

Ptr<PLC_Impedance> ns3::PLC_HalfDuplexOfdmPhy::GetRxImpedance

(

void

)

[inline]

Returns:

Access impedance used while receiving

Ptr< PLC_RxInterface > ns3::PLC_HalfDuplexOfdmPhy::GetRxInterface

(

void

)

Returns:

RX interface of the PHY

Ptr<PLC_Impedance> ns3::PLC_HalfDuplexOfdmPhy::GetShuntImpedance

(

void

)

[inline]

Returns:

Shunt impedance of the node the device is located on

PLC_HalfDuplexOfdmPhy::State ns3::PLC_HalfDuplexOfdmPhy::GetState

(

void

)

Get current state of the PHY

Returns:

Current state

Ptr<PLC_Impedance> ns3::PLC_HalfDuplexOfdmPhy::GetTxImpedance

(

void

)

[inline]

Returns:

Access impedance used while transmitting

Ptr< PLC_TxInterface > ns3::PLC_HalfDuplexOfdmPhy::GetTxInterface

(

void

)

Returns:

TX interface of the PHY

Ptr<const SpectrumValue> ns3::PLC_HalfDuplexOfdmPhy::GetTxPowerSpectralDensity

(

void

)

[inline]

Returns:

PSD used for transmission

bool ns3::PLC_HalfDuplexOfdmPhy::IsBusy

(

void

)

[inline]

Returns:

True if PHY is not IDLE

void ns3::PLC_HalfDuplexOfdmPhy::SetCcaConfirmCallback

(

PLC_PhyCcaConfirmCallback

c

)

Confirmation callback after Clear Channel Assessment request This is part of the interconnection between MAC and PHY layer

Parameters:

c

void ns3::PLC_HalfDuplexOfdmPhy::SetRxImpedance

(

Ptr< PLC_Impedance >

rxImpedance

)

Set access impedance for the device being in receive state

Parameters:

rxImpedance

void ns3::PLC_HalfDuplexOfdmPhy::SetShuntImpedance

(

Ptr< PLC_Impedance >

shuntImpedance

)

Set shunt impedance to the node the device is located on

Parameters:

shuntImpedance

void ns3::PLC_HalfDuplexOfdmPhy::SetTxImpedance

(

Ptr< PLC_Impedance >

txImpedance

)

Set access impedance for the device being in transmit state

Parameters:

rxImpedance

void ns3::PLC_HalfDuplexOfdmPhy::SetTxPowerSpectralDensity

(

Ptr< SpectrumValue >

txPsd

)

Set the power spectral density to be used for the outgoing waveform

Parameters:

txPsd

void ns3::PLC_HalfDuplexOfdmPhy::SwitchImpedance

(

State

state

)

[protected]

Switch access impedance of the device according to state

Warning:

will not change the state of the PHY, but only the impedance value; for a state change call ChangeState ()

Parameters:

state

---

The documentation for this class was generated from the following files:

• model/plc-phy.h
• model/plc-phy.cc
