ns3::PLC_Phy Class Reference

#include <plc-phy.h>

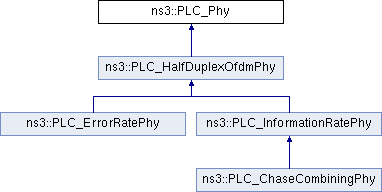

Inheritance diagram for ns3::PLC_Phy:

List of all members.

Public Member Functions
bool	StartTx (Ptr< Packet > p)
void	StartRx (Ptr< const Packet > p, uint32_t txId, Ptr< SpectrumValue > &rxPsd, Time duration, Ptr< const PLC_TrxMetaInfo > metaInfo)
void	RxPsdChanged (uint32_t txId, Ptr< SpectrumValue > newRxPsd)
Ptr< PLC_Node >	GetNode (void)
void	SetDataFrameSentCallback (PLC_PhyDataFrameSentCallback c)
void	SetReceiveSuccessCallback (PhyRxEndOkCallback c)
void	SetReceiveErrorCallback (PhyRxEndErrorCallback c)
PLC_ChannelTransferImpl *	GetChannelTransferImpl (Ptr< PLC_Phy > rxPhy)
Ptr< PLC_TransferBase >	GetChannelTransferVector (Ptr< PLC_Phy > rxPhy)
void	NotifyDataFrameSent (void)
Static Public Member Functions
static TypeId	GetTypeId (void)
static void	SetSymbolDuration (Time tSymbol)
	Set the global symbol duration value for all PHYs.
static Time	GetSymbolDuration (void)
Protected Member Functions
virtual void	DoStart (void)
virtual void	DoDispose (void)
virtual bool	DoStartTx (Ptr< Packet > p)=0
virtual void	DoStartRx (Ptr< const Packet > p, uint32_t txId, Ptr< SpectrumValue > &rxPsd, Time duration, Ptr< const PLC_TrxMetaInfo > metaInfo)=0
virtual void	DoUpdateRxPsd (uint32_t txId, Ptr< SpectrumValue > newRxPsd)=0
virtual PLC_ChannelTransferImpl *	DoGetChannelTransferImpl (Ptr< PLC_Phy > rxPhy)=0
Protected Attributes
Ptr< PLC_Node >	m_node
PLC_PhyDataFrameSentCallback	m_data_frame_sent_callback
PhyRxEndOkCallback	m_receive_success_cb
PhyRxEndErrorCallback	m_receive_error_cb
Static Protected Attributes
static Time	symbol_duration = MicroSeconds(2240)

---

Detailed Description

Abstract base class for PLC PHYs

---

Member Function Documentation

PLC_ChannelTransferImpl * ns3::PLC_Phy::GetChannelTransferImpl

(

Ptr< PLC_Phy >

rxPhy

)

Returns:

Channel transfer implementation to rxPhy

Ptr< PLC_TransferBase > ns3::PLC_Phy::GetChannelTransferVector

(

Ptr< PLC_Phy >

rxPhy

)

Returns:

Channel transfer vector to rxPhy

Ptr<PLC_Node> ns3::PLC_Phy::GetNode

(

void

)

[inline]

Returns:

PLC_Node the PHY is attached to

Time ns3::PLC_Phy::GetSymbolDuration

(

void

)

[static]

Returns:

The global modulation symbol duration

void ns3::PLC_Phy::NotifyDataFrameSent

(

void

)

Notify subclasses that data frame has been sent

void ns3::PLC_Phy::RxPsdChanged	(	uint32_t	txId,
		Ptr< SpectrumValue >	newRxPsd
	)

Notify the PLC_Phy instance that the Power Spectral Density of the incoming waveform transmitted by interface txId has changed to newRxPsd

Parameters:

txId
newRxPsd

void ns3::PLC_Phy::SetDataFrameSentCallback

(

PLC_PhyDataFrameSentCallback

c

)

Callback after a successful frame transmission

Parameters:

c

void ns3::PLC_Phy::SetReceiveErrorCallback

(

PhyRxEndErrorCallback

c

)

Callback for a failed datagram/message reception

Parameters:

c

void ns3::PLC_Phy::SetReceiveSuccessCallback

(

PhyRxEndOkCallback

c

)

Callback for a successful datagram/message reception

Parameters:

c

void ns3::PLC_Phy::SetSymbolDuration

(

Time

tSymbol

)

[static]

Set the global symbol duration value for all PHYs.

This method should not be called directly, but by calling PLC_TimeModel::SetPeriodicityModel, as the simulations time resolution will be adapted to symbol granularity

Parameters:

tSymbol

Duration of a modulation symbol

void ns3::PLC_Phy::StartRx	(	Ptr< const Packet >	p,
		uint32_t	txId,
		Ptr< SpectrumValue > &	rxPsd,
		Time	duration,
		Ptr< const PLC_TrxMetaInfo >	metaInfo
	)

Notify the PLC_Phy instance of an incoming waveform

Parameters:

p	the Packet associated with the incoming waveform
rxPsd	the Power Spectral Density of the incoming
duration	the duration of the incoming waveform
metaInfo	meta information for link performance emulation

bool ns3::PLC_Phy::StartTx

(

Ptr< Packet >

p

)

Start transmitting a packet

Parameters:

p	Packet
txPsd	Power Spectral Density of the waveform to be transmitted
duration	Time the packet needs for transmission

Returns:

True if PHY started transmission

---

The documentation for this class was generated from the following files:

• model/plc-phy.h
• model/plc-phy.cc
