SRC/print_netlist.c File Reference

#include <assert.h>
#include <stdio.h>
#include <string.h>
#include "util.h"
#include "vpr_types.h"
#include "globals.h"
#include "print_netlist.h"

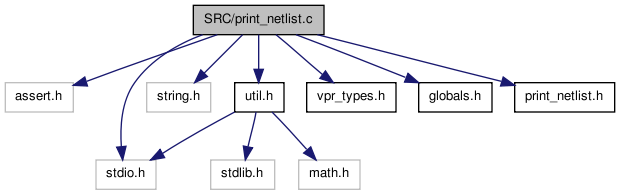

Include dependency graph for print_netlist.c:

Go to the source code of this file.

Functions
static void	print_pinnum (FILE *fp, int pinnum)
void	print_netlist (char *foutput, char *net_file, t_subblock_data subblock_data)

---

Function Documentation

void print_netlist	(	char *	foutput,
		char *	net_file,
		t_subblock_data	subblock_data
	)

Definition at line 19 of file print_netlist.c.

{

/* Prints out the netlist related data structures into the file    *
 * fname.                                                          */

    int i, j, ipin, max_pin;
    int num_global_nets;
    int num_p_inputs, num_p_outputs;
    FILE *fp;
    t_subblock **subblock_inf;
    int *num_subblocks_per_block;

    num_global_nets = 0;
    num_p_inputs = 0;
    num_p_outputs = 0;

    /* Count number of global nets */
    for(i = 0; i < num_nets; i++)
        {
            if(!net[i].is_global)
                {
                    num_global_nets++;
                }
        }

    /* Count I/O input and output pads */
    for(i = 0; i < num_blocks; i++)
        {
            if(block[i].type == IO_TYPE)
                {
                    for(j = 0; j < IO_TYPE->num_pins; j++)
                        {
                            if(block[i].nets[j] != OPEN)
                                {
                                    if(IO_TYPE->
                                       class_inf[IO_TYPE->pin_class[j]].
                                       type == DRIVER)
                                        {
                                            num_p_inputs++;
                                        }
                                    else
                                        {
                                            assert(IO_TYPE->
                                                   class_inf[IO_TYPE->
                                                             pin_class[j]].
                                                   type == RECEIVER);
                                            num_p_outputs++;
                                        }
                                }
                        }
                }
        }


    fp = my_fopen(foutput, "w");

    fprintf(fp, "Input netlist file: %s\n", net_file);
    fprintf(fp, "num_p_inputs: %d, num_p_outputs: %d, num_clbs: %d\n",
            num_p_inputs, num_p_outputs, num_blocks);
    fprintf(fp, "num_blocks: %d, num_nets: %d, num_globals: %d\n",
            num_blocks, num_nets, num_global_nets);
    fprintf(fp, "\nNet\tName\t\t#Pins\tDriver\t\tRecvs. (block, pin)\n");

    for(i = 0; i < num_nets; i++)
        {
            fprintf(fp, "\n%d\t%s\t", i, net[i].name);
            if(strlen(net[i].name) < 8)
                fprintf(fp, "\t");      /* Name field is 16 chars wide */
            fprintf(fp, "%d", net[i].num_sinks + 1);
            for(j = 0; j <= net[i].num_sinks; j++)
                fprintf(fp, "\t(%4d,%4d)", net[i].node_block[j],
                        net[i].node_block_pin[j]);
        }

    fprintf(fp, "\nBlock\tName\t\tType\tPin Connections\n\n");

    for(i = 0; i < num_blocks; i++)
        {
            fprintf(fp, "\n%d\t%s\t", i, block[i].name);
            if(strlen(block[i].name) < 8)
                fprintf(fp, "\t");      /* Name field is 16 chars wide */
            fprintf(fp, "%s", block[i].type->name);

            max_pin = block[i].type->num_pins;

            for(j = 0; j < max_pin; j++)
                print_pinnum(fp, block[i].nets[j]);
        }

    fprintf(fp, "\n");

/* Now print out subblock info. */

    subblock_inf = subblock_data.subblock_inf;
    num_subblocks_per_block = subblock_data.num_subblocks_per_block;


    fprintf(fp, "\n\nSubblock List:\n\n");

    for(i = 0; i < num_blocks; i++)
        {
            fprintf(fp, "\nBlock: %d (%s)\tNum_subblocks: %d\n", i,
                    block[i].name, num_subblocks_per_block[i]);

            /* Print header. */

            fprintf(fp, "Index\tName\t\tInputs");
            for(j = 0; j < block[i].type->max_subblock_inputs; j++)
                fprintf(fp, "\t");
            fprintf(fp, "Outputs");
            for(j = 0; j < block[i].type->max_subblock_outputs; j++)
                fprintf(fp, "\t");
            fprintf(fp, "Clock\n");

            /* Print subblock info for block i. */

            for(j = 0; j < num_subblocks_per_block[i]; j++)
                {
                    fprintf(fp, "%d\t%s", j, subblock_inf[i][j].name);
                    if(strlen(subblock_inf[i][j].name) < 8)
                        fprintf(fp, "\t");      /* Name field is 16 characters */
                    for(ipin = 0; ipin < block[i].type->max_subblock_inputs;
                        ipin++)
                        print_pinnum(fp, subblock_inf[i][j].inputs[ipin]);
                    for(ipin = 0; ipin < block[i].type->max_subblock_outputs;
                        ipin++)
                        print_pinnum(fp, subblock_inf[i][j].outputs[ipin]);
                    print_pinnum(fp, subblock_inf[i][j].clock);
                    fprintf(fp, "\n");
                }
        }

    fclose(fp);
}

Here is the call graph for this function:

static void print_pinnum	(	FILE *	fp,
		int	pinnum
	)			[static]

Definition at line 159 of file print_netlist.c.

{

/* This routine prints out either OPEN or the pin number, to file fp. */

    if(pinnum == OPEN)
        fprintf(fp, "\tOPEN");
    else
        fprintf(fp, "\t%d", pinnum);
}

Here is the caller graph for this function:
