SRC/ShowSetup.c File Reference

#include <assert.h>
#include "util.h"
#include "vpr_types.h"
#include "globals.h"
#include "OptionTokens.h"
#include "ReadOptions.h"
#include "xml_arch.h"
#include "SetupVPR.h"

Include dependency graph for ShowSetup.c:

Go to the source code of this file.

Functions
static void	ShowPlacerOpts (IN t_options Options, IN struct s_placer_opts PlacerOpts, IN struct s_annealing_sched AnnealSched)
static void	ShowOperation (IN enum e_operation Operation)
static void	ShowRouterOpts (IN struct s_router_opts RouterOpts)
static void	ShowAnnealSched (IN struct s_annealing_sched AnnealSched)
static void	ShowRoutingArch (IN struct s_det_routing_arch RoutingArch)
void	ShowSetup (IN t_options Options, IN t_arch Arch, IN boolean TimingEnabled, IN enum e_operation Operation, IN struct s_placer_opts PlacerOpts, IN struct s_annealing_sched AnnealSched, IN struct s_router_opts RouterOpts, IN struct s_det_routing_arch RoutingArch, IN t_segment_inf *Segments, IN t_timing_inf Timing, IN t_subblock_data Subblocks)

Function Documentation

static void ShowAnnealSched ( IN struct s_annealing_sched AnnealSched ) [static]

Definition at line 143 of file ShowSetup.c.

00144 {
00145
00146     printf("AnnealSched.type:  ");
00147     switch (AnnealSched.type)
00148         {
00149         case AUTO_SCHED:
00150             printf("AUTO_SCHED\n");
00151             break;
00152         case USER_SCHED:
00153             printf("USER_SCHED\n");
00154             break;
00155         default:
00156             printf("<Unknown>\n");
00157             exit(1);
00158         }
00159
00160     printf("AnnealSched.inner_num:  %f\n", AnnealSched.inner_num);
00161
00162     if(USER_SCHED == AnnealSched.type)
00163         {
00164             printf("AnnealSched.init_t:  %f\n", AnnealSched.init_t);
00165             printf("AnnealSched.alpha_t:  %f\n", AnnealSched.alpha_t);
00166             printf("AnnealSched.exit_t:  %f\n", AnnealSched.exit_t);
00167         }
00168 }

Here is the caller graph for this function:

static void ShowOperation ( IN enum e_operation Operation ) [static]

Definition at line 331 of file ShowSetup.c.

00332 {
00333     printf("Operation:  ");
00334     switch (Operation)
00335         {
00336         case PLACE_AND_ROUTE:
00337             printf("PLACE_AND_ROUTE\n");
00338             break;
00339         case PLACE_ONLY:
00340             printf("PLACE_ONLY\n");
00341             break;
00342         case ROUTE_ONLY:
00343             printf("ROUTE_ONLY\n");
00344             break;
00345         case TIMING_ANALYSIS_ONLY:
00346             printf("TIMING_ANALYSIS_ONLY\n");
00347             break;
00348         default:
00349             printf("<Unknown>\n");
00350             exit(1);
00351         }
00352     printf("\n");
00353 }

Here is the caller graph for this function:

static void ShowPlacerOpts	(	IN t_options	Options,
		IN struct s_placer_opts	PlacerOpts,
		IN struct s_annealing_sched	AnnealSched
	)			`[static]`

Definition at line 357 of file ShowSetup.c.

00361 00362 00363 00364         { 00365 00366 00367 00368 00369 00370 00371 00372 00373 00374 00375 00376 00377         } 00378 00379 00380         { 00381 00382 00383 00384 00385 00386 00387 00388 00389 00390 00391 00392 00393 00394 00395 00396 00397 00398 00399 00400 00401 00402 00403 00404 00405 00406 00407 00408 00409 00410 00411 00412 00413 00414 00415 00416 00417 00418 00419 00420 00421 00422 00423 00424 00425 00426 00427 00428 00429 00430 00431 00432 00433 00434 00435 00436 00437 00438 00439 00440 00441 00442 00443 00444 00445 00446 00447 00448 00449 00450 00451 00452 00453 00454 00455 00456 00457 00458 00459 00460 00461 00462 00463 00464         } 00465 00466 00467 }

class="fragment">00360 { printf("PlacerOpts.place_freq: "); switch (PlacerOpts.place_freq) case PLACE_ONCE: printf("PLACE_ONCE\n"); break; case PLACE_ALWAYS: printf("PLACE_ALWAYS\n"); break; case PLACE_NEVER: printf("PLACE_NEVER\n"); break; default: printf("<Unknown>\n"); exit(1); if((PLACE_ONCE == PlacerOpts.place_freq) || (PLACE_ALWAYS == PlacerOpts.place_freq)) printf("PlacerOpts.place_algorithm: "); switch (PlacerOpts.place_algorithm) { case BOUNDING_BOX_PLACE: printf("BOUNDING_BOX_PLACE\n"); break; case NET_TIMING_DRIVEN_PLACE: printf("NET_TIMING_DRIVEN_PLACE\n"); break; case PATH_TIMING_DRIVEN_PLACE: printf("PATH_TIMING_DRIVEN_PLACE\n"); break; default: printf("<Unknown>\n"); exit(1); } printf("PlacerOpts.place_cost_type: "); switch (PlacerOpts.place_cost_type) { case LINEAR_CONG: printf("LINEAR_CONG\n"); break; case NONLINEAR_CONG: printf("NONLINEAR_CONG\n"); break; default: printf("<Unknown>\n"); exit(1); } printf("PlacerOpts.pad_loc_type: "); switch (PlacerOpts.pad_loc_type) { case FREE: printf("FREE\n"); break; case RANDOM: printf("RANDOM\n"); break; case USER: printf("USER '%s'\n", PlacerOpts.pad_loc_file); break; default: printf("<Unknown>\n"); exit(1); } printf("PlacerOpts.place_cost_exp: %f\n", PlacerOpts.place_cost_exp); if((LINEAR_CONG == PlacerOpts.place_cost_type) || (Options.Count[OT_PLACE_CHAN_WIDTH])) { printf("PlacerOpts.place_chan_width: %d\n", PlacerOpts.place_chan_width); } if(NONLINEAR_CONG == PlacerOpts.place_cost_type) { printf("PlacerOpts.num_regions: %d\n", PlacerOpts.num_regions); } if((NET_TIMING_DRIVEN_PLACE == PlacerOpts.place_algorithm) || (PATH_TIMING_DRIVEN_PLACE == PlacerOpts.place_algorithm)) { printf("PlacerOpts.inner_loop_recompute_divider: %d\n", PlacerOpts.inner_loop_recompute_divider); printf("PlacerOpts.recompute_crit_iter: %d\n", PlacerOpts.recompute_crit_iter); printf("PlacerOpts.timing_tradeoff: %f\n", PlacerOpts.timing_tradeoff); printf("PlacerOpts.td_place_exp_first: %f\n", PlacerOpts.td_place_exp_first); printf("PlacerOpts.td_place_exp_last: %f\n", PlacerOpts.td_place_exp_last); } printf("PlaceOpts.seed: %d\n", PlacerOpts.seed); ShowAnnealSched(AnnealSched); printf("\n");

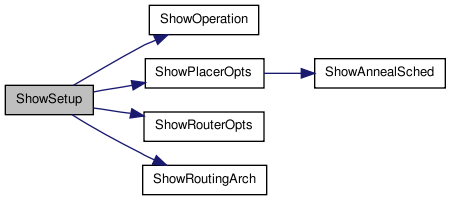

Here is the call graph for this function:

Here is the caller graph for this function:

static void ShowRouterOpts ( IN struct s_router_opts RouterOpts ) [static]

Definition at line 172 of file ShowSetup.c.

00173 {
00174
00175     printf("RouterOpts.route_type:  ");
00176     switch (RouterOpts.route_type)
00177         {
00178         case GLOBAL:
00179             printf("GLOBAL\n");
00180             break;
00181         case DETAILED:
00182             printf("DETAILED\n");
00183             break;
00184         default:
00185             printf("<Unknown>\n");
00186             exit(1);
00187         }
00188
00189     if(DETAILED == RouterOpts.route_type)
00190         {
00191             printf("RouterOpts.router_algorithm:  ");
00192             switch (RouterOpts.router_algorithm)
00193                 {
00194                 case BREADTH_FIRST:
00195                     printf("BREADTH_FIRST\n");
00196                     break;
00197                 case TIMING_DRIVEN:
00198                     printf("TIMING_DRIVEN\n");
00199                     break;
00200                 case DIRECTED_SEARCH:
00201                     printf("DIRECTED_SEARCH\n");
00202                     break;
00203                 default:
00204                     printf("<Unknown>\n");
00205                     exit(1);
00206                 }
00207
00208             printf("RouterOpts.base_cost_type:  ");
00209             switch (RouterOpts.base_cost_type)
00210                 {
00211                 case INTRINSIC_DELAY:
00212                     printf("INTRINSIC_DELAY\n");
00213                     break;
00214                 case DELAY_NORMALIZED:
00215                     printf("DELAY_NORMALIZED\n");
00216                     break;
00217                 case DEMAND_ONLY:
00218                     printf("DEMAND_ONLY\n");
00219                     break;
00220                 default:
00221                     printf("<Unknown>\n");
00222                     exit(1);
00223                 }
00224
00225             printf("RouterOpts.fixed_channel_width:  ");
00226             if(NO_FIXED_CHANNEL_WIDTH == RouterOpts.fixed_channel_width)
00227                 {
00228                     printf("NO_FIXED_CHANNEL_WIDTH\n");
00229                 }
00230             else
00231                 {
00232                     printf("%d\n", RouterOpts.fixed_channel_width);
00233                 }
00234
00235             printf("RouterOpts.acc_fac:  %f\n", RouterOpts.acc_fac);
00236             printf("RouterOpts.bb_factor:  %d\n", RouterOpts.bb_factor);
00237             printf("RouterOpts.bend_cost:  %f\n", RouterOpts.bend_cost);
00238             printf("RouterOpts.first_iter_pres_fac:  %f\n",
00239                    RouterOpts.first_iter_pres_fac);
00240             printf("RouterOpts.initial_pres_fac:  %f\n",
00241                    RouterOpts.initial_pres_fac);
00242             printf("RouterOpts.pres_fac_mult:  %f\n",
00243                    RouterOpts.pres_fac_mult);
00244             printf("RouterOpts.max_router_iterations:  %d\n",
00245                    RouterOpts.max_router_iterations);
00246
00247             if(TIMING_DRIVEN == RouterOpts.router_algorithm)
00248                 {
00249                     printf("RouterOpts.astar_fac:  %f\n",
00250                            RouterOpts.astar_fac);
00251                     printf("RouterOpts.criticality_exp:  %f\n",
00252                            RouterOpts.criticality_exp);
00253                     printf("RouterOpts.max_criticality:  %f\n",
00254                            RouterOpts.max_criticality);
00255                 }
00256         }
00257     else
00258         {
00259             assert(GLOBAL == RouterOpts.route_type);
00260
00261                 printf("RouterOpts.router_algorithm:  ");
00262             switch (RouterOpts.router_algorithm)
00263                 {
00264                 case BREADTH_FIRST:
00265                     printf("BREADTH_FIRST\n");
00266                     break;
00267                 case TIMING_DRIVEN:
00268                     printf("TIMING_DRIVEN\n");
00269                     break;
00270                 case DIRECTED_SEARCH:
00271                     printf("DIRECTED_SEARCH\n");
00272                     break;
00273                 default:
00274                     printf("<Unknown>\n");
00275                     exit(1);
00276                 }
00277
00278             printf("RouterOpts.base_cost_type:  ");
00279             switch (RouterOpts.base_cost_type)
00280                 {
00281                 case INTRINSIC_DELAY:
00282                     printf("INTRINSIC_DELAY\n");
00283                     break;
00284                 case DELAY_NORMALIZED:
00285                     printf("DELAY_NORMALIZED\n");
00286                     break;
00287                 case DEMAND_ONLY:
00288                     printf("DEMAND_ONLY\n");
00289                     break;
00290                 default:
00291                     printf("<Unknown>\n");
00292                     exit(1);
00293                 }
00294
00295             printf("RouterOpts.fixed_channel_width:  ");
00296             if(NO_FIXED_CHANNEL_WIDTH == RouterOpts.fixed_channel_width)
00297                 {
00298                     printf("NO_FIXED_CHANNEL_WIDTH\n");
00299                 }
00300             else
00301                 {
00302                     printf("%d\n", RouterOpts.fixed_channel_width);
00303                 }
00304
00305             printf("RouterOpts.acc_fac:  %f\n", RouterOpts.acc_fac);
00306             printf("RouterOpts.bb_factor:  %d\n", RouterOpts.bb_factor);
00307             printf("RouterOpts.bend_cost:  %f\n", RouterOpts.bend_cost);
00308             printf("RouterOpts.first_iter_pres_fac:  %f\n",
00309                    RouterOpts.first_iter_pres_fac);
00310             printf("RouterOpts.initial_pres_fac:  %f\n",
00311                    RouterOpts.initial_pres_fac);
00312             printf("RouterOpts.pres_fac_mult:  %f\n",
00313                    RouterOpts.pres_fac_mult);
00314             printf("RouterOpts.max_router_iterations:  %d\n",
00315                 RouterOpts.max_router_iterations);
00316                 if(TIMING_DRIVEN == RouterOpts.router_algorithm)
00317                 {
00318                     printf("RouterOpts.astar_fac:  %f\n",
00319                            RouterOpts.astar_fac);
00320                     printf("RouterOpts.criticality_exp:  %f\n",
00321                            RouterOpts.criticality_exp);
00322                     printf("RouterOpts.max_criticality:  %f\n",
00323                            RouterOpts.max_criticality);
00324                 }
00325         }
00326     printf("\n");
00327 }

Here is the caller graph for this function:

static void ShowRoutingArch ( IN struct s_det_routing_arch RoutingArch ) [static]

Definition at line 99 of file ShowSetup.c.

00100 {
00101
00102     printf("RoutingArch.directionality:  ");
00103     switch (RoutingArch.directionality)
00104         {
00105         case BI_DIRECTIONAL:
00106             printf("BI_DIRECTIONAL\n");
00107             break;
00108         case UNI_DIRECTIONAL:
00109             printf("UNI_DIRECTIONAL\n");
00110             break;
00111         default:
00112             printf("<Unknown>\n");
00113             exit(1);
00114         }
00115
00116     printf("RoutingArch.switch_block_type:  ");
00117     switch (RoutingArch.switch_block_type)
00118         {
00119         case SUBSET:
00120             printf("SUBSET\n");
00121             break;
00122         case WILTON:
00123             printf("WILTON\n");
00124             break;
00125         case UNIVERSAL:
00126             printf("UNIVERSAL\n");
00127             break;
00128         case FULL:
00129             printf("FULL\n");
00130             break;
00131         default:
00132             printf("<Unknown>\n");
00133             exit(1);
00134         }
00135
00136     printf("RoutingArch.Fs:  %d\n", RoutingArch.Fs);
00137
00138     printf("\n");
00139 }

Here is the caller graph for this function:

void ShowSetup	(	IN t_options	Options,
		IN t_arch	Arch,
		IN boolean	TimingEnabled,
		IN enum e_operation	Operation,
		IN struct s_placer_opts	PlacerOpts,
		IN struct s_annealing_sched	AnnealSched,
		IN struct s_router_opts	RouterOpts,
		IN struct s_det_routing_arch	RoutingArch,
		IN t_segment_inf *	Segments,
		IN t_timing_inf	Timing,
		IN t_subblock_data	Subblocks
	)

Definition at line 24 of file ShowSetup.c.

00035 {
00036     int i, j, num_p_inputs, num_p_outputs;
00037
00038     printf("Timing analysis: %s\n", (TimingEnabled ? "ON" : "OFF"));
00039     printf("\n");
00040
00041     ShowOperation(Operation);
00042     ShowPlacerOpts(Options, PlacerOpts, AnnealSched);
00043     if((ROUTE_ONLY == Operation) || (PLACE_AND_ROUTE == Operation))
00044         {
00045             ShowRouterOpts(RouterOpts);
00046         }
00047     else
00048         {
00049             printf("Router: DISABLED\n\n");
00050         }
00051
00052     if(DETAILED == RouterOpts.route_type)
00053         ShowRoutingArch(RoutingArch);
00054
00055     printf("The circuit will be mapped into a %d x %d array of clbs.\n",
00056            nx, ny);
00057     printf("\n");
00058     printf("Netlist num_nets:  %d\n", num_nets);
00059     printf("Netlist num_blocks:  %d\n", num_blocks);
00060
00061     /* Count I/O input and output pads */
00062     num_p_inputs = 0;
00063     num_p_outputs = 0;
00064     for(i = 0; i < num_blocks; i++)
00065         {
00066             if(block[i].type == IO_TYPE)
00067                 {
00068                     for(j = 0; j < IO_TYPE->num_pins; j++)
00069                         {
00070                             if(block[i].nets[j] != OPEN)
00071                                 {
00072                                     if(IO_TYPE->
00073                                        class_inf[IO_TYPE->pin_class[j]].
00074                                        type == DRIVER)
00075                                         {
00076                                             num_p_inputs++;
00077                                         }
00078                                     else
00079                                         {
00080                                             assert(IO_TYPE->
00081                                                    class_inf[IO_TYPE->
00082                                                              pin_class[j]].
00083                                                    type == RECEIVER);
00084                                             num_p_outputs++;
00085                                         }
00086                                 }
00087                         }
00088                 }
00089         }
00090
00091 /* Print out each block separately instead */
00092     printf("Netlist inputs pins:  %d\n", num_p_inputs);
00093     printf("Netlist output pins:  %d\n", num_p_outputs);
00094     printf("\n");
00095 }

Here is the call graph for this function:

Here is the caller graph for this function:

SRC/ShowSetup.c File Reference

Functions

Function Documentation
