SRC/mst.h File Reference

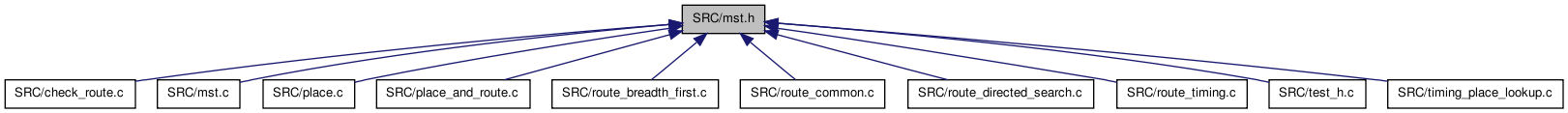

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	s_mst_edge
Typedefs
typedef struct s_mst_edge	t_mst_edge
Functions
t_mst_edge *	get_mst_of_net (int inet)

---

Typedef Documentation

typedef struct s_mst_edge t_mst_edge

---

Function Documentation

t_mst_edge* get_mst_of_net

(

int

inet

)

Definition at line 15 of file mst.c.

{
    int i, ipin, node_dist, node_in_mst, num_pins_on_net, num_edges;
    int nearest_node, nearest_node_dist, nearest_node_in_mst;
    t_mst_edge *min_spantree;
    boolean *in_mst;

/* given the net number, find and return its minimum spanning tree */

    num_pins_on_net = (net[inet].num_sinks + 1);
    if(num_pins_on_net > USHRT_MAX)
        {
            printf("Error: num_pins_on_net (%d) > USHRT_MAX(%u)\n",
                   num_pins_on_net, USHRT_MAX);
            exit(1);
        }

    /* minimum spanning tree represented by a set of edges */
    min_spantree =
        (t_mst_edge *) my_malloc(sizeof(t_mst_edge) * (num_pins_on_net - 1));
    in_mst = (boolean *) my_malloc(sizeof(boolean) * (num_pins_on_net));

    /* identifier for minimum spanning tree by nodes */
    in_mst[0] = TRUE;
    for(ipin = 1; ipin < num_pins_on_net; ipin++)
        in_mst[ipin] = FALSE;

    num_edges = 0;

    /* need to add num_pins - 1 number of edges */
    for(i = 1; i < num_pins_on_net; i++)
        {
            /* look at remaining num_pins - 1 pins, and add them to the mst one at a time */

            nearest_node = -1;
            nearest_node_dist = -1;
            nearest_node_in_mst = -1;

            for(ipin = 1; ipin < num_pins_on_net; ipin++)
                {
                    /* look at each pin not in the mst, find the nearest to the current partial mst */
                    if(!in_mst[ipin])
                        {
                            node_dist =
                                min_dist_from_mst(ipin, inet, in_mst,
                                                  &node_in_mst);

                            if(nearest_node == -1)
                                {
                                    nearest_node = ipin;
                                    nearest_node_dist = node_dist;
                                    nearest_node_in_mst = node_in_mst;
                                }
                            else
                                {
                                    /* Does 0 make sense?  Currently allow.  0 means the net loops back to the same block */
                                    if(nearest_node_dist >= node_dist)
                                        {
                                            nearest_node = ipin;
                                            nearest_node_dist = node_dist;
                                            nearest_node_in_mst = node_in_mst;
                                        }

                                    if(nearest_node_dist < 0)
                                        {
                                            printf
                                                ("Error: distance is negative\n");
                                            exit(1);
                                        }
                                }
                        }
                }

            /* found the nearest to the current partial mst, so add an edge to mst */
            min_spantree[num_edges].from_node = nearest_node_in_mst;

            min_spantree[num_edges].to_node = nearest_node;

            num_edges++;

            in_mst[nearest_node] = TRUE;
        }

    free(in_mst);
    return min_spantree;
}

Here is the call graph for this function:

Here is the caller graph for this function:
