ns3::PLC_ThreeCoreConcentricCable Class Reference

#include <plc-cable.h>

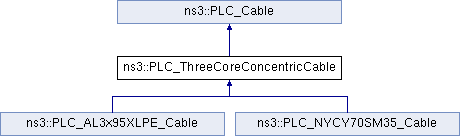

Inheritance diagram for ns3::PLC_ThreeCoreConcentricCable:

List of all members.

Public Member Functions
virtual void	Calculate ()=0
	PLC_ThreeCoreConcentricCable (double eps_r, double kappa, double r_a, double r_i, double tand, Ptr< const SpectrumModel > sm)
	PLC_ThreeCoreConcentricCable (PLC_FreqSelectiveRealValue eps_r, double kappa, double r_a, double r_i, PLC_FreqSelectiveRealValue tand, Ptr< const SpectrumModel > sm)
void	Calculate (double eps_r, double kappa, double r_a, double r_i, double tand, Ptr< const SpectrumModel > sm)
void	Calculate (PLC_FreqSelectiveRealValue eps_r, double kappa, double r_a, double r_i, PLC_FreqSelectiveRealValue tand, Ptr< const SpectrumModel > sm)
Static Public Member Functions
static TypeId	GetTypeId (void)

---

Detailed Description

Coaxial model for the three core concentric cable from "Powerline Communications" by K. Dostert

---

Constructor & Destructor Documentation

ns3::PLC_ThreeCoreConcentricCable::PLC_ThreeCoreConcentricCable	(	double	eps_r,
		double	kappa,
		double	r_a,
		double	r_i,
		double	tand,
		Ptr< const SpectrumModel >	sm
	)

Parameters:

eps_r	dielectric constant
kappa	specific conductivity
r_a	Cable radius
r_i	Conductor sector radius
tand	Tangents loss angle
sm	Spectrum model

---

The documentation for this class was generated from the following files:

• model/plc-cable.h
• model/plc-cable.cc
