#include <plc-cable.h>

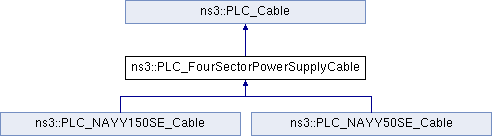

Inheritance diagram for ns3::PLC_FourSectorPowerSupplyCable:

Public Member Functions
virtual void	Calculate ()=0
	PLC_FourSectorPowerSupplyCable (double radius, double conductor_distance, double tan_loss_angle, double epsilon_r, double rho, Ptr< const SpectrumModel > sm)
	PLC_FourSectorPowerSupplyCable (double radius, double conductor_distance, PLC_FreqSelectiveRealValue tan_loss_angle, PLC_FreqSelectiveRealValue epsilon_r, double rho, Ptr< const SpectrumModel > sm)
void	Calculate (double radius, double conductor_distance, double tan_loss_angle, double epsilon_r, double rho, Ptr< const SpectrumModel > sm)
void	Calculate (double radius, double conductor_distance, PLC_FreqSelectiveRealValue tan_loss_angle, PLC_FreqSelectiveRealValue epsilon_r, double rho, Ptr< const SpectrumModel > sm)
Static Public Member Functions
static TypeId	GetTypeId (void)

Detailed Description

Model for a four sector cable

Constructor & Destructor Documentation

ns3::PLC_FourSectorPowerSupplyCable::PLC_FourSectorPowerSupplyCable	(	double	radius,
		double	conductor_distance,
		double	tan_loss_angle,
		double	epsilon_r,
		double	rho,
		Ptr< const SpectrumModel >	sm
	)

Parameters:

radius	Radius of the cable
conductor_distance	Distance between conductors
tan_loss_angle	Tangents loss angle
epsilon_r	Dielectric constant
rho
sm

The documentation for this class was generated from the following files:
