Open-source image registration for MRI-TRUS fusion guided prostate interventions
International Journal of Computer Assisted Radiology and Surgery (Accepted),
2015.
Biomechanical Surface-based Registration

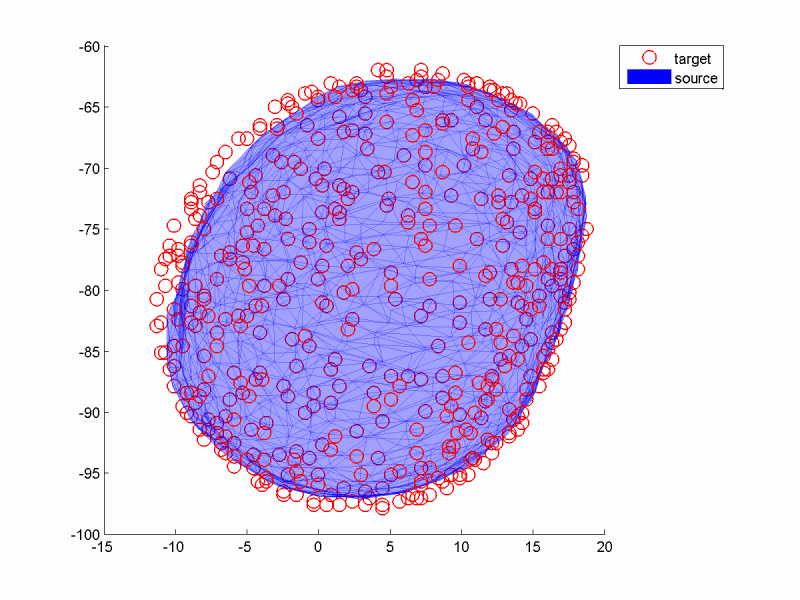

Surface-based registration for prostate interventions.
Abstract
Purpose: We propose two software tools for non-rigid registration of MRI and transrectal ultrasound (TRUS) images of the prostate. Our ultimate goal is to develop an open-source solution to support MRI-TRUS fusion image guidance of prostate interventions, such as targeted biopsy for prostate cancer detection and focal therapy. It is widely hypothesized that image registration is an essential component in such systems. Methods: The two non-rigid registration methods are: 1) a deformable registration of the prostate segmentation distance maps with B-spline regularization, and 2) a finite-element-based deformable registration of the segmentation surfaces in presence of partial data. We evaluate the methods retrospectively using clinical patient image data collected during standard clinical procedures. Computation time and Target Registration Error (TRE) calculated at the expert-identified anatomical landmarks were used as quantitative measures for the evaluation. Results: The presented image registration tools were capable of completing deformable registration computation within 5 minutes. Average TRE was approximately 3 mm for both methods, which is comparable with the slice thickness in our MRI data. Both tools are available under non-restrictive opensource license. Conclusions: We release open-source tools that may be used for registration during MRI-TRUS guided prostate interventions. Our tools implement novel registration approaches and produce acceptable registration results. We believe these tools will lower the barriers in development and deployment of interventional research solutions, and facilitate comparison with similar tools.Papers
Siavash Khallaghi Last modified: March 17, 2015
